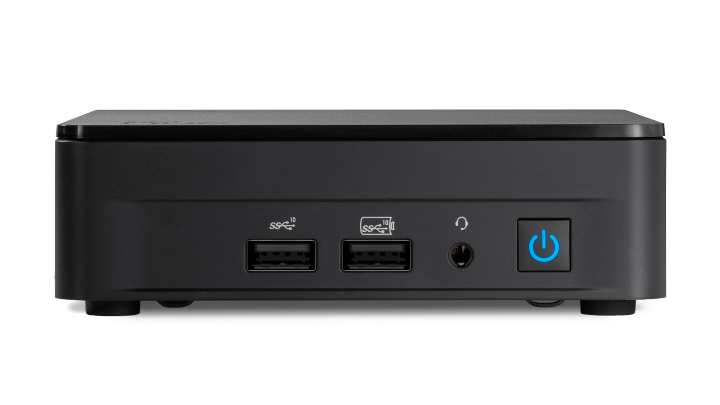

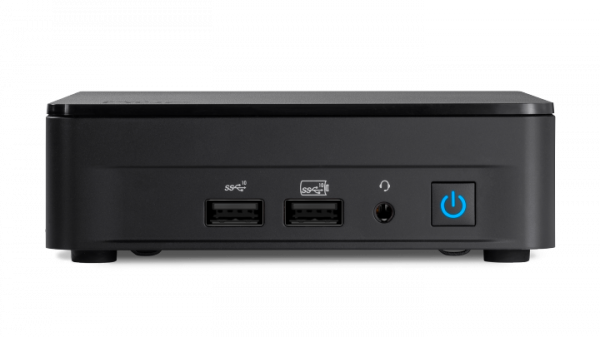

Intel NUC 13 Pro Kit UCFF Black i7-1360P
Roll over image to zoom inClick to Open expanded view
Print
Model: 90AB3ANK-MR8100
EAN: 5032037267465

Intel NUC 13 Pro Kit UCFF Black i7-1360P

Manufacturer:
Intel
Intel NUC 13 Pro Kit, UCFF, Mini PC barebone, DDR4-SDRAM, PCI Express, Serial ATA, Ethernet LAN, Wi-Fi 6E (802.11ax)
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Intel NUC 13 Pro Kit. Chassis type: UCFF, Product type: Mini PC barebone. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: SSD, Storage drive interface: PCI Express, Serial ATA. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 6E (802.11ax), Bluetooth version: 5.3. Cooling type: Active

Product Properties

  • Model
  • 90AB3ANK-MR8100
  • EAN
  • 5032037267465
  • Audio
  • Built-in speaker(s)
  • No
  • Design
  • ARK ID
  • 233101
  • Chassis type
  • UCFF
  • Cooling type
  • Active
  • LED indicators
  • Yes
  • On/off switch
  • Yes
  • Product codename
  • Arena Canyon
  • Product colour
  • Black
  • Product family
  • Intel NUC
  • Product type
  • Mini PC barebone
  • Status
  • Launched
  • Expansion slots
  • Number of M.2 (M) slots
  • 1
  • PCI Express slots version
  • 4.0
  • Graphics
  • Graphics card family
  • Intel
  • Maximum resolution
  • 7680 x 4320 pixels
  • Number of displays supported
  • 4
  • On-board graphics card
  • No
  • On-board graphics card model
  • Intel Iris Xe Graphics
  • Logistics data
  • Harmonized System (HS) code
  • 8471500150
  • Memory
  • ECC
  • No
  • Memory channels
  • Dual-channel
  • Memory Slot Support
  • 64 GB
  • Memory slots type
  • SO-DIMM
  • Memory voltage
  • 1.2 V
  • Non-ECC
  • Yes
  • Number of DIMM slots
  • 2
  • Number of memory slots
  • 2
  • Supported memory clock speeds
  • 3200 MHz
  • Supported memory types
  • DDR4-SDRAM
  • Network
  • Bluetooth
  • Yes
  • Bluetooth version
  • 5.3
  • Ethernet LAN
  • Yes
  • LAN controller
  • Intel I226-V
  • Top Wi-Fi standard
  • Wi-Fi 6E (802.11ax)
  • Wi-Fi
  • Yes
  • Wi-Fi standards
  • Wi-Fi 6E (802.11ax)
  • WLAN controller model
  • Intel Wi-Fi 6E AX211
  • Other features
  • Additional headers
  • Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
  • DC input voltage
  • 12 - 20 V
  • Launch date
  • Q1'23
  • Performance
  • Commodity Classification Automated Tracking System (CCATS)
  • G157815L2
  • Compatible operating systems
  • Windows 10 IoT Enterprise*|Ubuntu*|Linux*
  • Export Control Classification Number (ECCN)
  • 5A992C
  • Linux operating systems supported
  • RedHat EL Linux, Yes
  • Motherboard form factor
  • UCFF
  • Operating system installed
  • No
  • Windows operating systems supported
  • Windows 10 IoT Enterprise, Windows 11 x64
  • Ports & interfaces
  • Combo headphone/mic port
  • Yes
  • DC-in jack
  • Yes
  • DisplayPorts quantity
  • 1
  • Ethernet LAN (RJ-45) ports
  • 1
  • HDMI ports
  • 1
  • HDMI version
  • 2.1
  • M.2 card slot (storage)
  • 2280 NVMe (M); 2242 SATA (B)
  • M.2 card slot (wireless)
  • 2230 (E-key) (E)
  • SATA Ports
  • 1
  • Serial port via internal header
  • No
  • Thunderbolt 4 ports quantity
  • 2
  • USB 2.0 ports quantity
  • 1
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 3
  • USB ports quantity
  • 4
  • Power
  • Power supply type
  • External AC adapter
  • Processor
  • Built-in processor
  • Yes
  • CPU configuration (max)
  • 1
  • Efficient cores
  • 8
  • Efficient-core boost frequency
  • 3.7 GHz
  • Number of Cores
  • 12
  • Performance cores
  • 4
  • Performance-core boost frequency
  • 5 GHz
  • Processor
  • i7-1360P
  • Processor boost frequency
  • 5 GHz
  • Processor cache
  • 18 MB
  • Processor codename
  • Raptor Lake
  • Processor family
  • Intel® Core™ i7
  • Processor generation
  • 13th gen Intel® Core™ i7
  • Processor manufacturer
  • Intel
  • Processor threads
  • 16
  • Processor special features
  • Embedded options available
  • No
  • Execute Disable Bit
  • Yes
  • Intel Flex Memory Access
  • Yes
  • Intel ME Firmware Version
  • 16.1
  • Intel Trusted Execution Technology
  • Yes
  • Intel Virtualization Technology (VT-x)
  • Yes
  • Intel Virtualization Technology for Directed I/O (VT-d)
  • Yes
  • Intel VT-x with Extended Page Tables (EPT)
  • Yes
  • Intel® AES New Instructions (Intel® AES-NI)
  • Yes
  • Intel® High Definition Audio (Intel® HD Audio)
  • Yes
  • Intel® Optane™ Memory Ready
  • No
  • Intel® Platform Trust Technology (Intel® PTT)
  • Yes
  • Storage
  • Number of storage drives supported
  • 2
  • NVMe
  • Yes
  • SSD form factor
  • M.2
  • Storage drive interface
  • PCI Express, Serial ATA
  • Storage drive sizes supported
  • M.2
  • Supported storage drive types
  • SSD
  • Weight & dimensions
  • Depth
  • 112 mm
  • Height
  • 37 mm
  • Width
  • 117 mm
