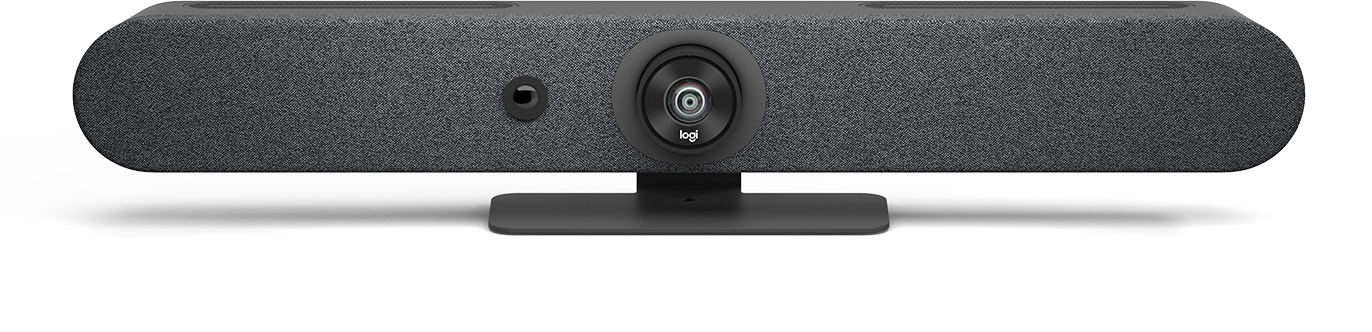

Logitech Rally Bar Mini
Roll over image to zoom inClick to Open expanded view
Logitech Rally Bar Mini
Logitech Rally Bar Mini
Logitech Rally Bar Mini
Logitech Rally Bar Mini
Logitech Rally Bar Mini
Logitech Rally Bar Mini
Logitech Rally Bar Mini
Logitech Rally Bar Mini
Logitech Rally Bar Mini
Print
Model: 991-000389
EAN: 5099206102149

Logitech Rally Bar Mini

Manufacturer:
Logitech

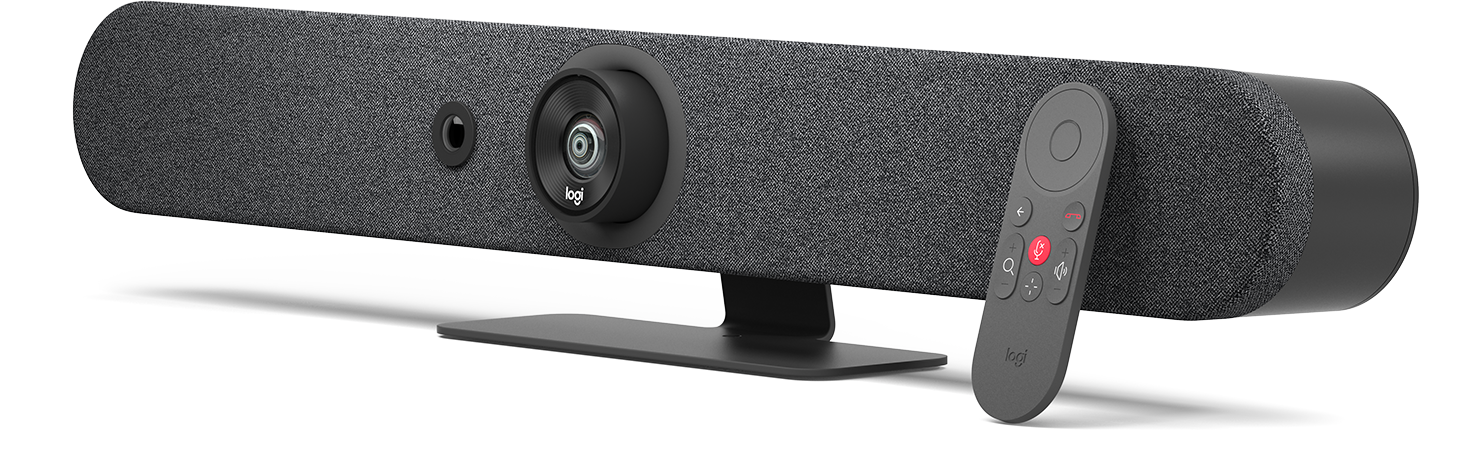

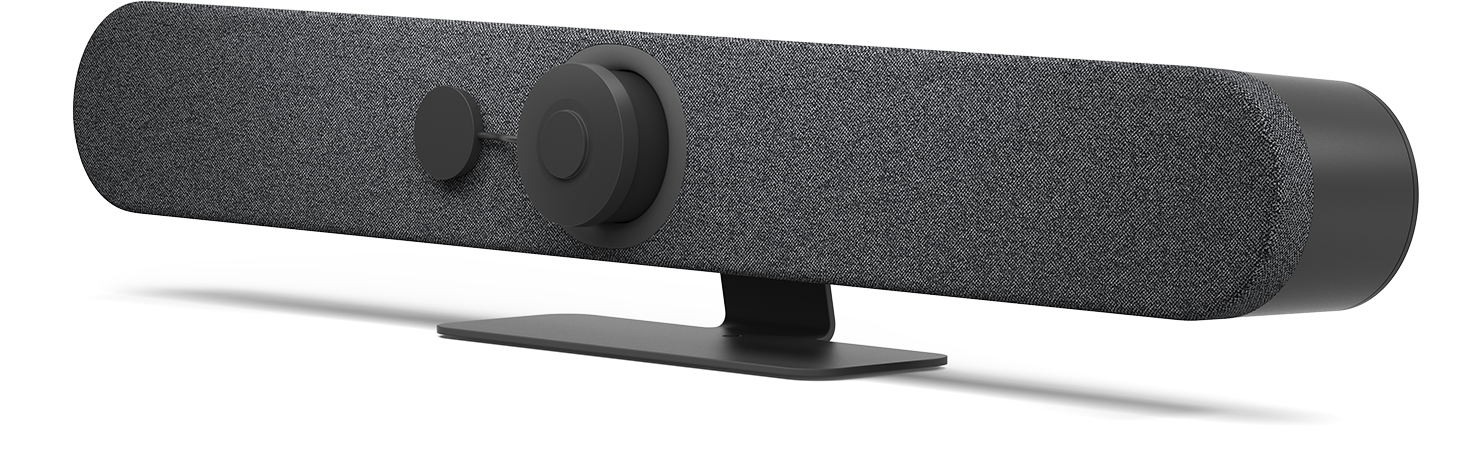

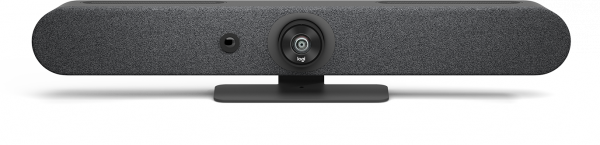

Logitech Rally Bar Mini, 4K Ultra HD, 30 fps, 4x, Graphite
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Logitech Rally Bar Mini. HD type: 4K Ultra HD, Supported video modes: 576p, 720p, 900p, 1440p, 2160p, Maximum frame rate: 30 fps. Digital zoom: 4x. Ethernet LAN, Wi-Fi. Display: IPS, Display diagonal: 25.6 cm (10.1"), Display resolution: 1280 x 800 pixels. Product colour: Graphite

Product Properties

  • Model
  • 991-000389
  • EAN
  • 5099206102149
  • Audio
  • Audio beamforming
  • Yes
  • Built-in speaker(s)
  • Yes
  • Echo cancellation
  • Yes
  • Line-out impedance
  • 4 Ω
  • Microphone pick-up range
  • 4.5 m
  • Noise reduction
  • Yes
  • Output level
  • 92/99 dB
  • Output voltage Total Harmonic Distortion (THD)
  • 2%
  • RMS rated power
  • 5 W
  • Sample rates
  • 0 - 48 kHz
  • Battery
  • Battery capacity
  • 0.675 Wh
  • Camera
  • Diagonal field of view
  • 120°
  • Digital zoom
  • 4x
  • Horizontal field of view
  • 113°
  • Remote control interface
  • Bluetooth
  • Vertical field of view
  • 80.7°
  • Zoom capability
  • Yes
  • Computer system
  • Mac operating systems supported
  • Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
  • Windows operating systems supported
  • Windows 10, Windows 11
  • Display
  • Contrast ratio (typical)
  • 1000:1
  • Display
  • IPS
  • Display brightness
  • 400 cd/m²
  • Oleophobic coating
  • Yes
  • Screen Resolution
  • 1280 x 800 pixels
  • Screen Size
  • 25.6 cm (10.1")
  • Touchscreen
  • Yes
  • Touchscreen type
  • Capacitive
  • Viewing angle, horizontal
  • 85°
  • Viewing angle, vertical
  • 85°
  • Features
  • Cable lock slot
  • Yes
  • Cable lock slot type
  • Kensington
  • Motion sensor
  • Yes
  • Telepresence
  • No
  • Interface module
  • Interface module RJ-45 ports quantity
  • 1
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Master (outer) case gross weight
  • 8.87 kg
  • Master (outer) case height
  • 302 mm
  • Master (outer) case length
  • 808 mm
  • Master (outer) case width
  • 258 mm
  • Microphone
  • Microphone direction type
  • Omnidirectional
  • Microphone frequency
  • 90 - 16000 Hz
  • Microphone sensitivity
  • -36 dB
  • Number of microphones
  • 6
  • Sound pressure level (max)
  • 90 dB
  • Network
  • Ethernet LAN
  • Yes
  • Ethernet LAN data rates
  • 10,100,1000 Mbit/s
  • Security algorithms
  • 128-bit AES
  • Supported network protocols
  • IPv4, IPv6
  • Wi-Fi
  • Yes
  • Wi-Fi standards
  • 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
  • Operational conditions
  • Heat dissipation
  • 64 BTU/h
  • Operating relative humidity (H-H)
  • 10 - 95%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Packaging content
  • AC adapter included
  • Yes
  • Cables included
  • AC, DC, HDMI, USB Type-A to USB Type-C
  • Camera included
  • Yes
  • HDMI cable length
  • 2 m
  • Mounting kit
  • Yes
  • Power cable length
  • 2.5 m
  • Quick start guide
  • Yes
  • Remote control included
  • Yes
  • Performance
  • Pan range
  • -25 - 25°
  • Product colour
  • Graphite
  • PTZ control
  • Yes
  • Tilt angle range
  • -15 - 15°
  • Ports & interfaces
  • DC-in jack
  • Yes
  • Ethernet LAN (RJ-45) ports
  • 1
  • HDMI input ports quantity
  • 1
  • HDMI output ports quantity
  • 2
  • HDMI ports
  • 3
  • Microphone in
  • Yes
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 3
  • USB connector type
  • USB Type-A, USB Type-C
  • Power
  • AC input voltage
  • 100 - 240 V
  • Battery capacity
  • 220 mAh
  • Battery technology
  • Lithium
  • Current
  • 4.754 A
  • DC input voltage
  • 19 V
  • Number of batteries supported
  • 2
  • Power plug type
  • Type G
  • Power source type
  • AC
  • Video
  • HD type
  • 4K Ultra HD
  • Maximum frame rate
  • 30 fps
  • Supported video modes
  • 576p, 720p, 900p, 1440p, 2160p
  • Weight & dimensions
  • Depth
  • 101 mm
  • Height
  • 91.4 mm
  • Interface module dimensions (W x D x H)
  • 246.2 x 171.3 x 56.1 mm
  • Interface module weight
  • 1 kg
  • Package depth
  • 802 mm
  • Package height
  • 289 mm
  • Package weight
  • 8.87 kg
  • Package width
  • 252 mm
  • Weight
  • 4.03 kg
  • Width
  • 719 mm
