Description

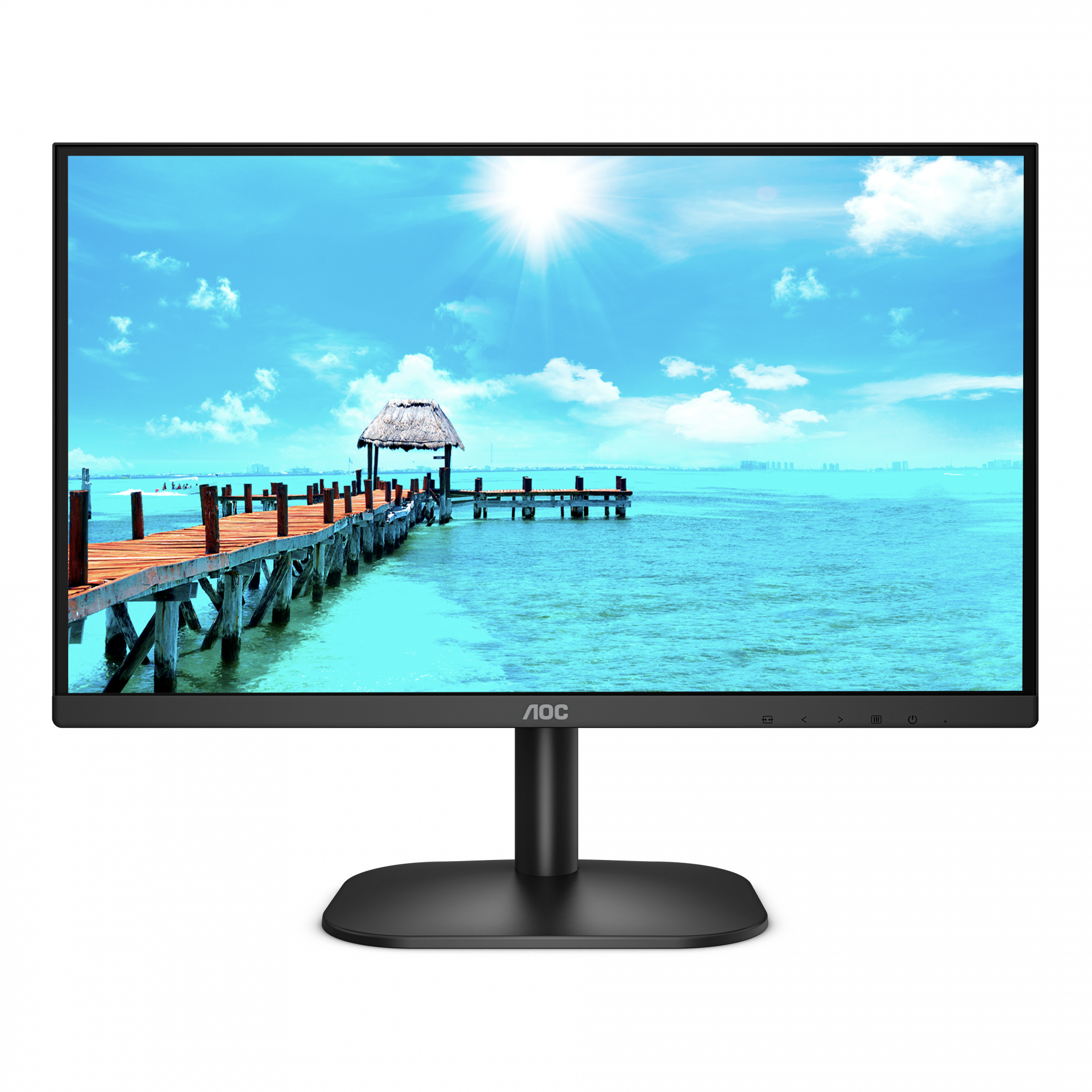

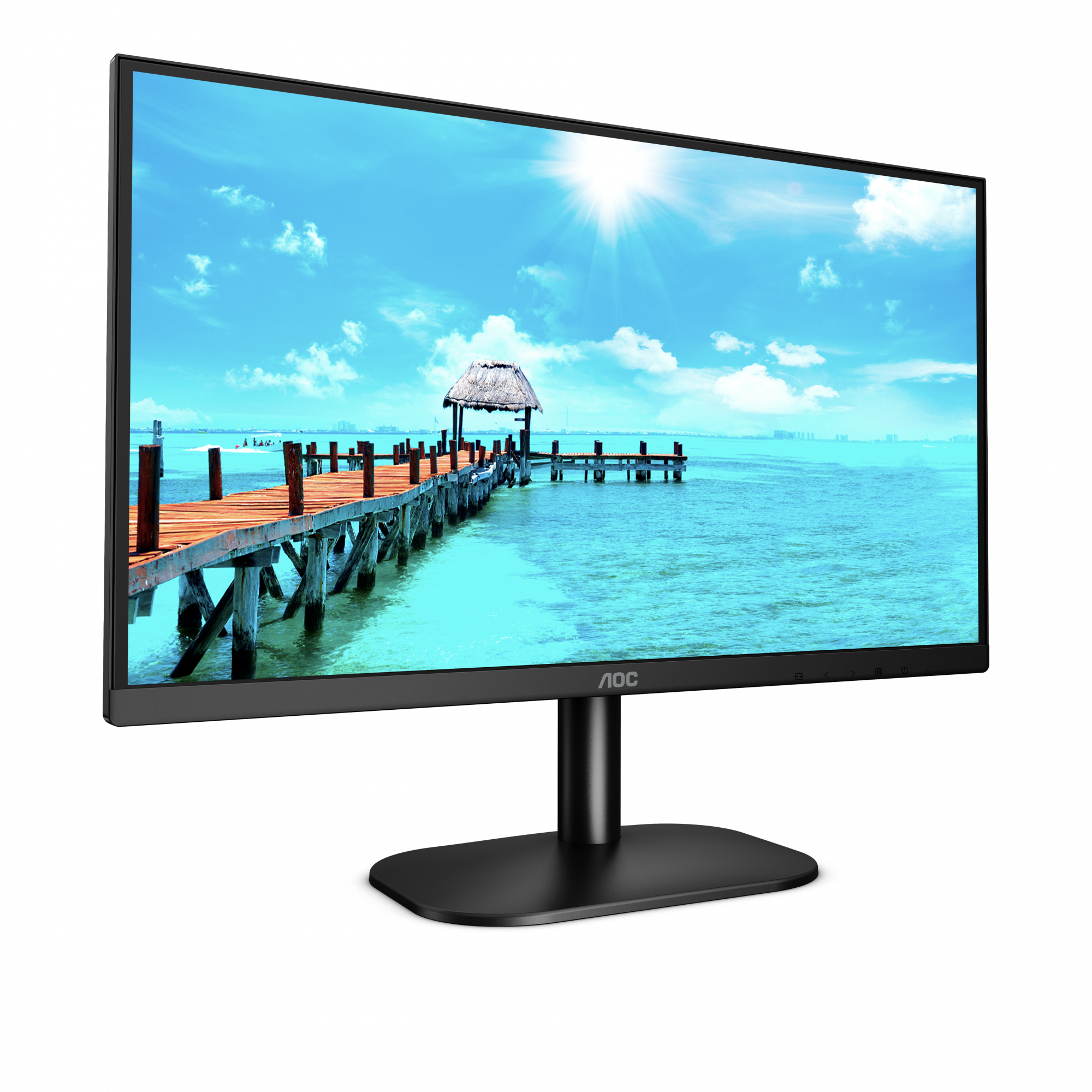

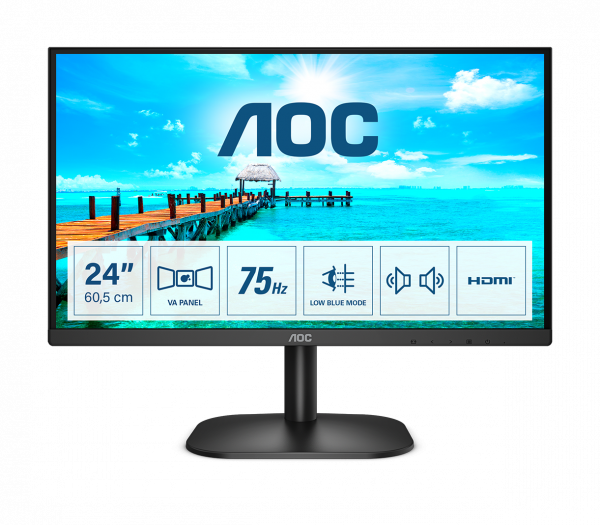

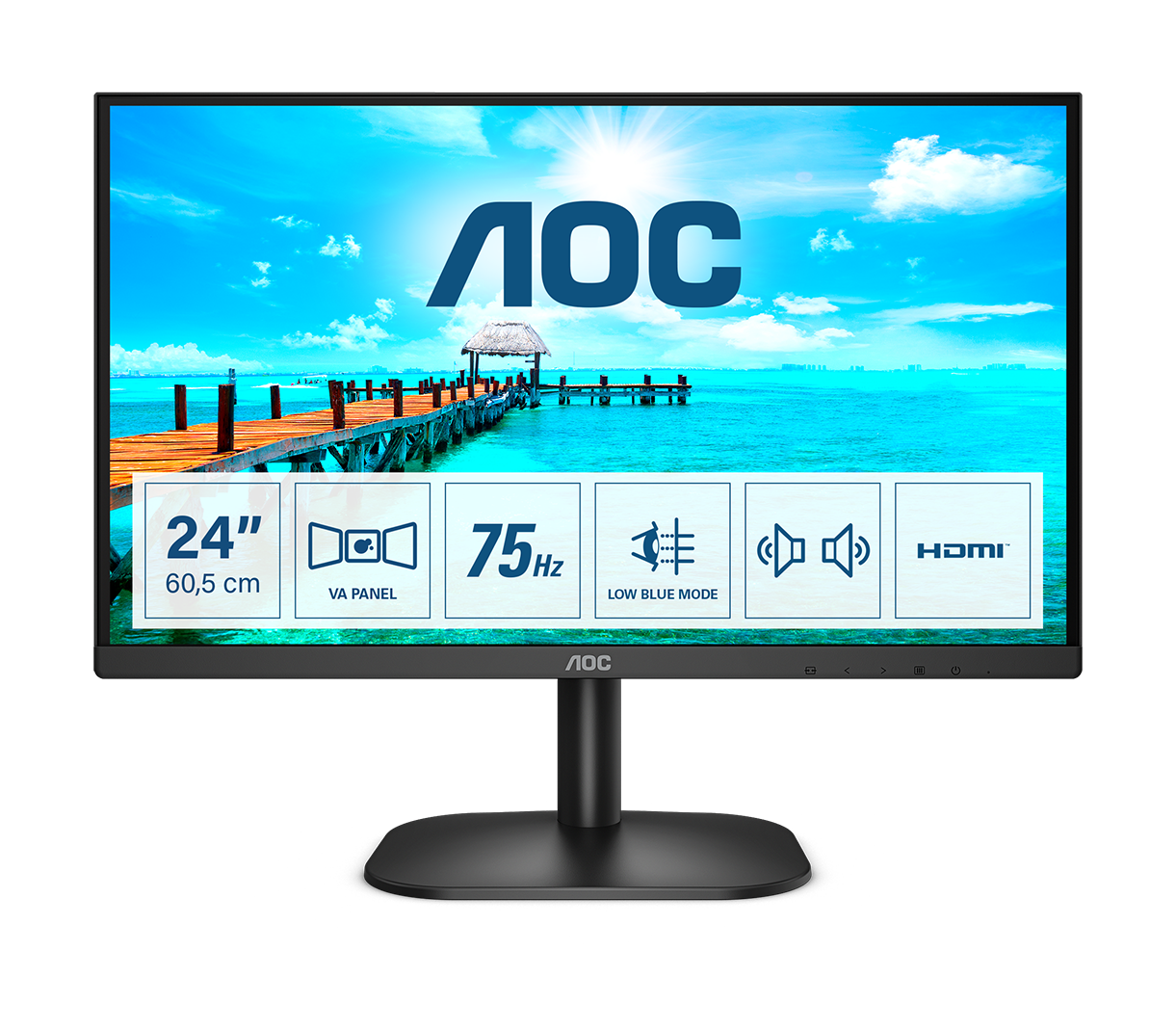

AOC B2 24B2XDAM. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Display surface: Matt, Response time: 4 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting. Product colour: Black

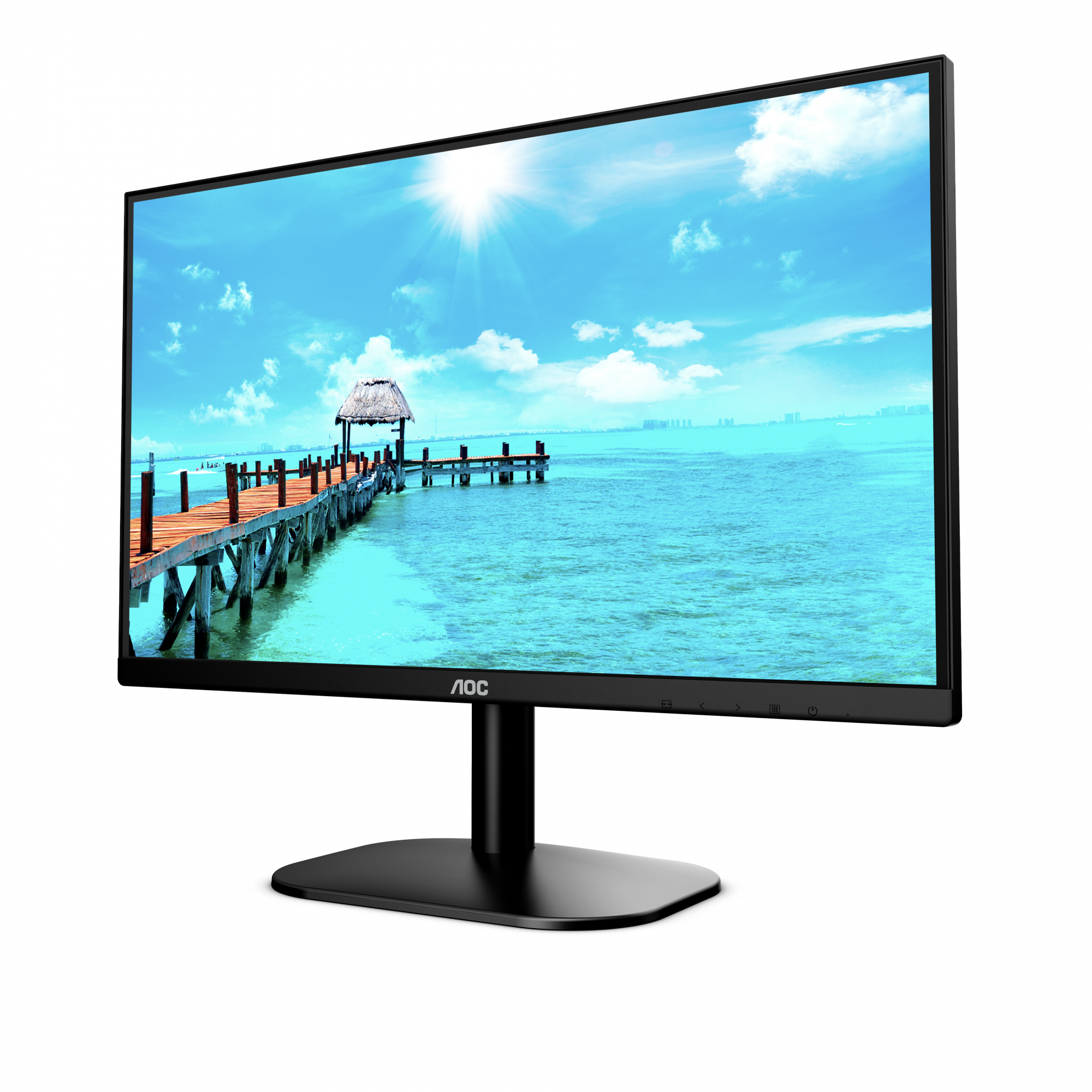

Frameless design

Besides looking modern and attractive, frameless designs enable seamless multi-monitor setups. Your cursor/windows will not be lost anymore in the dark abyss of bezels, when many displays are placed side by side.

FHD Resolution

Want to watch a Blu-ray movie in full quality, enjoy games in high resolution or read crisp text in office applications? Thanks to its Full HD resolution of 1920 x 1080 pixels, this monitor lets you do just that. Whatever you are viewing, with Full HD it will be displayed in rich detail without requiring a high-end graphics card or consuming a lot of your system’s resources.

VA Panel

VA Panels (Vertical Alignment) display deeper blacks and a high contrast for extra vivid and bright images.

HDMI

HDMI (High-Definition Multimedia Interface) is supported by the current gaming consoles, current GPUs, set-top boxes, supporting the HDCP digital content protection system. HDMI 1.3-1.4b versions support up to 144 Hz refresh rate@1080p and 75 Hz@1440p, while HDMI 2.0-2.0b versions support 240Hz@1080p, 144Hz@1440p and 60 Hz@2160p (4K).

Low Blue Light

AOC Lowblue Light protects you from harmful blue light which, during long sessions, has been shown to cause eye strain, headaches, and sleeping disorders. Our Lowblue Light feature reduces the harmful wavelengths emitted without sacrificing color composition, setting the experience free from the worry of eye damage.

Flicker Free

AOC Flicker-Free Technology utilises a DC (Direct Current) backlight panel, reducing flickering light levels. With eye strain and fatigue absolutely minimized, feel free to enjoy those long, intense gaming sessions in comfort!

Product Properties

Manufacturer
AOC

Model
24B2XDAM

EAN
4038986149600

Design

Certification
True

Country of origin
China

Detachable stand
Y

Feet colour
Black

Frameless design
Y

Front bezel colour
Black

Heavy metals free
Hg (mercury)

Market positioning
Home

Product colour
Black

Display

Adobe RGB coverage
74%

Anti-glare screen
Y

Aspect ratio
4:3, 16:9

Backlight type
W-LED

Colour depth
8 bit

Contrast ratio (dynamic)
20000000:1

Contrast ratio (typical)
3000:1

Display brightness (typical)
250 cd/m²

Display number of colours
16.7 million colours

Display surface
Matt

HD type
Full HD

Max Refresh Rate
75 Hz

Native aspect ratio
16:9

NTSC coverage (typical)
72%

Panel type
VA

Response time
4 ms

Screen Resolution
1920 x 1080 pixels

Screen shape
Flat

Screen Size
60.5 cm (23.8")

Screen Type
LED

Screen Type
60.452 cm

sRGB coverage (typical)
101%

Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080)

Supported video modes
720p, 1080p

Surface hardness
3H

Touchscreen
N

Viewing angle, horizontal
178°

Viewing angle, vertical
178°

Ergonomics

Cable lock slot
Y

Cable lock slot type
Kensington

Height adjustment
N

Number of OSD languages
16

On Screen Display (OSD)
Y

On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, Croatian, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian

Panel mounting interface
100 x 100 mm

Pivot
Y

Tilt adjustment
Y

Tilt angle range
-5 - 20°

VESA mounting
Y

Logistics data

Commodity Classification Automated Tracking System (CCATS)
8528521000

Harmonized System (HS) code
85285210

Multimedia

Built-in camera
N

Built-in microphone
N

Built-in speaker(s)
Y

Number of speakers
2

RMS rated power
2 W

Other features

Exterior finish type
Textured

Light effects
N

Recyclable packaging material
100%

Packaging content

Cables included
AC, HDMI

HDMI cable length
1.8 m

Power cable length
1.8 m

Stand included
Y

Packaging data

Package depth
106 mm

Package height
467 mm

Package type
Box

Package weight
4.5 kg

Package width
592 mm

Performance

AMD FreeSync
N

Fast charging
N

Flicker-free technology
Y

Low Blue Light technology
Y

NVIDIA G-SYNC
N

Ports & interfaces

Audio input
Y

Built-in USB hub
N

DVI port
Y

HDMI
Y

HDMI ports
1

HDMI version
1.4

Headphone connectivity
3.5 mm

Headphone out
Y

Headphone outputs
1

Microphone in
Y

VGA (D-Sub) ports quantity
1

Power

AC input frequency
50/60 Hz

AC input voltage
100 - 240 V

Energy consumption (SDR) per 1000 hours
21 kWh

Energy efficiency class (SDR)
F

Energy efficiency scale
A to G

External power adapter
Y

Power consumption (off)
0.3 W

Power consumption (standby)
0.5 W

Power consumption (typical)
21 W

Sustainability

Sustainability certificates
ENERGY STAR

Weight & dimensions

Depth (with stand)
170.9 mm

Depth (without stand)
3.75 cm

Height (with stand)
418.4 mm

Height (without stand)
31.9 cm

Weight (with stand)
2.7 kg

Width (with stand)
539.5 mm

Width (without stand)
54 cm

AOC B2 24B2XDAM LED display 60.5 cm (23.8") 1920 x 1080 pixels Full HD Black
