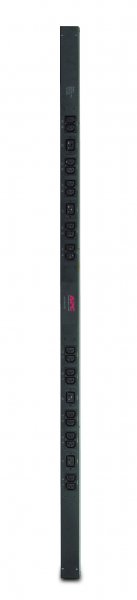

APC Basic Rack PDU power distribution unit (PDU) 24 AC outlet(s) 0U Black
Roll over image to zoom inClick to Open expanded view
Print
Model: AP7554
EAN: 731304230397

APC Basic Rack PDU power distribution unit (PDU) 24 AC outlet(s) 0U Black

Manufacturer:
APC
APC Basic Rack PDU, Basic, 0U, Vertical, Black, 24 AC outlet(s), C13 coupler, C19 coupler
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

APC Basic Rack PDU. PDU types: Basic, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Input connection type: IEC 309 16A. Cable length: 3.05 m, Certification: CCC, CE, VDE. Nominal input voltage: 230 V, Nominal output voltage: 230 V, Load capacity: 3680 VA. Dimensions (WxDxH): 56 x 44 x 1619 mm, Weight: 5.57 kg

Product Properties

  • Manufacturer
  • APC
  • Model
  • AP7554
  • EAN
  • 731304230397
  • Design
  • Mounting
  • Vertical
  • PDU types
  • Basic
  • Product colour
  • Black
  • Rack capacity
  • 0U
  • Features
  • Cable length
  • 3.05 m
  • Certification
  • CCC, CE, VDE
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 95%
  • Operating temperature (T-T)
  • -5 - 45 °C
  • Storage relative humidity (H-H)
  • 5 - 95%
  • Storage temperature (T-T)
  • -25 - 65 °C
  • Packaging data
  • Package dimensions (WxDxH)
  • 152 x 127 x 2134 mm
  • Package weight
  • 6.48 kg
  • Ports & interfaces
  • AC outlet types
  • C13 coupler, C19 coupler
  • AC outlets quantity
  • 24 AC outlet(s)
  • Input connection type
  • IEC 309 16A
  • Output connections
  • 20x IEC 320 C13 4x IEC 320 C19
  • Power
  • Load capacity
  • 3680 VA
  • Maximum input current per phase
  • 16 A
  • Maximum power
  • 3680 W
  • Maximum total current draw per phase
  • 16 A
  • Nominal input voltage
  • 230 V
  • Nominal output voltage
  • 230 V
  • Weight & dimensions
  • Dimensions (WxDxH)
  • 56 x 44 x 1619 mm
  • Weight
  • 5.57 kg
