Description

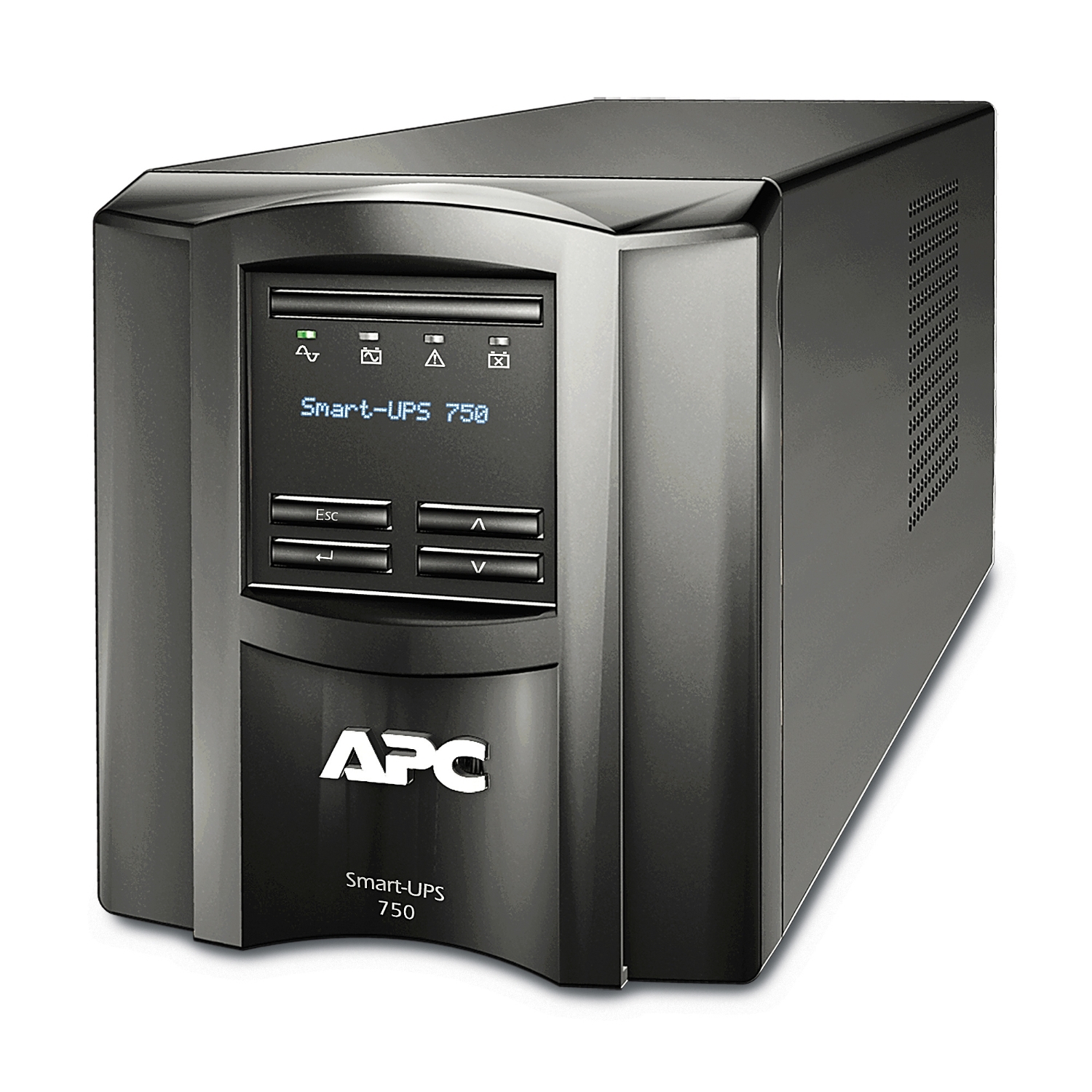

APC SMT750IC. UPS topology: Line-Interactive, Output power capacity: 0.75 kVA, Output power: 500 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 4.6 min, Typical backup time at half load: 15.8 min. Form factor: Tower, Product colour: Black, Cable length: 1.83 m. Width: 138 mm, Depth: 358 mm, Height: 157 mm

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices
Includes: CD with software, Documentation CD, USB cable

Product Properties

Manufacturer
APC

Model
SMT750IC

EAN
731304340317

Battery

Automatic battery test
Yes

Battery life (max)
5 year(s)

Battery recharge time
3 h

Battery technology
Sealed Lead Acid (VRLA)

Cold start
Yes

Hot-swap battery
Yes

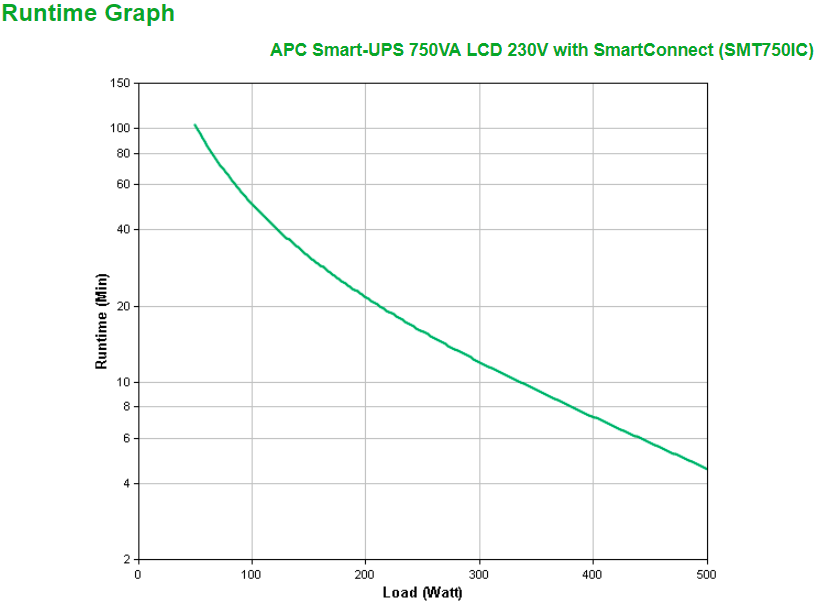

Typical backup time at full load
4.6 min

Typical backup time at half load
15.8 min

Bullet points

Point
Includes: CD with software, Documentation CD, USB cable

Design

Cable length
1.83 m

Certification
CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, EOLI

Display type
LCD

Form factor
Tower

LED indicators
Status

Product colour
Black

Features

Audible alarm(s)
Yes

Auto-restart
Yes

Automatic Voltage Regulation (AVR)
Yes

Efficiency
98%

Input frequency
50/60 Hz

Input operation voltage (max)
302 V

Input operation voltage (min)
151 V

Noise level
40 dB

Output operation voltage (max)
240 V

Output operation voltage (min)
220 V

Output power
500 W

Output power capacity
0.75 kVA

Surge energy rating
540 J

UPS topology
Line-Interactive

Waveform
Sine

Logistics data

Harmonized System (HS) code
85078000

Products per pallet
24 pc(s)

Operational conditions

Non-operating altitude
0 - 15000 m

Operating altitude
0 - 3000 m

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
0 - 95%

Storage temperature (T-T)
-15 - 45 °C

Packaging data

Bundled software

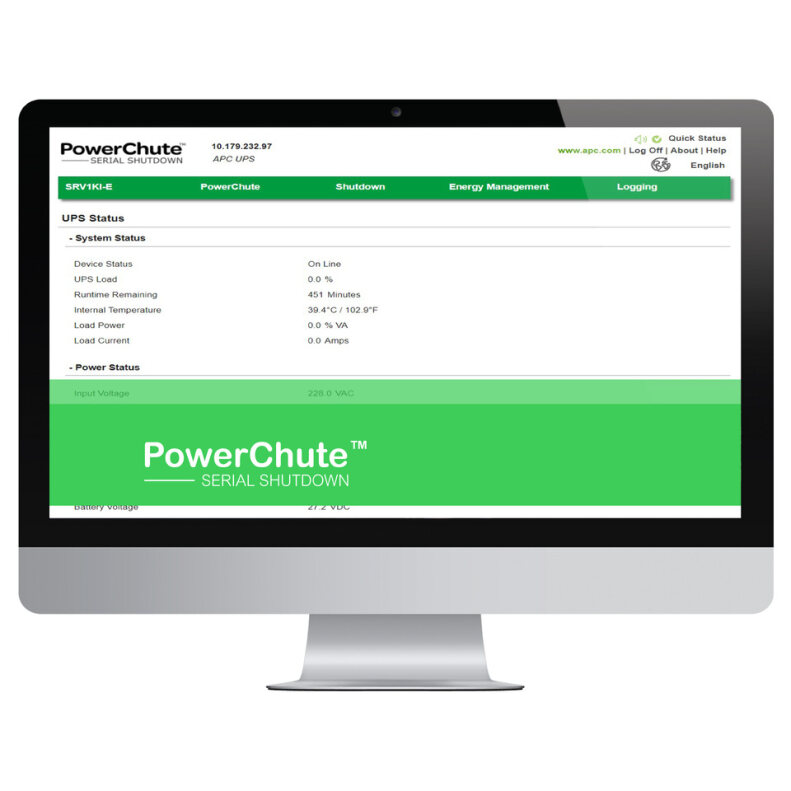

Powershute Business Edition

Cables included
USB cable

Manual
Yes

Quick installation guide
Yes

Ports & interfaces

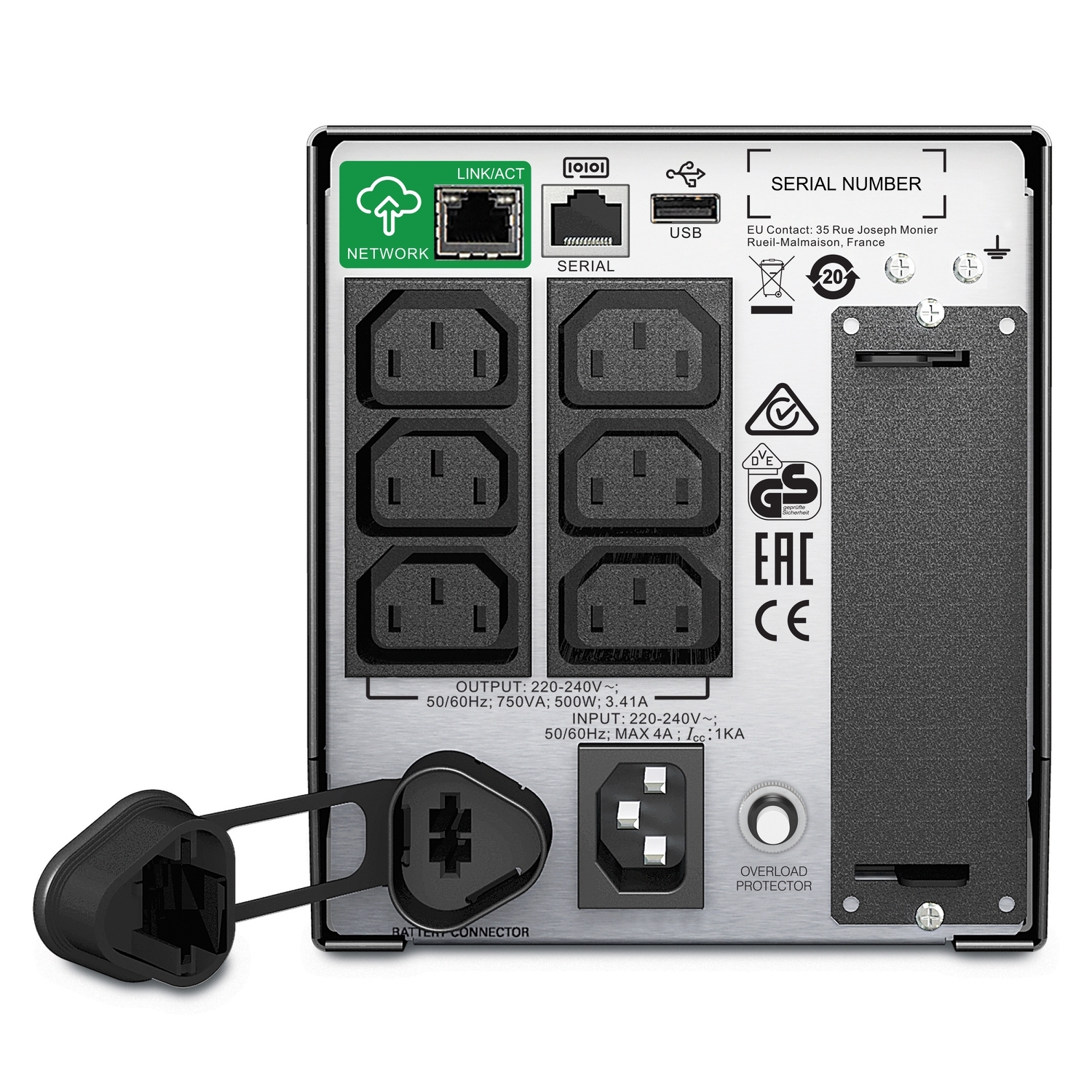

AC outlet types
C13 coupler

AC outlets quantity
6 AC outlet(s)

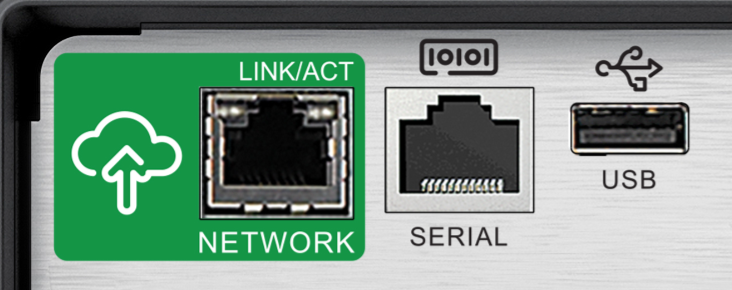

Ethernet LAN (RJ-45) ports
1

Number of output IEC jumpers
2

Power plug
C14 coupler

SmartSlot
Yes

USB port
Yes

Technical details

Sustainability certificates
Green Premium, RoHS

Weight & dimensions

Depth
358 mm

Height
157 mm

Package depth
499 mm

Package height
301 mm

Package weight
14.2 kg

Package width
278 mm

Weight
13.2 kg

Width
138 mm

APC SMT750IC uninterruptible power supply (UPS) Line-Interactive 0.75 kVA 500 W 6 AC outlet(s)
