Description

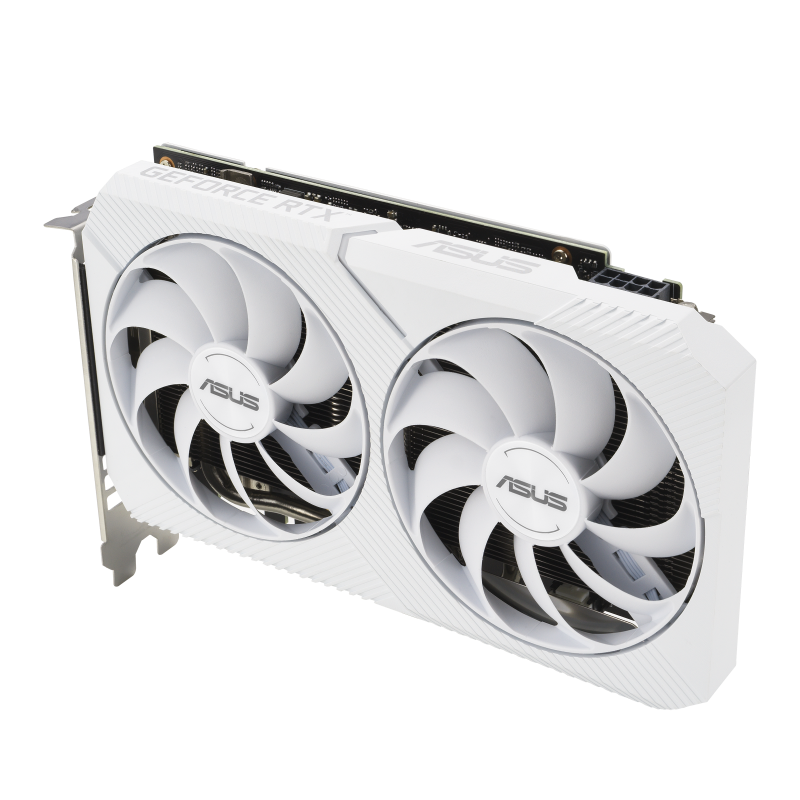

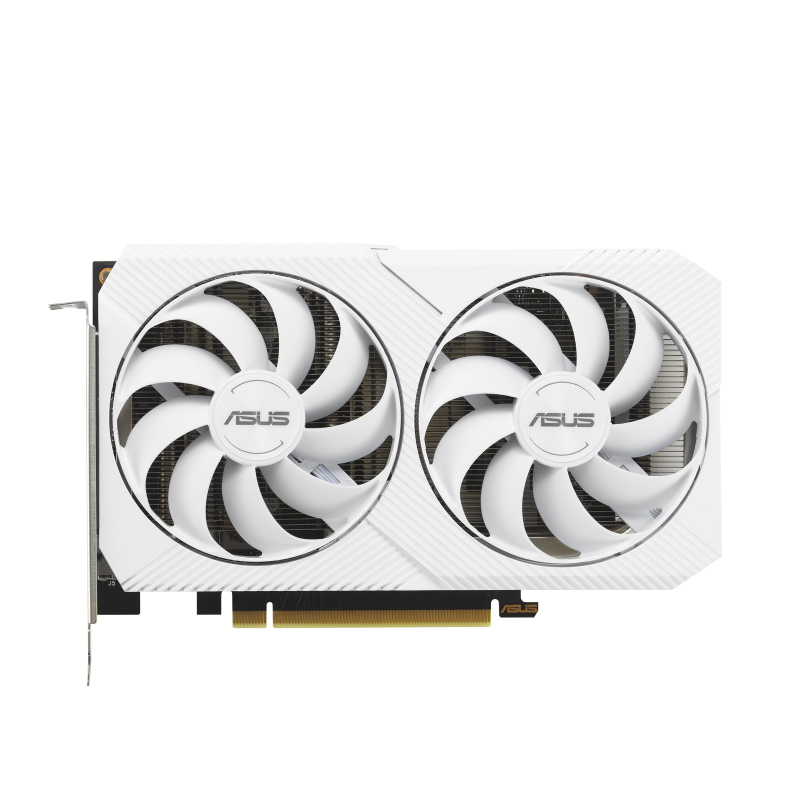

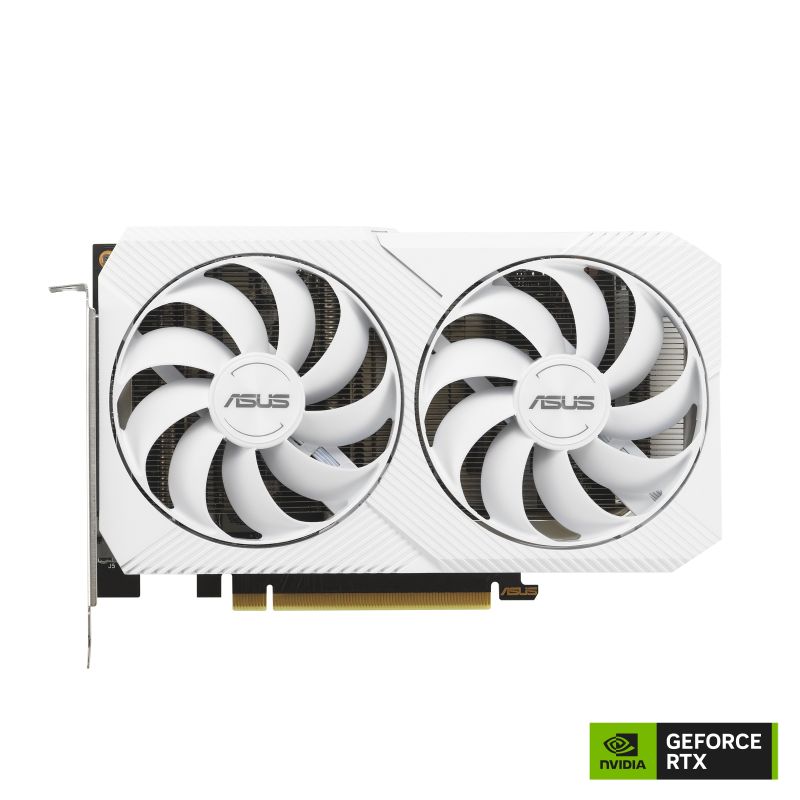

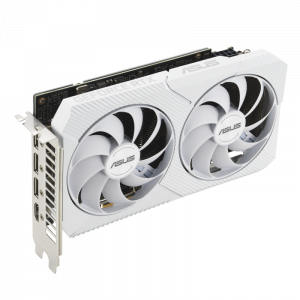

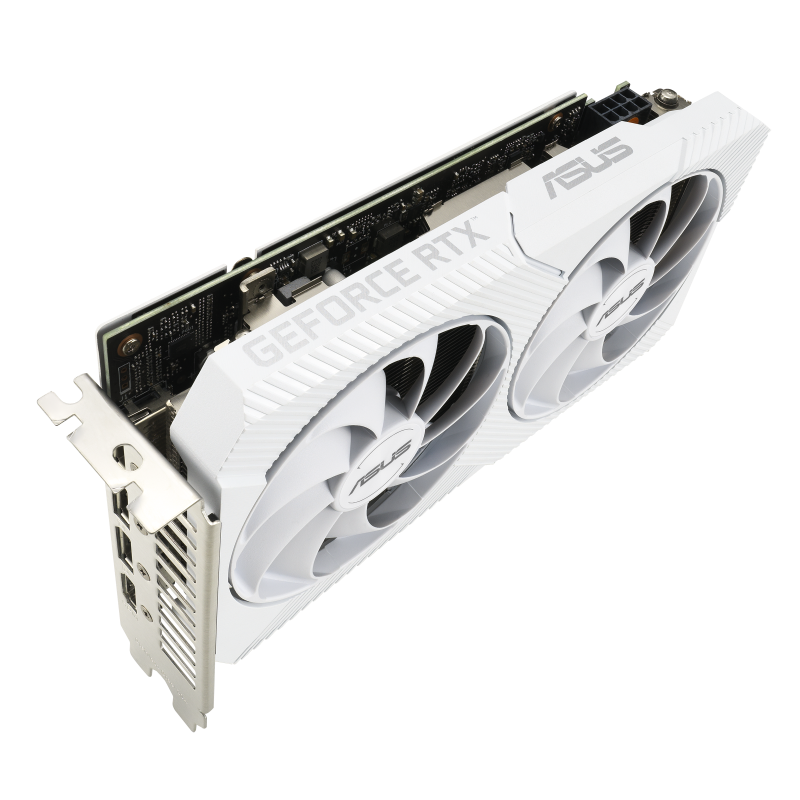

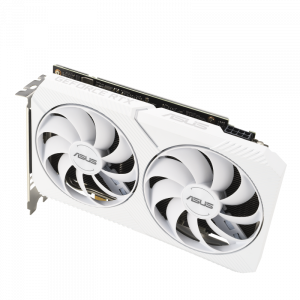

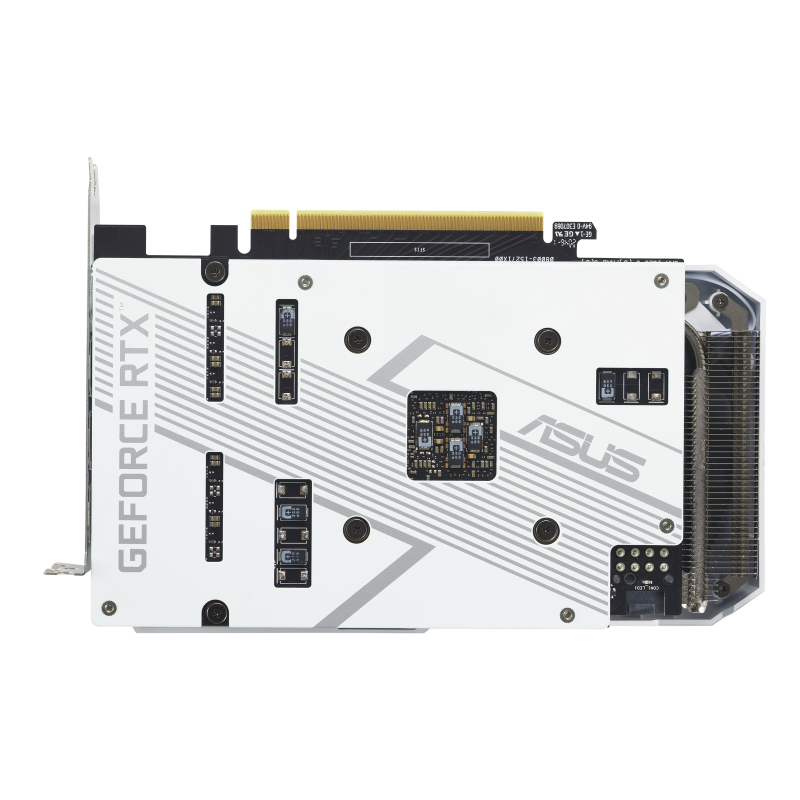

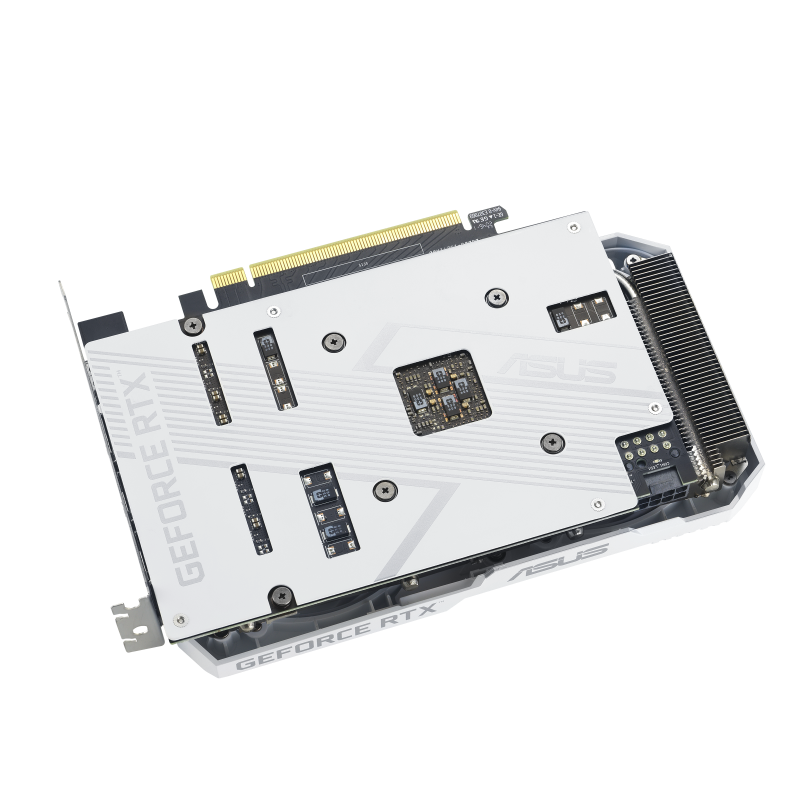

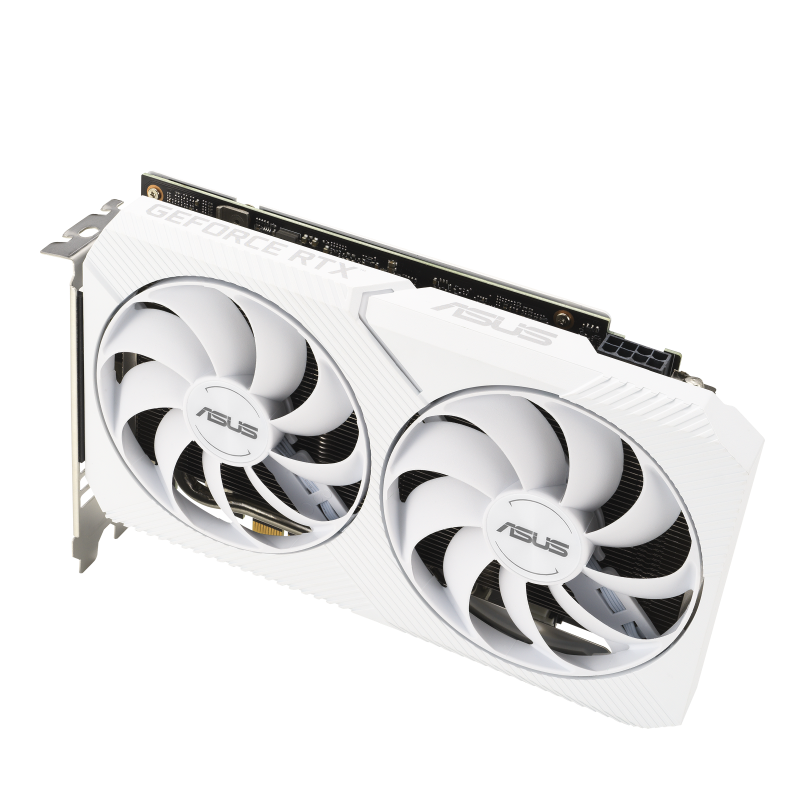

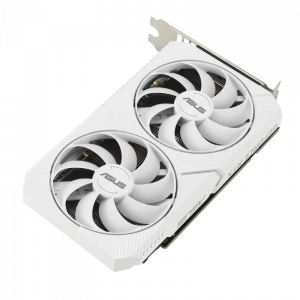

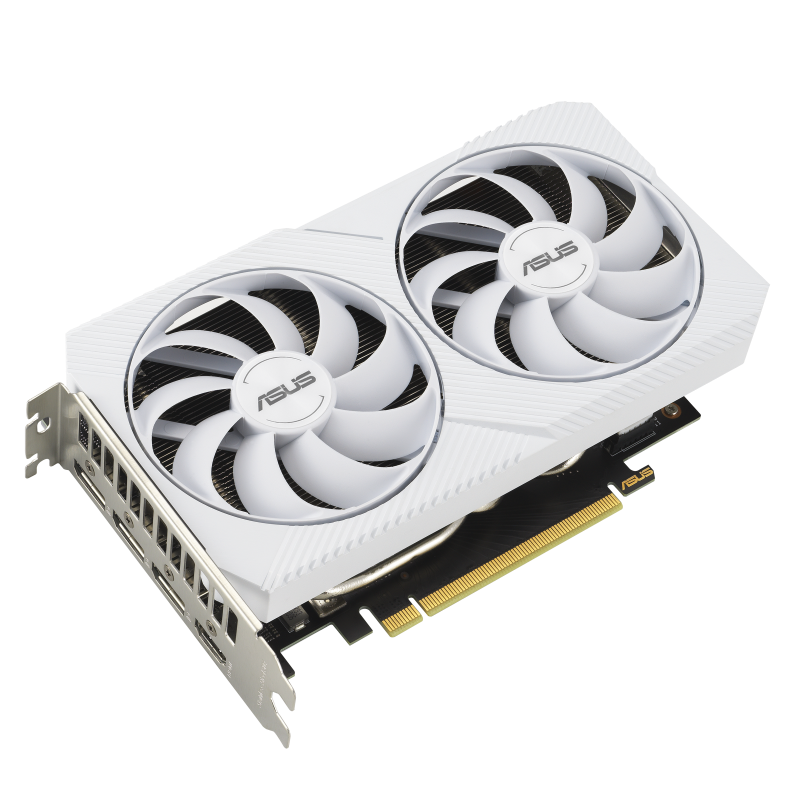

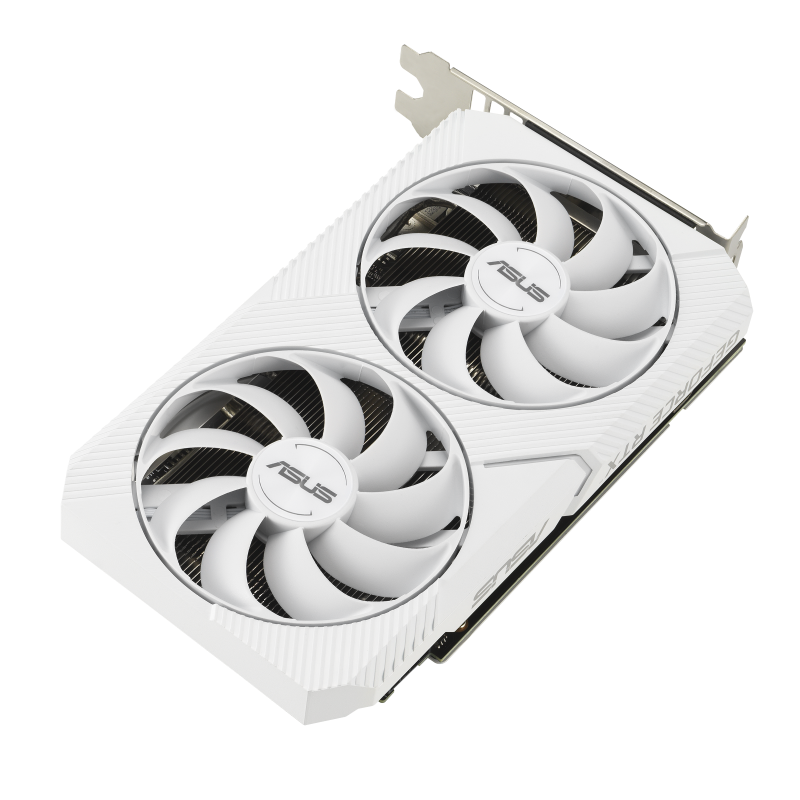

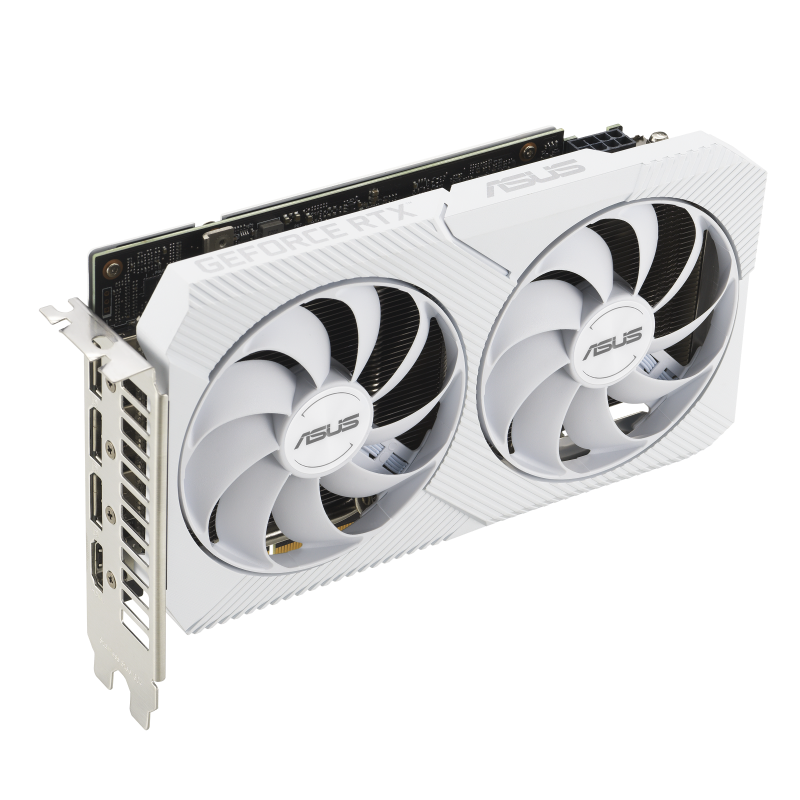

ASUS DUAL-RTX3060-O8G-WHITE. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 3060. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 2 fan(s)

NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency
2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance
3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities
OC edition: Boost Clock 1867 MHz (OC Mode)/1837 MHz (Default Mode)
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
A 2-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis
0dB Technology lets you enjoy light gaming in relative silence
Dual ball fan bearings can last up to twice as long as sleeve bearing designs

Product Properties

Manufacturer
Asus

Model
DUAL-RTX3060-O8G-W

EAN
4711081987499

Bullet points

Point
0dB technology lets you enjoy light gaming in relative silence

2nd Generation RT Cores

3rd Generation Tensor Cores

Dual ball fan bearings can last up to twice as long as sleeve bearing designs

NVIDIA Ampere Streaming Multiprocessors

OC edition: Boost Clock 1867 MHz (OC Mode)/1837 MHz (Default Mode)

Design

Cooling technology
ASUS Axial-tech

Cooling type
Active

Number of fans
2 fan(s)

Number of slots
2

Product colour
Black

Memory

Data transfer rate
15 Gbit/s

Discrete graphics card memory
8 GB

Graphics card memory type
GDDR6

Memory bus
128 bit

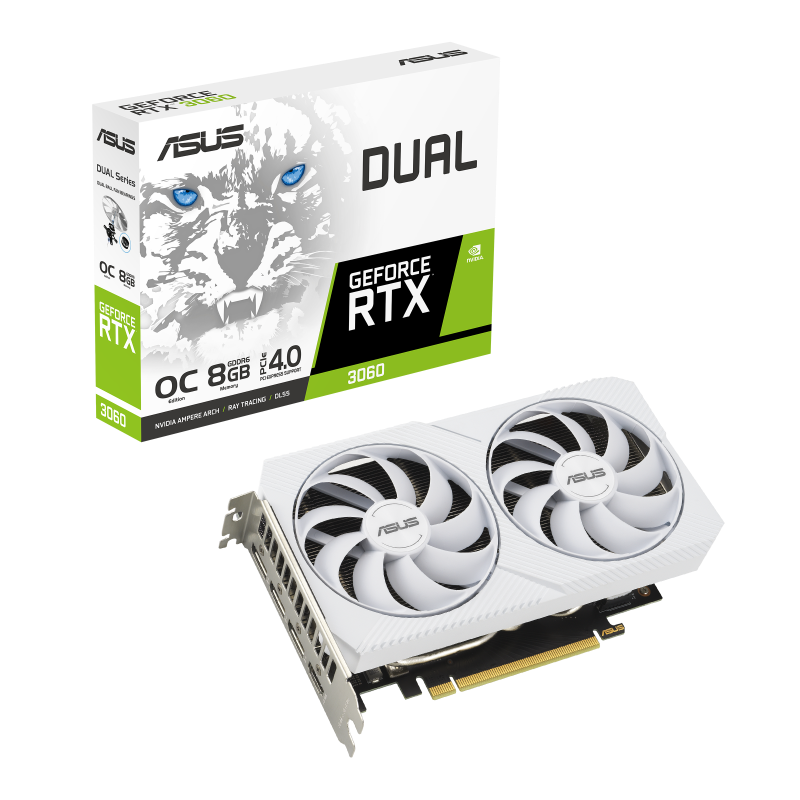

Packaging data

Package depth
220 mm

Package height
55 mm

Package type
Box

Package weight
898 g

Package width
303 mm

Performance

Dual Link DVI
No

HDCP
Yes

HDCP version
2.3

OpenGL version
4.6

TV tuner integrated
No

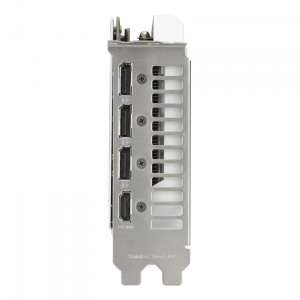

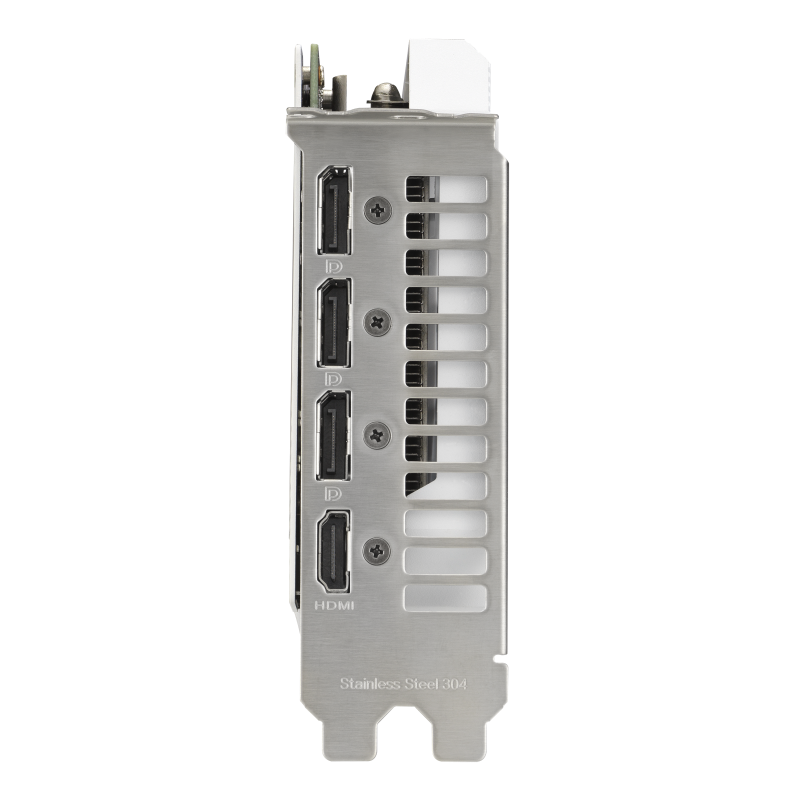

Ports & interfaces

DisplayPort version
1.4a

DisplayPorts quantity
3

HDMI ports
1

HDMI version
2.1

Interface type
PCI Express 4.0

Power

Minimum system power supply
650 W

Supplementary power connectors
1x 8-pin

Processor

CUDA
Yes

CUDA cores
3584

Graphics processor
GeForce RTX 3060

Graphics processor family
NVIDIA

Maximum displays per videocard
4

Maximum resolution
7680 x 4320 pixels

Parallel processing technology support
Not supported

Processor boost clock speed
1837 MHz

Processor boost clock speed (OC mode)
1867 MHz

Weight & dimensions

Depth
123 mm

Height
38 mm

Weight
546 g

Width
200 mm

ASUS DUAL-RTX3060-O8G-WHITE NVIDIA GeForce RTX 3060 8 GB GDDR6
