Description

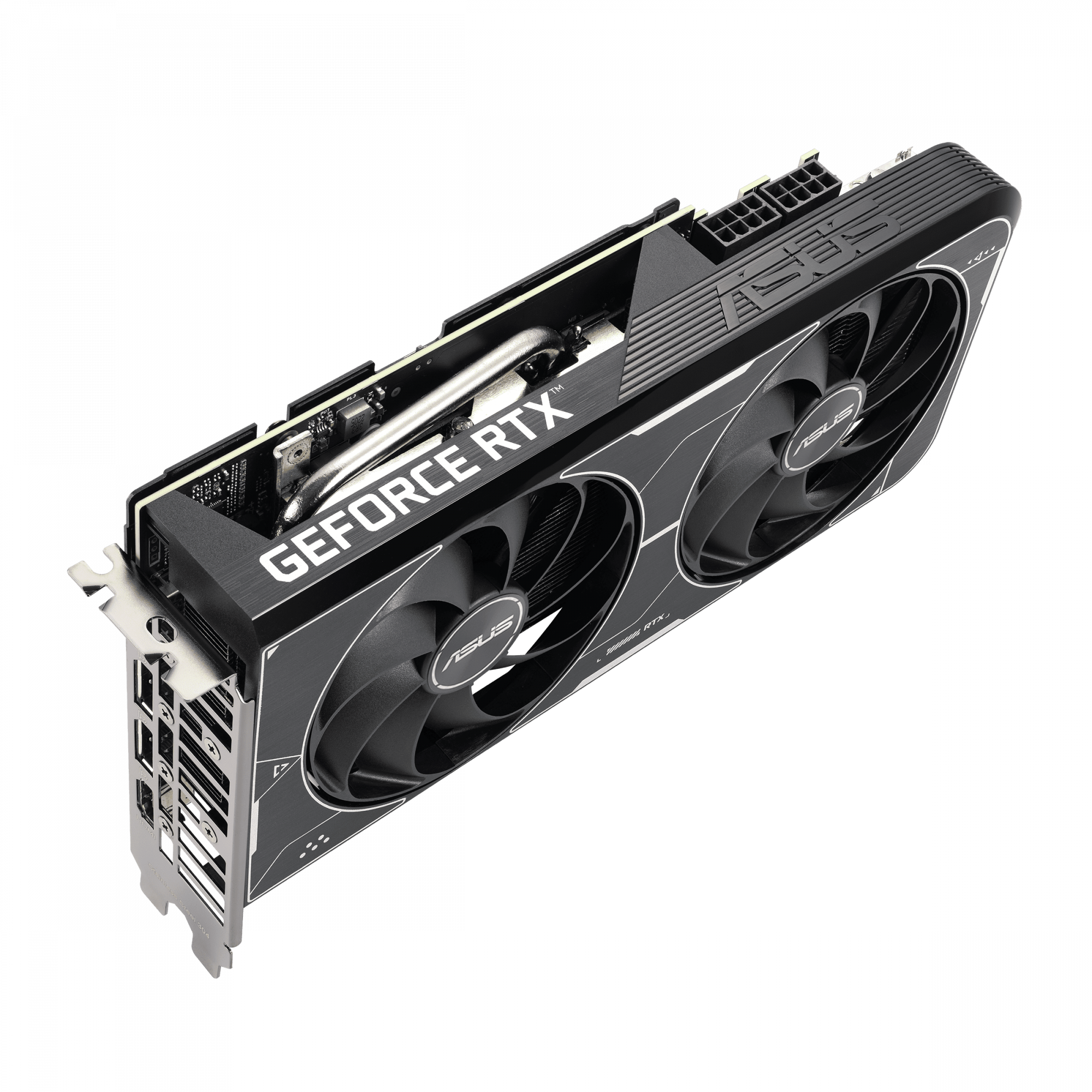

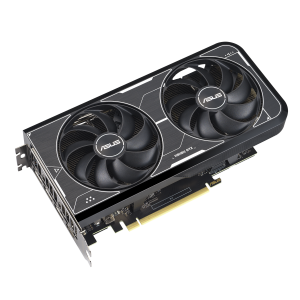

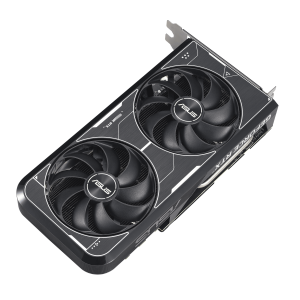

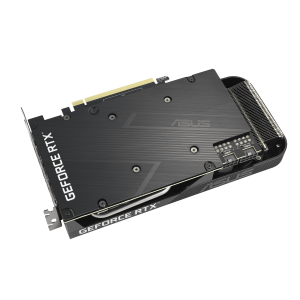

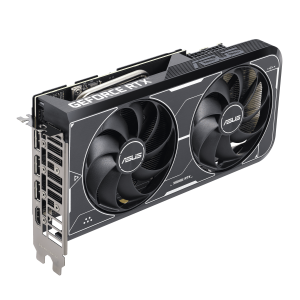

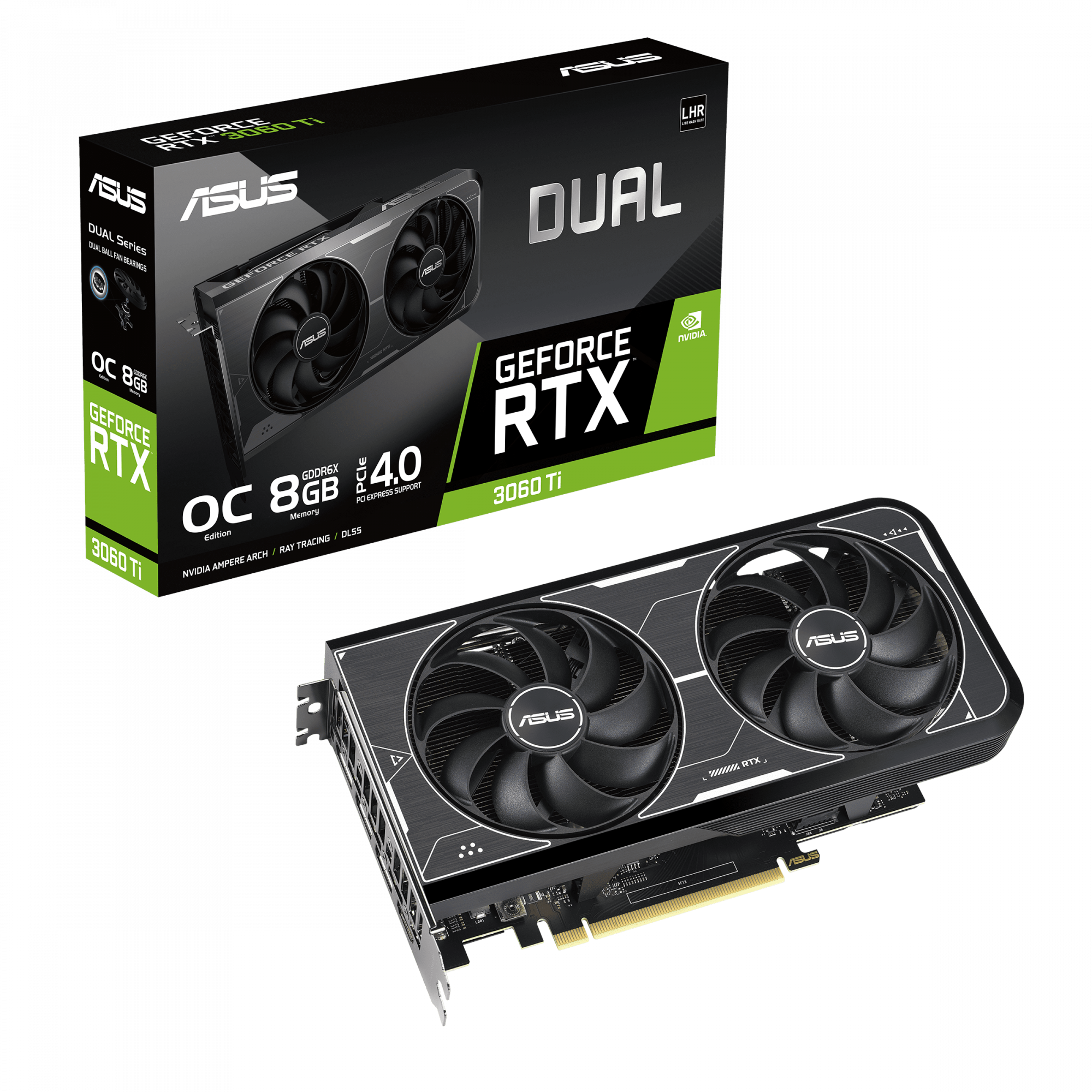

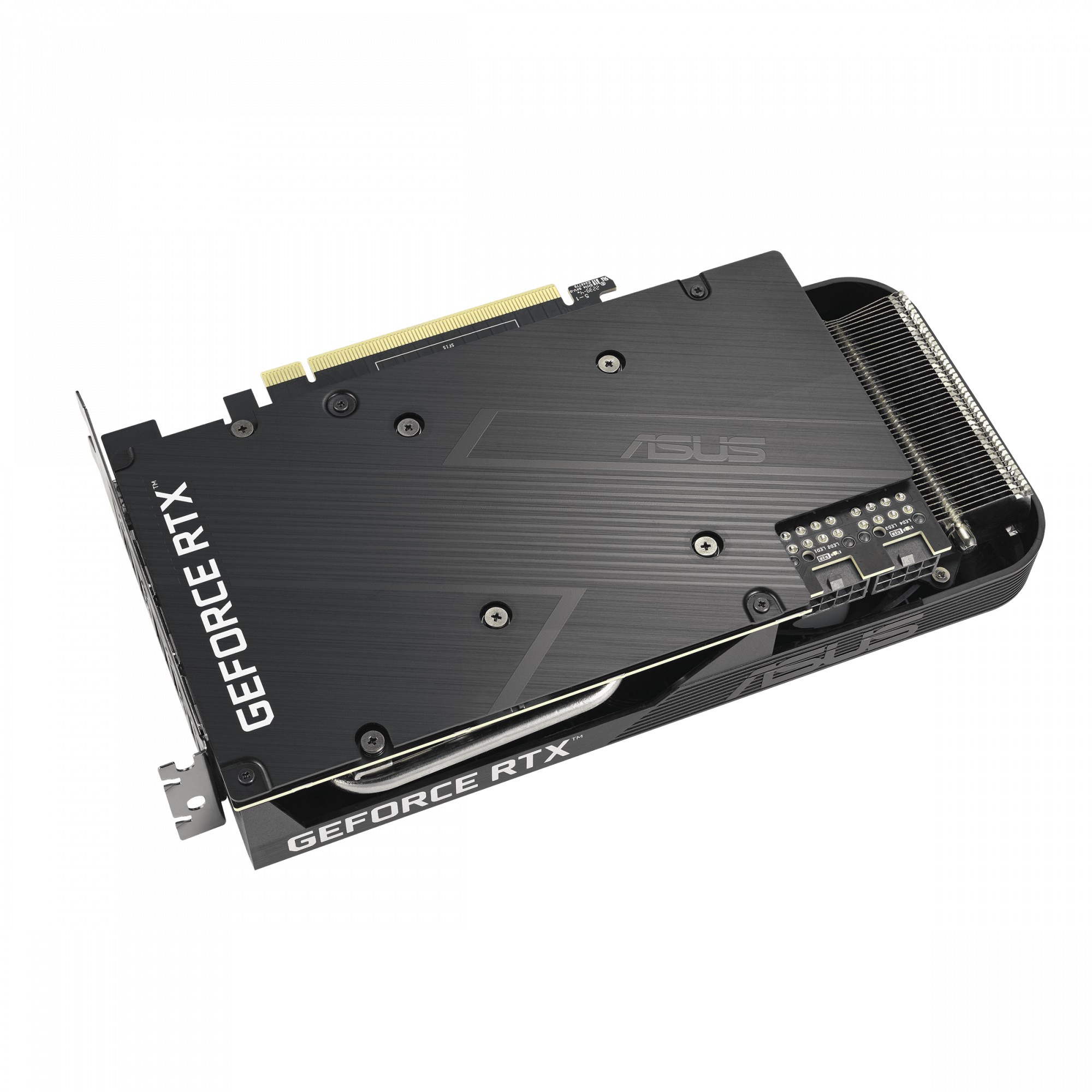

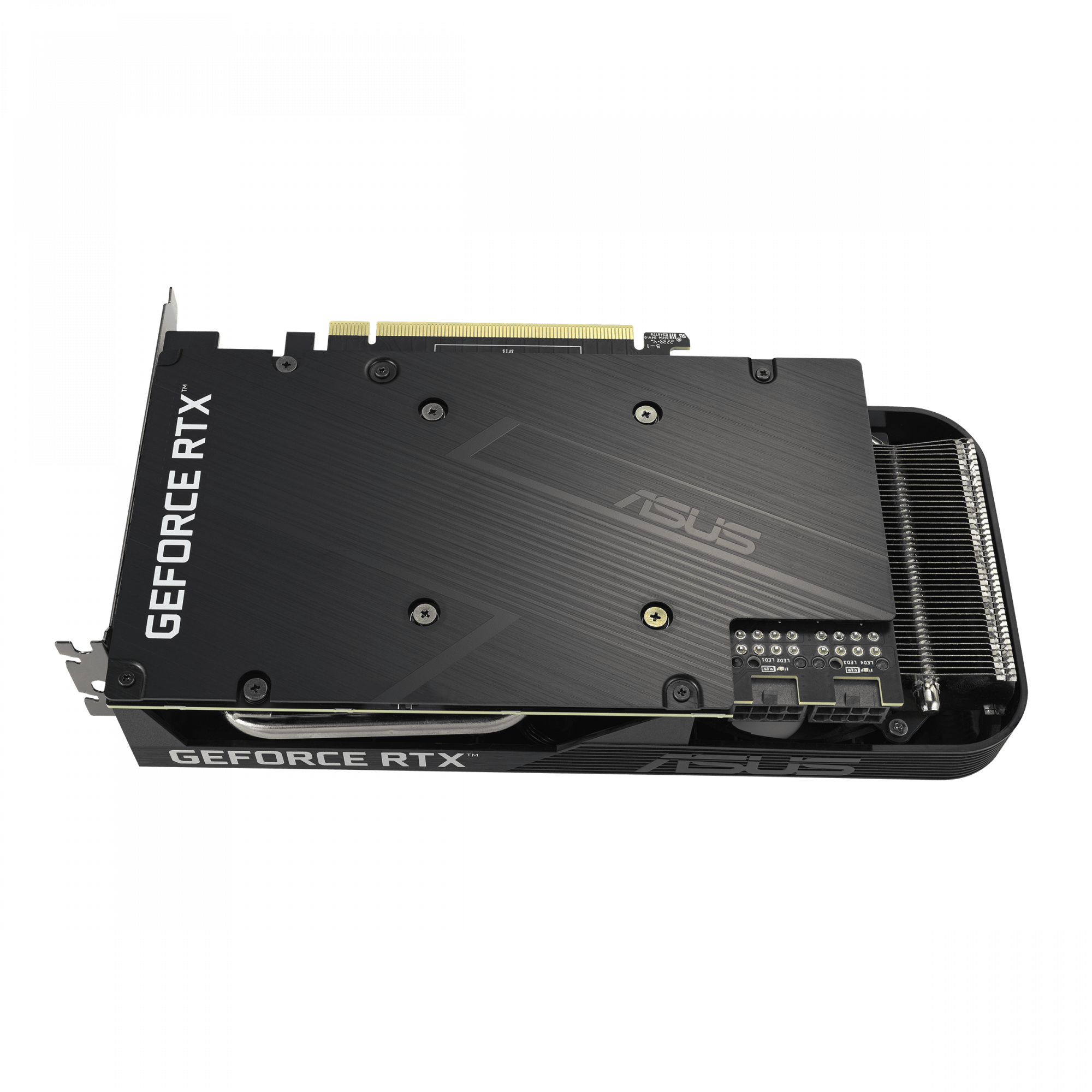

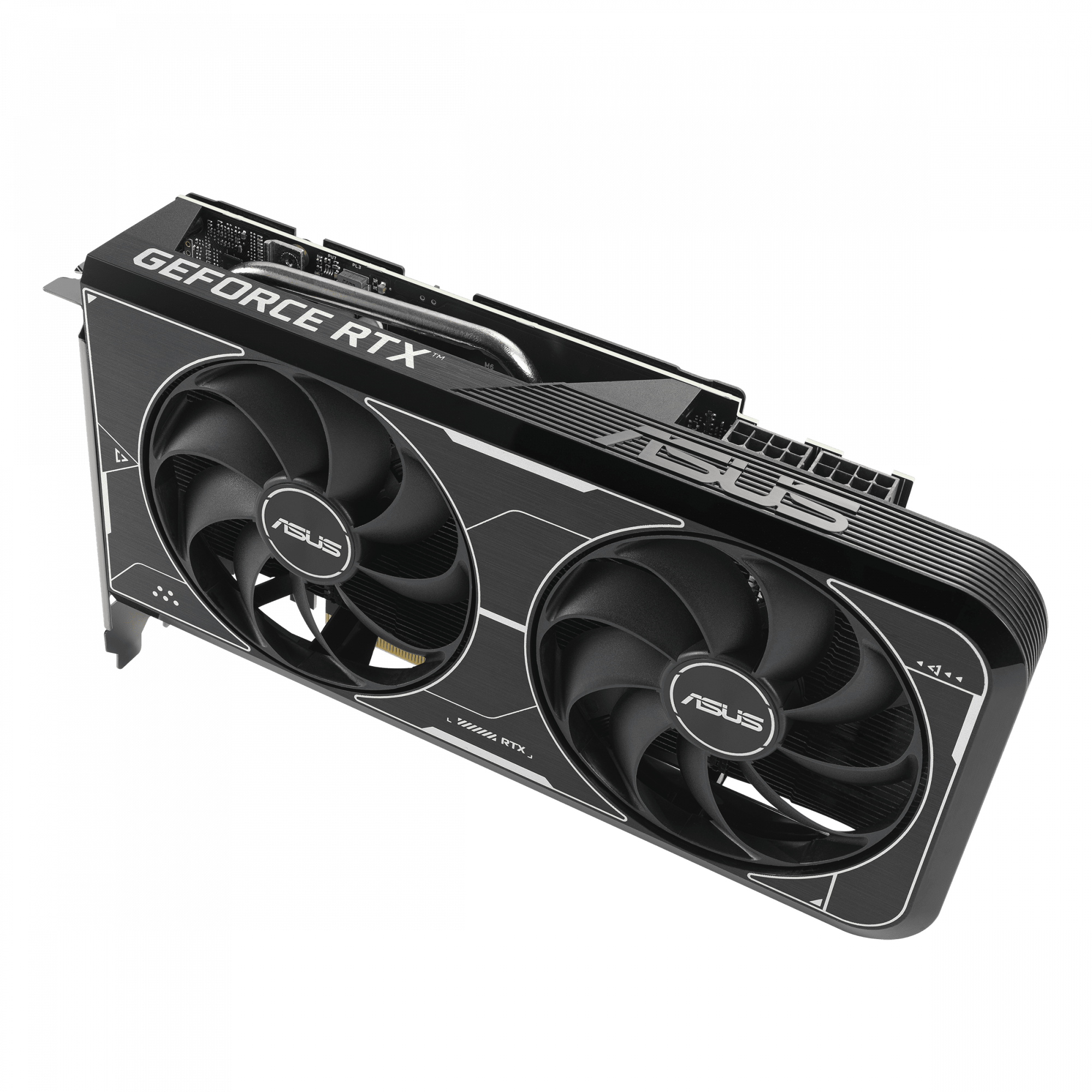

ASUS Dual -RTX3060TI-O8GD6X. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 3060 Ti. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6X, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 2 fan(s)

NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency
2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance
3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities
OC edition: Boost Clock 1710 MHz (OC Mode)/1680 MHz(Default Mode)

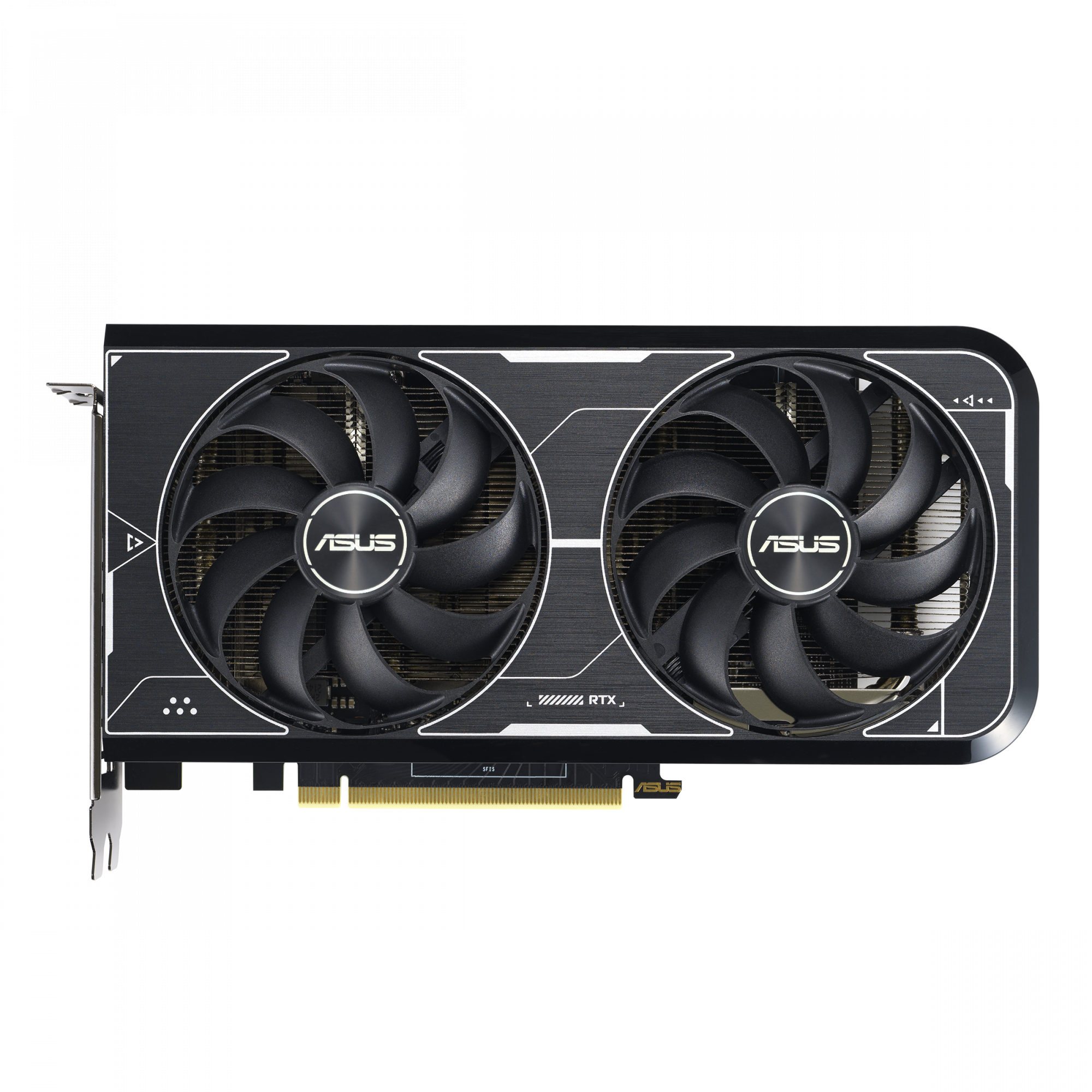

Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
A 2-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis
0dB Technology lets you enjoy light gaming in relative silence
Dual ball fan bearings can last up to twice as long as sleeve bearing designs

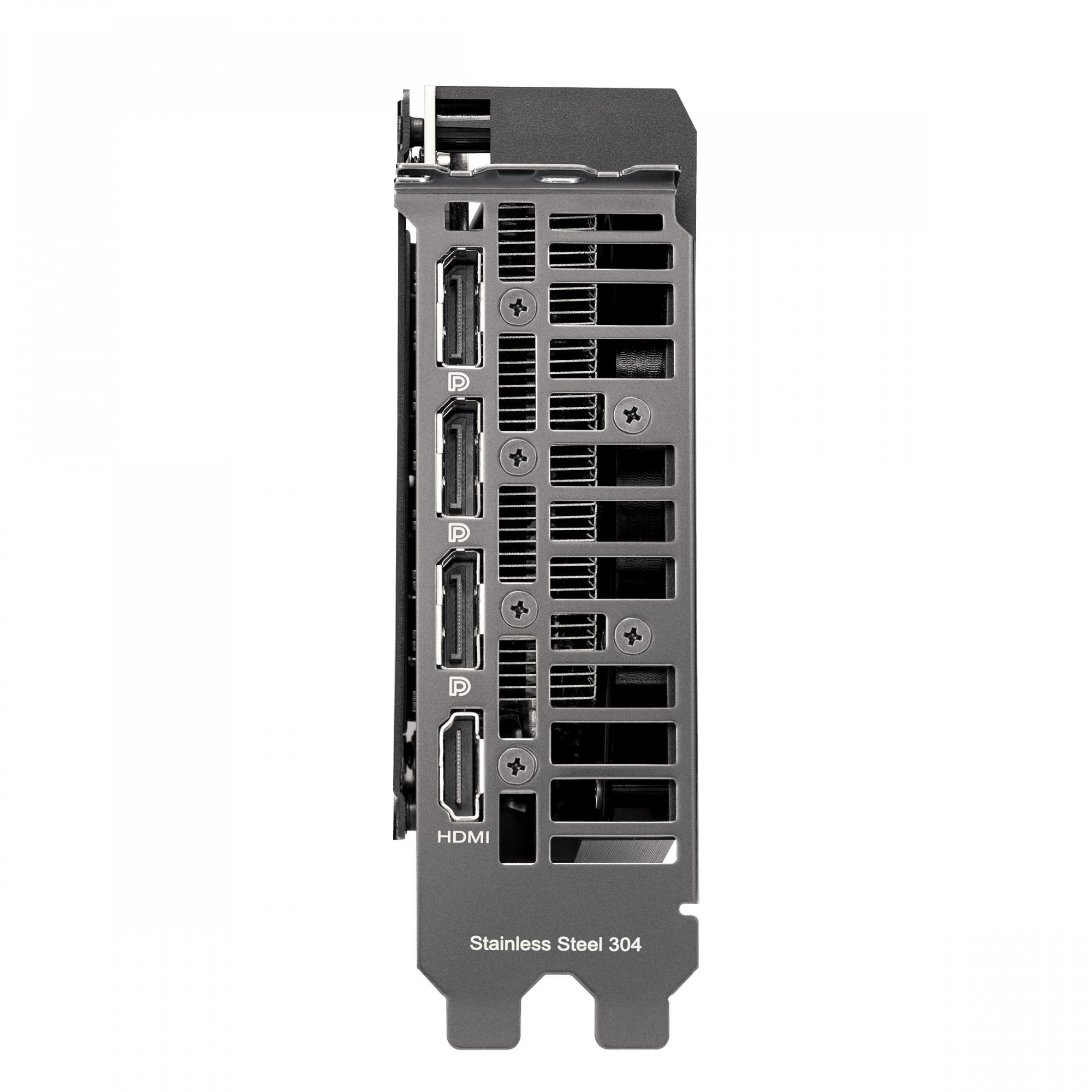

A stainless steel bracket is harder and more resistant to corrosion

Product Properties

Manufacturer
Asus

Model
DL-RTX3060TI-O8GD6

EAN
4711081987406

Bullet points

Point
0dB technology lets you enjoy light gaming in relative silence

2nd Generation RT Cores

3rd Generation Tensor Cores

A stainless steel bracket is harder and more resistant to corrosion

Dual ball fan bearings can last up to twice as long as sleeve bearing designs

NVIDIA Ampere Streaming Multiprocessors

OC edition: Boost Clock 1710 MHz (OC Mode)/1680 MHz(Default Mode)

Design

Cooling type
Active

Number of fans
2 fan(s)

Number of slots
2

Product colour
Black

Memory

Data transfer rate
19 Gbit/s

Discrete graphics card memory
8 GB

Graphics card memory type
GDDR6X

Memory bus
256 bit

Packaging data

Package depth
220.5 mm

Package height
68 mm

Package type
Box

Package weight
1.1 kg

Package width
368 mm

Performance

Dual Link DVI
N

HDCP
Y

HDCP version
2.3

OpenGL version
4.6

TV tuner integrated
N

Ports & interfaces

DisplayPort version
1.4a

DisplayPorts quantity
3

HDMI ports
1

HDMI version
2.1

Interface type
PCI Express 4.0

Power

Minimum system power supply
750 W

Supplementary power connectors
2x 8-pin

Processor

CUDA
Y

CUDA cores
4864

Graphics processor
GeForce RTX 3060 Ti

Graphics processor family
NVIDIA

Maximum displays per videocard
4

Maximum resolution
7680 x 4320 pixels

Parallel processing technology support
Not supported

Processor boost clock speed
1680 MHz

Processor boost clock speed (OC mode)
1710 MHz

Weight & dimensions

Depth
120 mm

Height
42 mm

Weight
620 g

Width
230 mm

ASUS Dual -RTX3060TI-O8GD6X NVIDIA GeForce RTX 3060 Ti 8 GB GDDR6X
