Description

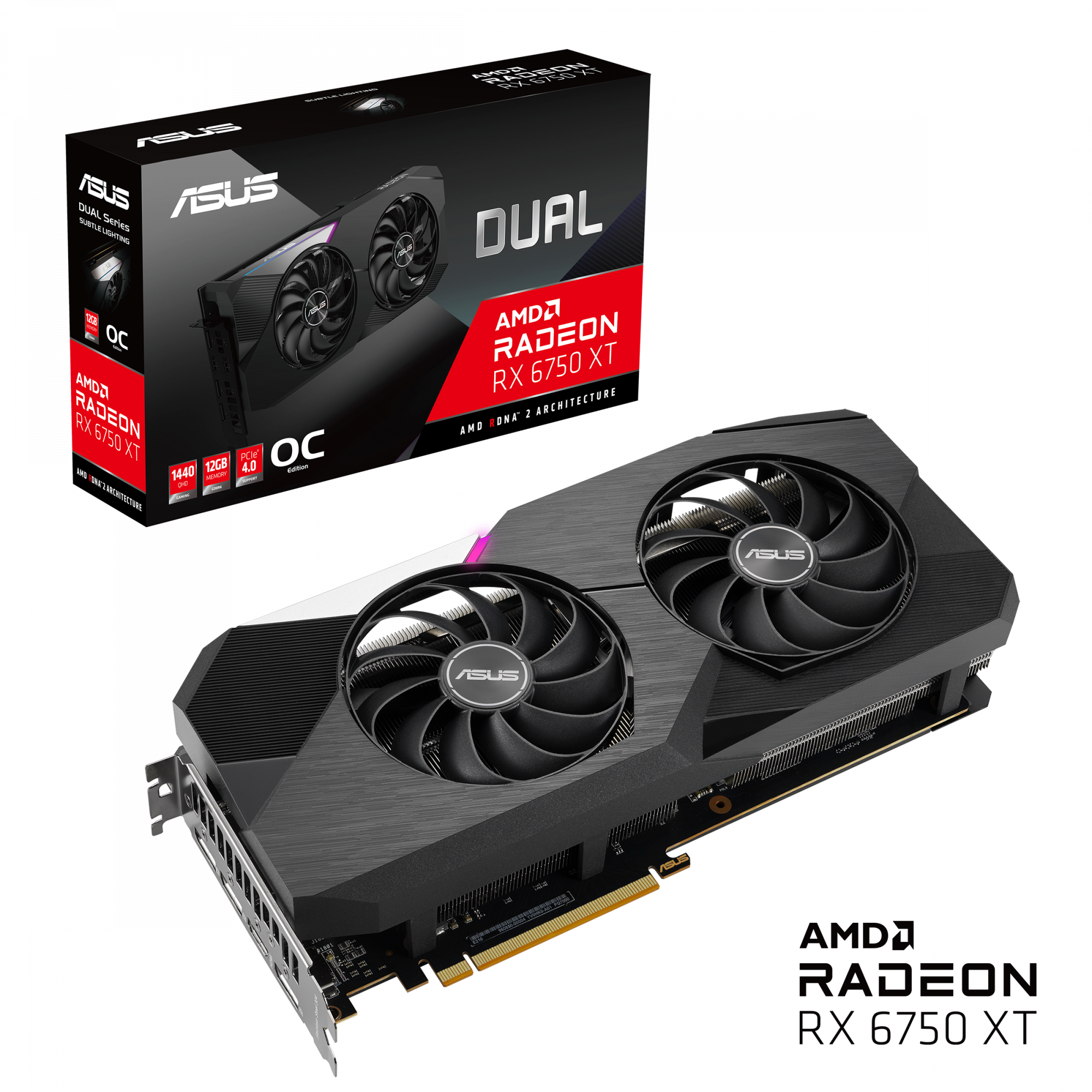

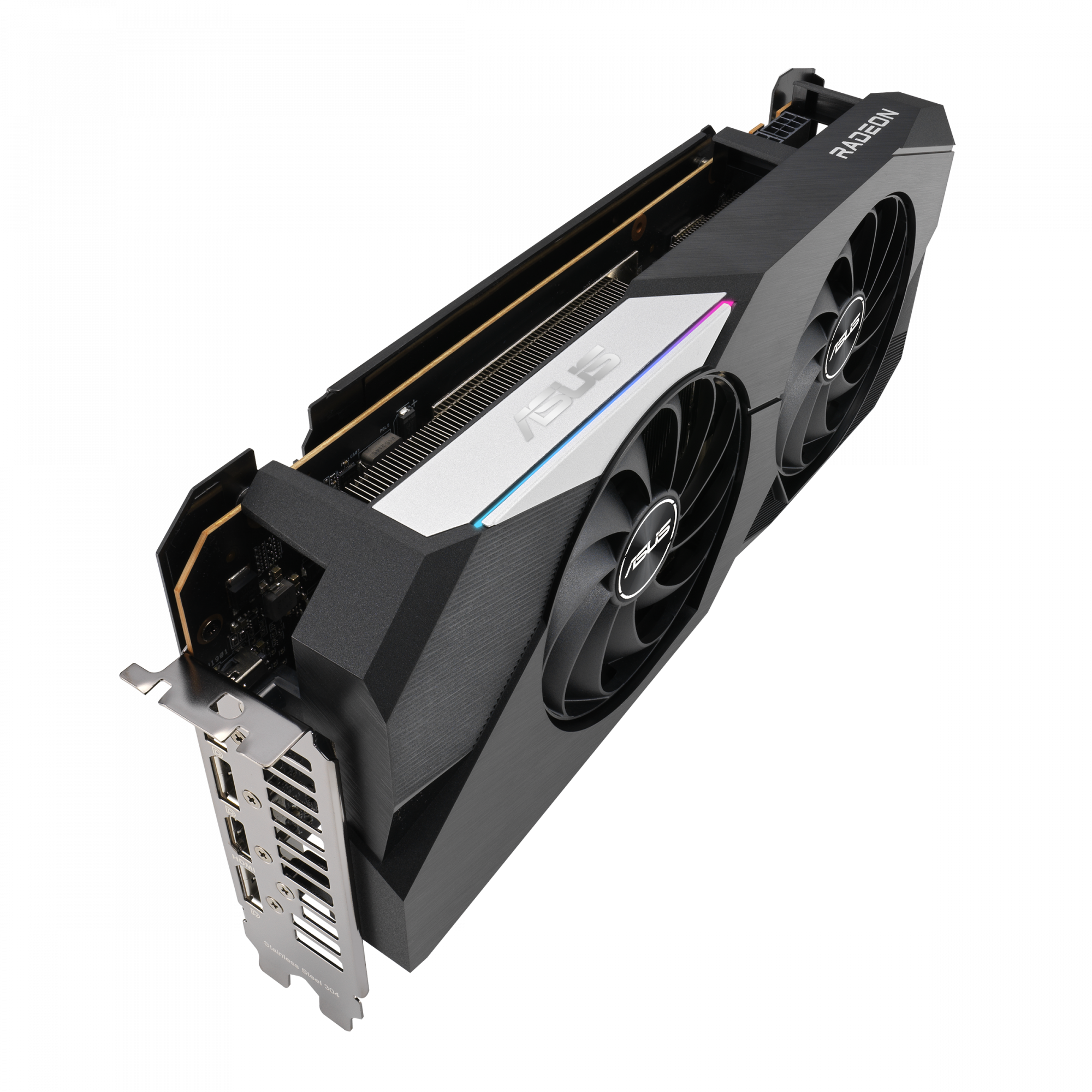

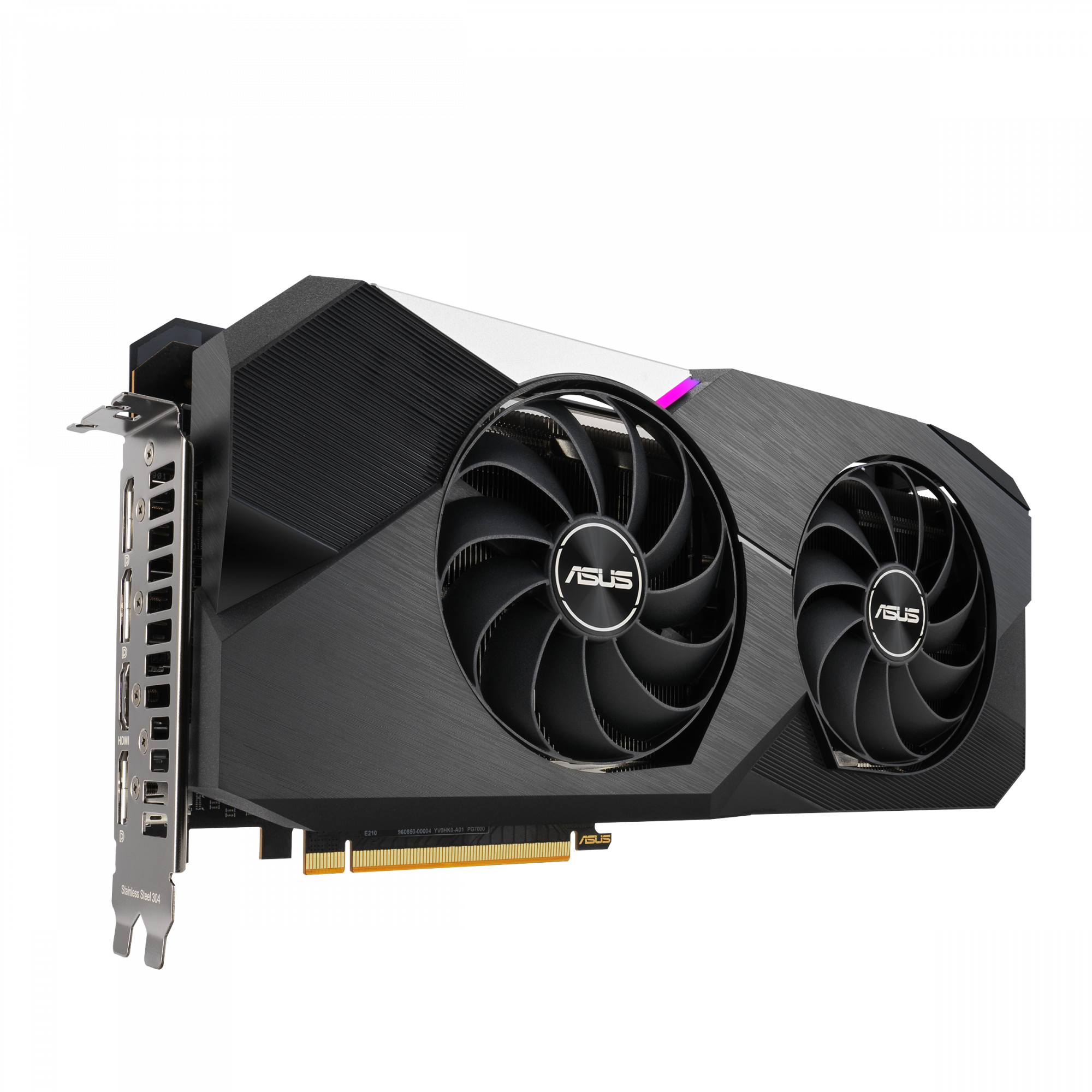

ASUS Dual -RX6750XT-O12G. Graphics processor family: AMD, Graphics processor: Radeon RX 6750 XT. Discrete graphics card memory: 12 GB, Graphics card memory type: GDDR6, Memory bus: 192 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 2 fan(s)

OC mode: Up to 2618 MHz (Boost Clock)/up to 2512 MHz (Game Clock)

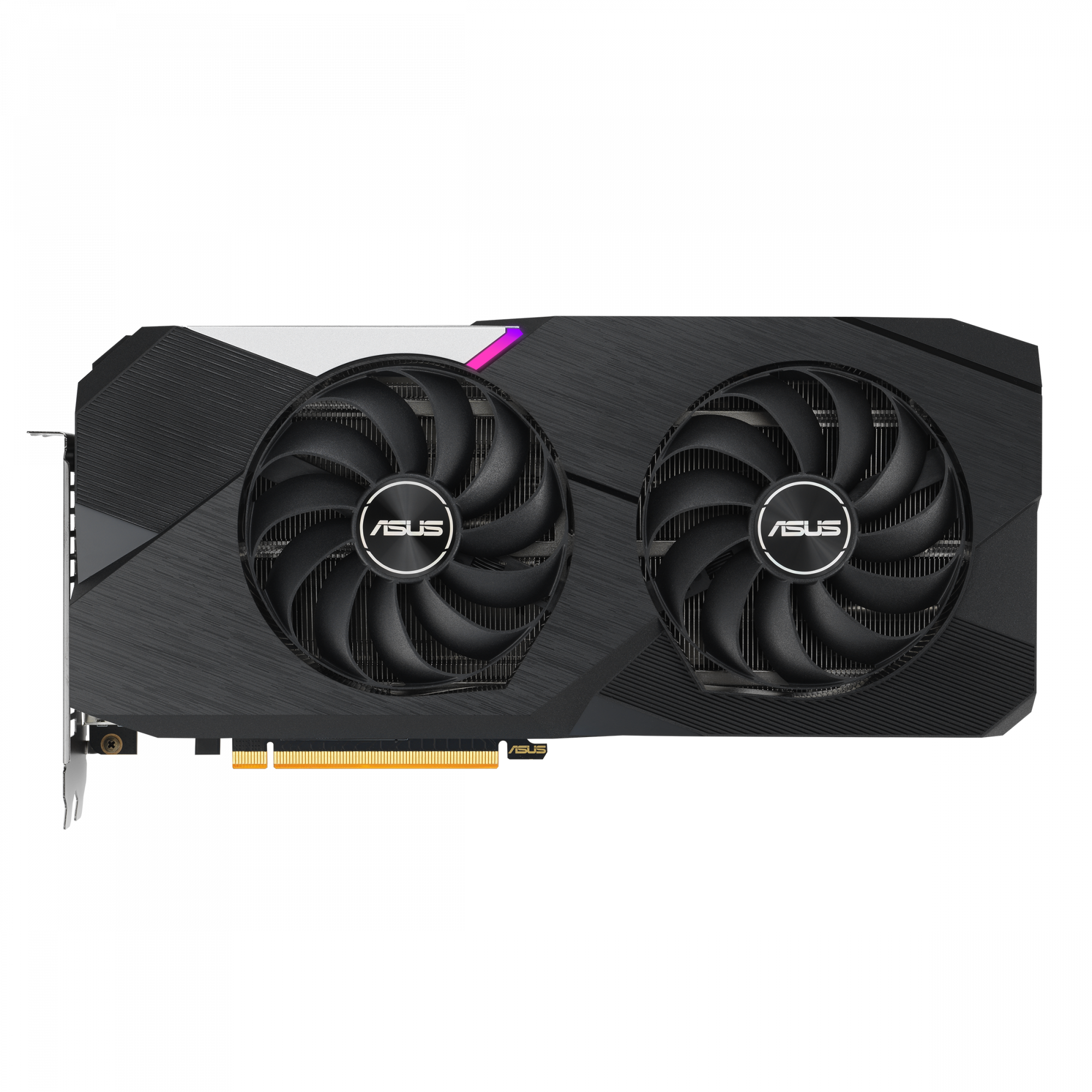

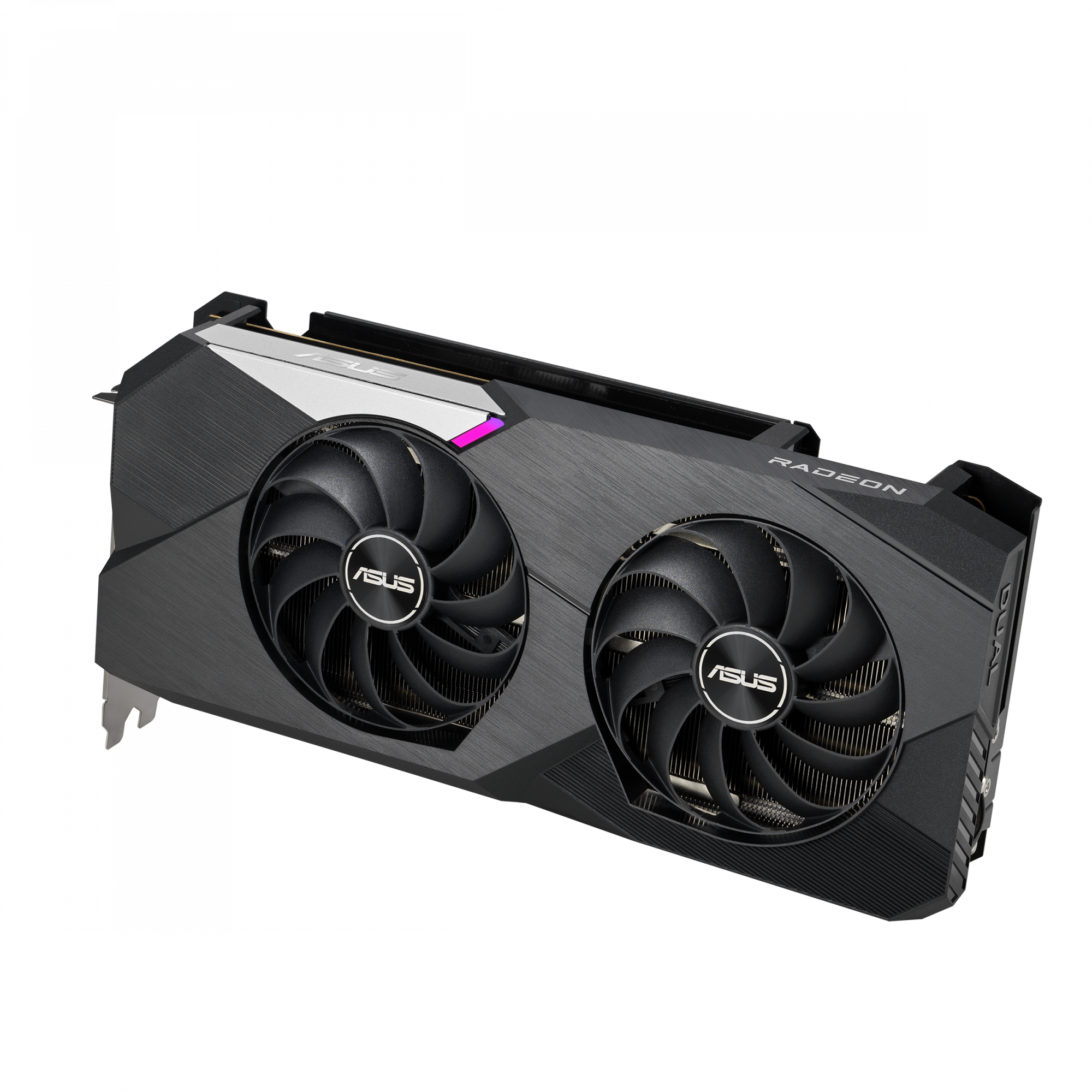

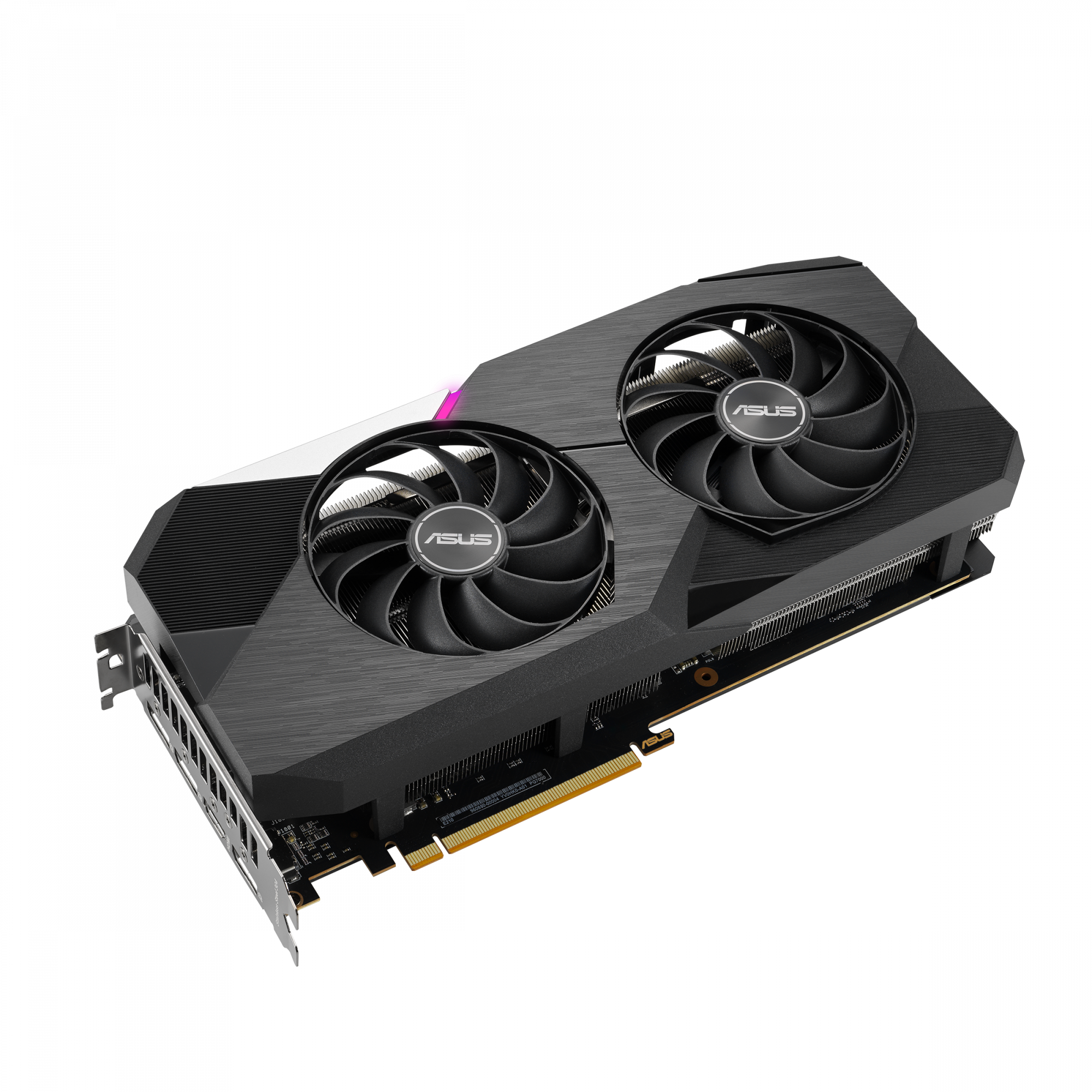

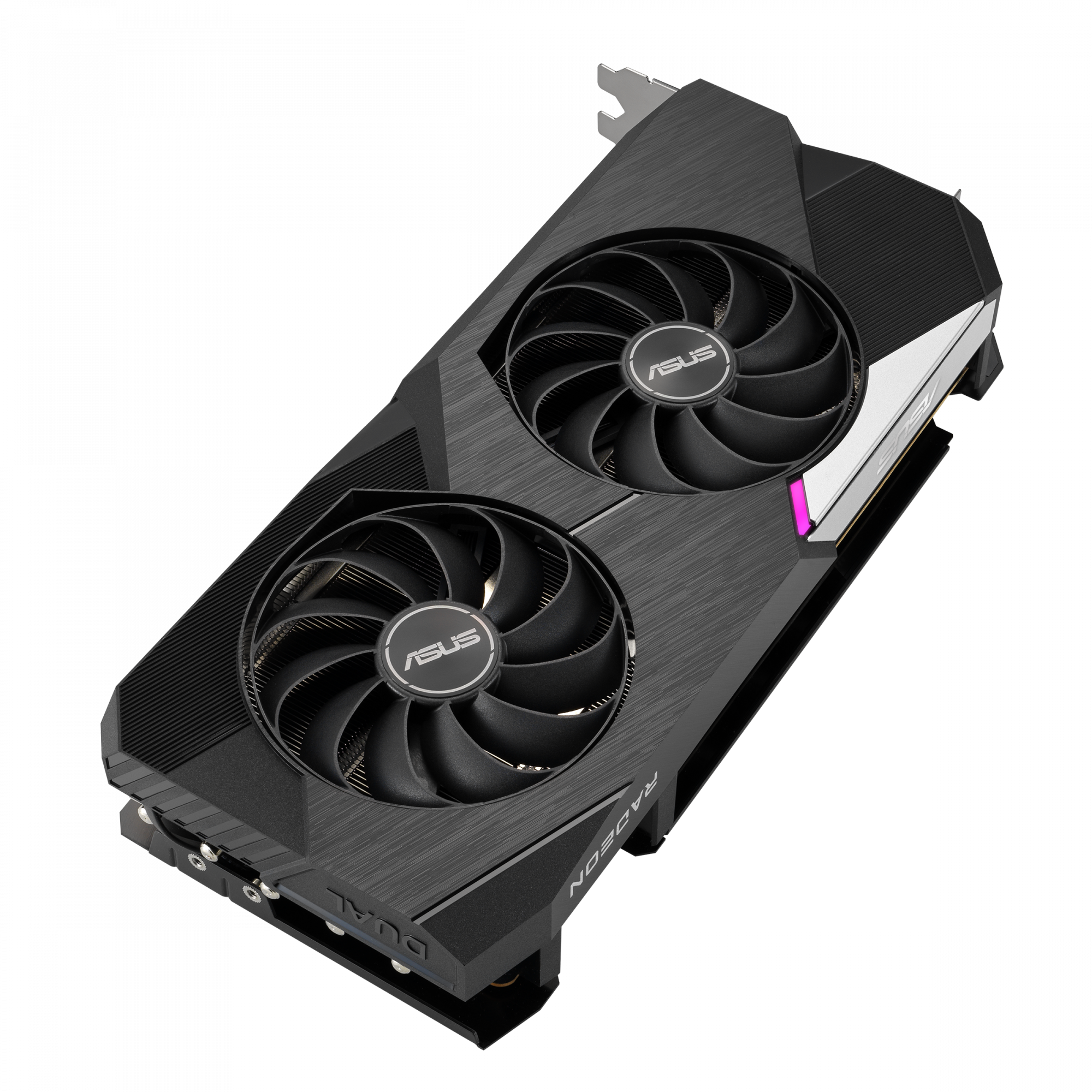

Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
Dual ball fan bearings can last up to twice as long as sleeve bearing designs
Auto-Extreme Technology uses automation to enhance reliability

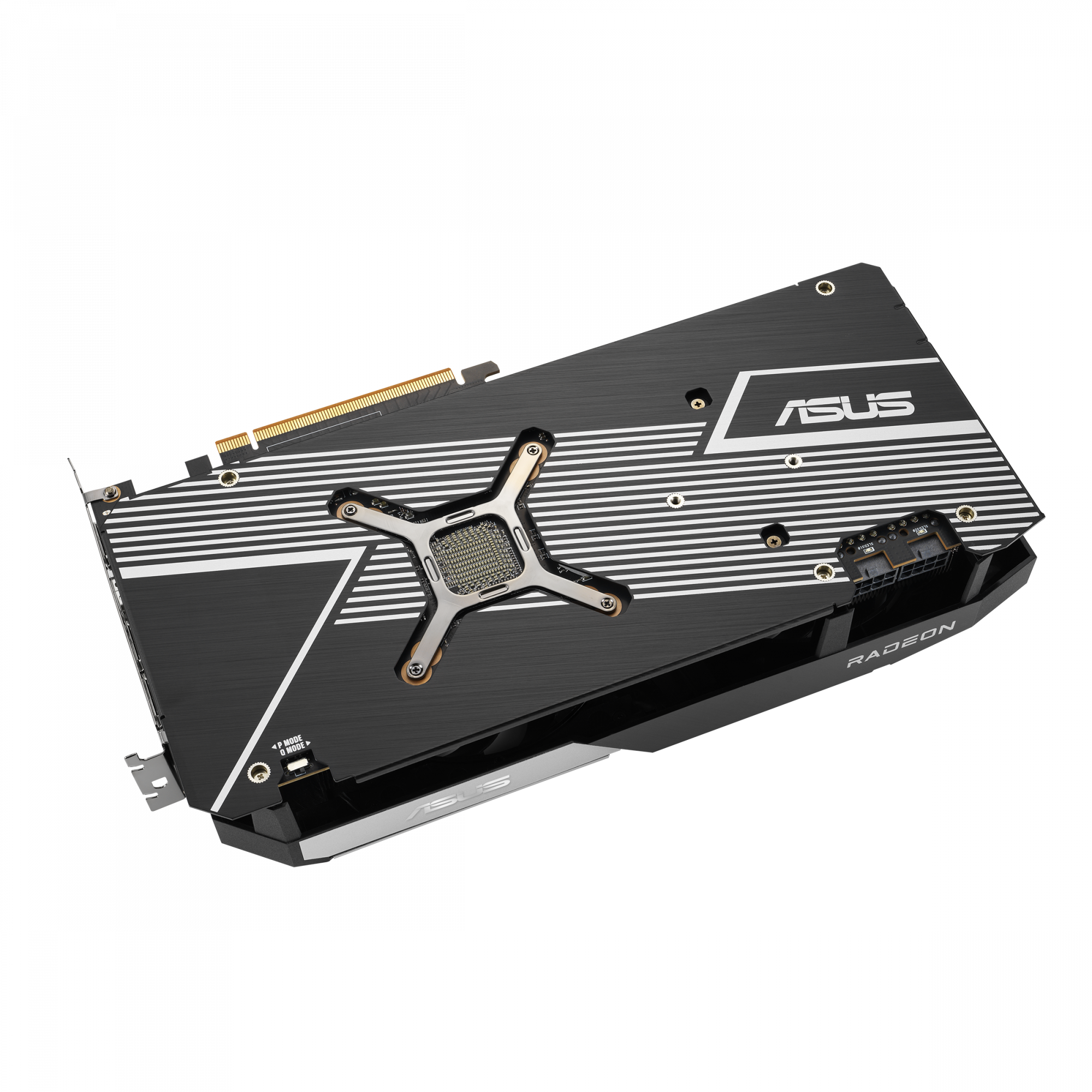

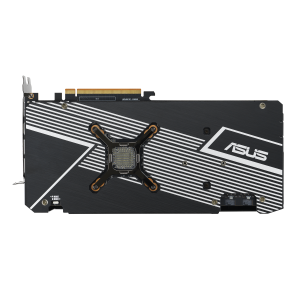

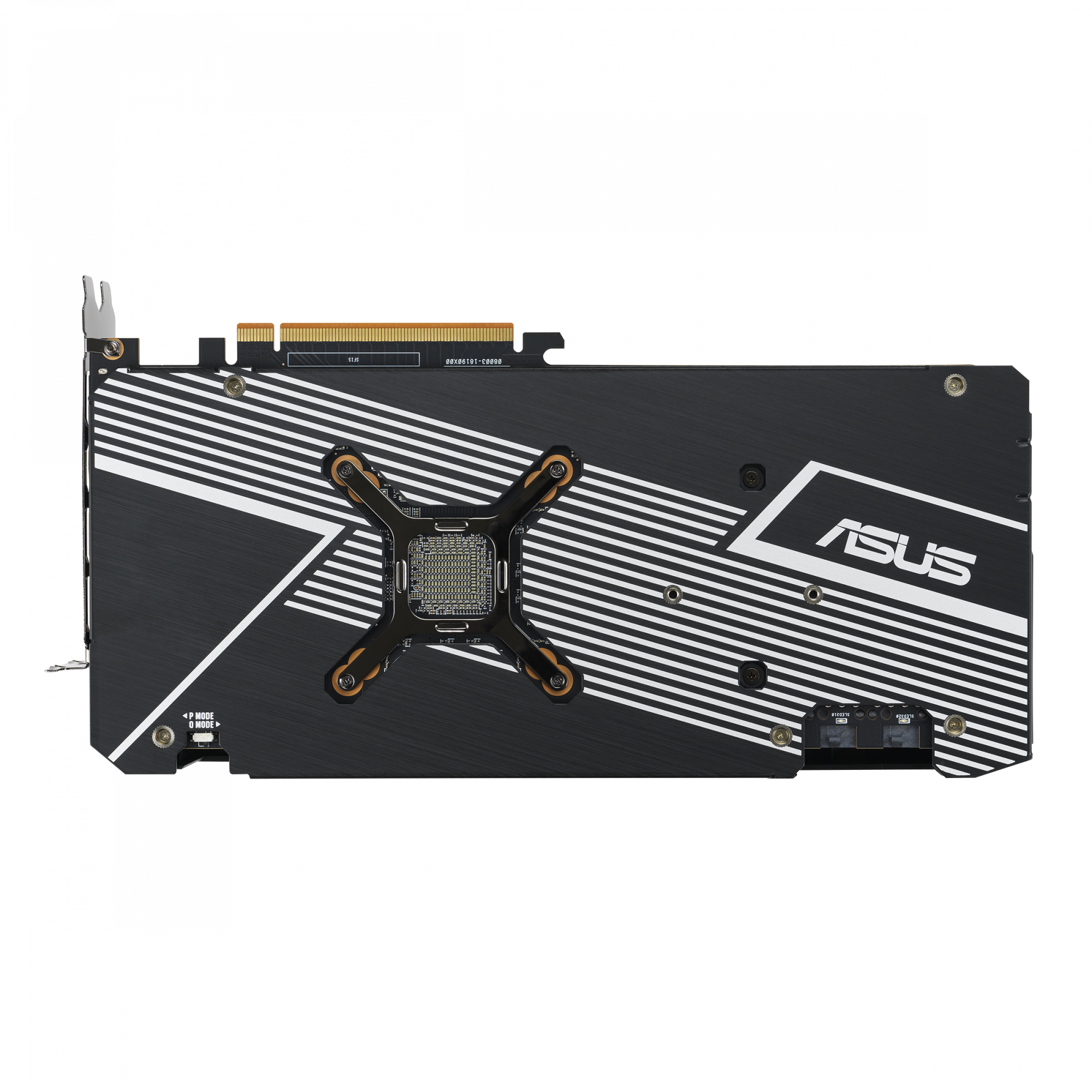

A protective backplate prevents PCB flex and trace damage

Master Your Game With Legendary Performance

The new AMD Radeon™ RX 6950 XT, RX 6750 XT, and RX 6650 XT graphics cards are optimized for DirectStorage to help reduce load times in games and bring expansive worlds to life in amazing detail. The Radeon™ RX 6000 Series graphics cards take full advantage of the latest innovations in upscaling technologies such as AMD FidelityFX™ Super Resolution2 or the new Radeon™ Super Resolution1. Whether it is AAA gaming or eSports, experience all your games without compromise.

Supercharged Performance

The Radeon™ RX 6000 Series graphics cards can take on the most demanding titles at maximum settings with all the latest features enabled. With up to 80 powerful graphics compute units, coupled with up to 16GB of high-speed GDDR6 memory, and up to 128MB of low-latency AMD Infinity Cache™, these cards redefine enthusiast level performance.

Vivid Visuals

Experience a new level of immersion with the Radeon™ RX 6000 Series graphics cards with support for the latest software innovations such as DirectX 12 Ultimate and the latest AMD FidelityFX™ technology feature set, enabling realistic lighting, shadows, and reflections in extreme detail. AMD FidelityFX™ technology features are optimized for the AMD RDNA™ 2 architecture to power the next generation of gaming visuals at high framerates, providing a mesmerizing gaming experience.

Product Properties

Manufacturer
Asus

Model
DUAL-RX6750XT-O12G

EAN
4711081731740

Bullet points

Point
A protective backplate prevents PCB flex and trace damage

Auto-Extreme Technology uses automation to enhance reliability

Dual ball fan bearings can last up to twice as long as sleeve bearing designs

OC mode: Up to 2618 MHz (Boost Clock)/up to 2512 MHz (Game Clock)

Design

Cooling technology
ASUS Axial-tech

Cooling type
Active

Illumination
Yes

Number of fans
2 fan(s)

Number of slots
2.7

Product colour
Multicolour

Logistics data

Harmonized System (HS) code
84733020

Memory

Discrete graphics card memory
12 GB

Graphics card memory type
GDDR6

Memory bandwidth (max)
18 GB/s

Memory bus
192 bit

Packaging data

Package depth
88.5 mm

Package height
233 mm

Package weight
1.99 kg

Package width
405 mm

Performance

Dual Link DVI
No

HDCP
Yes

OpenGL version
4.6

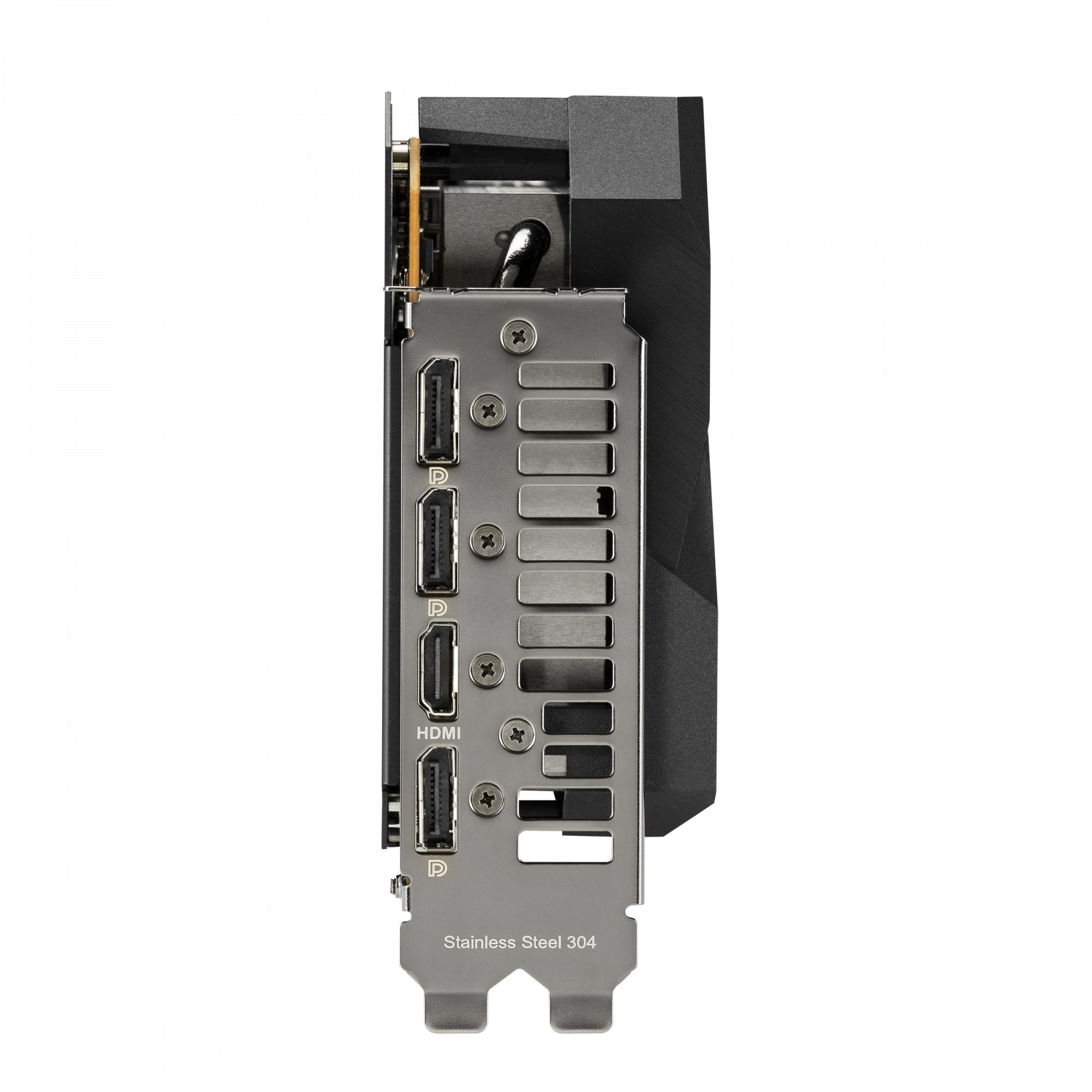

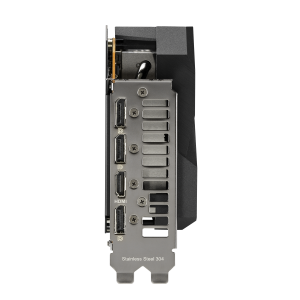

Ports & interfaces

DisplayPort version
1.4a

DisplayPorts quantity
3

HDMI ports
1

HDMI version
2.1

Interface type
PCI Express 4.0

Power

Minimum system power supply
750 W

Supplementary power connectors
2x 8-pin

Processor

CUDA
No

Graphics processor
Radeon RX 6750 XT

Graphics processor family
AMD

Maximum displays per videocard
4

Maximum resolution
7680 x 4320 pixels

Parallel processing technology support
CrossFire, NVLink

Processor boost clock speed
2618 MHz

Processor boost clock speed (Gaming mode)
2512 MHz

Stream processors
2560

Weight & dimensions

Depth
55 mm

Height
139 mm

Weight
1.23 kg

Width
295 mm

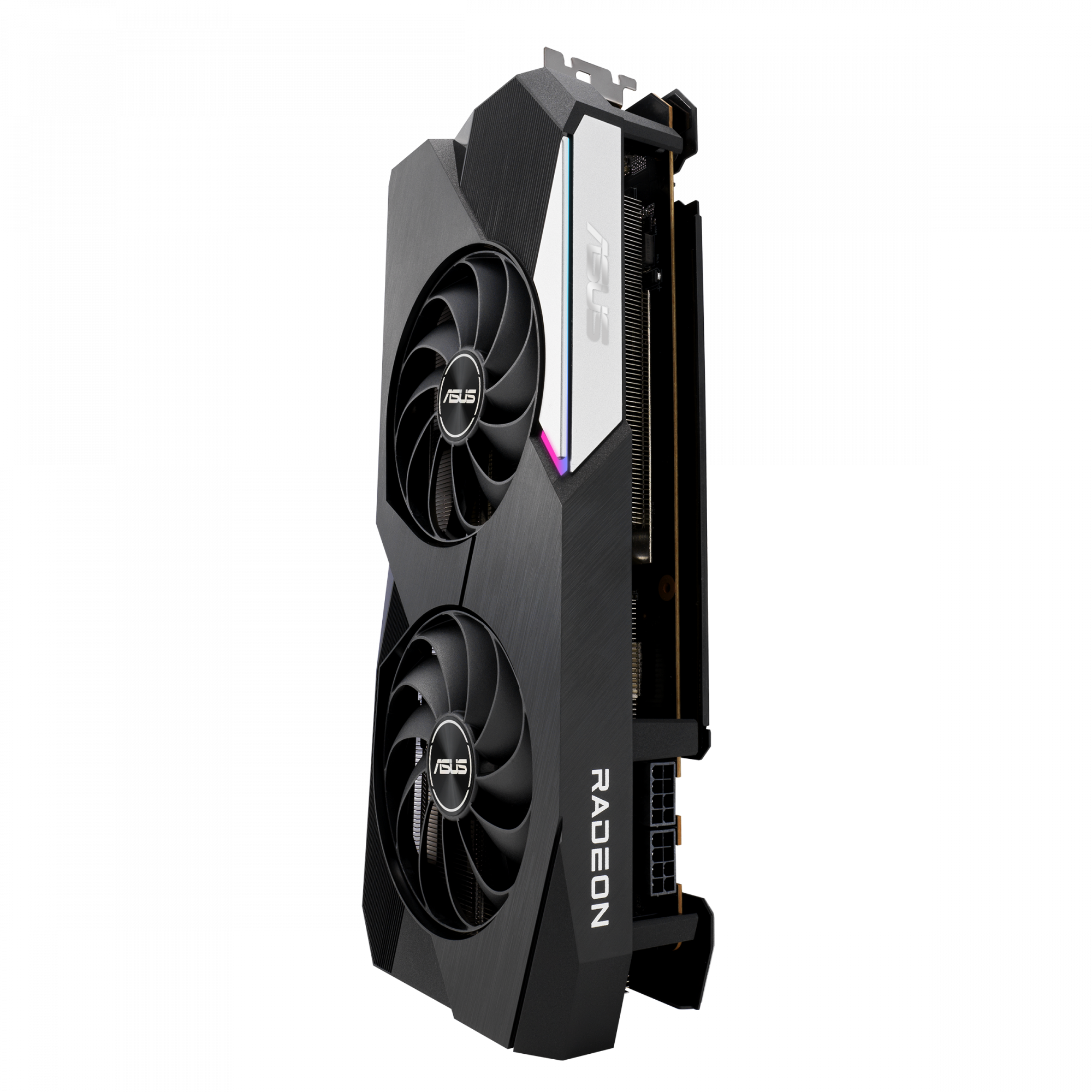

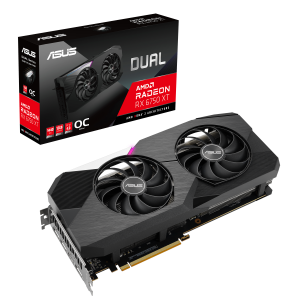

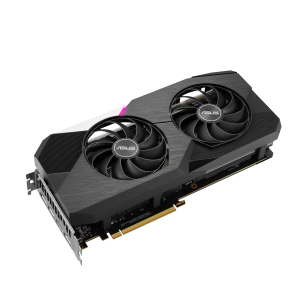

ASUS Dual -RX6750XT-O12G AMD Radeon RX 6750 XT 12 GB GDDR6
