Description

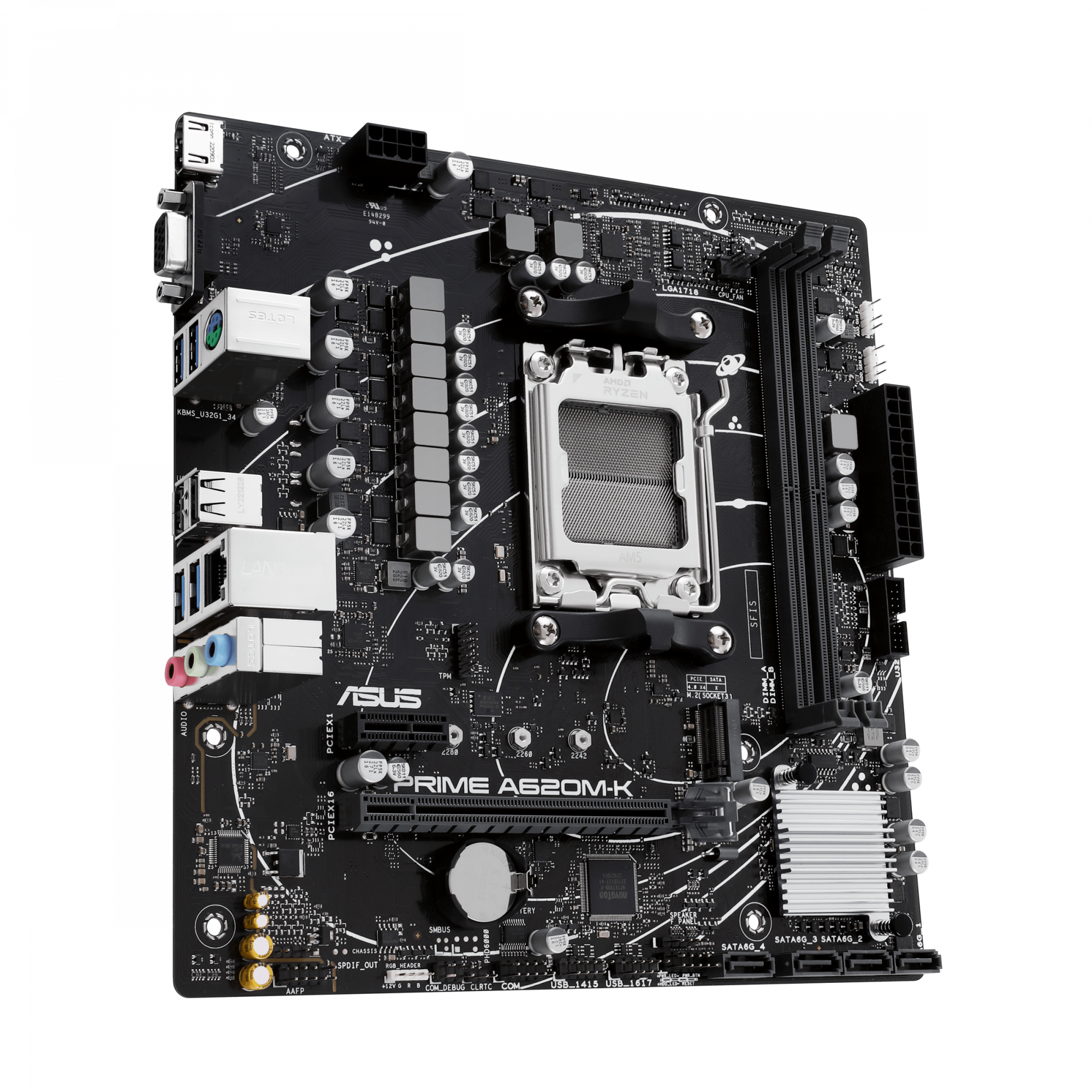

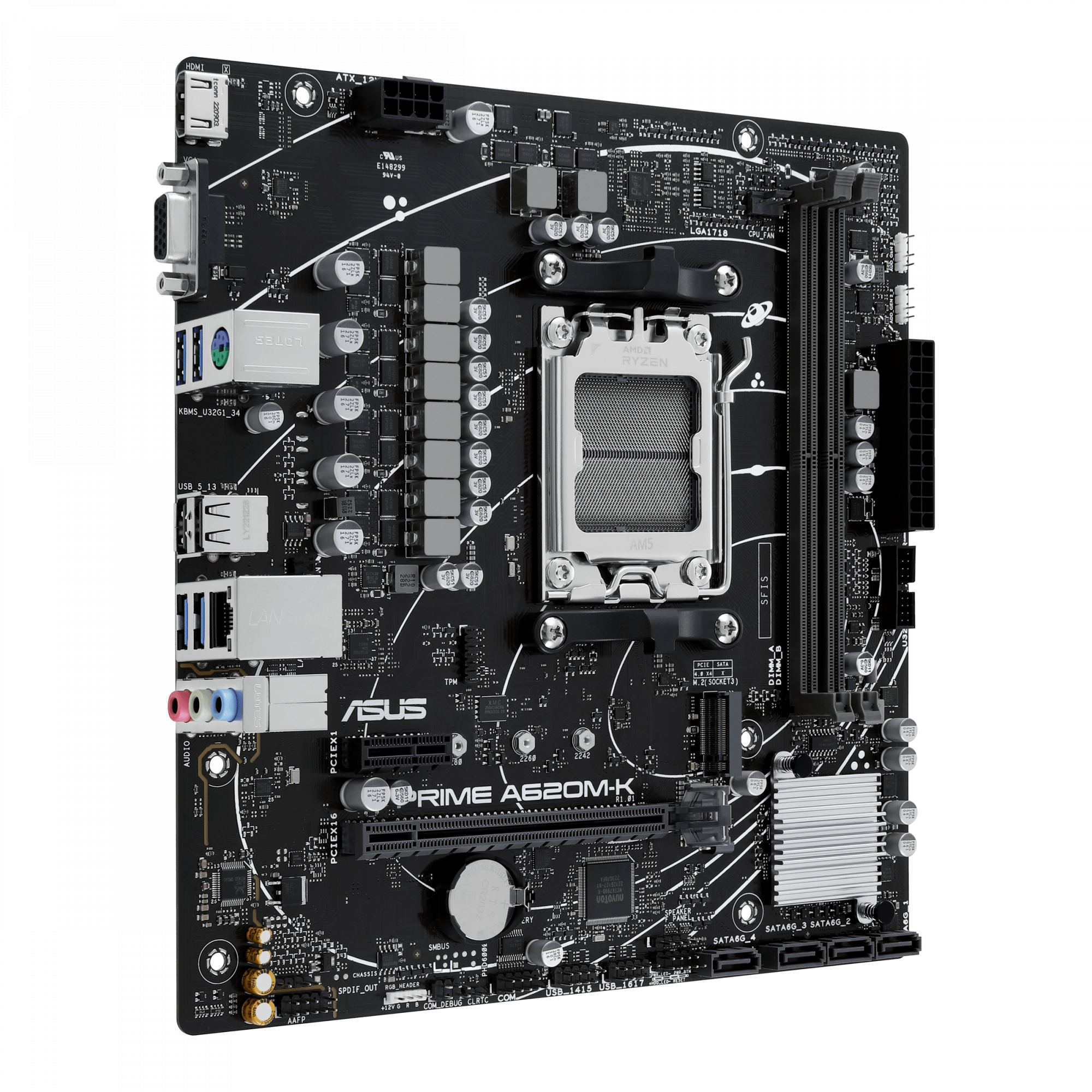

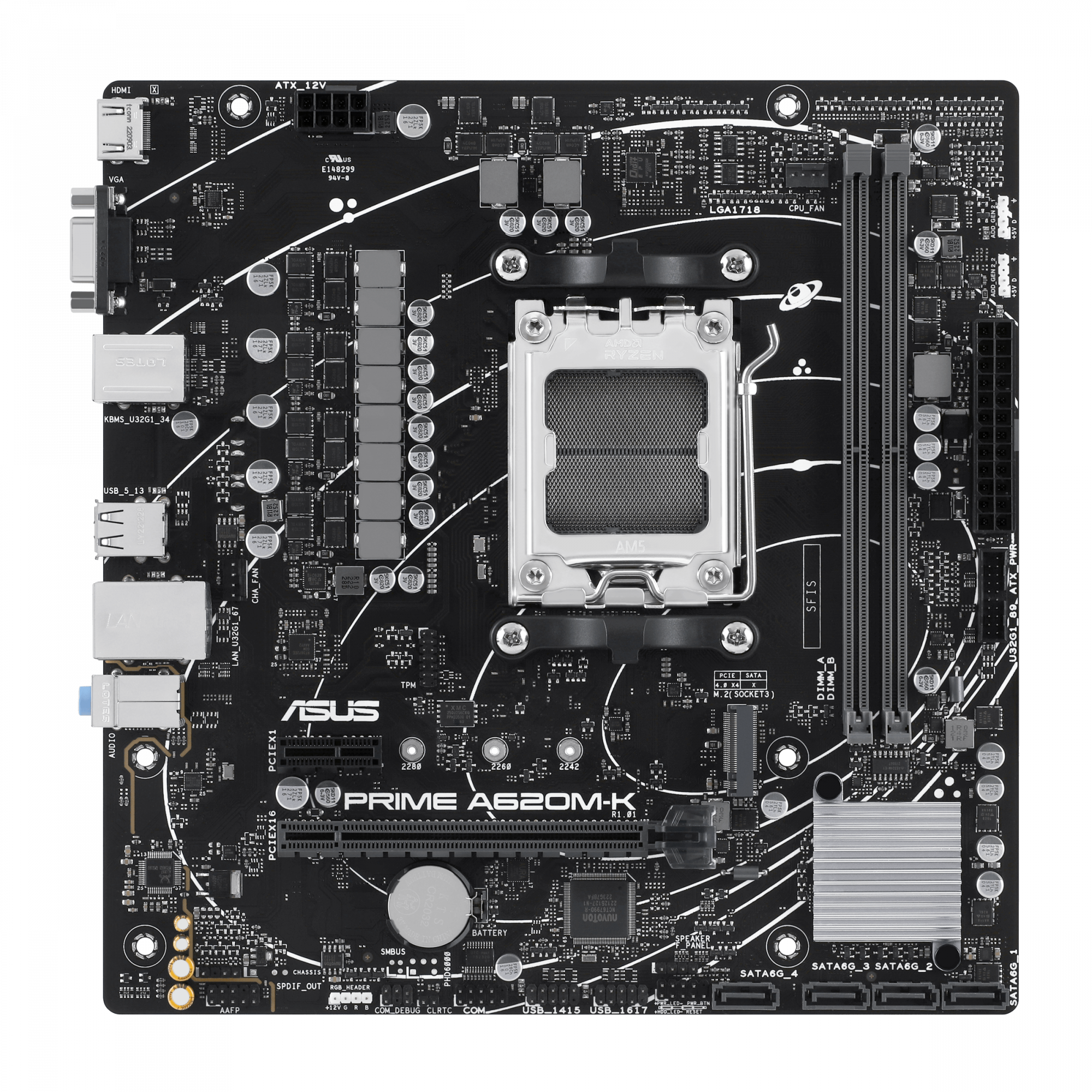

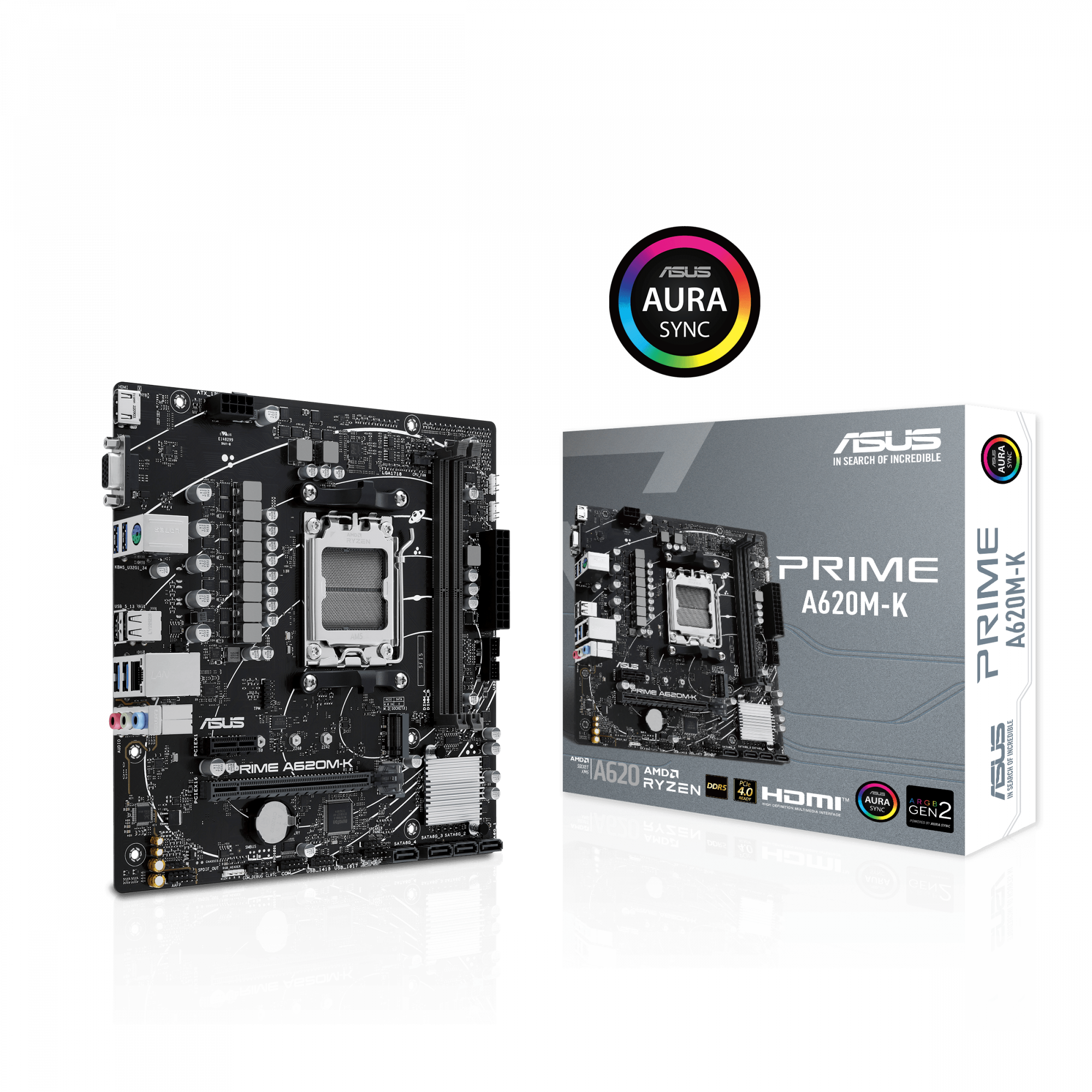

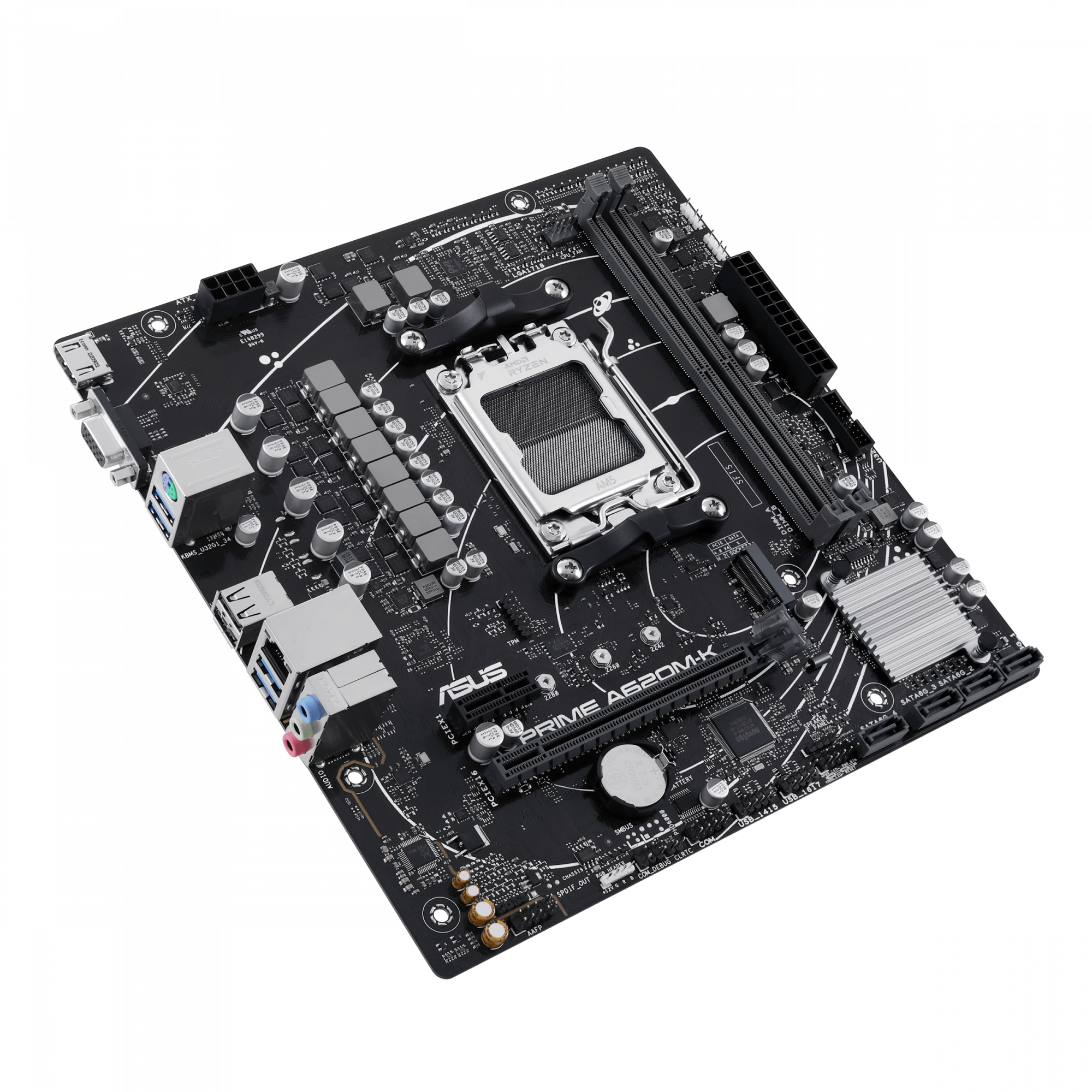

ASUS PRIME A620M-K. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 5 7th Gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory channels: Dual-channel. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: Fast Ethernet, Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD

AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors
Ultrafast Connectivity: PCIe 4.0, 64Gbps M.2 slot, Realtek 1Gb Ethernet, USB 3.2 Gen 1 Type-A
Comprehensive Cooling: PCH heatsink and Fan Xpert
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

Product Properties

Manufacturer
Asus

Model
PRIME A620M-K

EAN
4711387242087

BIOS

BIOS memory size
256 Mbit

BIOS type
UEFI AMI

Bullet points

Point
AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors

Aura Sync RGB Lighting

Comprehensive cooling: PCH heatsink and Fan Xpert

Two-way AI Noise Cancelation

Ultrafast Connectivity: PCIe 4.0, 64Gbps M.2 slot, Realtek 1Gb Ethernet, USB 3.2 Gen 1 Type-A

Expansion slots

Number of M.2 (M) slots
1

PCI Express x1 (Gen 3.x) slots
1

Features

Audio output channels
7.1 channels

Chip Set
AMD

Component for
PC

Motherboard chipset
AMD A620

Motherboard form factor
micro ATX

Windows operating systems supported
Windows 10 x64, Windows 11

Internal I/O

12V power connector
Yes

ATX Power connector (24-pin)
Yes

CPU fan connector
Yes

EPS power connector (8-pin)
Yes

Front panel audio connector
Yes

Number of chassis fan connectors
1

Number of COM connectors
1

Number of SATA III connectors
4

S/PDIF out connector
Yes

TPM connector
Yes

USB 2.0 connectors
2

USB 3.2 Gen 1 (3.1 Gen 1) connectors
1

Memory

Memory channels
Dual-channel

Memory Slot Support
96 GB

Non-ECC
Yes

Number of memory slots
2

Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz

Supported memory types
DDR5-SDRAM

Unbuffered memory
Yes

Network

Ethernet interface type
Fast Ethernet, Gigabit Ethernet

Ethernet LAN
Yes

Wi-Fi
No

Packaging data

Package depth
270 mm

Package height
51.5 mm

Package weight
920 g

Package width
260 mm

Processor

Compatible processor series
AMD Ryzen 5 7th Gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen

Processor manufacturer
AMD

Processor socket
Socket AM5

Supported processor sockets
Socket AM5

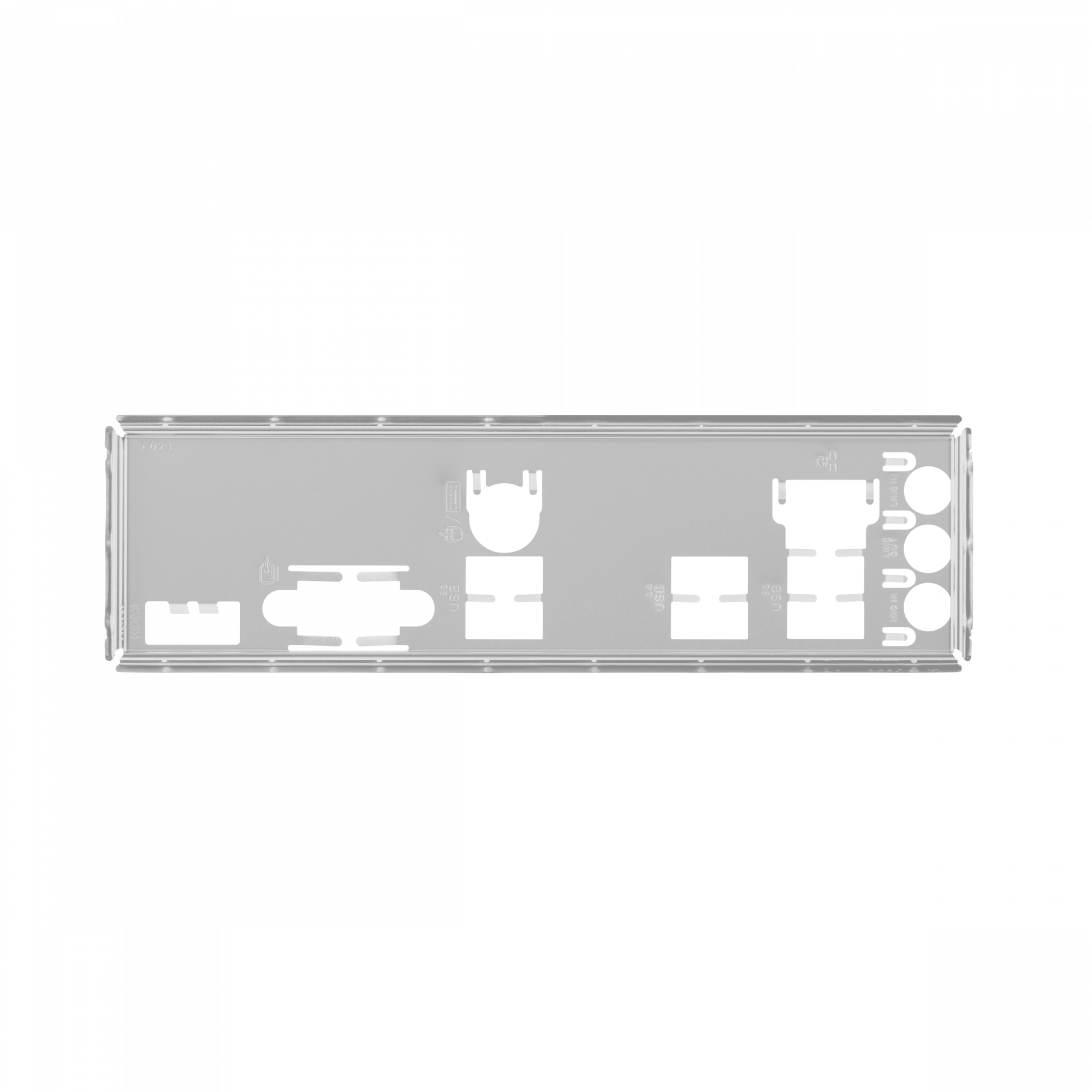

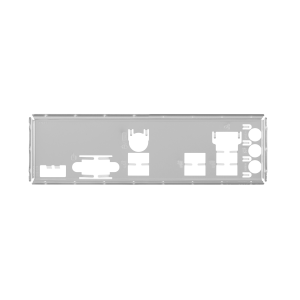

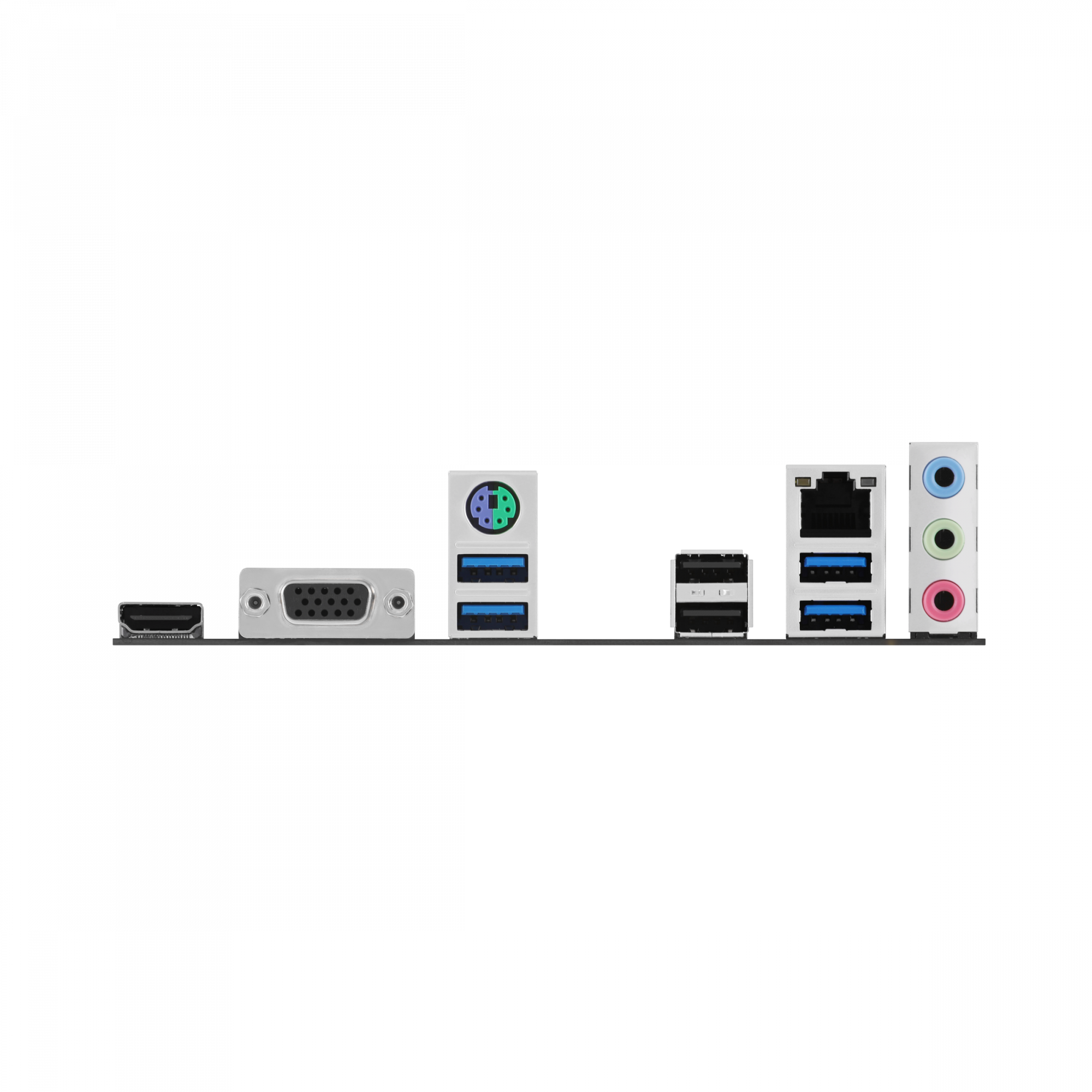

Rear panel I/O ports

Ethernet LAN (RJ-45) ports
1

HDMI ports quantity
1

PS/2 ports quantity
1

USB 2.0 ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4

VGA (D-Sub) ports quantity
1

Storage controllers

Number of HDDs supported
4

Number of storage drives supported
5

Supported storage drive interfaces
M.2, SATA III

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
221 mm

Width
226 mm
