Description

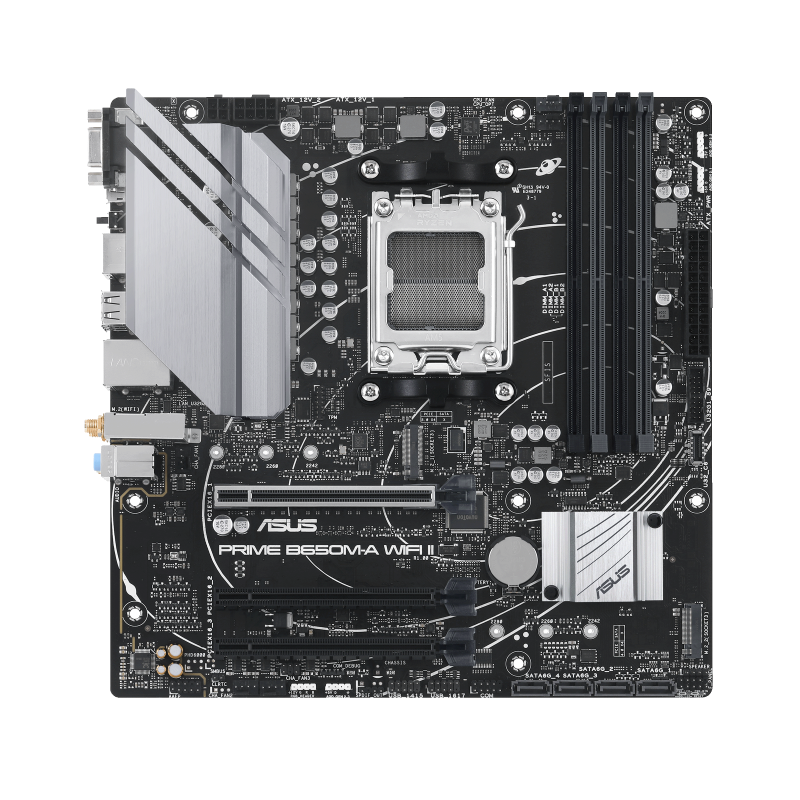

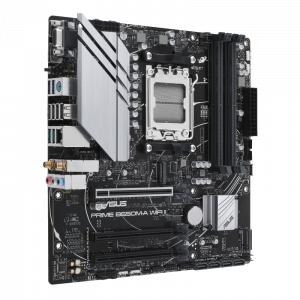

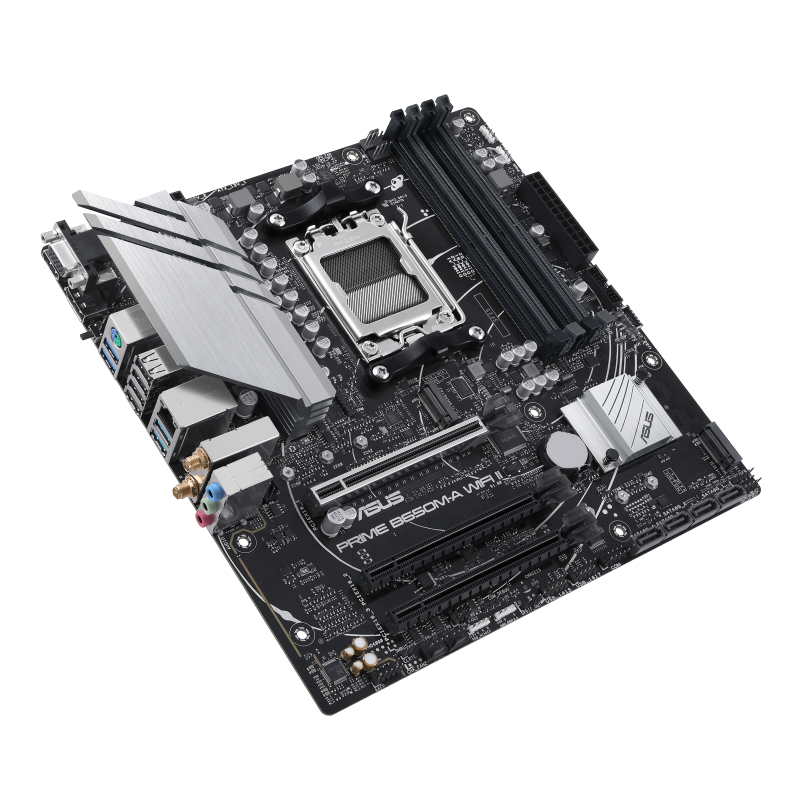

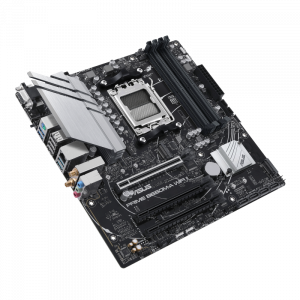

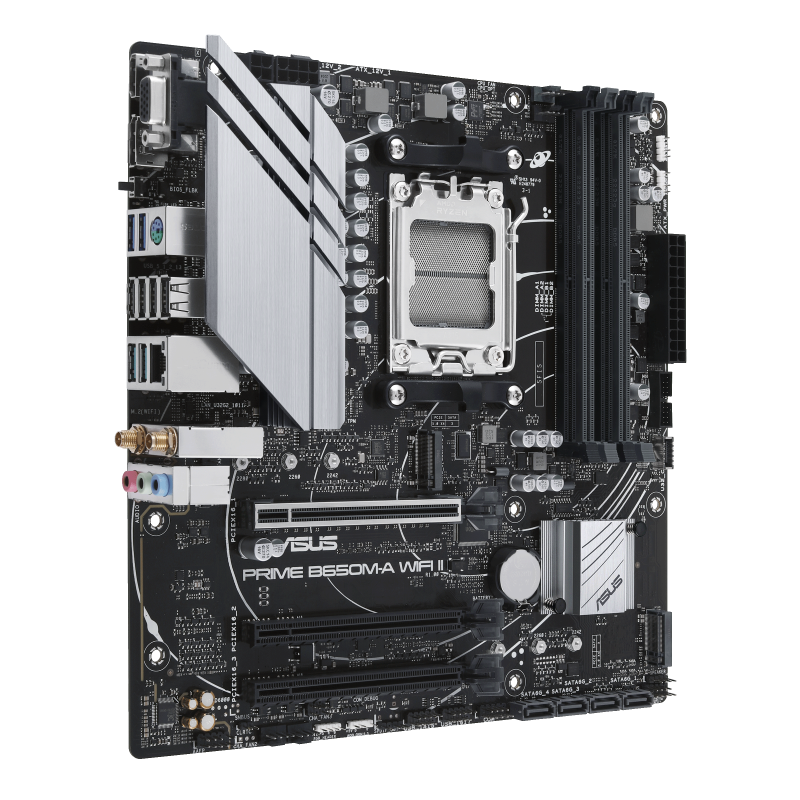

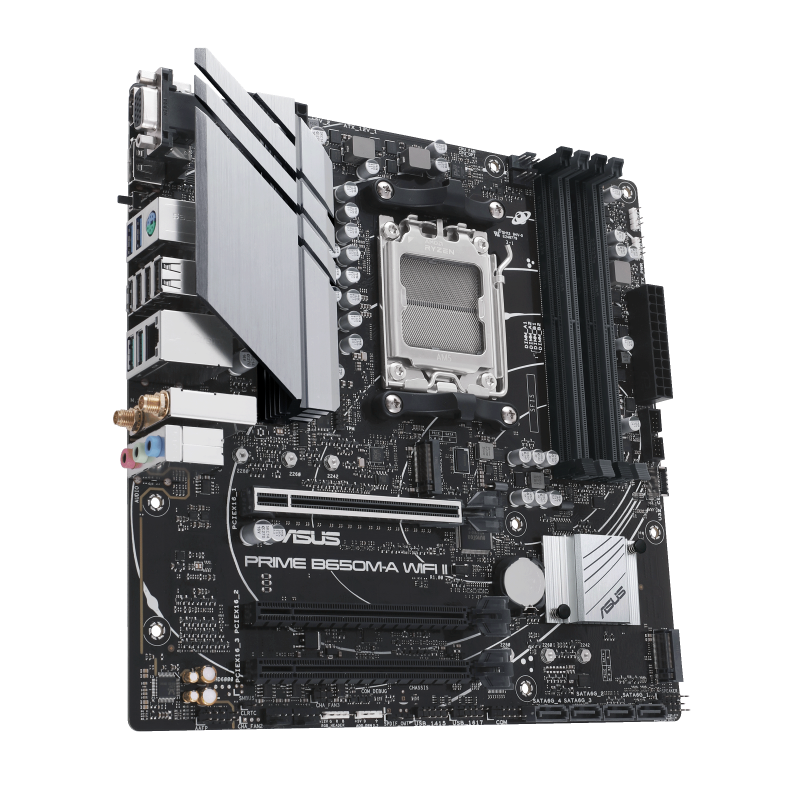

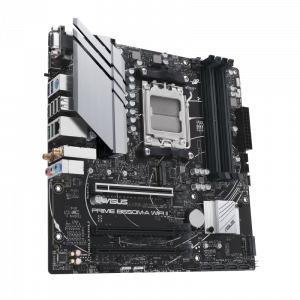

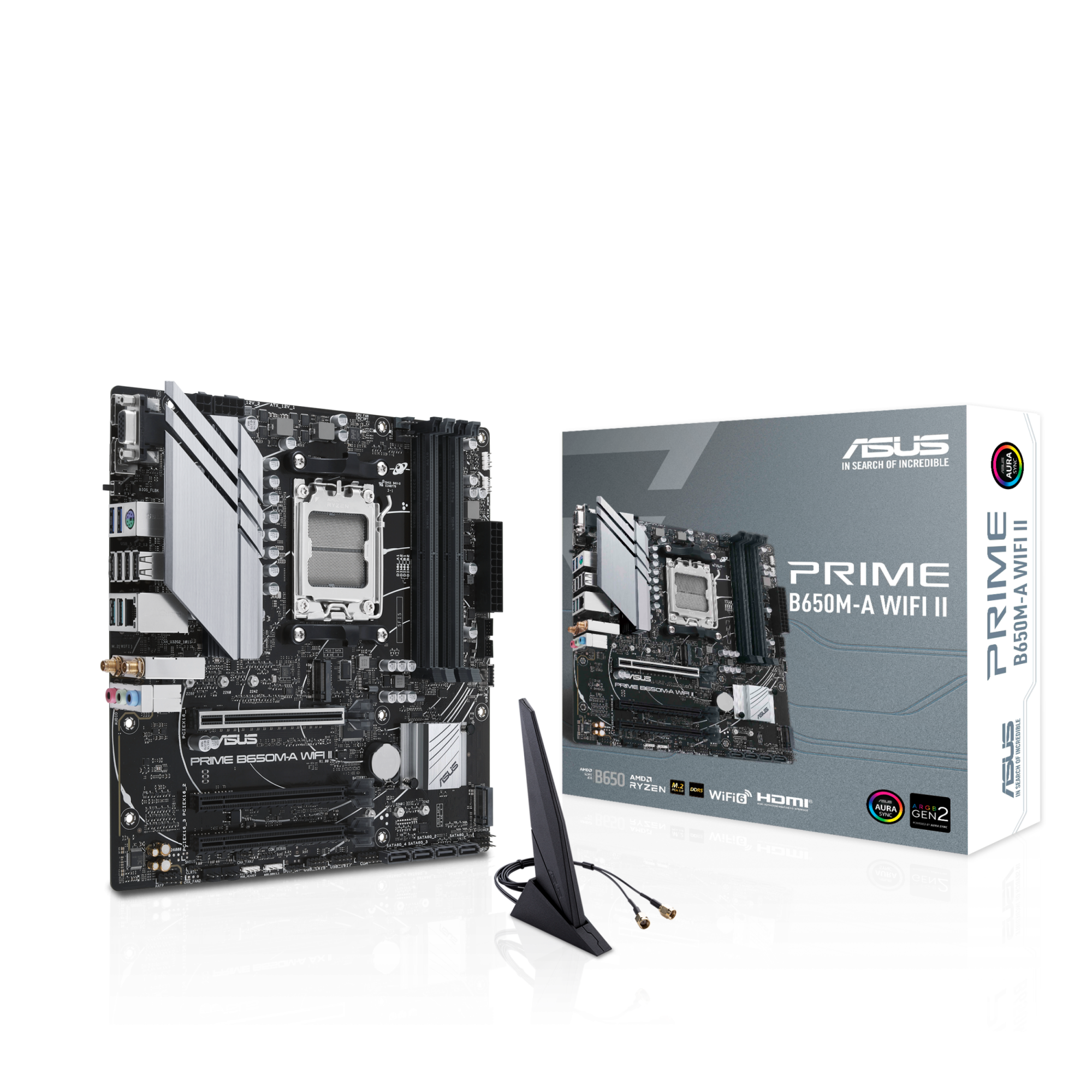

ASUS PRIME B650M-A WIFI II. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. USB connector type: USB Type-A. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors
Ultrafast Connectivity: Wi-Fi 6, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®
ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

Product Properties

Manufacturer
Asus

Model
PRIME B650M-A WIFI

EAN
4711387034934

BIOS

BIOS memory size
256 Mbit

BIOS type
UEFI AMI

Clear CMOS button
Yes

Bullet points

Point
AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors

ASUS OptiMem II

Aura Sync RGB Lighting

Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+

Ultrafast connectivity

Expansion slots

PCI Express x16 (Gen 4.x) slots
3

Features

Audio output channels
7.1 channels

Chip Set
AMD

Component for
PC

Motherboard chipset
AMD B650

Motherboard form factor
micro ATX

Power source type
ATX

Windows operating systems supported
Windows 10, Windows 11

Internal I/O

12V power connector
Yes

ATX Power connector (24-pin)
Yes

Audio connector
Yes

CPU fan connector
Yes

EPS power connector (8-pin)
Yes

Front panel connector
Yes

Number of chassis fan connectors
3

Number of COM connectors
1

Number of SATA connectors
4

Peripheral (Molex) power connectors (4-pin)
4

Power fan connector
Yes

RGB
Yes

S/PDIF out connector
Yes

Total number of SATA connectors
4

TPM connector
Yes

USB 2.0 connectors
2

USB 3.2 Gen 1 (3.1 Gen 1) connectors
2

Memory

ECC
Yes

Memory channels
Dual-channel

Memory Slot Support
128 GB

Memory slots type
DIMM

Non-ECC
Yes

Number of memory slots
4

Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz

Supported memory types
DDR5-SDRAM

Unbuffered memory
Yes

Network

Bluetooth
Yes

Bluetooth version
5.2

Ethernet interface type
2.5 Gigabit Ethernet

Ethernet LAN
Yes

Top Wi-Fi standard
Wi-Fi 6 (802.11ax)

Wi-Fi
Yes

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

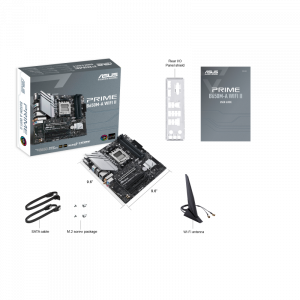

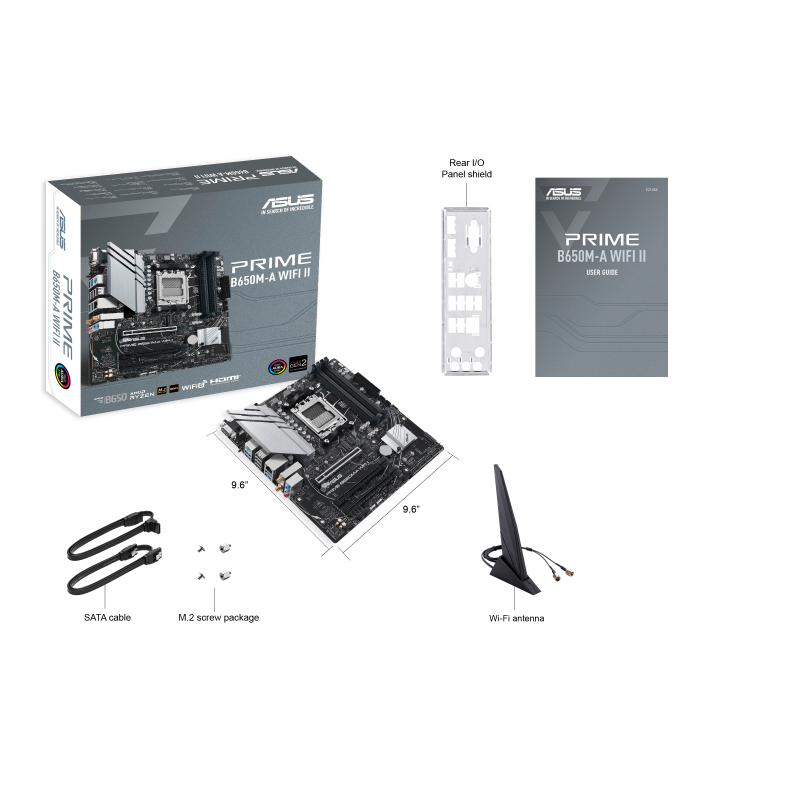

Packaging content

Bundled software
ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Cables included
SATA

Processor

Compatible processor series
AMD Ryzen™ 7

Processor manufacturer
AMD

Processor socket
Socket AM5

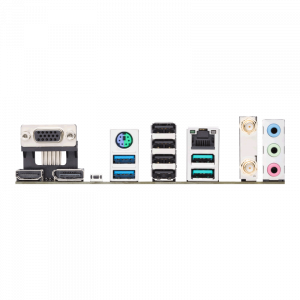

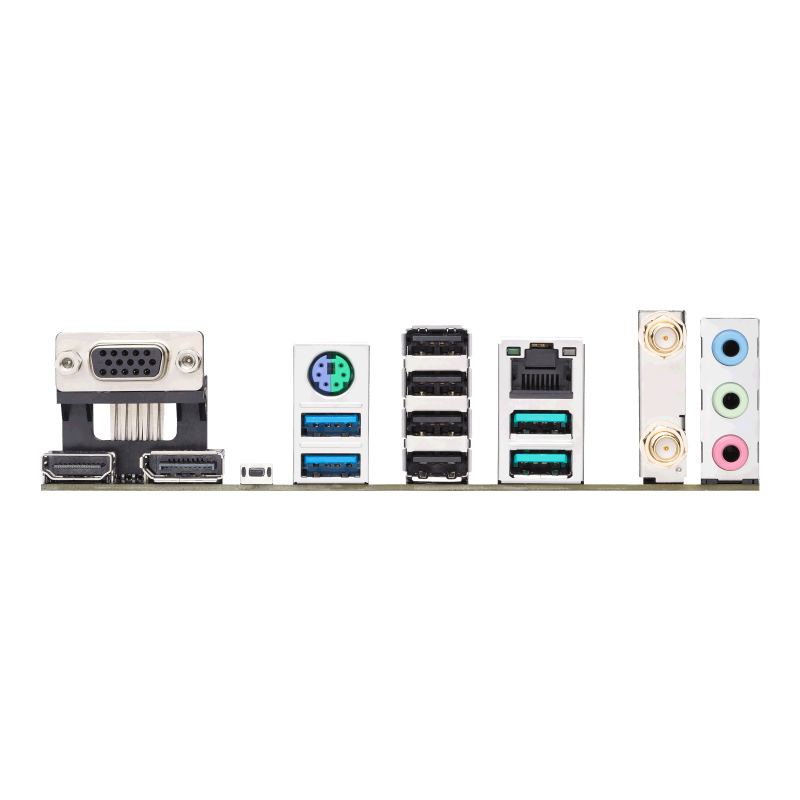

Rear panel I/O ports

DisplayPorts quantity
1

Ethernet LAN (RJ-45) ports
1

HDMI ports quantity
1

Headphone outputs
1

Line-in
Yes

Microphone in
Yes

USB 2.0 ports quantity
4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2

USB connector type
USB Type-A

VGA (D-Sub) ports quantity
1

Storage controllers

Number of HDDs supported
4

Number of storage drives supported
2

RAID levels
0, 1, 10

RAID support
Yes

Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
244 mm

Width
244 mm

ASUS PRIME B650M-A WIFI II AMD B650 Socket AM5 micro ATX
