Model: PRIME B760M-K D4
EAN: 4711387006917

ASUS PRIME B760M-K D4 Intel B760 LGA 1700 micro ATX

Manufacturer:
Asus
ASUS PRIME B760M-K D4, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR4-SDRAM, 64 GB
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

ASUS PRIME B760M-K D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector type: USB Type-A. Ethernet interface type: 2.5 Gigabit Ethernet

Product Properties

  • Model
  • PRIME B760M-K D4
  • EAN
  • 4711387006917
  • BIOS
  • BIOS memory size
  • 128 Mbit
  • BIOS type
  • UEFI AMI
  • Expansion slots
  • Number of M.2 (M) slots
  • 2
  • PCI Express x1 (Gen 4.x) slots
  • 2
  • PCI Express x16 (Gen 4.x) slots
  • 1
  • Features
  • Audio output channels
  • 7.1 channels
  • Chip Set
  • Intel
  • Component for
  • PC
  • Motherboard chipset
  • Intel B760
  • Motherboard form factor
  • micro ATX
  • Windows operating systems supported
  • Windows 10 x64, Windows 11
  • Graphics
  • Parallel processing technology support
  • Not supported
  • Internal I/O
  • 12V power connector
  • Yes
  • ATX Power connector (24-pin)
  • Yes
  • CPU fan connector
  • Yes
  • EPS power connector (8-pin)
  • Yes
  • Front panel audio connector
  • Yes
  • Number of chassis fan connectors
  • 1
  • Number of COM connectors
  • 1
  • Number of SATA III connectors
  • 4
  • RGB
  • Yes
  • S/PDIF out connector
  • Yes
  • TPM connector
  • Yes
  • USB 2.0 connectors
  • 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
  • 1
  • Memory
  • Memory channels
  • Dual-channel
  • Memory Slot Support
  • 64 GB
  • Memory slots type
  • DIMM
  • Non-ECC
  • Yes
  • Number of memory slots
  • 2
  • Supported memory clock speed (max)
  • 5333 MHz
  • Supported memory clock speeds
  • 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5066,5333 MHz
  • Supported memory types
  • DDR4-SDRAM
  • Unbuffered memory
  • Yes
  • Network
  • Ethernet interface type
  • 2.5 Gigabit Ethernet
  • Ethernet LAN
  • Yes
  • Wake-on-LAN ready
  • Yes
  • Wi-Fi
  • No
  • Other features
  • Weight
  • 528 g
  • Packaging content
  • Cables included
  • SATA
  • Packaging data
  • Package depth
  • 51.5 mm
  • Package height
  • 263 mm
  • Package weight
  • 926.3 g
  • Package width
  • 270 mm
  • Processor
  • Compatible processor series
  • Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
  • Processor manufacturer
  • Intel
  • Processor socket
  • LGA 1700
  • Supported processor sockets
  • LGA 1700

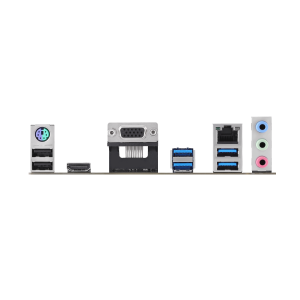

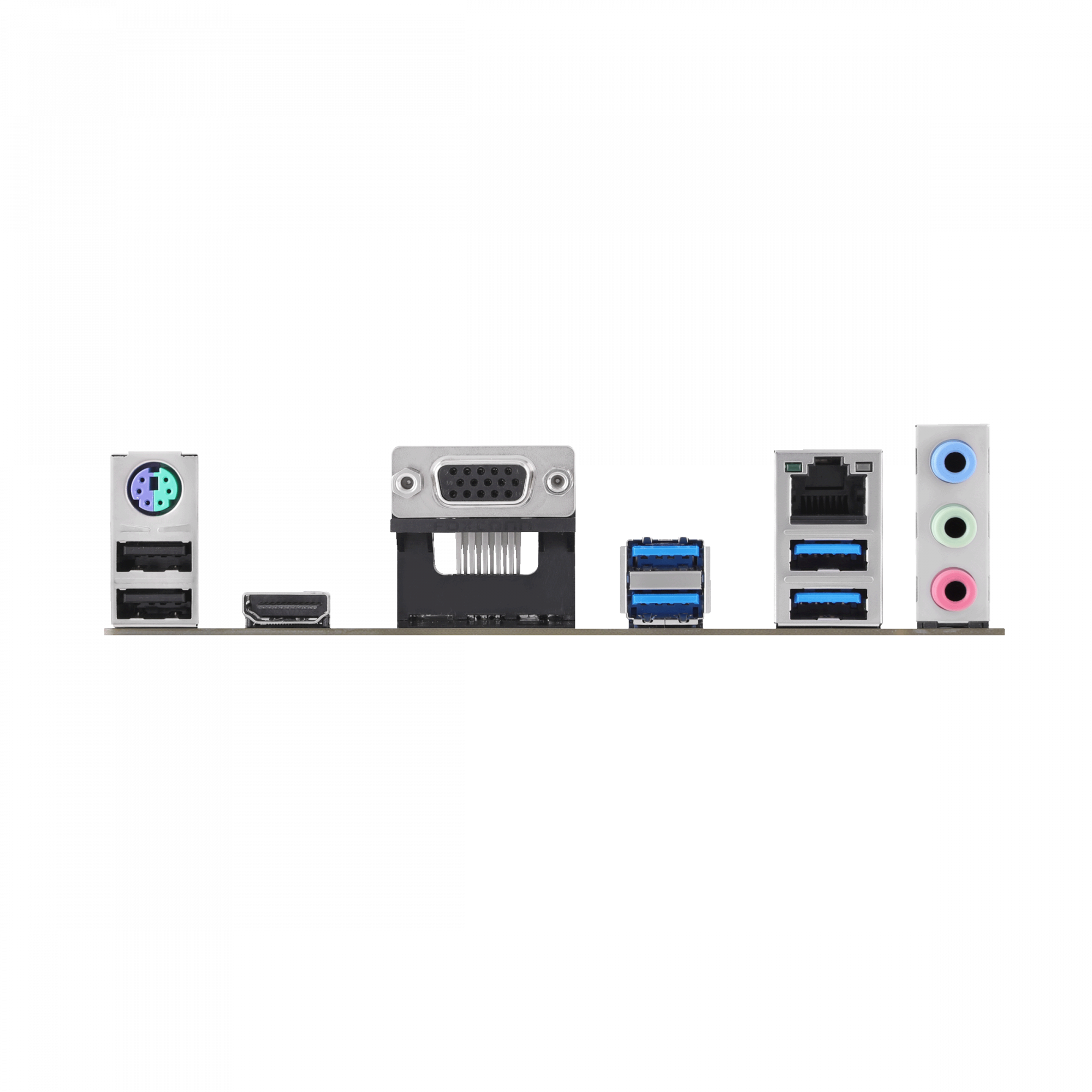

  • Rear panel I/O ports
  • Ethernet LAN (RJ-45) ports
  • 1
  • HDMI ports quantity
  • 1
  • Microphone in
  • Yes
  • PS/2 ports quantity
  • 1
  • USB 2.0 ports quantity
  • 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 4
  • USB connector type
  • USB Type-A
  • VGA (D-Sub) ports quantity
  • 1
  • Storage controllers
  • Number of HDDs supported
  • 4
  • Number of storage drives supported
  • 6
  • RAID levels
  • 0, 1, 5, 10
  • RAID support
  • Yes
  • Supported storage drive interfaces
  • M.2, SATA III
  • Supported storage drive types
  • HDD & SSD
  • Weight & dimensions
  • Depth
  • 211 mm
  • Height
  • 36 mm
  • Width
  • 244 mm
