Description

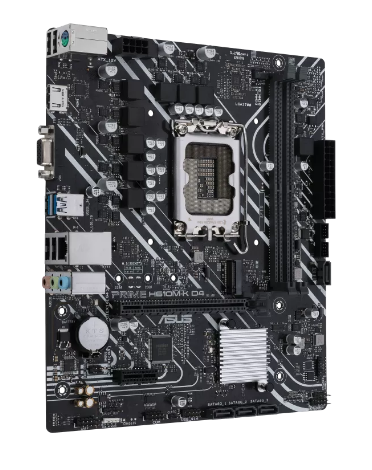

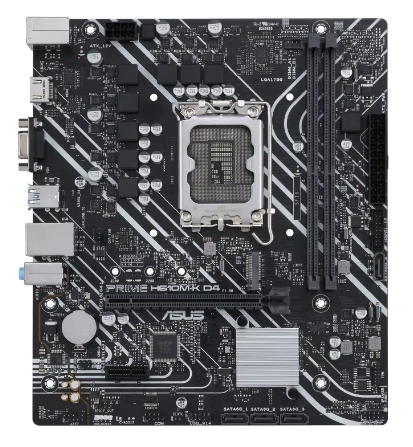

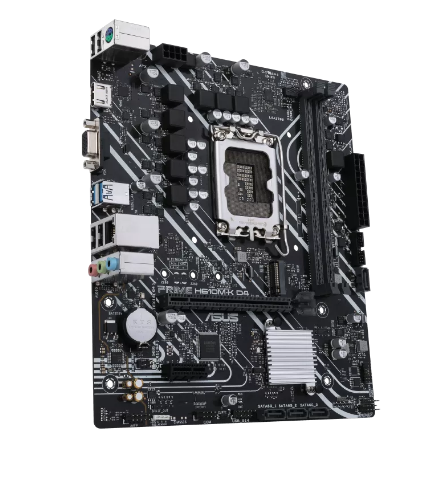

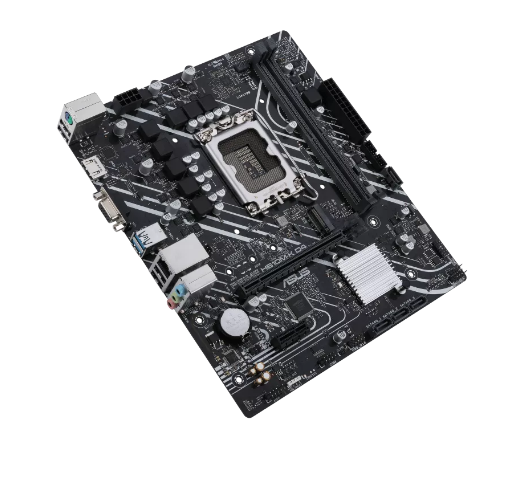

ASUS PRIME H610M-K D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
Comprehensive cooling: PCH heatsink and Fan Xpert
Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 support
5X Protection III: Multiple hardware safeguards for all-round protection

All-Around Energy Efficiency

The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

Flexible cooling controls

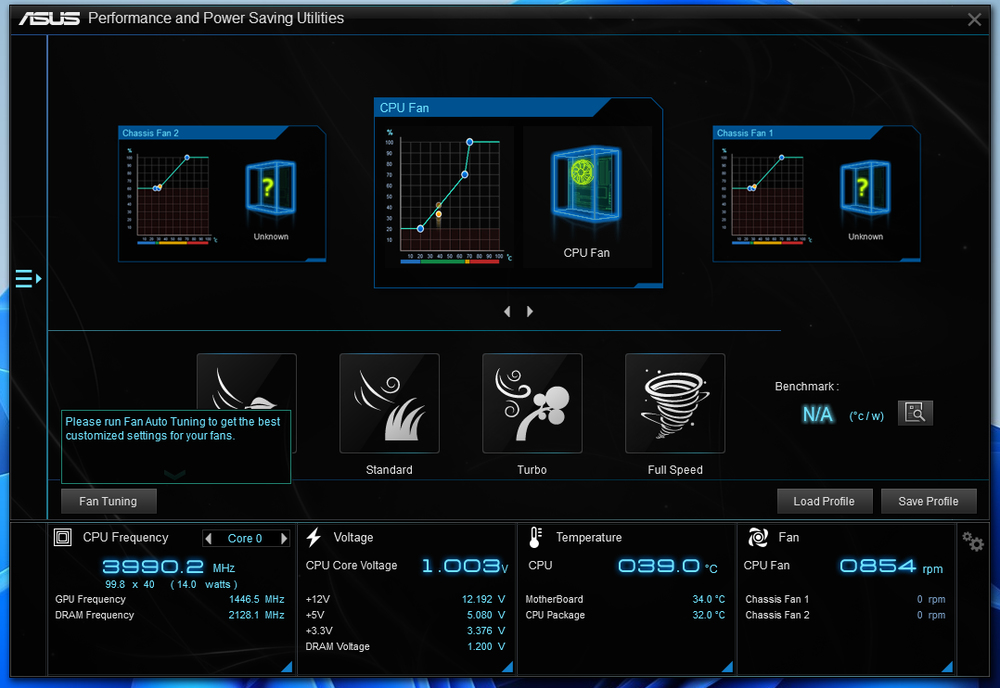

Prime 600 Series motherboards offer comprehensive control over system fans, via the included Fan Xpert software. Auto-Tuning mode intelligently configures all parameters with a single click.

Precise Digital Power Control

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

Product Properties

Manufacturer
Asus

Model
PRIME H610M-K D4

EAN
4711081565499

BIOS

BIOS memory size
128 Mbit

BIOS type
UEFI AMI

Bullet points

Point
5X Protection III: Multiple hardware safeguards for all-round protection

Comprehensive cooling: PCH heatsink and Fan Xpert

Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors

Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 support

Expansion slots

Number of M.2 (M) slots
1

PCI Express x16 (Gen 3.x) slots
1

PCI Express x16 (Gen 4.x) slots
1

Features

Audio output channels
7.1 channels

Chip Set
Intel

Component for
PC

Motherboard chipset
Intel H610

Motherboard form factor
micro ATX

Windows operating systems supported
Windows 10 x64, Windows 11 x64

Graphics

Number of displays supported
2

Internal I/O

12V power connector
Yes

ATX Power connector (24-pin)
Yes

CPU fan connector
Yes

EPS power connector (8-pin)
Yes

Front panel audio connector
Yes

Number of chassis fan connectors
1

Number of COM connectors
1

Number of SATA III connectors
4

RGB
Yes

S/PDIF out connector
Yes

TPM connector
Yes

USB 2.0 connectors
1

USB 3.2 Gen 1 (3.1 Gen 1) connectors
1

Logistics data

Harmonized System (HS) code
84733020

Memory

Memory channels
Dual-channel

Memory Slot Support
64 GB

Memory slots type
DIMM

Non-ECC
Yes

Number of memory slots
2

Supported memory clock speeds
2133,2400,2666,2800,2933,3000,3200 MHz

Supported memory types
DDR4-SDRAM

Unbuffered memory
Yes

Network

Ethernet interface type
Gigabit Ethernet

Ethernet LAN
Yes

Wi-Fi
No

Other features

Weight
842 g

Packaging content

Cables included
SATA

Drivers included
Yes

Processor

Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold

Maximum number of SMP processors
1

Processor manufacturer
Intel

Processor socket
LGA 1700

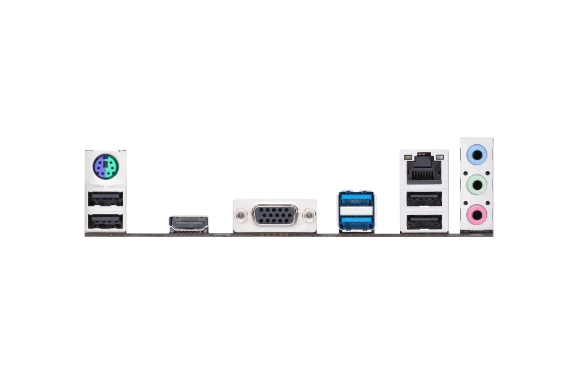

Rear panel I/O ports

Ethernet LAN (RJ-45) ports
1

HDMI ports quantity
1

HDMI version
2.1

Headphone outputs
1

Microphone in
Yes

PS/2 ports quantity
1

USB 2.0 ports quantity
4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

VGA (D-Sub) ports quantity
1

Storage controllers

RAID levels
0, 1, 5, 10

Supported storage drive interfaces
M.2, SATA

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
203 mm

Height
51 mm

Width
234 mm
