Description

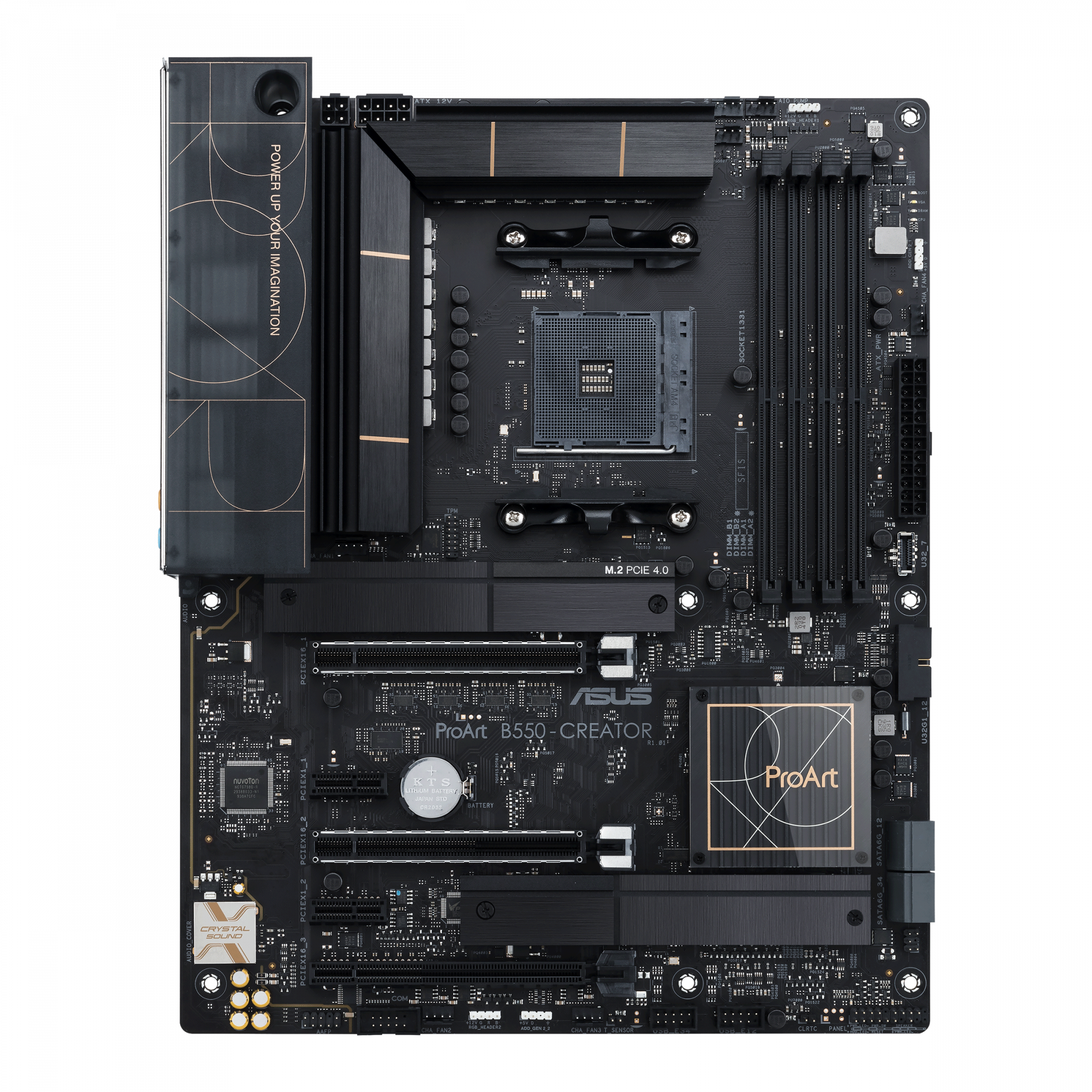

ASUS ProArt B550-CREATOR. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Intel I225-V

AM4 socket: Ready for AMD Ryzen™ 5000 Series / 4000 G-Series / 3000 Series desktop processors
Powerful I/O: Dual Thunderbolt 4 Type-C ports, dual 2.5G onboard Ethernet, USB 3.2 Gen 2 plus HDMI™ 2.1 and DisplayPort™ 1.2 output
Unthrottled Performance: PCI 4.0-ready, 12+2 power stages with high-quality alloy chokes and durable capacitors
Advanced Security: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
ProArt Gives You More: Two-Way AI Noise Cancelation for clear online communication and ProArt Creator Hub with CreationFirst for one-stop system control
Trusted Stability: Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot for enhanced durability

Product Properties

Manufacturer
Asus

Model
PROART B550-CREATO

EAN
4711081147077

BIOS

BIOS memory size
256 Mbit

BIOS type
UEFI AMI

Clear CMOS jumper
Yes

Bullet points

Point
Advanced Security

AM4 socket: Ready for AMD Ryzen™ 5000 Series / 4000 G-Series / 3000 Series desktop processors

Powerful I/O

ProArt Gives You More

Trusted Stability

Unthrottled Performance

Expansion slots

PCI Express x1 (Gen 3.x) slots
1

PCI Express x16 (Gen 3.x) slots
1

PCI Express x16 (Gen 4.x) slots
2

Features

Audio chip
SupremeFX S1220A

Audio output channels
7.1 channels

Chip Set
AMD

Component for
PC

Motherboard chipset
AMD B550

Motherboard form factor
ATX

Windows operating systems supported
Windows 10 x64

Graphics

Parallel processing technology support
Not supported

Internal I/O

12V power connector
Yes

ATX Power connector (24-pin)
Yes

Audio connector
Yes

CPU fan connector
Yes

EPS power connector (8-pin)
Yes

Front panel audio connector
Yes

Front panel connector
Yes

Number of chassis fan connectors
4

Number of COM connectors
1

Number of SATA III connectors
4

RGB
Yes

Thunderbolt headers
2

TPM connector
Yes

USB 2.0 connectors
2

USB 3.2 Gen 1 (3.1 Gen 1) connectors
2

Logistics data

Harmonized System (HS) code
84733020

Memory

ECC
Yes

Memory channels
Dual-channel

Memory Slot Support
128 GB

Memory slots type
DIMM

Non-ECC
Yes

Number of memory slots
4

Supported memory clock speeds
2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4466,4600,4800,4866,5100 MHz

Supported memory types
DDR4-SDRAM

Unbuffered memory
Yes

Network

Ethernet interface type
2.5 Gigabit Ethernet

Ethernet LAN
Yes

LAN controller
Intel I225-V

Wake-on-LAN ready
Yes

Wi-Fi
No

Other features

Weight
1 kg

Packaging content

Cables included
SATA

Drivers included
Yes

Processor

Compatible processor series
AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen

Processor manufacturer
AMD

Processor socket
Socket AM4

Supported processor sockets
Socket AM4

Rear panel I/O ports

DisplayPorts quantity
1

Ethernet LAN (RJ-45) ports
2

HDMI ports quantity
1

HDMI version
2.1

Headphone outputs
5

Microphone in
Yes

PS/2 ports quantity
1

S/PDIF out port
Yes

Thunderbolt ports quantity
2

USB 2.0 ports quantity
2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4

USB connector type
USB Type-A, USB Type-C

Storage controllers

Number of storage drives supported
6

RAID levels
0, 1, 10

RAID support
Yes

Supported storage drive interfaces
M.2, PCI Express 3.0, PCI Express 4.0, SATA III

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
244 mm

Height
68 mm

Width
305 mm

ASUS ProArt B550-CREATOR AMD B550 Socket AM4 ATX
