Description

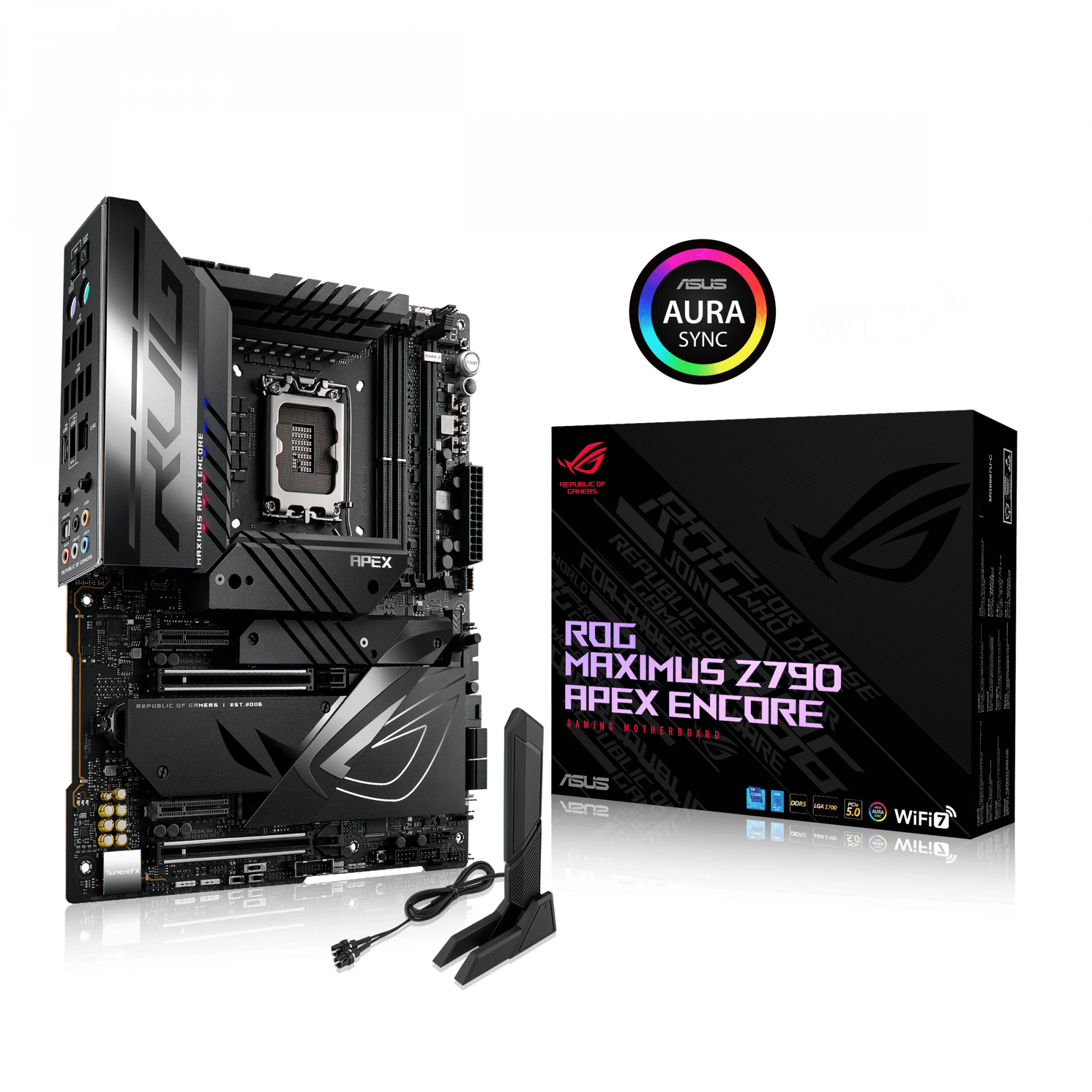

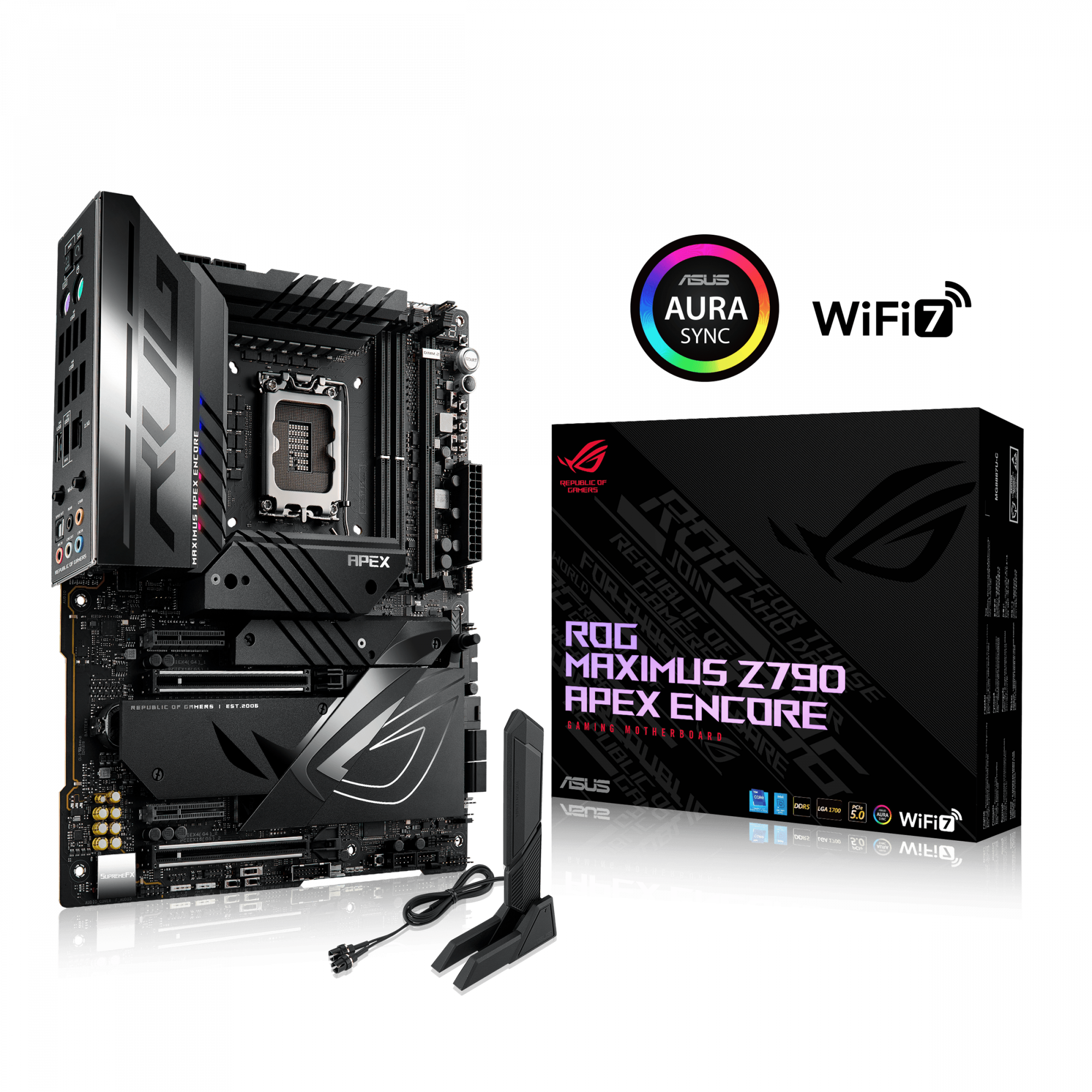

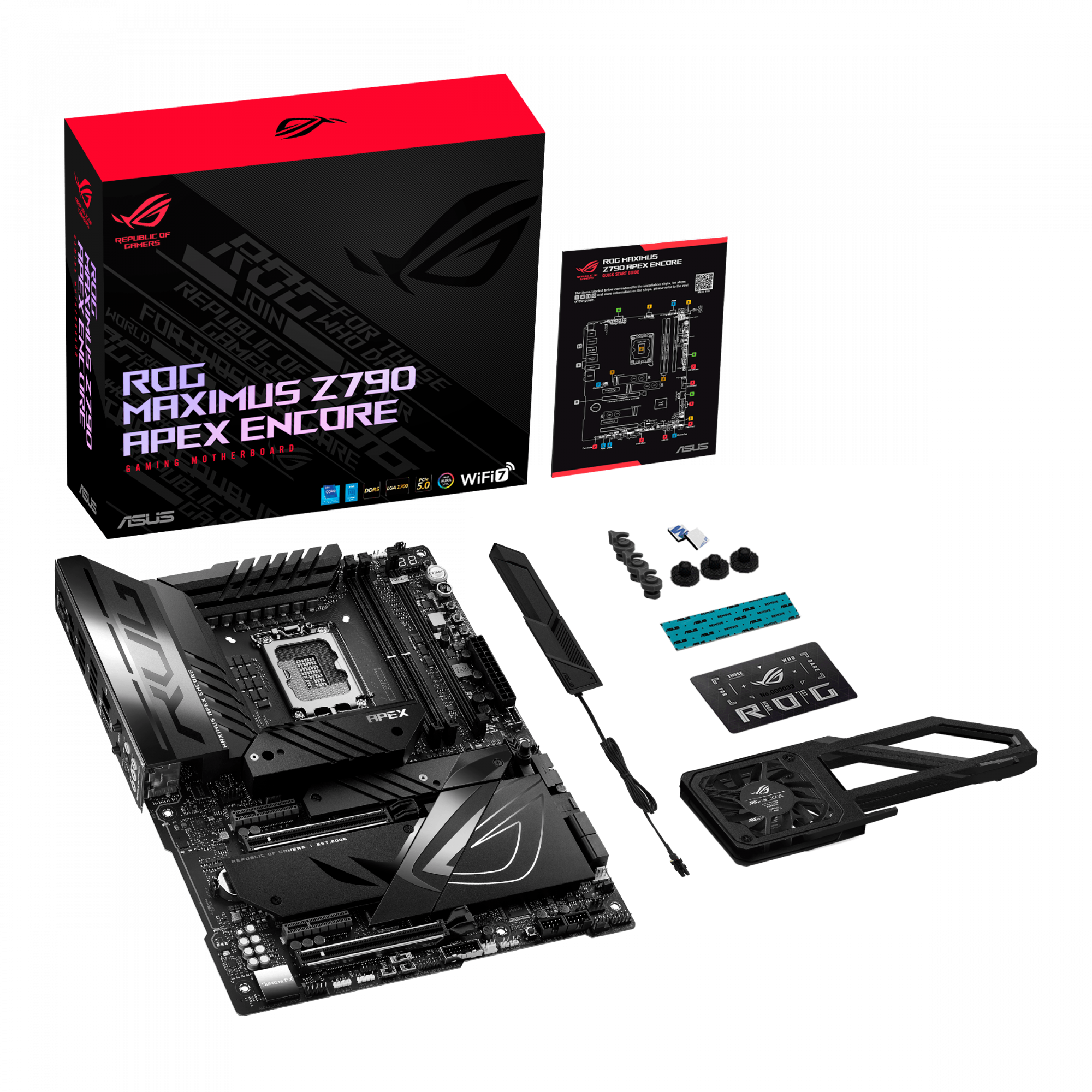

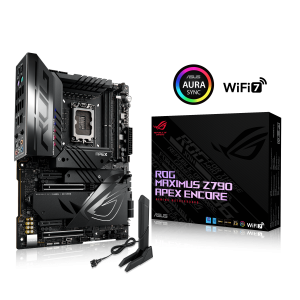

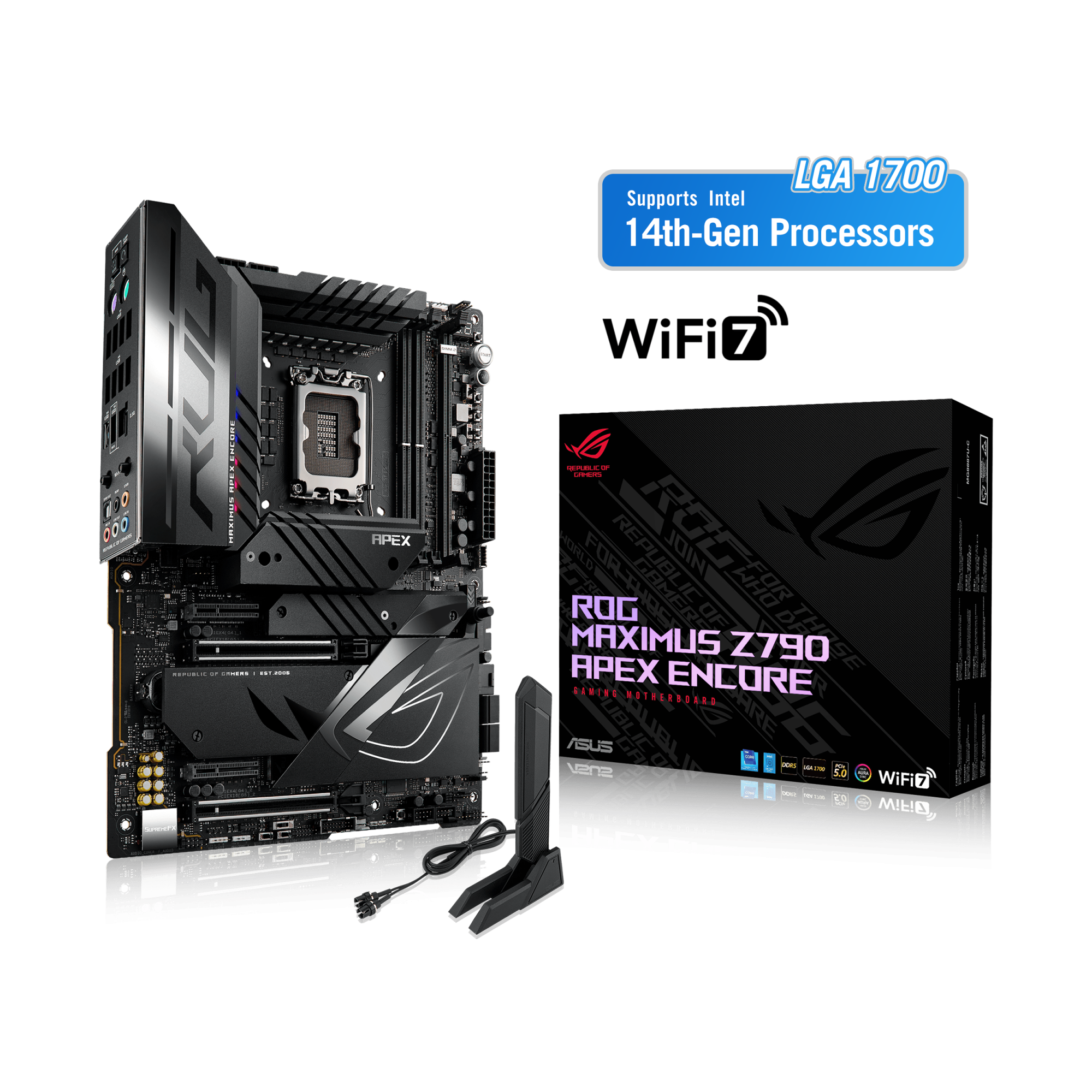

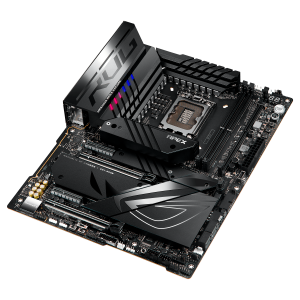

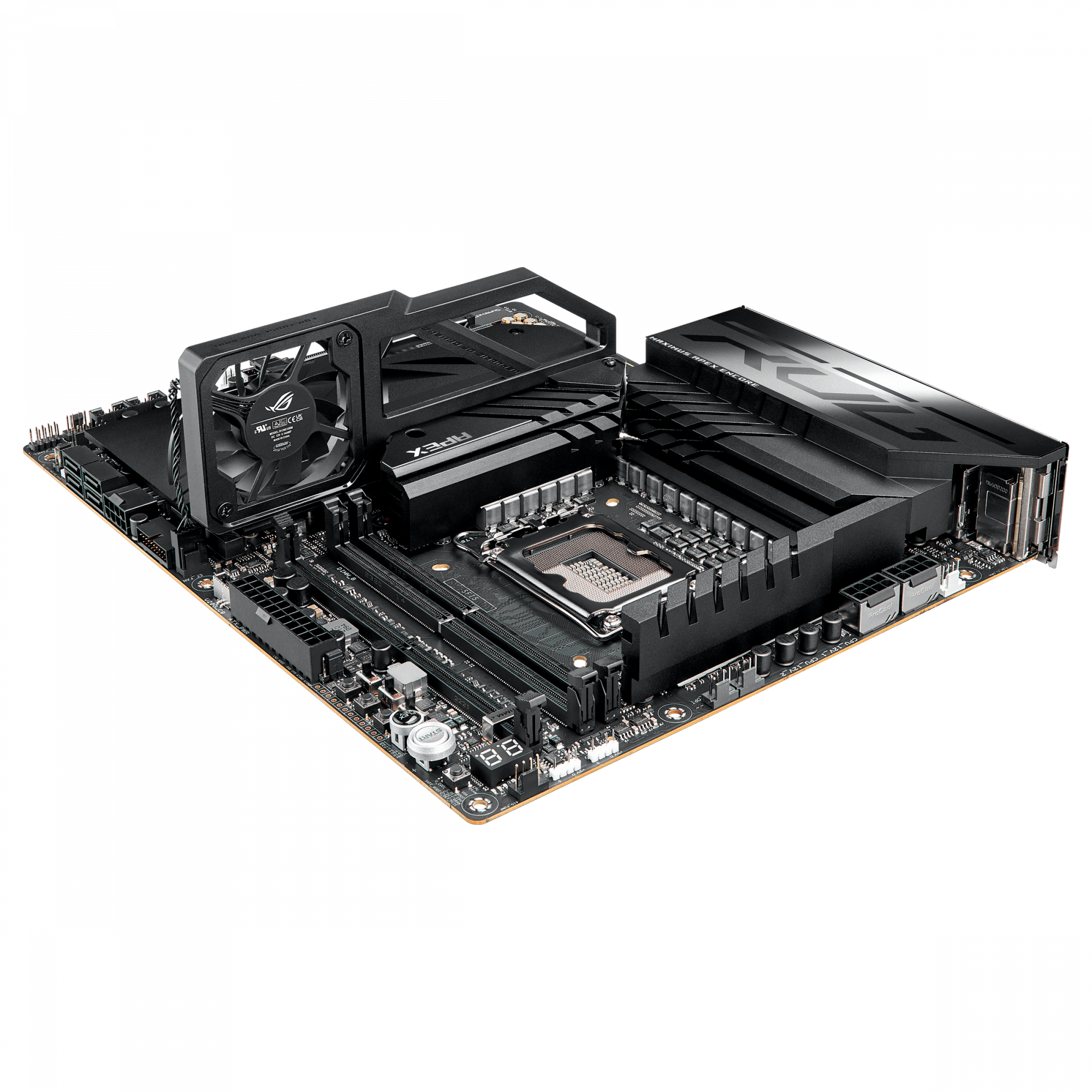

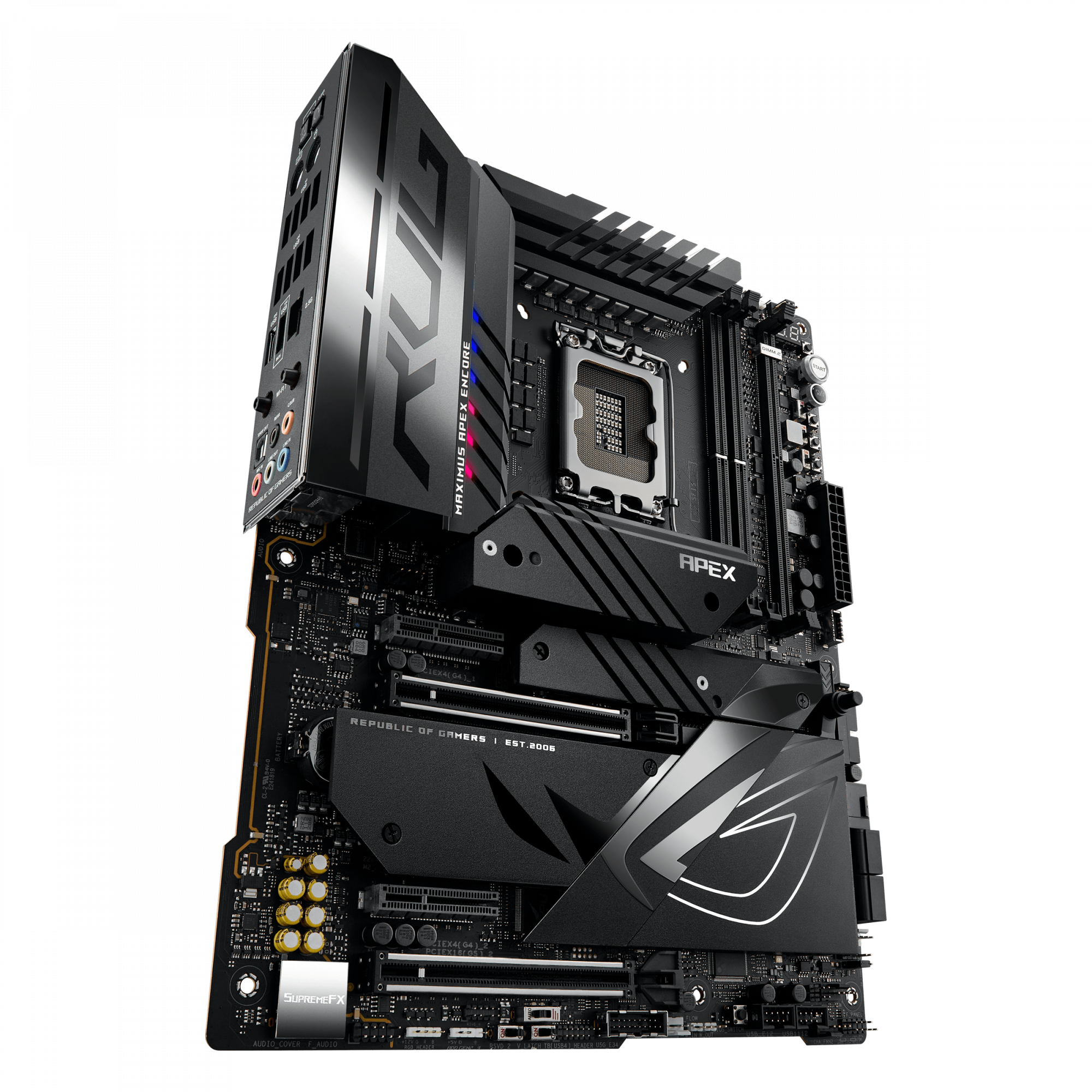

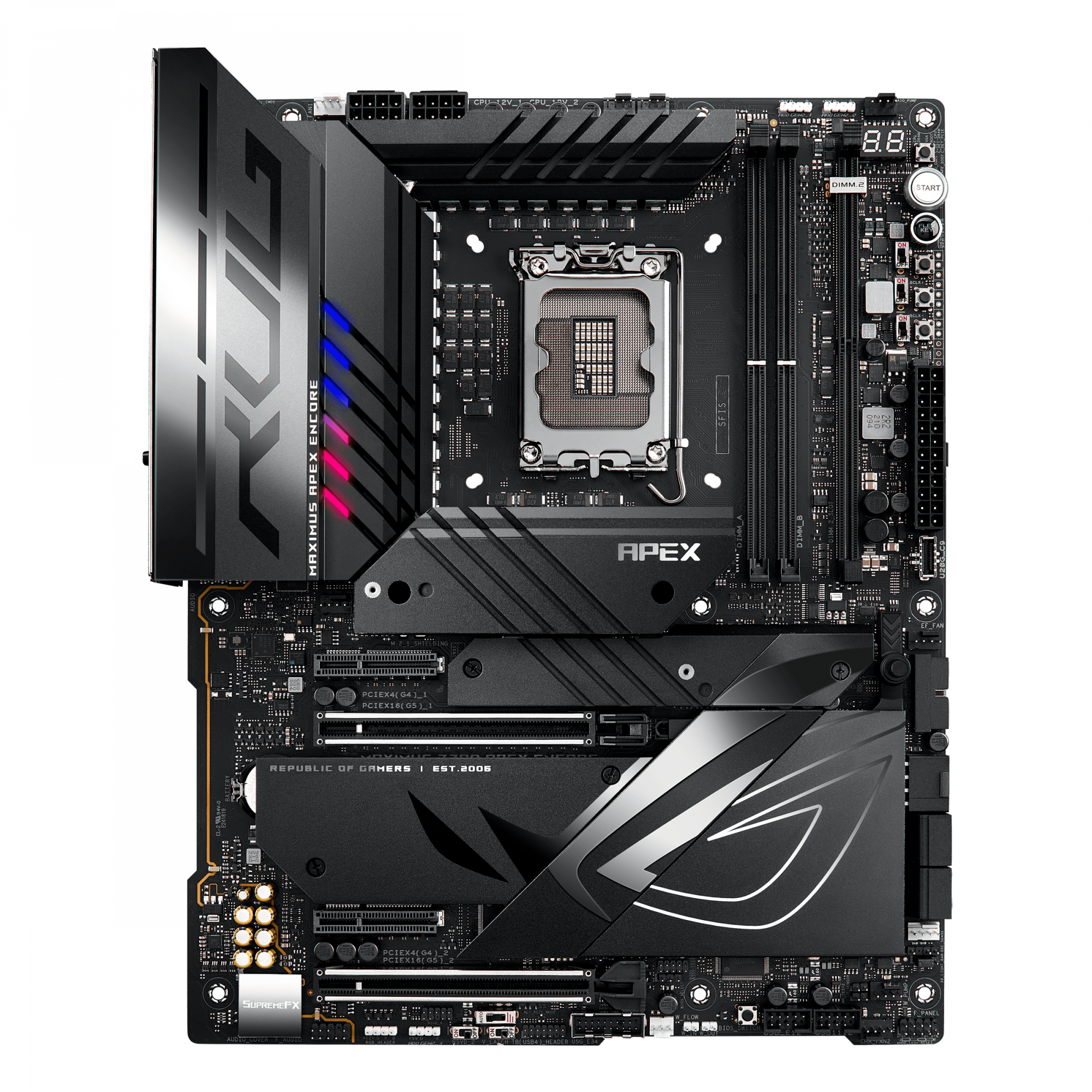

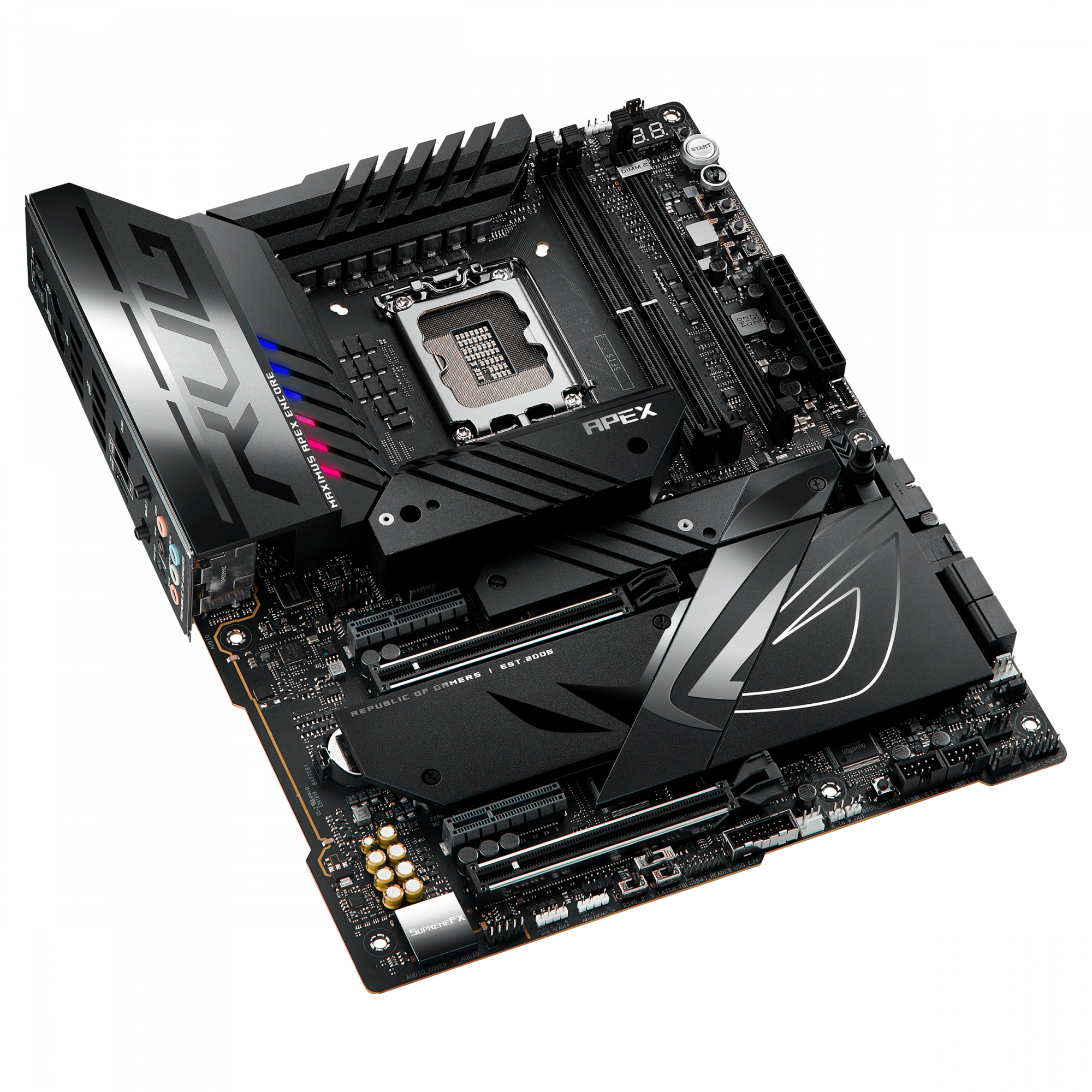

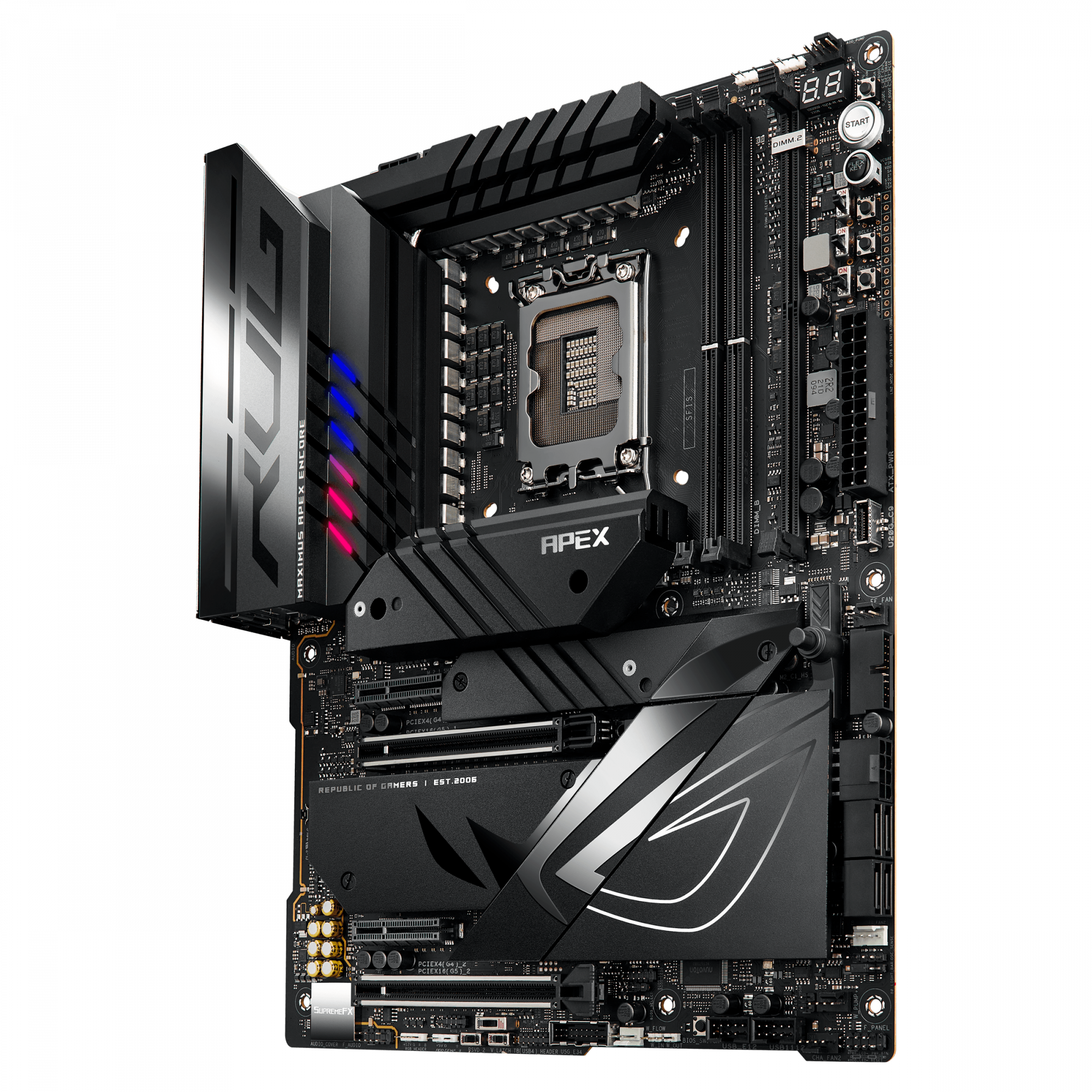

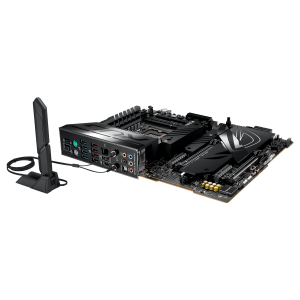

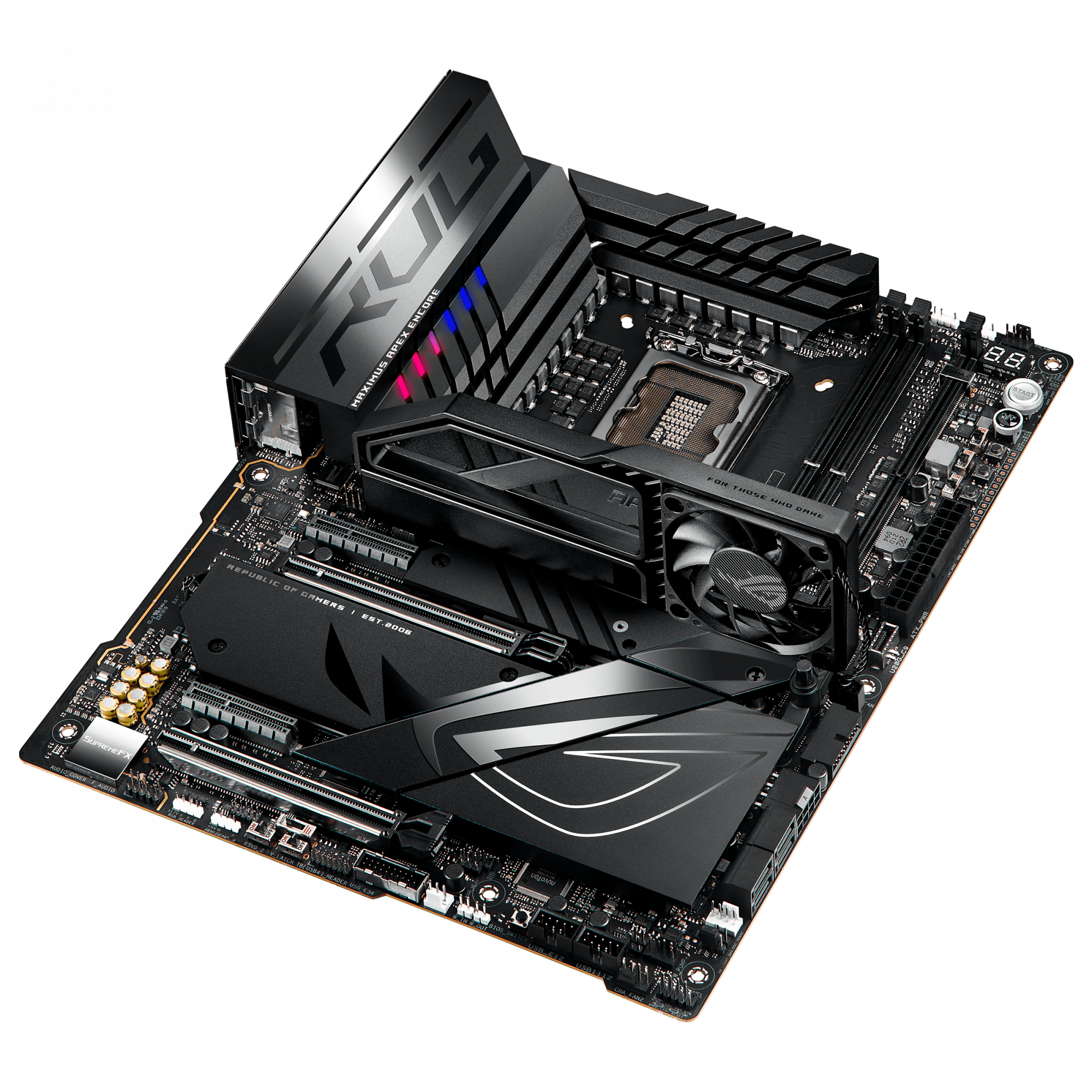

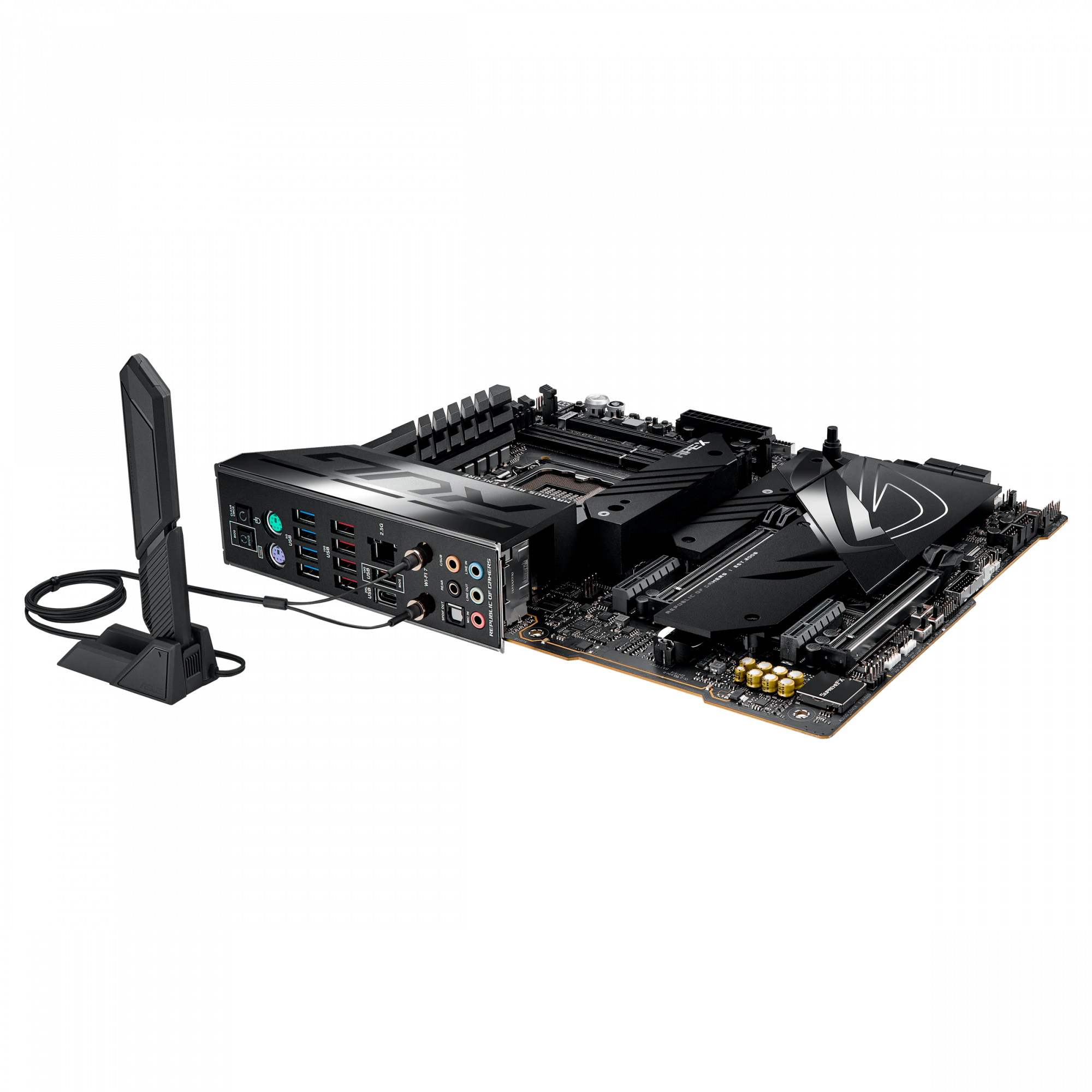

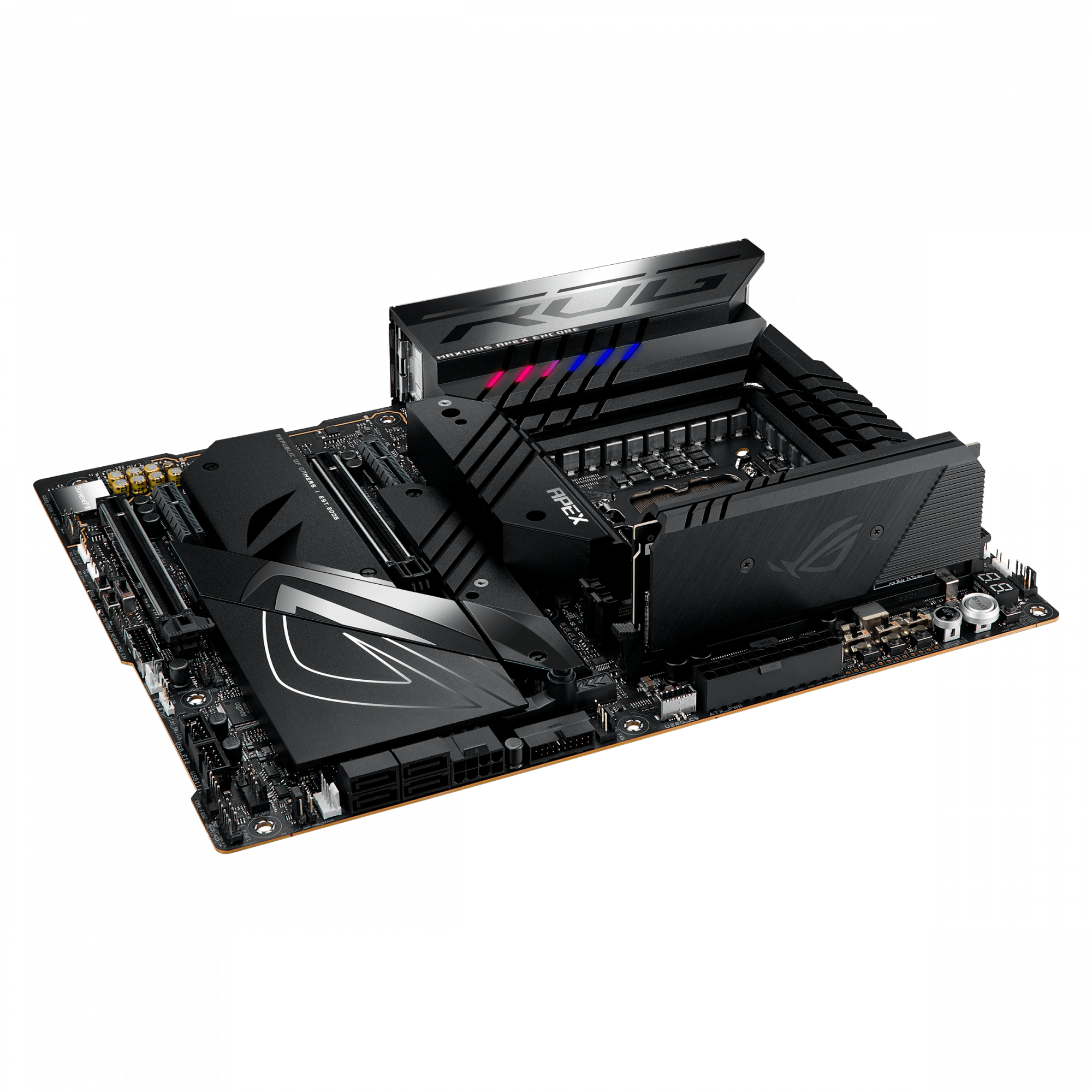

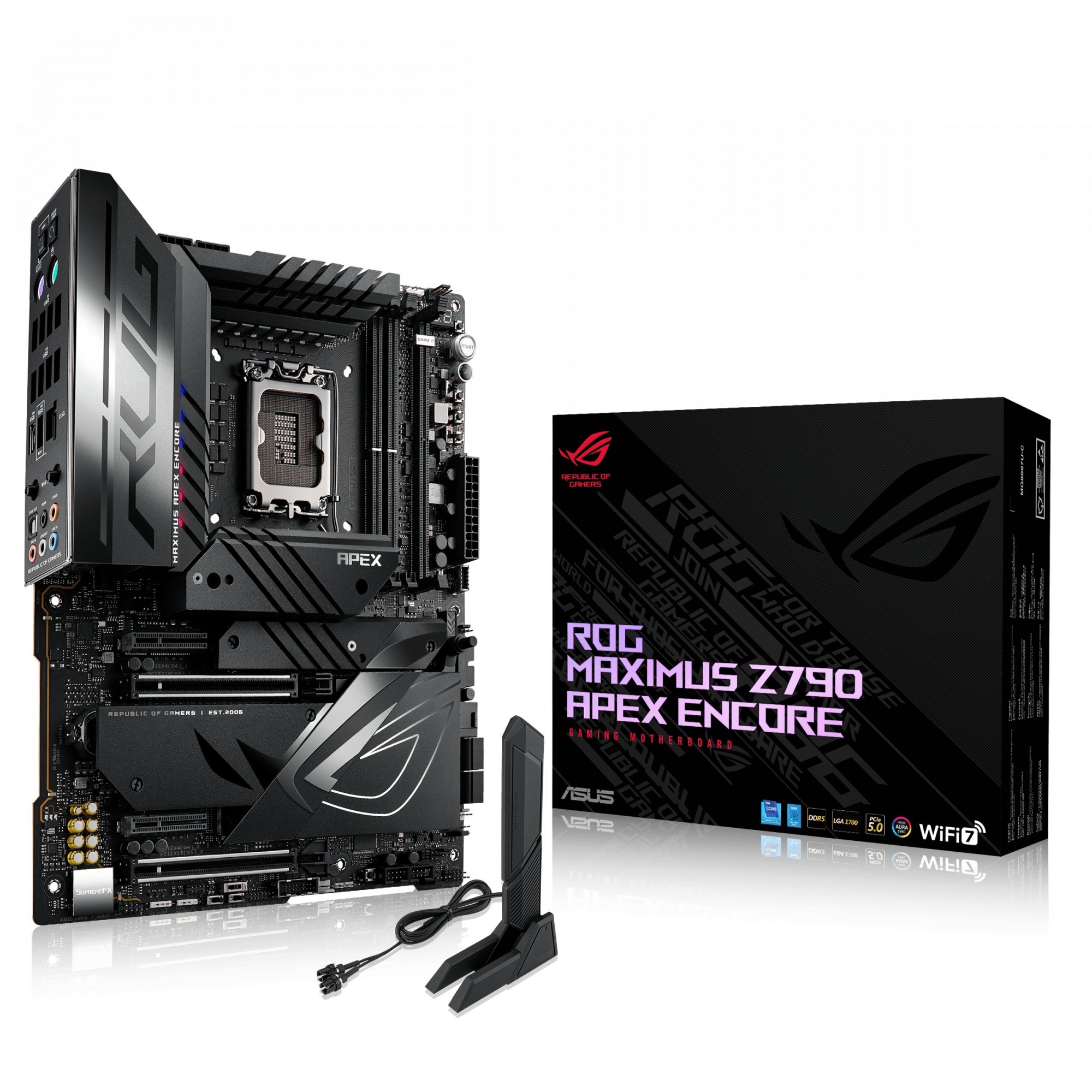

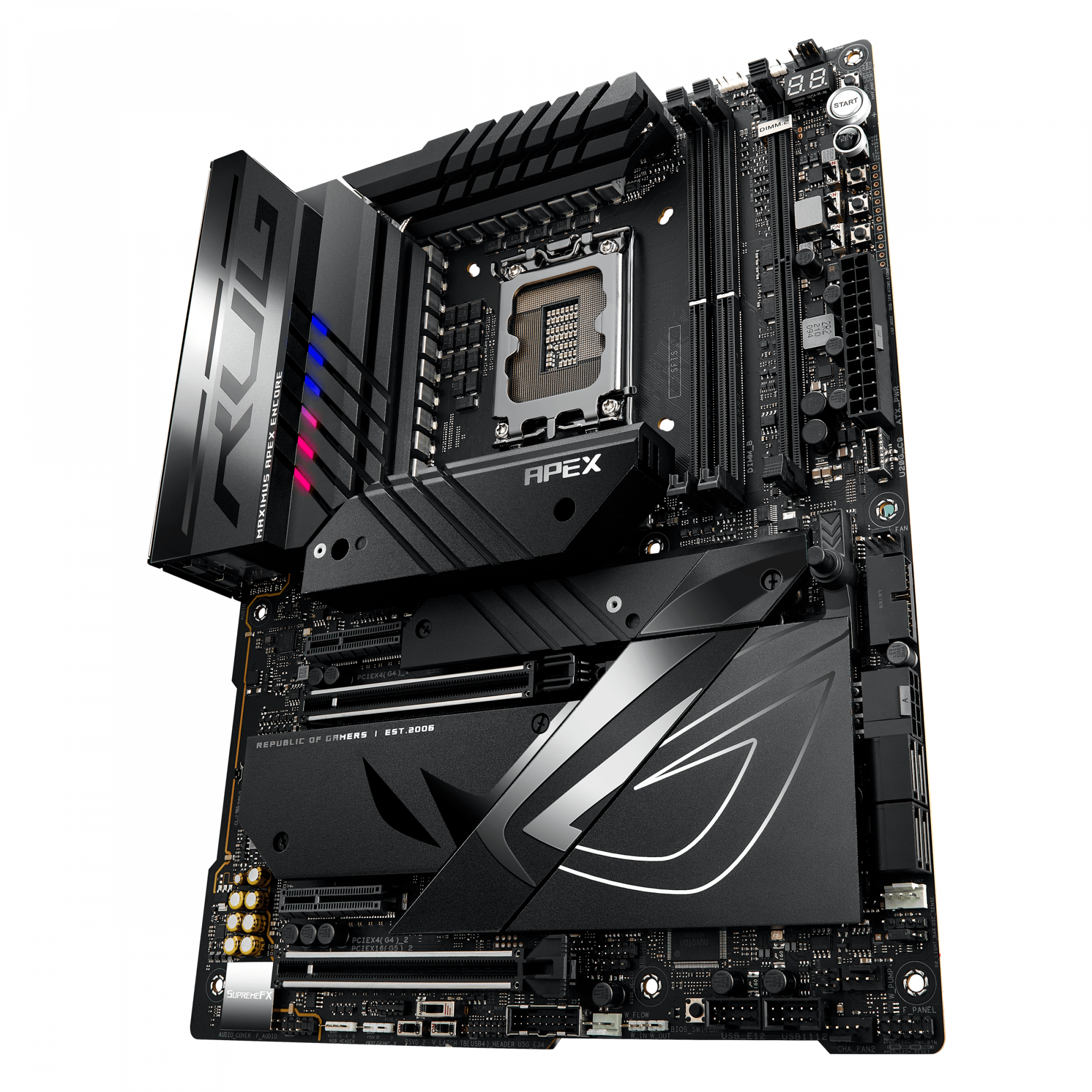

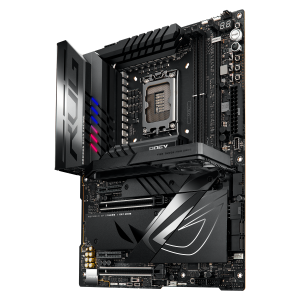

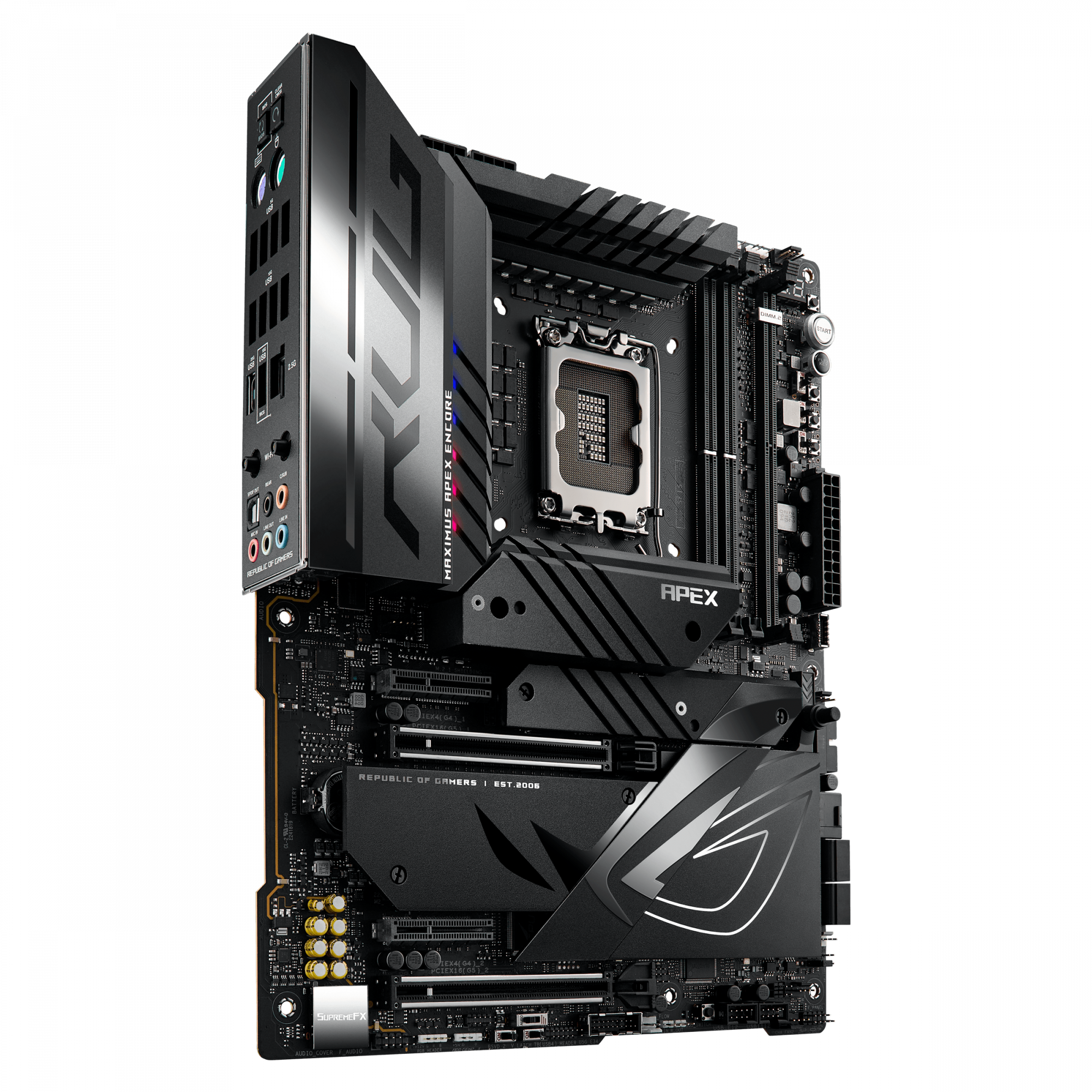

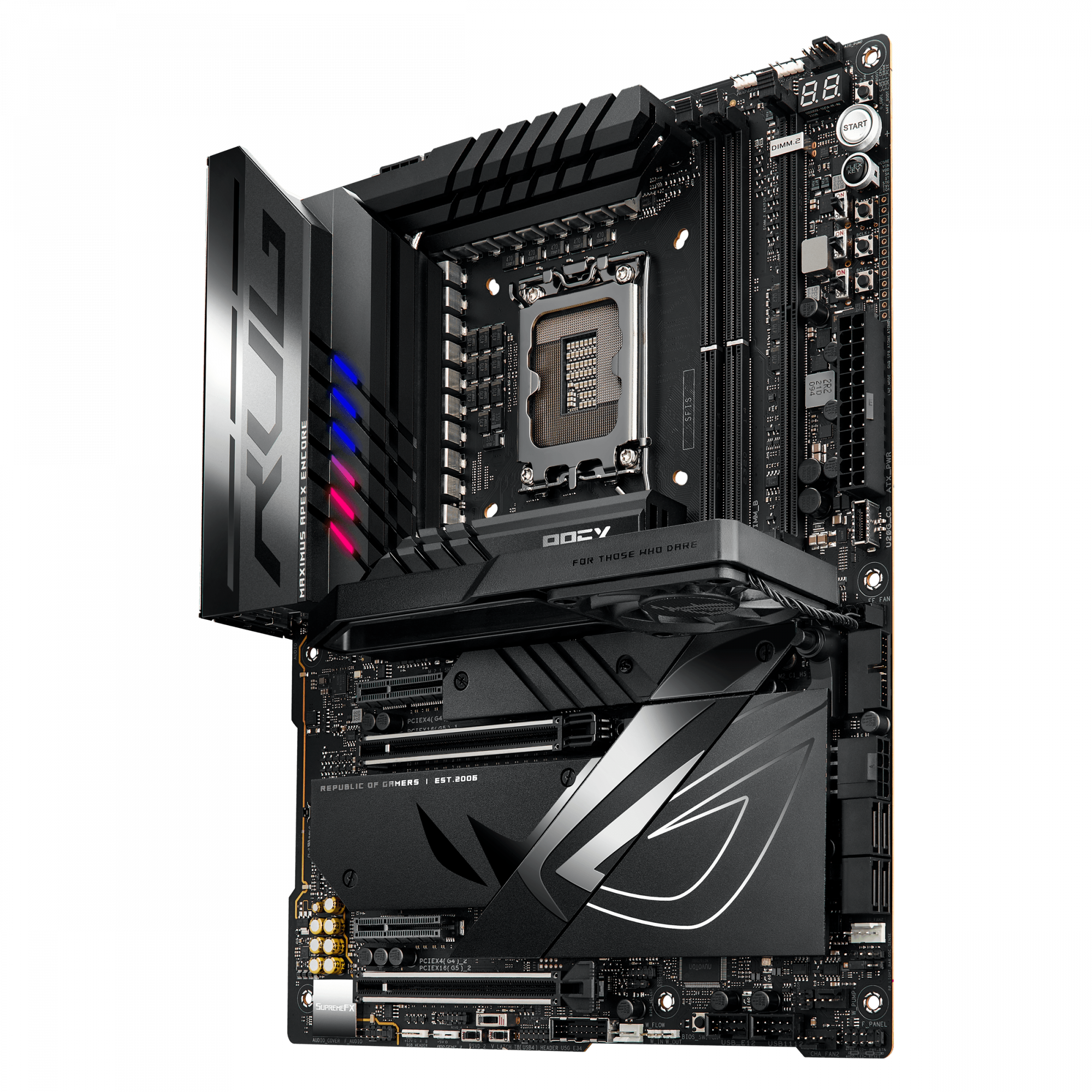

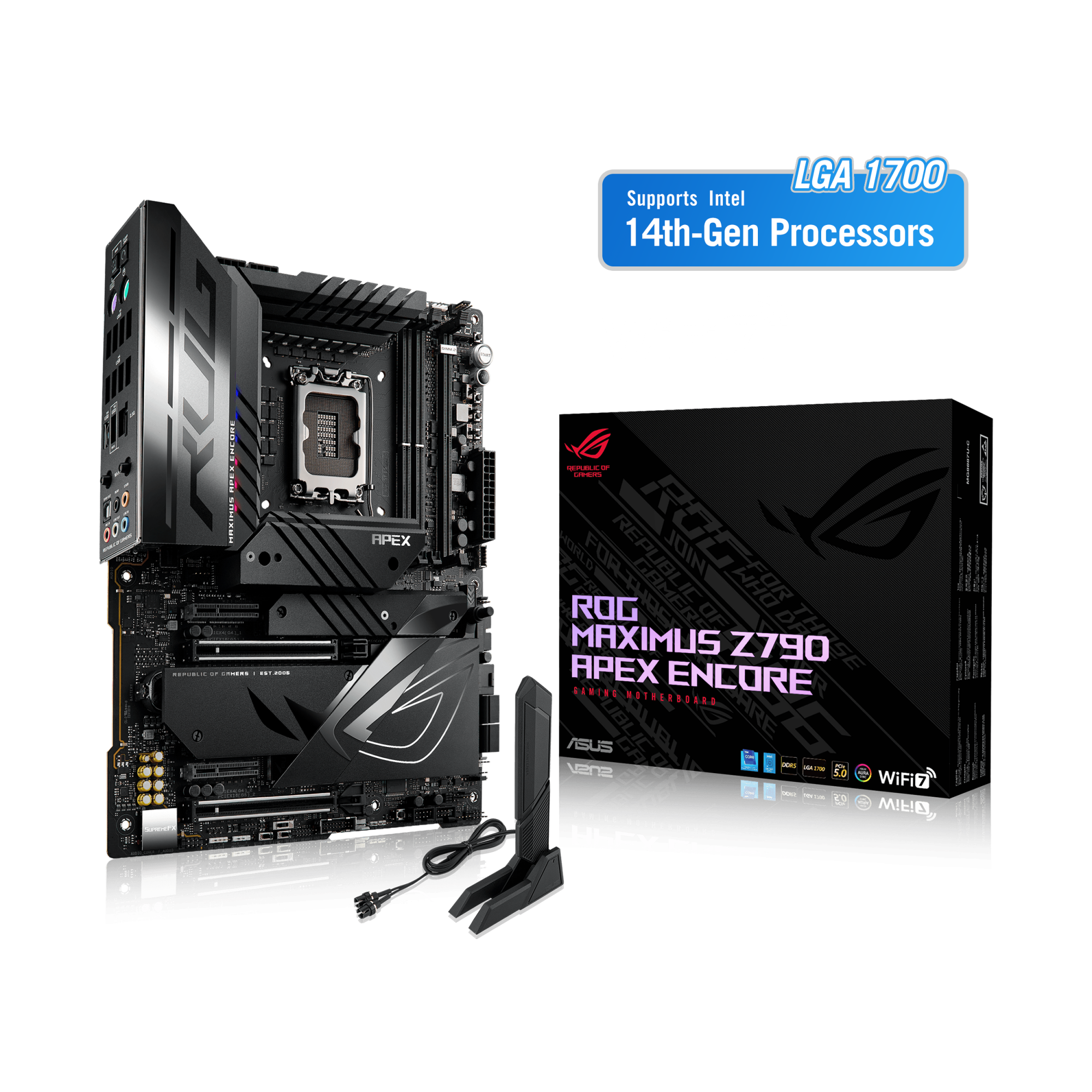

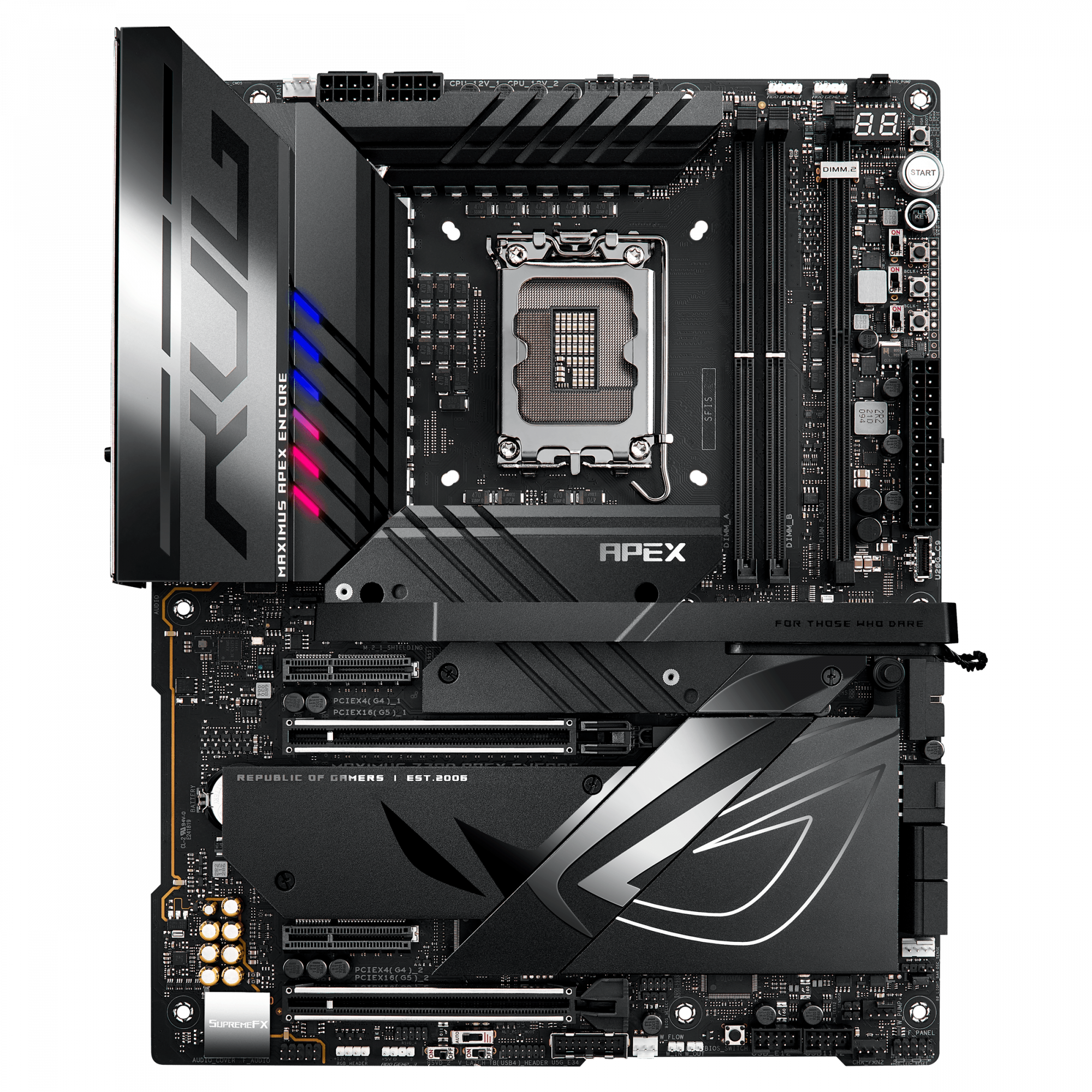

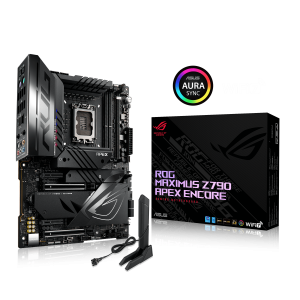

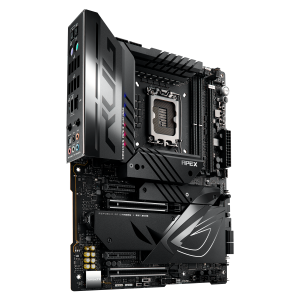

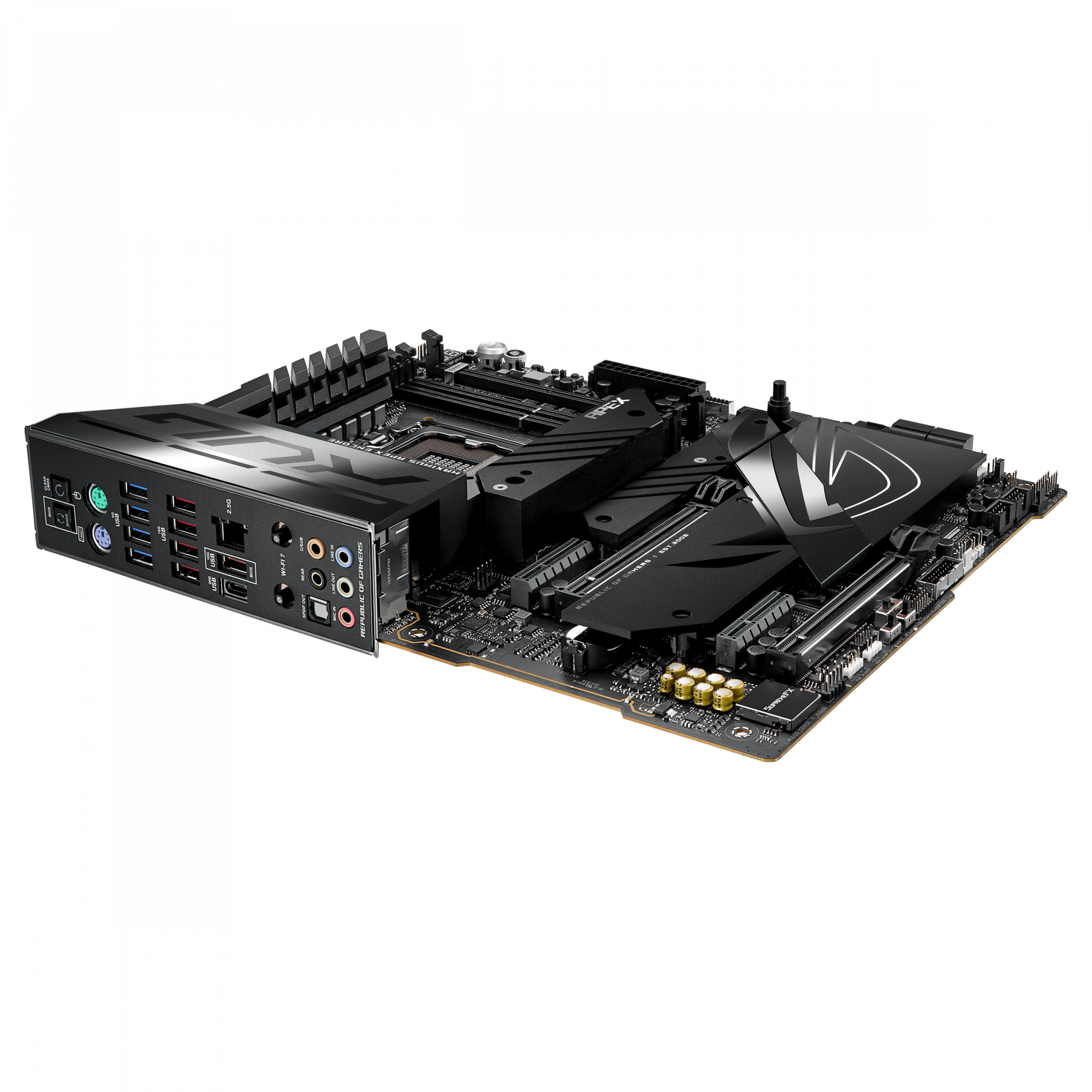

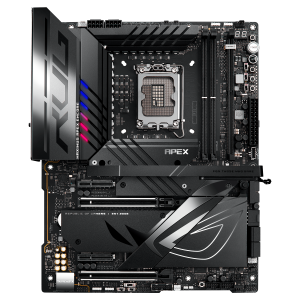

ASUS ROG MAXIMUS Z790 APEX ENCORE. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

Product Properties

Manufacturer
Asus

Model
ROG MAXIMUS Z790 A

EAN
4711387361115

BIOS

BIOS memory size
512 Mbit

BIOS type
UEFI AMI

Clear CMOS button
Yes

Expansion slots

Number of M.2 (M) slots
3

PCI Express x4 (Gen 4.x) slots
2

Features

Audio chip
Realtek ALC4080

Audio output channels
7.1 channels

Chip Set
Intel

Component for
PC

Motherboard chipset
Intel Z790

Motherboard form factor
ATX

Windows operating systems supported
Windows 10 x64, Windows 11

Internal I/O

12V power connector
Yes

ATX Power connector (24-pin)
Yes

CPU fan connector
Yes

EPS power connector (8-pin)
Yes

Front panel audio connector
Yes

Number of chassis fan connectors
2

Number of SATA III connectors
4

RGB
Yes

Thunderbolt headers
1

USB 2.0 connectors
2

USB 3.2 Gen 1 (3.1 Gen 1) connectors
2

USB 3.2 Gen 2x2 connectors
1

Memory

Memory channels
Dual-channel

Memory Slot Support
96 GB

Memory slots type
DIMM

Non-ECC
Yes

Number of memory slots
2

Supported memory clock speed (max)
8400 MHz

Supported memory clock speeds
8200,8400,4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,8000 MHz

Supported memory types
DDR5-SDRAM

Unbuffered memory
Yes

Network

Bluetooth
Yes

Bluetooth version
5.4

Ethernet interface type
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

Ethernet LAN
Yes

Top Wi-Fi standard
Wi-Fi 7 (802.11be)

Wi-Fi
Yes

Wi-Fi standards
Wi-Fi 7 (802.11be)

Other features

Weight
1.83 kg

Packaging data

Package depth
312 mm

Package height
108 mm

Package weight
3.6 kg

Package width
370 mm

Processor

Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold

Processor manufacturer
Intel

Processor socket
LGA 1700

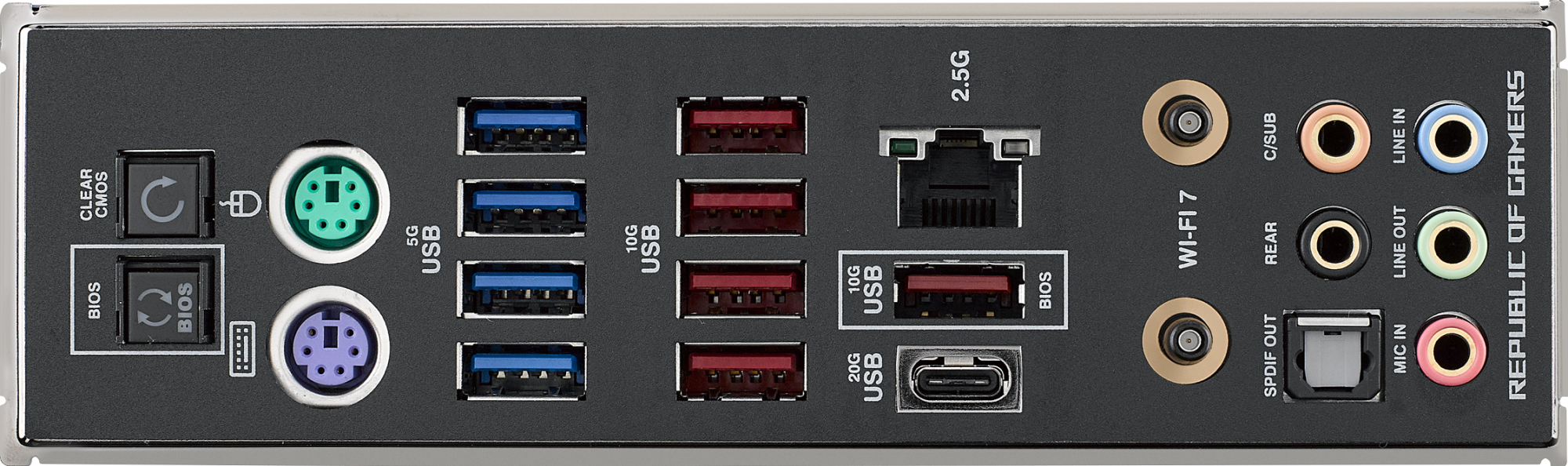

Rear panel I/O ports

Ethernet LAN (RJ-45) ports
1

Line-in
Yes

Microphone in
Yes

PS/2 ports quantity
2

S/PDIF out port
Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
5

USB 3.2 Gen 2x2 Type-C ports quantity
1

Storage controllers

Number of HDDs supported
4

Number of storage drives supported
9

RAID levels
0, 1, 5, 10

RAID support
Yes

Supported storage drive interfaces
M.2, SATA III

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
244 mm

Height
49 mm

Width
305 mm

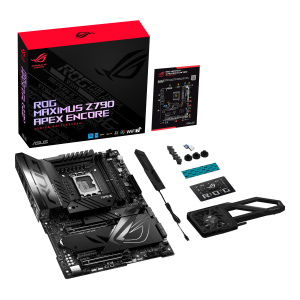

ASUS ROG MAXIMUS Z790 APEX ENCORE Intel Z790 LGA 1700 ATX
