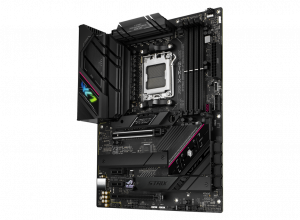

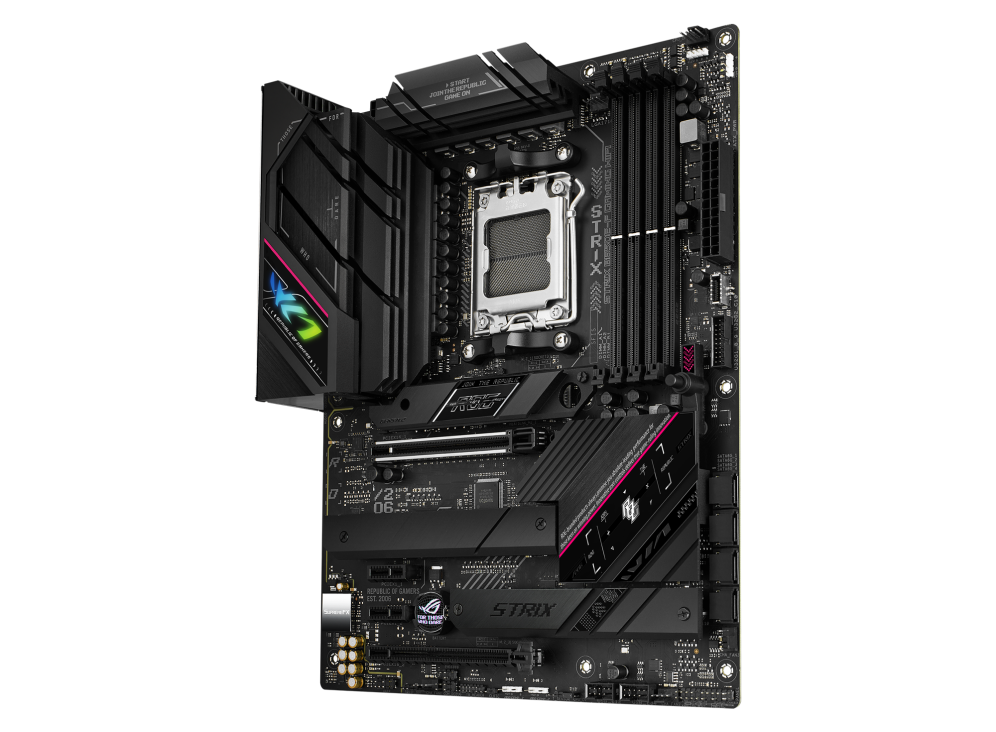

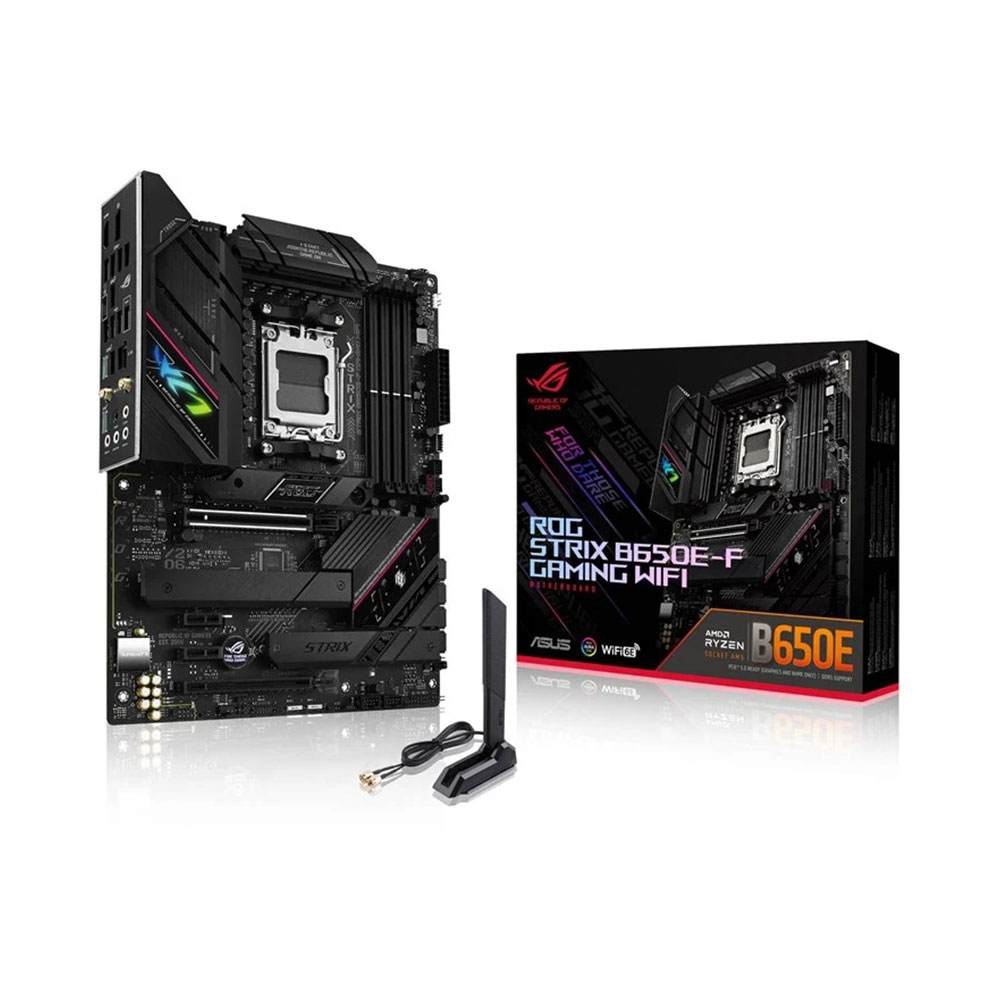

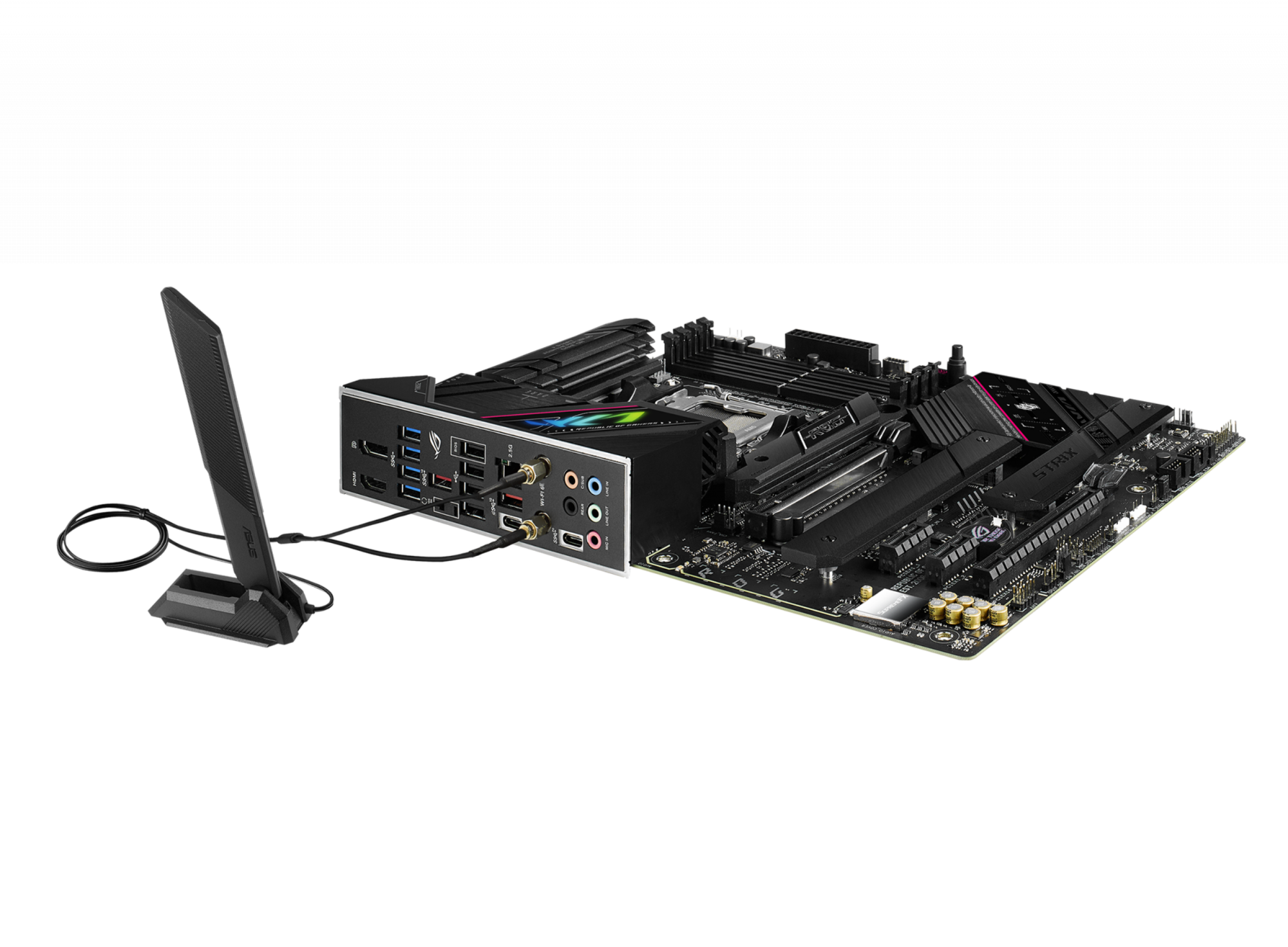

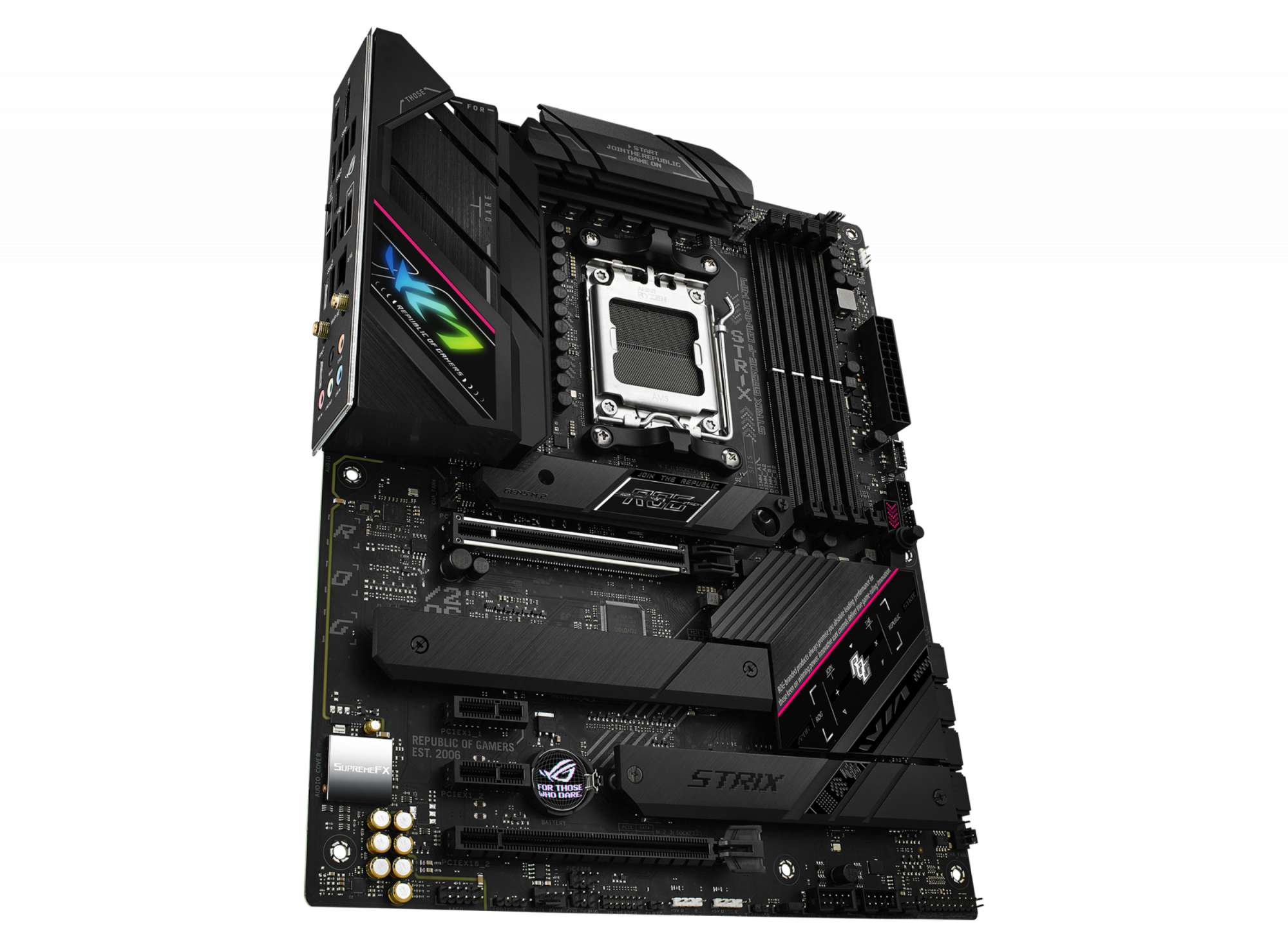

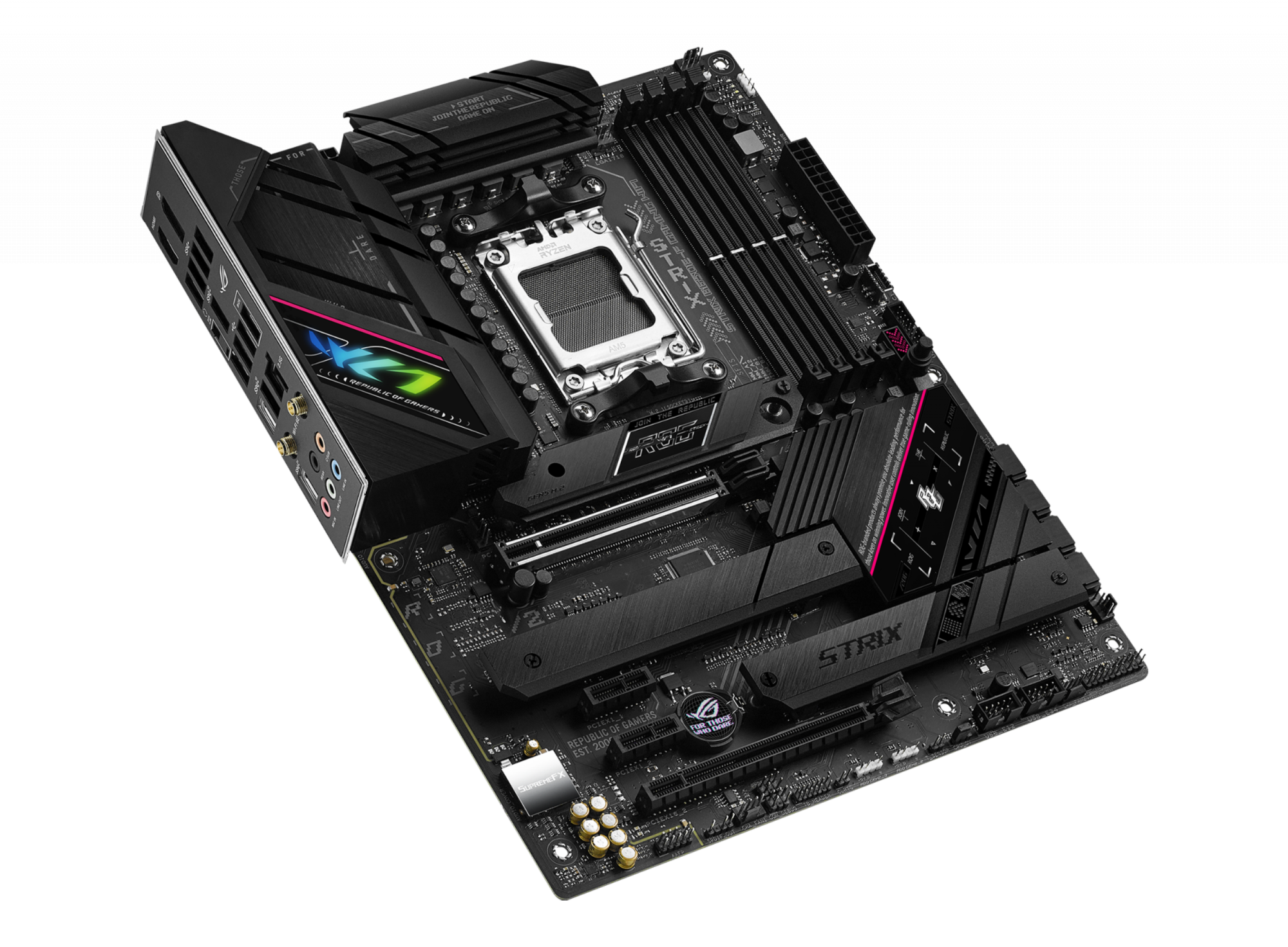

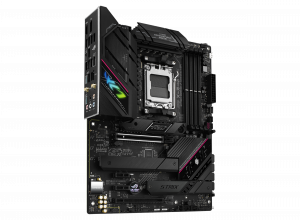

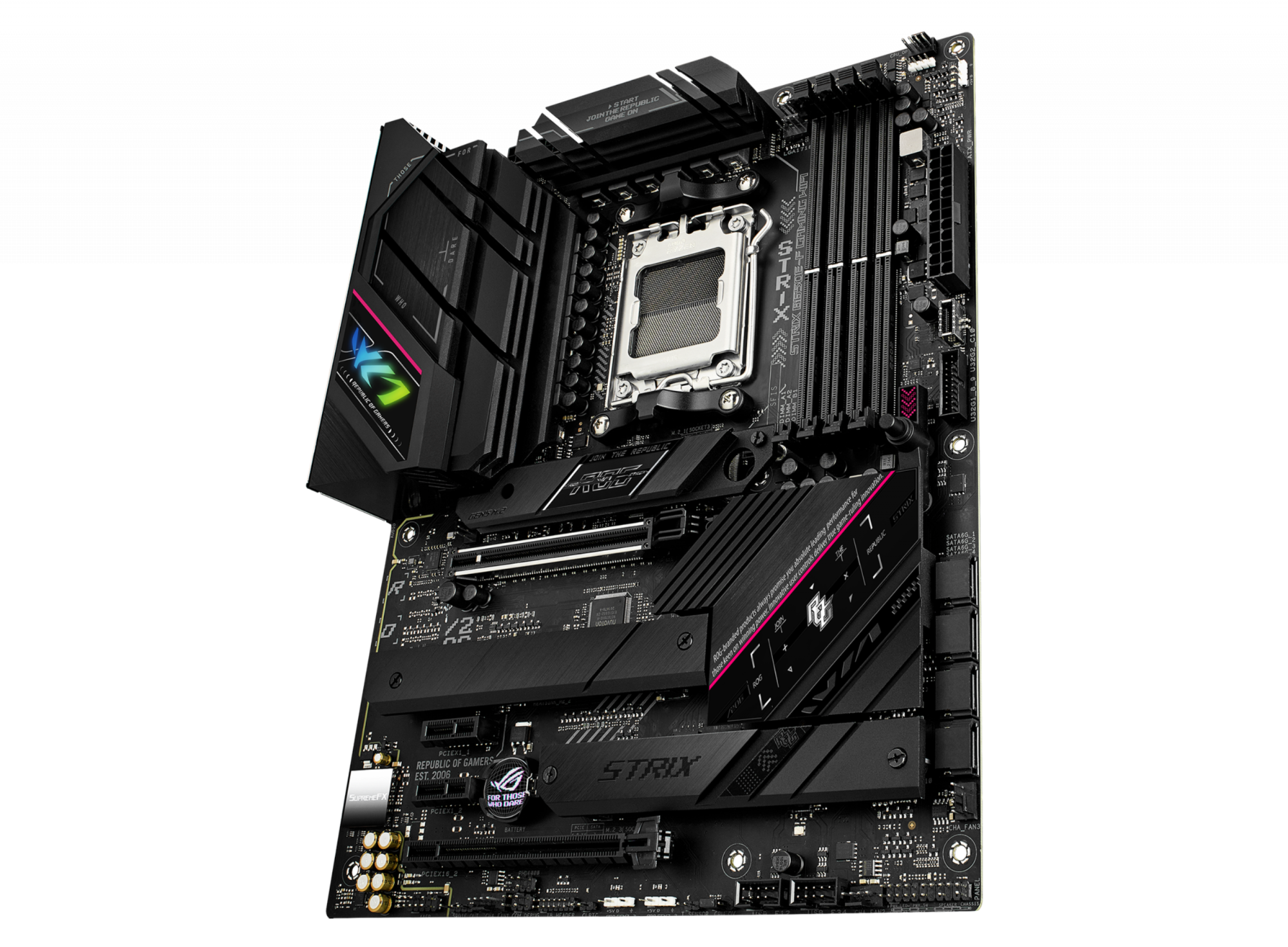

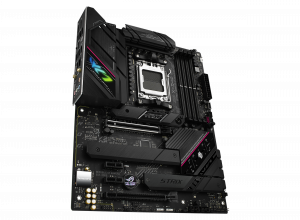

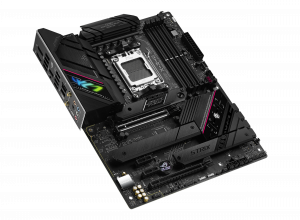

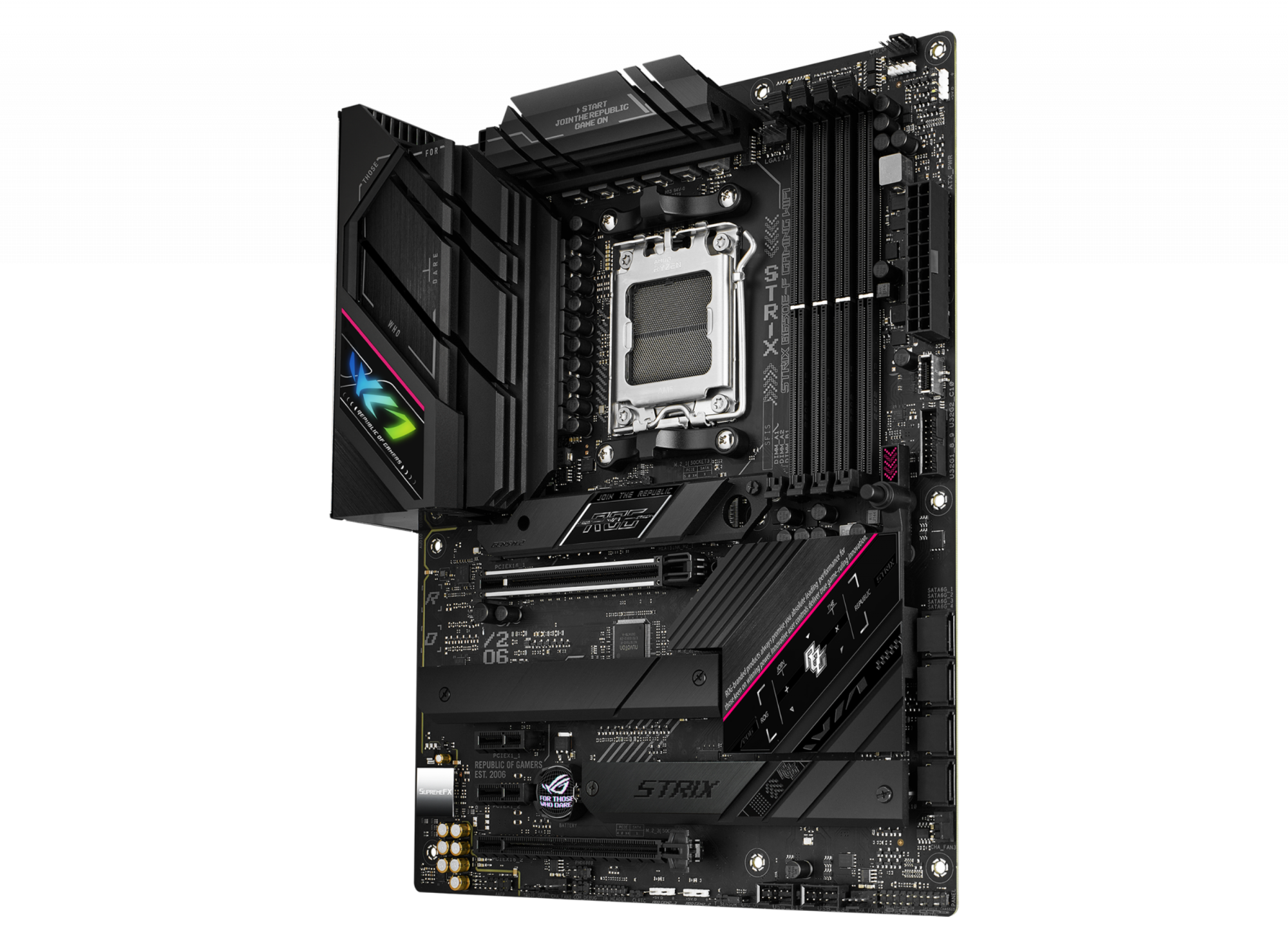

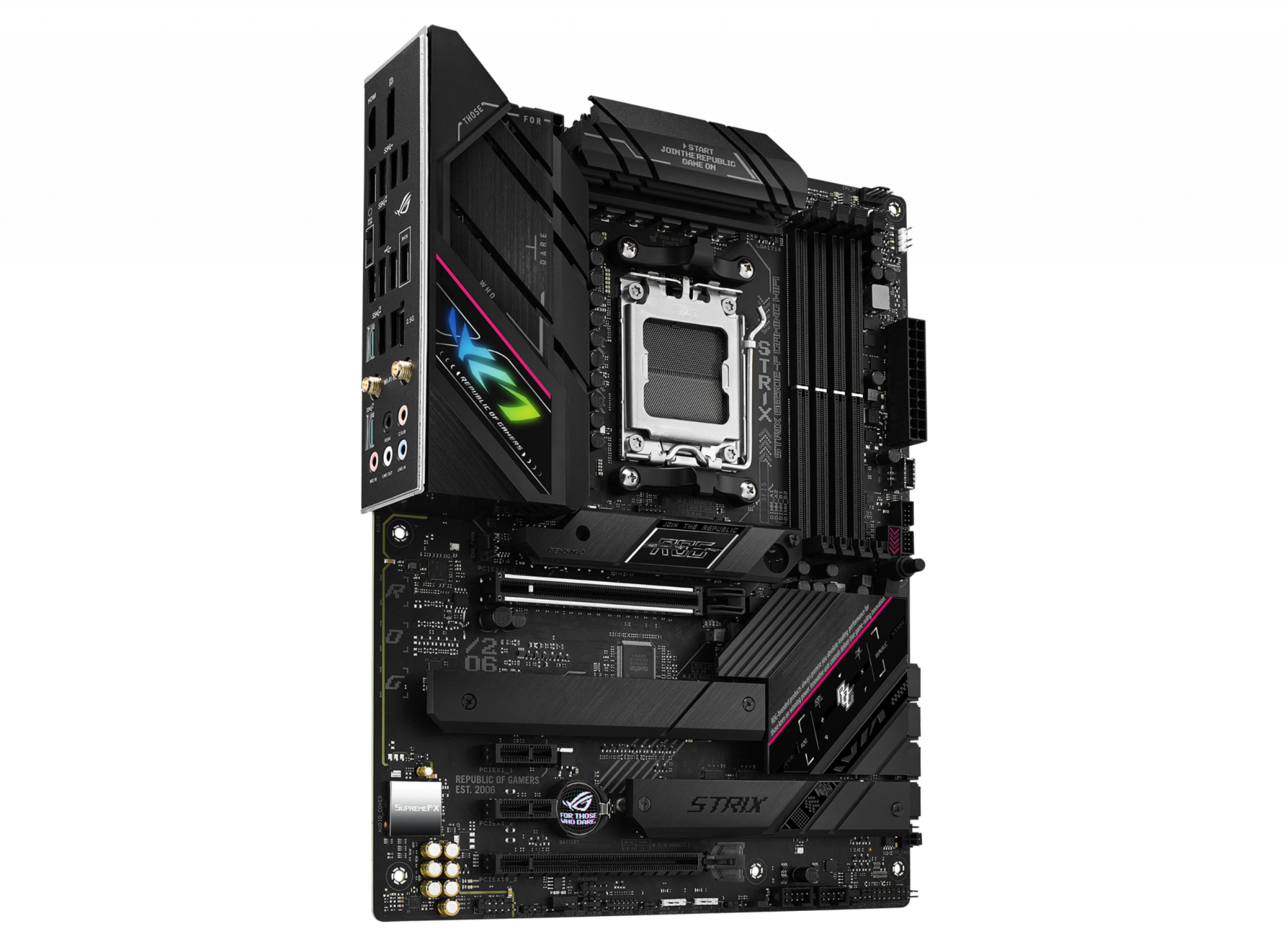

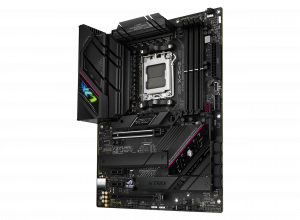

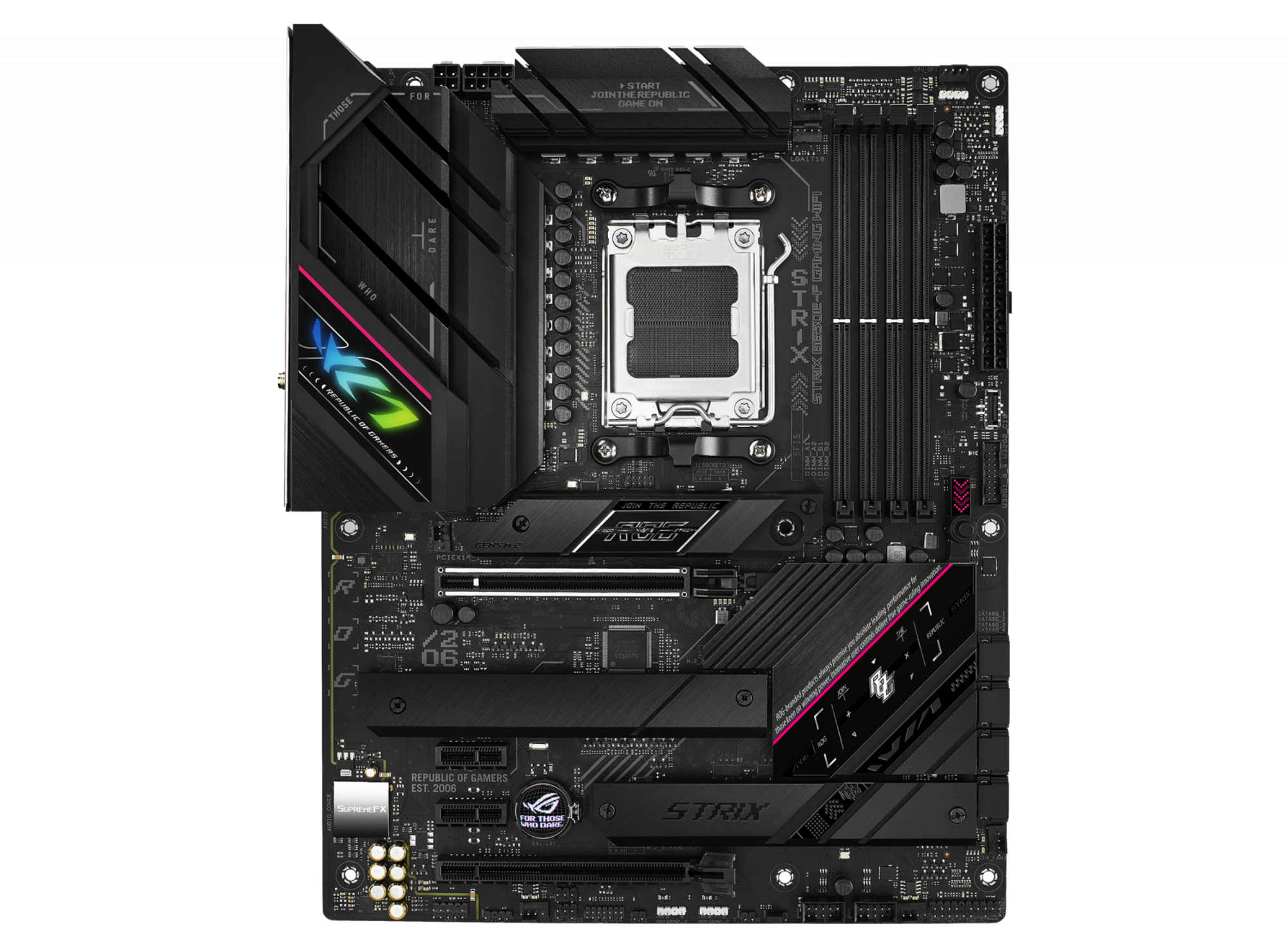

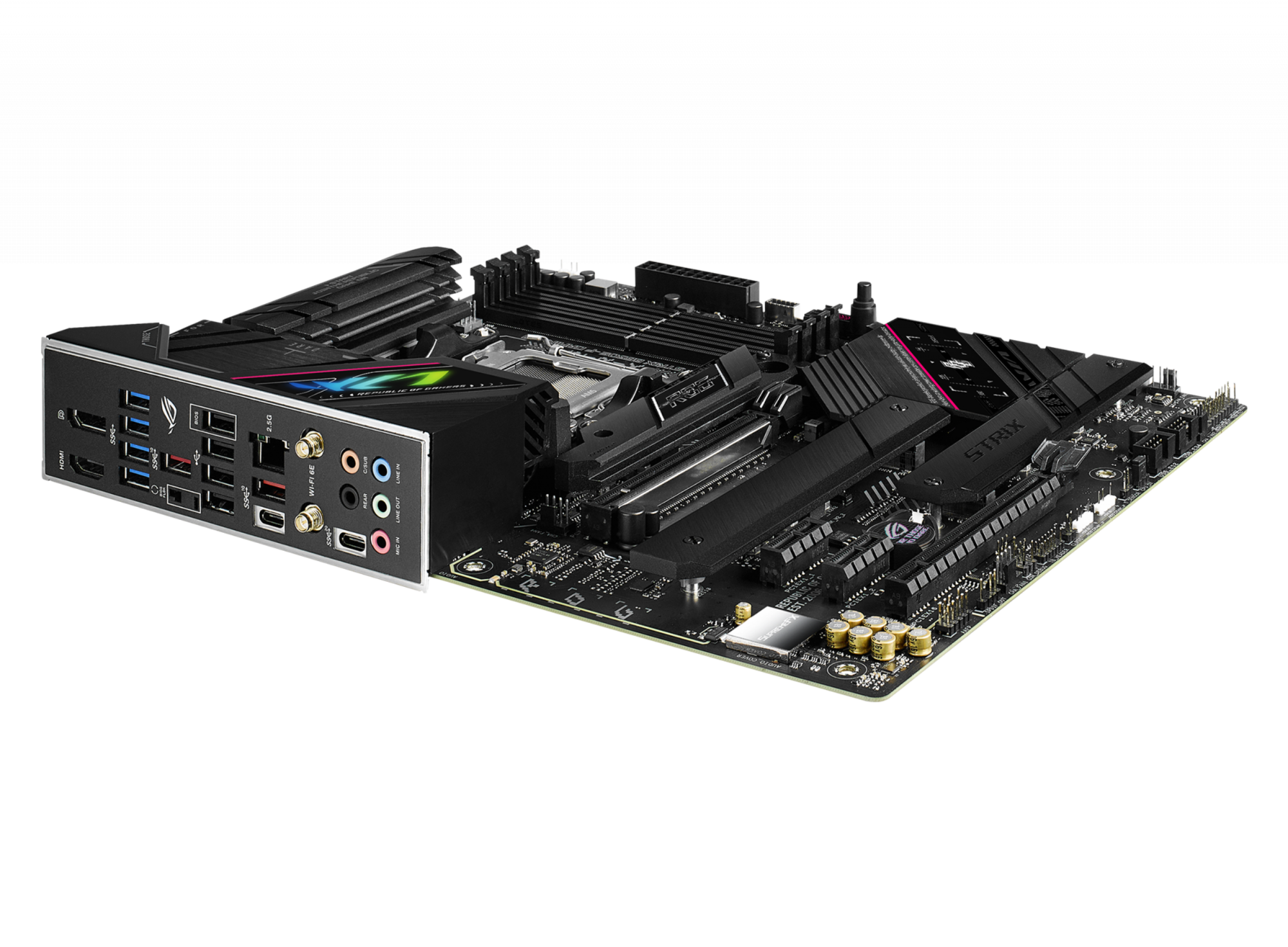

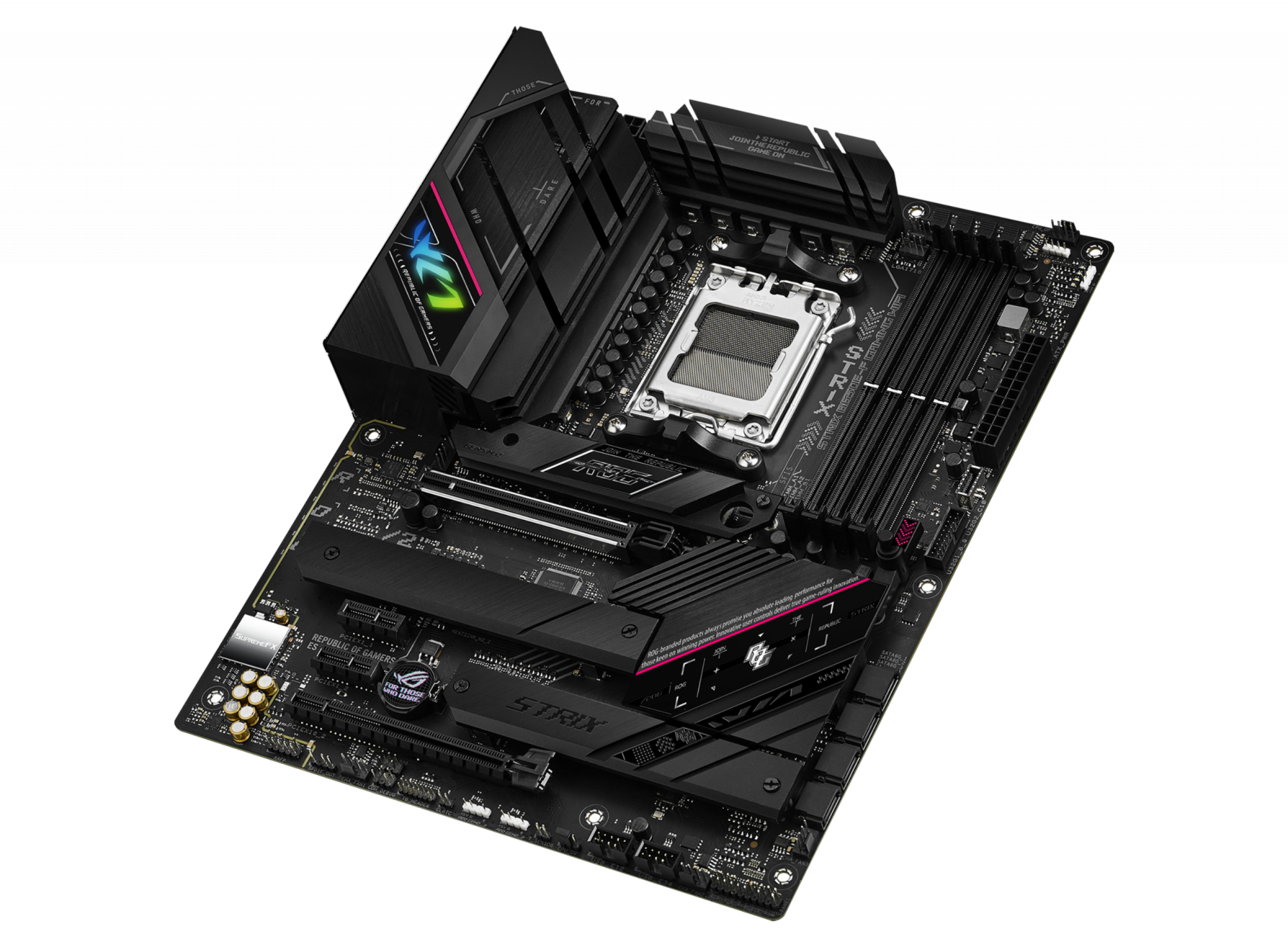

ASUS ROG STRIX B650E-F GAMING WIFI AMD B650 Socket AM5 ATX
Roll over image to zoom inClick to Open expanded view
ASUS ROG STRIX B650E-F GAMING WIFI AMD B650 Socket AM5 ATX
ASUS ROG STRIX B650E-F GAMING WIFI AMD B650 Socket AM5 ATX
ASUS ROG STRIX B650E-F GAMING WIFI AMD B650 Socket AM5 ATX
ASUS ROG STRIX B650E-F GAMING WIFI AMD B650 Socket AM5 ATX
ASUS ROG STRIX B650E-F GAMING WIFI AMD B650 Socket AM5 ATX
Print
Model: STRIX B650E-F GAMI
EAN: 4711081944034

ASUS ROG STRIX B650E-F GAMING WIFI AMD B650 Socket AM5 ATX

Manufacturer:
Asus
ASUS ROG STRIX B650E-F GAMING WIFI, AMD, Socket AM5, AMD Ryzen™ 7, Socket AM5, DDR5-SDRAM, 128 GB
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

ASUS ROG STRIX B650E-F GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Intel I225-V, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

Product Properties

  • Model
  • STRIX B650E-F GAMI
  • EAN
  • 4711081944034
  • BIOS
  • BIOS memory size
  • 256 Mbit
  • BIOS type
  • UEFI AMI
  • Clear CMOS button
  • Yes
  • Expansion slots
  • Number of M.2 (M) slots
  • 3
  • PCI Express x1 (Gen 4.x) slots
  • 2
  • PCI Express x16 (Gen 4.x) slots
  • 1
  • PCI Express x16 (Gen 5.x) slots
  • 1
  • Features
  • Audio chip
  • Realtek ALC4080
  • Audio output channels
  • 7.1 channels
  • Chip Set
  • AMD
  • Component for
  • PC
  • Motherboard chipset
  • AMD B650
  • Motherboard form factor
  • ATX
  • Windows operating systems supported
  • Windows 11 x64
  • Graphics
  • Parallel processing technology support
  • Not supported
  • Internal I/O
  • 12V power connector
  • Yes
  • ATX Power connector (24-pin)
  • Yes
  • Chassis intrusion connector
  • Yes
  • CPU fan connector
  • Yes
  • EPS power connector (8-pin)
  • Yes
  • Front panel audio connector
  • Yes
  • Number of chassis fan connectors
  • 4
  • Number of COM connectors
  • 1
  • Number of SATA III connectors
  • 4
  • Peripheral (Molex) power connectors (4-pin)
  • 1
  • RGB
  • Yes
  • S/PDIF out connector
  • Yes
  • Thunderbolt headers
  • 1
  • USB 2.0 connectors
  • 4
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
  • 2
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
  • 1
  • Memory
  • ECC
  • Yes
  • Memory channels
  • Dual-channel
  • Memory Slot Support
  • 128 GB
  • Memory slots type
  • DIMM
  • Non-ECC
  • Yes
  • Number of memory slots
  • 4
  • Supported memory clock speeds
  • 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
  • Supported memory types
  • DDR5-SDRAM
  • Unbuffered memory
  • Yes
  • Network
  • Bluetooth
  • Yes
  • Bluetooth version
  • 5.2
  • Ethernet interface type
  • 2.5 Gigabit Ethernet
  • Ethernet LAN
  • Yes
  • LAN controller
  • Intel I225-V
  • Top Wi-Fi standard
  • Wi-Fi 6E (802.11ax)
  • Wi-Fi
  • Yes
  • Wi-Fi standards
  • 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
  • Packaging content
  • Cables included
  • SATA
  • Packaging data
  • Package depth
  • 265 mm
  • Package height
  • 71 mm
  • Package weight
  • 9.22 kg
  • Package width
  • 280 mm
  • Processor
  • Compatible processor series
  • AMD Ryzen™ 7
  • Processor manufacturer
  • AMD
  • Processor socket
  • Socket AM5
  • Supported processor sockets
  • Socket AM5

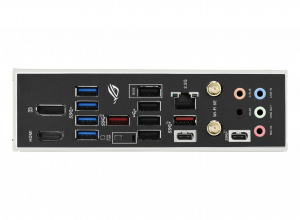

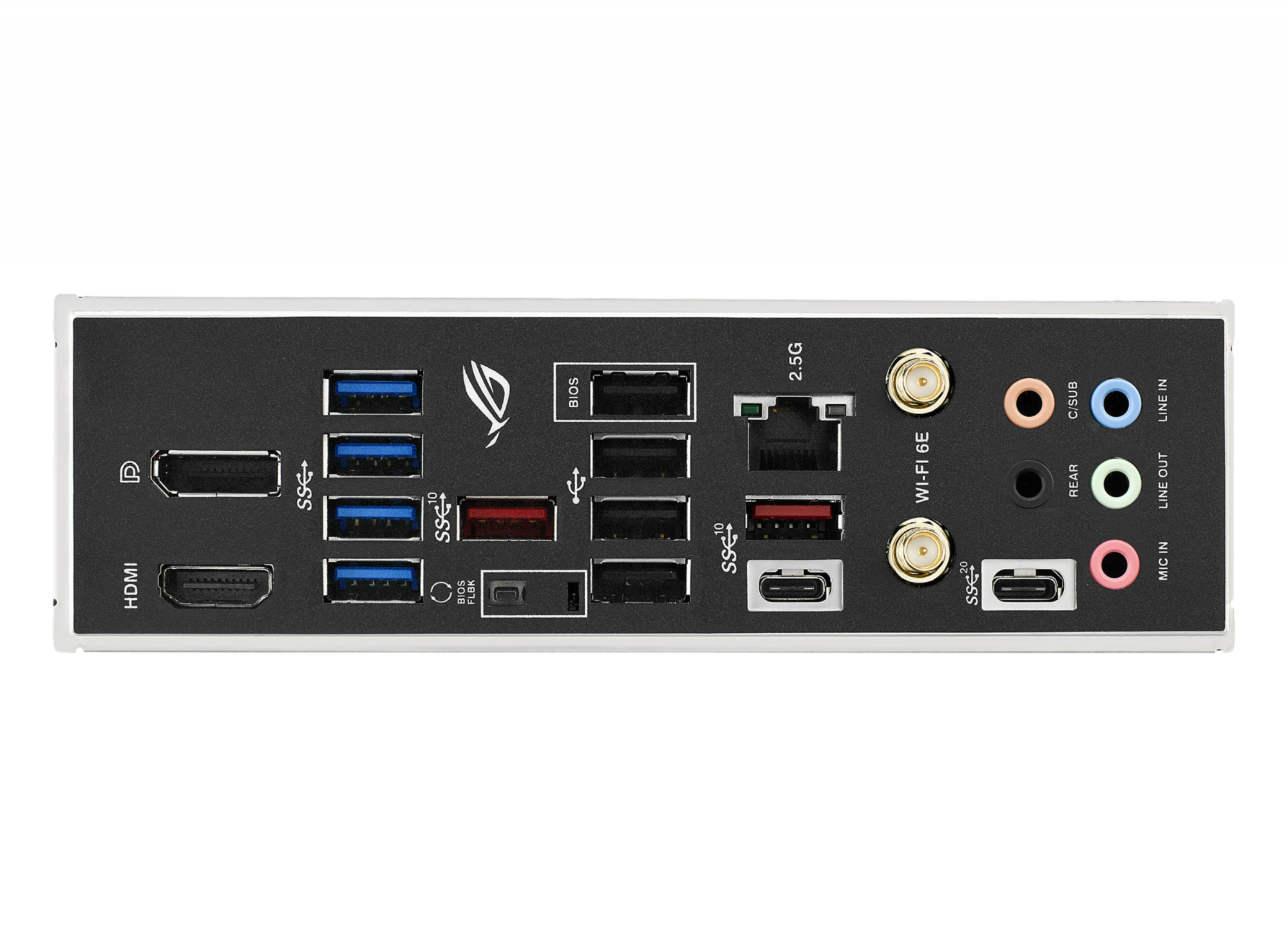

  • Rear panel I/O ports
  • DisplayPorts quantity
  • 1
  • Ethernet LAN (RJ-45) ports
  • 1
  • HDMI ports quantity
  • 1
  • Headphone outputs
  • 3
  • Line-in
  • Yes
  • Microphone in
  • Yes
  • USB 2.0 ports quantity
  • 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 4
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 2
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
  • 1
  • Storage controllers
  • RAID levels
  • 0, 1, 10
  • RAID support
  • Yes
  • Supported storage drive interfaces
  • M.2, SATA III
  • Supported storage drive types
  • HDD & SSD
  • Weight & dimensions
  • Depth
  • 244 mm
  • Width
  • 305 mm
