Description

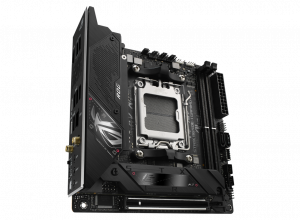

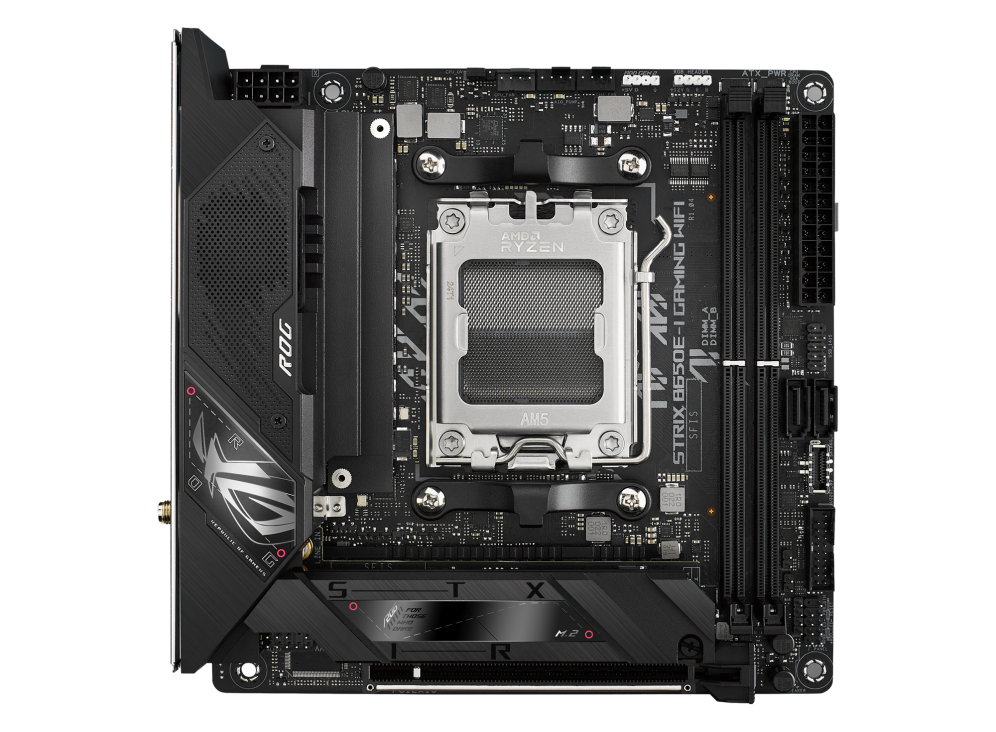

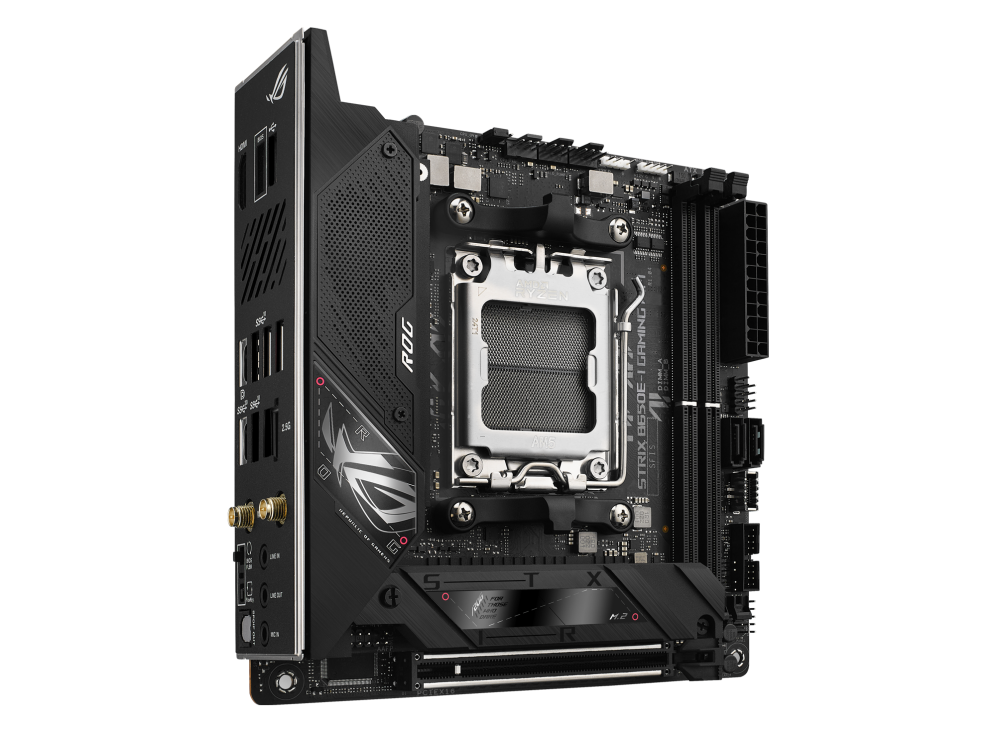

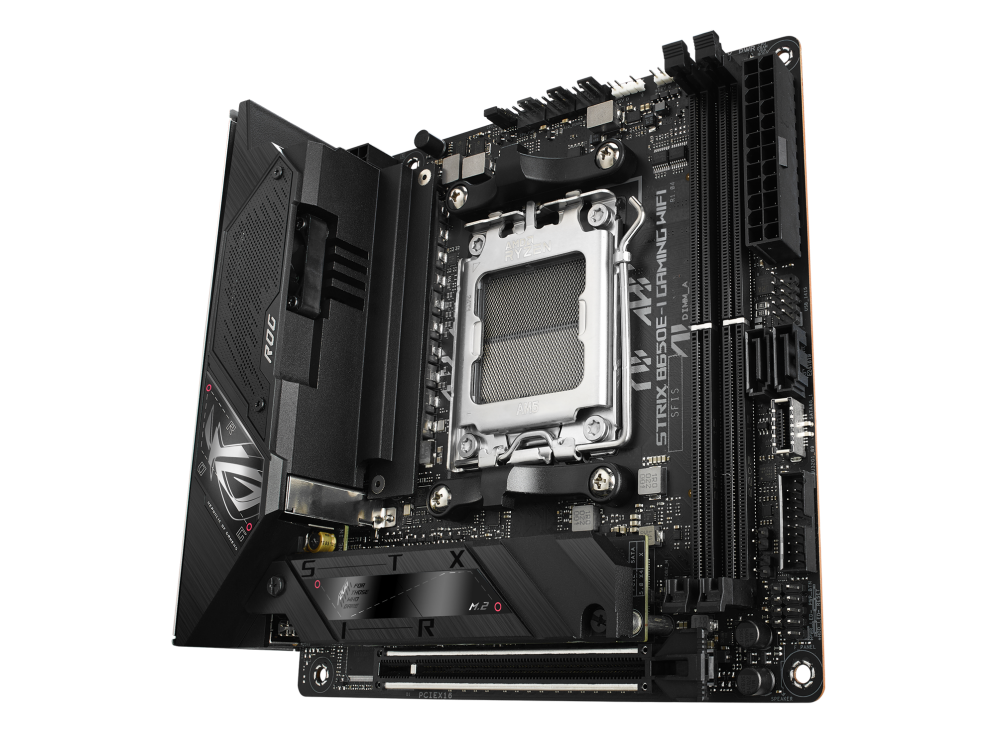

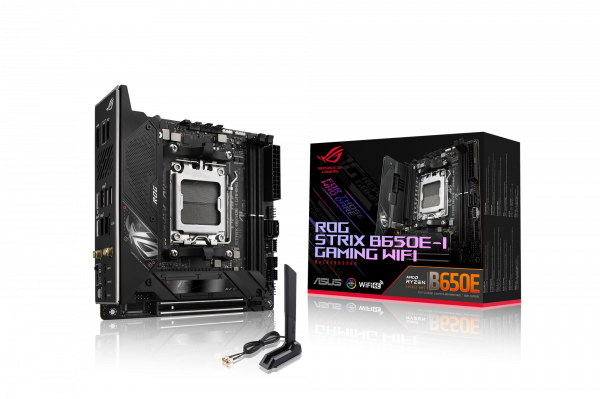

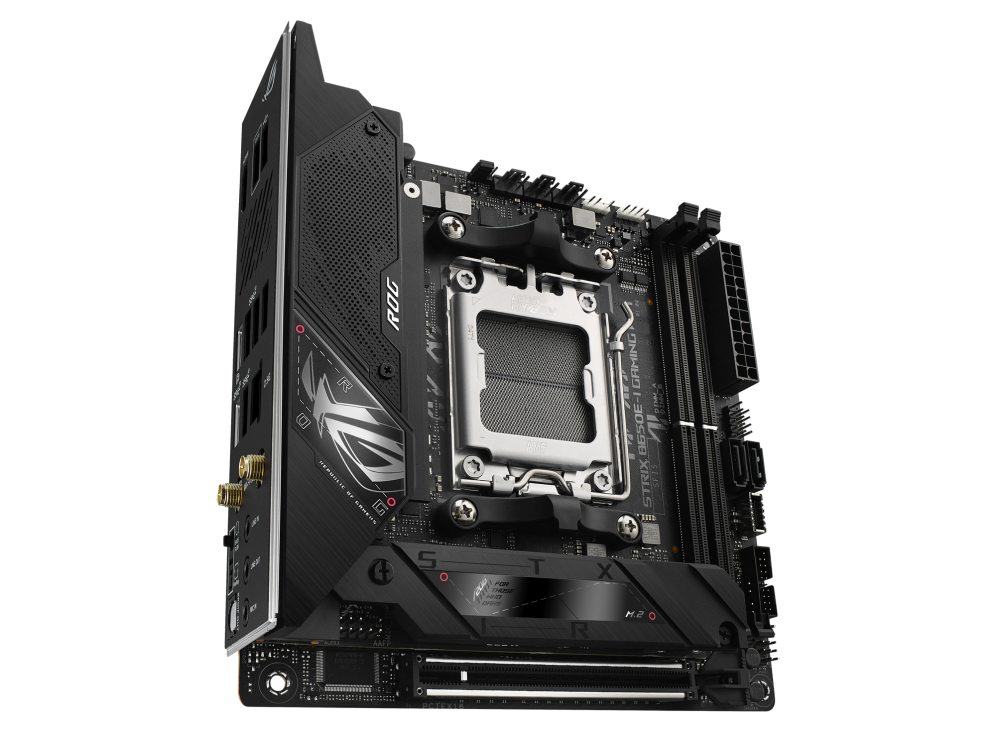

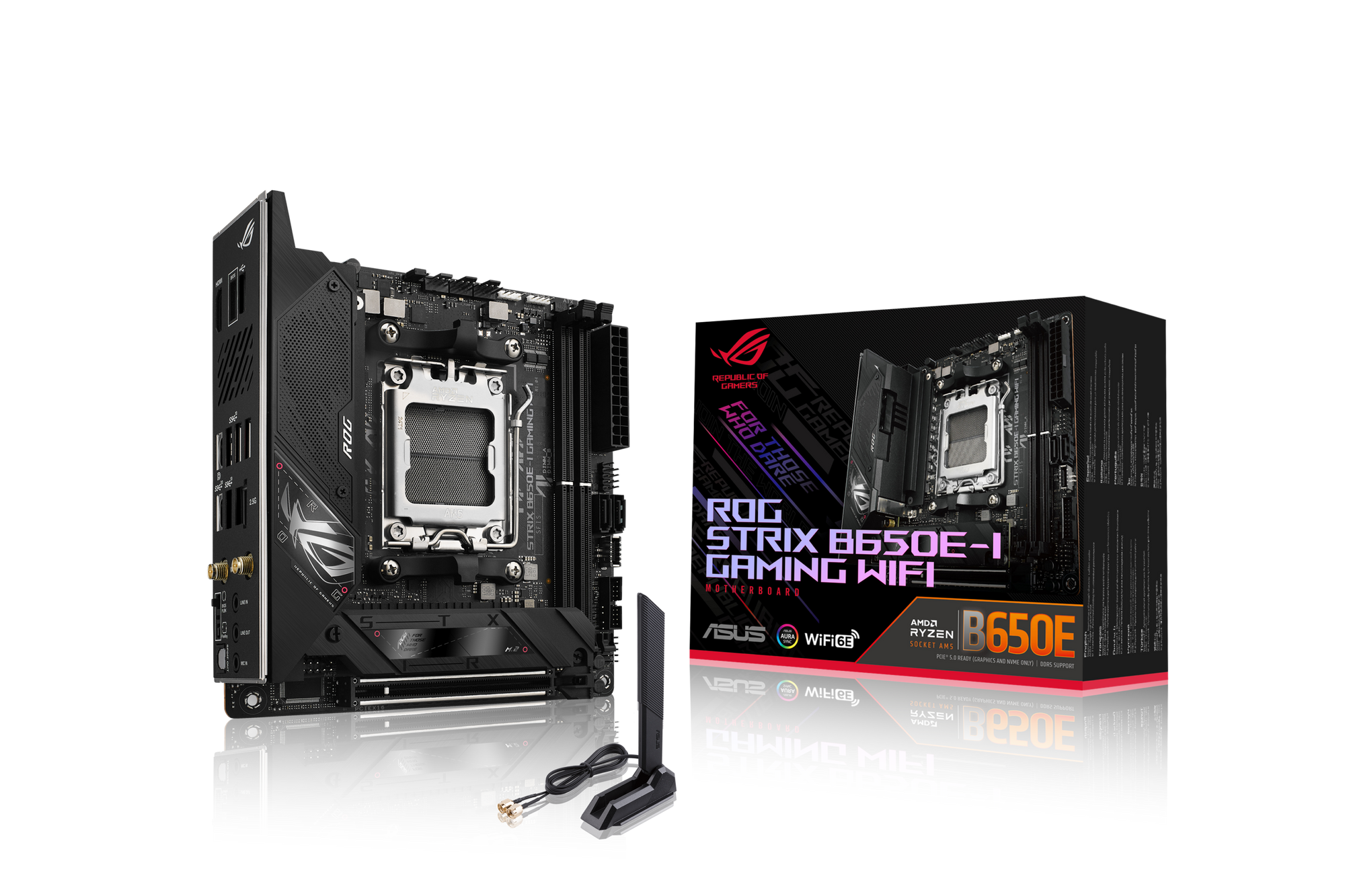

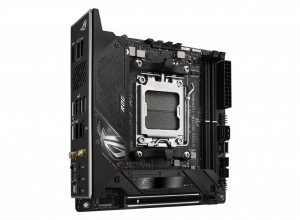

ASUS ROG STRIX B650E-I GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: mini ITX, Motherboard chipset family: AMD

Product Properties

Manufacturer
Asus

Model
STRIX B650E-I GAMI

EAN
4711081957881

BIOS

BIOS memory size
256 Mbit

BIOS type
UEFI AMI

Clear CMOS button
Yes

Expansion slots

Number of M.2 (M) slots
2

PCI Express x16 (Gen 5.x) slots
1

Features

Audio chip
Realtek ALC4080

Audio output channels
7.1 channels

Chip Set
AMD

Component for
PC

Motherboard chipset
AMD B650

Motherboard form factor
mini ITX

Windows operating systems supported
Windows 10 x64, Windows 11 x64

Graphics

Parallel processing technology support
Not supported

Internal I/O

12V power connector
Yes

ATX Power connector (24-pin)
Yes

Audio connector
Yes

CPU fan connector
Yes

EPS power connector (8-pin)
Yes

Front panel audio connector
Yes

Number of chassis fan connectors
1

Number of SATA III connectors
2

RGB
Yes

USB 2.0 connectors
2

USB 3.2 Gen 1 (3.1 Gen 1) connectors
2

USB 3.2 Gen 2 (3.1 Gen 2) connectors
1

Memory

ECC
Yes

Memory channels
Dual-channel

Memory Slot Support
64 GB

Memory slots type
DIMM

Non-ECC
Yes

Number of memory slots
2

Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz

Supported memory types
DDR5-SDRAM

Unbuffered memory
Yes

Network

Bluetooth
Yes

Bluetooth version
5.2

Ethernet interface type
2.5 Gigabit Ethernet

Ethernet LAN
Yes

Top Wi-Fi standard
Wi-Fi 6E (802.11ax)

Wi-Fi
Yes

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)

Packaging content

Cables included
SATA, USB

Packaging data

Package depth
182 mm

Package height
92 mm

Package weight
8.58 kg

Package width
222 mm

Processor

Compatible processor series
AMD Ryzen™ 7

Processor manufacturer
AMD

Processor socket
Socket AM5

Supported processor sockets
Socket AM5

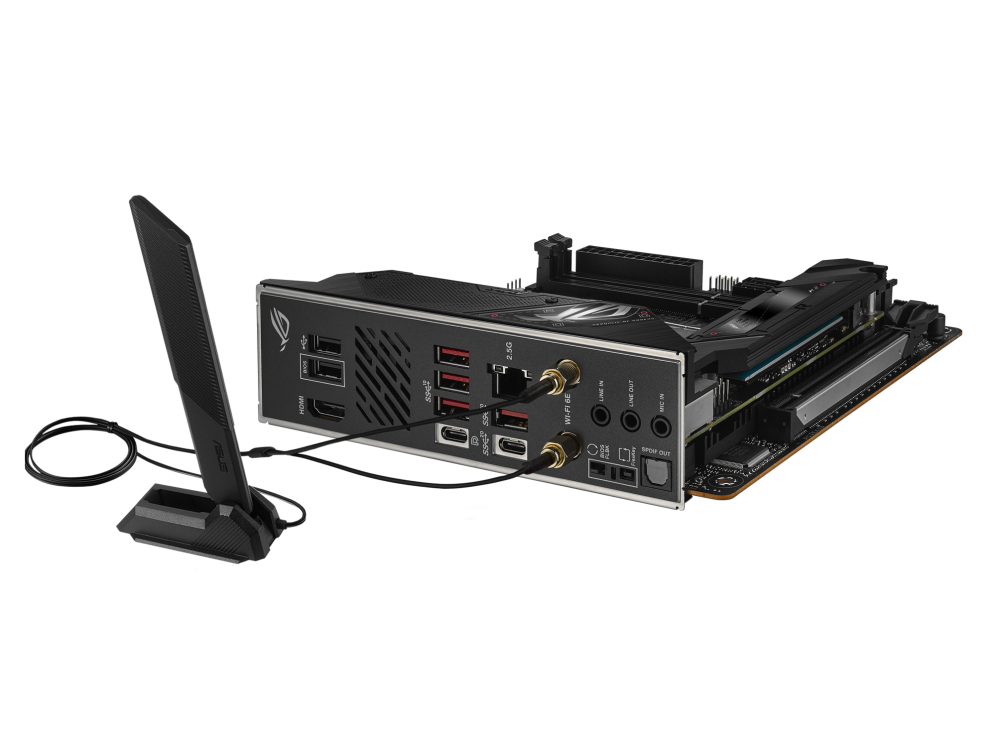

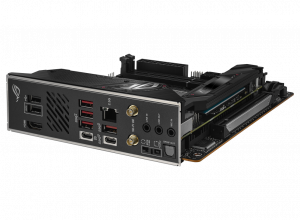

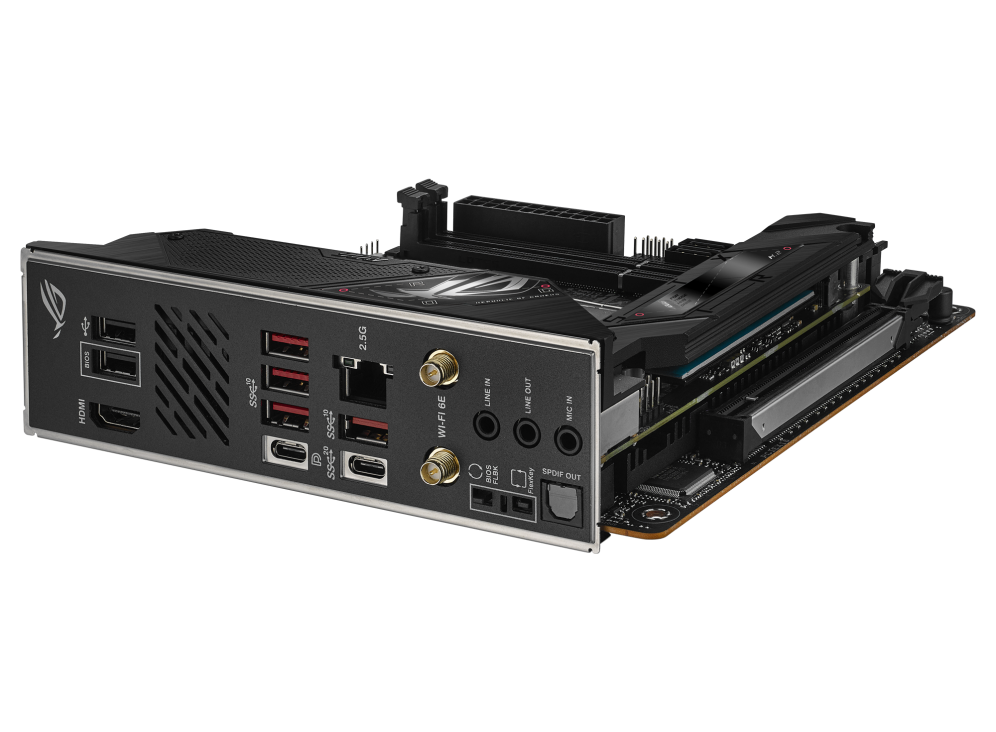

Rear panel I/O ports

Ethernet LAN (RJ-45) ports
1

HDMI ports quantity
1

Headphone outputs
1

Line-in
Yes

Microphone in
Yes

S/PDIF out port
Yes

USB 2.0 ports quantity
2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1

USB 3.2 Gen 2x2 Type-C ports quantity
1

Storage controllers

RAID levels
0, 1

RAID support
Yes

Supported storage drive interfaces
M.2, SATA III

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
170 mm

Width
170 mm

ASUS ROG STRIX B650E-I GAMING WIFI AMD B650 Socket AM5 mini ITX
