Description

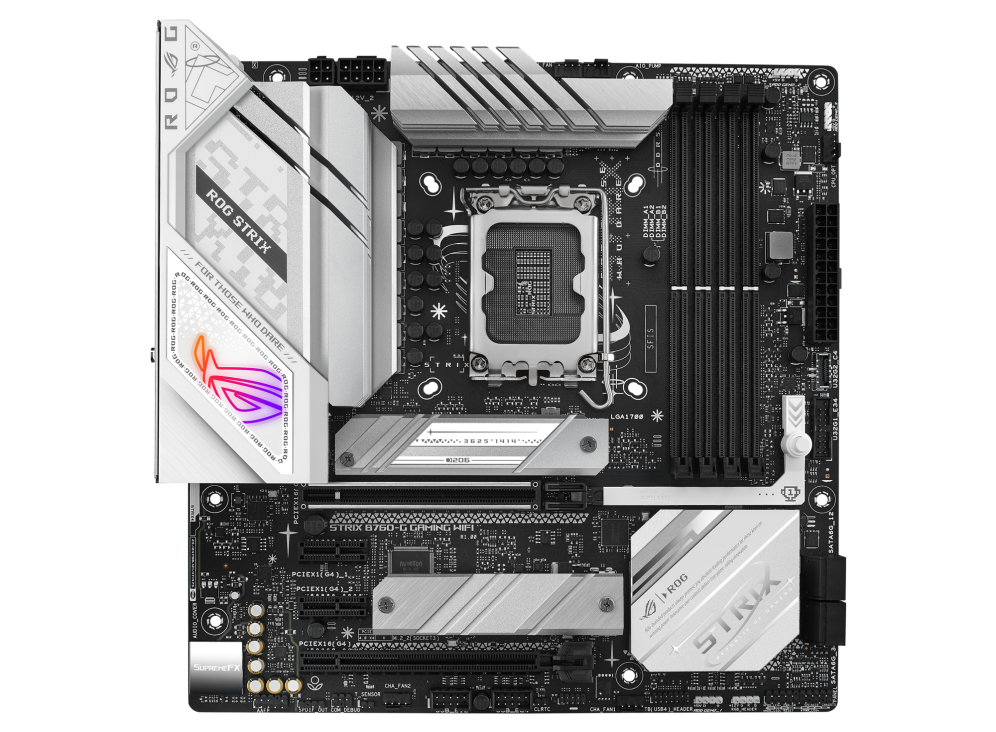

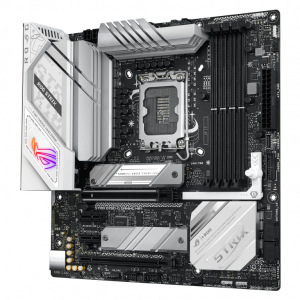

ASUS ROG STRIX B760-G GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Product Properties

Manufacturer
Asus

Model
ROG STRIX B760-G G

EAN
4711387120002

BIOS

BIOS memory size
256 Mbit

BIOS type
UEFI AMI

Expansion slots

Number of M.2 (M) slots
2

PCI Express x1 (Gen 4.x) slots
2

PCI Express x16 (Gen 4.x) slots
1

PCI Express x16 (Gen 5.x) slots
1

Features

Audio chip
SupremeFX S1220A

Audio output channels
7.1 channels

Chip Set
Intel

Component for
PC

Motherboard chipset
Intel B760

Motherboard form factor
micro ATX

Windows operating systems supported
Windows 10 x64, Windows 11

Graphics

Parallel processing technology support
Not supported

Internal I/O

12V power connector
Yes

ATX Power connector (24-pin)
Yes

CPU fan connector
Yes

EPS power connector (8-pin)
Yes

Front panel audio connector
Yes

Number of chassis fan connectors
2

Number of SATA III connectors
4

Peripheral (Molex) power connectors (4-pin)
1

RGB
Yes

S/PDIF out connector
Yes

Thunderbolt headers
1

USB 2.0 connectors
2

USB 3.2 Gen 1 (3.1 Gen 1) connectors
1

USB 3.2 Gen 2 (3.1 Gen 2) connectors
1

Memory

Memory channels
Dual-channel

Memory Slot Support
192 GB

Memory slots type
DIMM

Non-ECC
Yes

Number of memory slots
4

Supported memory clock speed (max)
7800 MHz

Supported memory clock speeds
7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz

Supported memory types
DDR5-SDRAM

Unbuffered memory
Yes

Network

Bluetooth
Yes

Bluetooth version
5.3

Ethernet interface type
2.5 Gigabit Ethernet

Ethernet LAN
Yes

Top Wi-Fi standard
Wi-Fi 6E (802.11ax)

Wi-Fi
Yes

Wi-Fi standards
Wi-Fi 6E (802.11ax)

Packaging content

Cables included
SATA

Processor

Compatible processor series
Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9

Processor manufacturer
Intel

Processor socket
LGA 1700

Supported processor sockets
LGA 1700

Rear panel I/O ports

DisplayPorts quantity
1

Ethernet LAN (RJ-45) ports
1

HDMI ports quantity
1

Headphone outputs
1

Line-in
Yes

Microphone in
Yes

USB 2.0 ports quantity
4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1

USB 3.2 Gen 2x2 Type-C ports quantity
1

WiFi-AP antenna jack
1

Storage controllers

Number of HDDs supported
4

Number of storage drives supported
6

RAID levels
0, 1, 5, 10

RAID support
Yes

Supported storage drive interfaces
M.2, SATA III

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
244 mm

Width
244 mm

ASUS ROG STRIX B760-G GAMING WIFI Intel B760 LGA 1700 micro ATX
