Description

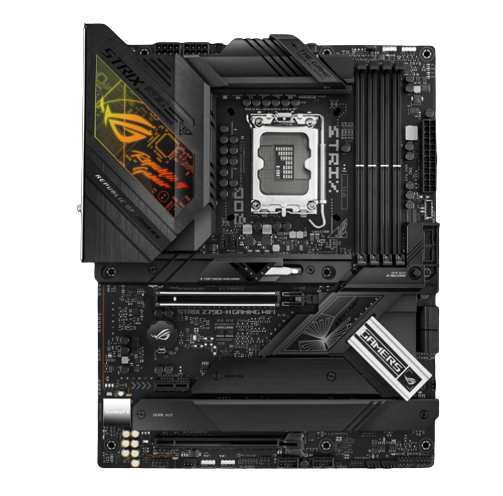

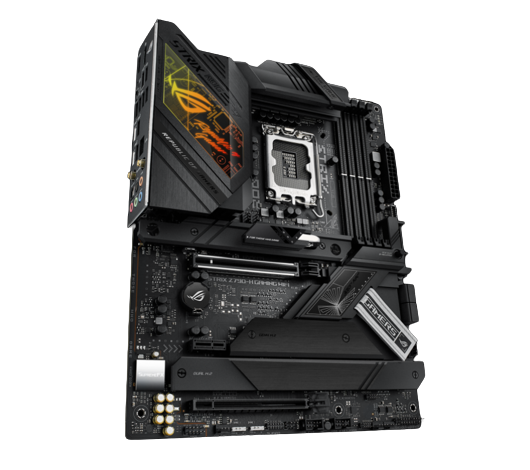

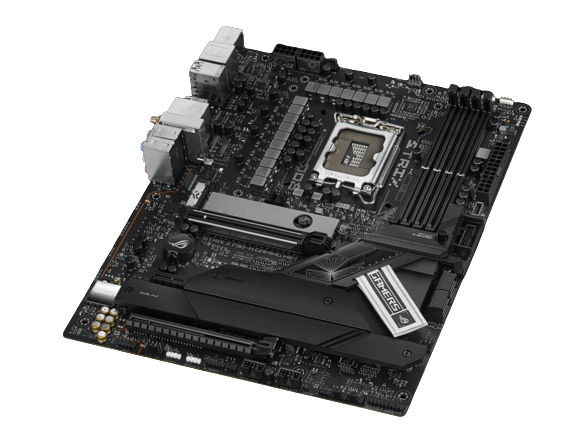

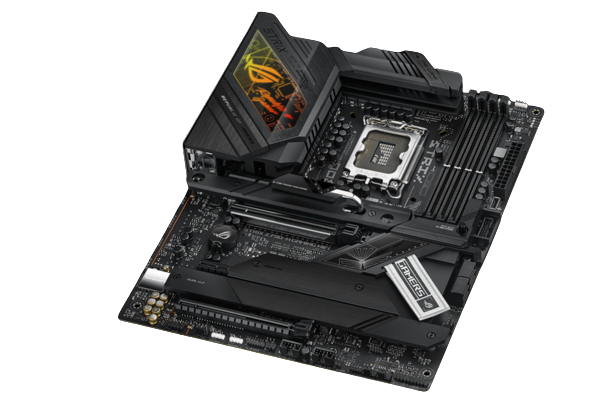

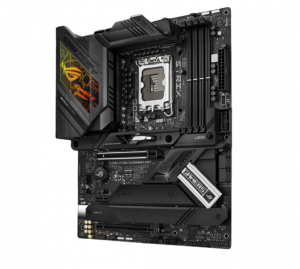

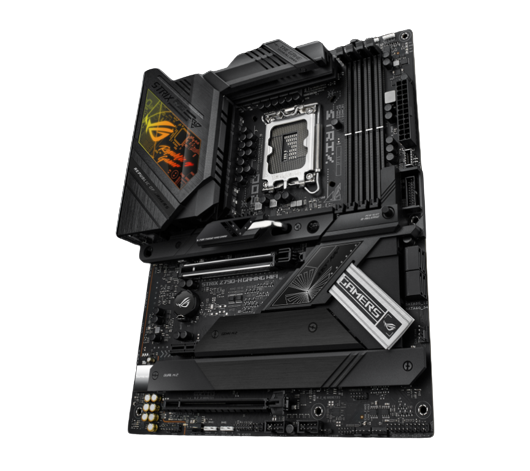

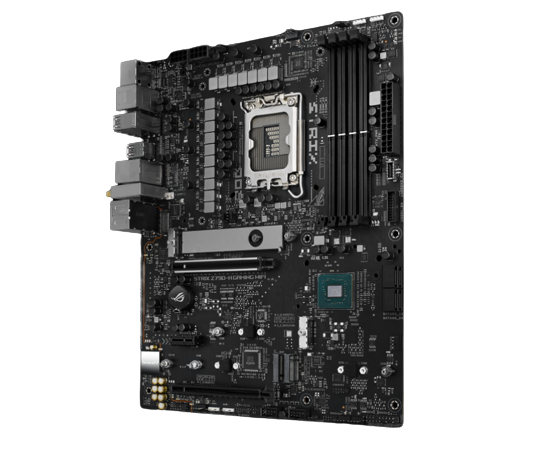

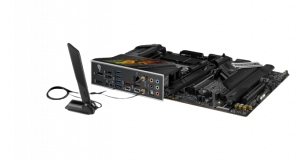

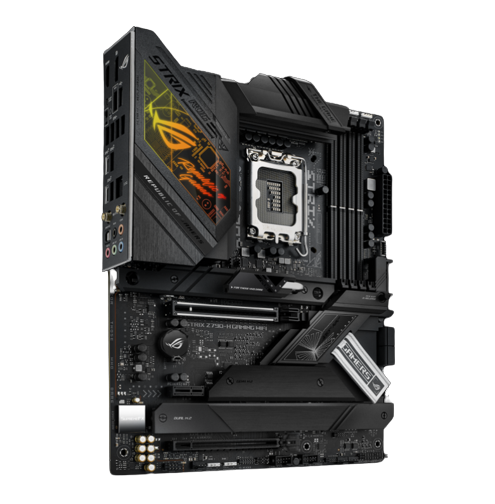

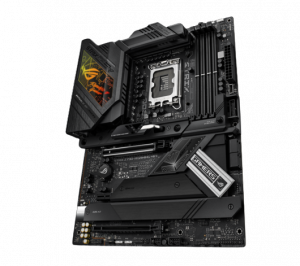

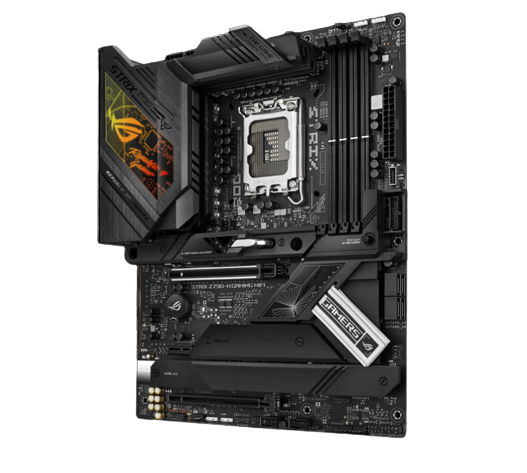

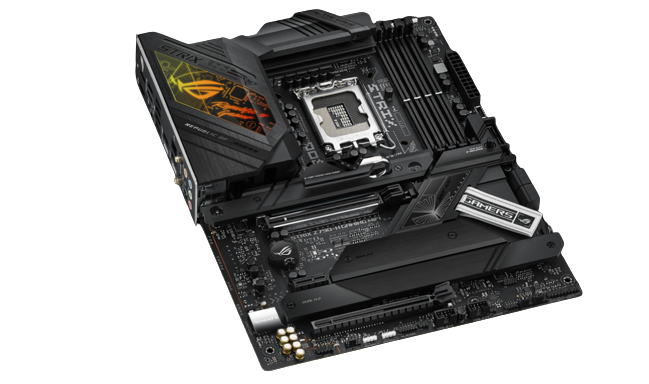

ASUS ROG STRIX Z790-H GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector type: USB Type-A. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E...

AI OVERCLOCKING Effortless performance boost
AI COOLING II One-click fan tuning
PCIe 5.0
EXTENSIVE GEN 5 x1 PCIe 5.0 x16 slot
USB 3.2 GEN 2X2x1 I/O port, and x1 connector
ROBUST POWER SOLUTION
7800+ MT/s, AEMP II, XMP
WIFI 6E
DIY-FRIENDLY DESIGN

Product Properties

Manufacturer
Asus

Model
ROG STRIX Z790-H G

EAN
4711387038192

BIOS

BIOS memory size
256 Mbit

BIOS type
UEFI AMI

Bullet points

Point
7800+ MT/s, AEMP II, XMP

AI COOLING II One-click fan tuning

AI OVERCLOCKING Effortless performance boost

DIY-FRIENDLY DESIGN

EXTENSIVE GEN 5 x1 PCIe 5.0 x16 slot

PCIe 5.0

ROBUST POWER SOLUTION

USB 3.2 GEN 2X2x1 I/O port, and x1 connector

WIFI 6E

Expansion slots

Number of M.2 (M) slots
4

PCI Express x1 (Gen 3.x) slots
1

PCI Express x16 (Gen 4.x) slots
1

PCI Express x16 (Gen 5.x) slots
1

Features

Audio chip
Realtek ALC S1220A

Audio output channels
7.1 channels

Chip Set
Intel

Compatible operating systems
Windows® 11, Windows® 10 64-bit

Component for
PC

Motherboard chipset
Intel Z790

Motherboard form factor
ATX

Power source type
ATX

Windows operating systems supported
Windows 10, Windows 11

Graphics

On-board graphics card
No

Internal I/O

12V power connector
Yes

ATX Power connector (24-pin)
Yes

Audio connector
Yes

CPU fan connector
Yes

EPS power connector (8-pin)
Yes

Front panel audio connector
Yes

Number of chassis fan connectors
5

Number of SATA connectors
4

Power fan connector
Yes

RGB
Yes

Thunderbolt headers
1

USB 2.0 connectors
2

USB 3.2 Gen 1 (3.1 Gen 1) connectors
1

Memory

Memory channels
Dual-channel

Memory Slot Support
128 GB

Memory slots type
DIMM

Non-ECC
Yes

Number of memory slots
4

Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800 MHz

Supported memory types
DDR5-SDRAM

Unbuffered memory
Yes

Network

Bluetooth
Yes

Bluetooth version
5.3

Ethernet interface type
2.5 Gigabit Ethernet

Ethernet LAN
Yes

Top Wi-Fi standard
Wi-Fi 6E (802.11ax)

Wi-Fi
Yes

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)

Packaging content

Cables included
SATA

Processor

Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold

Maximum number of SMP processors
1

Processor manufacturer
Intel

Processor socket
LGA 1700

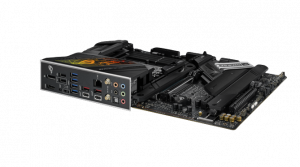

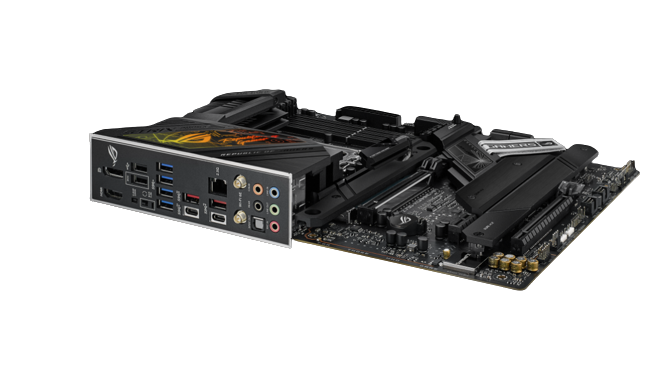

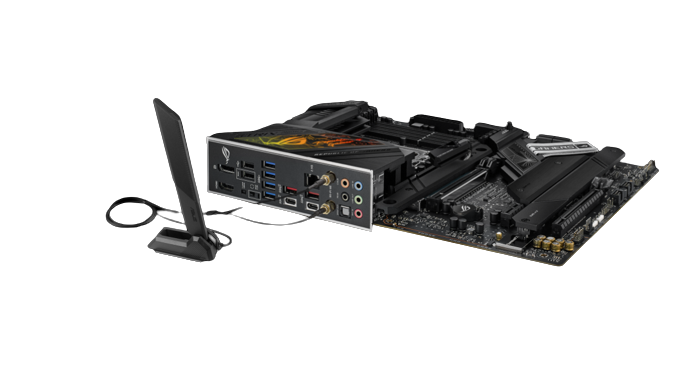

Rear panel I/O ports

COM ports quantity
1

Digital audio optical out
5

DisplayPort version
1.4

DisplayPorts quantity
1

Ethernet LAN (RJ-45) ports
1

HDMI ports quantity
1

HDMI version
2.0

S/PDIF out port
Yes

USB 2.0 ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1

USB 3.2 Gen 2x2 Type-C ports quantity
1

USB connector type
USB Type-A

WiFi-AP antenna jack
1

Storage controllers

Number of HDDs supported
4

Number of storage drives supported
4

RAID levels
0, 1, 5, 10

RAID support
Yes

Supported storage drive interfaces
M.2, SATA

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
244 mm

Width
305 mm

ASUS ROG STRIX Z790-H GAMING WIFI Intel Z790 LGA 1700 ATX
