Description

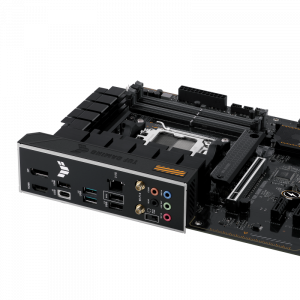

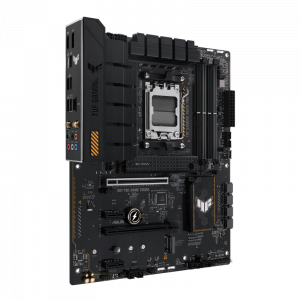

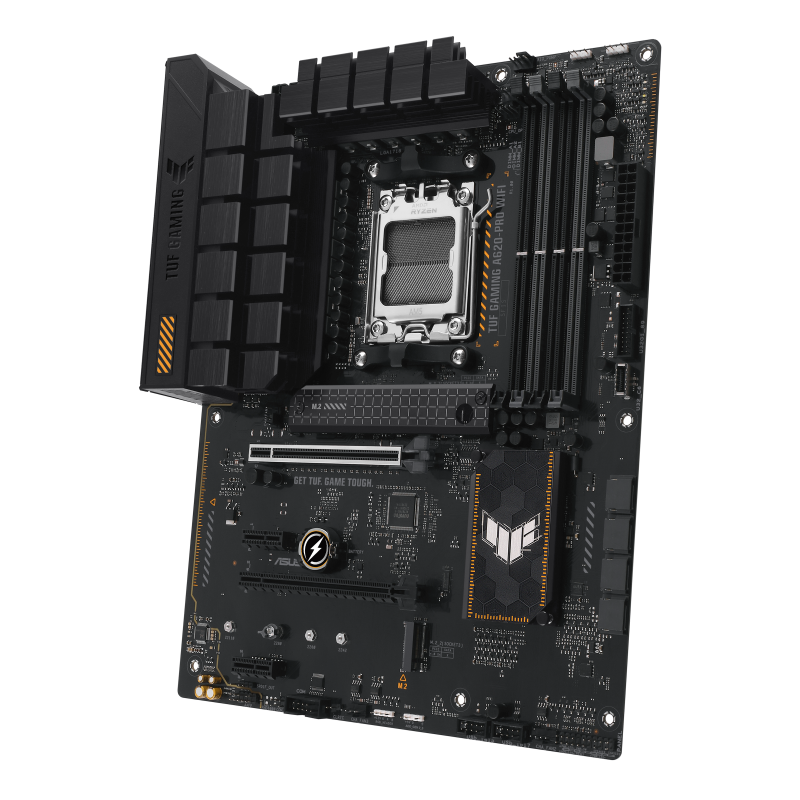

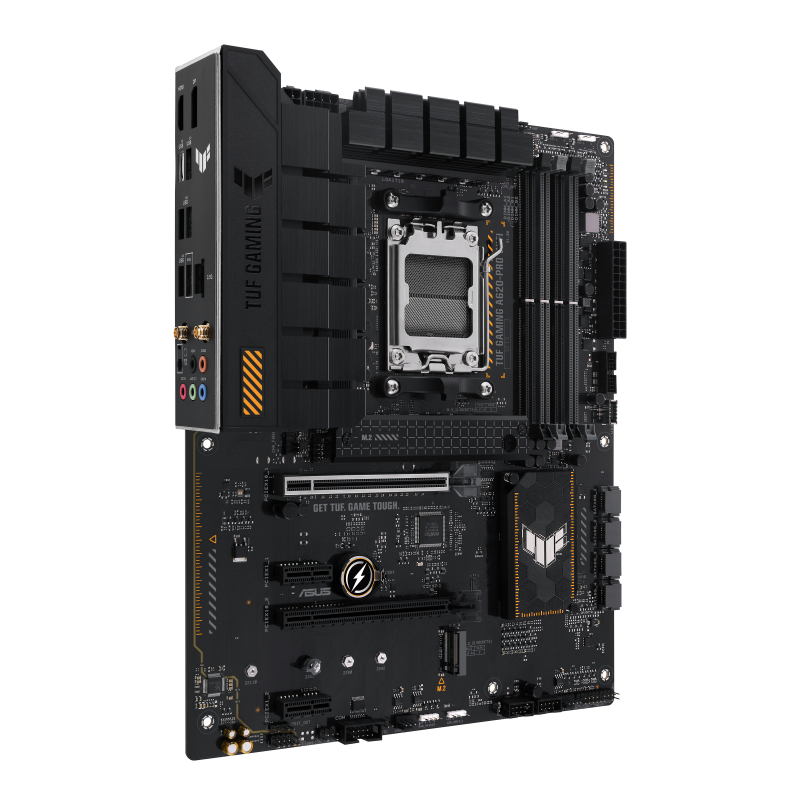

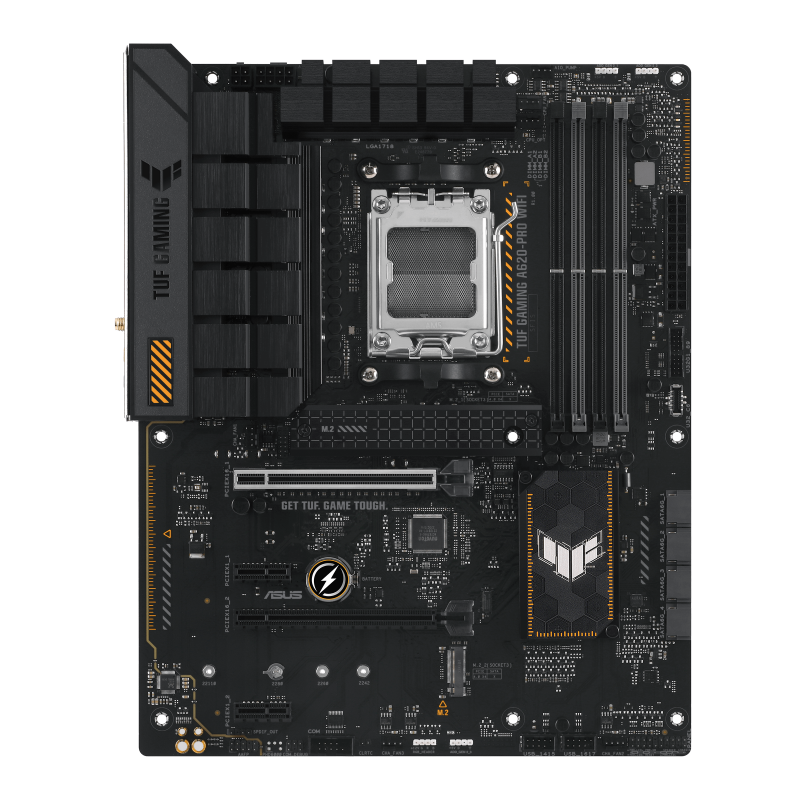

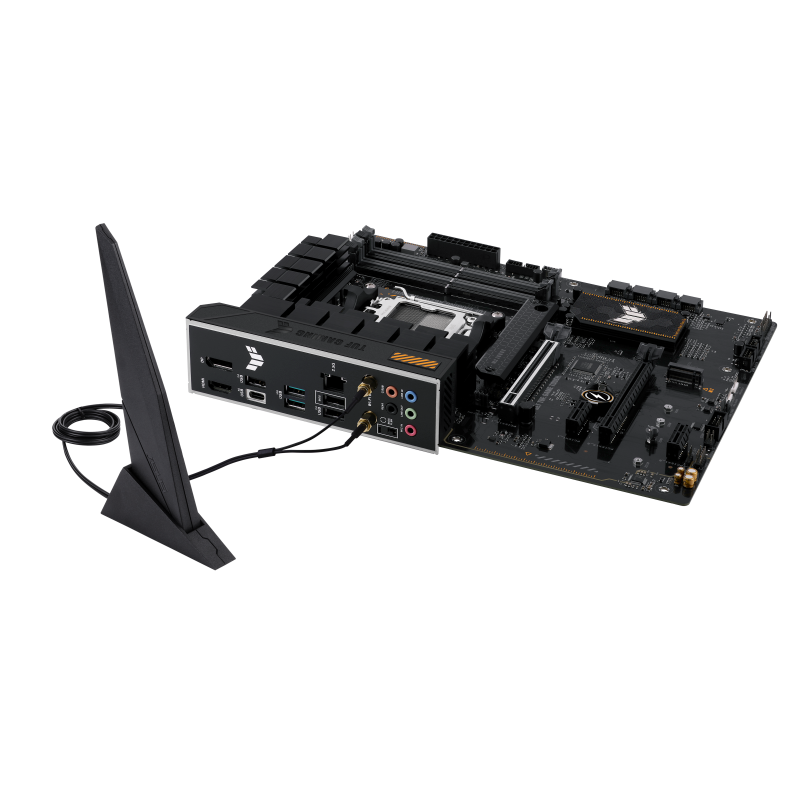

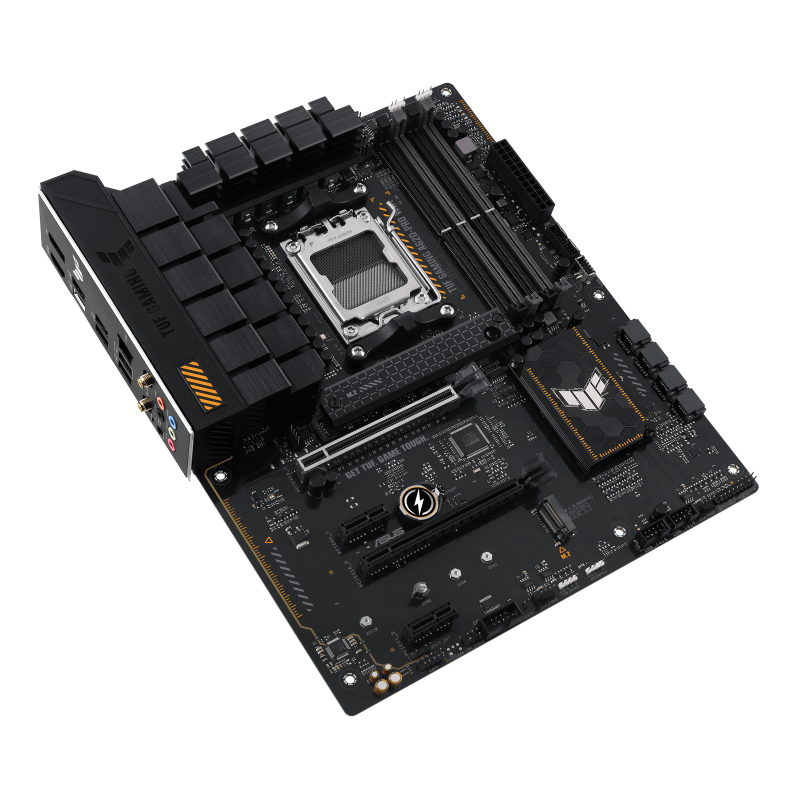

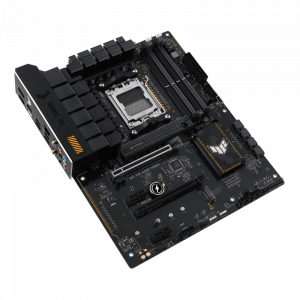

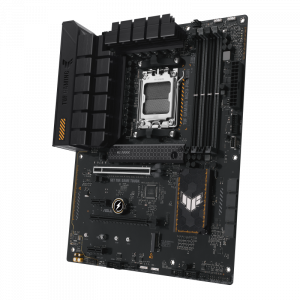

ASUS TUF GAMING A620-PRO WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7 5th Gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

Product Properties

Manufacturer
Asus

Model
TUF GAMING A620-PR

EAN
4711387206812

BIOS

BIOS memory size
256 Mbit

BIOS type
UEFI AMI

Expansion slots

Number of M.2 (M) slots
2

PCI Express x1 (Gen 3.x) slots
2

PCI Express x16 (Gen 3.x) slots
1

Features

Audio output channels
7.1 channels

Chip Set
AMD

Component for
PC

Motherboard chipset
AMD A620

Motherboard form factor
ATX

Windows operating systems supported
Windows 10 x64, Windows 11

Graphics

Parallel processing technology support
Not supported

Internal I/O

12V power connector
Yes

ATX Power connector (24-pin)
Yes

CPU fan connector
Yes

Front panel audio connector
Yes

Number of chassis fan connectors
3

Number of COM connectors
1

Number of SATA III connectors
4

RGB
Yes

S/PDIF out connector
Yes

USB 2.0 connectors
2

USB 3.2 Gen 1 (3.1 Gen 1) connectors
2

Memory

ECC
Yes

Memory channels
Dual-channel

Memory Slot Support
192 GB

Memory slots type
DIMM

Non-ECC
Yes

Number of memory slots
4

Supported memory clock speed (max)
6400 MHz

Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz

Supported memory types
DDR5-SDRAM

Unbuffered memory
Yes

Network

Bluetooth
Yes

Bluetooth version
5.3

Ethernet interface type
2.5 Gigabit Ethernet

Ethernet LAN
Yes

Top Wi-Fi standard
Wi-Fi 6 (802.11ax)

Wi-Fi
Yes

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Other features

Weight
1.2 kg

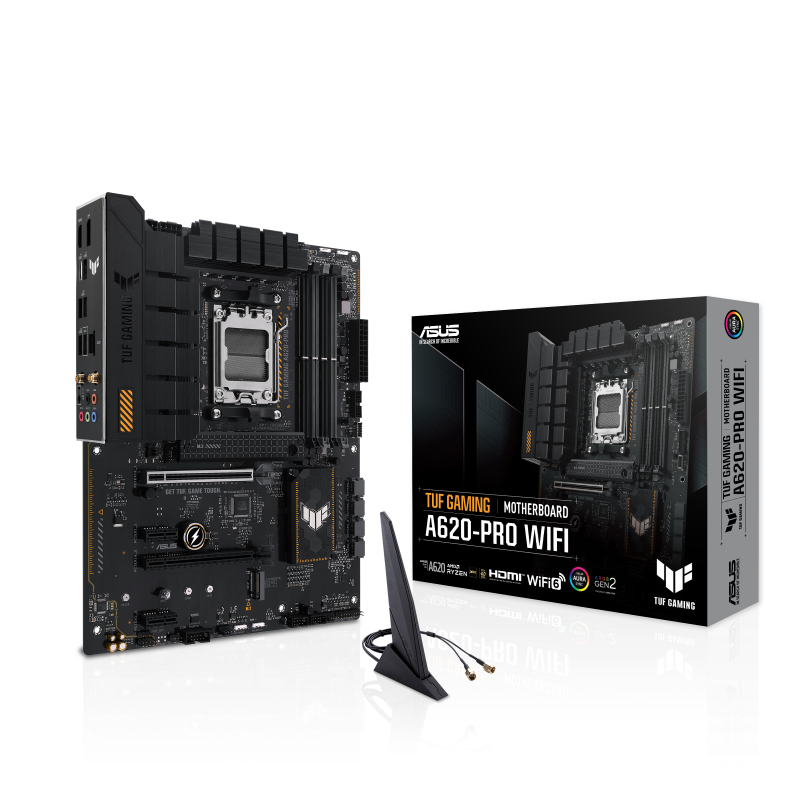

Packaging content

Cables included
SATA

Packaging data

Package depth
68 mm

Package height
273 mm

Package weight
1.36 kg

Package width
338 mm

Processor

Compatible processor series
AMD Ryzen 7 5th Gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen

Processor manufacturer
AMD

Processor socket
Socket AM5

Supported processor sockets
Socket AM5

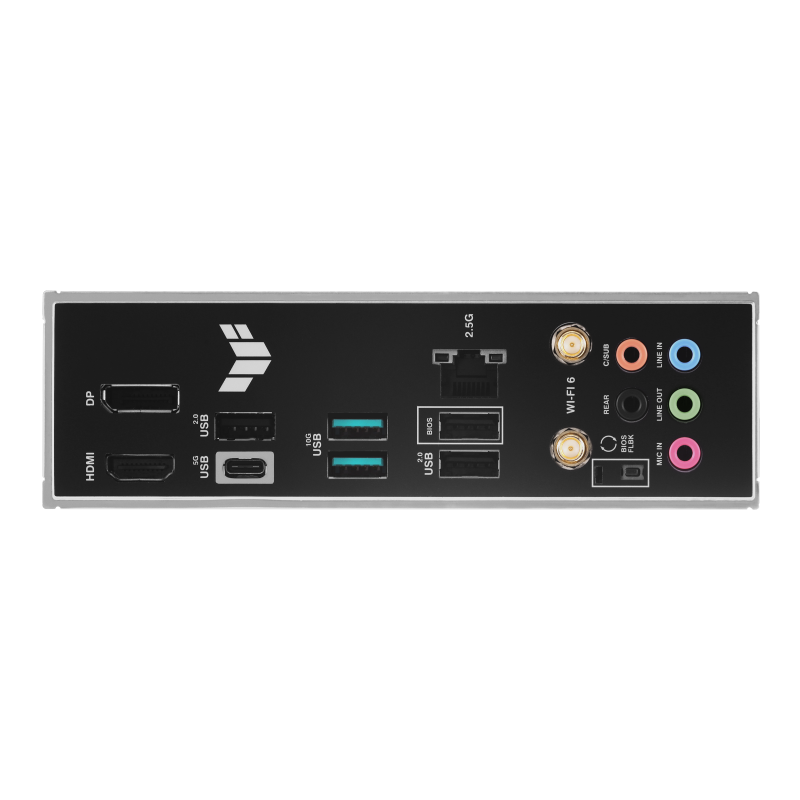

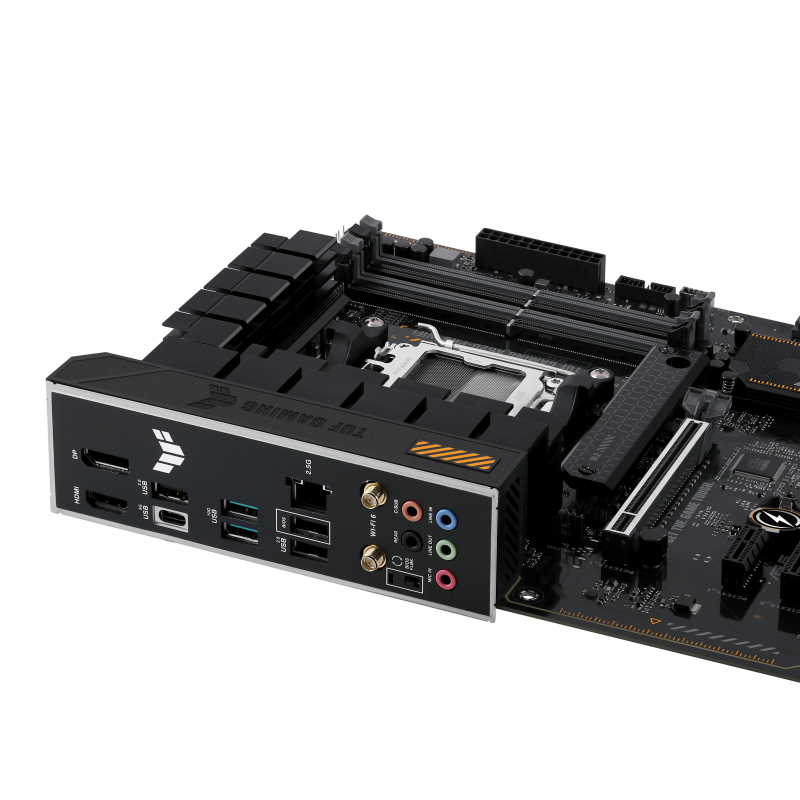

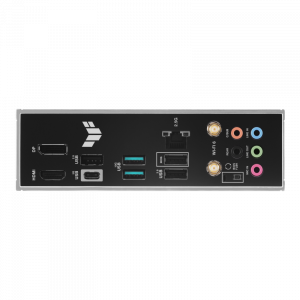

Rear panel I/O ports

DisplayPorts quantity
1

Ethernet LAN (RJ-45) ports
1

HDMI ports quantity
1

Headphone outputs
1

Line-in
Yes

Microphone in
Yes

USB 2.0 ports quantity
3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2

WiFi-AP antenna jack
1

Storage controllers

Number of HDDs supported
4

Number of storage drives supported
6

RAID levels
0, 1, 10

RAID support
Yes

Supported storage drive interfaces
M.2, SATA III

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
244 mm

Height
50 mm

Width
305 mm

ASUS TUF GAMING A620-PRO WIFI AMD A620 Socket AM5 ATX
