Description

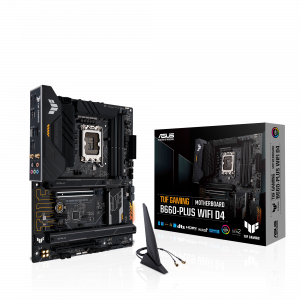

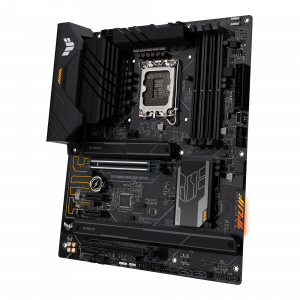

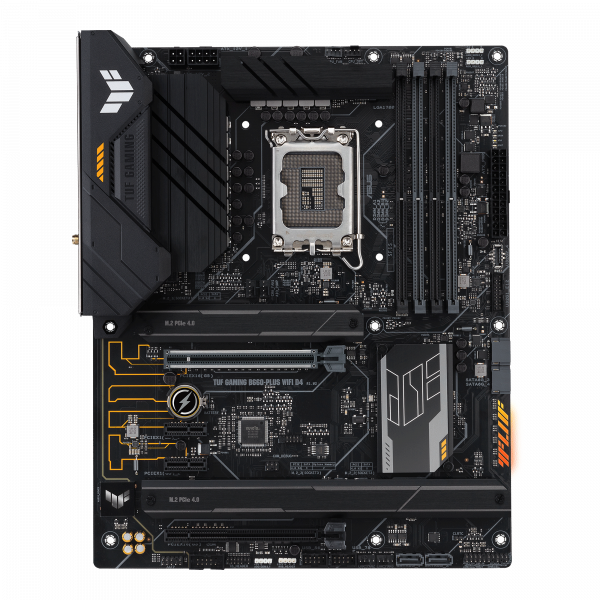

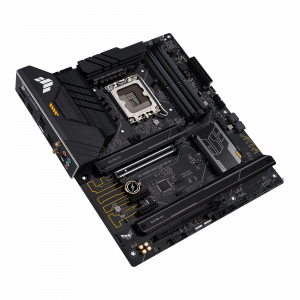

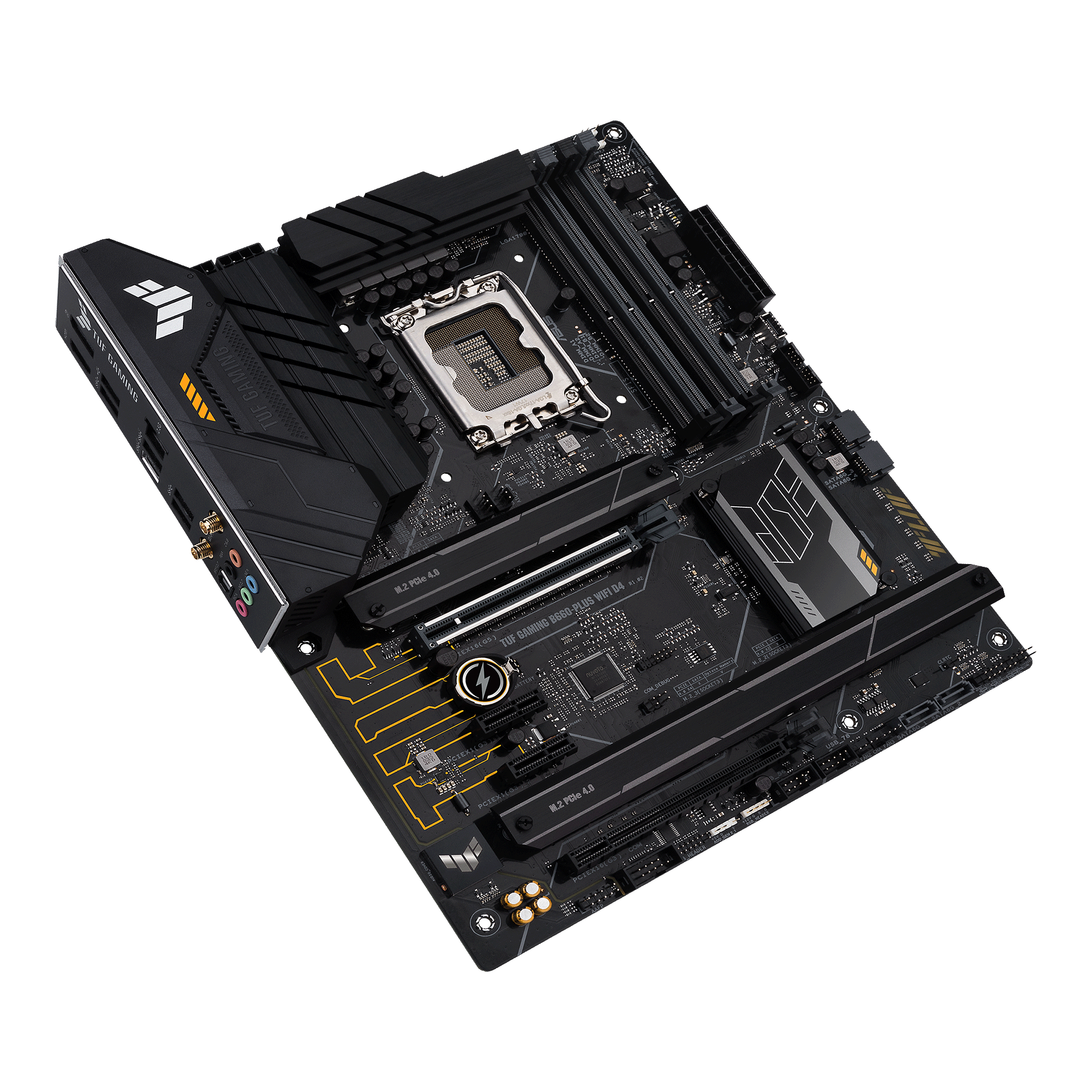

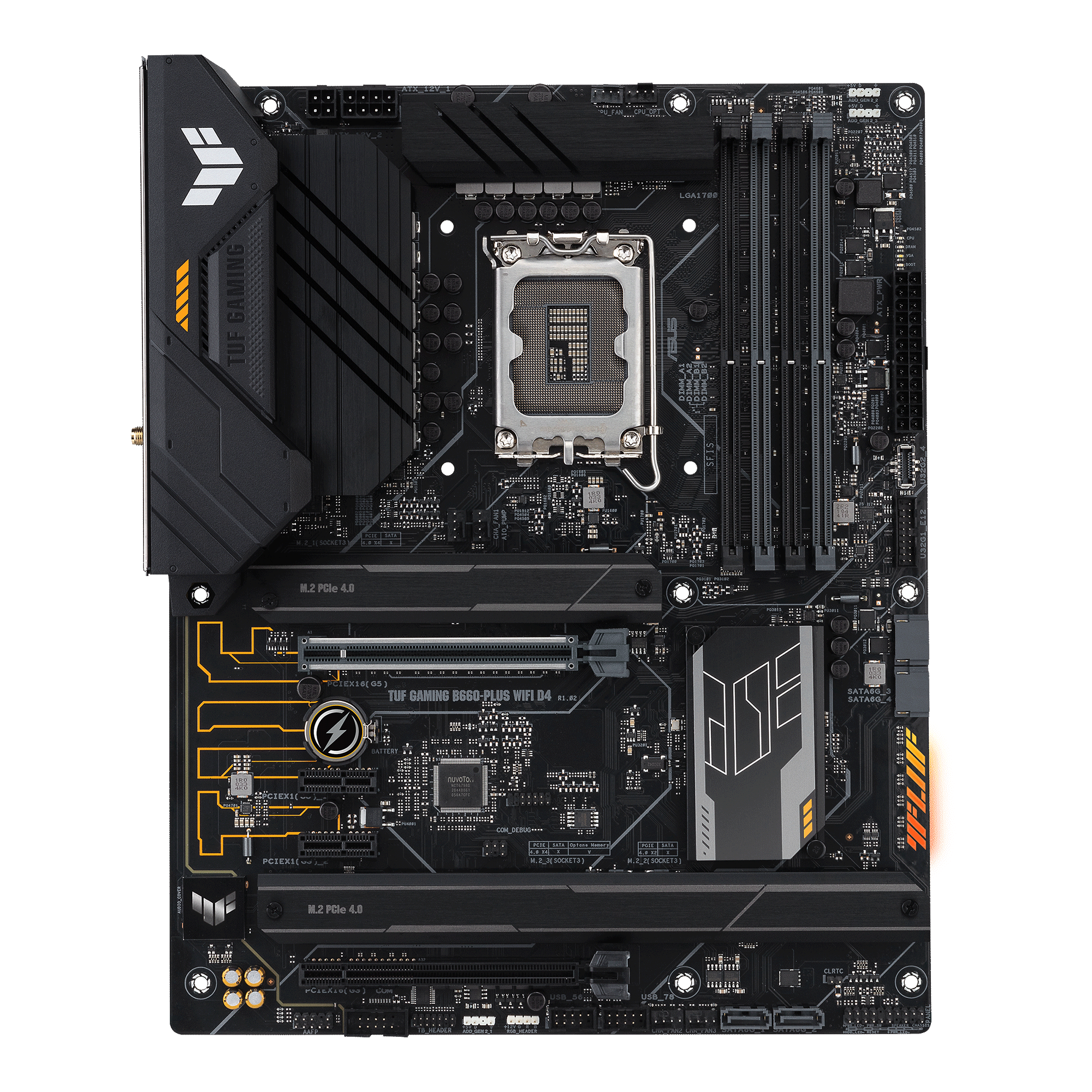

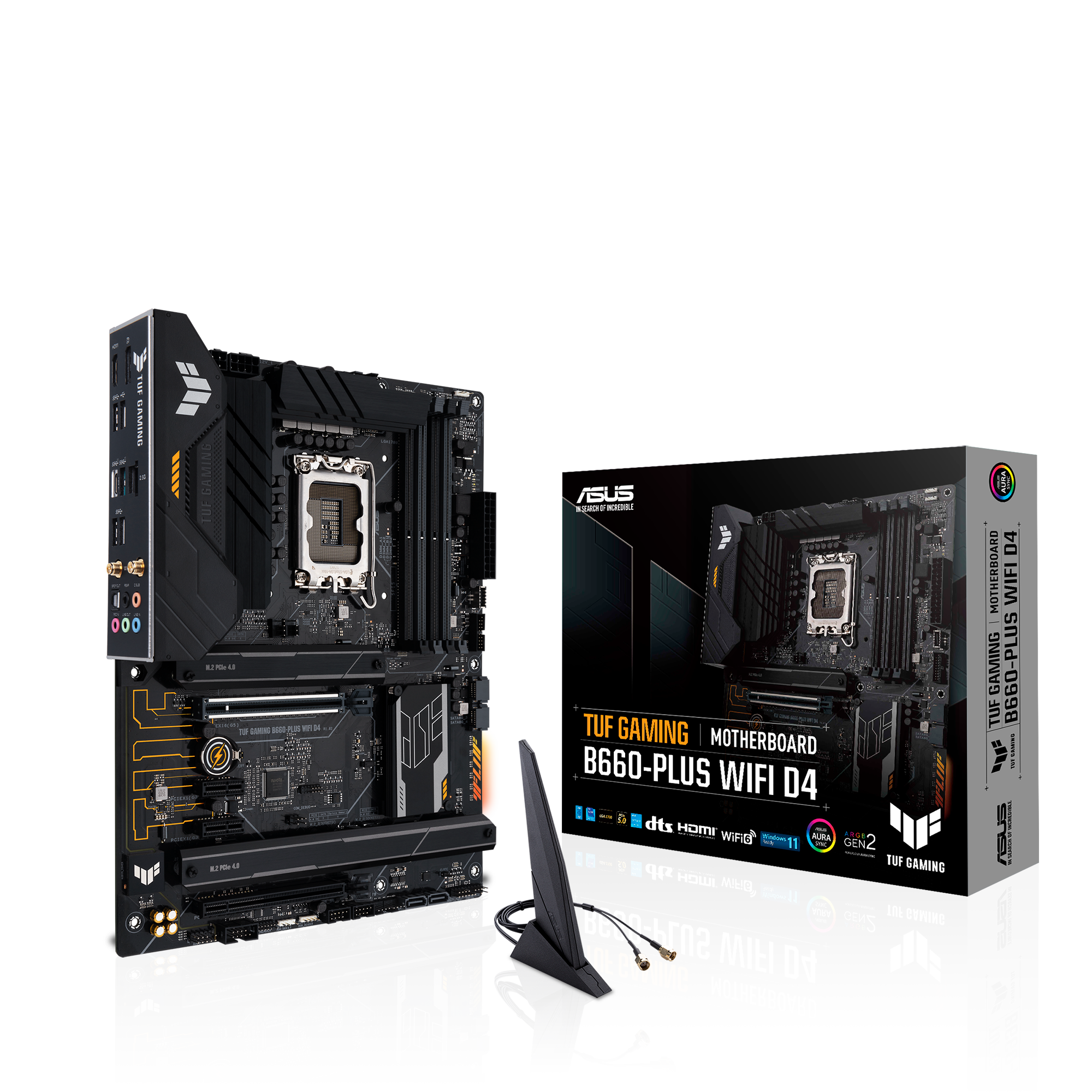

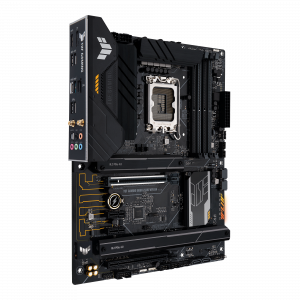

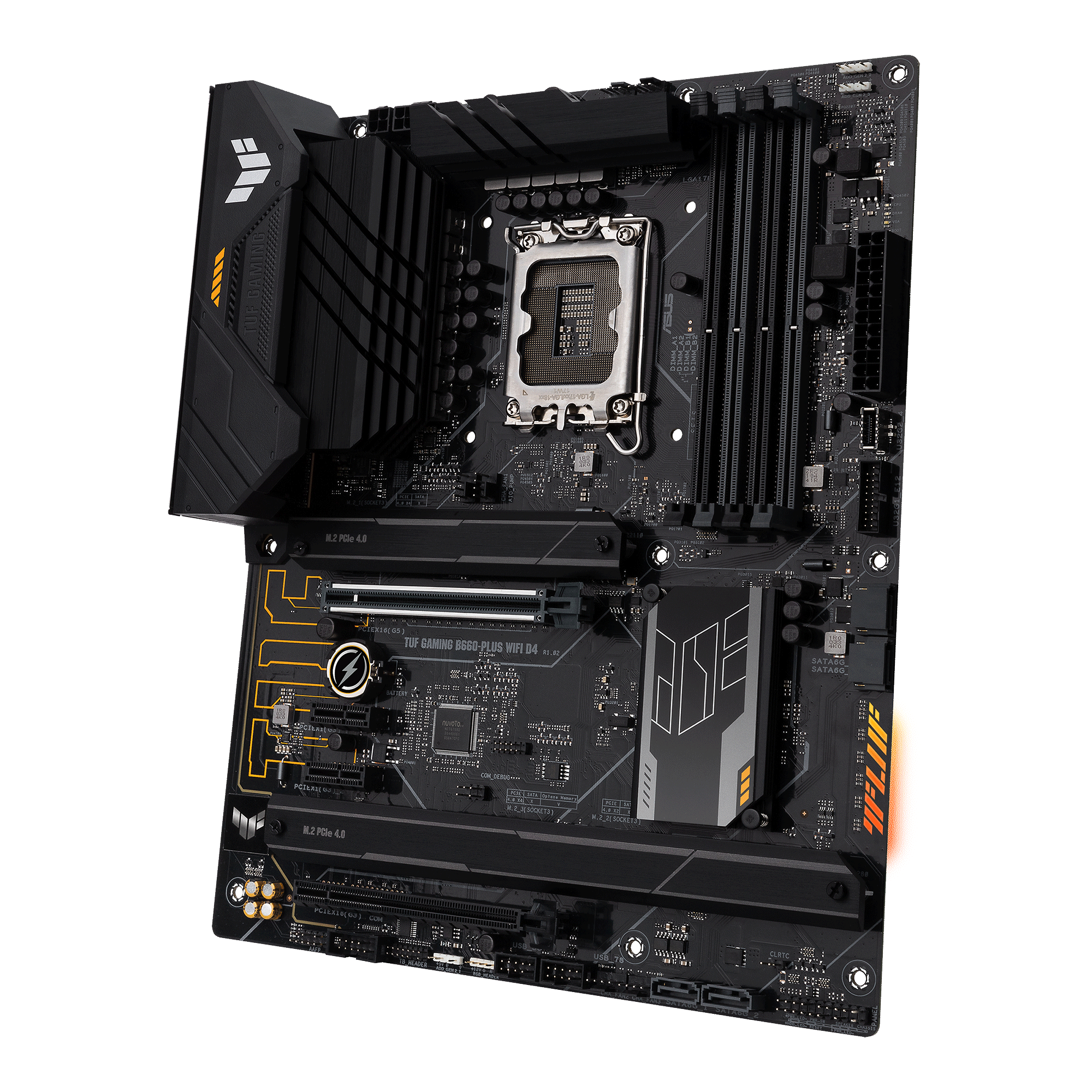

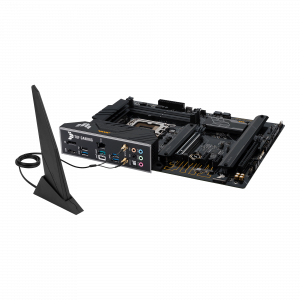

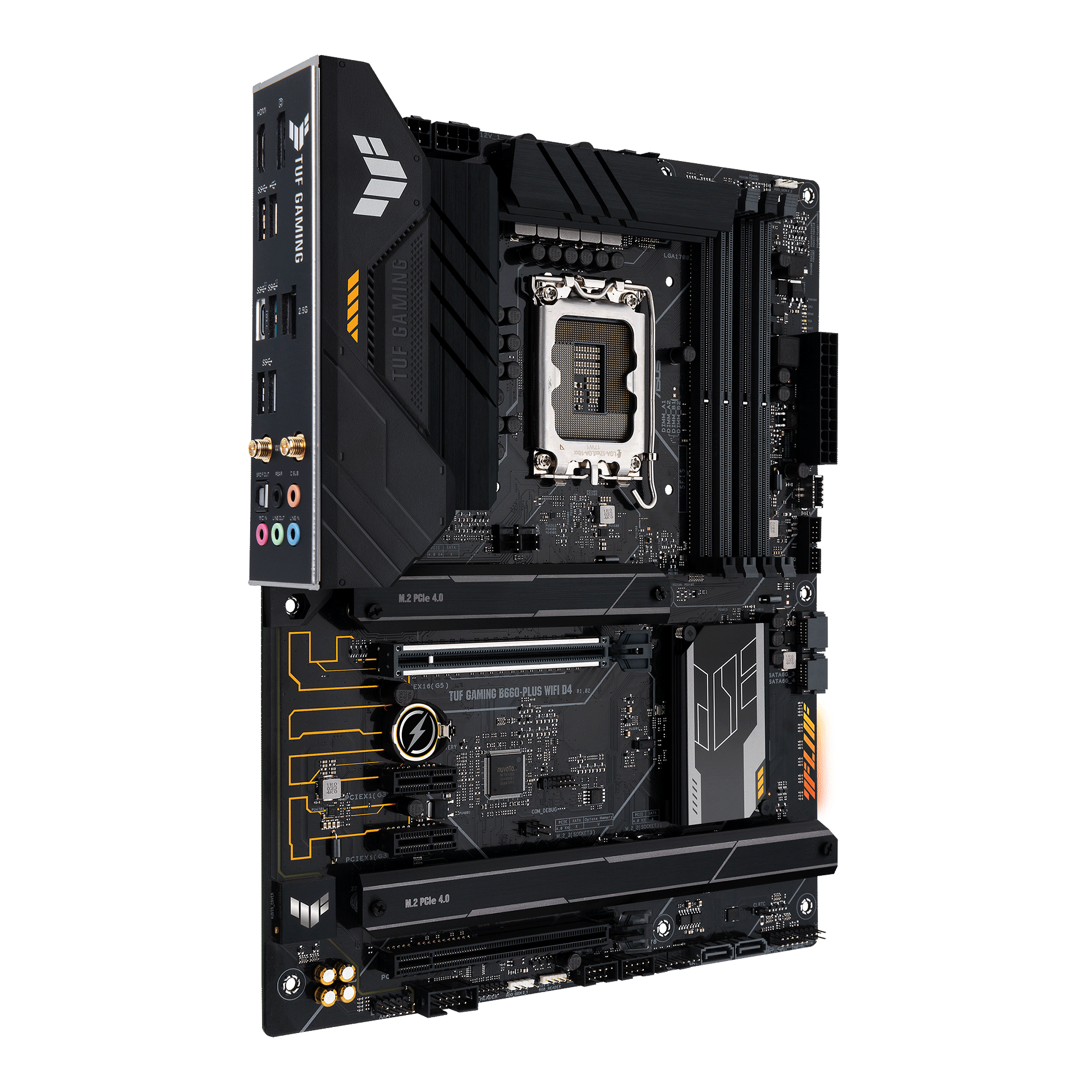

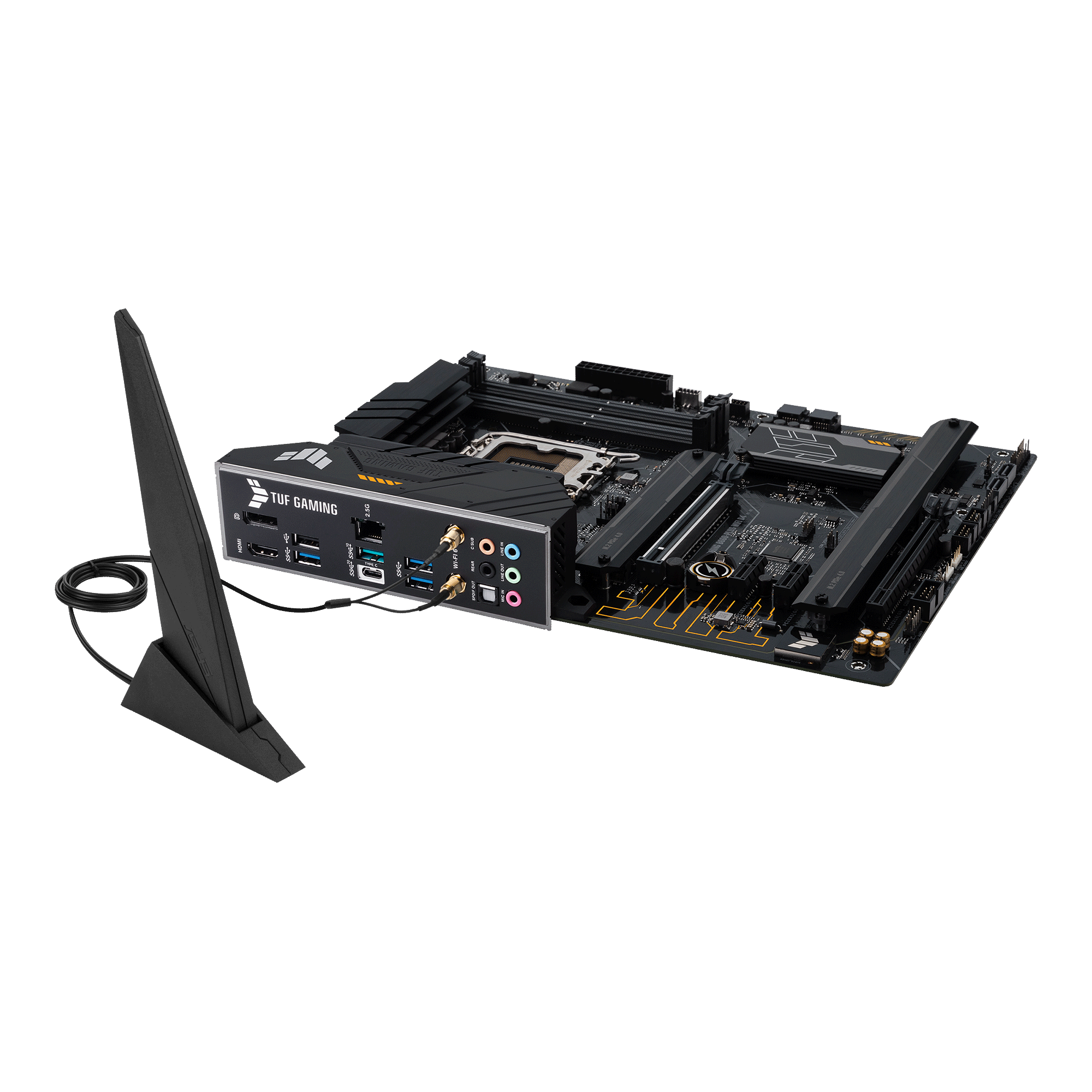

ASUS TUF GAMING B660-PLUS WIFI D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability
Comprehensive cooling: Enlarged VRM heatsink, Stack Cool 3+, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4 utility
Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2x2 Type-C®, front panel header for USB 3.2 Gen 2 Type-C® and Thunderbolt 4™ support
Made for online gaming: Intel® WiFi 6, Intel® 2.5Gb Ethernet, TUF LANGuard
Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

Product Properties

Manufacturer
Asus

Model
GAMING B660-PLUS W

EAN
4711081532873

BIOS

BIOS memory size
128 Mbit

BIOS type
UEFI AMI

Bullet points

Point
Comprehensive cooling

Enhanced power solution

Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors

Latest connectivity

Made for online gaming: Intel® WiFi 6, Intel® 2.5Gb Ethernet, TUF LANGuard

Two-way AI Noise-Cancelation

Expansion slots

Number of M.2 (M) slots
3

PCI Express x1 (Gen 3.x) slots
2

PCI Express x16 (Gen 3.x) slots
1

PCI Express x16 (Gen 5.x) slots
1

Features

Audio output channels
7.1 channels

Chip Set
Intel

Component for
PC

Motherboard chipset
Intel B660

Motherboard form factor
ATX

Windows operating systems supported
Windows 10 x64, Windows 11 x64

Graphics

Number of displays supported
2

Internal I/O

12V power connector
Y

ATX Power connector (24-pin)
Y

CPU fan connector
Y

EPS power connector (8-pin)
Y

Front panel audio connector
Y

Number of chassis fan connectors
3

Number of COM connectors
1

Number of SATA III connectors
4

Peripheral (Molex) power connectors (4-pin)
1

RGB
Y

S/PDIF out connector
Y

Thunderbolt headers
1

USB 2.0 connectors
2

USB 3.2 Gen 1 (3.1 Gen 1) connectors
1

USB 3.2 Gen 2 (3.1 Gen 2) connectors
1

Logistics data

Harmonized System (HS) code
84733020

Memory

Memory channels
Dual-channel

Memory Slot Support
128 GB

Memory slots type
DIMM

Non-ECC
Y

Number of memory slots
4

Supported memory clock speeds
2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4400,4600,4800,5000,5066,5333 MHz

Supported memory types
DDR4-SDRAM

Unbuffered memory
Y

Network

Bluetooth
Y

Bluetooth version
5.2

Ethernet interface type
2.5 Gigabit Ethernet

Ethernet LAN
Y

Top Wi-Fi standard
Wi-Fi 6 (802.11ax)

Wi-Fi
Y

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Other features

Weight
1.35 kg

Packaging content

Cables included
SATA

Drivers included
Y

Processor

Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold

Maximum number of SMP processors
1

Processor manufacturer
Intel

Processor socket
LGA 1700

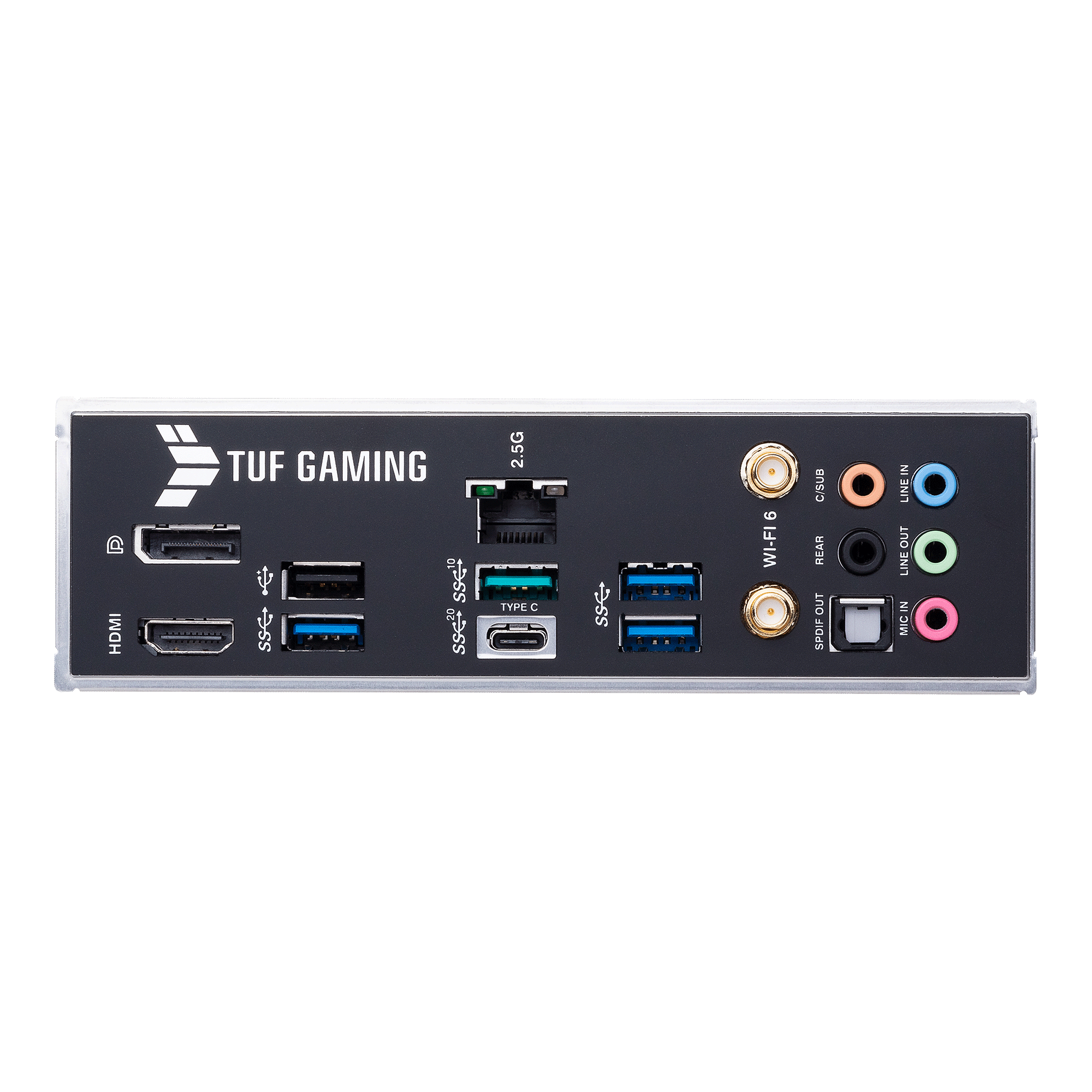

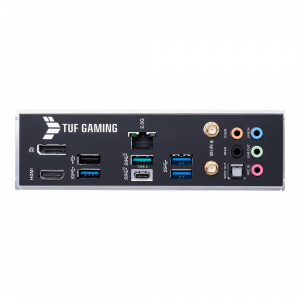

Rear panel I/O ports

DisplayPort version
1.4

DisplayPorts quantity
1

Ethernet LAN (RJ-45) ports
1

HDMI ports quantity
1

HDMI version
2.1

Headphone outputs
1

Microphone in
Y

S/PDIF out port
Y

USB 2.0 ports quantity
1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1

USB 3.2 Gen 2x2 Type-C ports quantity
1

USB connector type
USB Type-A, USB Type-C

Storage controllers

RAID levels
0, 1, 5, 10

Supported storage drive interfaces
M.2, SATA

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
244 mm

Height
68 mm

Width
305 mm

ASUS TUF GAMING B660-PLUS WIFI D4 Intel B660 LGA 1700 ATX
