Description

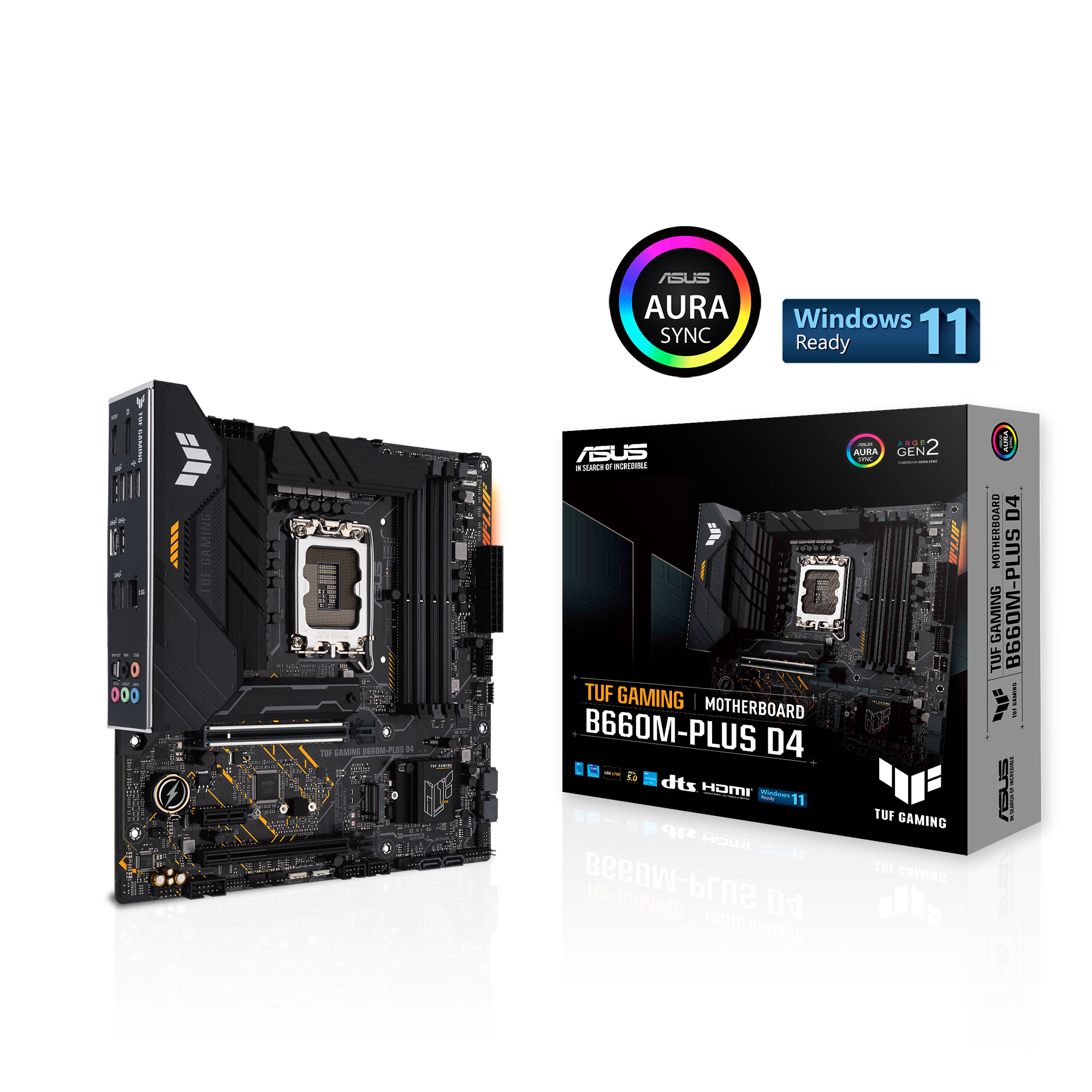

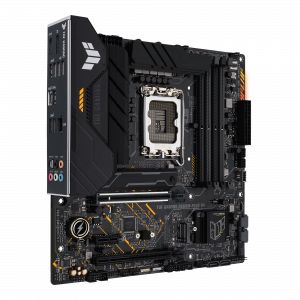

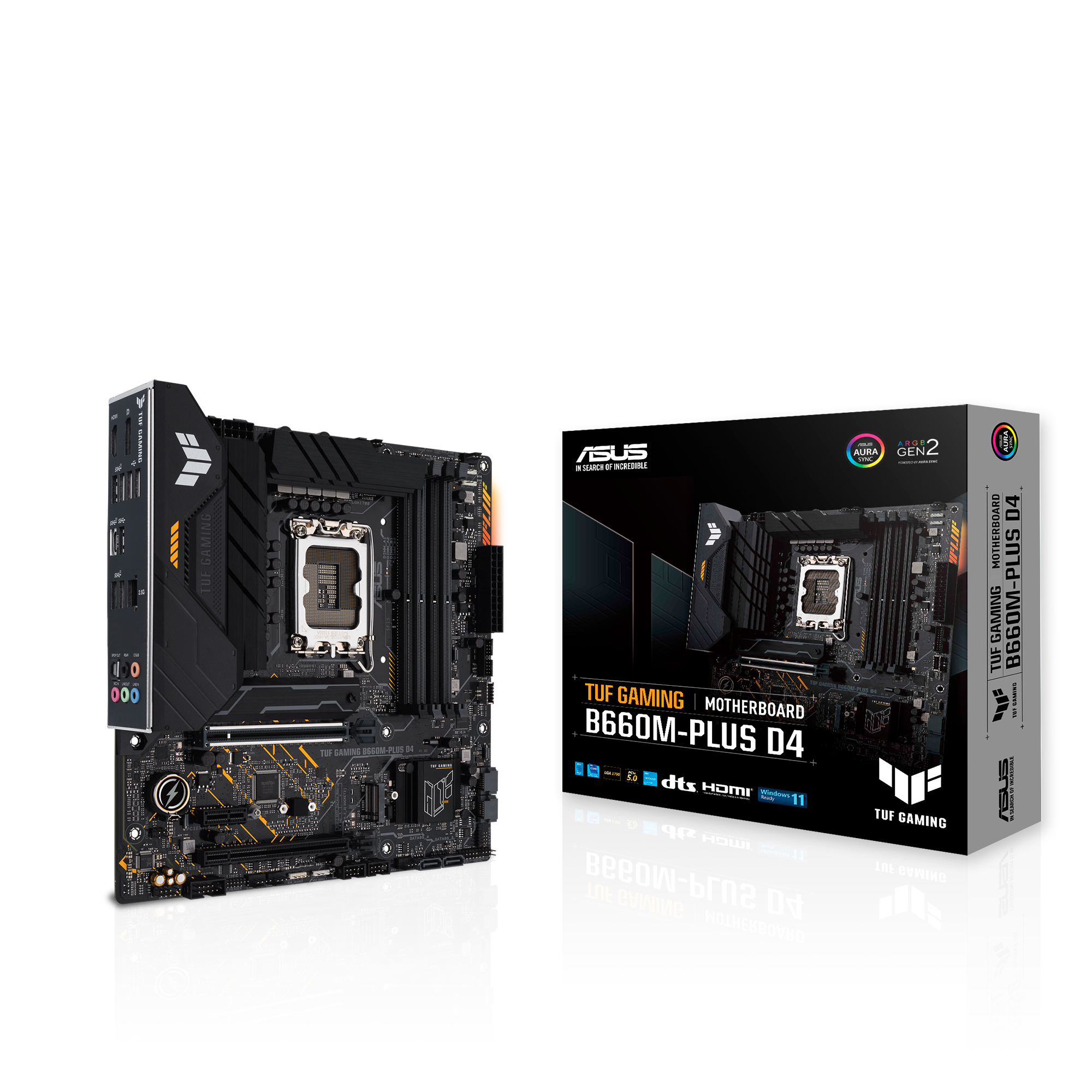

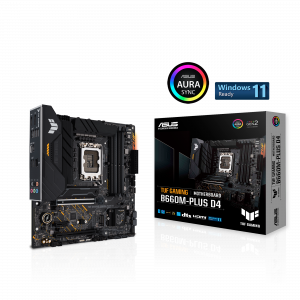

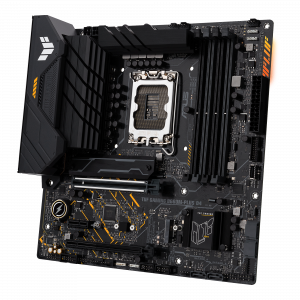

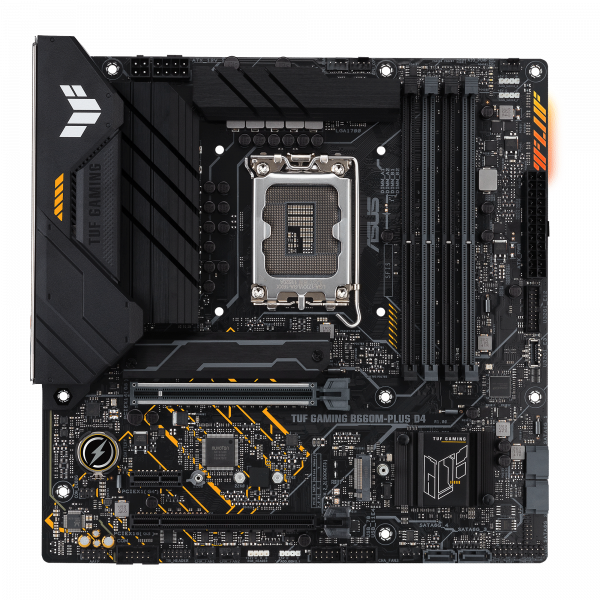

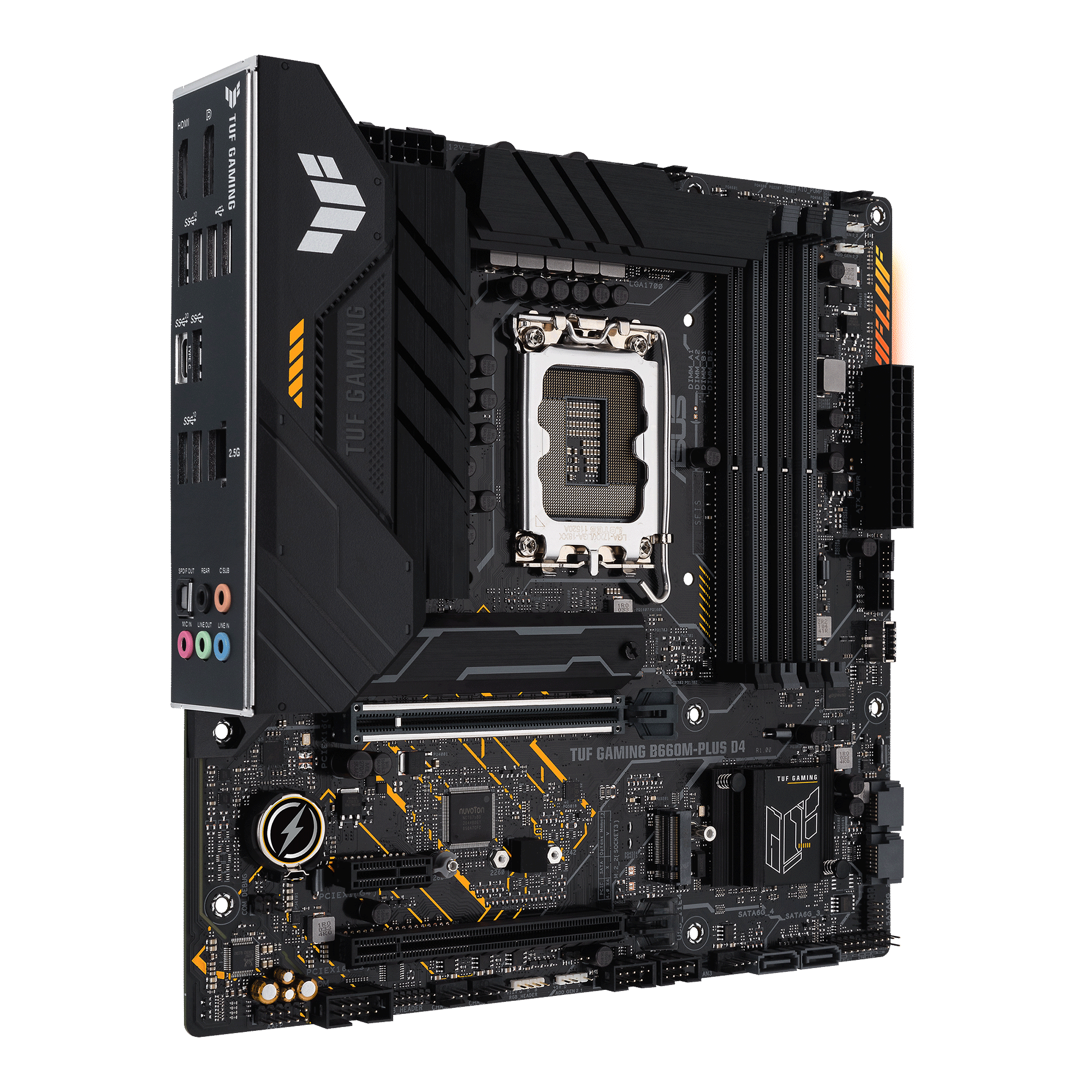

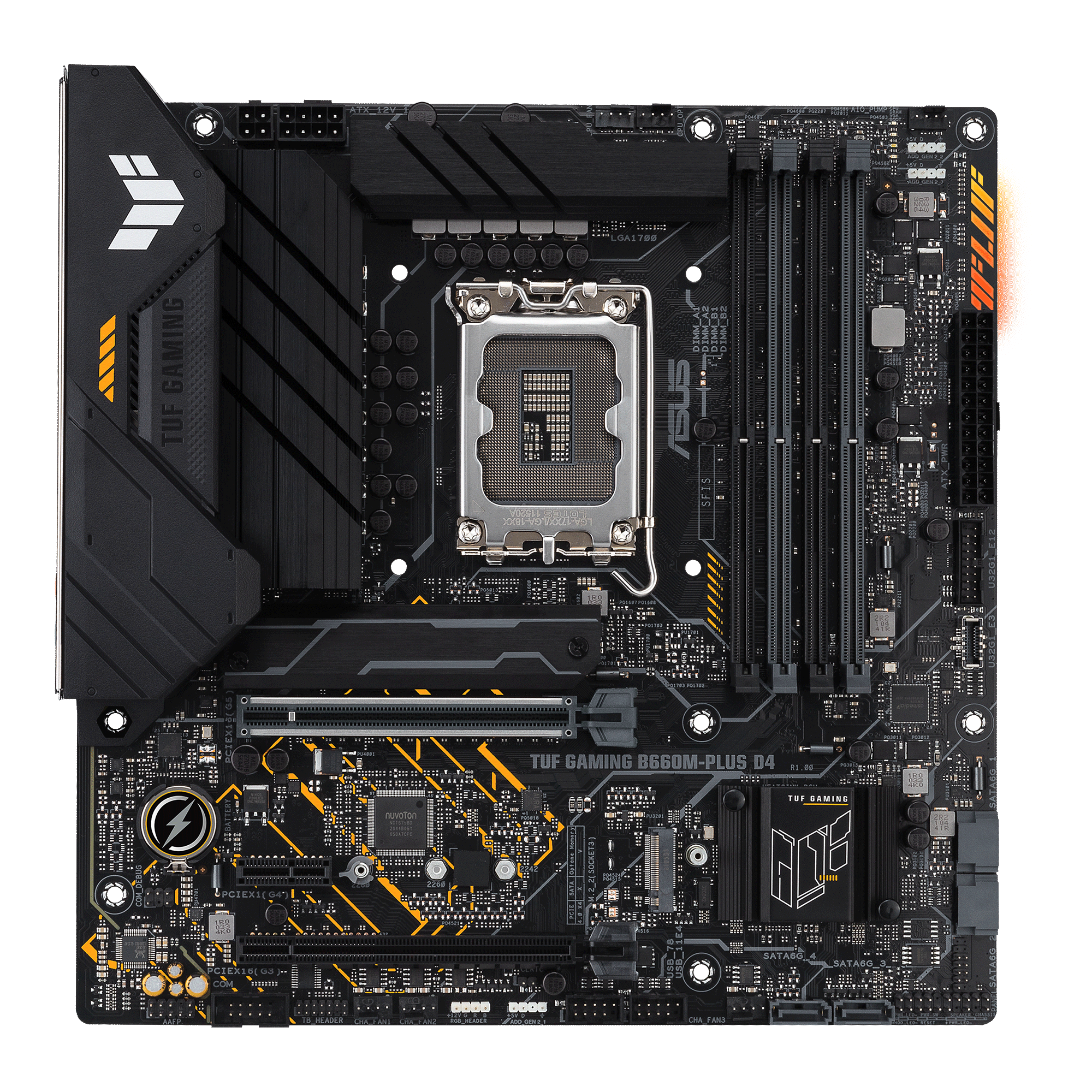

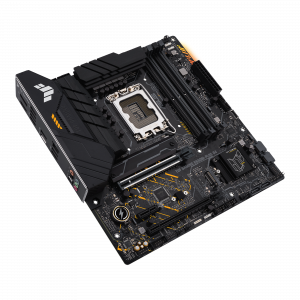

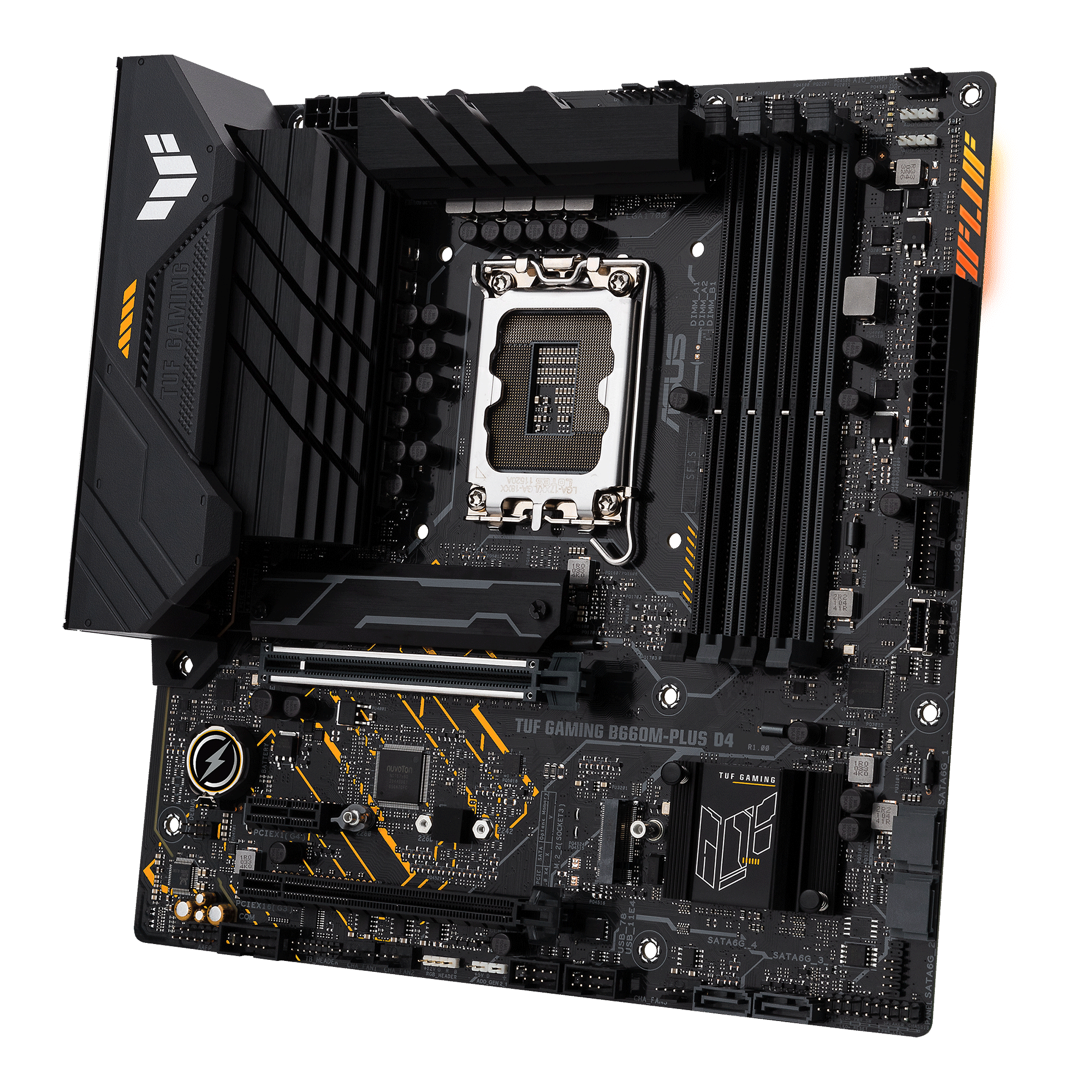

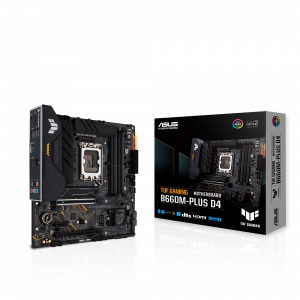

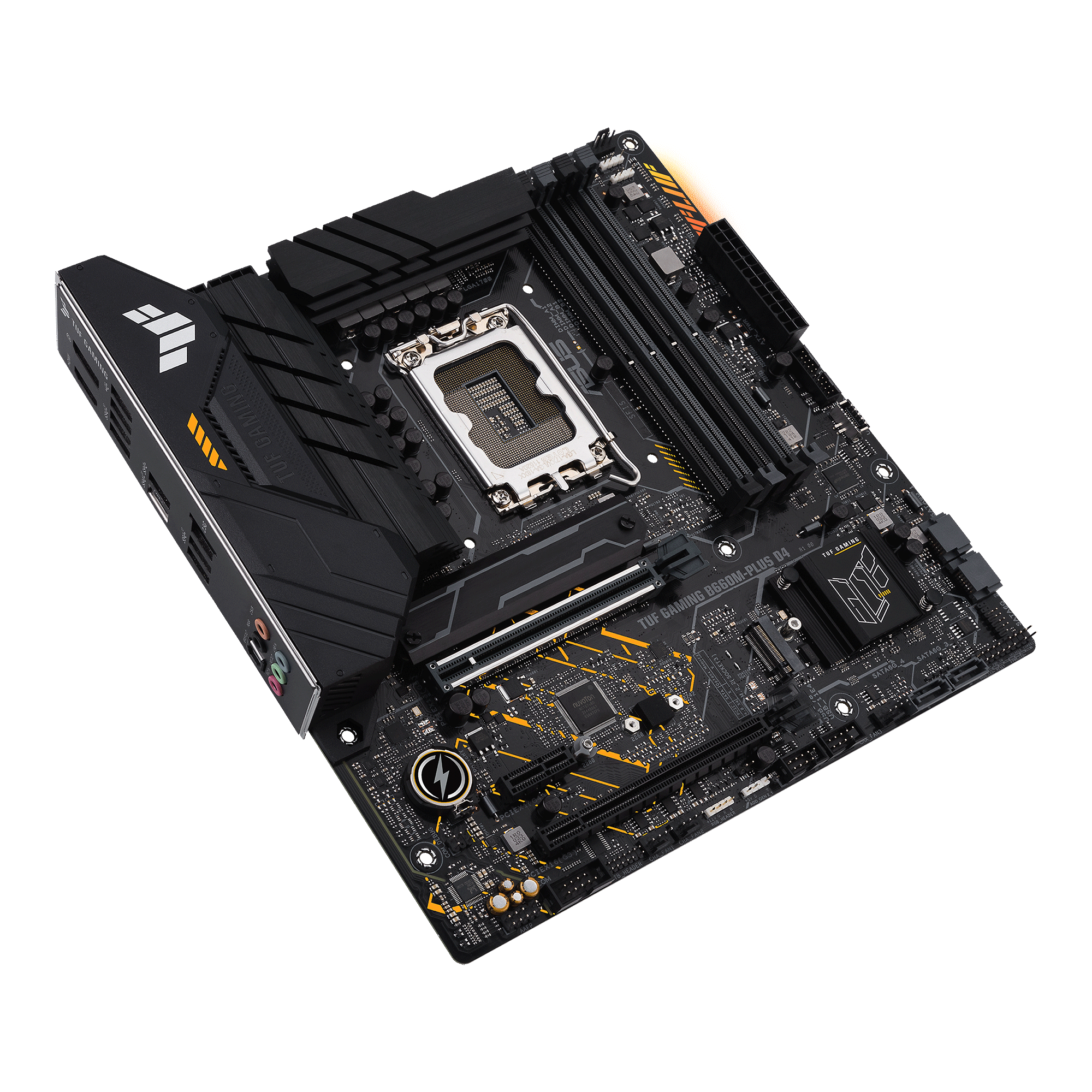

ASUS TUF GAMING B660M- PLUS D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability
Comprehensive cooling: Enlarged VRM heatsink, Stack Cool 3+, Flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2x2 Type-C®, front panel header for USB 3.2 Gen 1 Type-C® and Thunderbolt 4™ support
Made for online gaming: Realtek 2.5Gb Ethernet, TUF LANGuard
Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

Product Properties

Manufacturer
Asus

Model
TUF GAMING B660M-P

EAN
4711081516897

BIOS

BIOS memory size
128 Mbit

BIOS type
UEFI AMI

Clear CMOS jumper
Yes

Bullet points

Point
Comprehensive cooling

Enhanced power solution

Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors

Latest connectivity

Made for online gaming: Realtek 2.5Gb Ethernet, TUF LANGuard

Two-way AI Noise-Cancelation

Expansion slots

Number of M.2 (M) slots
2

PCI Express x1 slots
1

PCI Express x16 (Gen 3.x) slots
1

PCI Express x16 (Gen 5.x) slots
1

Features

Audio output channels
7.1 channels

Chip Set
Intel

Component for
PC

Motherboard chipset
Intel B660

Motherboard form factor
micro ATX

Power source type
ATX

Internal I/O

12V power connector
Yes

ATX Power connector (24-pin)
Yes

Chassis intrusion connector
Yes

CPU fan connector
Yes

EPS power connector (8-pin)
Yes

Front panel audio connector
Yes

Front panel connector
Yes

Number of chassis fan connectors
3

Number of SATA III connectors
4

RGB
Yes

Serial port headers
1

Thunderbolt headers
1

USB 2.0 connectors
2

USB 3.2 Gen 1 (3.1 Gen 1) connectors
2

Logistics data

Harmonized System (HS) code
84733020

Memory

Memory channels
Dual-channel

Memory Slot Support
128 GB

Memory slots type
DIMM

Non-ECC
Yes

Number of memory slots
4

Supported memory clock speeds
2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4266,4400,4600,4800,5000,5066,5333 MHz

Supported memory types
DDR4-SDRAM

Unbuffered memory
Yes

Network

Ethernet interface type
2.5 Gigabit Ethernet

Ethernet LAN
Yes

Wi-Fi
No

Other features

Weight
1.35 kg

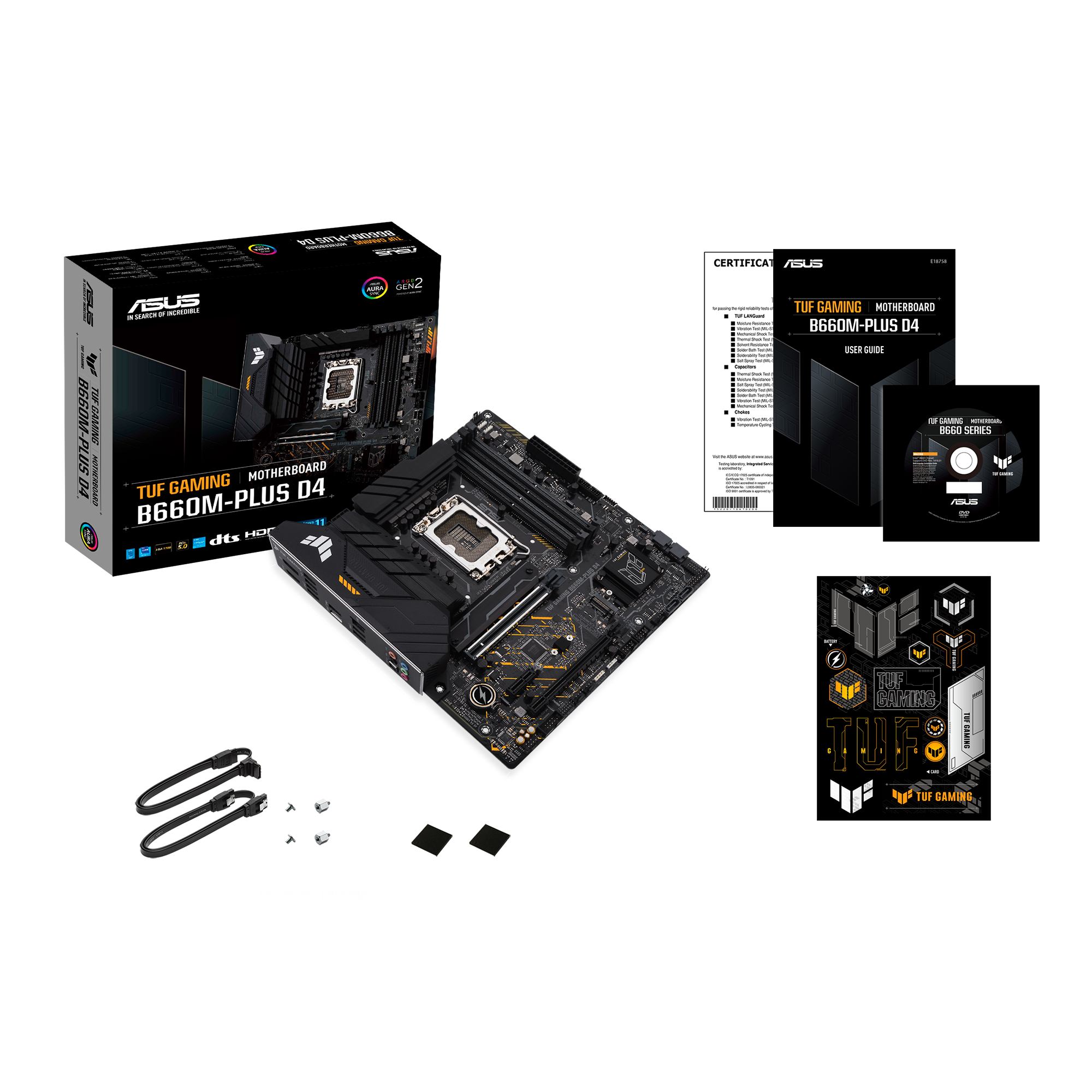

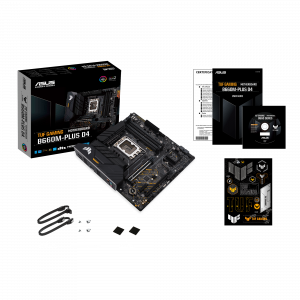

Packaging content

Cables included
SATA

Processor

Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold

Processor manufacturer
Intel

Processor socket
LGA 1700

Supported processor sockets
LGA 1700

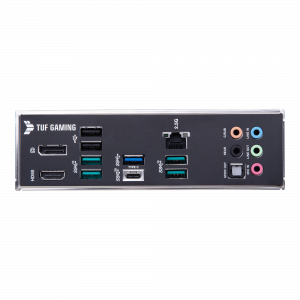

Rear panel I/O ports

Digital audio optical out
1

DisplayPort version
1.4

DisplayPorts quantity
1

Ethernet LAN (RJ-45) ports
1

HDMI ports quantity
1

HDMI version
2.1

Headphone outputs
5

USB 2.0 ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1

Storage controllers

Number of HDDs supported
4

Number of storage drives supported
6

RAID levels
0, 1, 5, 10

RAID support
Yes

Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
244 mm

Height
68 mm

Width
244 mm

ASUS TUF GAMING B660M- PLUS D4 Intel B660 LGA 1700 micro ATX
