Description

ASUS TUF GAMING H770-PRO WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

Product Properties

Manufacturer
Asus

Model
TUF GAMING H770-PR

EAN
4711387008249

BIOS

BIOS memory size
192 Mbit

BIOS type
UEFI AMI

Expansion slots

Number of M.2 (M) slots
4

PCI Express x1 (Gen 3.x) slots
2

PCI Express x16 (Gen 4.x) slots
1

PCI Express x16 (Gen 5.x) slots
1

Features

Audio output channels
7.1 channels

Chip Set
Intel

Component for
PC

Cooling type
Passive

Motherboard chipset
Intel H770

Motherboard form factor
ATX

Power source type
ATX

Windows operating systems supported
Windows 10, Windows 11

Graphics

Parallel processing technology support
Not supported

Internal I/O

12V power connector
Yes

ATX Power connector (24-pin)
Yes

Chassis intrusion connector
Yes

CPU fan connector
Yes

EPS power connector (8-pin)
Yes

Front panel audio connector
Yes

Front panel connector
Yes

Number of chassis fan connectors
4

Number of COM connectors
1

Number of SATA III connectors
4

Peripheral (Molex) power connectors (4-pin)
1

RGB
Yes

Thunderbolt headers
1

USB 2.0 connectors
2

USB 3.2 Gen 1 (3.1 Gen 1) connectors
2

Memory

Memory channels
Dual-channel

Memory Slot Support
128 GB

Memory slots type
DIMM

Non-ECC
Yes

Number of memory slots
4

Supported memory clock speed (max)
7200 MHz

Supported memory clock speeds
7200,7000,6800,6600,6400,6200,6000, 5800, 5600,5400,5200,5000,4800 MHz

Supported memory types
DDR5-SDRAM

Unbuffered memory
Yes

Network

Bluetooth
Yes

Bluetooth version
5.2

Ethernet interface type
2.5 Gigabit Ethernet

Ethernet LAN
Yes

Top Wi-Fi standard
Wi-Fi 6 (802.11ax)

Wi-Fi
Yes

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Packaging content

Cables included
SATA

User guide
Yes

Packaging data

Package depth
75 mm

Package height
270 mm

Package weight
1.98 kg

Package width
340 mm

Processor

Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold

Maximum number of SMP processors
1

Processor manufacturer
Intel

Processor socket
LGA 1700

Supported processor sockets
LGA 1700

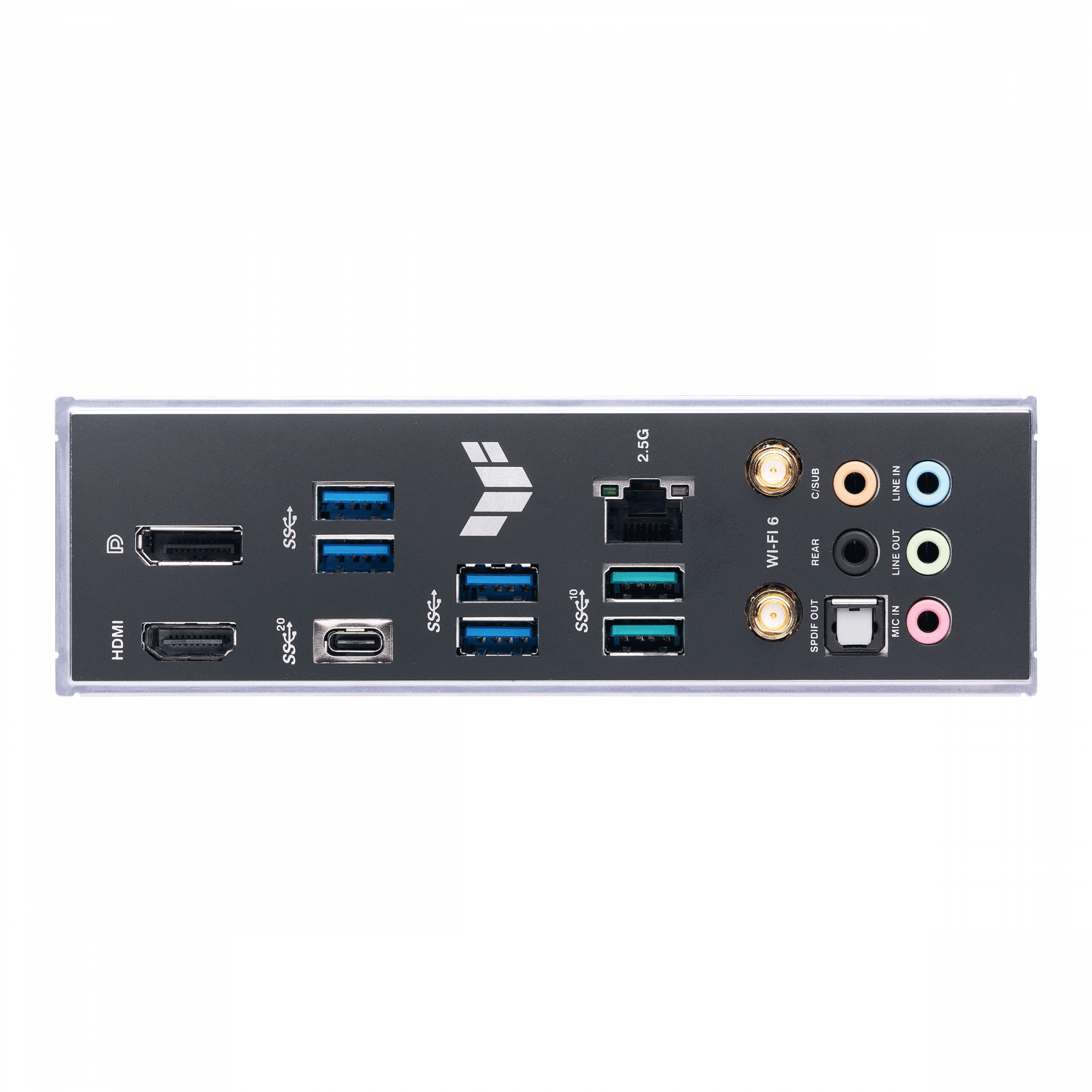

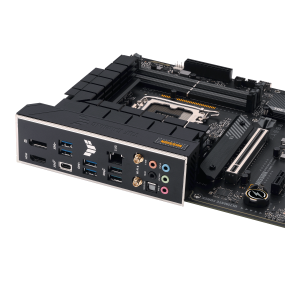

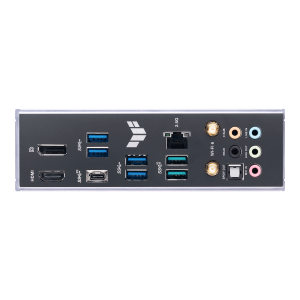

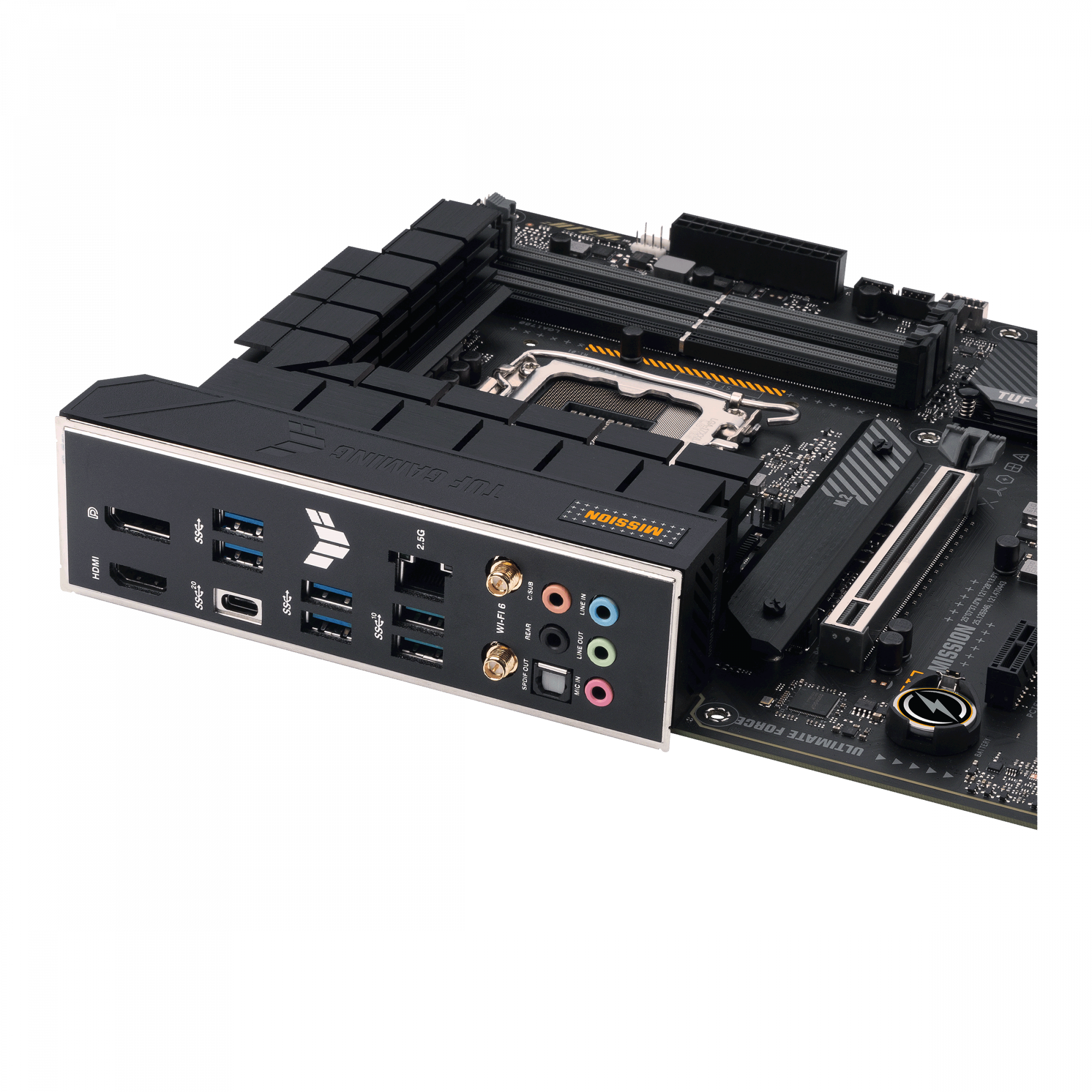

Rear panel I/O ports

DisplayPort version
1.4

DisplayPorts quantity
1

Ethernet LAN (RJ-45) ports
1

HDMI ports quantity
1

HDMI version
2.1

Headphone outputs
1

Line-in
Yes

Microphone in
Yes

S/PDIF out port
Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2

USB 3.2 Gen 2x2 Type-C ports quantity
1

WiFi-AP antenna jack
2

Storage controllers

Number of HDDs supported
4

Number of storage drives supported
8

RAID levels
0, 1, 5, 10

RAID support
Yes

Supported storage drive interfaces
M.2, SATA III

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
244 mm

Width
305 mm

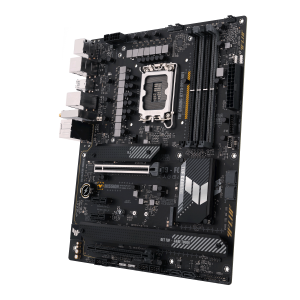

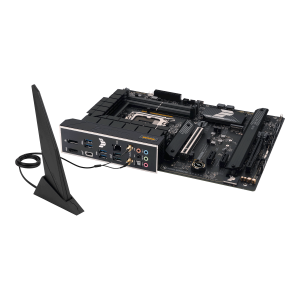

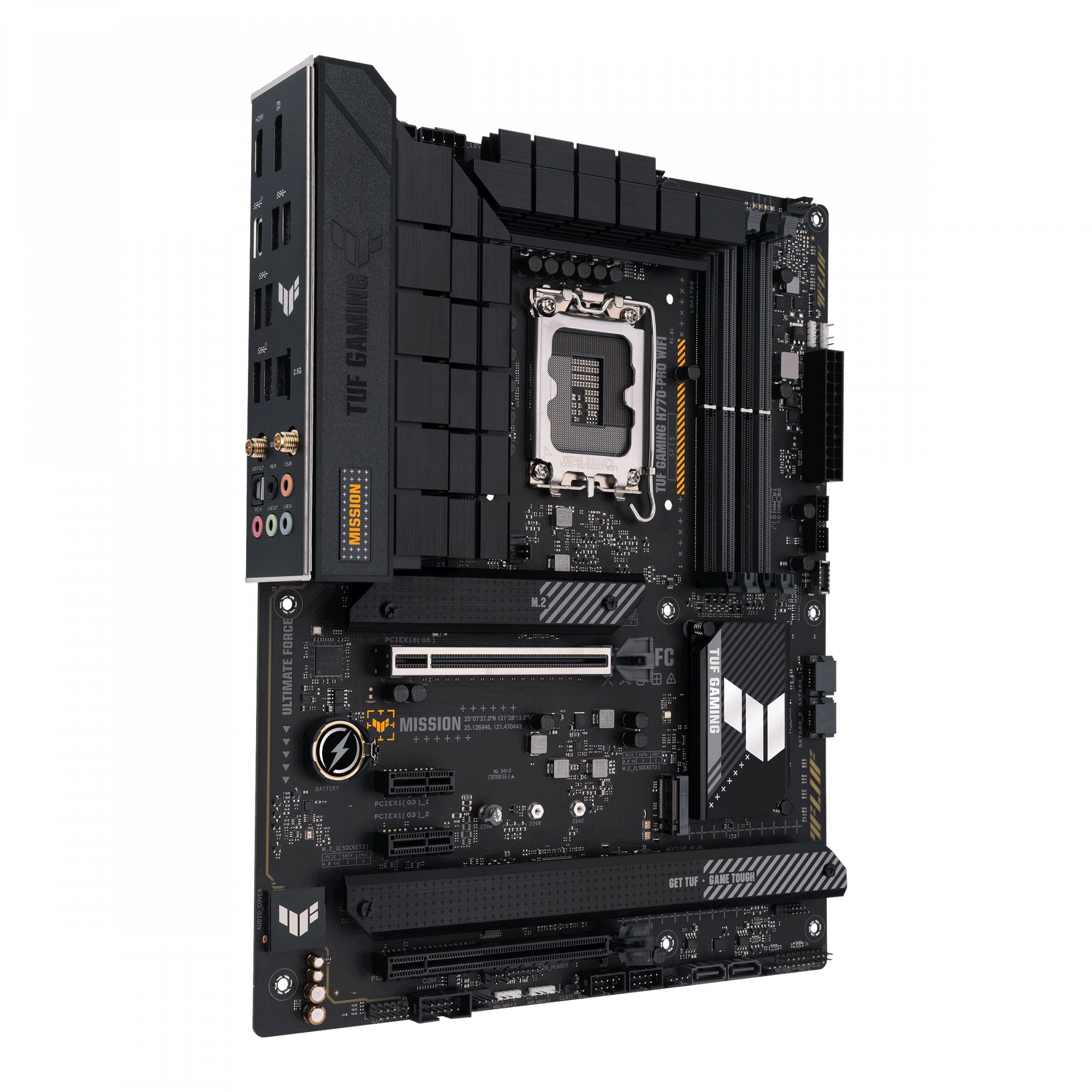

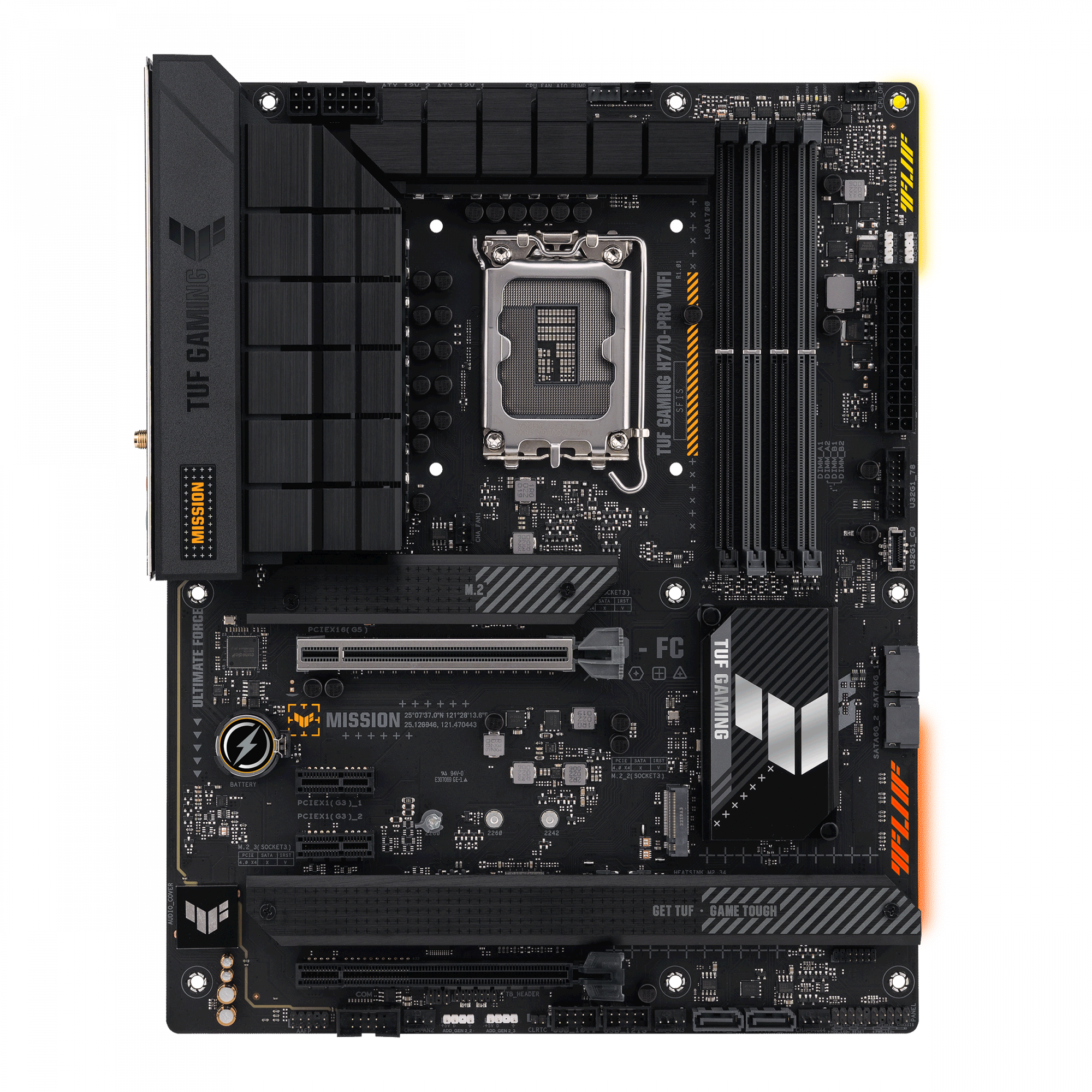

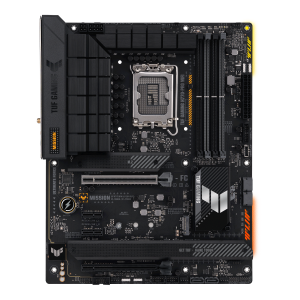

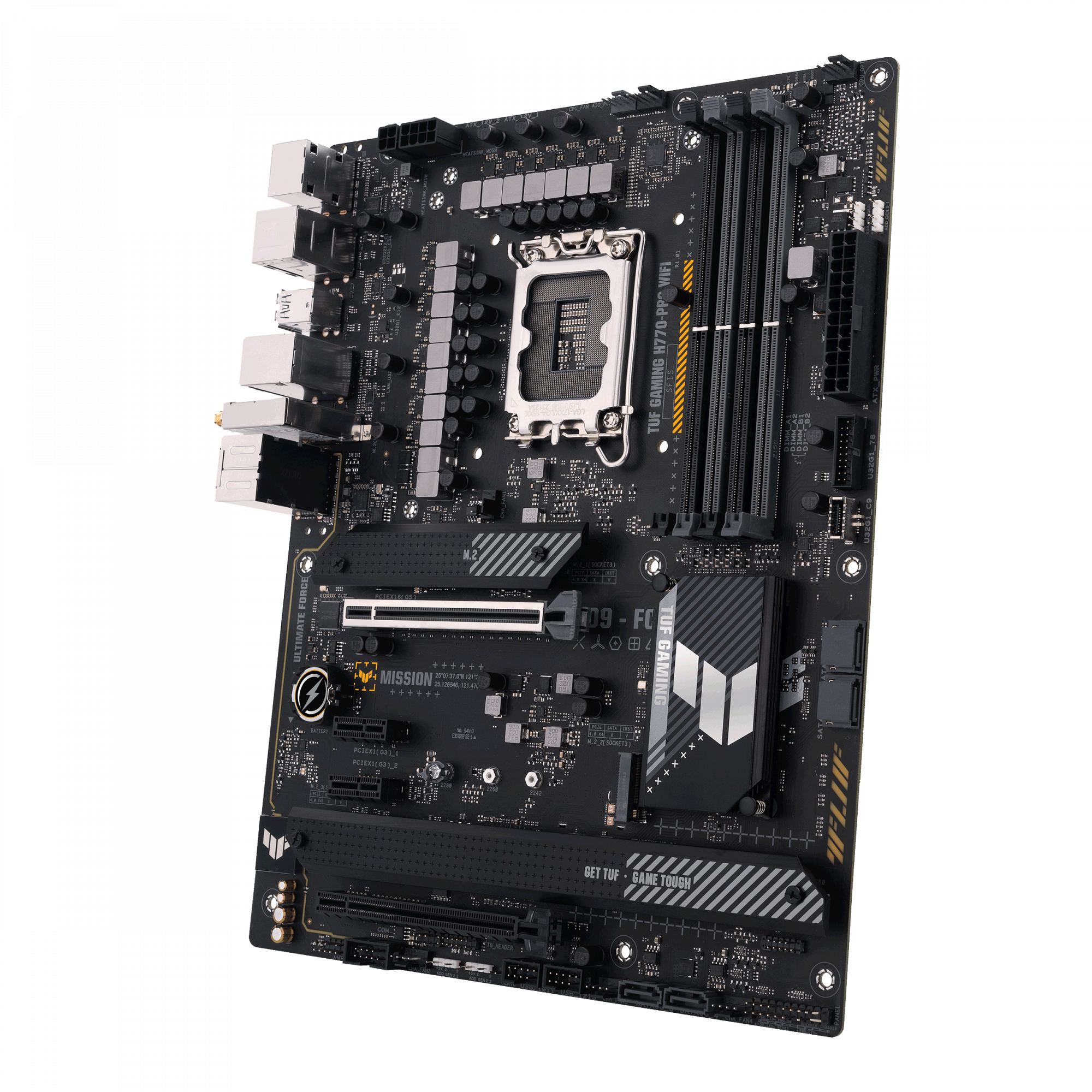

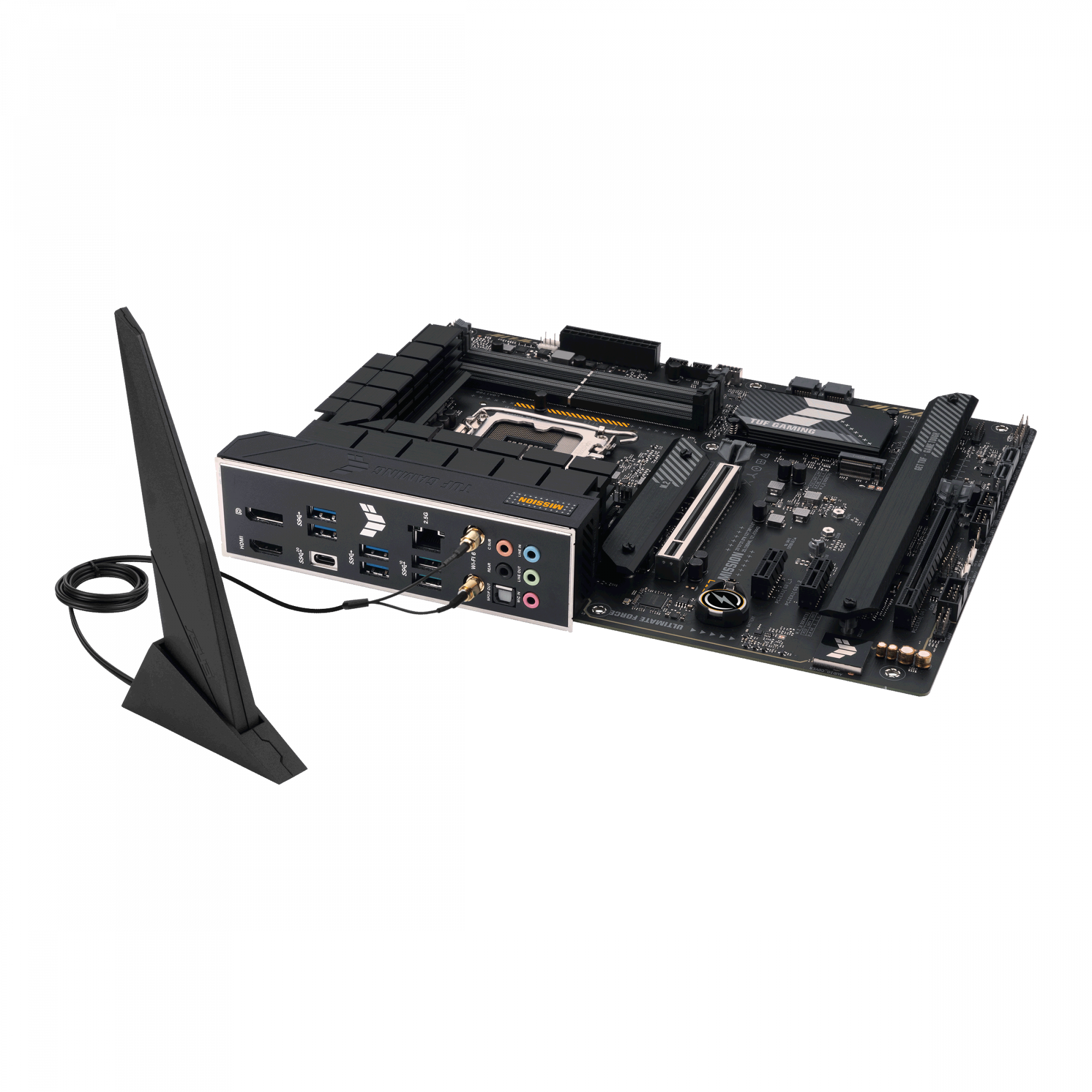

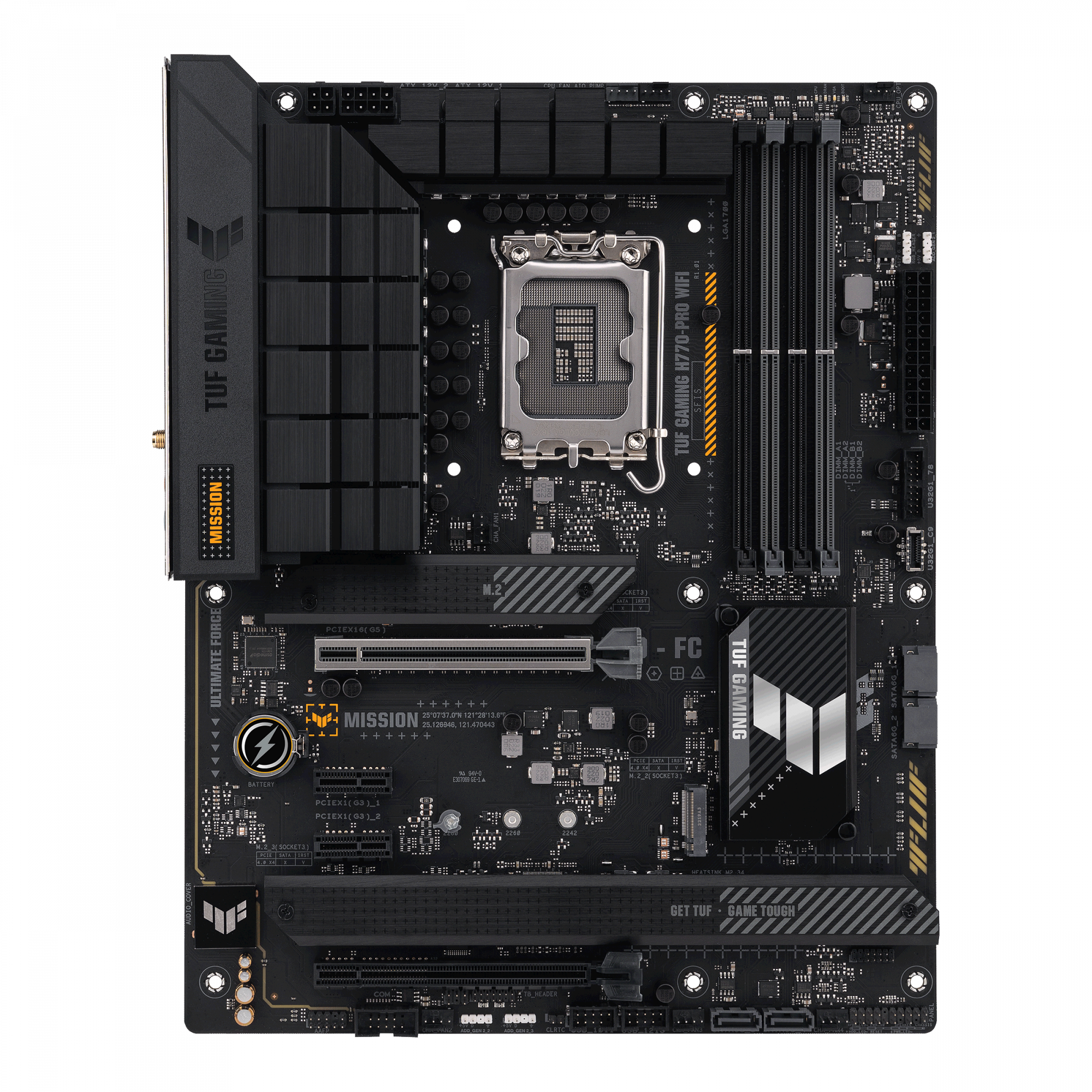

ASUS TUF GAMING H770-PRO WIFI Intel H770 LGA 1700 ATX
