Description

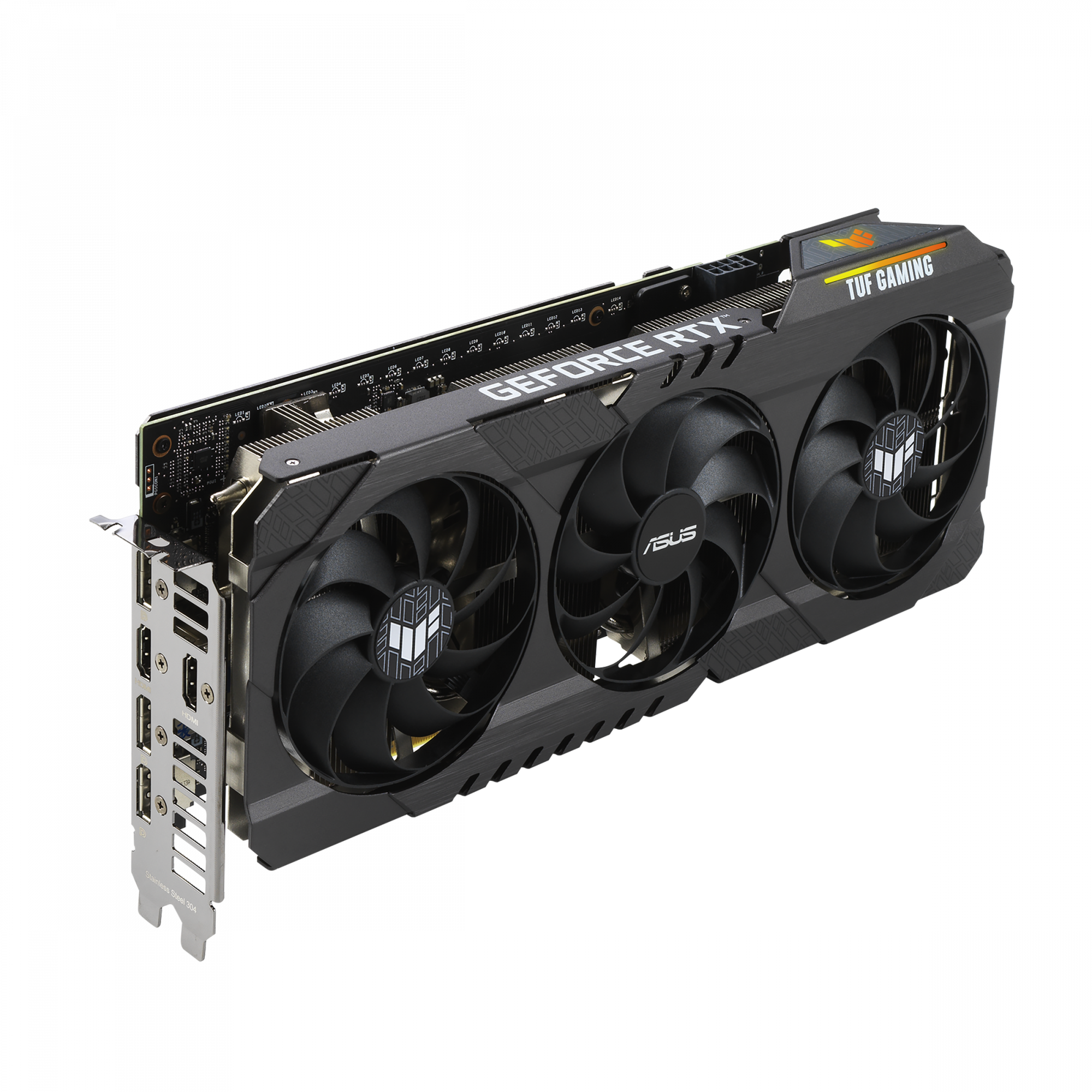

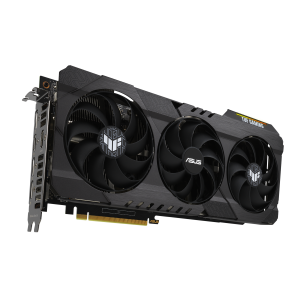

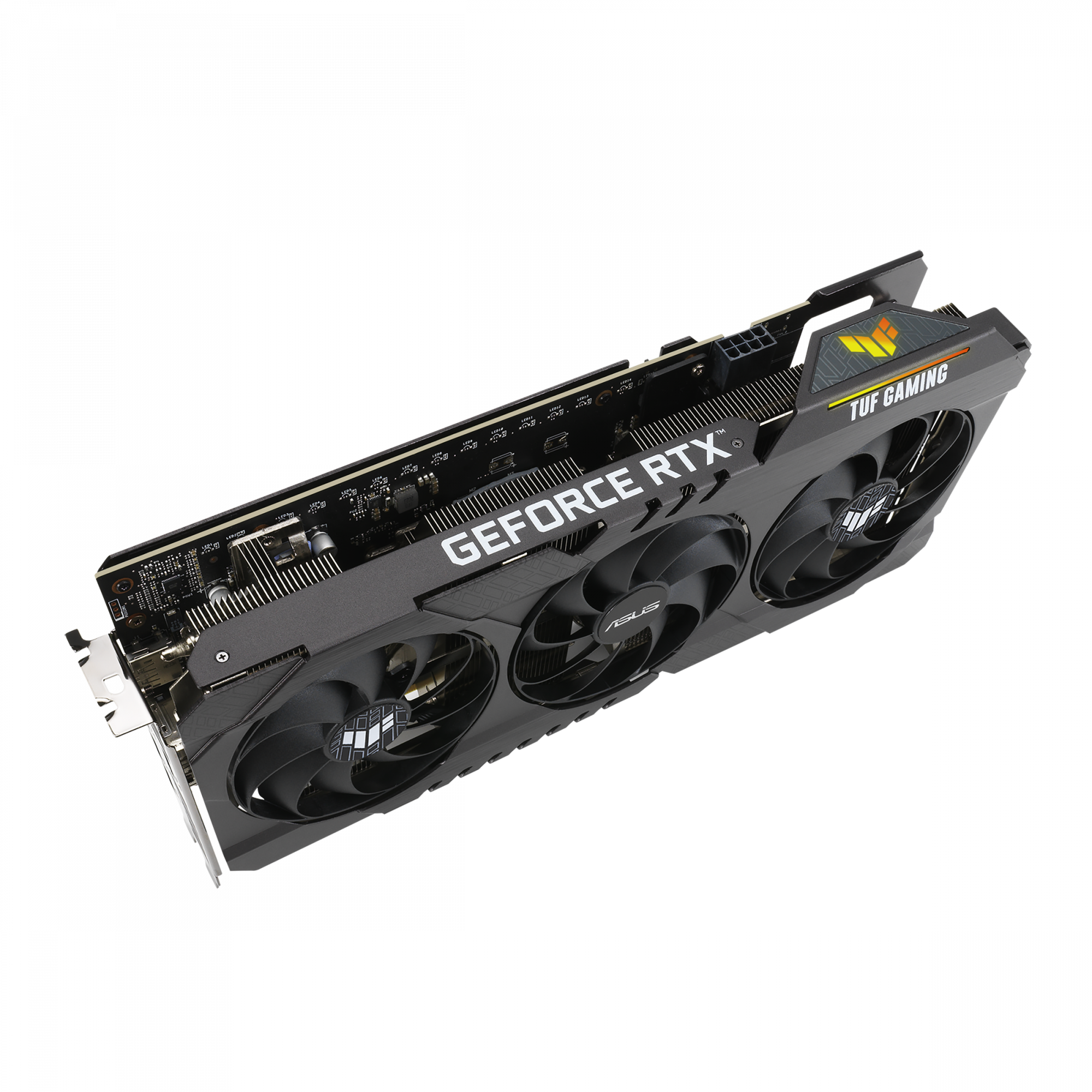

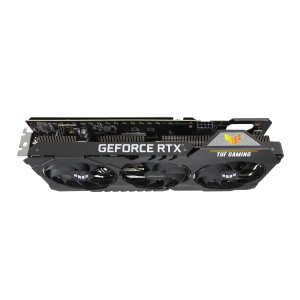

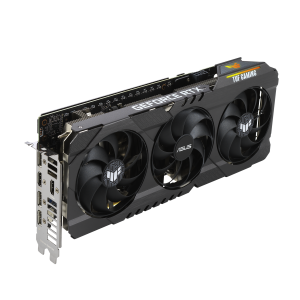

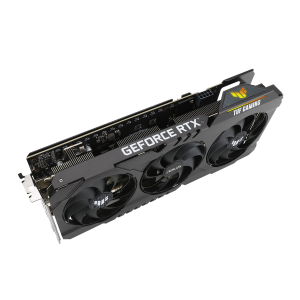

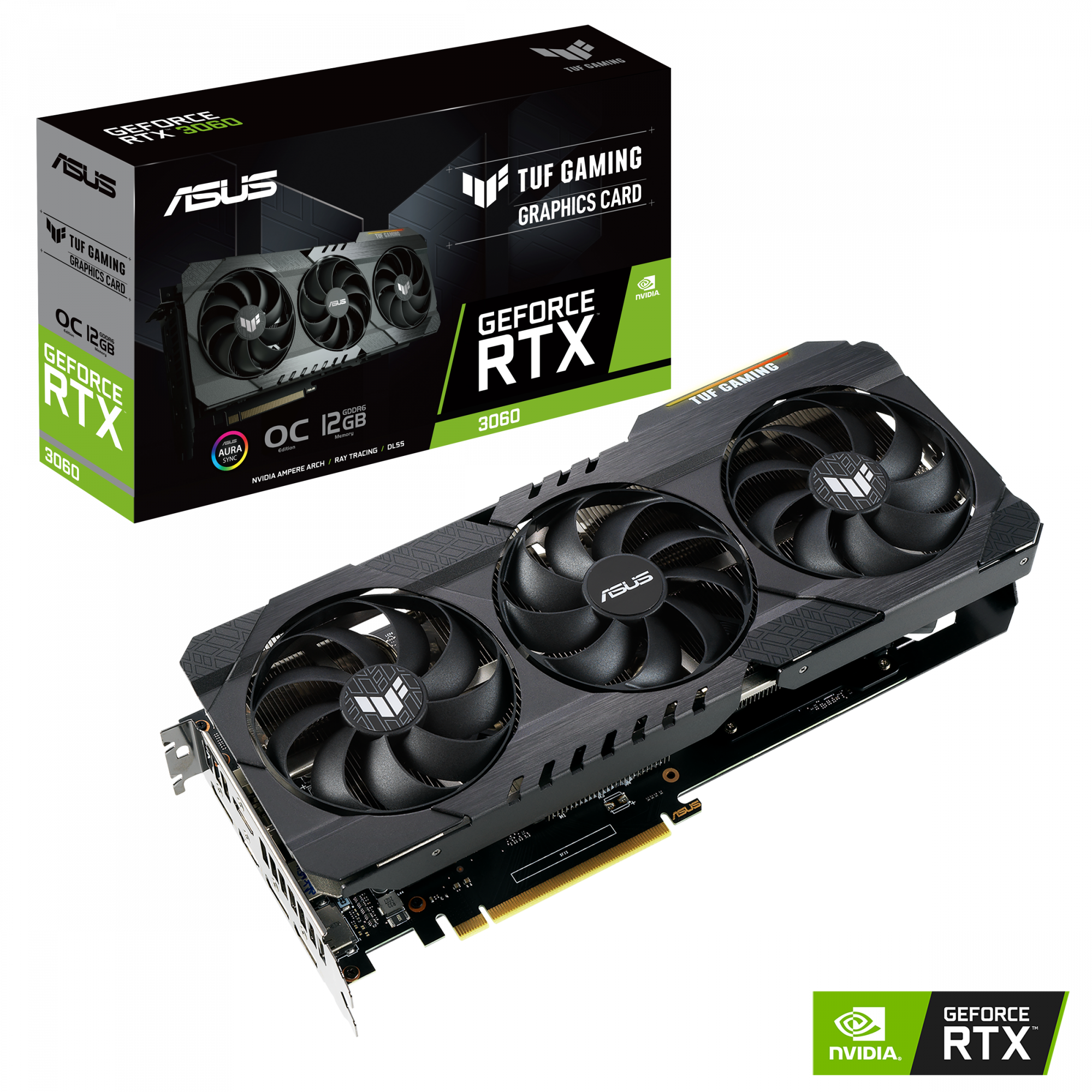

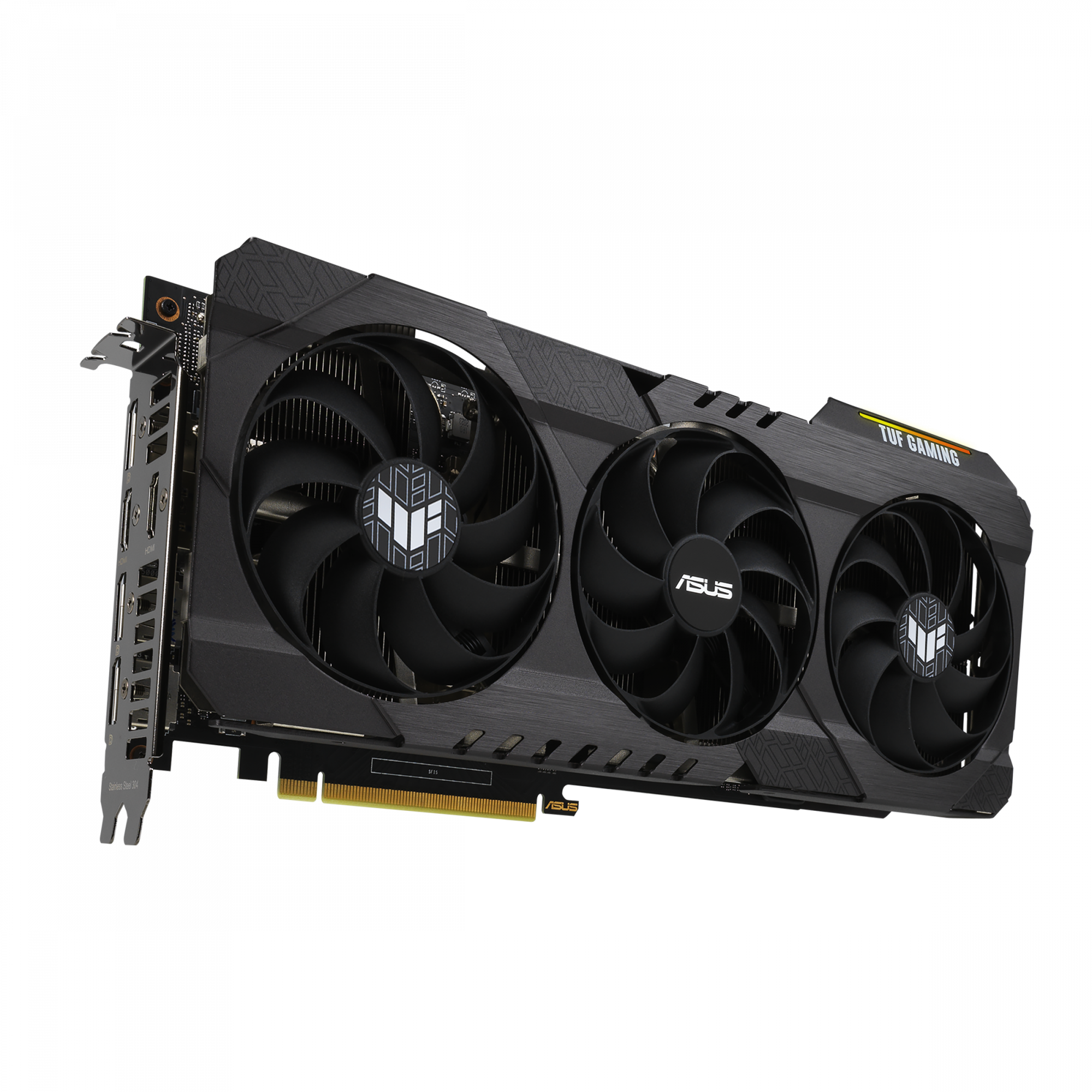

ASUS TUF Gaming TUF-RTX3060-O12G-V2-GAMING. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 3060. Discrete graphics card memory: 12 GB, Graphics card memory type: GDDR6, Memory bus: 192 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 1‎2 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi

NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency
2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance
3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities
OC edition: Boost clock 1882 MHz (OC mode)/ 1852 MHz (Gaming mode)

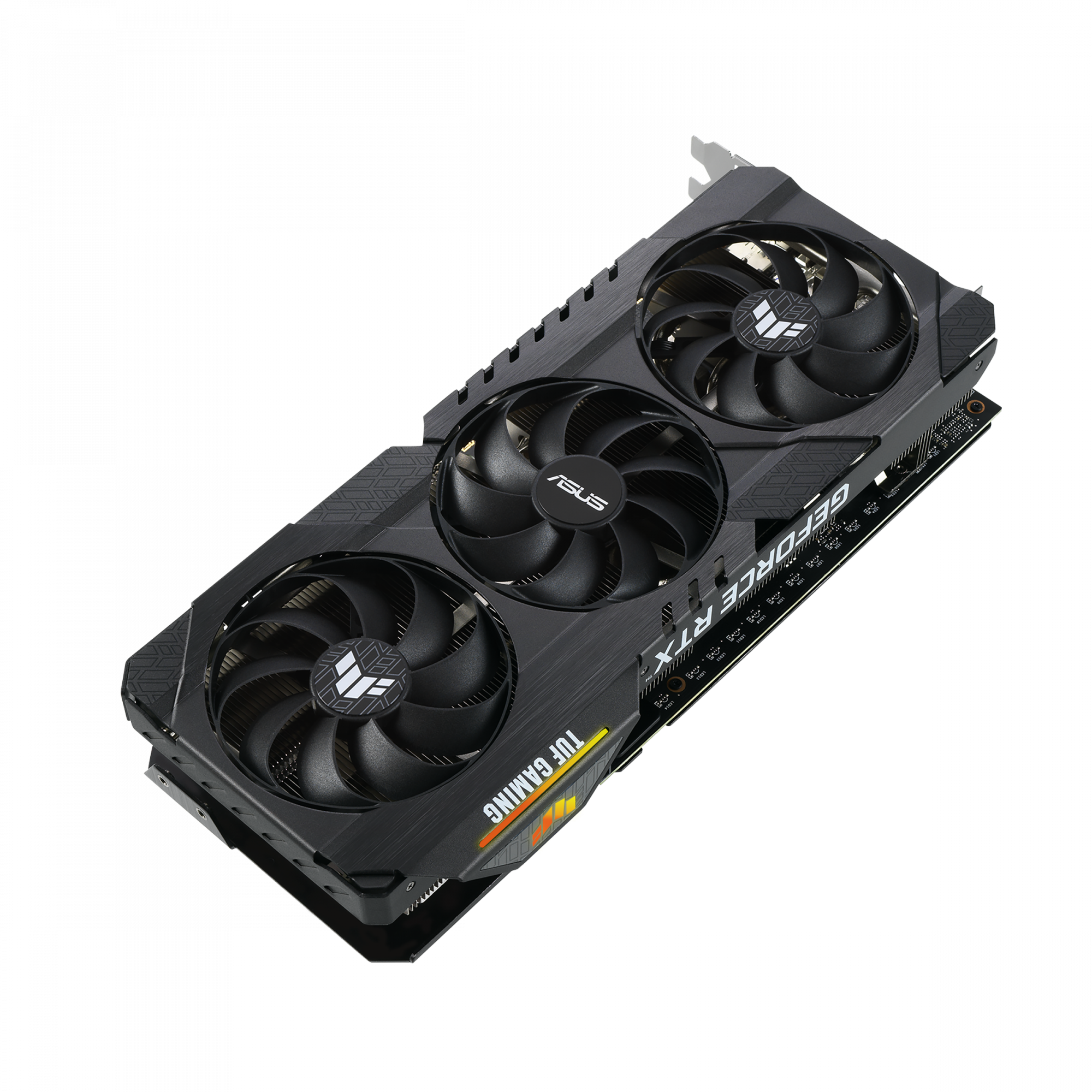

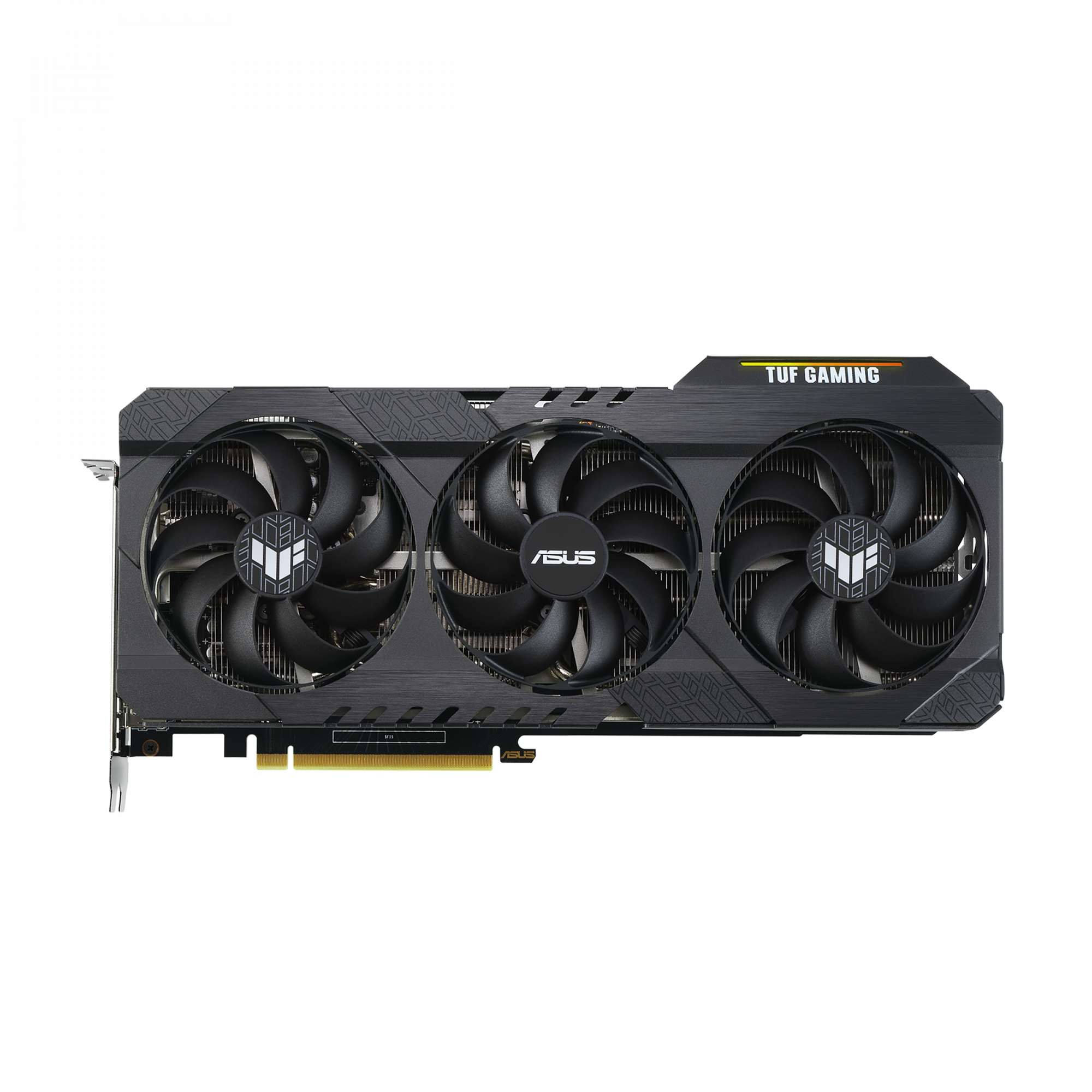

Axial-tech fan design has been newly tuned with a reversed central fan direction for less turbulence
Dual ball fan bearings can last up to twice as long as sleeve bearing designs

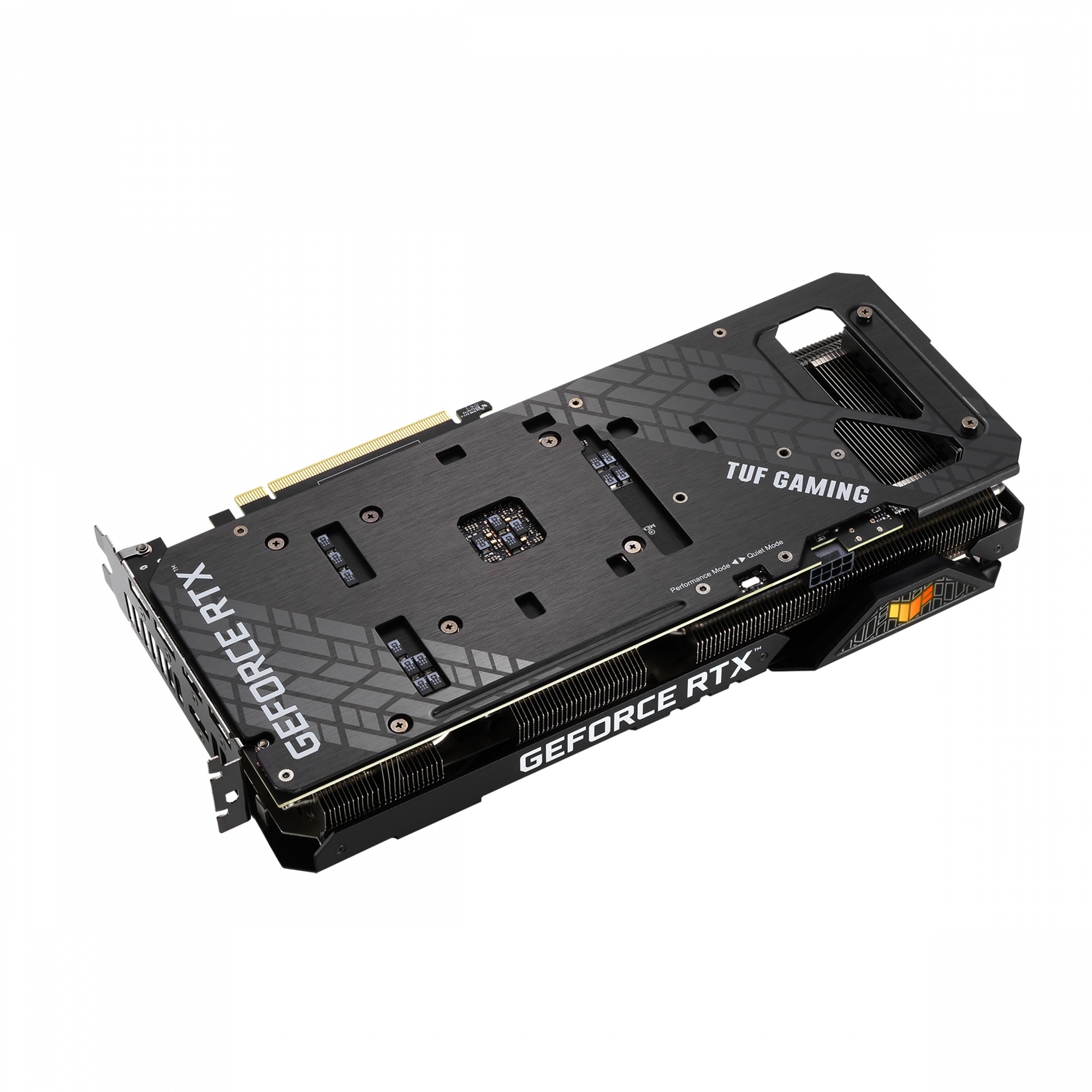

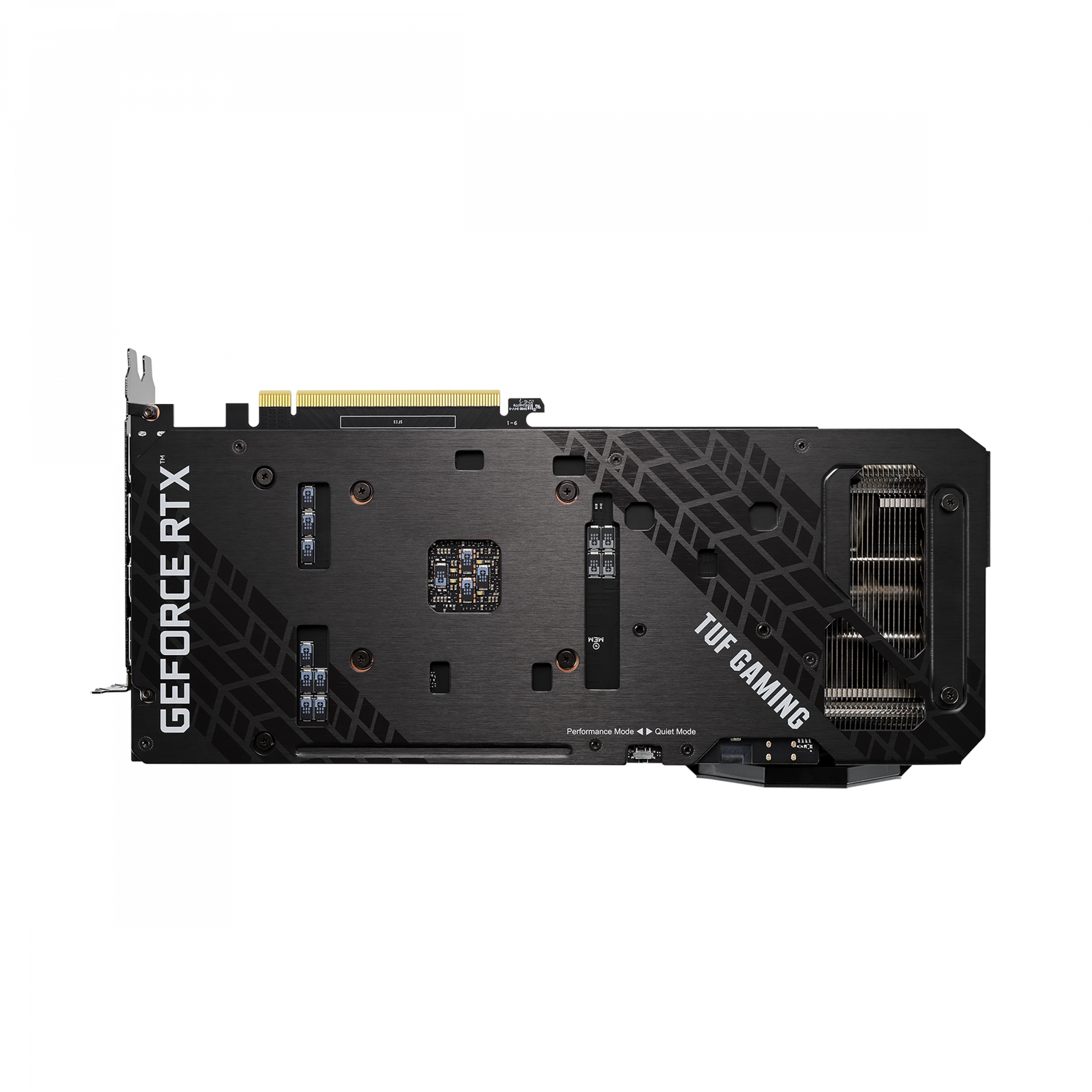

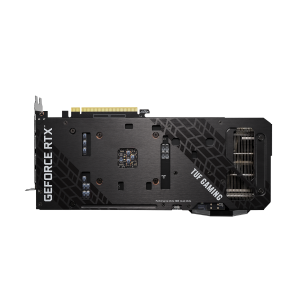

An all-aluminum shroud and metal backplate enhance durability
GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring

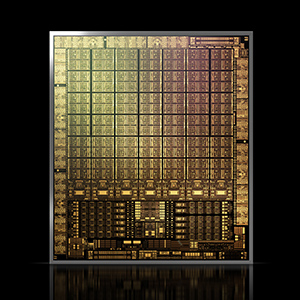

NVIDIA AMPERE ARCHITECTURE

The all-new NVIDIA Ampere architecture delivers the ultimate play, featuring advanced 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput.

RTX. IT’S ON.

Experience today’s biggest blockbusters like never before with the visual fidelity of real-time ray tracing and the ultimate performance of AI-powered DLSS.

DLSS AI ACCELERATION

NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has come to gaming.

Product Properties

Manufacturer
Asus

Model
TUF-RTX3060-O12G-V

EAN
4711081310228

Bullet points

Point
2nd Generation RT Cores

3rd Generation Tensor Cores

An all-aluminum shroud and metal backplate enhance durability

Axial-tech fan design has been newly tuned with a reversed central fan direction for less turbulence

Dual ball fan bearings can last up to twice as long as sleeve bearing designs

GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring

NVIDIA Ampere Streaming Multiprocessors

OC edition: Boost clock 1882 MHz (OC mode)/ 1852 MHz (Gaming mode)

Design

Bracket height
Full-Height (FH)

Cooling technology
ASUS Axial-tech

Cooling type
Active

Form factor
Full-Height/Full-Length (FH/FL)

Illumination
Y

Illumination colour
Multi

Number of fans
3 fan(s)

Number of slots
2.7

Product colour
Black

Logistics data

Harmonized System (HS) code
84733020

Memory

Data transfer rate
15 Gbit/s

Discrete graphics card memory
12 GB

Graphics card memory type
GDDR6

Memory bus
192 bit

Packaging data

Manual
Y

Package type
Box

Performance

DirectX version
1‎2 Ultimate

Dual Link DVI
N

HDCP
Y

NVIDIA G-SYNC
Y

OpenGL version
4.6

TV tuner integrated
N

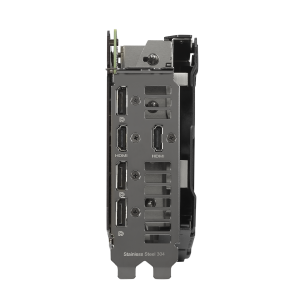

Ports & interfaces

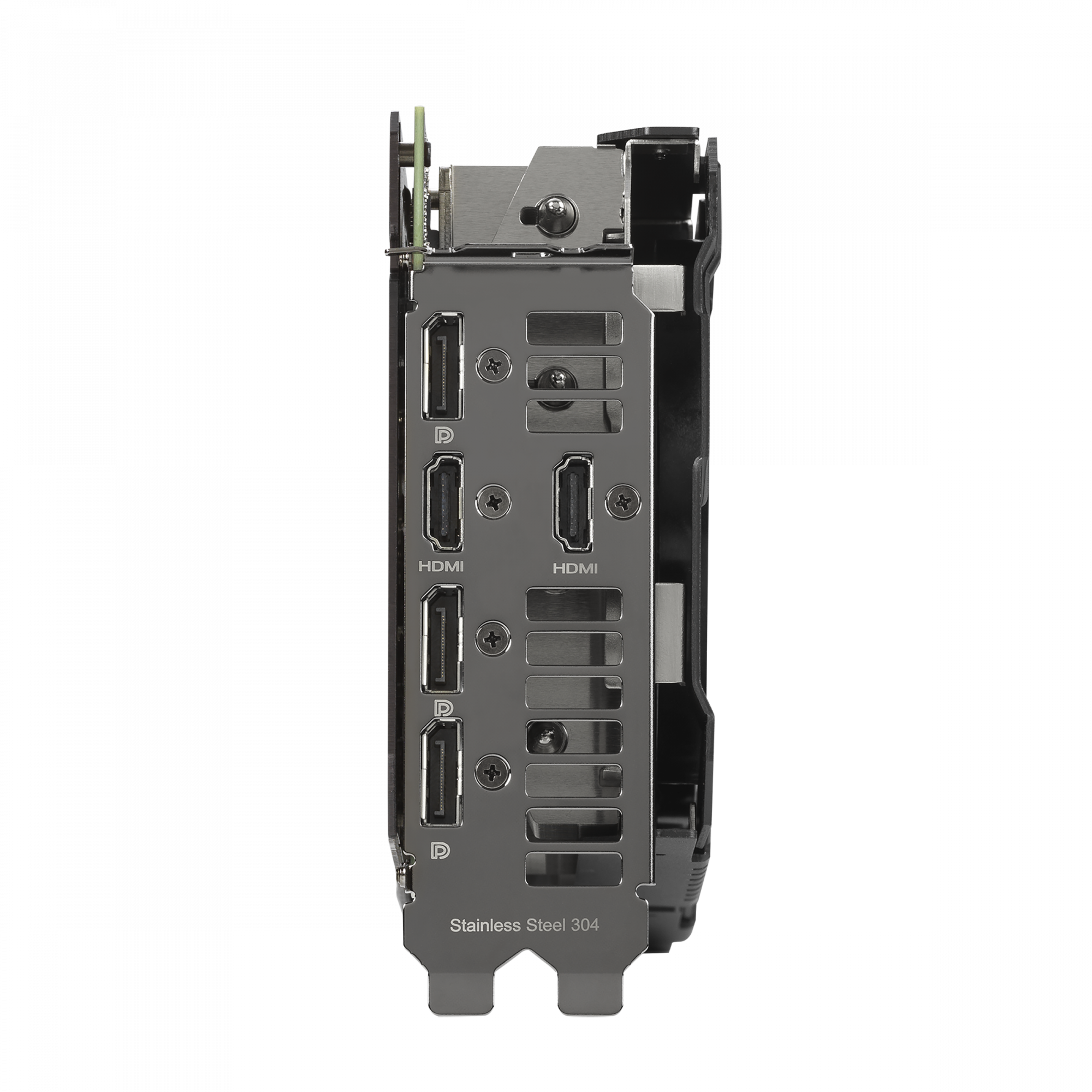

DisplayPort version
1.4a

DisplayPorts quantity
3

HDMI ports
2

HDMI version
2.1

Interface type
PCI Express 4.0

Power

Minimum system power supply
750 W

Supplementary power connectors
1x 8-pin

Processor

CUDA
Y

CUDA cores
3584

FireStream
N

Graphics processor
GeForce RTX 3060

Graphics processor family
NVIDIA

Maximum displays per videocard
4

Maximum resolution
7680 x 4320 pixels

Parallel processing technology support
Not supported

Processor boost clock speed
1852 MHz

Processor boost clock speed (OC mode)
1882 MHz

Weight & dimensions

Depth
301 mm

Height
143 mm

Width
54 mm

ASUS TUF Gaming TUF-RTX3060-O12G-V2-GAMING NVIDIA GeForce RTX 3060 12 GB GDDR6
