Description

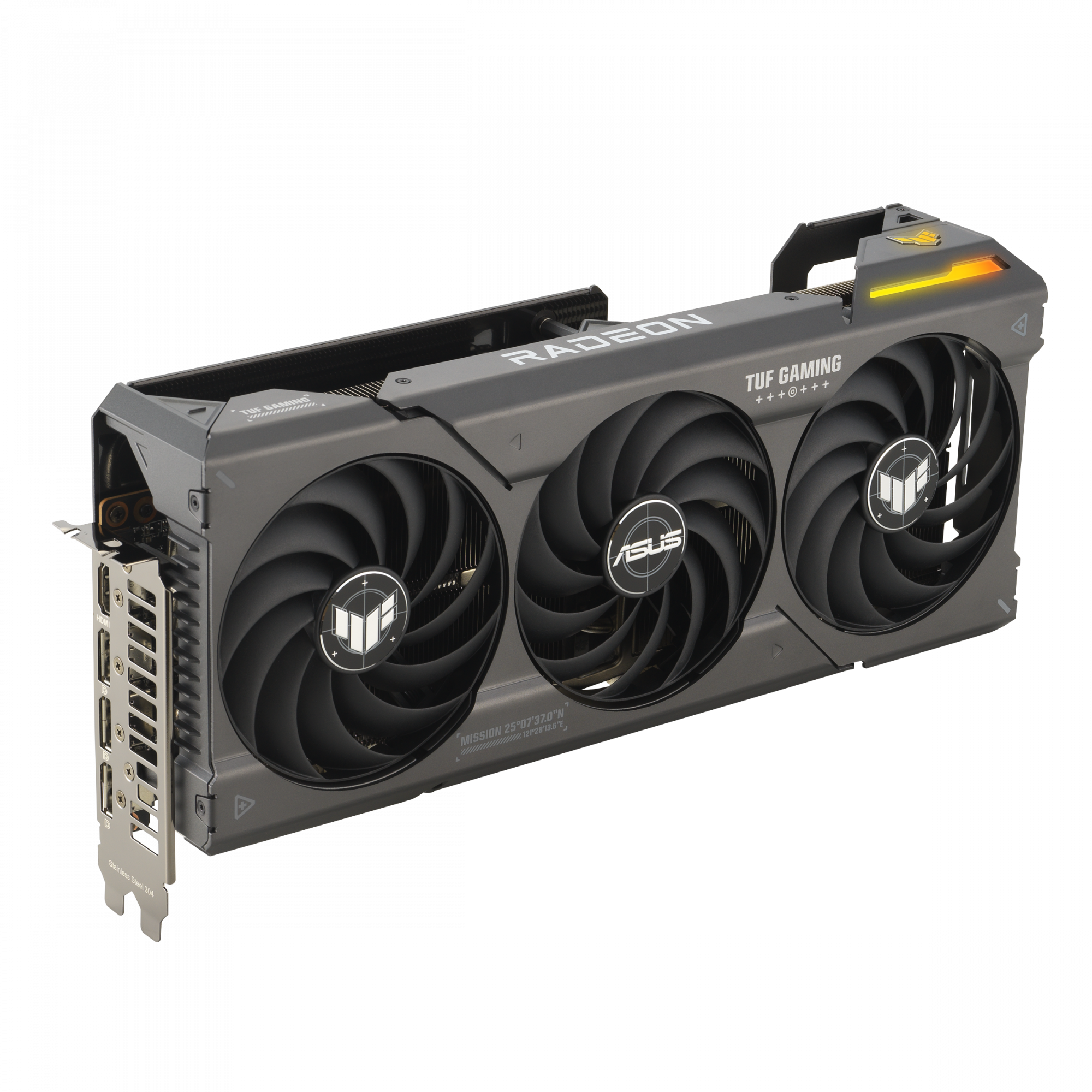

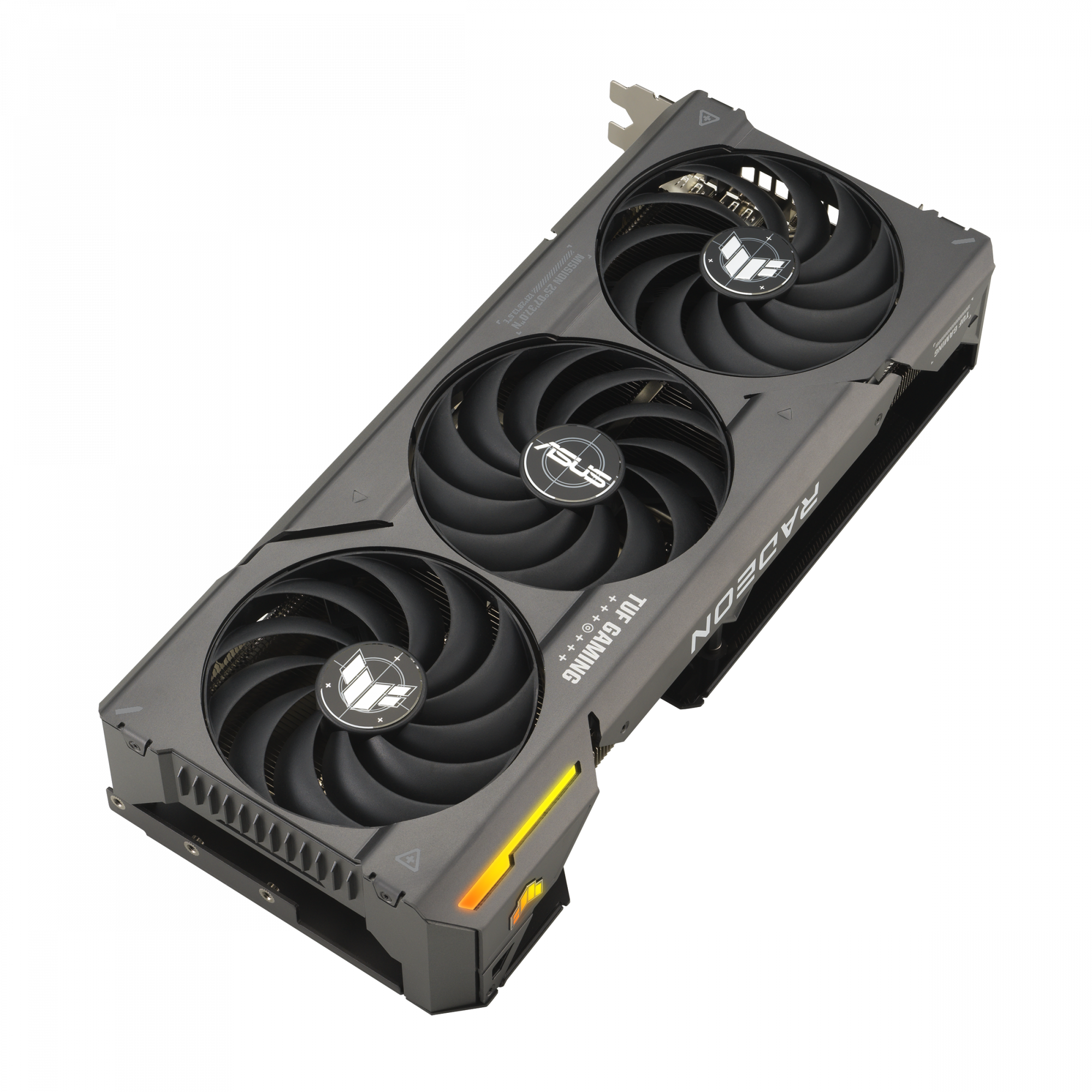

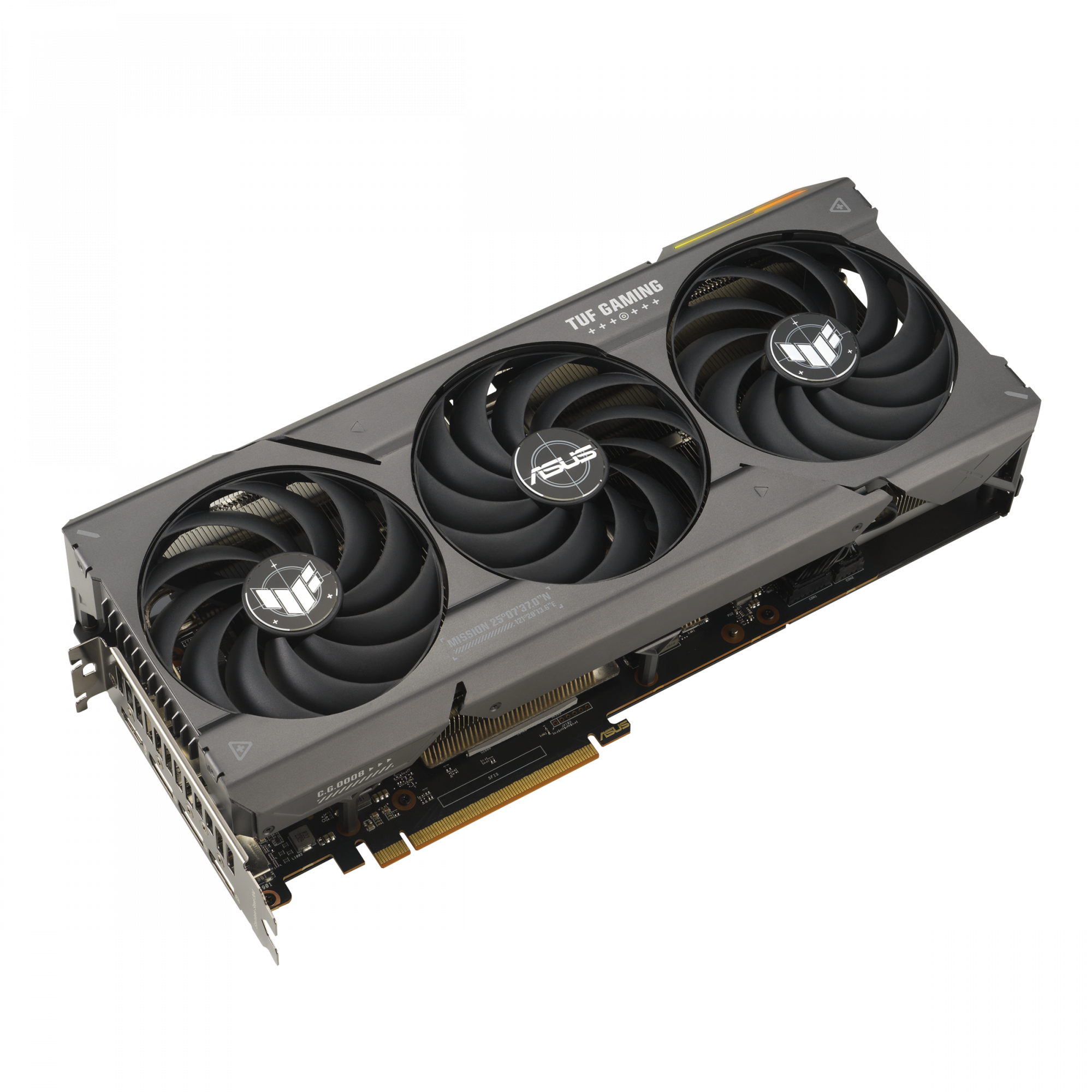

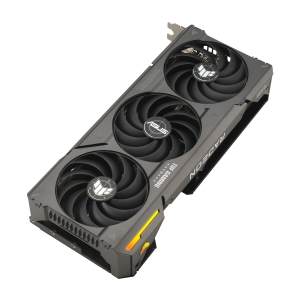

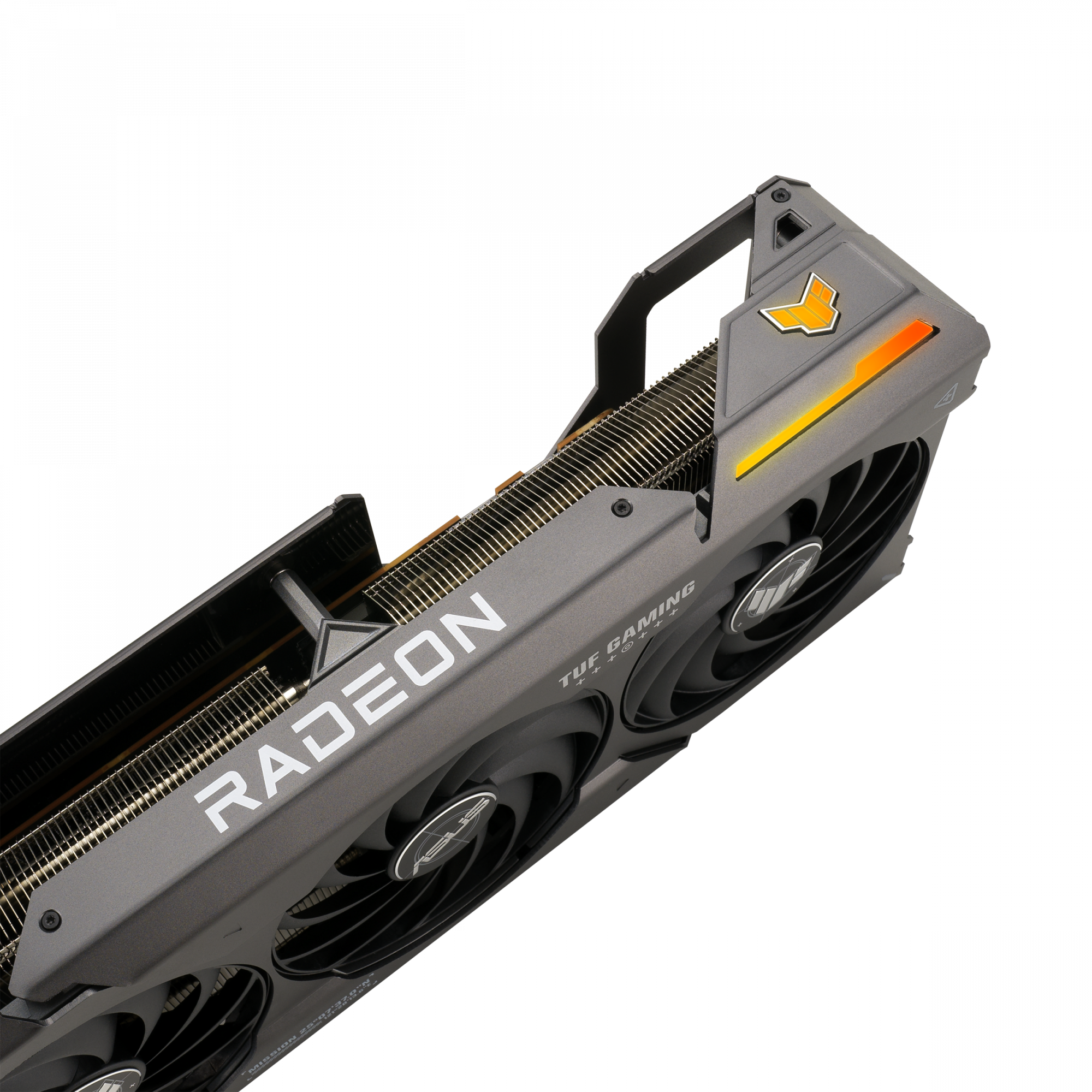

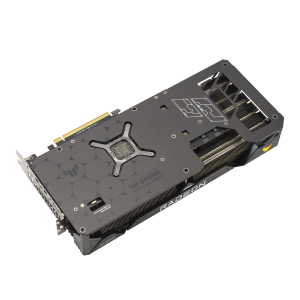

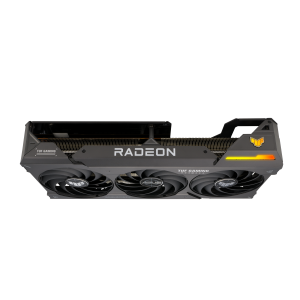

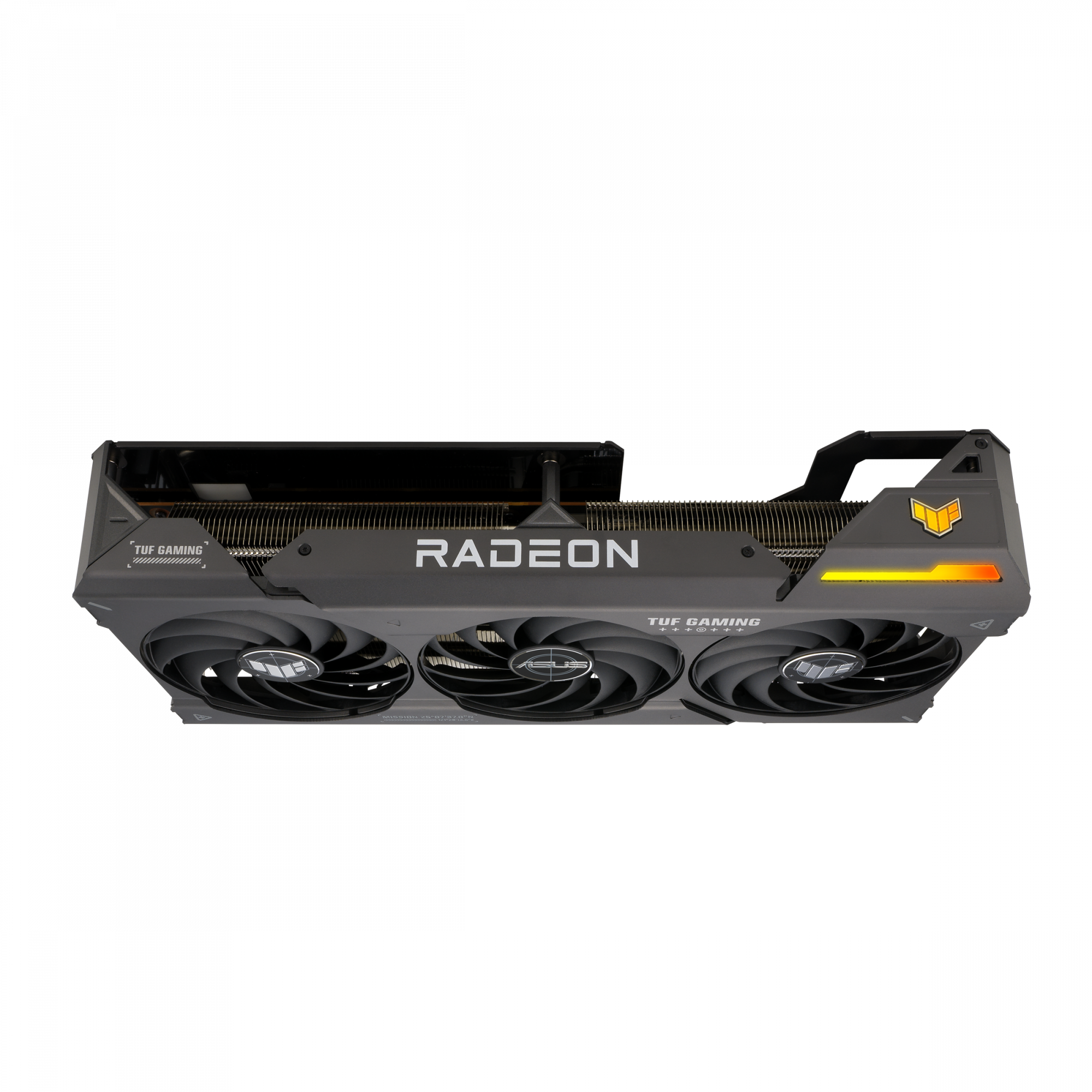

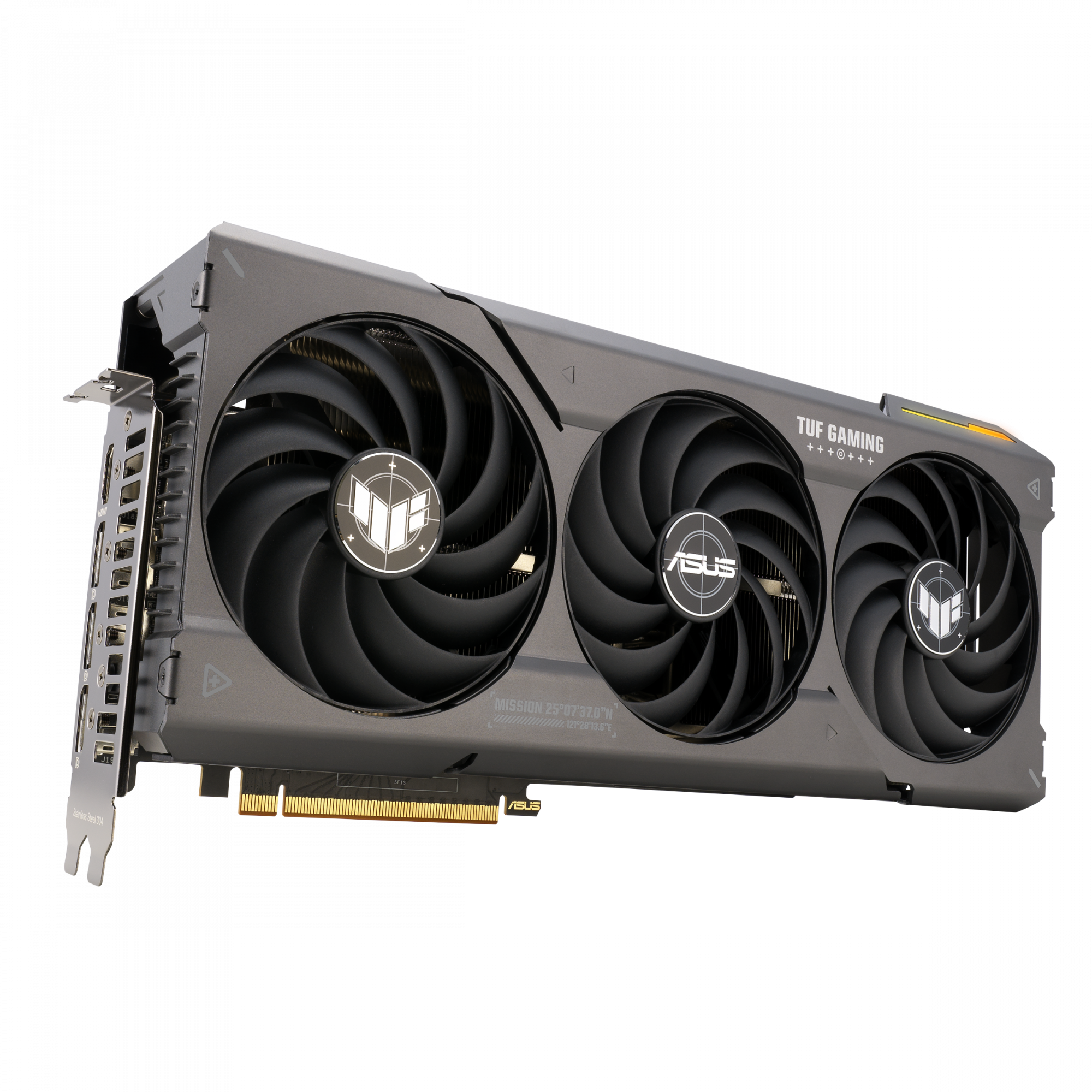

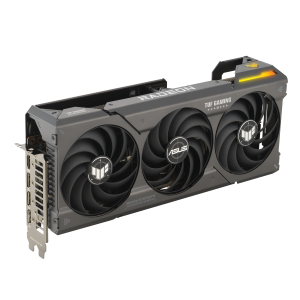

ASUS TUF Gaming TUF-RX7800XT-O16G-GAMING. Graphics processor family: AMD, Graphics processor: Radeon RX 7800 XT. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi

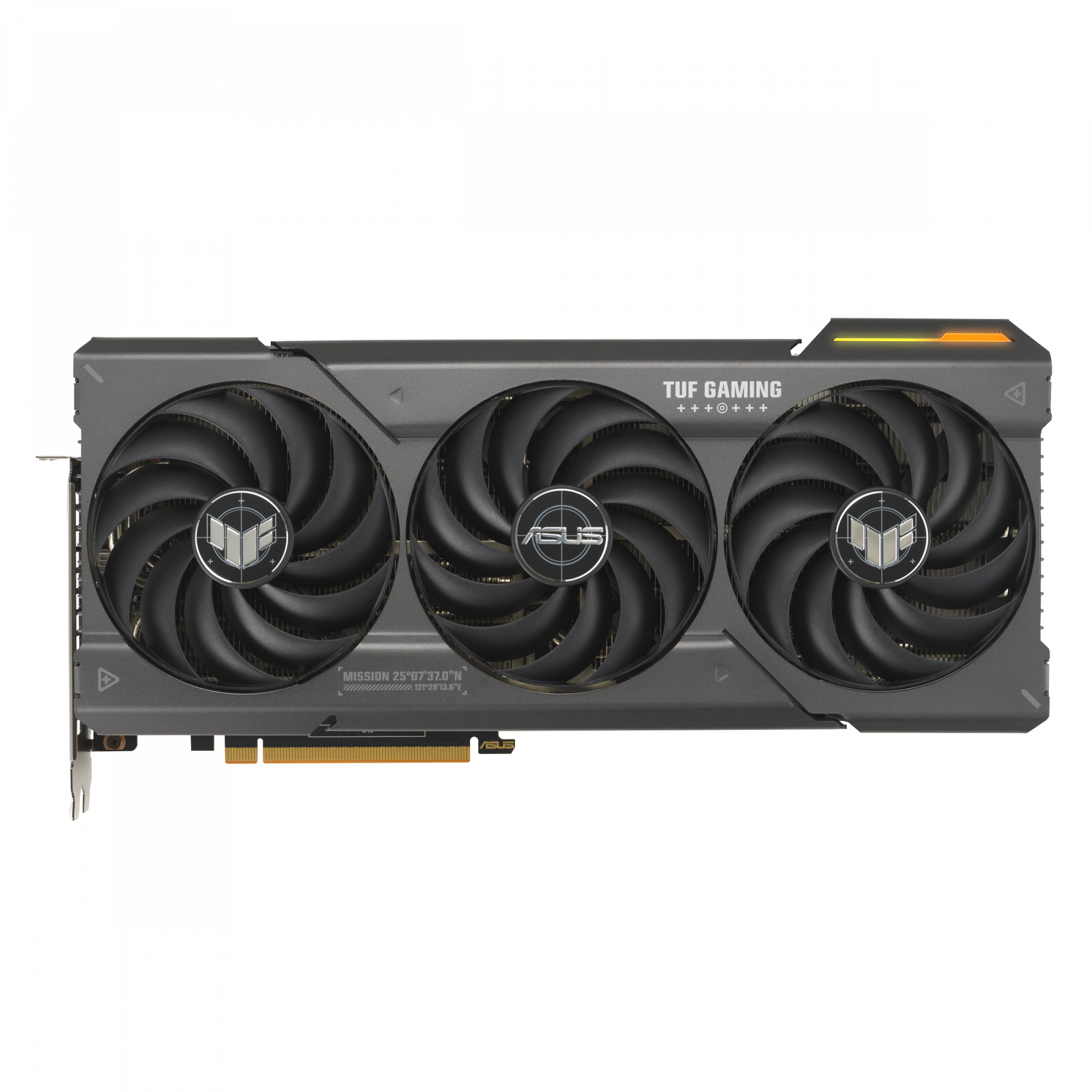

Axial-tech fans scaled up to deliver 24% more airflow
Dual ball fan bearings last up to twice as long as conventional designs
Military-grade capacitors rated for 20K hours at 105C make the GPU power rail more durable

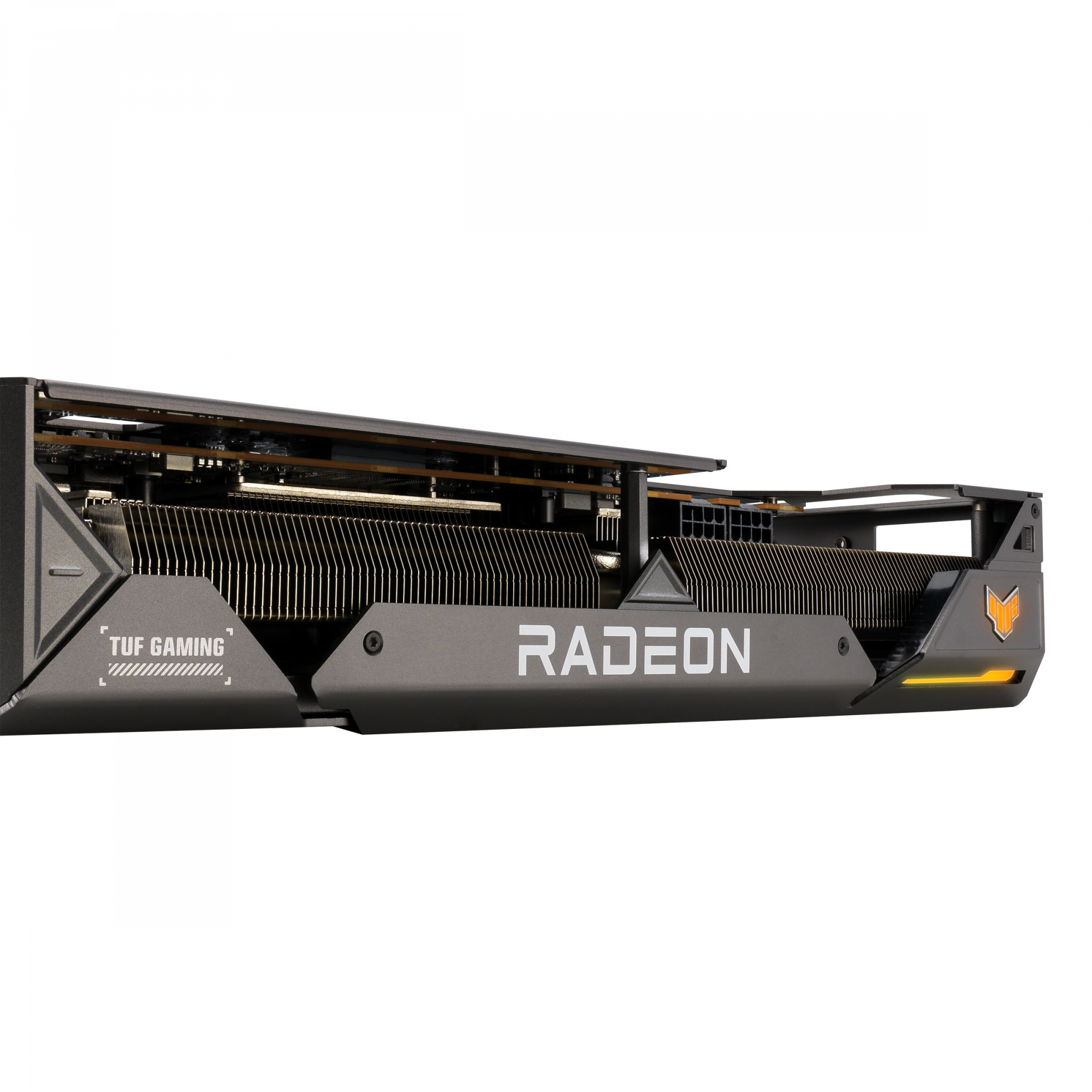

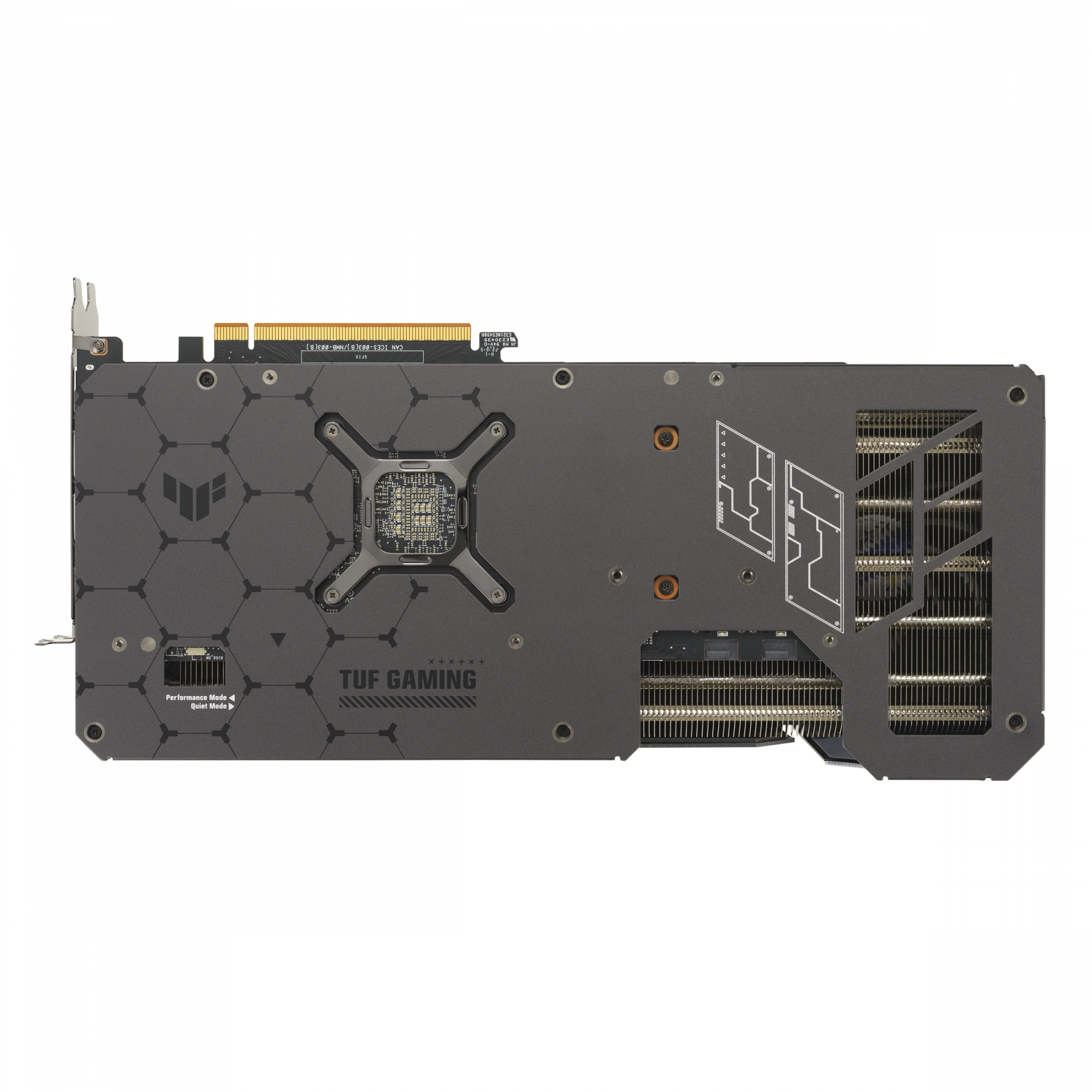

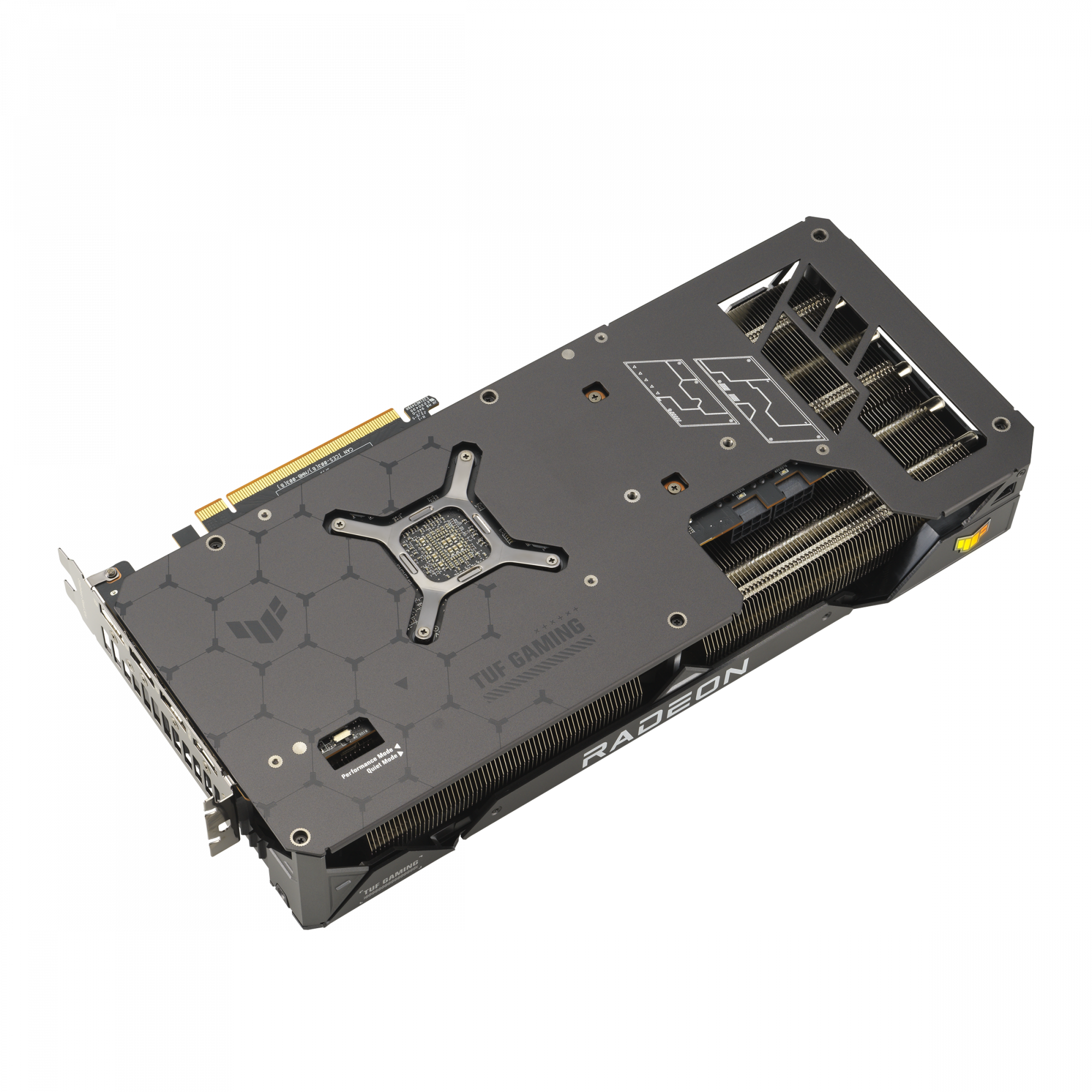

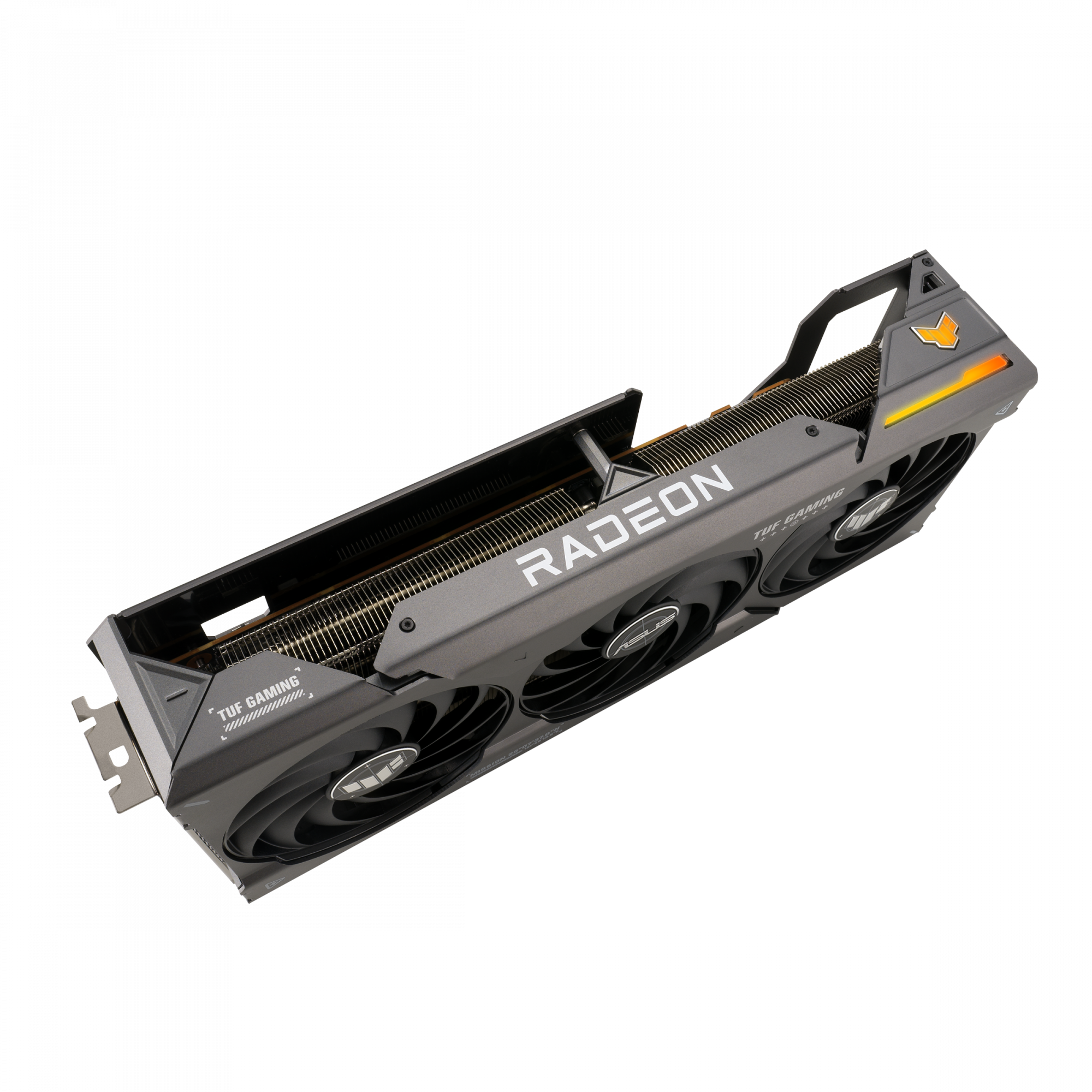

Metal Exoskeleton adds structural rigidity and vents to increase heat dissipation
Auto-Extreme precision automated manufacturing for higher reliability
GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring

Product Properties

Manufacturer
Asus

Model
TUF-RX7800XT-O16G-

EAN
4711387312483

Bullet points

Point
Auto-Extreme precision automated manufacturing for higher reliability

Axial-tech fans scaled up to deliver 24% more airflow

Dual Ball Fan Bearings last up to twice as long as conventional designs

Metal Exoskeleton adds structural rigidity and vents to increase heat dissipation

Military-grade Capacitors rated for 20K hours at 105C make the GPU power rail more durable

Design

Cooling technology
ASUS Axial-tech

Cooling type
Active

Form factor
Full-Height/Full-Length (FH/FL)

Illumination
Yes

Illumination colour
Multi

Number of fans
3 fan(s)

Number of slots
2.96

Product colour
Grey

Memory

Discrete graphics card memory
16 GB

Graphics card memory type
GDDR6

Memory bandwidth (max)
19.5 GB/s

Memory bus
256 bit

Packaging data

Package depth
226 mm

Package height
87 mm

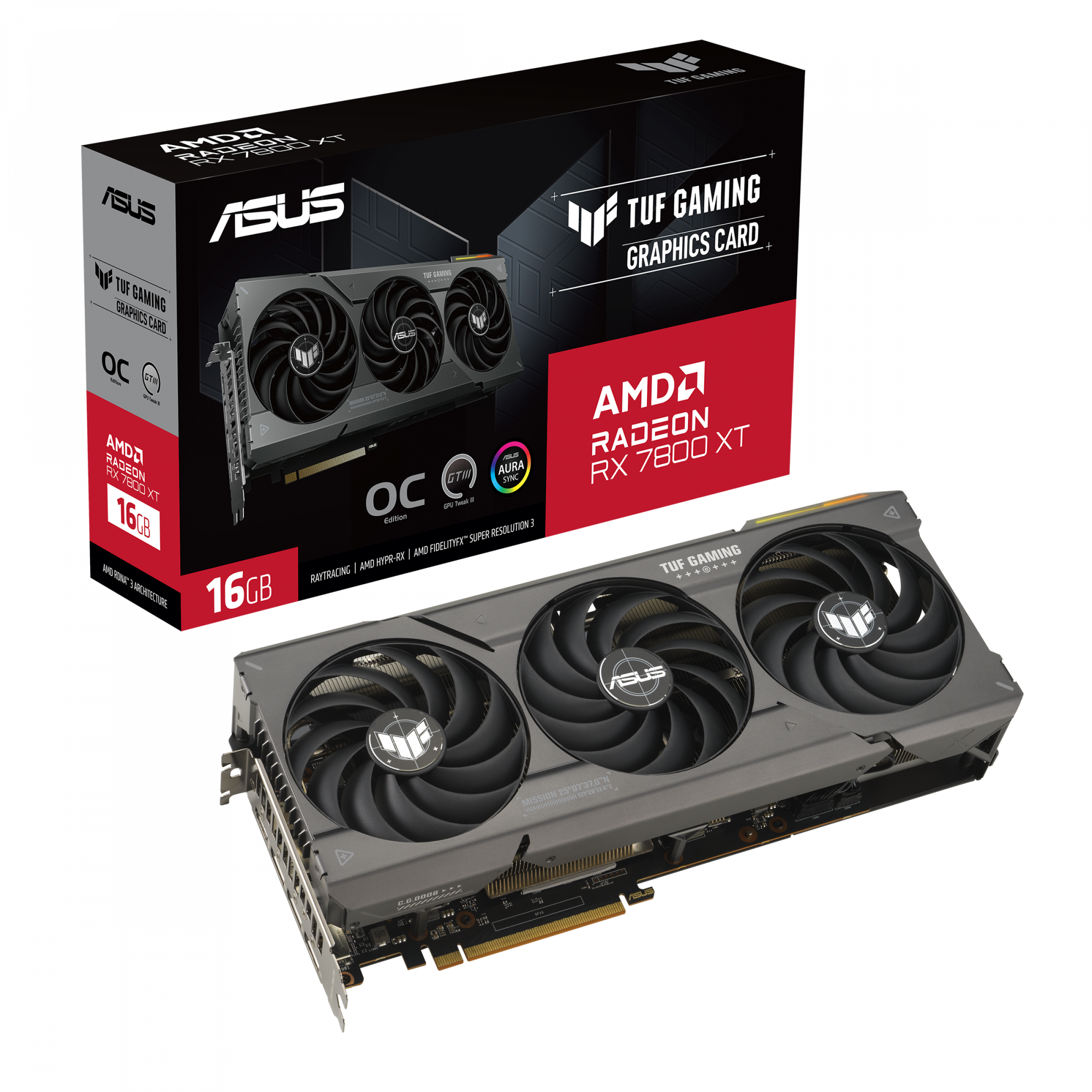

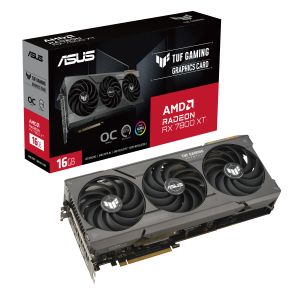

Package type
Box

Package weight
2.2 kg

Package width
420 mm

Performance

DirectX version
No

Dual Link DVI
No

HDCP
Yes

HDCP version
2.3

OpenGL version
4.6

TV tuner integrated
No

Ports & interfaces

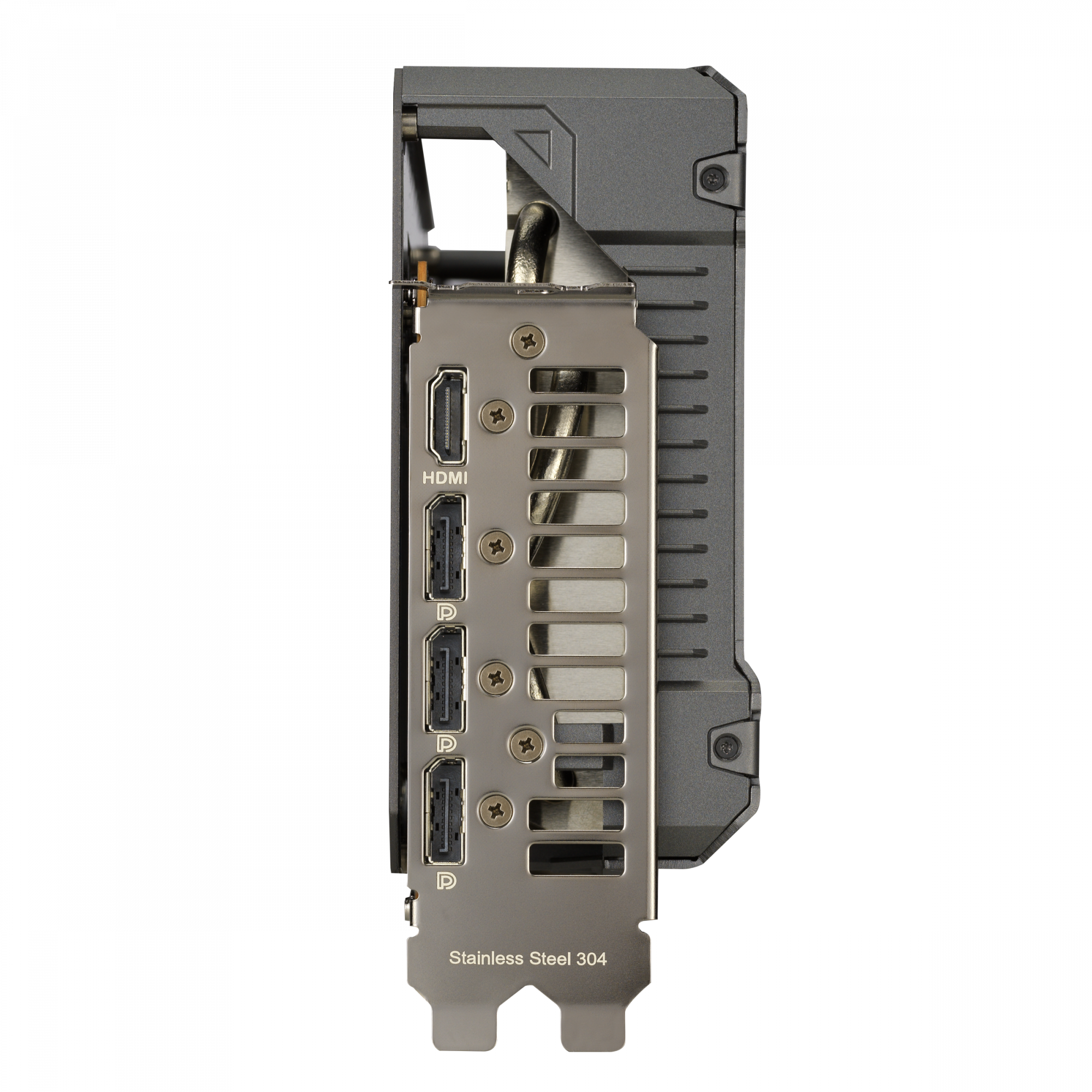

DisplayPort version
2.1

DisplayPorts quantity
3

HDMI ports
1

HDMI version
2.1

Interface type
PCI Express 4.0

Power

Minimum system power supply
750 W

Supplementary power connectors
2x 8-pin

Processor

CUDA
No

Graphics processor
Radeon RX 7800 XT

Graphics processor family
AMD

Maximum displays per videocard
4

Maximum resolution
7680 x 4320 pixels

Parallel processing technology support
Not supported

Stream processors
3840

Weight & dimensions

Depth
319.8 mm

Height
59.2 mm

Weight
1.48 kg

Width
150.9 mm

ASUS TUF Gaming TUF-RX7800XT-O16G-GAMING AMD Radeon RX 7800 XT 16 GB GDDR6
