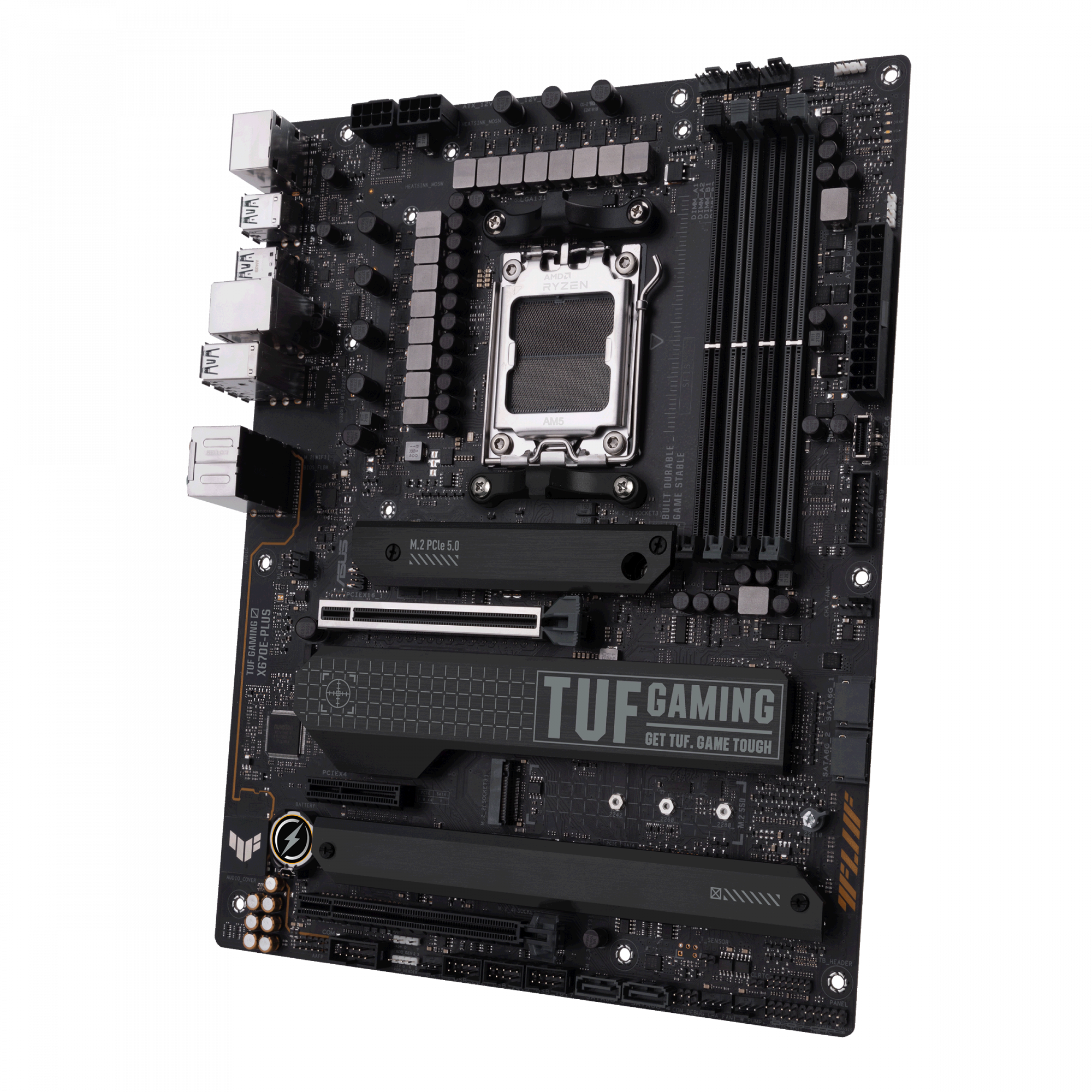

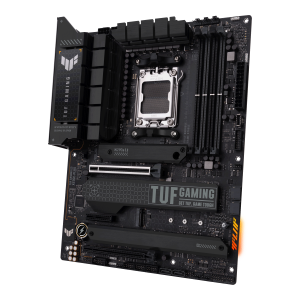

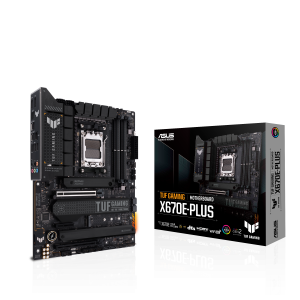

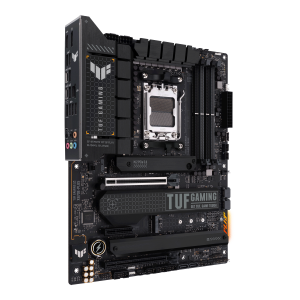

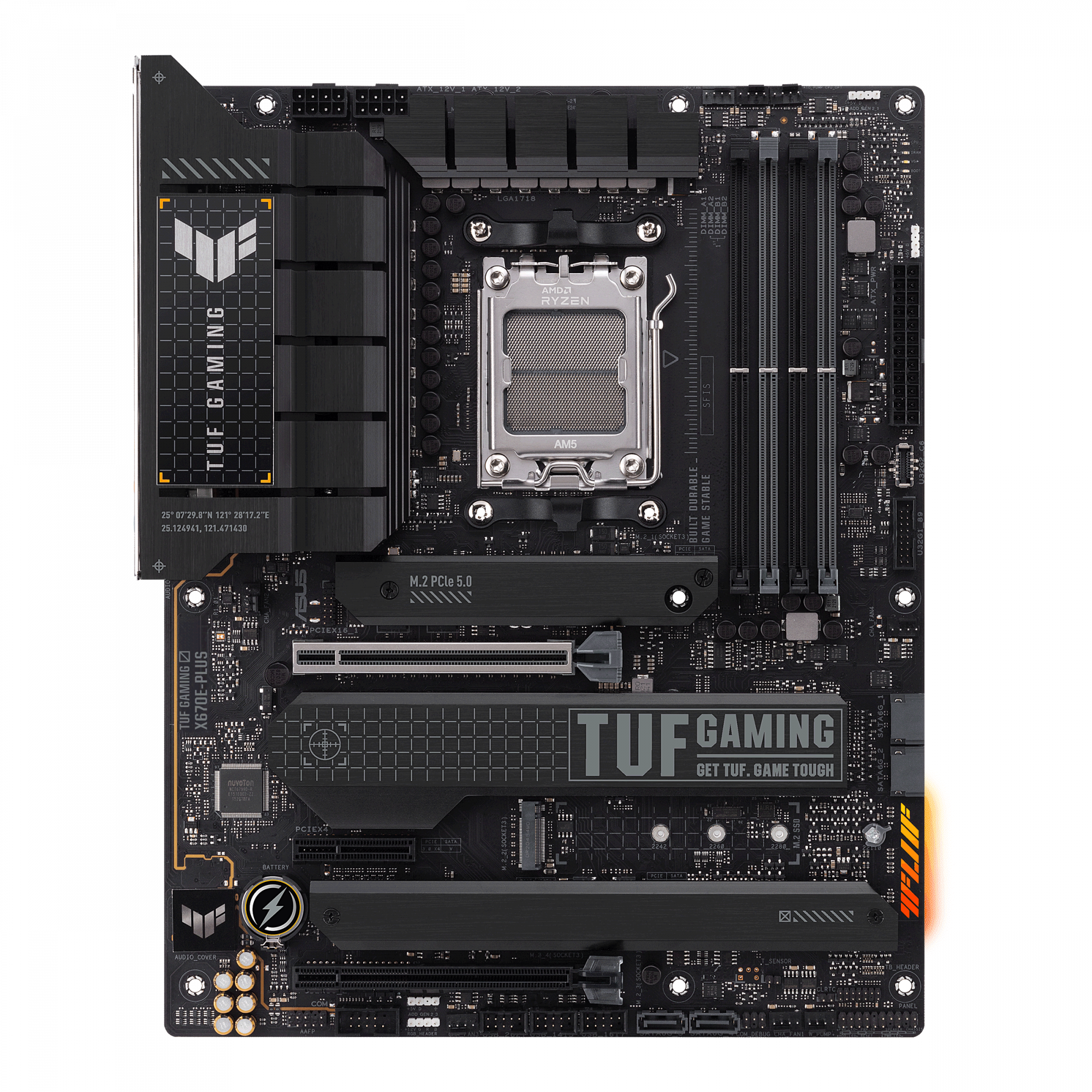

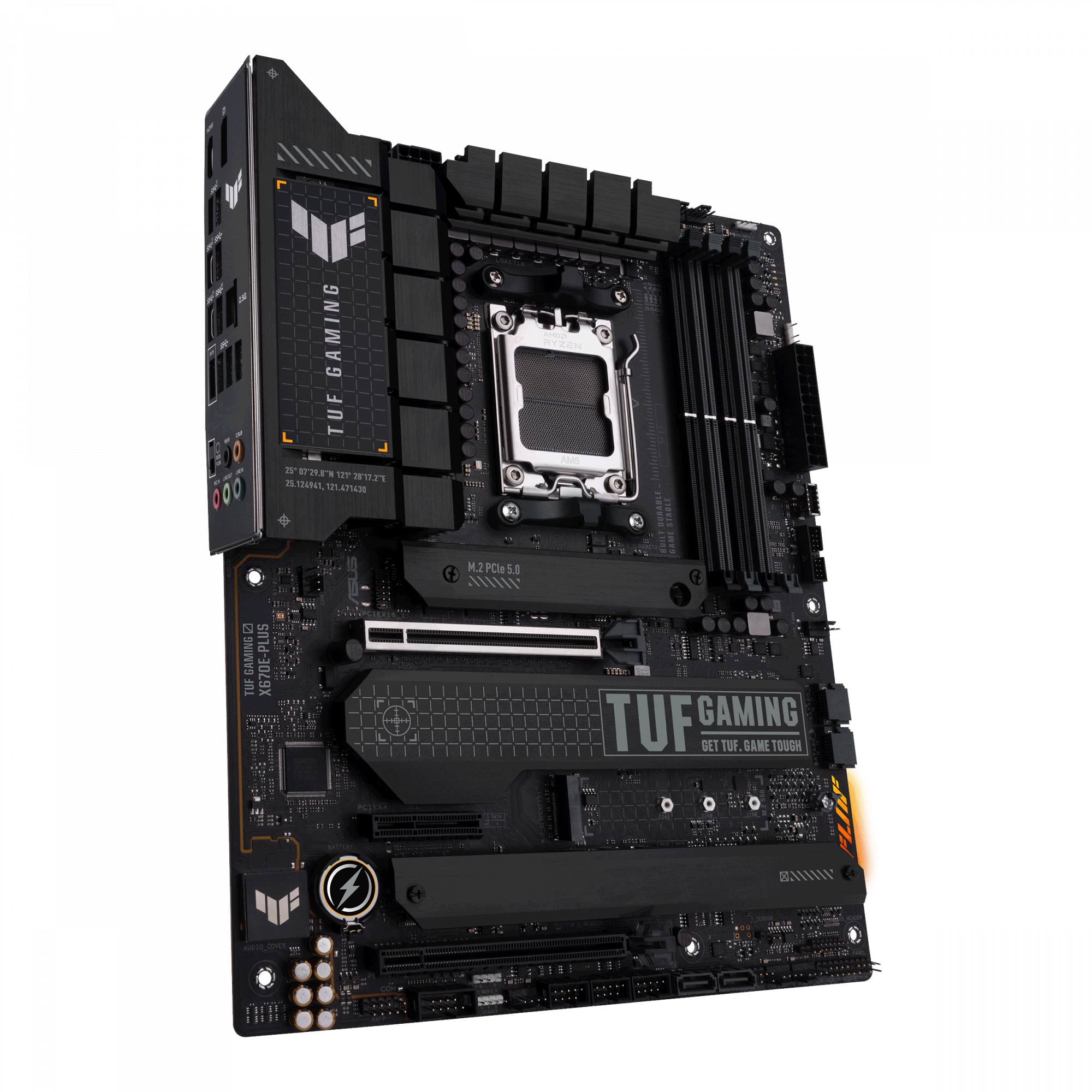

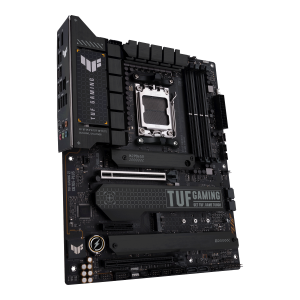

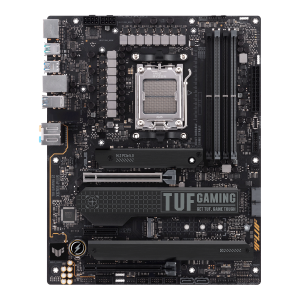

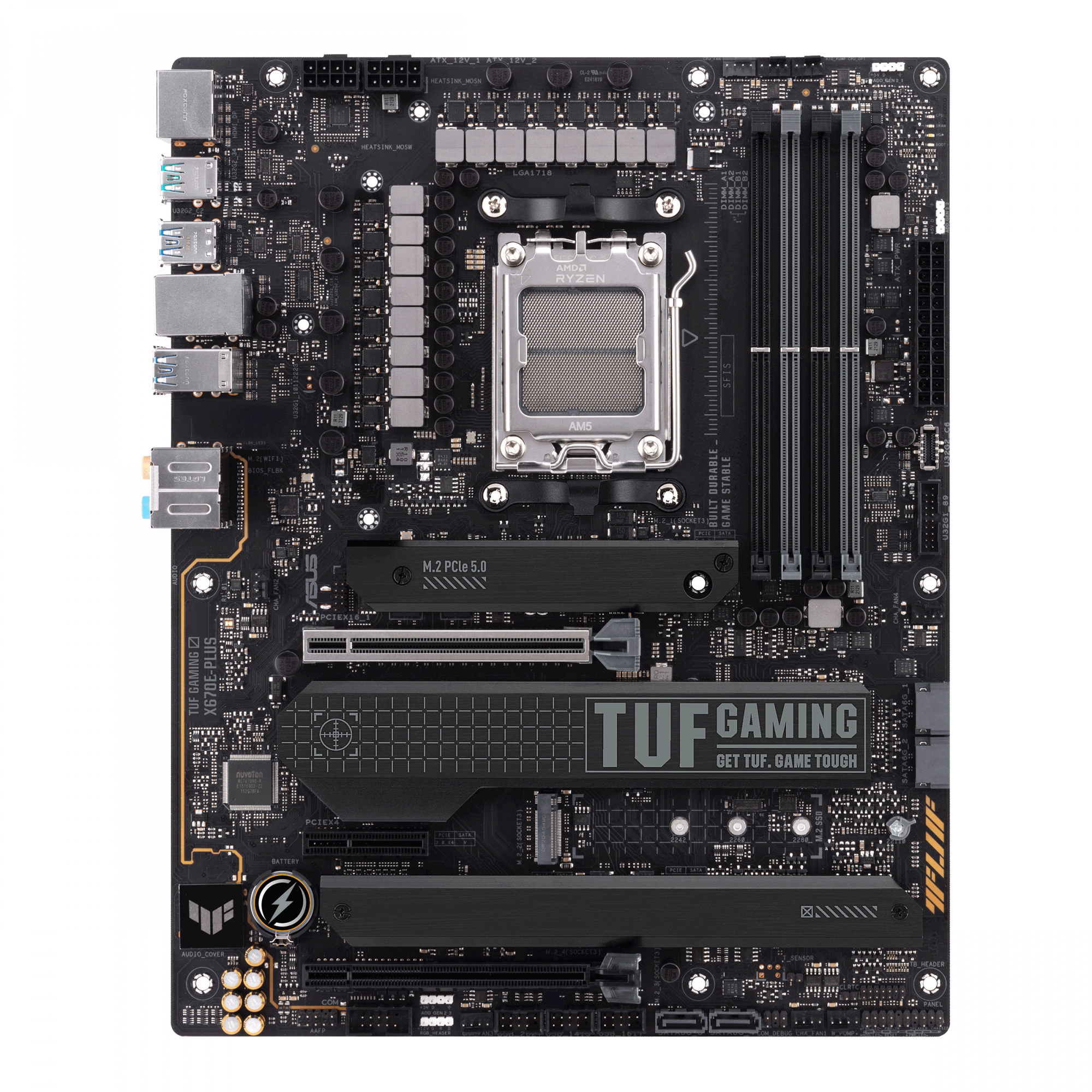

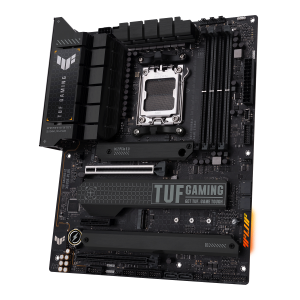

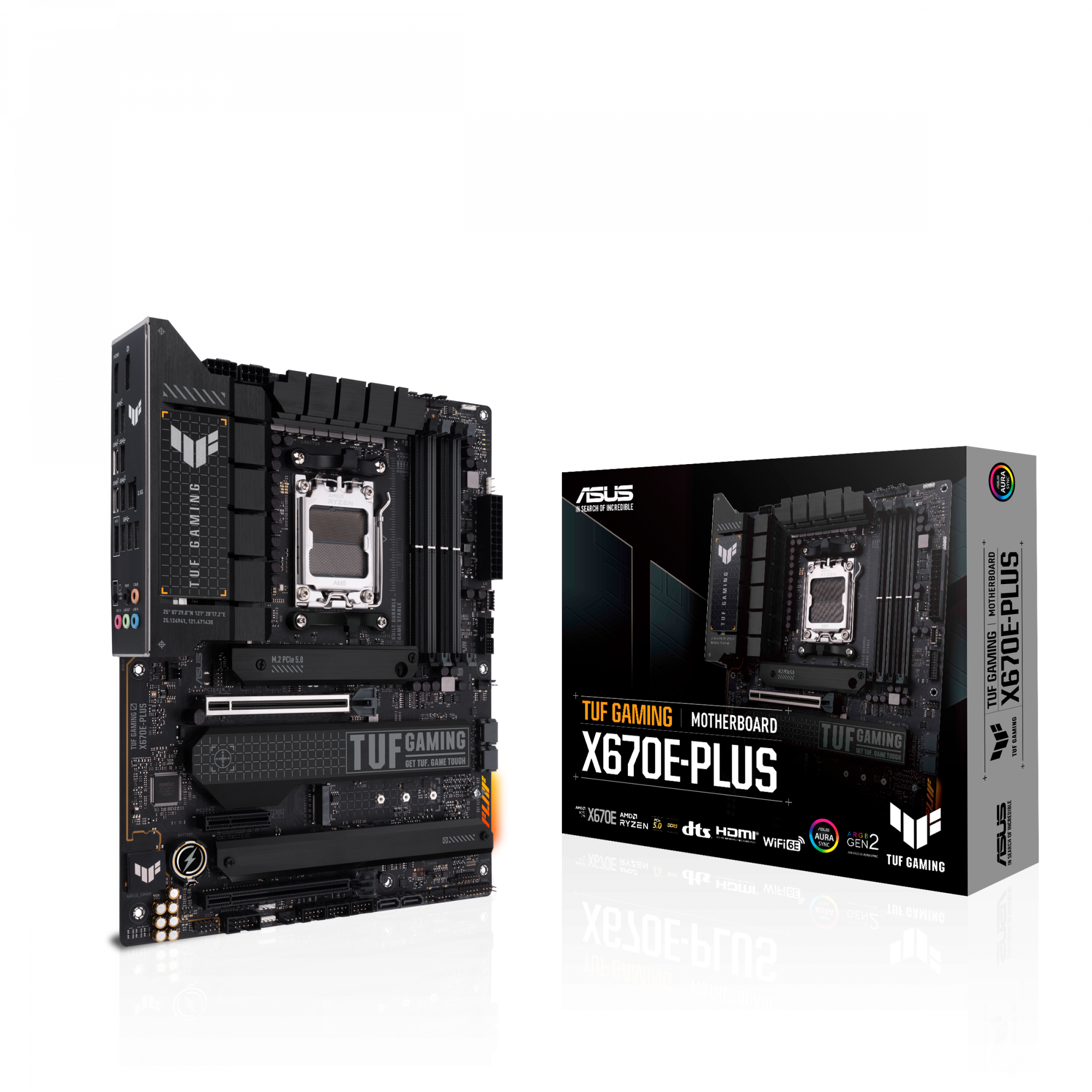

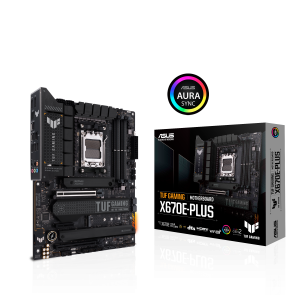

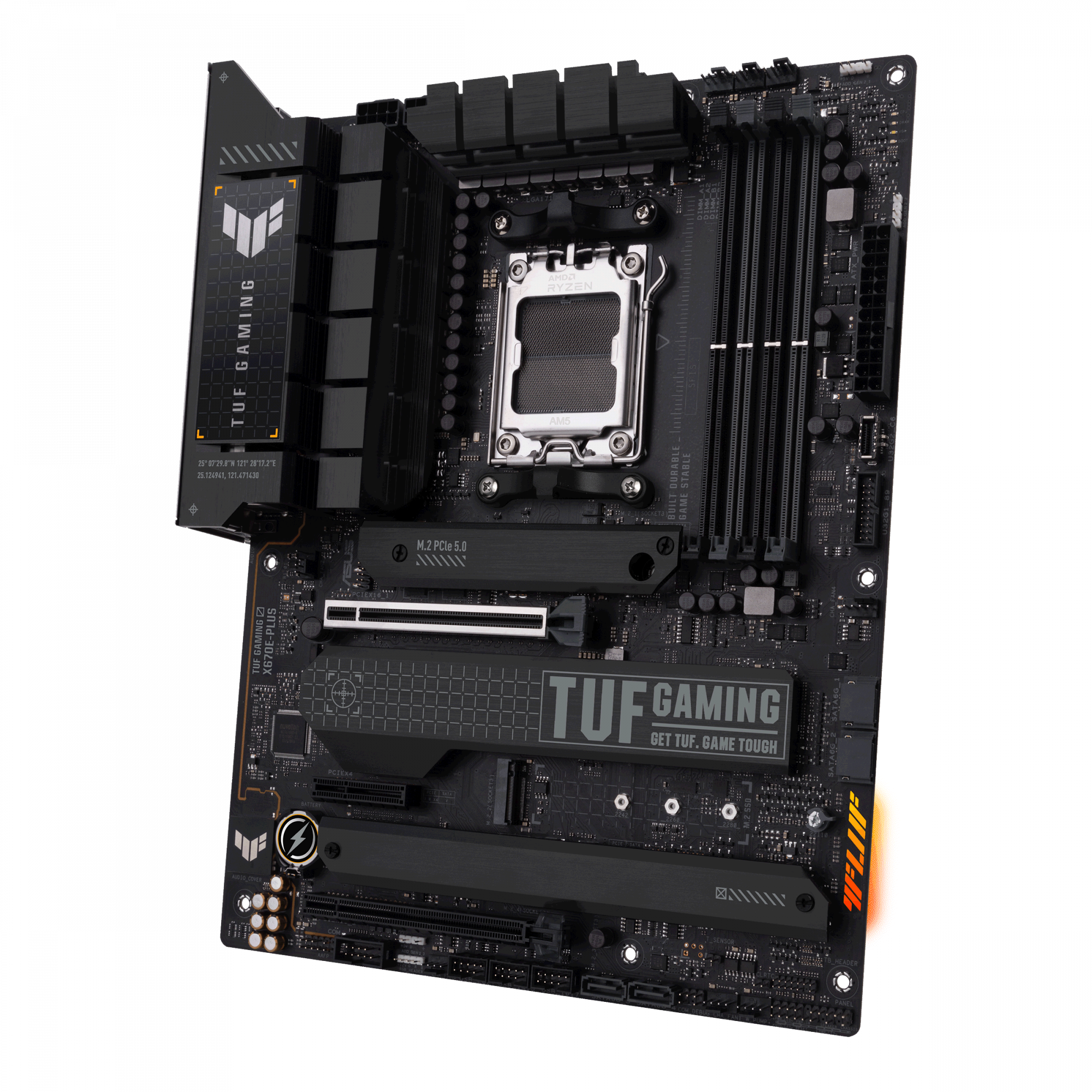

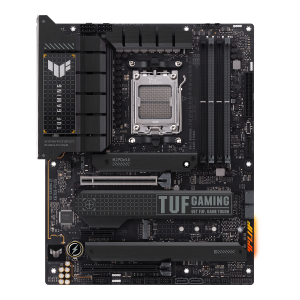

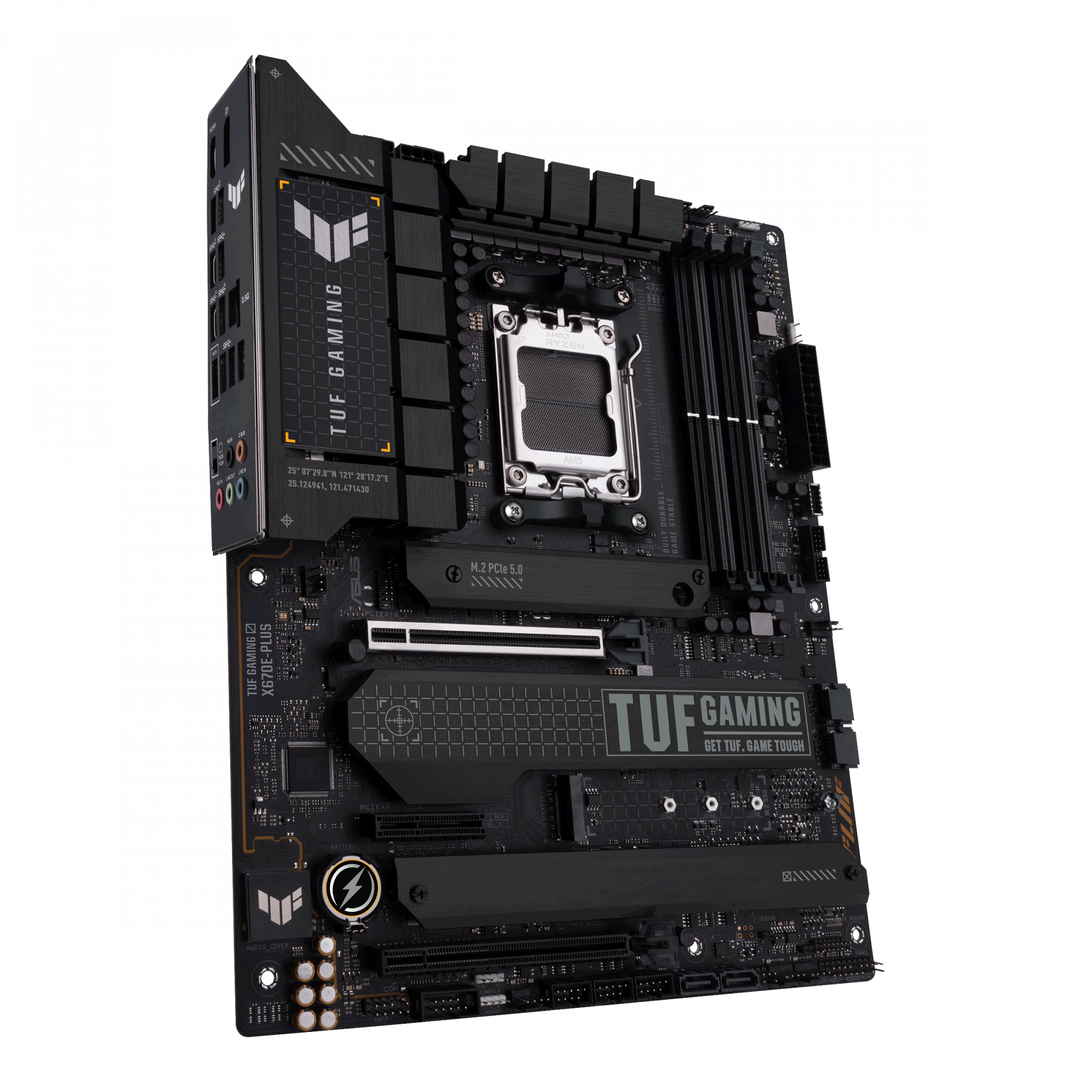

ASUS TUF GAMING X670E-PLUS AMD X670 Socket AM5 ATX
Roll over image to zoom inClick to Open expanded view
ASUS TUF GAMING X670E-PLUS AMD X670 Socket AM5 ATX
ASUS TUF GAMING X670E-PLUS AMD X670 Socket AM5 ATX
ASUS TUF GAMING X670E-PLUS AMD X670 Socket AM5 ATX
ASUS TUF GAMING X670E-PLUS AMD X670 Socket AM5 ATX
ASUS TUF GAMING X670E-PLUS AMD X670 Socket AM5 ATX
ASUS TUF GAMING X670E-PLUS AMD X670 Socket AM5 ATX
ASUS TUF GAMING X670E-PLUS AMD X670 Socket AM5 ATX
ASUS TUF GAMING X670E-PLUS AMD X670 Socket AM5 ATX
ASUS TUF GAMING X670E-PLUS AMD X670 Socket AM5 ATX
ASUS TUF GAMING X670E-PLUS AMD X670 Socket AM5 ATX
ASUS TUF GAMING X670E-PLUS AMD X670 Socket AM5 ATX
ASUS TUF GAMING X670E-PLUS AMD X670 Socket AM5 ATX
ASUS TUF GAMING X670E-PLUS AMD X670 Socket AM5 ATX
ASUS TUF GAMING X670E-PLUS AMD X670 Socket AM5 ATX
ASUS TUF GAMING X670E-PLUS AMD X670 Socket AM5 ATX
ASUS TUF GAMING X670E-PLUS AMD X670 Socket AM5 ATX
ASUS TUF GAMING X670E-PLUS AMD X670 Socket AM5 ATX
ASUS TUF GAMING X670E-PLUS AMD X670 Socket AM5 ATX
ASUS TUF GAMING X670E-PLUS AMD X670 Socket AM5 ATX
Print
Model: TUF GAMING X670E-P
EAN: 4711081905608

ASUS TUF GAMING X670E-PLUS AMD X670 Socket AM5 ATX

Manufacturer:
Asus
ASUS TUF GAMING X670E-PLUS, AMD, Socket AM5, Socket AM5, DDR5-SDRAM, 128 GB, DIMM
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

ASUS TUF GAMING X670E-PLUS. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 7680 x 4320 pixels. Ethernet interface type: 2.5 Gigabit Ethernet

Product Properties

  • Model
  • TUF GAMING X670E-P
  • EAN
  • 4711081905608
  • BIOS
  • BIOS memory size
  • 256 Mbit
  • BIOS type
  • UEFI AMI
  • Expansion slots
  • Number of M.2 (M) slots
  • 4
  • PCI Express x16 (Gen 4.x) slots
  • 1
  • PCI Express x16 (Gen 5.x) slots
  • 1
  • PCI Express x4 slots
  • 1
  • Features
  • Audio chip
  • Realtek S1220A
  • Audio output channels
  • 7.1 channels
  • Chip Set
  • AMD
  • Component for
  • PC
  • Motherboard chipset
  • AMD X670
  • Motherboard form factor
  • ATX
  • Power source type
  • ATX
  • Windows operating systems supported
  • Windows 10 x64, Windows 11 x64
  • Graphics
  • Maximum resolution
  • 7680 x 4320 pixels
  • Parallel processing technology support
  • Not supported
  • Internal I/O
  • 12V power connector
  • Yes
  • ATX Power connector (24-pin)
  • Yes
  • CPU fan connector
  • Yes
  • EPS power connector (8-pin)
  • Yes
  • Front panel audio connector
  • Yes
  • Front panel connector
  • Yes
  • Number of chassis fan connectors
  • 4
  • Number of COM connectors
  • 1
  • Number of SATA III connectors
  • 4
  • Peripheral (Molex) power connectors (4-pin)
  • 1
  • RGB
  • Yes
  • Thunderbolt headers
  • 1
  • USB 2.0 connectors
  • 3
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
  • 1
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
  • 1
  • Memory
  • ECC
  • Yes
  • Memory channels
  • Dual-channel
  • Memory Slot Support
  • 128 GB
  • Memory slots type
  • DIMM
  • Non-ECC
  • Yes
  • Number of memory slots
  • 4
  • Supported memory clock speed (max)
  • 6400 MHz
  • Supported memory clock speeds
  • 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
  • Supported memory types
  • DDR5-SDRAM
  • Unbuffered memory
  • Yes
  • Network
  • Ethernet interface type
  • 2.5 Gigabit Ethernet
  • Ethernet LAN
  • Yes
  • Wi-Fi
  • No
  • Other features

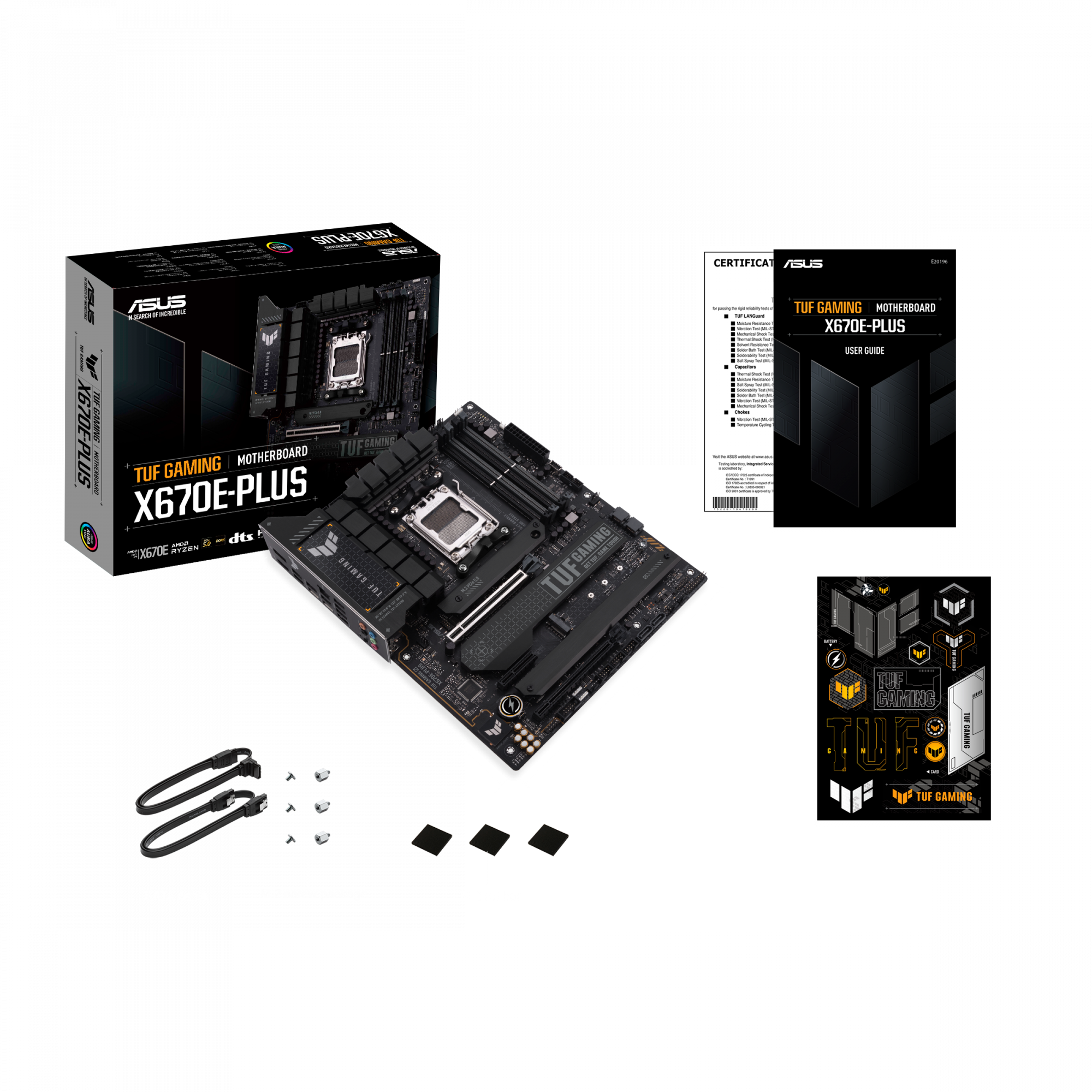

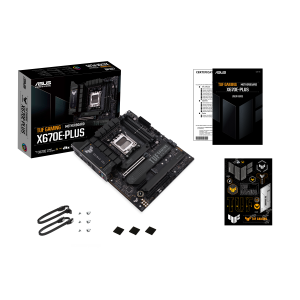

  • Packaging content
  • Cables 2 x SATA 6Gb/s cables Miscellaneous 2 x Rubber packages for M.2 2 x Screw packages for M.2 SSD Documentation 1 x TUF certification card 1 x User guide
  • Special features
  • TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS header - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS header - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header
  • Packaging content
  • Cables included
  • SATA
  • Drivers included
  • Yes
  • User guide
  • Yes
  • Packaging data
  • Package depth
  • 273 mm
  • Package height
  • 68 mm
  • Package weight
  • 2.35 kg
  • Package width
  • 338 mm
  • Processor
  • Processor manufacturer
  • AMD
  • Processor socket
  • Socket AM5
  • Supported processor sockets
  • Socket AM5

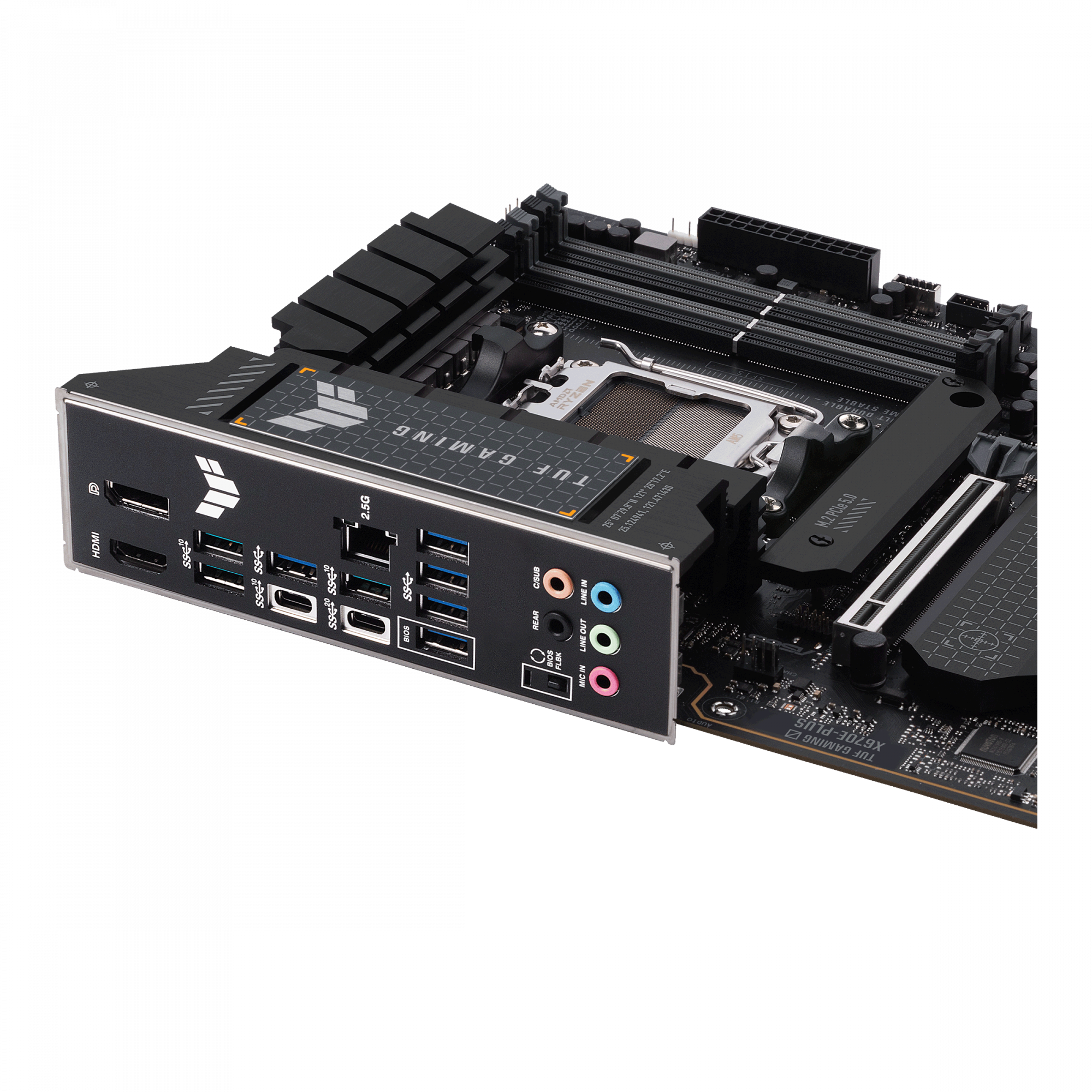

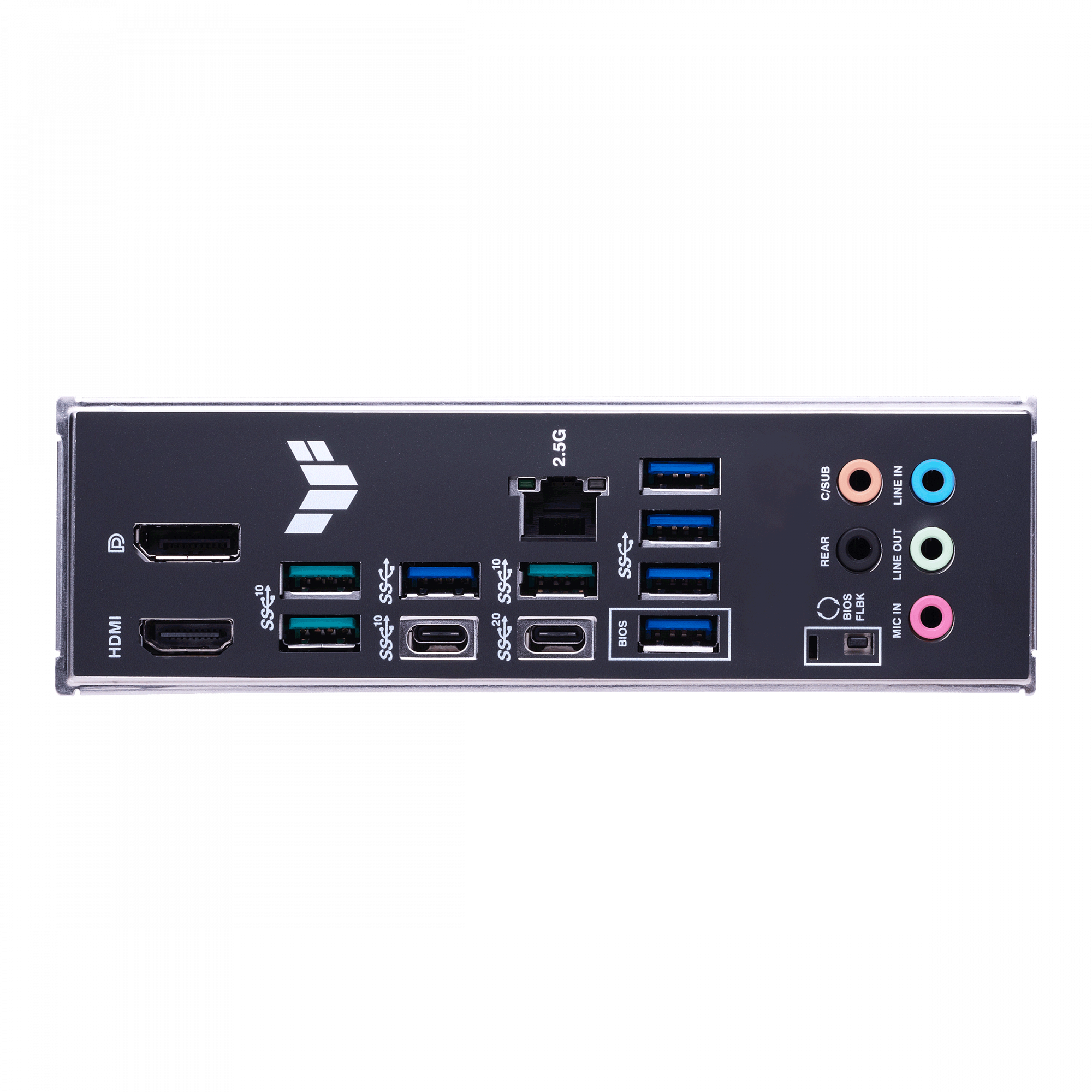

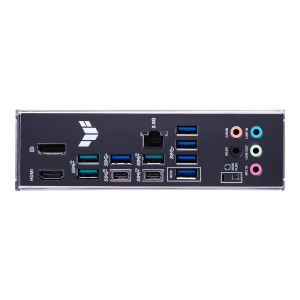

  • Rear panel I/O ports
  • DisplayPorts quantity
  • 1
  • Ethernet LAN (RJ-45) ports
  • 1
  • HDMI ports quantity
  • 1
  • HDMI version
  • 2.1
  • Headphone outputs
  • 1
  • Microphone in
  • Yes
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 5
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 3
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
  • 1
  • USB 3.2 Gen 2x2 Type-C ports quantity
  • 1
  • Storage controllers
  • RAID levels
  • 0, 1, 10
  • RAID support
  • Yes
  • Supported storage drive interfaces
  • M.2, SATA III
  • Supported storage drive types
  • HDD & SSD
  • Weight & dimensions
  • Depth
  • 244 mm
  • Width
  • 305 mm
