Description

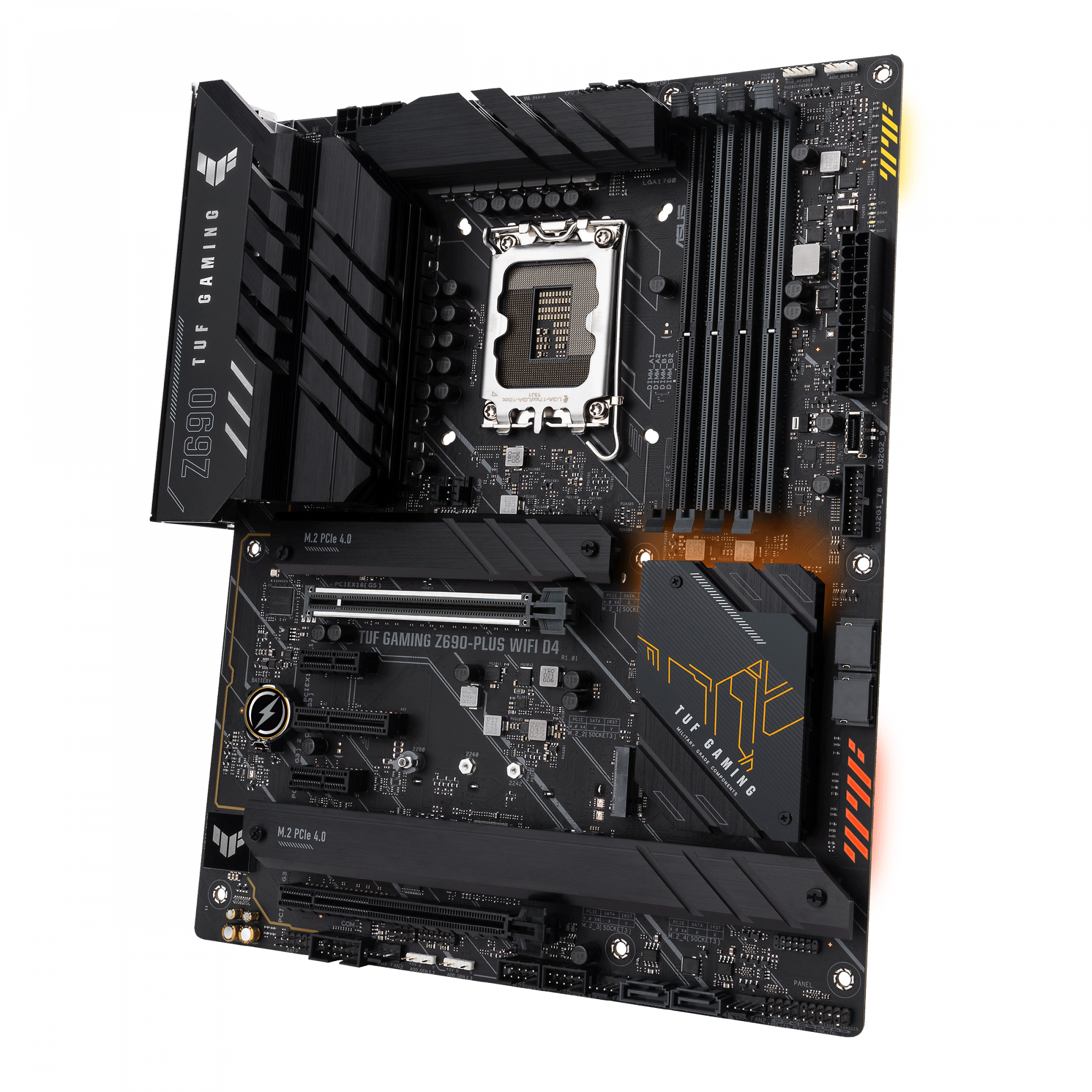

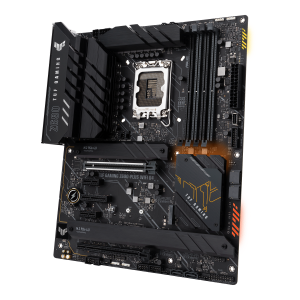

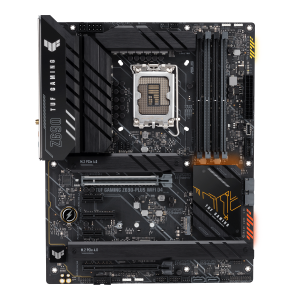

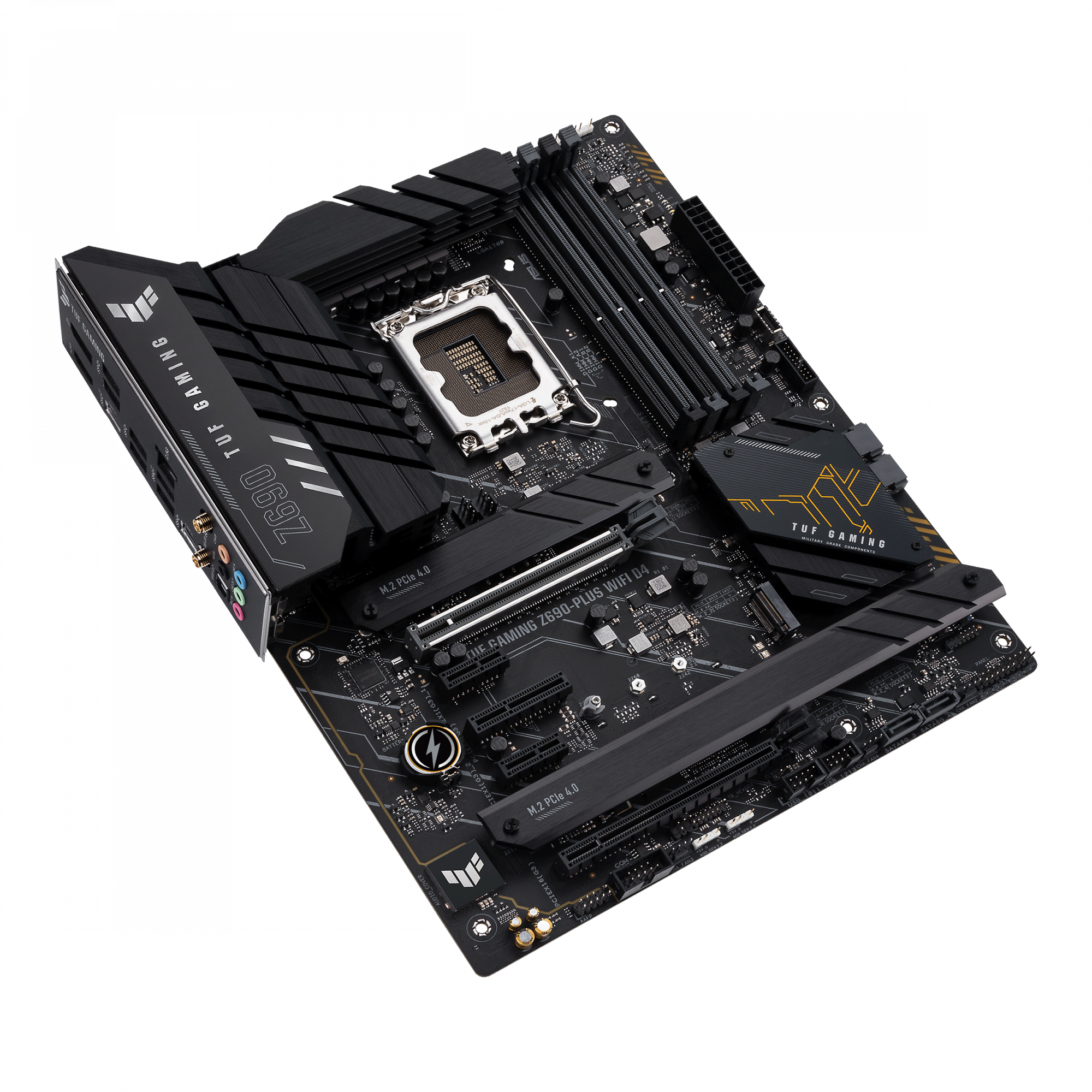

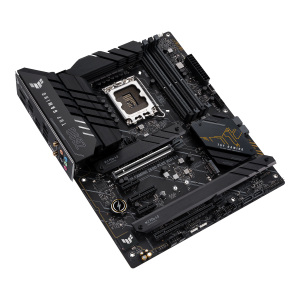

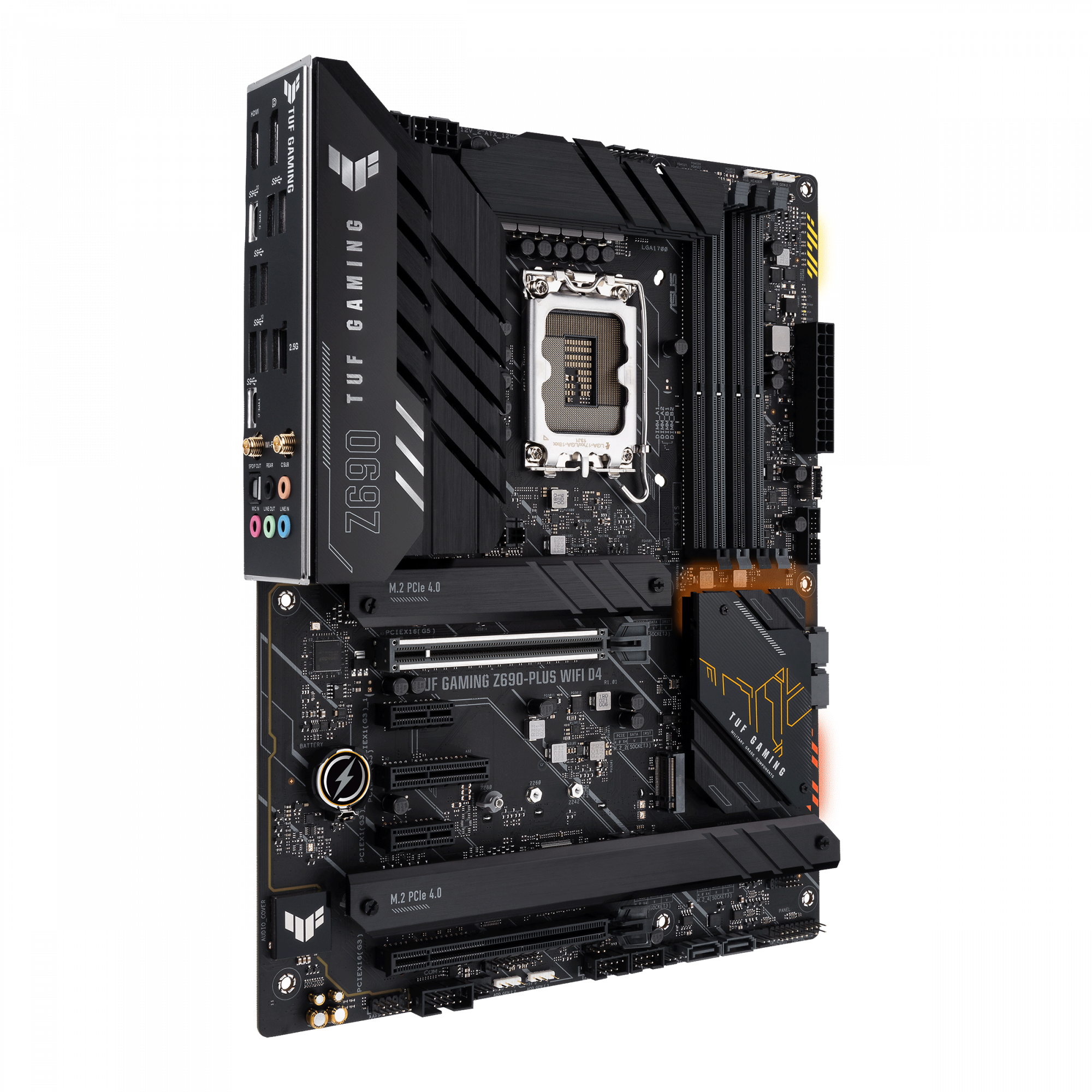

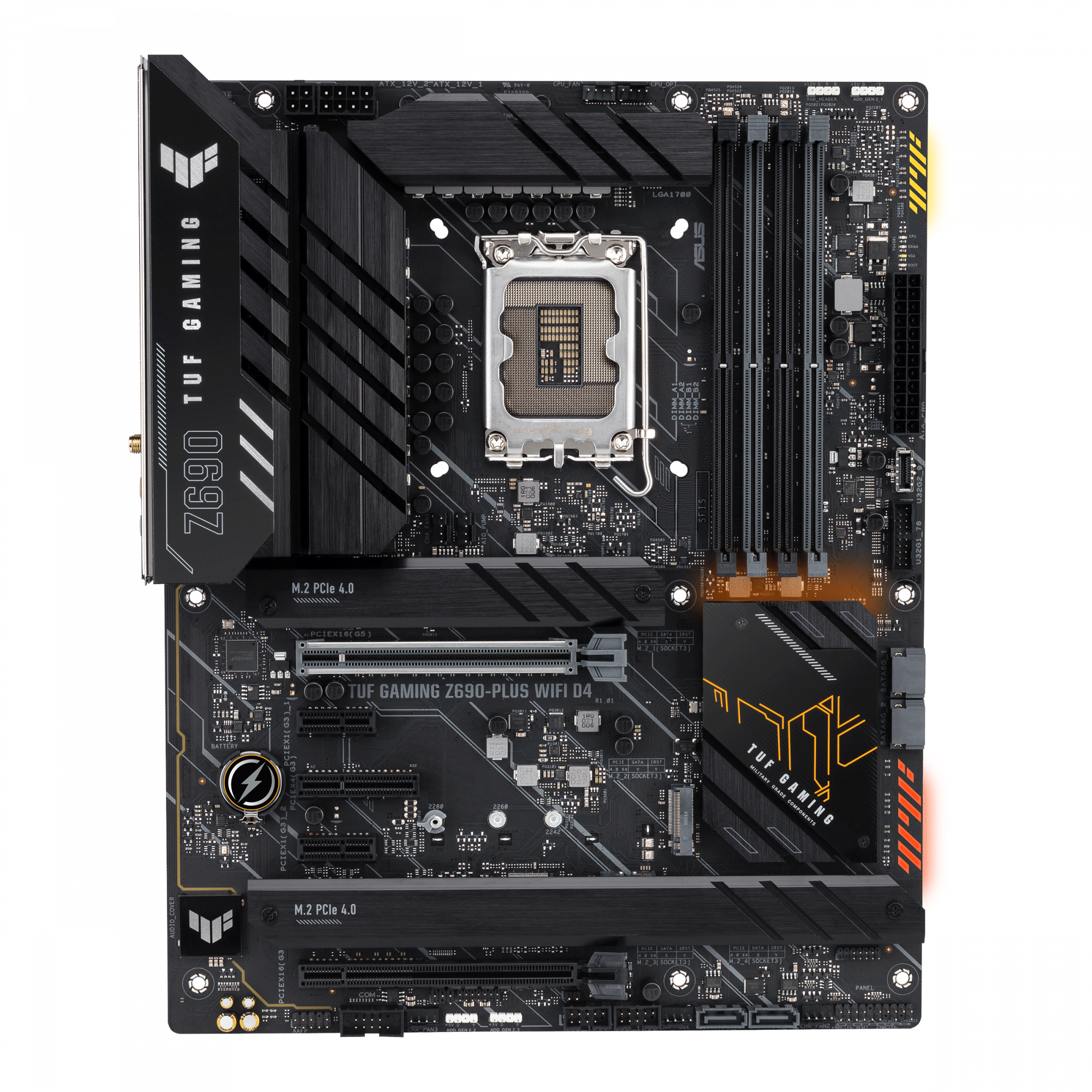

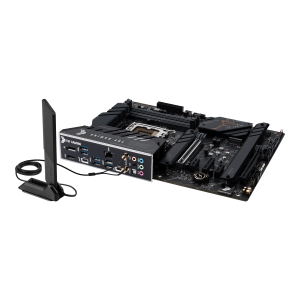

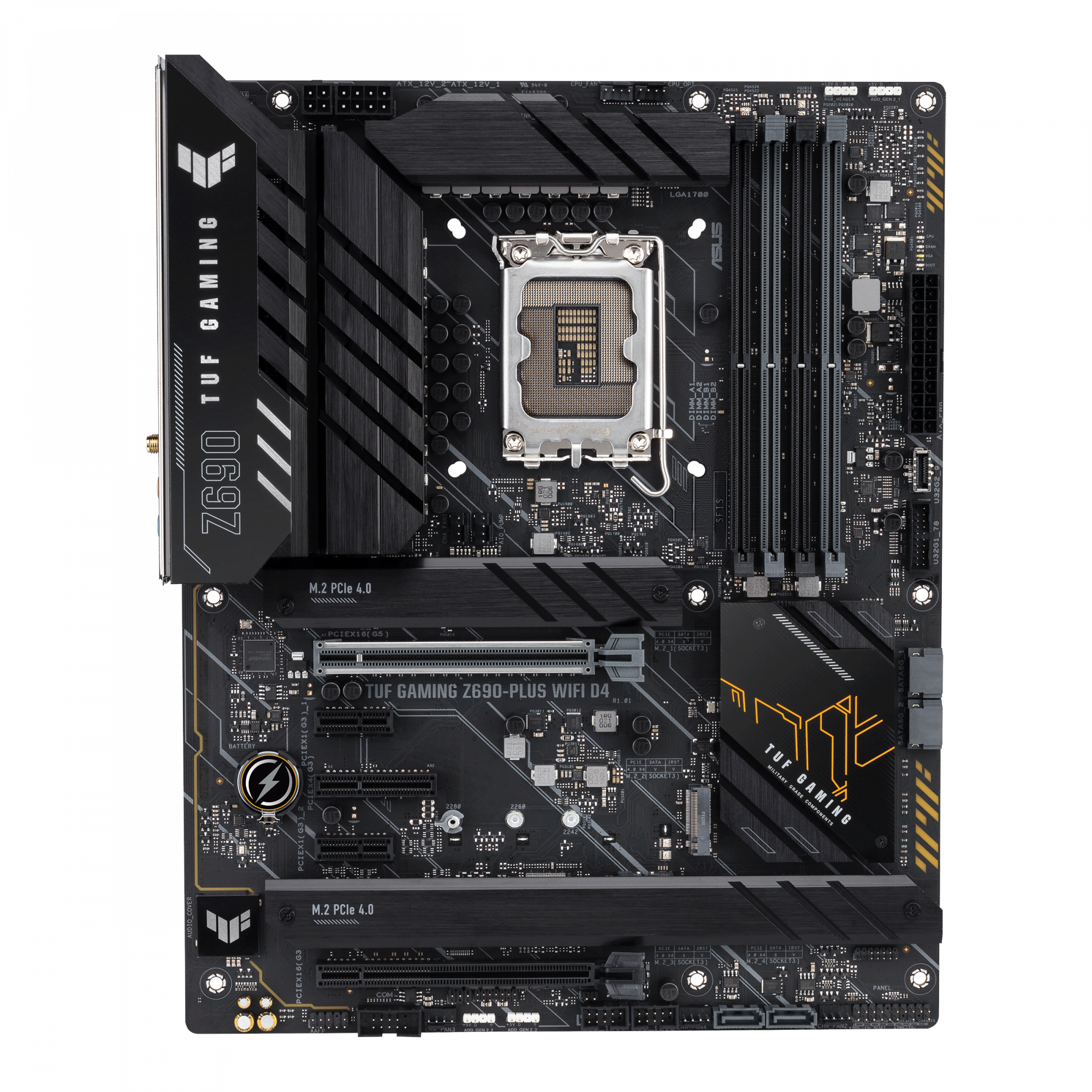

ASUS TUF GAMING Z690-PLUS WIFI D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

Intel® LGA 1700 socket: Ready for 12th Gen Intel Core™ processors
Enhanced power solution: 14+1 DrMOS, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
Next-gen connectivity: PCIe® 5.0, USB 3.2 Gen2x2 Type-C®, front USB 3.2 Gen 2 Type-C, Thunderbolt™ 4 header support
Made for online gaming: WiFi 6, Intel 2.5 Gb Ethernet and TUF LANGuard
Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate
Outshine RGB Aura Effect: Stylish edge and PCH lighting design, addressable RGB headers and RGB strip header support

Product Properties

Manufacturer
Asus

Model
GMNG Z690-PL WF D4

EAN
4711081438779

BIOS

BIOS memory size
192 Mbit

BIOS type
UEFI AMI

Bullet points

Point
Comprehensive cooling

Enhanced power solution

Intel® LGA 1700 socket: Ready for 12th Gen Intel Core™ processors

Made for online gaming: WiFi 6, Intel 2.5 Gb Ethernet and TUF LANGuard

Next-gen connectivity

Outshine RGB Aura Effect

Two-way AI Noise-Cancelation

Expansion slots

Number of M.2 (M) slots
4

PCI Express x1 (Gen 3.x) slots
2

PCI Express x16 (Gen 3.x) slots
1

PCI Express x4 slots
1

Features

Audio output channels
7.1 channels

Chip Set
Intel

Component for
PC

Motherboard chipset
Intel Z690

Motherboard form factor
ATX

Windows operating systems supported
Windows 10, Windows 11

Graphics

Parallel processing technology support
Not supported

Internal I/O

12V power connector
Y

ATX Power connector (24-pin)
Y

CPU fan connector
Y

EPS power connector (8-pin)
Y

Front panel audio connector
Y

Number of chassis fan connectors
4

Number of COM connectors
1

Number of SATA III connectors
4

Peripheral (Molex) power connectors (4-pin)
1

Power fan connector
Y

RGB
Y

Thunderbolt headers
1

USB 2.0 connectors
2

USB 3.2 Gen 1 (3.1 Gen 1) connectors
1

USB 3.2 Gen 2 (3.1 Gen 2) connectors
1

Logistics data

Harmonized System (HS) code
84733020

Memory

Memory channels
Dual-channel

Memory Slot Support
128 GB

Memory slots type
DIMM

Non-ECC
Y

Number of memory slots
4

Supported memory clock speeds
2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5000,5133,5333 MHz

Supported memory types
DDR4-SDRAM

Unbuffered memory
Y

Network

Bluetooth
Y

Bluetooth version
5.2

Ethernet interface type
2.5 Gigabit Ethernet

Ethernet LAN
Y

Top Wi-Fi standard
Wi-Fi 6 (802.11ax)

Wi-Fi
Y

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Other features

Packaging content

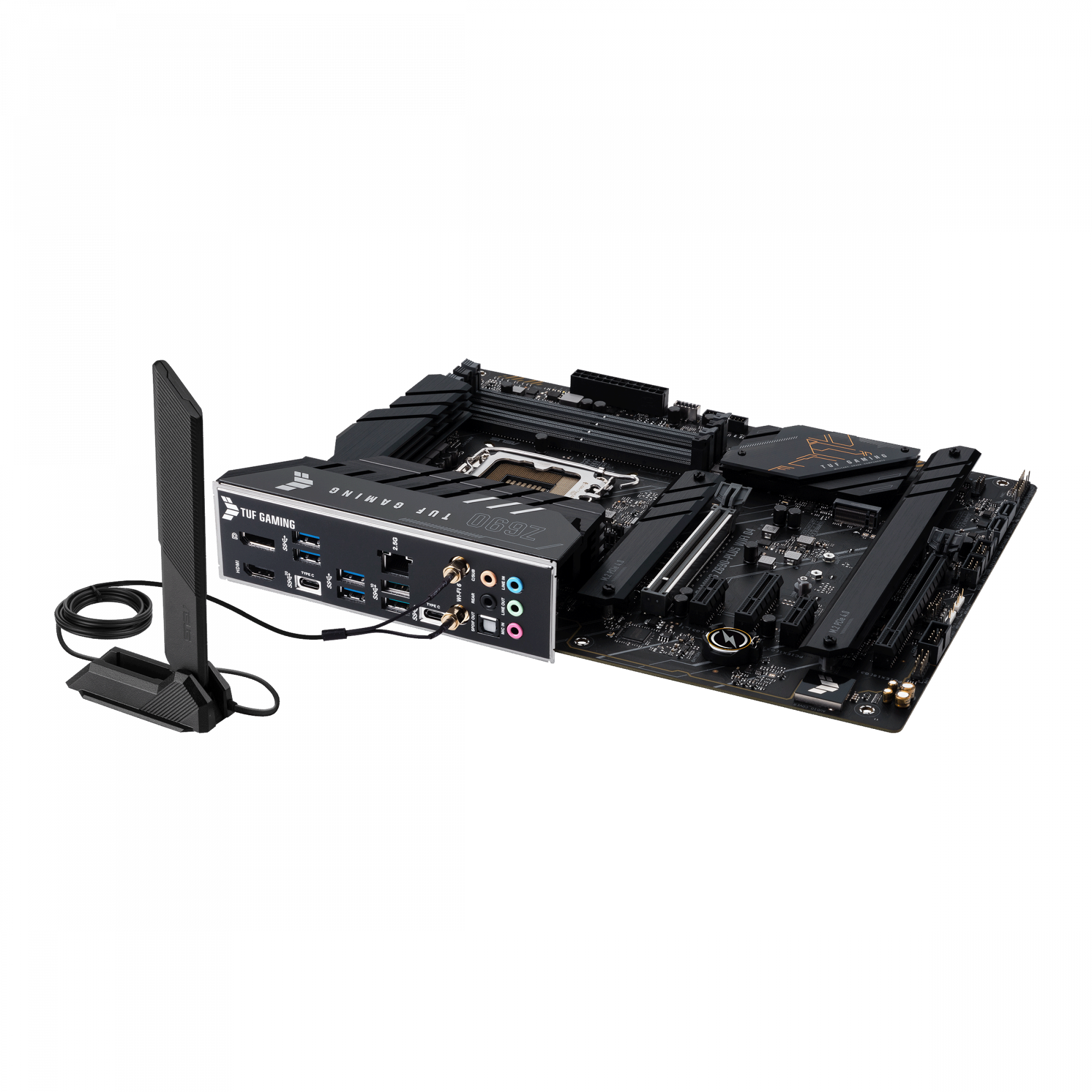

2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antenna 2 x M.2 Rubber Packages 1 x M.2 SSD screw package 1 x TUF GAMING sticker 1 x Support DVD 1 x TUF Certification card 1 x User guide

Weight
1.32 kg

Packaging content

Cables included
SATA

Drivers included
Y

Processor

Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G

Processor manufacturer
Intel

Processor socket
LGA 1700

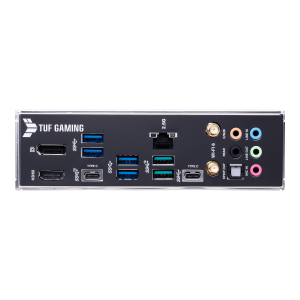

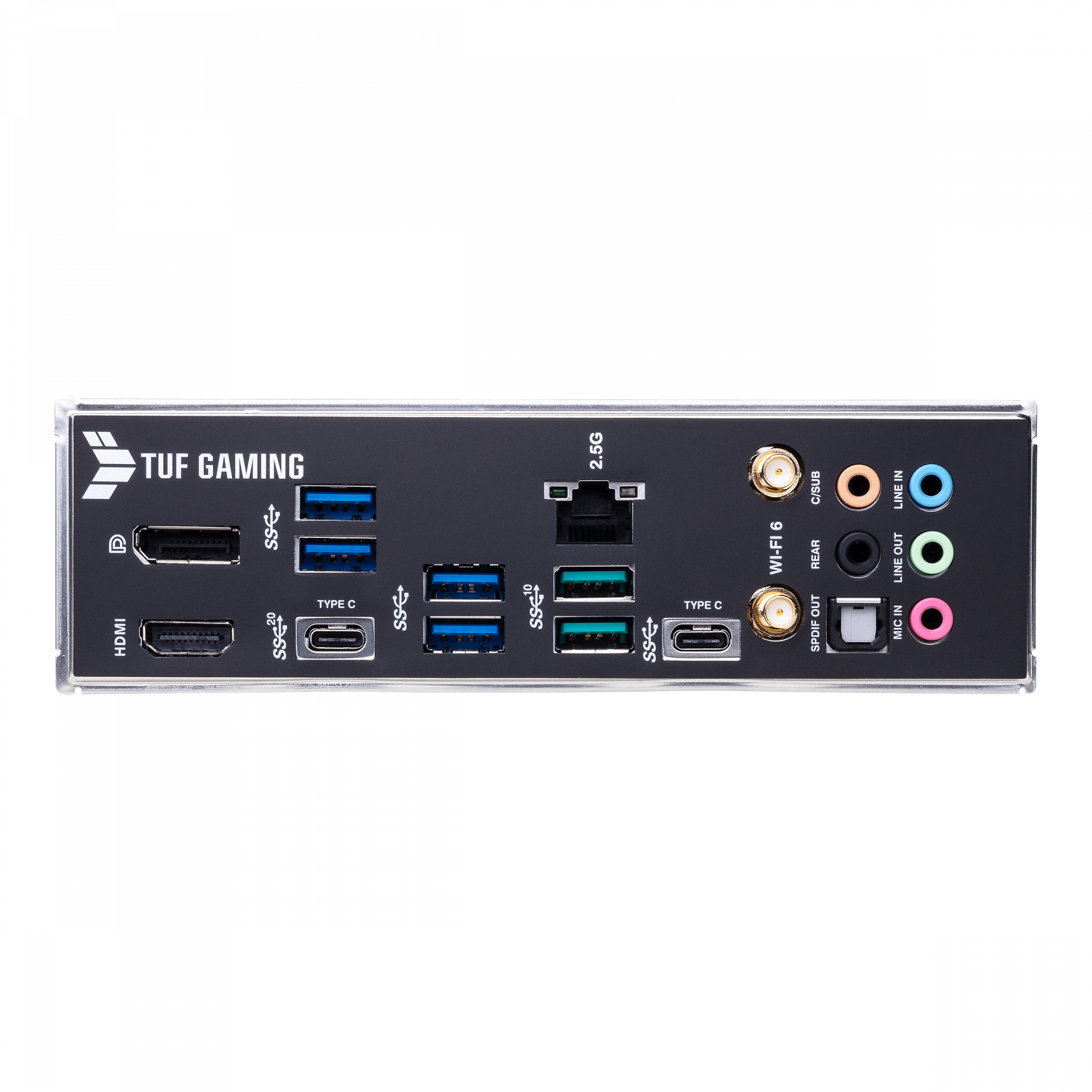

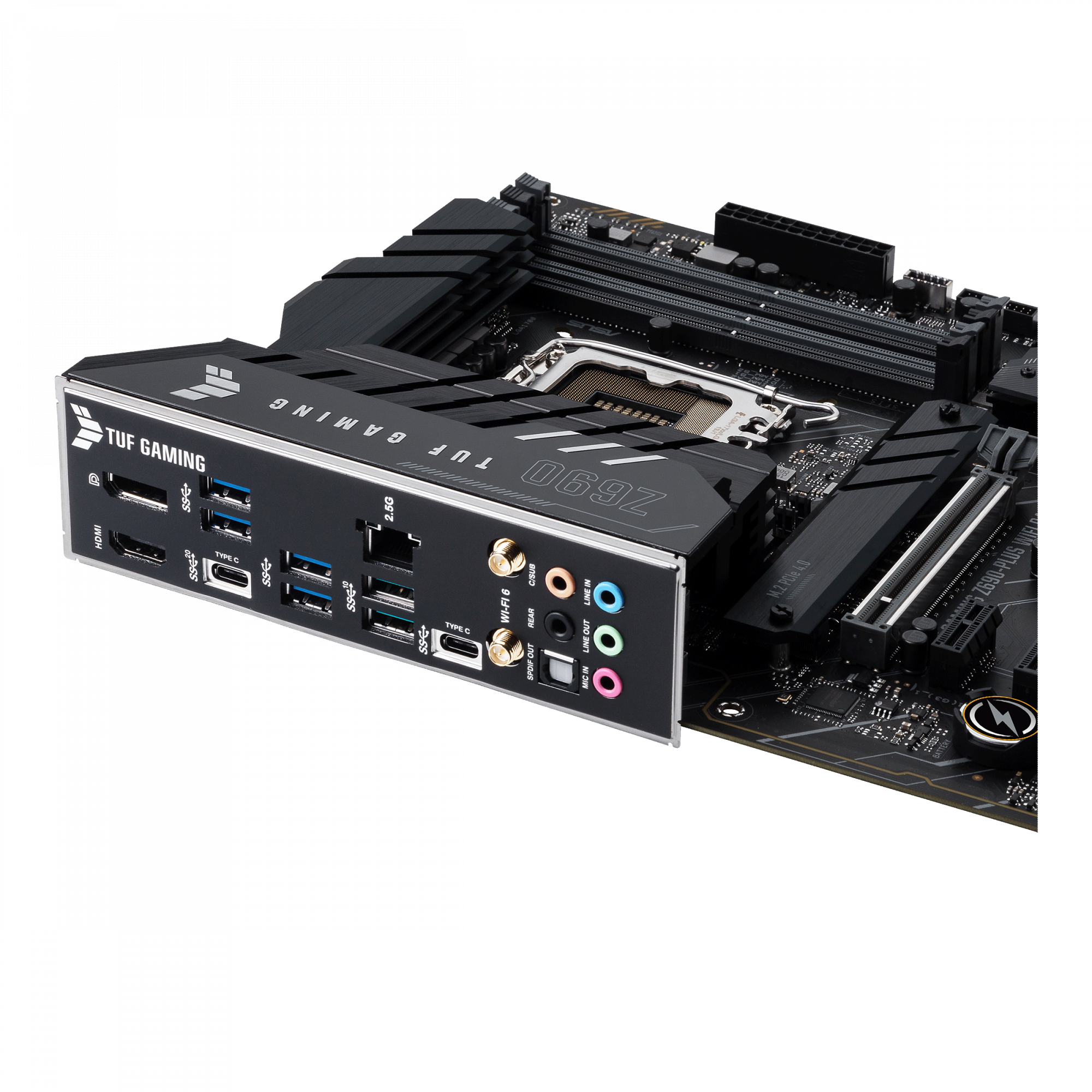

Rear panel I/O ports

DisplayPort version
1.4

DisplayPorts quantity
1

Ethernet LAN (RJ-45) ports
1

HDMI ports quantity
1

HDMI version
2.1

Headphone outputs
1

Microphone in
Y

S/PDIF out port
Y

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2

USB 3.2 Gen 2x2 Type-C ports quantity
1

Storage controllers

RAID levels
0, 1, 5, 10

RAID support
Y

Supported storage drive interfaces
M.2, SATA

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
244 mm

Width
305 mm

ASUS TUF GAMING Z690-PLUS WIFI D4 Intel Z690 LGA 1700 ATX
