Description

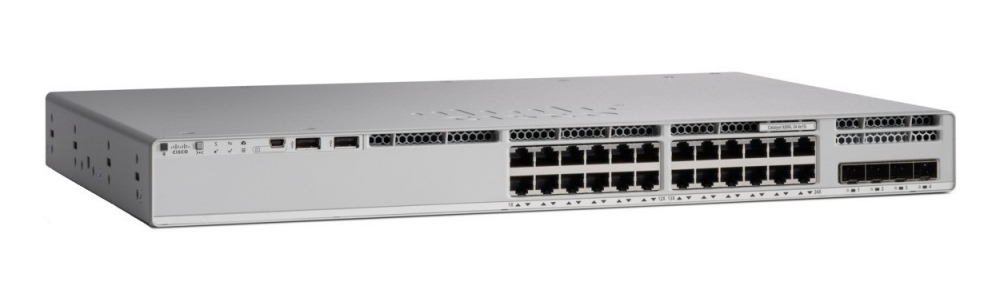

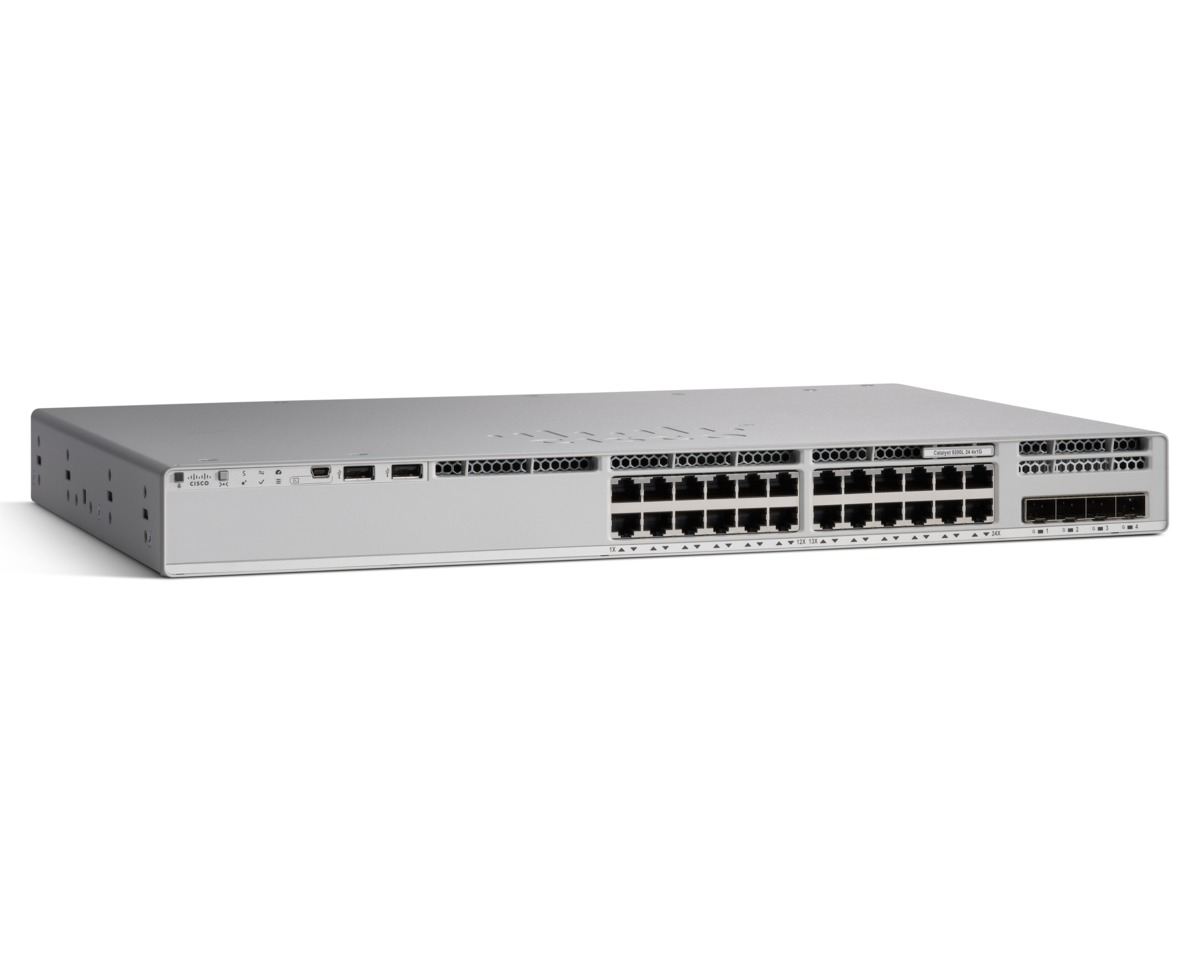

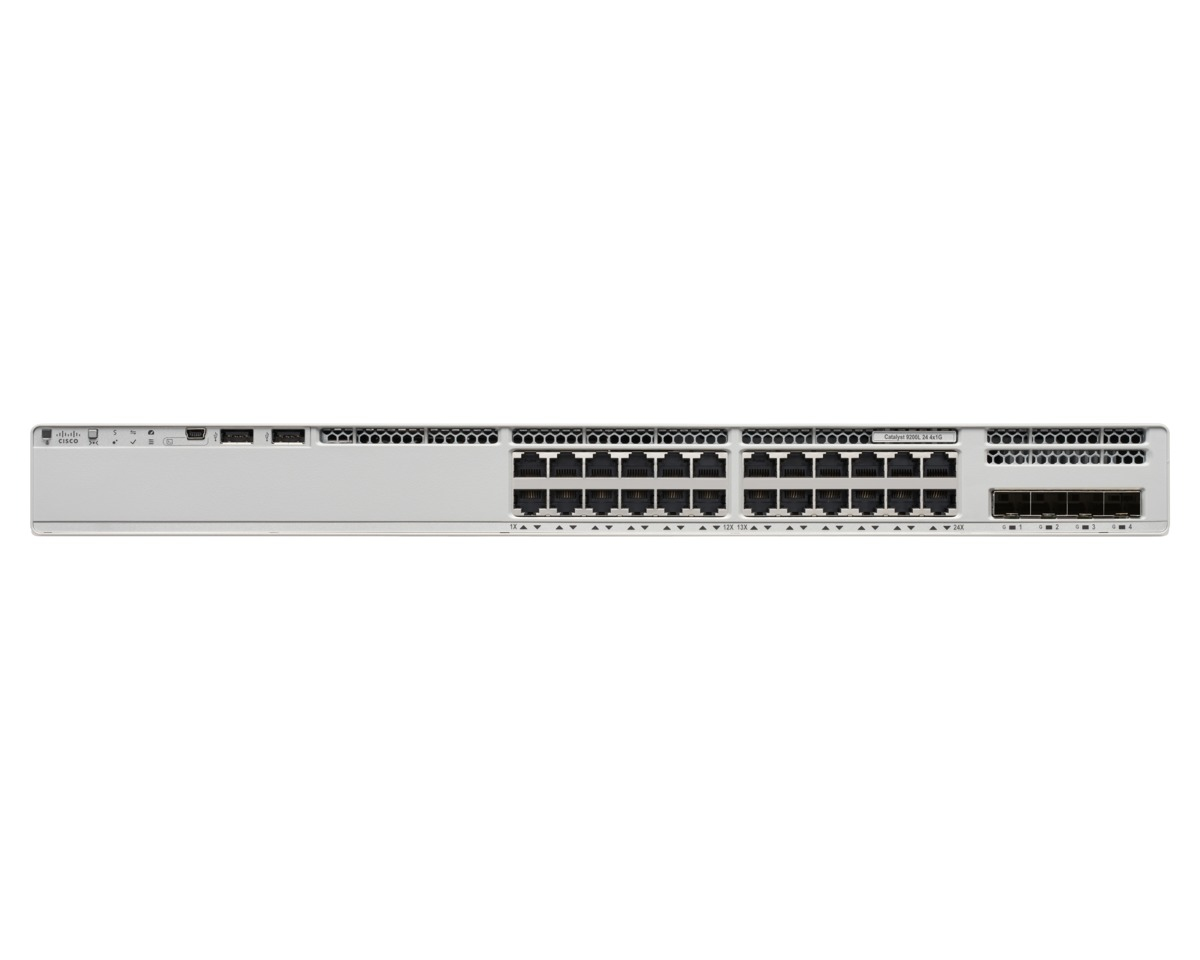

Cisco Catalyst C9200L. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power connector: AC-in jack

Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
Flexible downlink options with data or PoE+
Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
Advanced network monitoring using Full Flexible NetFlow
Cisco Software-Defined Access (SD-Access):
Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)
Network assurance and improved resolution time through Cisco DNA Center
Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry
ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries

Product Properties

Manufacturer
Cisco

Model
C9200-24T-E

Bullet points

Point
Advanced network monitoring using Full Flexible NetFlow

Cisco IOS XE

Cisco Software-Defined Access (SD-Access):

Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems

Flexible downlink options with data or PoE+

Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access

Network assurance and improved resolution time through Cisco DNA Center

Plug and Play (PnP) enabled

Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks

UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure

Up to 48 ports of full Power over Ethernet Plus (PoE+) capability

Data transmission

Forwarding rate
95.23 Mpps

Jumbo frames
9198

Jumbo frames support
Yes

MAC address table
16000 entries

Packet buffer memory
4.1 MB

Switching capacity
128 Gbit/s

Design

Electromagnetic compatibility
47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317

Product colour
Grey

Logistics data

Harmonized System (HS) code
85176990

Management features

ARP inspection
Yes

Configuring Location Settings (CLI)
Yes

MIB support
BRIDGE-MIB, CISCO-BRIDGE-EXT-MIB, CISCO-BULK-FILE-MIB, CISCO-CABLE-DIAG-MIB, CISCO-CALLHOME-MIB, CISCO-CEF-MIB, CISCO-CIRCUIT-INTERFACE-MIB, CISCO-CONFIG-COPY-MIB, CISCO-CONFIG-MAN-MIB, CISCO-DEVICE-LOCATION-MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-EIGRP-MIB, CISCO-EMBEDDED-EVENT-MGR-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, CISCO-ENTITY-SENSOR-MIB, CISCO-ENTITY-VENDORTYPE-OID-MIB, CISCO-ERR-DISABLE-MIB, CISCO-FLASH-MIB, CISCO-FLOW-MONITOR-MIB, CISCO-FTP-CLIENT-MIB, CISCO-HSRP-EXT-MIB, CISCO-HSRP-MIB, CISCO-IETF-BFD-MIB, CISCO-IETF-PPVPN-MPLS-VPN-MIB, CISCO-IETF-PW-MPLS-MIB, CISCO-IF-EXTENSION-MIB, CISCO-IGMP-FILTER-MIB, CISCO-IMAGE-LICENSE-MGMT-MIB, CISCO-IMAGE-MIB, CISCO-IP-CBR-METRICS-MIB, CISCO-IP-STAT-MIB, CISCO-IP-TAP-MIB, CISCO-IP-URPF-MIB, CISCO-IPSEC-FLOW-MONITOR-MIB, CISCO-IPSEC-MIB, CISCO-IPSEC-PROVISIONING-MIB, CISCO-IPSLA-AUTOMEASURE-MIB, CISCO-IPSLA-ECHO-MIB, CISCO-IPSLA-JITTER-MIB, CISCO-L2-CONTROL-MIB, CISCO-L2L3-INTERFACE-CONFIG-MIB, CISCO-LAG-MIB, CISCO-LICENSE-MGMT-MIB, CISCO-LOCAL-AUTH-USER-MIB, CISCO

Quality of Service (QoS) support
Yes

Switch layer
L3

Switch type
Managed

Traffic classification
Yes

Web-based management
Yes

Multicast features

IPv4 multicast entries
8000

Multicast MAC address table
1000 entries

Multicast support
Yes

Network

10G support
Yes

Copper ethernet cabling technology
10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T

Flow control support
Yes

Full duplex
Yes

IP routing
Yes

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Number of VLANs
4096

Routing entries
3000

Spanning tree protocol
Yes

VLAN support
Yes

Operational conditions

Operating altitude
0 - 3000 m

Operating relative humidity (H-H)
5 - 90%

Operating temperature (T-T)
-5 - 45 °C

Storage temperature (T-T)
-40 - 70 °C

Packaging data

Package type
Box

Performance

Flash memory
4000 MB

Internal memory
4000 MB

Memory type
DRAM

Ports & interfaces

Fast Ethernet (copper) ports quantity
24

Power connector
AC-in jack

Switch Number of Ports
24

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Input current
12 - 6 A

Power supply included
Yes

Redundant power supply (RPS) support
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Protocols

Management protocols
SNMPv1/v2c/v3

Routing protocols
CDP, EIGRP, OSPF, RIP, VRRP

Security

Access Control List (ACL)
Yes

Security algorithms
128-bit AES

Weight & dimensions

Depth
350 mm

Height
44 mm

Weight
5 kg

Width
445 mm

Cisco Catalyst C9200L Managed L3 Gigabit Ethernet (10/100/1000) Grey
