Description

Cisco Catalyst 9200L. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 3. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE)

Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
Flexible downlink options with data or PoE+
Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
Advanced network monitoring using Full Flexible NetFlow
Cisco Software-Defined Access (SD-Access)
Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry
ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries

Product Properties

Manufacturer
Cisco

Model
C9200L-48PL-4X-E

Bullet points

Point
Advanced network monitoring using Full Flexible NetFlow

Cisco IOS XE

Cisco Software-Defined Access (SD-Access)

Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems

Flexible downlink options with data or PoE+

Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access

Plug and Play (PnP) enabled

Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks

UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure

Up to 48 ports of full Power over Ethernet Plus (PoE+) capability

Data transmission

Forwarding rate
130.95 Mpps

Jumbo frames
9198

Jumbo frames support
Yes

MAC address table
16000 entries

Packet buffer memory
6 MB

Switching capacity
176 Gbit/s

Design

Electromagnetic compatibility
47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317

Product colour
Grey

Safety
IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1, Class I Equipment

Stackable
Yes

Logistics data

Harmonized System (HS) code
85176990

Management features

MIB support
BRIDGE-MIB, CISCO-BRIDGE-EXT-MIB, CISCO-BULK-FILE-MIB, CISCO-CABLE-DIAG-MIB, CISCO-CALLHOME-MIB, CISCO-CEF-MIB, CISCO-CIRCUIT-INTERFACE-MIB, CISCO-CONFIG-COPY-MIB, CISCO-CONFIG-MAN-MIB, CISCO-DEVICE-LOCATION-MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-EIGRP-MIB, CISCO-EMBEDDED-EVENT-MGR-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, CISCO-ENTITY-SENSOR-MIB, CISCO-ENTITY-VENDORTYPE-OID-MIB, CISCO-ERR-DISABLE-MIB, CISCO-FLASH-MIB, CISCO-FLOW-MONITOR-MIB, CISCO-FTP-CLIENT-MIB, CISCO-HSRP-EXT-MIB, CISCO-HSRP-MIB, CISCO-IETF-BFD-MIB, CISCO-IETF-PPVPN-MPLS-VPN-MIB, CISCO-IETF-PW-MPLS-MIB, CISCO-IF-EXTENSION-MIB, CISCO-IGMP-FILTER-MIB, CISCO-IMAGE-LICENSE-MGMT-MIB, CISCO-IMAGE-MIB, CISCO-IP-CBR-METRICS-MIB, CISCO-IP-STAT-MIB, CISCO-IP-TAP-MIB, CISCO-IP-URPF-MIB, CISCO-IPSEC-FLOW-MONITOR-MIB, CISCO-IPSEC-MIB, CISCO-IPSEC-PROVISIONING-MIB, CISCO-IPSLA-AUTOMEASURE-MIB, CISCO-IPSLA-ECHO-MIB, CISCO-IPSLA-JITTER-MIB, CISCO-L2-CONTROL-MIB, CISCO-L2L3-INTERFACE-CONFIG-MIB, CISCO-LAG-MIB, CISCO-LICENSE-MGMT-MIB, CISCO-LOCAL-AUTH-USER-MIB, CISCO

Quality of Service (QoS) support
Yes

Switch layer
L3

Switch type
Managed

Web-based management
Yes

Multicast features

Multicast support
Yes

Network

10G support
Yes

Copper ethernet cabling technology
100BASE-FX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T

IP routing
Yes

IPv4 routes
3000

IPv6 routes
1500

Network virtualization technologies
Virtual Extensible LAN (VXLAN)

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Number of VLANs
1024

Routing entries
3000

Spanning tree protocol
Yes

Operational conditions

Heat dissipation
3412 BTU/h

Operating altitude
0 - 3000 m

Operating relative humidity (H-H)
5 - 90%

Operating temperature (T-T)
-5 - 45 °C

Storage temperature (T-T)
-40 - 70 °C

Performance

Flash memory
4096 MB

Internal memory
2048 MB

Mean time between failures (MTBF)
346270 h

Memory type
DRAM

Noise level
42 dB

Ports & interfaces

SFP+ module slots quantity
4

Switch Number of Ports
48

Switch Port Speed
Gigabit Ethernet (10/100/1000)

USB 2.0 ports quantity
3

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Input current
6 - 12 A

Power consumption (max)
600 W

Power source
AC

Power supply included
Yes

Redundant power supply (RPS) support
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) power per port
30 W

Power over Ethernet plus (PoE+) ports quantity
48

Total Power over Ethernet (PoE) budget
370 W

Protocols

Management protocols
SNMPv1/v2c/v3

Routing protocols
CDP, EIGRP, OSPF, RIP, VRRP

Security

Access Control List (ACL)
Yes

Security algorithms
128-bit AES

Weight & dimensions

Depth
329 mm

Height
44 mm

Weight
4.8 kg

Width
445 mm

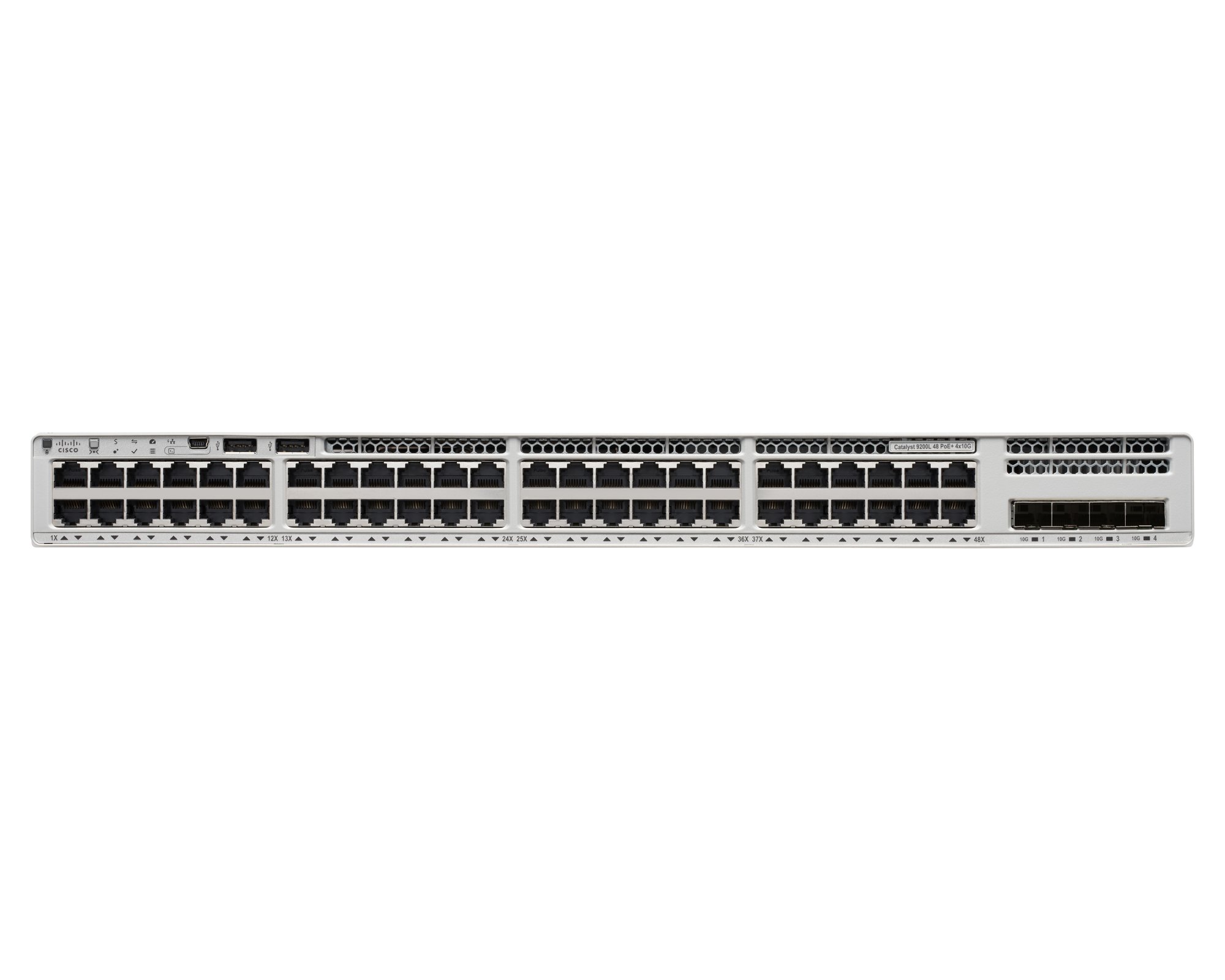

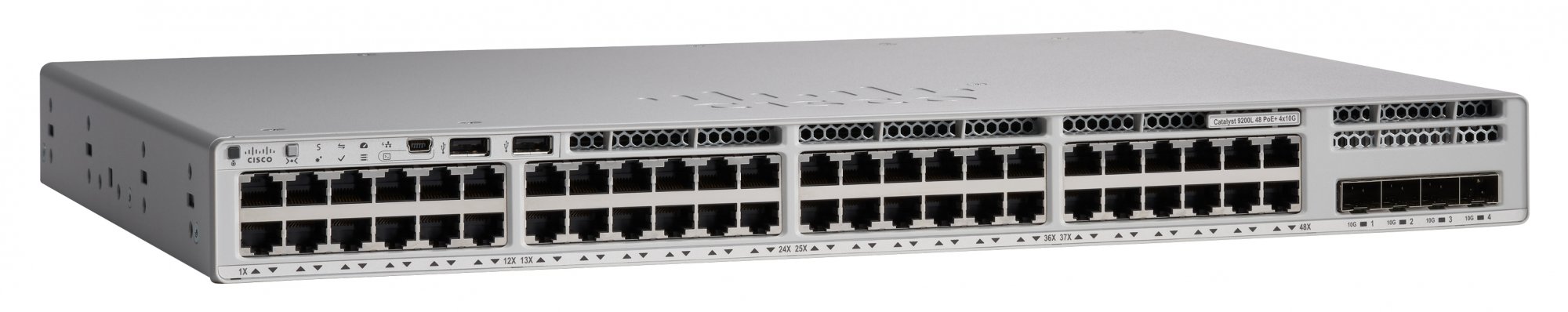

Cisco Catalyst 9200L Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
