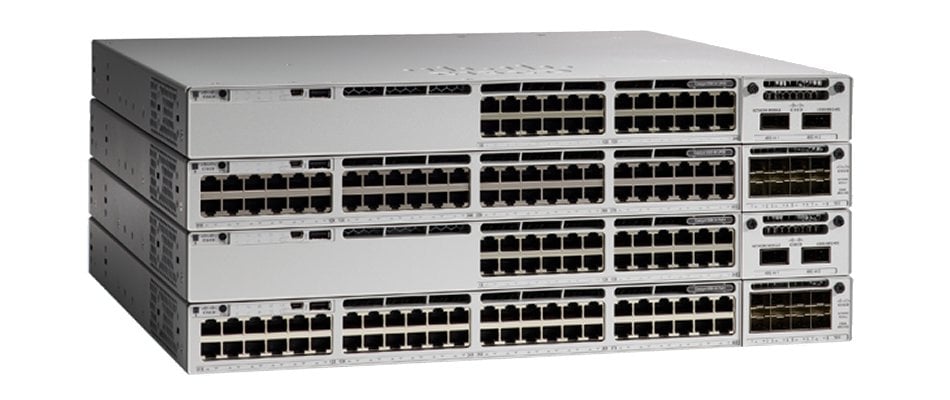

Cisco Catalyst 9300X Managed L3
Roll over image to zoom inClick to Open expanded view
Print
Model: C9300X-24Y-E

Cisco Catalyst 9300X Managed L3

Manufacturer:
Cisco
Cisco Catalyst 9300X, Managed, L3, Full duplex, Rack mounting
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Catalyst 9300X. Switch type: Managed, Switch layer: L3. Full duplex. MAC address table: 32000 entries, Switching capacity: 2000 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Rack mounting

Product Properties

  • Model
  • C9300X-24Y-E
  • Data transmission
  • Forwarding rate
  • 1488 Mpps
  • Jumbo frames
  • 9198
  • Jumbo frames support
  • Yes
  • MAC address table
  • 32000 entries
  • Static route
  • Yes
  • Switching capacity
  • 2000 Gbit/s
  • Design
  • LED indicators
  • Yes
  • Rack mounting
  • Yes
  • Stackable
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • ARP inspection
  • Yes
  • Configuring Location Settings (CLI)
  • Yes
  • MIB support
  • Y
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L3
  • Switch type
  • Managed
  • Multicast features
  • Multicast support
  • Yes
  • Network
  • 10G support
  • Yes
  • Full duplex
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 90%
  • Operating temperature (T-T)
  • -5 - 45 °C
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Performance
  • Flash memory
  • 16000 MB
  • Internal memory
  • 16000 MB
  • Ports & interfaces
  • SFP28 ports quantity
  • 24
  • Power
  • AC input frequency
  • 50 - 60 Hz
  • AC input voltage
  • 100 - 230 V
  • Power supply included
  • Yes
  • Security
  • Access Control List (ACL)
  • Yes
  • IGMP snooping
  • Yes
  • Weight & dimensions
  • Depth
  • 445 mm
  • Height
  • 44 mm
  • Width
  • 447 mm
