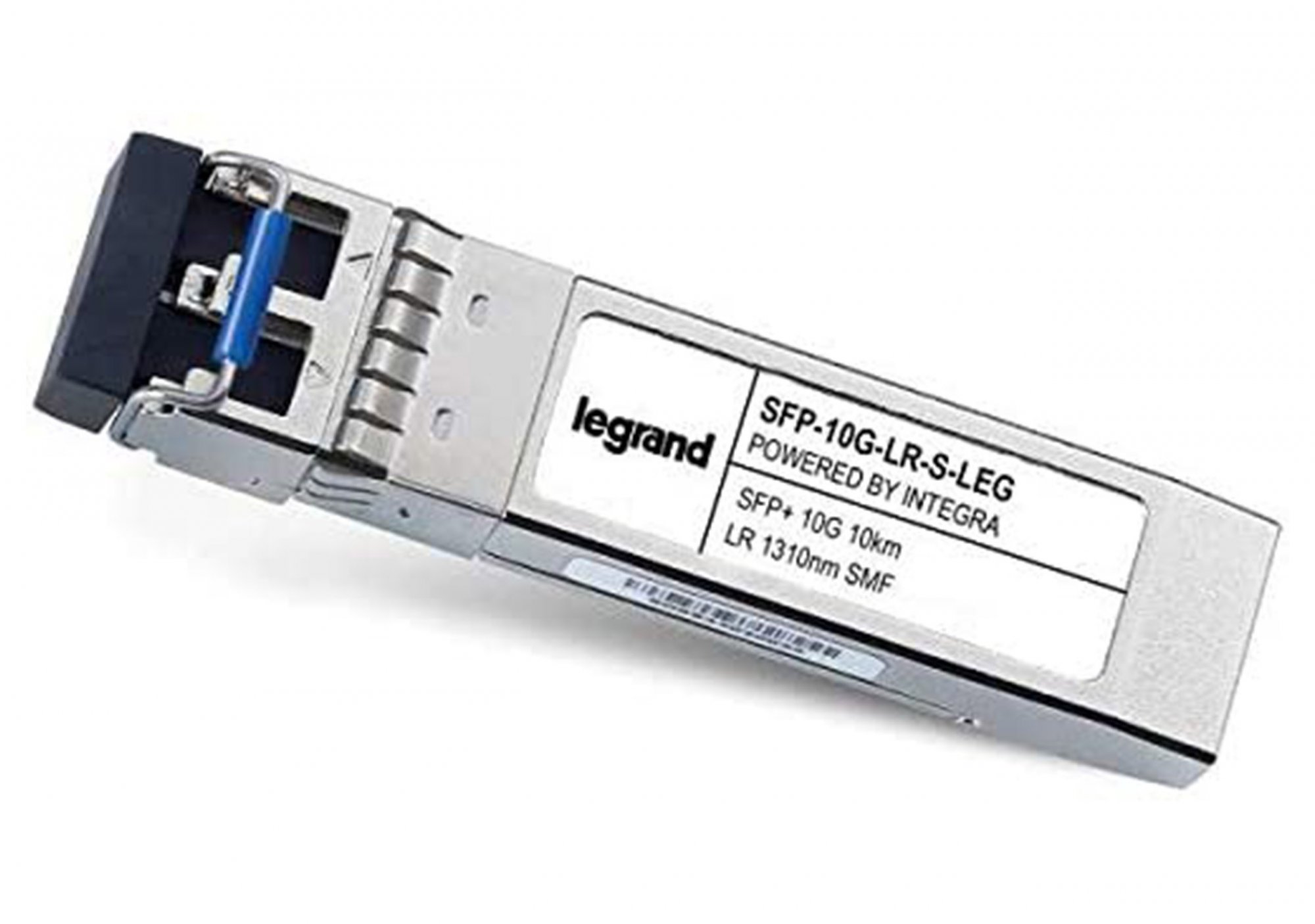

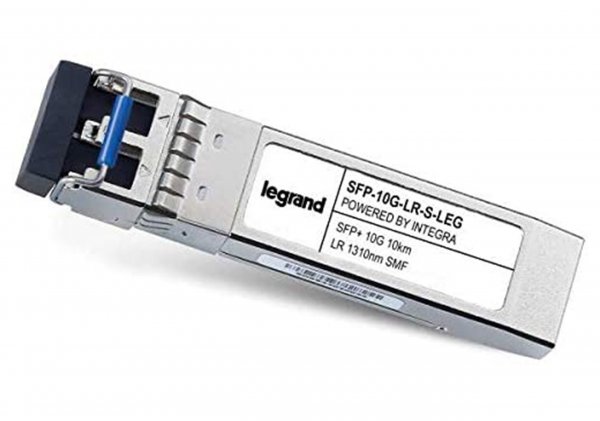

Cisco 10GBASE-LR S-Class SFP Module for 10-Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-LR-S=)
Roll over image to zoom inClick to Open expanded view
Cisco 10GBASE-LR S-Class SFP Module for 10-Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-LR-S=)
Cisco 10GBASE-LR S-Class SFP Module for 10-Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-LR-S=)
Print
Model: SFP-10G-LR-S=
EAN: 882658782497

Cisco 10GBASE-LR S-Class SFP Module for 10-Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-LR-S=)

Manufacturer:
Cisco
Cisco 10GBASE-LR S-Class SFP Module for 10-Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-LR-S=), Fiber optic, 10000 Mbit/s, SFP+, LC, PC, 9/125 µm, LR
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco 10GBASE-LR S-Class SFP Module for 10-Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-LR-S=). SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Country of origin: China, Certification: MSA. Width: 13.4 mm, Depth: 56.5 mm, Height: 8.5 mm. Number of products included: 1 pc(s), Package width: 143 mm, Package depth: 158.8 mm. Quantity per pack: 1 pc(s)
  • LINK LENGTH: Supports a link length of 10 km on standard single-mode fibre (this model does not support FCoE)
  • COMPACT: Industry-smallest 10G form factor for greatest density per chassis
  • HOT SWAPPABLE: Plugs into an Ethernet SFP+ port of a Cisco switch with no need to shut down if installing or replacing
  • VERSATILITY: SFP receiver/transceiver module supports ‘pay-as-you-populate’ model for investment protection and ease of technology migration
  • PEACE OF MIND: 5-year standard replacement warranty

Product Properties

  • Model
  • SFP-10G-LR-S=
  • EAN
  • 882658782497
  • Bullet points
  • Point
  • COMPACT: Industry-smallest 10G form factor for greatest density per chassis
    HOT SWAPPABLE
    LINK LENGTH
    PEACE OF MIND: 5-year standard replacement warranty
    VERSATILITY
  • Features
  • Certification
  • MSA
  • Country of origin
  • China
  • Hot-Plug support
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85369010
  • Quantity per pack
  • 1 pc(s)
  • Operational conditions
  • Operating relative humidity (H-H)
  • 0 - 95%
  • Operating temperature (T-T)
  • -40 - 85 °C
  • Storage relative humidity (H-H)
  • 0 - 95%
  • Storage temperature (T-T)
  • -40 - 85 °C
  • Packaging data
  • Number of products included
  • 1 pc(s)
  • Package depth
  • 158.8 mm
  • Package height
  • 44.5 mm
  • Package weight
  • 90.7 g
  • Package width
  • 143 mm
  • Performance
  • Auto MDI/MDI-X
  • Yes
  • Cabling technology
  • 10GBase-LR
  • Duplex system
  • Full
  • Fiber cable diameters supported (core/cladding)
  • 9/125 µm
  • Fiber optic connector
  • LC, PC
  • Interface type
  • SFP+
  • Maximum data transfer rate
  • 10000 Mbit/s
  • Maximum transfer distance
  • 10000 m
  • Networking standards
  • IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u
  • SFP transceiver standard
  • LR
  • SFP transceiver type
  • Fiber optic
  • Single-mode fiber (SMF) supported
  • Yes
  • Wavelength
  • 1310 nm
  • Weight & dimensions
  • Depth
  • 56.5 mm
  • Height
  • 8.5 mm
  • Width
  • 13.4 mm
