Model: 4G-LTE-ANTM-D=

Cisco 4G/3G Omnidirectional Dipole Antenna network antenna Omni-directional antenna TNC 2 dBi

Manufacturer:
Cisco
Cisco 4G/3G Omnidirectional Dipole Antenna, 2 dBi, 698-806 MHz; 824-894 MHz; 925-960 MHz; 1710-1885 MHz; 1920-1980 MHz; 2110-2170 MHz; 2500-2690 MHz, Omni-directional antenna, TNC, Male, 2.5:1 or less
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

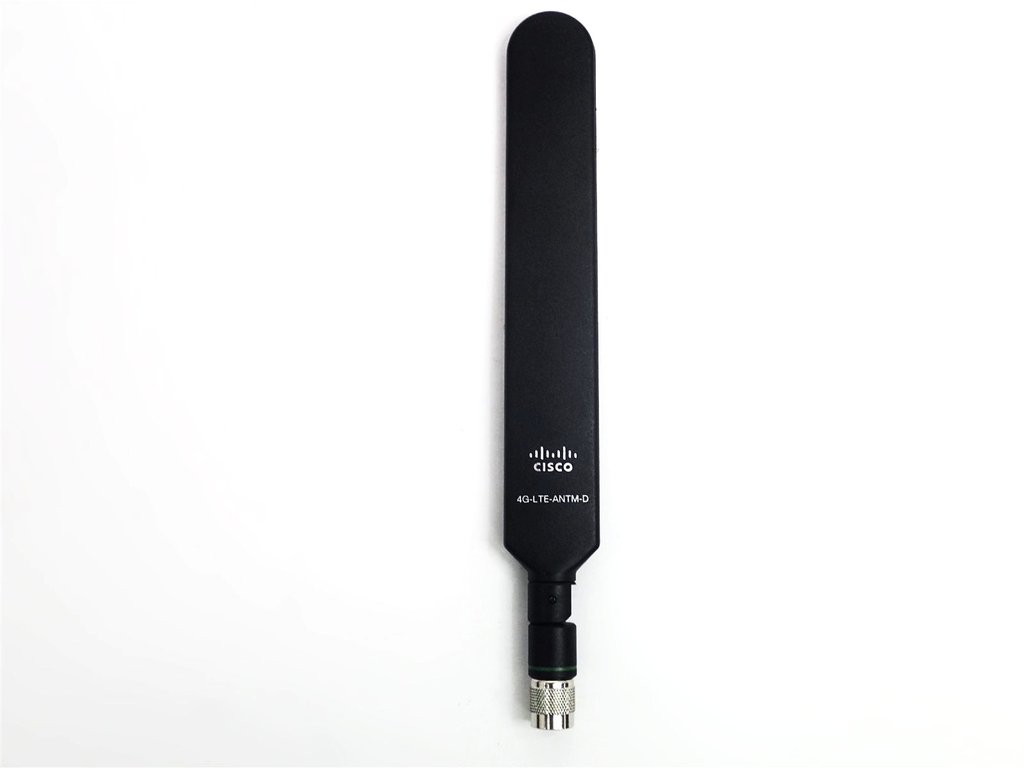

Cisco 4G/3G Omnidirectional Dipole Antenna. Antenna gain level (max): 2 dBi, Frequency band: 698-806 MHz; 824-894 MHz; 925-960 MHz; 1710-1885 MHz; 1920-1980 MHz; 2110-2170 MHz; 2500-2690 MHz. Antenna type: Omni-directional antenna, Antenna connector type: TNC, Connector gender: Male. Width: 30.5 mm, Depth: 11 mm, Height: 229 mm

Product Properties

  • Model
  • 4G-LTE-ANTM-D=
  • Features
  • Antenna connector type
  • TNC
  • Antenna type
  • Omni-directional antenna
  • Connector gender
  • Male
  • Product colour
  • Black
  • Voltage Standing Wave Ratio (VSWR)
  • 2.5:1 or less
  • Logistics data
  • Harmonized System (HS) code
  • 85177100
  • Operational conditions
  • Operating temperature (T-T)
  • -22 - 158 °C
  • Performance
  • Antenna gain level (max)
  • 2 dBi
  • Frequency band
  • 698-806 MHz; 824-894 MHz; 925-960 MHz; 1710-1885 MHz; 1920-1980 MHz; 2110-2170 MHz; 2500-2690 MHz
  • Weight & dimensions
  • Depth
  • 11 mm
  • Height
  • 229 mm
  • Width
  • 30.5 mm
