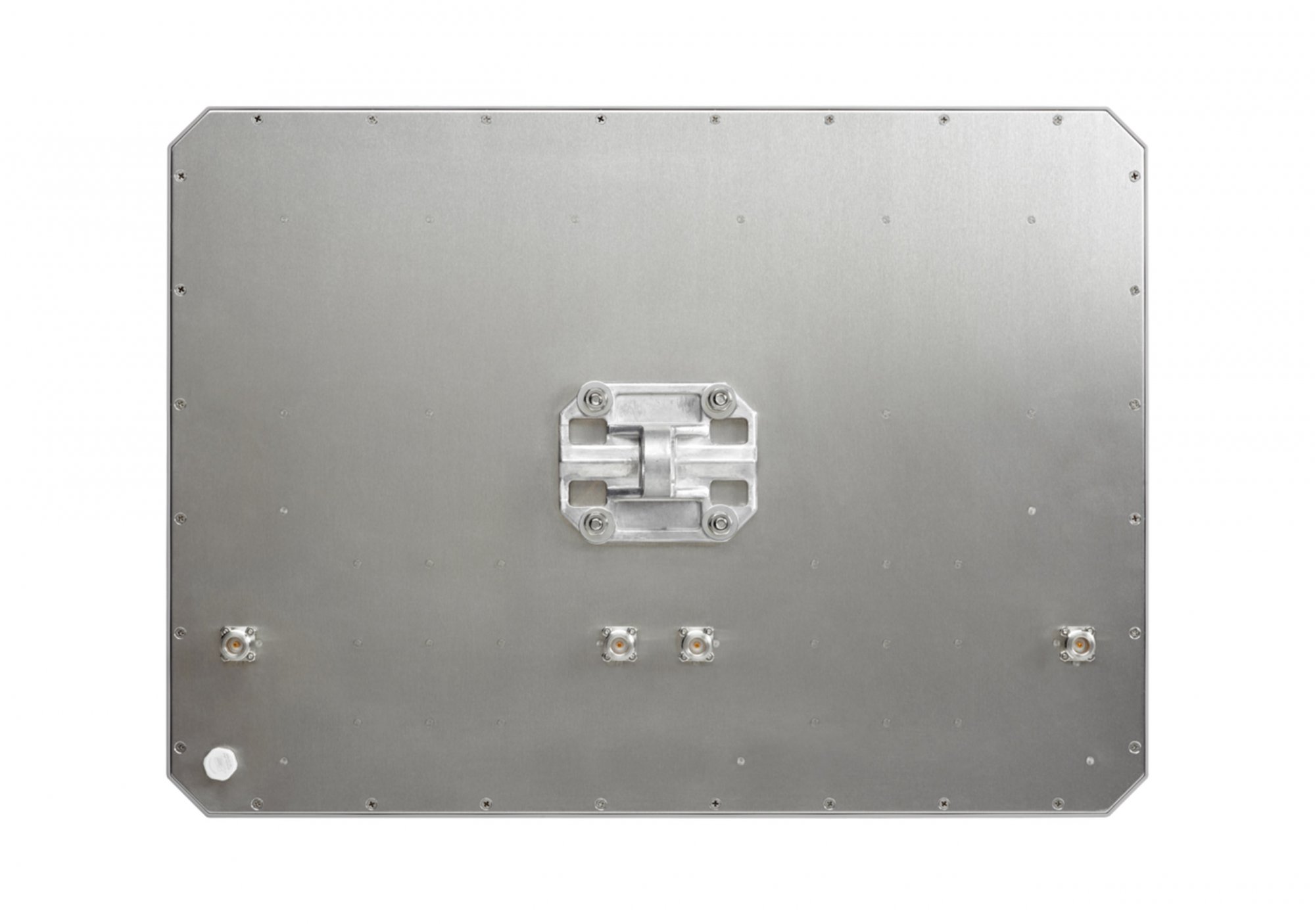

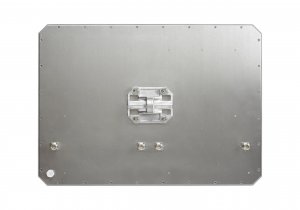

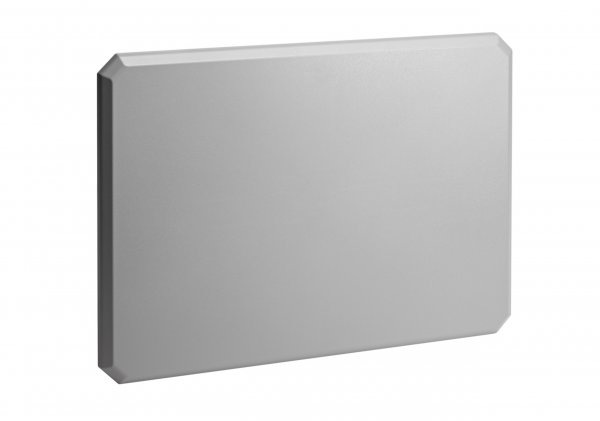

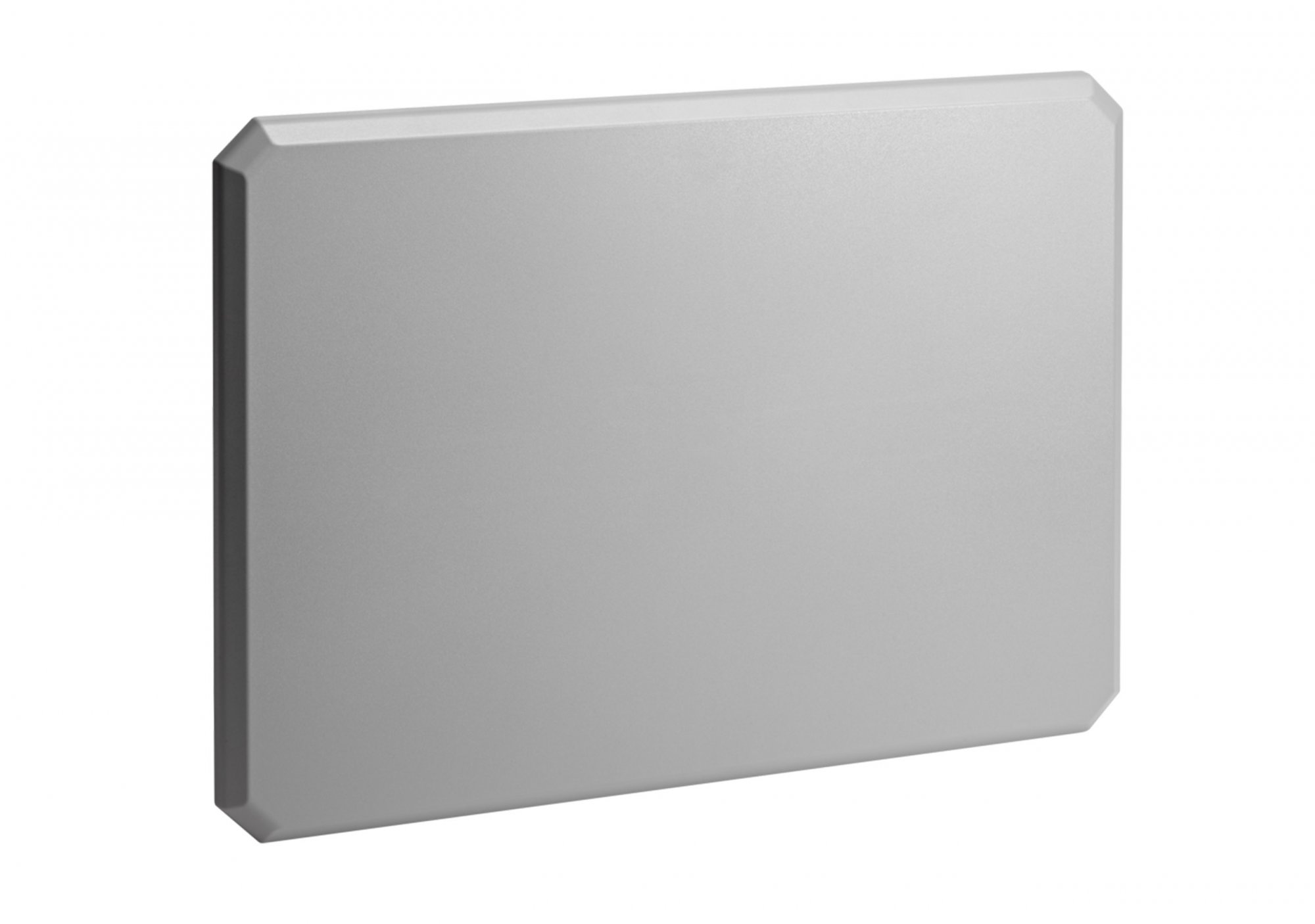

Cisco Aironet Dual-Band Directional Wi-Fi Patch Antenna, 13 dBi (2.4 GHz)/13 dBi (5 GHz), 4 Ports, 4 N-Type Female Connectors, 1-Year Limited Hardware Warranty (AIR-ANT2513P4M-N=)
Roll over image to zoom inClick to Open expanded view
Cisco Aironet Dual-Band Directional Wi-Fi Patch Antenna, 13 dBi (2.4 GHz)/13 dBi (5 GHz), 4 Ports, 4 N-Type Female Connectors, 1-Year Limited Hardware Warranty (AIR-ANT2513P4M-N=)
Cisco Aironet Dual-Band Directional Wi-Fi Patch Antenna, 13 dBi (2.4 GHz)/13 dBi (5 GHz), 4 Ports, 4 N-Type Female Connectors, 1-Year Limited Hardware Warranty (AIR-ANT2513P4M-N=)
Cisco Aironet Dual-Band Directional Wi-Fi Patch Antenna, 13 dBi (2.4 GHz)/13 dBi (5 GHz), 4 Ports, 4 N-Type Female Connectors, 1-Year Limited Hardware Warranty (AIR-ANT2513P4M-N=)
Print
Model: AIR-ANT2513P4M-N=
EAN: 882658647154

Cisco Aironet Dual-Band Directional Wi-Fi Patch Antenna, 13 dBi (2.4 GHz)/13 dBi (5 GHz), 4 Ports, 4 N-Type Female Connectors, 1-Year Limited Hardware Warranty (AIR-ANT2513P4M-N=)

Manufacturer:
Cisco
Cisco Aironet Dual-Band Directional Wi-Fi Patch Antenna, 13 dBi (2.4 GHz)/13 dBi (5 GHz), 4 Ports, 4 N-Type Female Connectors, 1-Year Limited Hardware Warranty (AIR-ANT2513P4M-N=), 13 dBi, 2.4 - 2.5 / 5.15 - 5.9 GHz, 50 Ω, N-type, Female, Dual polarizatio
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Aironet Dual-Band Directional Wi-Fi Patch Antenna, 13 dBi (2.4 GHz)/13 dBi (5 GHz), 4 Ports, 4 N-Type Female Connectors, 1-Year Limited Hardware Warranty (AIR-ANT2513P4M-N=). Antenna gain level (max): 13 dBi, Frequency band: 2.4 - 2.5 / 5.15 - 5.9 GHz, Impedance: 50 Ω. Antenna connector type: N-type, Connector gender: Female, Polarization: Dual polarization. Width: 507 mm, Height: 21.1 mm, Weight: 2.3 kg. Quantity per pack: 1 pc(s), Packaging content: AIR-ANT2513P4M-N Antenna
  • PATCH ANTENNA: 13 dBi (2.4 GHz)/13 dBi (5 GHz), 4 ports; outdoor rated
  • CONNECTION AND MOUNT: 4 N-type connectors; no cable attachments
  • DIRECTED RADIATION PATTERN: Intended for deployment when directed coverage is required
  • PERFORMANCE: Designed for improved directional coverage
  • PEACE OF MIND: 1-year limited hardware warranty

Product Properties

  • Model
  • AIR-ANT2513P4M-N=
  • EAN
  • 882658647154
  • Bullet points
  • Point
  • CONNECTION AND MOUNT: 4 N-type connectors; no cable attachments
    DIRECTED RADIATION PATTERN: Intended for deployment when directed coverage is required
    PATCH ANTENNA: 13 dBi (2.4 GHz)/13 dBi (5 GHz), 4 ports; outdoor rated
    PEACE OF MIND: 1-year limited hardware warranty
    PERFORMANCE: Designed for improved directional coverage
  • Features
  • Antenna connector type
  • N-type
  • Connector gender
  • Female
  • Country of origin
  • China
  • Polarization
  • Dual polarization
  • Logistics data
  • Harmonized System (HS) code
  • 85177100
  • Operational conditions
  • Operating temperature (T-T)
  • -30 - 70 °C
  • Storage temperature (T-T)
  • -40 - 85 °C
  • Packaging content
  • Packaging content
  • AIR-ANT2513P4M-N Antenna
  • Quantity per pack
  • 1 pc(s)
  • Performance
  • Antenna gain level (max)
  • 13 dBi
  • Frequency band
  • 2.4 - 2.5 / 5.15 - 5.9 GHz
  • Impedance
  • 50 Ω
  • Weight & dimensions
  • Height
  • 21.1 mm
  • Package depth
  • 660.9 mm
  • Package height
  • 104.9 mm
  • Package weight
  • 4.31 kg
  • Package width
  • 402.1 mm
  • Weight
  • 2.3 kg
  • Width
  • 507 mm
