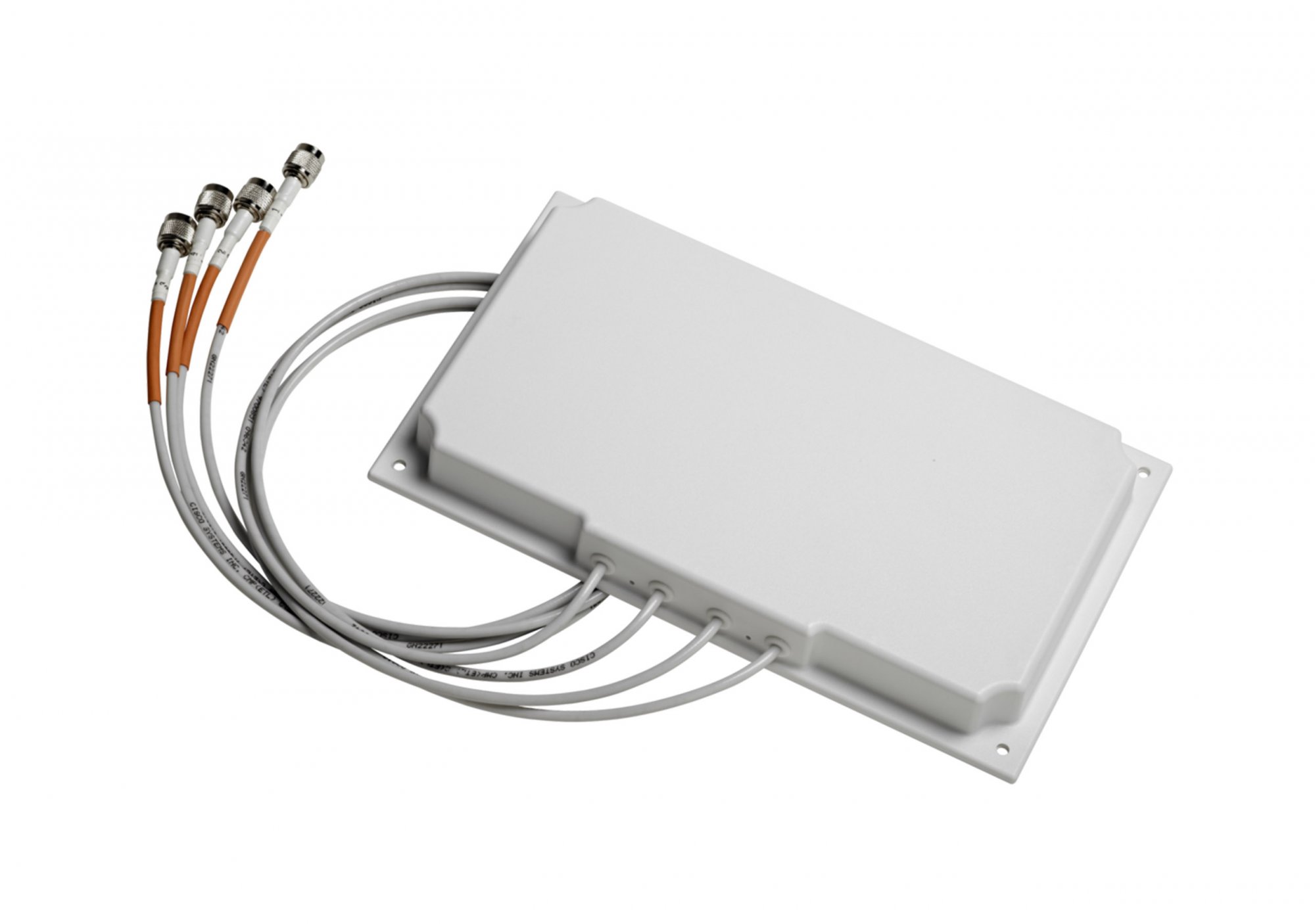

Cisco Aironet Dual-Band Directional Wi-Fi Patch Antenna, 6 dBi (2.4 GHz)/6 dBi (5 GHz), 4 Ports, Wall Mount, RP-TNC Connectors, 1-Year Limited Hardware Warranty (AIR-ANT2566P4W-R=)
Roll over image to zoom inClick to Open expanded view
Cisco Aironet Dual-Band Directional Wi-Fi Patch Antenna, 6 dBi (2.4 GHz)/6 dBi (5 GHz), 4 Ports, Wall Mount, RP-TNC Connectors, 1-Year Limited Hardware Warranty (AIR-ANT2566P4W-R=)
Cisco Aironet Dual-Band Directional Wi-Fi Patch Antenna, 6 dBi (2.4 GHz)/6 dBi (5 GHz), 4 Ports, Wall Mount, RP-TNC Connectors, 1-Year Limited Hardware Warranty (AIR-ANT2566P4W-R=)
Print
Model: AIR-ANT2566P4W-R=
EAN: 882658475825

Cisco Aironet Dual-Band Directional Wi-Fi Patch Antenna, 6 dBi (2.4 GHz)/6 dBi (5 GHz), 4 Ports, Wall Mount, RP-TNC Connectors, 1-Year Limited Hardware Warranty (AIR-ANT2566P4W-R=)

Manufacturer:
Cisco
Cisco Aironet Dual-Band Directional Wi-Fi Patch Antenna, 6 dBi (2.4 GHz)/6 dBi (5 GHz), 4 Ports, Wall Mount, RP-TNC Connectors, 1-Year Limited Hardware Warranty (AIR-ANT2566P4W-R=), 6 dBi, 2.4/5 GHz, 6 dBi, 6 dBi, 70°, 60°
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Aironet Dual-Band Directional Wi-Fi Patch Antenna, 6 dBi (2.4 GHz)/6 dBi (5 GHz), 4 Ports, Wall Mount, RP-TNC Connectors, 1-Year Limited Hardware Warranty (AIR-ANT2566P4W-R=). Antenna gain level (max): 6 dBi, Frequency band: 2.4/5 GHz, Antenna gain (2.4 GHz): 6 dBi. Antenna type: Directional antenna, Antenna connector type: RP-TNC, Polarization: Vertical polarization. Width: 279 mm, Depth: 160 mm, Height: 30.5 mm. Quantity per pack: 1 pc(s), Packaging content: AIR-ANT2566P4W-R Antenna. Dimensions (WxDxH): 279 x 160 x 30.5 mm, Frequency range: 2.4 - 2.484GHz, 5.15 - 5.85GHz
  • PATCH ANTENNA: 6 dBi (2.4 GHz)/6 dBi (5 GHz); 4 dual-band ports; designed for use with dual-band port access points such as the Aironet 1830, 1850, 2800 and 3800 Series and Cisco Catalyst 9115AX, 9120AX and 9130AX Series
  • CONNECTION AND MOUNT: 4 plenum-rated 36-inch cables and RP-TNC connectors; wall mount
  • DIRECTED RADIATION PATTERN: Intended for deployment when directed coverage is required
  • PERFORMANCE: Designed for improved directional coverage
  • PEACE OF MIND: 1-year limited hardware warranty

Product Properties

  • Model
  • AIR-ANT2566P4W-R=
  • EAN
  • 882658475825
  • Bullet points
  • Point
  • CONNECTION AND MOUNT: 4 plenum-rated 36-inch cables and RP-TNC connectors; wall mount
    DIRECTED RADIATION PATTERN: Intended for deployment when directed coverage is required
    PATCH ANTENNA
    PEACE OF MIND: 1-year limited hardware warranty
    PERFORMANCE: Designed for improved directional coverage
  • Features
  • Antenna connector type
  • RP-TNC
  • Antenna type
  • Directional antenna
  • Cable length
  • 0.914 m
  • Country of origin
  • China
  • Polarization
  • Vertical polarization
  • Product colour
  • Grey
  • Purpose
  • Indoor & outdoor
  • Voltage Standing Wave Ratio (VSWR)
  • 2:1
  • Logistics data
  • Harmonized System (HS) code
  • 85177100
  • Operational conditions
  • Operating temperature (T-T)
  • -30 - 70 °C
  • Other features
  • Dimensions (WxDxH)
  • 279 x 160 x 30.5 mm
  • Frequency range
  • 2.4 - 2.484GHz, 5.15 - 5.85GHz
  • Packaging content
  • Packaging content
  • AIR-ANT2566P4W-R Antenna
  • Quantity per pack
  • 1 pc(s)
  • Performance
  • Antenna gain (2.4 GHz)
  • 6 dBi
  • Antenna gain (5 GHz)
  • 6 dBi
  • Antenna gain level (max)
  • 6 dBi
  • Frequency band
  • 2.4/5 GHz
  • Horizontal beam width (2.4 GHz)
  • 70°
  • Horizontal beam width (5 GHz)
  • 60°
  • Weight & dimensions
  • Depth
  • 160 mm
  • Height
  • 30.5 mm
  • Package depth
  • 333.5 mm
  • Package height
  • 79.5 mm
  • Package weight
  • 907.03 g
  • Package width
  • 244.6 mm
  • Weight
  • 635 g
  • Width
  • 279 mm
