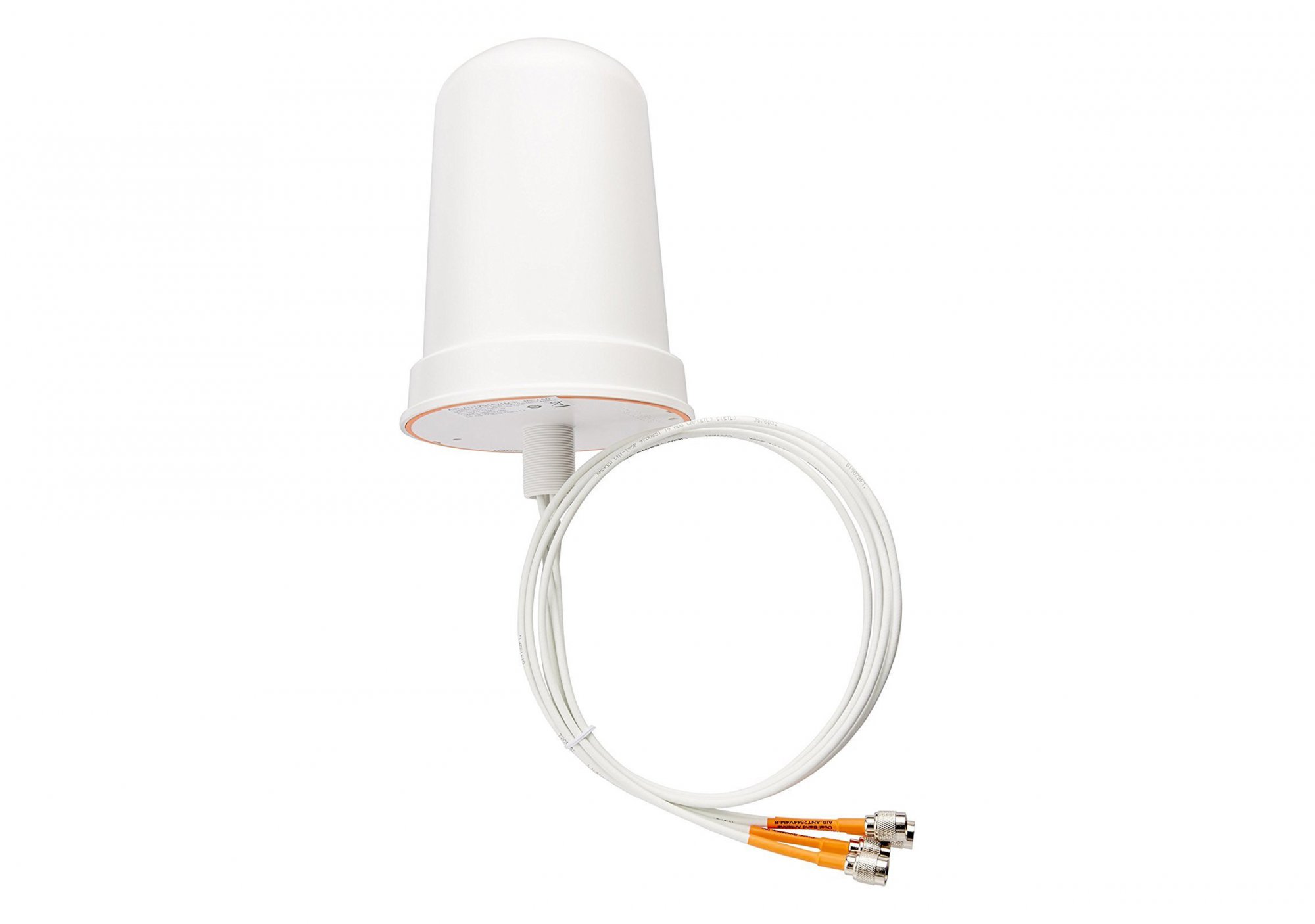

Cisco Aironet Dual-Band Omnidirectional Wi-Fi Antenna, 4 dBi (2.4 GHz)/4 dBi (5 GHz), 4 Ports, Wall/Mast Mount, 1-Year Limited Hardware Warranty (AIR-ANT2544V4M-RS=)
Roll over image to zoom inClick to Open expanded view
Cisco Aironet Dual-Band Omnidirectional Wi-Fi Antenna, 4 dBi (2.4 GHz)/4 dBi (5 GHz), 4 Ports, Wall/Mast Mount, 1-Year Limited Hardware Warranty (AIR-ANT2544V4M-RS=)
Cisco Aironet Dual-Band Omnidirectional Wi-Fi Antenna, 4 dBi (2.4 GHz)/4 dBi (5 GHz), 4 Ports, Wall/Mast Mount, 1-Year Limited Hardware Warranty (AIR-ANT2544V4M-RS=)
Print
Model: AIR-ANT2544V4M-RS=
EAN: 889728277471

Cisco Aironet Dual-Band Omnidirectional Wi-Fi Antenna, 4 dBi (2.4 GHz)/4 dBi (5 GHz), 4 Ports, Wall/Mast Mount, 1-Year Limited Hardware Warranty (AIR-ANT2544V4M-RS=)

Manufacturer:
Cisco
Cisco Aironet Dual-Band Omnidirectional Wi-Fi Antenna, 4 dBi (2.4 GHz)/4 dBi (5 GHz), 4 Ports, Wall/Mast Mount, 1-Year Limited Hardware Warranty (AIR-ANT2544V4M-RS=), 4 dBi, 2.4/5 GHz, IEEE 802.11n, 4 dBi, 4 dBi, 50 Ω
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Aironet Dual-Band Omnidirectional Wi-Fi Antenna, 4 dBi (2.4 GHz)/4 dBi (5 GHz), 4 Ports, Wall/Mast Mount, 1-Year Limited Hardware Warranty (AIR-ANT2544V4M-RS=). Antenna gain level (max): 4 dBi, Frequency band: 2.4/5 GHz, Networking standards: IEEE 802.11n. Antenna type: Omni-directional antenna, Antenna connector type: RP-TNC, Connector gender: Male. Package width: 215.9 mm, Package depth: 387.4 mm, Package height: 215.9 mm. Quantity per pack: 1 pc(s), Packaging content: AIR-ANT2544V4M-RS Antenna
  • OMNIDIRECTIONAL WI-FI ANTENNA: 4 dBi (2.4 GHz)/4 dBi (5 GHz); 4 dual-band ports; designed for dual-band port access points such as the Aironet 1830, 1850, 2800 and 3800 Series and Cisco Catalyst 9115AX, 9120AX and 9130AX Series
  • CONNECTION AND MOUNT: 4 plenum-rated pigtail cables with 4 RP-TNC connectors; wall or mast mount
  • 360-DEGREE RADIATION PATTERN: Intended for deployment when coverage in all directions from the antenna is required
  • PERFORMANCE: Designed for improved coverage
  • PEACE OF MIND: 1-year limited hardware warranty

Product Properties

  • Model
  • AIR-ANT2544V4M-RS=
  • EAN
  • 889728277471
  • Bullet points
  • Point
  • 360-DEGREE RADIATION PATTERN
    CONNECTION AND MOUNT: 4 plenum-rated pigtail cables with 4 RP-TNC connectors; wall or mast mount
    OMNIDIRECTIONAL WI-FI ANTENNA
    PEACE OF MIND: 1-year limited hardware warranty
    PERFORMANCE: Designed for improved coverage
  • Features
  • Antenna connector type
  • RP-TNC
  • Antenna type
  • Omni-directional antenna
  • Cable length
  • 2.4 m
  • Compatible products
  • Cisco Aironet 1600e, 2600e, 3600e
  • Connector gender
  • Male
  • Country of origin
  • Malaysia
  • Mounting
  • Wall/Pole
  • Polarization
  • Vertical polarization
  • Product colour
  • White
  • Purpose
  • Indoor & outdoor
  • Voltage Standing Wave Ratio (VSWR)
  • < 2:1
  • Logistics data
  • Harmonized System (HS) code
  • 85177100
  • Operational conditions
  • Operating temperature (T-T)
  • -30 - 70 °C
  • Packaging content
  • Manual
  • Yes
  • Mounting kit
  • Yes
  • Packaging content
  • AIR-ANT2544V4M-RS Antenna
  • Quantity per pack
  • 1 pc(s)
  • Quick installation guide
  • Yes
  • Performance
  • Antenna gain (2.4 GHz)
  • 4 dBi
  • Antenna gain (5 GHz)
  • 4 dBi
  • Antenna gain level (max)
  • 4 dBi
  • Frequency band
  • 2.4/5 GHz
  • Impedance
  • 50 Ω
  • Networking standards
  • IEEE 802.11n
  • Weight & dimensions
  • Package depth
  • 387.4 mm
  • Package height
  • 215.9 mm
  • Package weight
  • 1.41 kg
  • Package width
  • 215.9 mm
