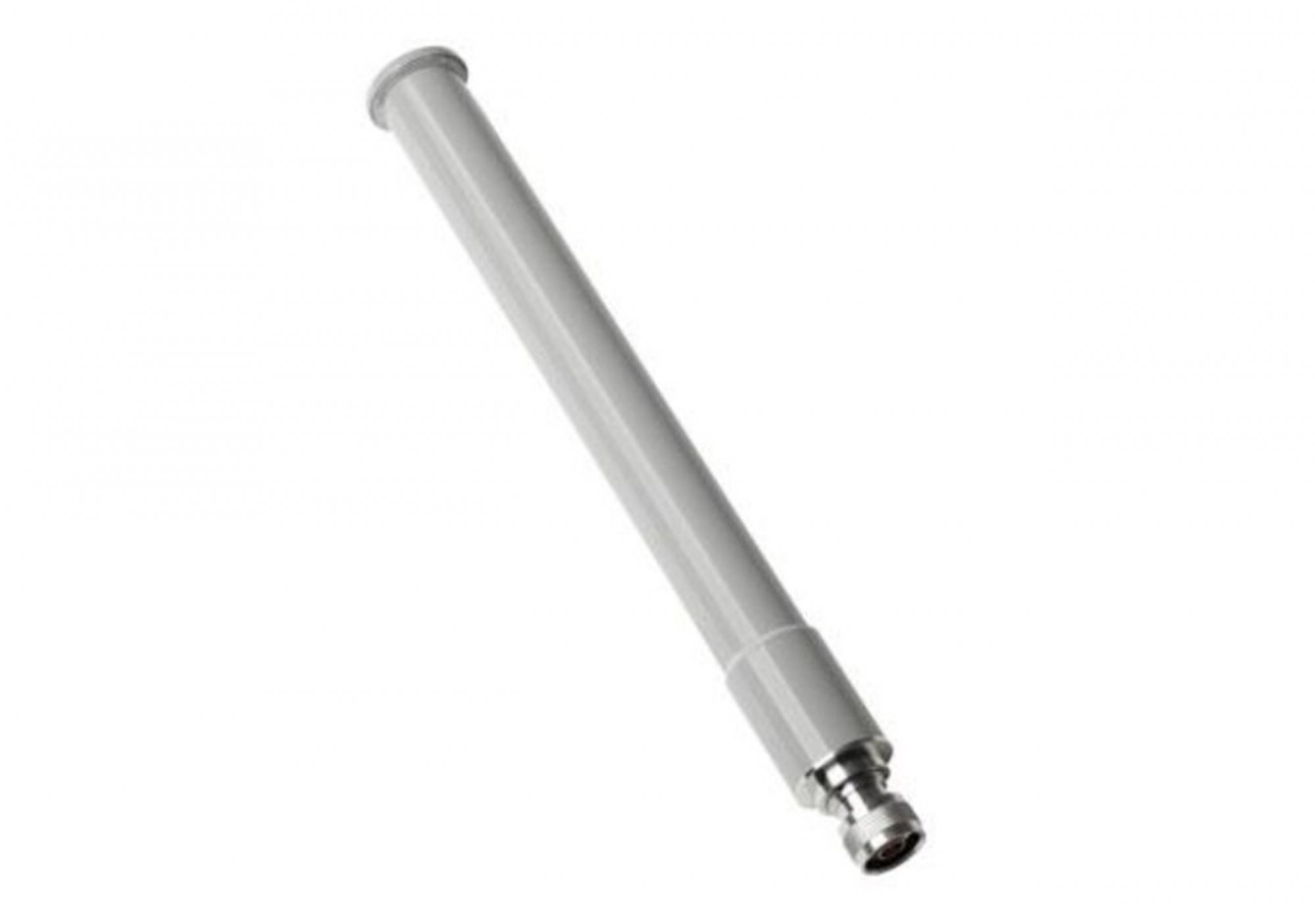

Cisco Aironet Dual-Band Omnidirectional Wi-Fi Antenna, 4 dBi (2.4 GHz)/7 dBi (5 GHz), N-Type Male Connector, Direct Mount, 1-Year Limited Hardware Warranty (AIR-ANT2547V-N=)
Roll over image to zoom inClick to Open expanded view
Cisco Aironet Dual-Band Omnidirectional Wi-Fi Antenna, 4 dBi (2.4 GHz)/7 dBi (5 GHz), N-Type Male Connector, Direct Mount, 1-Year Limited Hardware Warranty (AIR-ANT2547V-N=)
Cisco Aironet Dual-Band Omnidirectional Wi-Fi Antenna, 4 dBi (2.4 GHz)/7 dBi (5 GHz), N-Type Male Connector, Direct Mount, 1-Year Limited Hardware Warranty (AIR-ANT2547V-N=)
Print
Model: AIR-ANT2547V-N=
EAN: 882658410789

Cisco Aironet Dual-Band Omnidirectional Wi-Fi Antenna, 4 dBi (2.4 GHz)/7 dBi (5 GHz), N-Type Male Connector, Direct Mount, 1-Year Limited Hardware Warranty (AIR-ANT2547V-N=)

Manufacturer:
Cisco
Cisco Aironet Dual-Band Omnidirectional Wi-Fi Antenna, 4 dBi (2.4 GHz)/7 dBi (5 GHz), N-Type Male Connector, Direct Mount, 1-Year Limited Hardware Warranty (AIR-ANT2547V-N=), 7 dBi, 2.4/5 GHz, 4 dBi, 7 dBi, 50 Ω, 30°
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Aironet Dual-Band Omnidirectional Wi-Fi Antenna, 4 dBi (2.4 GHz)/7 dBi (5 GHz), N-Type Male Connector, Direct Mount, 1-Year Limited Hardware Warranty (AIR-ANT2547V-N=). Antenna gain level (max): 7 dBi, Frequency band: 2.4/5 GHz, Antenna gain (2.4 GHz): 4 dBi. Antenna type: Omni-directional antenna, Antenna connector type: N-type, Connector gender: Male. Width: 3.17 mm, Depth: 3.17 mm, Height: 282 mm. Quantity per pack: 1 pc(s), Packaging content: AIR-ANT2547V-N Antenna. Dimensions (WxDxH): 3.17 x 3.17 x 282 mm, Frequency range: 2.4 - 2.483GHz, 5.15 - 5.875GHz
  • OMNIDIRECTIONAL WI-FI ANTENNA: 4 dBi (2.4 GHz)/7 dBi (5 GHz); suitable for use on Aironet outdoor access points
  • CONNECTION AND MOUNT: N-type male connector; direct mount on access point; no cable attachments
  • 360-DEGREE RADIATION PATTERN: Intended for deployment when coverage in all directions from the antenna is required
  • PERFORMANCE: Designed for improved coverage
  • PEACE OF MIND: 1-year limited hardware warranty

Product Properties

  • Model
  • AIR-ANT2547V-N=
  • EAN
  • 882658410789
  • Bullet points
  • Point
  • 360-DEGREE RADIATION PATTERN
    CONNECTION AND MOUNT: N-type male connector; direct mount on access point; no cable attachments
    OMNIDIRECTIONAL WI-FI ANTENNA
    PEACE OF MIND: 1-year limited hardware warranty
    PERFORMANCE: Designed for improved coverage
  • Features
  • Antenna connector type
  • N-type
  • Antenna type
  • Omni-directional antenna
  • Connector gender
  • Male
  • Country of origin
  • China
  • Product colour
  • Silver
  • Purpose
  • Outdoor
  • Voltage Standing Wave Ratio (VSWR)
  • 2:1
  • Logistics data
  • Harmonized System (HS) code
  • 85177100
  • Operational conditions
  • Operating temperature (T-T)
  • -40 - 85 °C
  • Other features
  • Dimensions (WxDxH)
  • 3.17 x 3.17 x 282 mm
  • Frequency range
  • 2.4 - 2.483GHz, 5.15 - 5.875GHz
  • Packaging content
  • Packaging content
  • AIR-ANT2547V-N Antenna
  • Quantity per pack
  • 1 pc(s)
  • Performance
  • Antenna gain (2.4 GHz)
  • 4 dBi
  • Antenna gain (5 GHz)
  • 7 dBi
  • Antenna gain level (max)
  • 7 dBi
  • Frequency band
  • 2.4/5 GHz
  • Horizontal beam width (2.4 GHz)
  • 30°
  • Horizontal beam width (5 GHz)
  • 14°
  • Impedance
  • 50 Ω
  • Weight & dimensions
  • Depth
  • 3.17 mm
  • Diameter
  • 3.17 mm
  • Height
  • 282 mm
  • Package depth
  • 482.6 mm
  • Package height
  • 50.8 mm
  • Package weight
  • 317.46 g
  • Package width
  • 152.4 mm
  • Weight
  • 170 g
  • Width
  • 3.17 mm
