Description

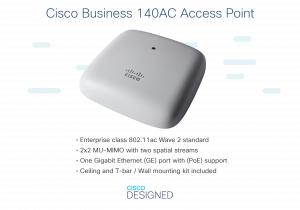

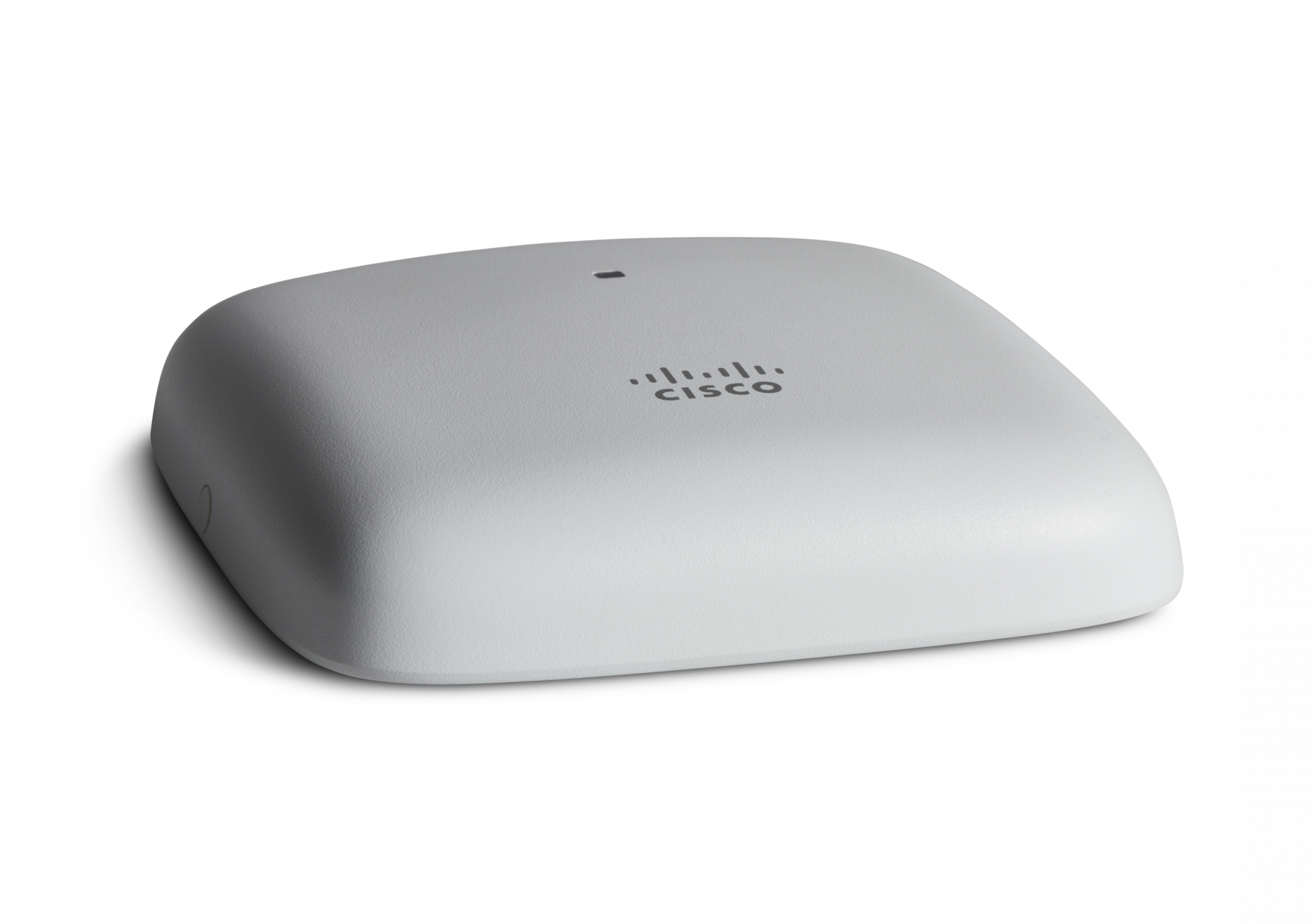

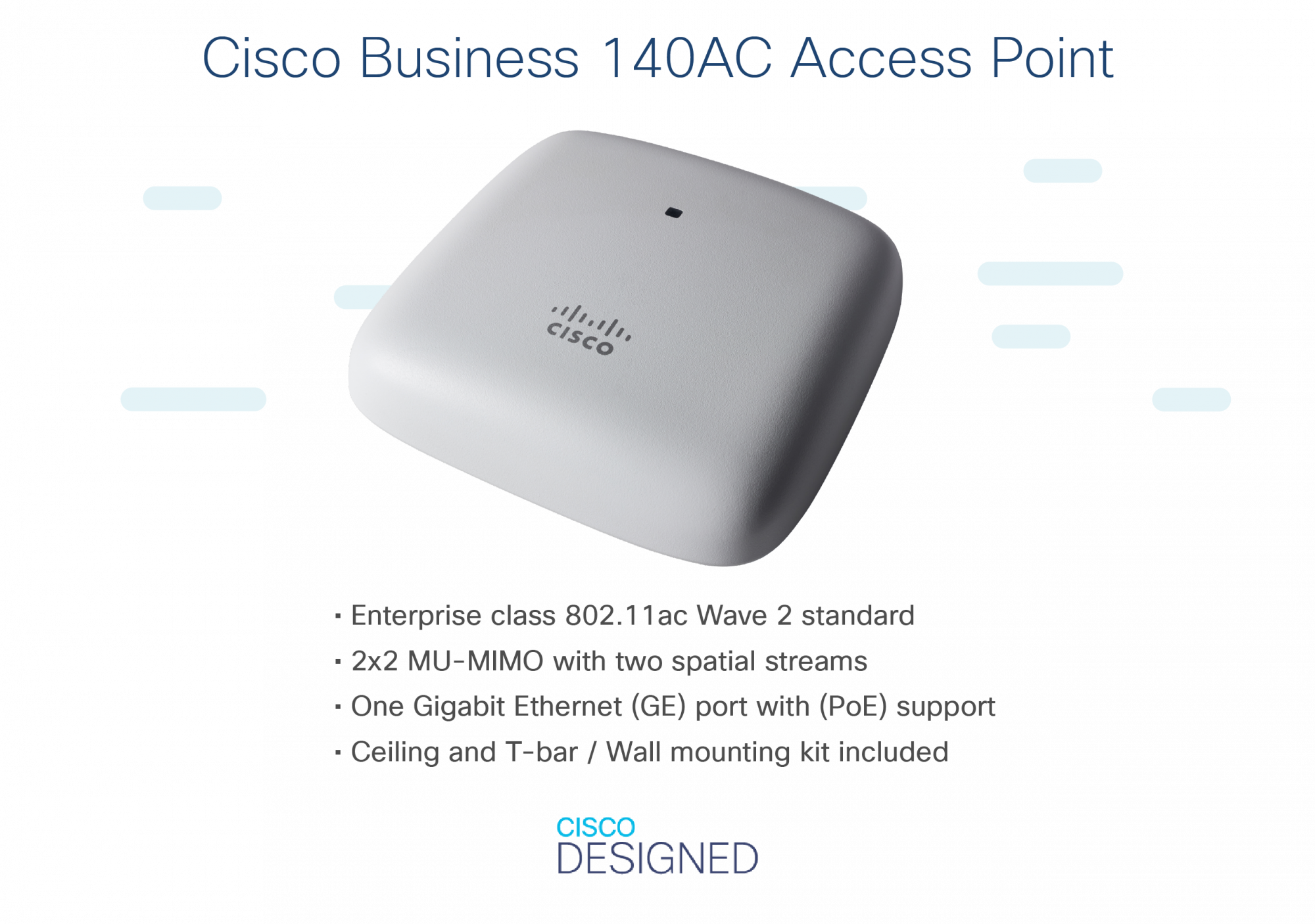

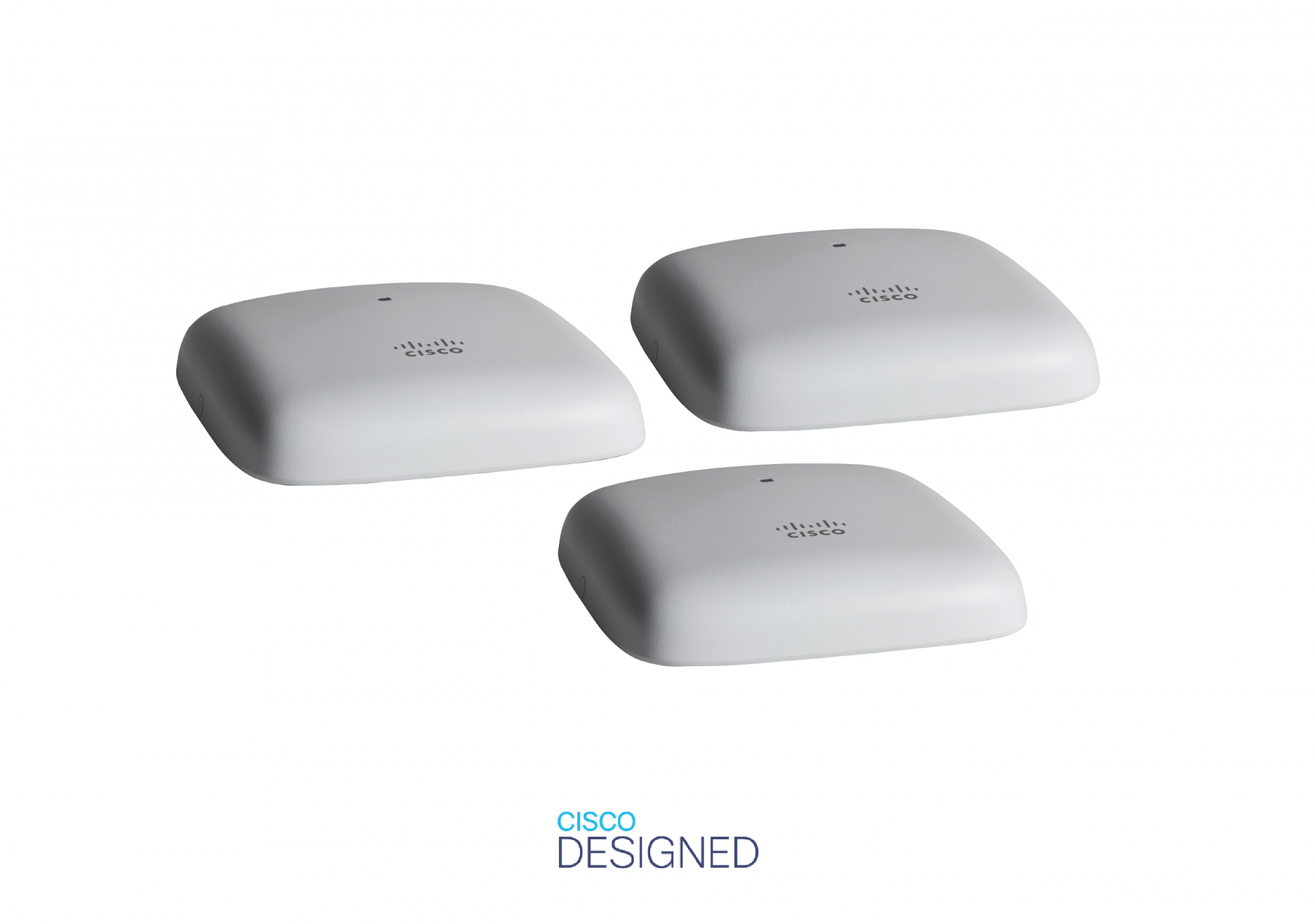

Cisco Business 140AC 802.11ac 2x2 Wave 2 Access Point 1 GbE Port - Ceiling Mount - 3 Pack Bundle, Limited Lifetime Protection (3-CBW140AC-E). Maximum data transfer rate: 867 Mbit/s, Maximum data transfer rate (2.4 GHz): 300 Mbit/s, Maximum data transfer rate (5 GHz): 867 Mbit/s. Security algorithms: 802.1x RADIUS, AES, EAP, EAP-FAST, EAP-GTC, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, WPA2, WPA3. Placement: Ceiling, Product colour: White, Country of origin: China. Antenna type: Internal, Antenna features: Integrated antenna, Antenna gain level (max): 4 dBi. Processor frequency: 710 MHz, Flash memory: 256 MB, Internal memory: 1024 MB

PERFORMANCE: Enterprise-grade MU-MIMO (2x2) performance of three access points delivers a highly secured and reliable wireless connectivity
DEPLOYMENT: Flexible deployment wall or celling mount (brackets included) with Power over Ethernet (PoE) support
FLEXIBILITY: Mix and match Cisco Business Wireless access points and mesh extenders to increase your Wi-Fi coverage
SET UP IN MINUTES: Simplify management and monitor your network from the Cisco Business Mobile app or Web browser
ADVANCED SECURITY: Enterprise-class security prevent malware, phishing, and other threats from compromising your network via Cisco Umbrella integration
NETWORK ACCESS: Prioritize network access based on use cases (i.e. point of sales system, surveillance) or guest privileges
PEACE OF MIND: One-year technical support and limited lifetime warranty

Product Properties

Manufacturer
Cisco

Model
3-CBW140AC-E

EAN
889728279567

Antenna

Antenna features
Integrated antenna

Antenna gain level (max)
4 dBi

Antenna type
Internal

Bullet points

Point
Advanced Security

DEPLOYMENT

FLEXIBILITY

NETWORK ACCESS

PEACE OF MIND: One-year technical support and limited lifetime warranty

PERFORMANCE

SET UP IN MINUTES

Design

Certification
UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 FCC 15.247, 15.407 RSS-247 (Canada) EN 300.328, EN 301.893 (Europe) ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) EMI (Class B) FCC Part 15.107 and 15.109 ICES-003 (Canada) VCCI (Japan) EN 301.489-1 /-17 (Europe) EN 50385 FCC OET-65C RSS-102

Country of origin
China

LED indicators
Yes

Placement
Ceiling

Product colour
White

Features

2.4 GHz
Yes

5 GHz
Yes

Cabling technology
10/100/1000Base-T(X)

Channels quantity
29 channels

Dynamic Frequency Selection (DFS)
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

Frequency band
2.412 - 2.472, 5.18 - 5.32, 5.5 - 5.7 GHz

Maximum data transfer rate
867 Mbit/s

Maximum data transfer rate (2.4 GHz)
300 Mbit/s

Maximum data transfer rate (5 GHz)
867 Mbit/s

MIMO
Yes

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.11r, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u

Number of users
400 user(s)

Transmitting power
20 dBmW

VLAN support
Yes

Wi-Fi Multimedia (WMM)/(WME)
Yes

Logistics data

Harmonized System (HS) code
85176990

Quantity per pack
3 pc(s)

Operational conditions

Non-operating altitude
0 - 4500 m

Operating altitude
0 - 3000 m

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 50 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-30 - 70 °C

Packaging content

Number of products included
3 pc(s)

Packaging data

Package depth
214.2 mm

Package height
234.9 mm

Package weight
2.62 kg

Package width
277.7 mm

Performance

Built-in processor
Yes

Flash memory
256 MB

Internal memory
1024 MB

Processor frequency
710 MHz

Ports & interfaces

Ethernet LAN (RJ-45) ports
1

Power

Power over Ethernet (PoE)
Yes

Security

MAC address filtering
Yes

Remote Authentication Dial-In User Service (RADIUS)
Yes

Security algorithms
802.1x RADIUS, AES, EAP, EAP-FAST, EAP-GTC, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, WPA2, WPA3

Weight & dimensions

Depth
149.6 mm

Height
33 mm

Weight
373 g

Width
150.8 mm
