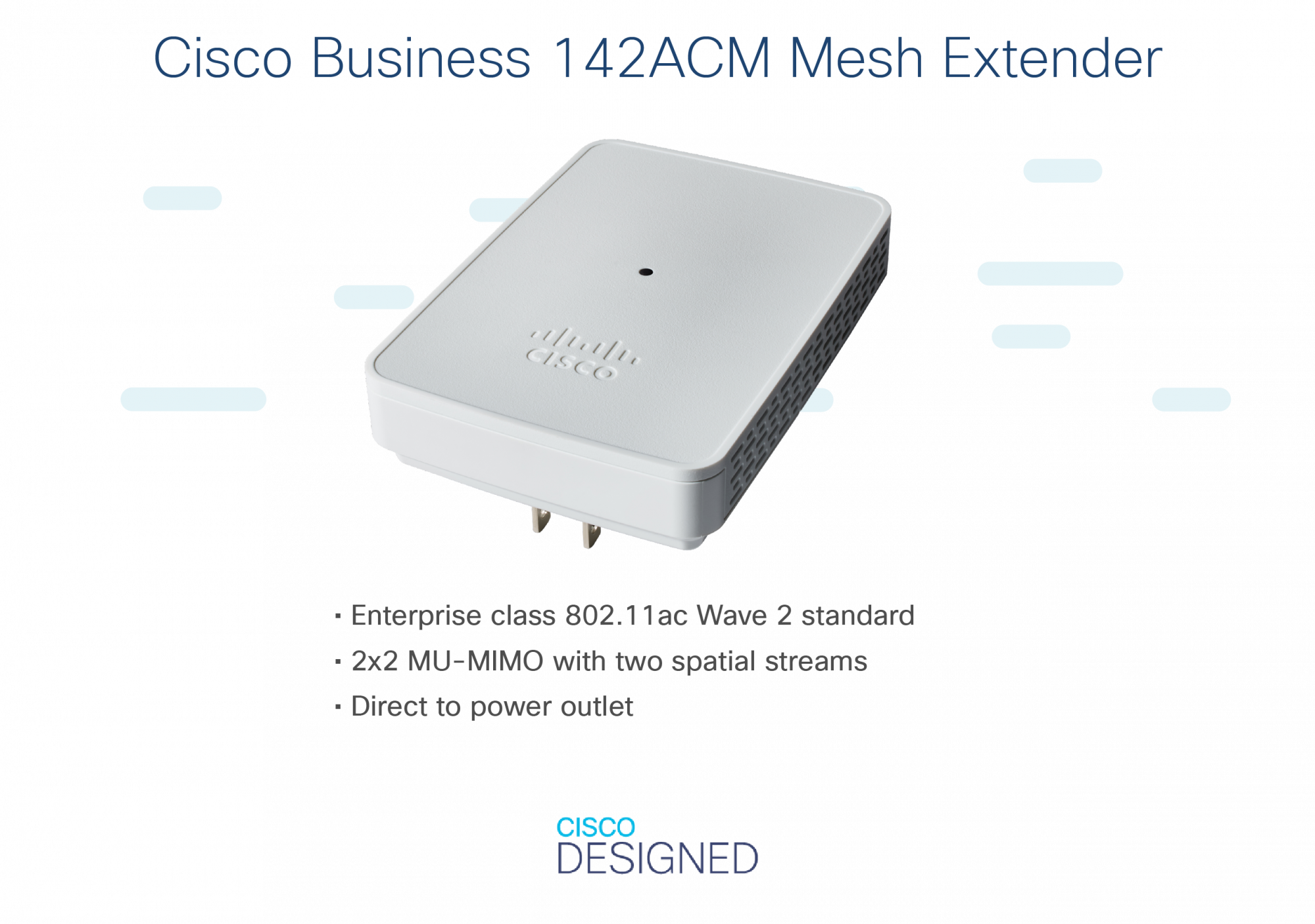

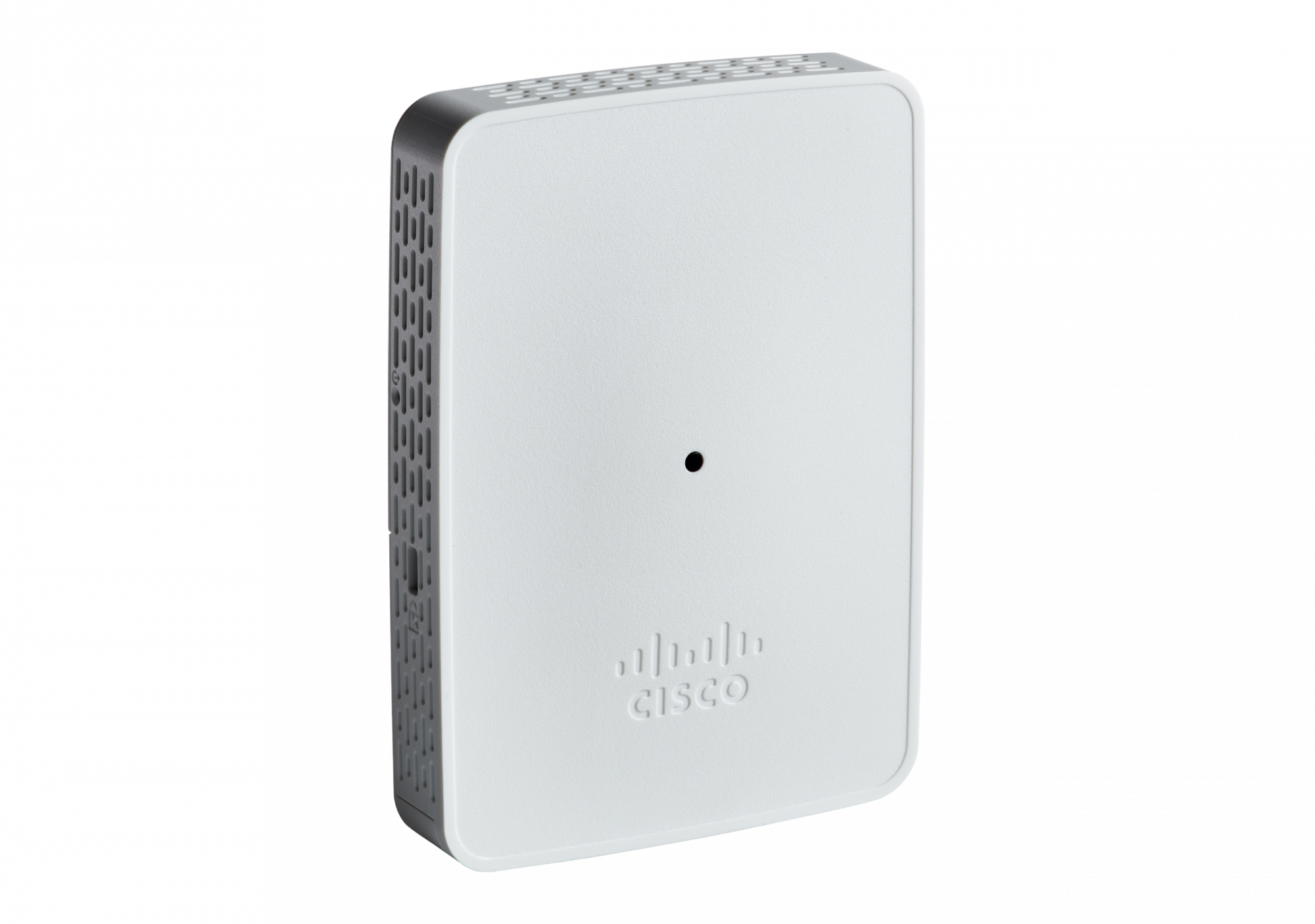

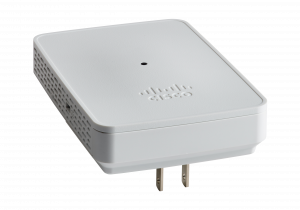

Description

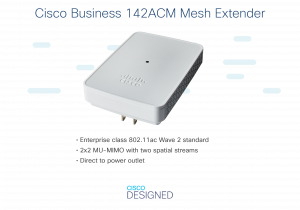

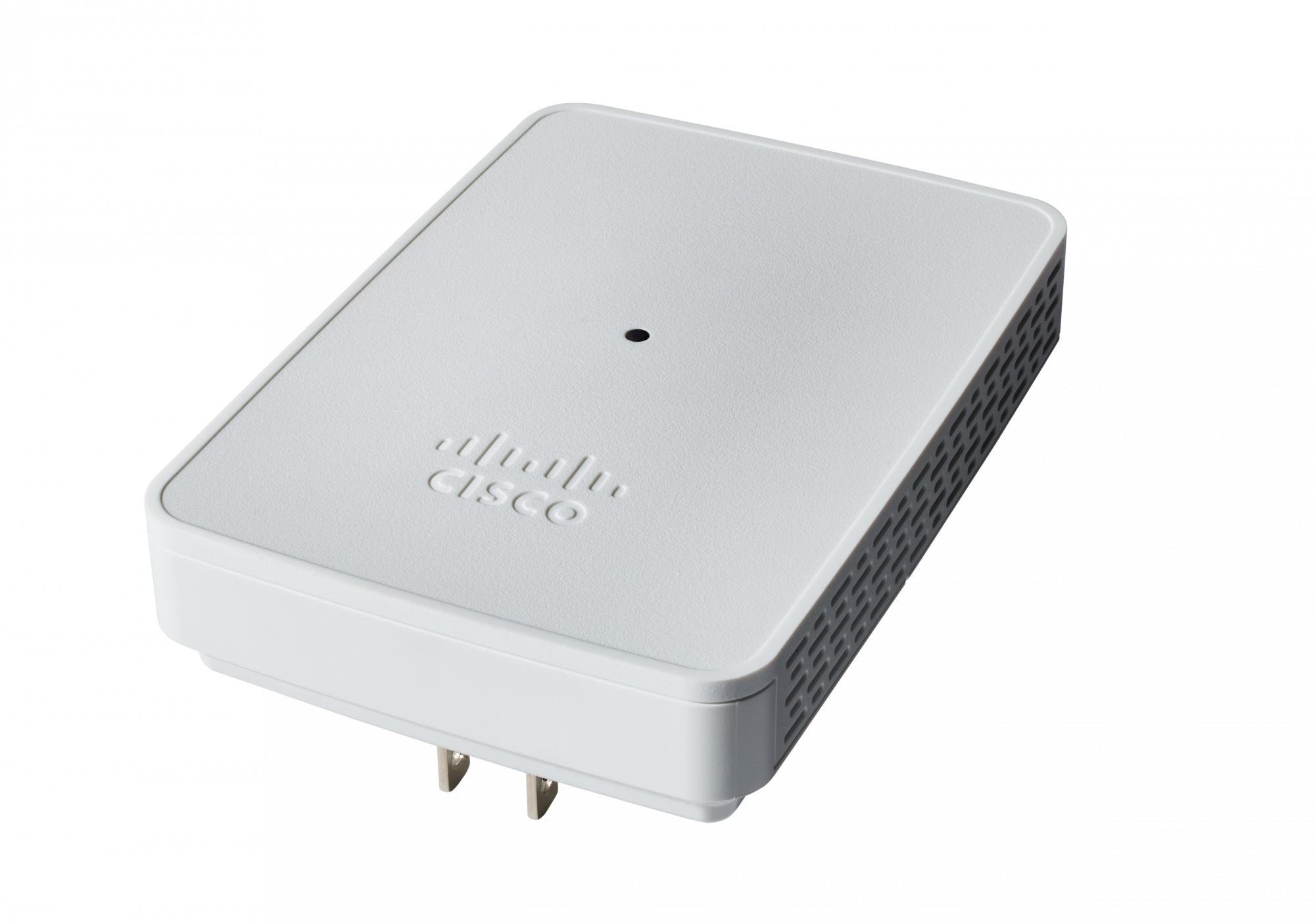

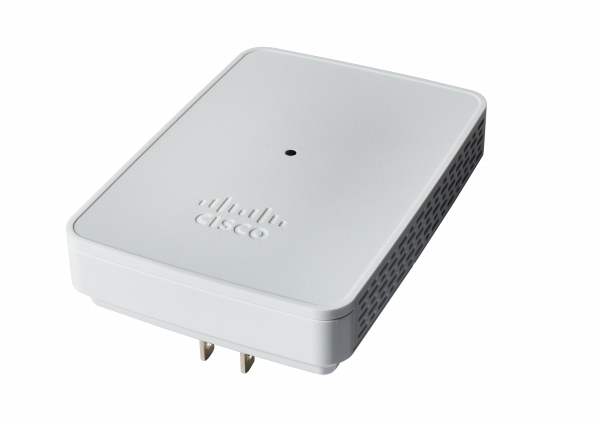

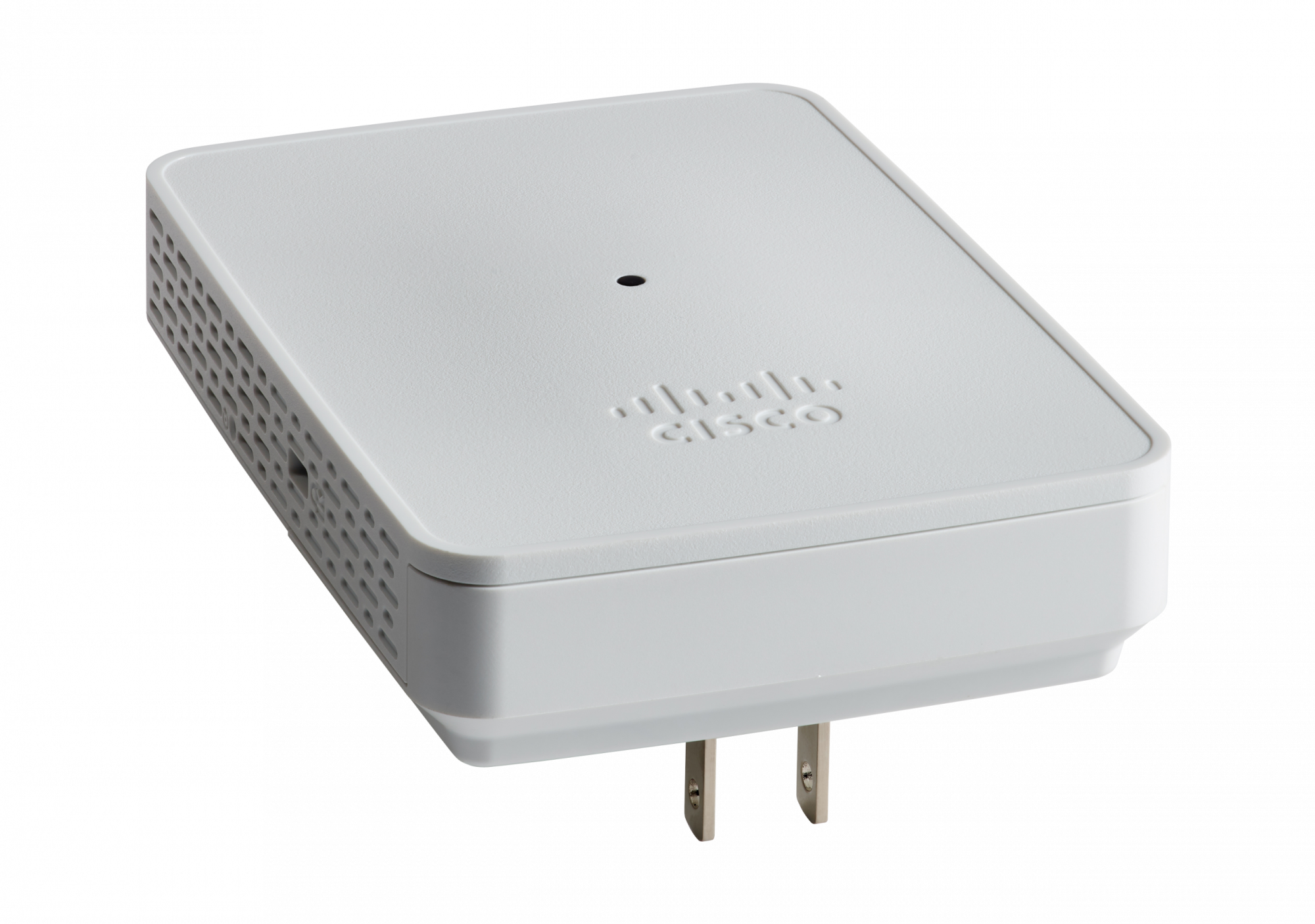

Cisco Business 142ACM 802.11ac 2x2 Wave 2 Mesh Extender - Wall Outlet, Limited Lifetime Protection (CBW142ACM-E-UK) - Requires Business Wireless Access Points. Maximum data transfer rate: 867 Mbit/s, Frequency band: 2.412 - 2.472, 5.18 - 5.32, 5.5 - 5.6, 5.64 - 5.7 GHz, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i,.... Security algorithms: 802.1x RADIUS, AES, EAP, EAP-FAST, EAP-GTC, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, WPA2,.... AC input voltage: 5 V, Input current: 2 A. Placement: Wall, Product colour: White, Cable lock slot type: Kensington. Antenna type: Internal, Antenna features: Integrated antenna, Antenna gain level (max): 3 dBi

IMPORTANT: The Cisco Business mesh extenders only work with Cisco Business Wireless 100 series and 200 series access points (CBW140AC-B, CBW240AC-B, and CBW145AC-B)
FLEXIBILITY: Mix and match Cisco Business Wireless access points and these MU-MIMO (2x2) mesh extenders to increase your Wi-Fi coverage without rewiring
SET UP IN MINUTES: Plug in the mesh extender, scan a QR code with Cisco Business Mobile app and plug the device into the wall outlet. No additional steps required
DEPLOYMENT: Plug directly into an AC outlet
PEACE OF MIND: One-year technical support and limited lifetime warranty

Product Properties

Manufacturer
Cisco

Model
CBW142ACM-E-UK

EAN
889728274678

Antenna

Antenna features
Integrated antenna

Antenna gain level (max)
3 dBi

Antenna type
Internal

Bullet points

Point
DEPLOYMENT: Plug directly into an AC outlet

FLEXIBILITY

IMPORTANT

PEACE OF MIND: One-year technical support and limited lifetime warranty

SET UP IN MINUTES

Design

Cable lock slot
Yes

Cable lock slot type
Kensington

Certification
UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 CC Part 15.247, 15.407 RSS-247 (Canada) EN 300.328, EN 301.893 (Europe) ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) FCC Part 15.107 and 15.109 ICES-003 (Canada) VCCI (Japan) EN 301.489-1 and -17 (Europe) EN 50385 FCC OET-65C RSS-102

Country of origin
China

LED indicators
Yes

Placement
Wall

Product colour
White

Features

2.4 GHz
Yes

5 GHz
Yes

Channels quantity
29 channels

Dynamic Frequency Selection (DFS)
Yes

Frequency band
2.412 - 2.472, 5.18 - 5.32, 5.5 - 5.6, 5.64 - 5.7 GHz

Maximum data transfer rate
867 Mbit/s

MIMO
Yes

MIMO type
Multi User MIMO

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.11r

Number of users
400 user(s)

Transmitting power
20 dBmW

Wi-Fi Multimedia (WMM)/(WME)
Yes

Logistics data

Harmonized System (HS) code
85176990

Quantity per pack
1 pc(s)

Operational conditions

Non-operating altitude
0 - 4500 m

Operating altitude
0 - 3000 m

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 50 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-30 - 70 °C

Packaging content

Number of products included
1 pc(s)

Packaging data

Package depth
174.6 mm

Package height
82.5 mm

Package weight
386 g

Package width
168.3 mm

Performance

Built-in processor
Yes

Flash memory
128 MB

Internal memory
512 MB

Processor frequency
710 MHz

Power

AC input voltage
5 V

Input current
2 A

Power over Ethernet (PoE)
No

Security

Remote Authentication Dial-In User Service (RADIUS)
Yes

Security algorithms
802.1x RADIUS, AES, EAP, EAP-FAST, EAP-GTC, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, WPA2, WPA3

Weight & dimensions

Depth
85 mm

Height
24 mm

Weight
233 g

Width
119 mm
