Description

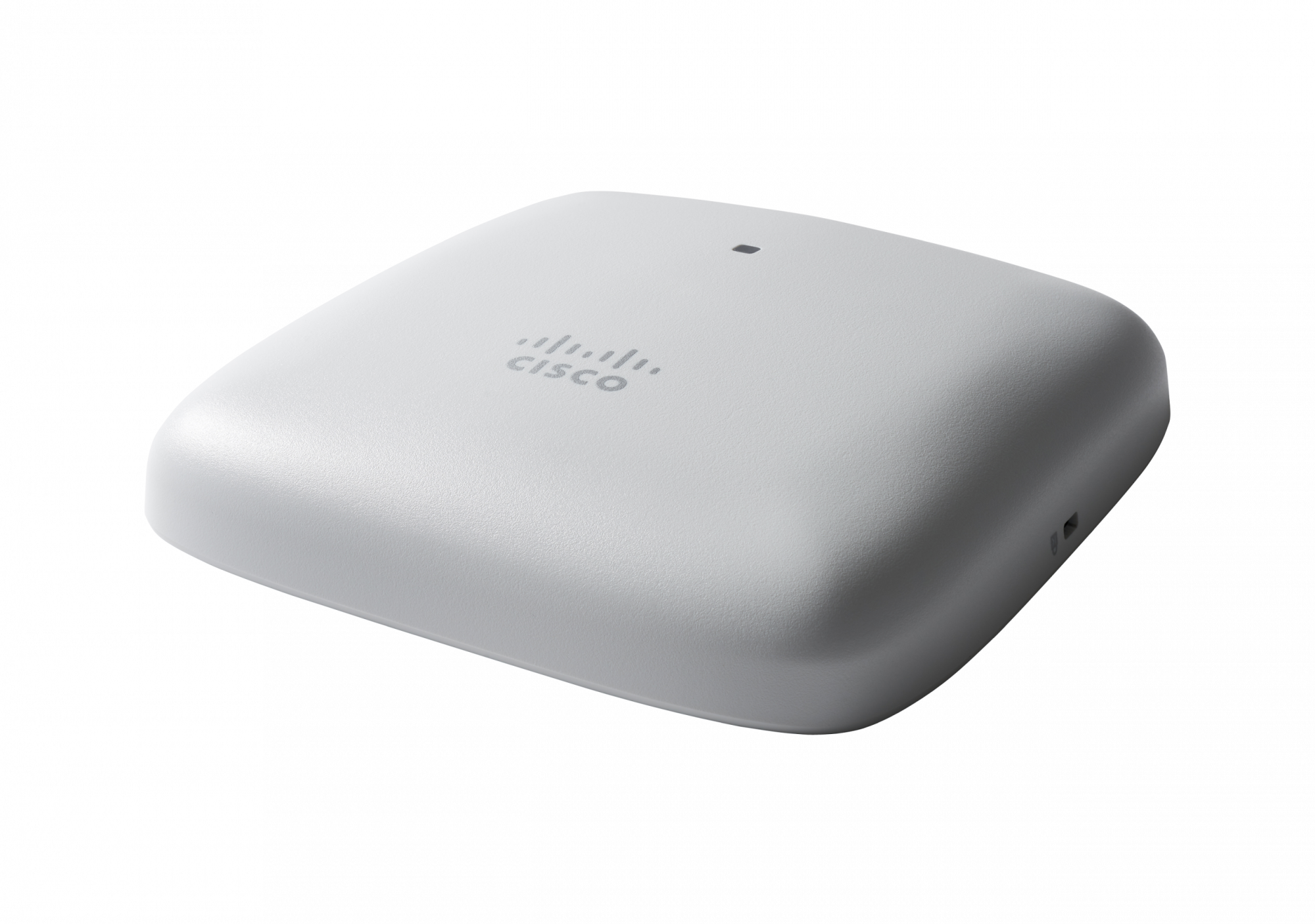

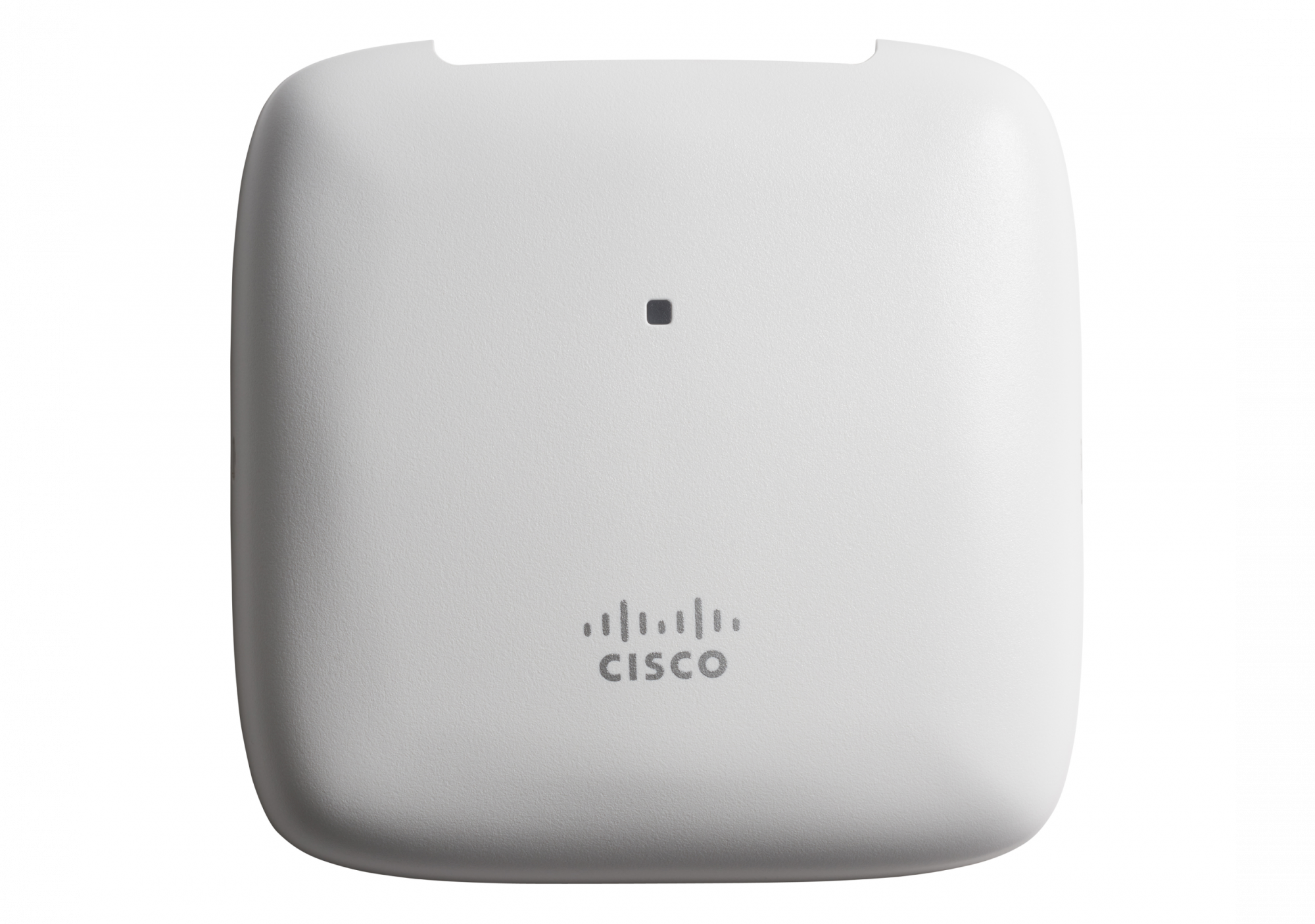

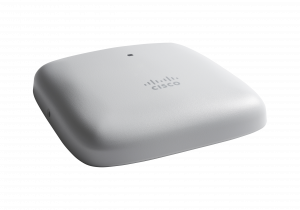

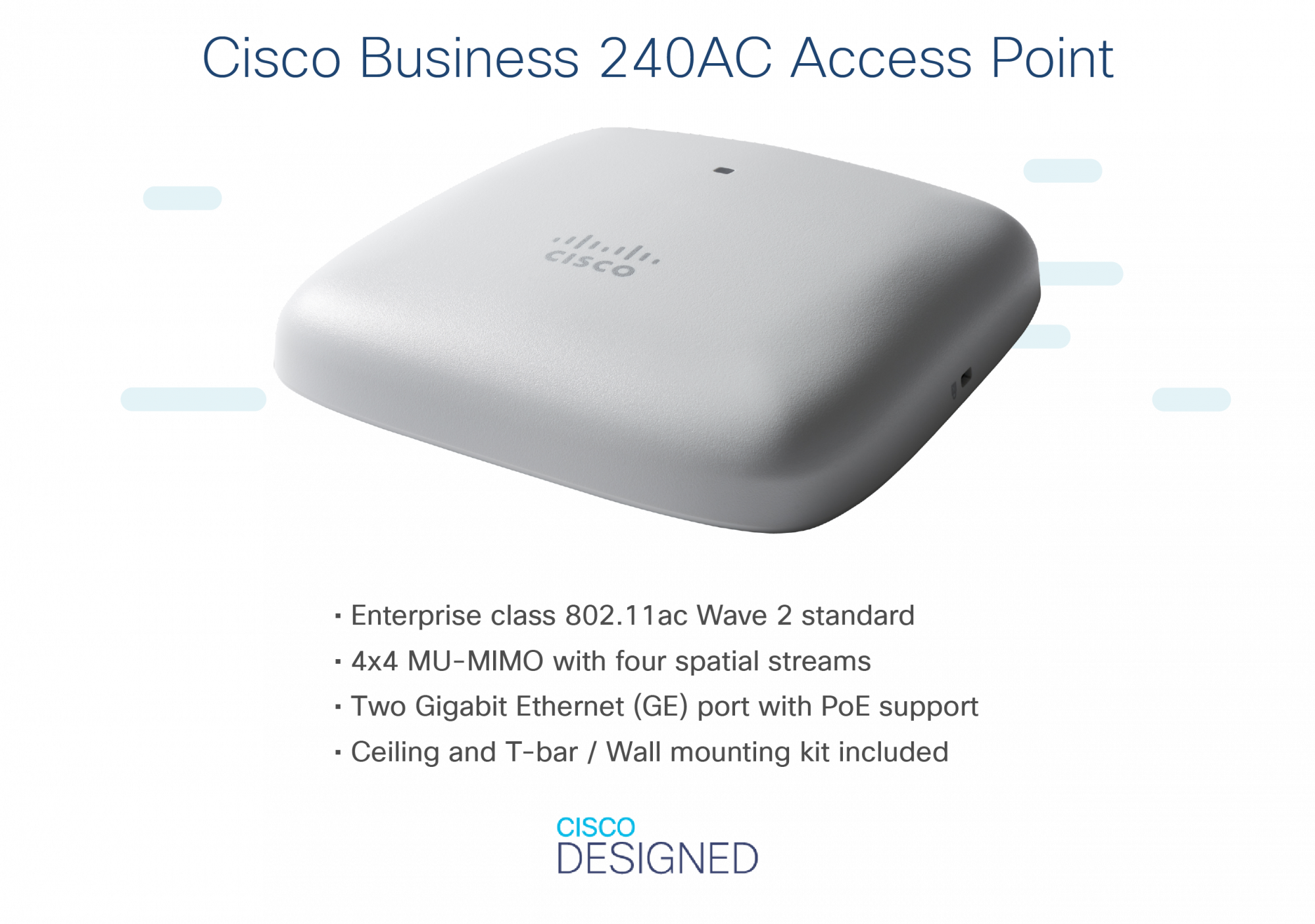

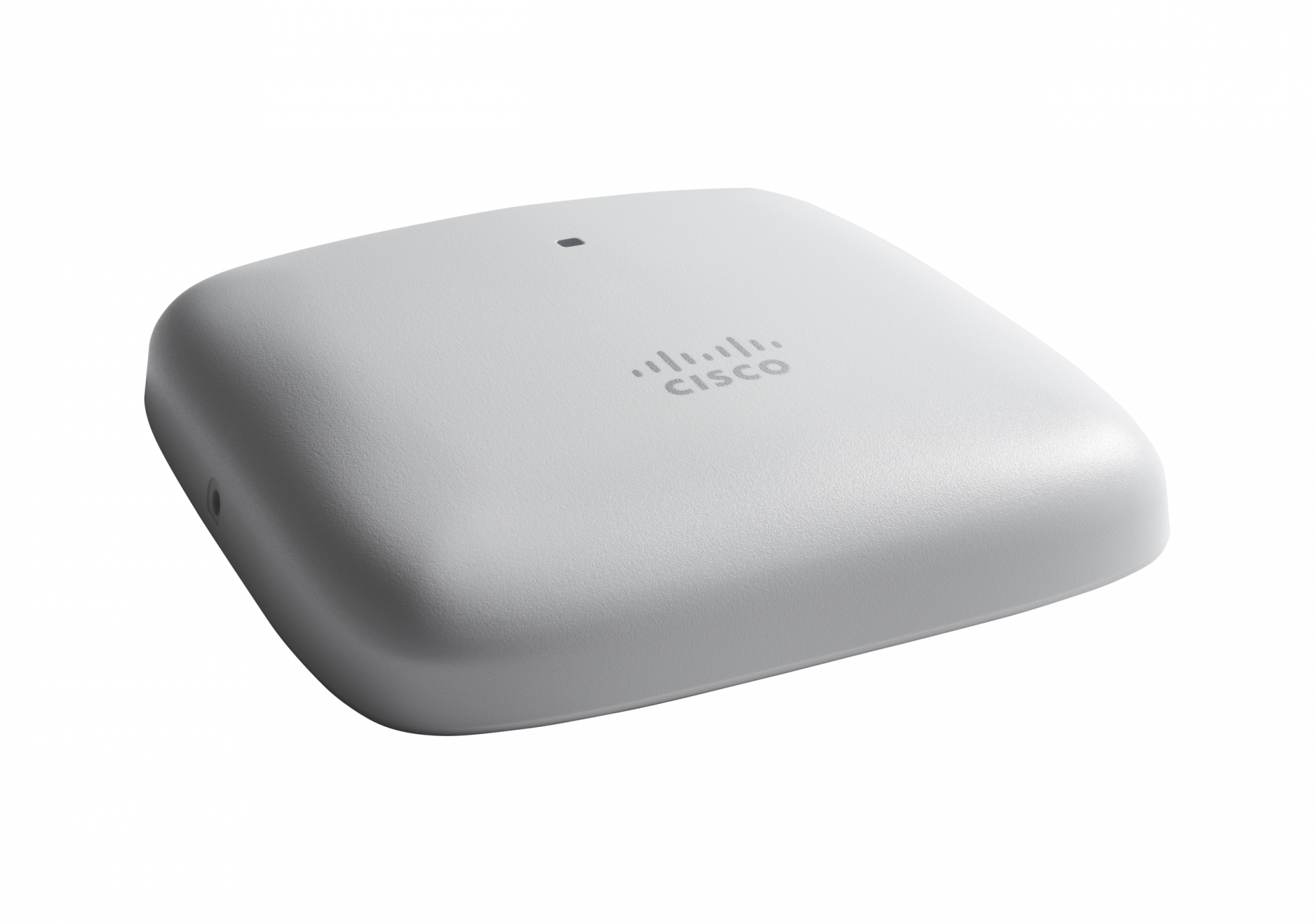

Cisco Business 240AC 802.11ac 4x4 Wave 2 Access Point 2 GbE Ports - Ceiling Mount, Limited Lifetime Protection (CBW240AC-E). Maximum data transfer rate: 1733 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s, Frequency band: 2.412 - 2.472, 5.18 - 5.32, 5.5 - 5.7 GHz. Security algorithms: 802.1x RADIUS, WPA2, WPA3. Placement: Ceiling, Product colour: Grey, Country of origin: China. Flash memory: 256 MB, Internal memory: 1024 MB. Width: 177.4 mm, Depth: 176.5 mm, Height: 38.1 mm

PERFORMANCE: Superior MU-MIMO (4x4) performance supporting up to 200 wireless devices and a maximum wireless coverage up to 3000 square feet

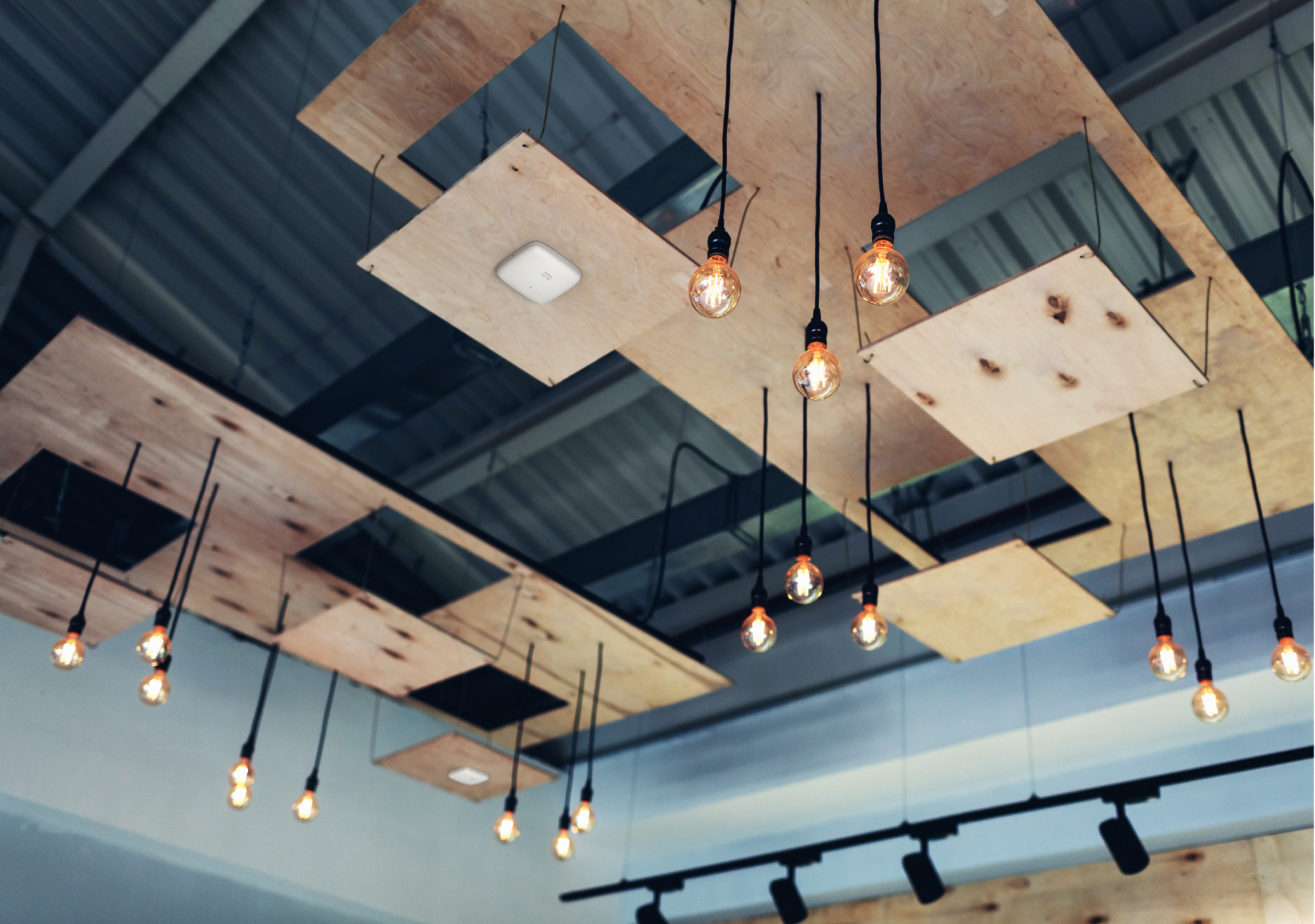

DEPLOYMENT: Flexible deployment wall or celling mount (brackets included). Works also with Cisco Business Power over Ethernet injector (CB-PWRINJ)
ENHANCED COVERAGE: Supports up to 25 mesh extenders while delivering a reliable user experience
SET UP IN MINUTES: Simplify management and monitor your network from Cisco Business Mobile app or web browser
ADVANCED SECURITY: Enterprise-class security prevent malware, phishing, and other threats from compromising your network via Cisco Umbrella integration
NETWORK ACCESS: Prioritize network access based on use cases (i.e. point of sales system, surveillance) or guest privileges
PEACE OF MIND: One-year technical support and limited lifetime warranty

Product Properties

Manufacturer
Cisco

Model
CBW240AC-E

EAN
889728275033

Bullet points

Point
Advanced Security

DEPLOYMENT

ENHANCED COVERAGE: Supports up to 25 mesh extenders while delivering a reliable user experience

NETWORK ACCESS

PEACE OF MIND: One-year technical support and limited lifetime warranty

PERFORMANCE

SET UP IN MINUTES

Design

Country of origin
China

LED indicators
Yes

Placement
Ceiling

Product colour
Grey

Features

2.4 GHz
Yes

5 GHz
Yes

Cabling technology
10/100/1000Base-T(X)

Channels quantity
29 channels

Ethernet LAN data rates
10,100,1000 Mbit/s

Frequency band
2.412 - 2.472, 5.18 - 5.32, 5.5 - 5.7 GHz

Maximum data transfer rate
1733 Mbit/s

MIMO
Yes

MIMO type
Multi User MIMO

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.11r, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u

Number of users
400 user(s)

VLAN support
Yes

Logistics data

Harmonized System (HS) code
85176990

Quantity per pack
1 pc(s)

Operational conditions

Non-operating altitude
0 - 4500 m

Operating altitude
0 - 3000 m

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 50 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-30 - 70 °C

Packaging content

Number of products included
1 pc(s)

Packaging data

Package depth
207.9 mm

Package height
74.7 mm

Package weight
890 g

Package width
226.9 mm

Performance

Flash memory
256 MB

Internal memory
1024 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports
2

USB 2.0 ports quantity
1

Power

Power over Ethernet (PoE)
Yes

Security

Remote Authentication Dial-In User Service (RADIUS)
Yes

Security algorithms
802.1x RADIUS, WPA2, WPA3

Weight & dimensions

Depth
176.5 mm

Height
38.1 mm

Weight
426 g

Width
177.4 mm
