Description

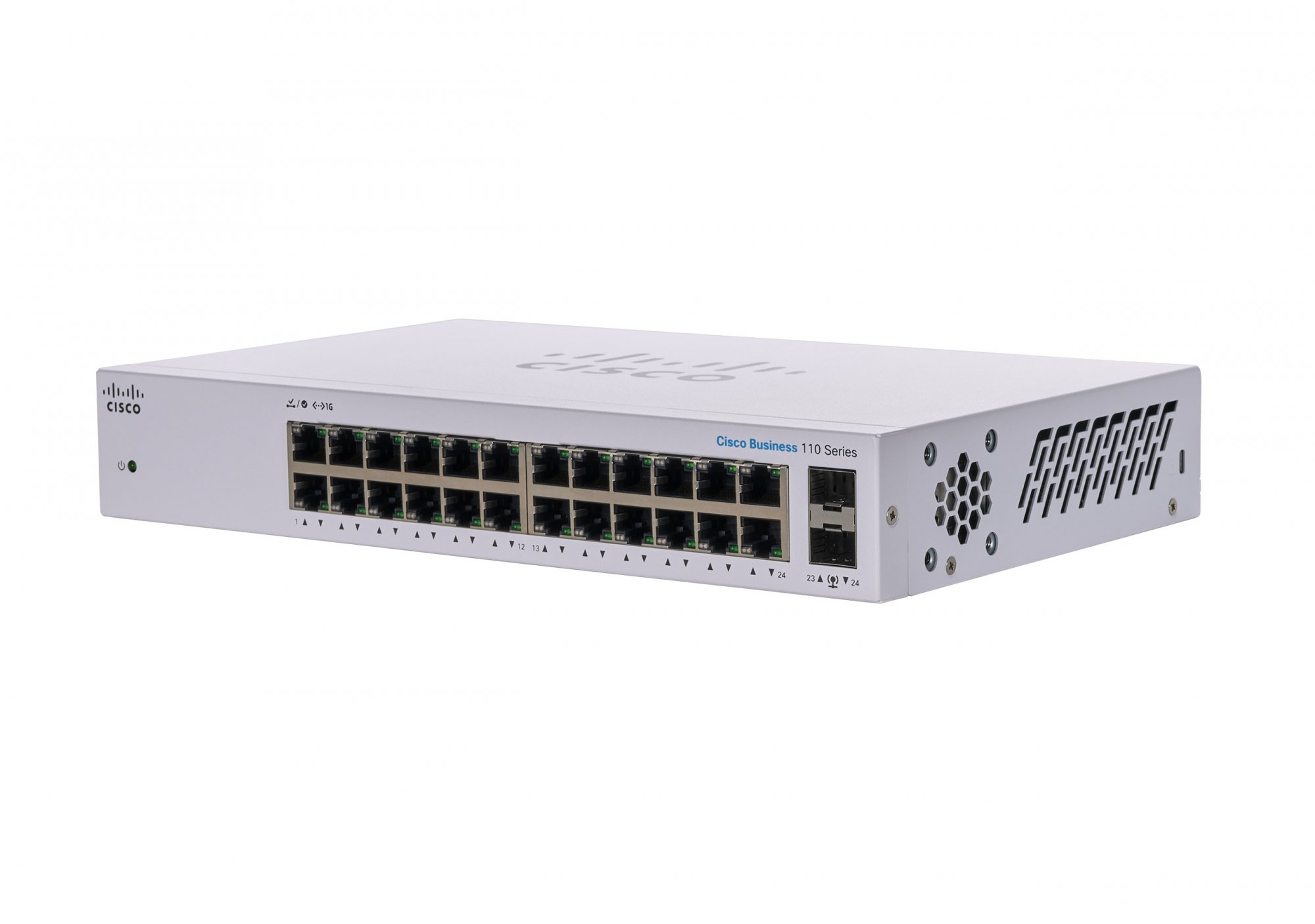

Cisco Business CBS110-24T-D Unmanaged Switch | 24 Port GE | 2x1G SFP Shared | Limited Lifetime Protection (CBS110-24T-D). Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8192 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Rack mounting, Form factor: 1U

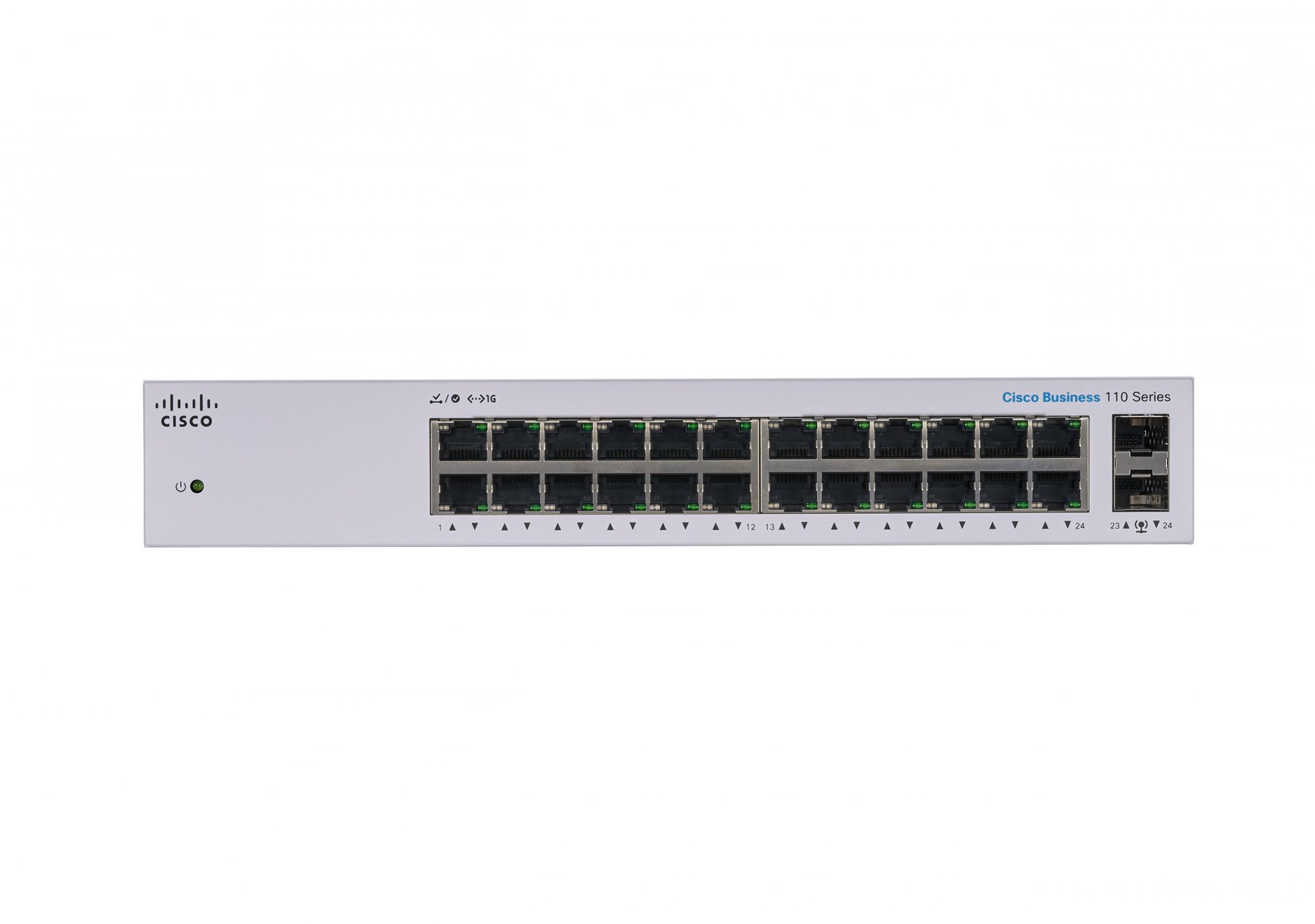

SWITCH PORTS: 24 -Port 10/100/1000 + 2 x 1GE SFP (Shared)
SIMPLE: Plug-and-play without a need for IT know-how or support.

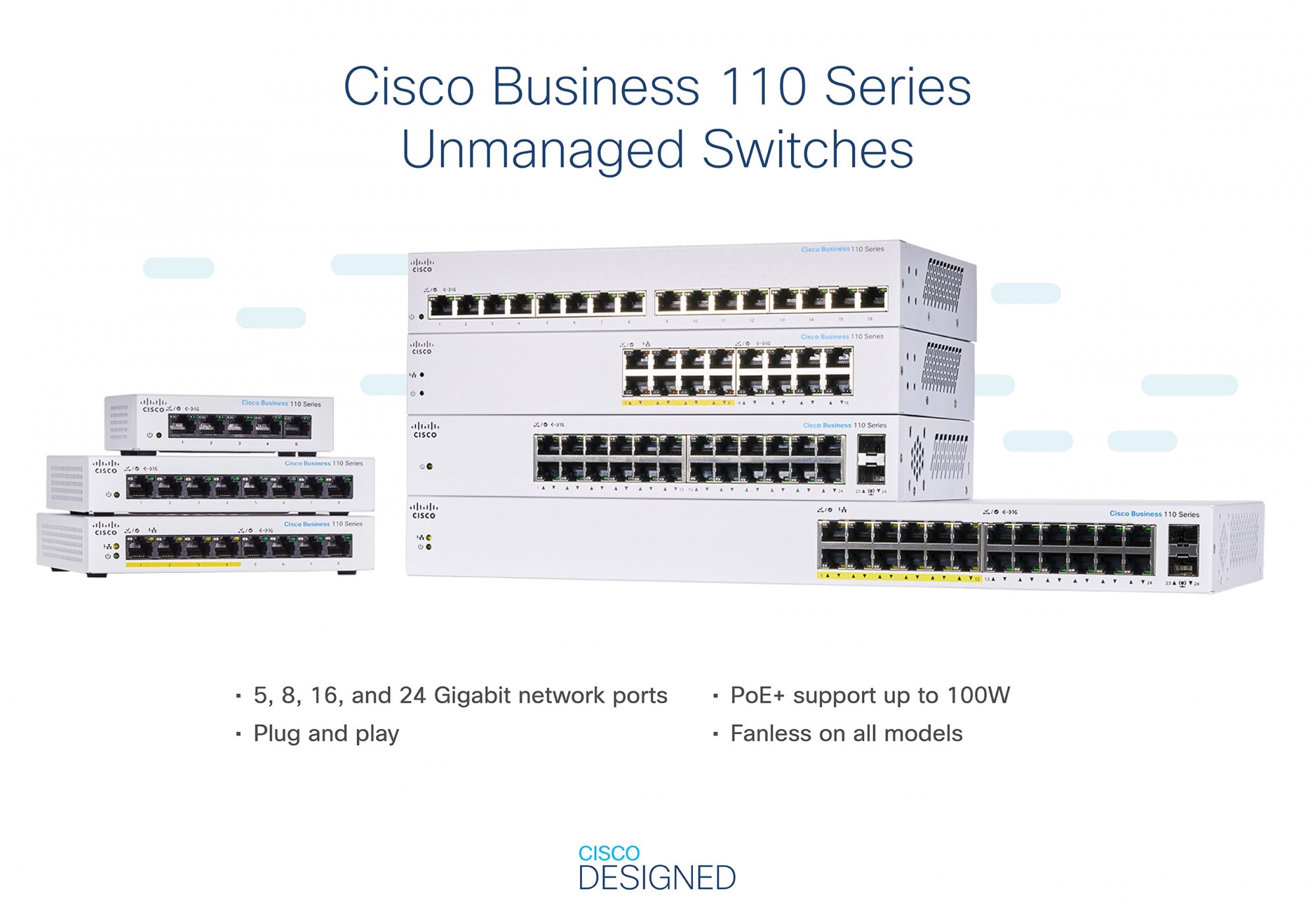

FLEXIBLE: Extensive portfolio provides ultimate flexibility from 5 to 24 ports and PoE combinations
PERFORMANCE: Gigabit Ethernet and integrated quality-of-service (QoS) intelligence optimize delay-sensitive services and improve overall network performance.
INNOVATIVE DESIGN: Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms
ENERGY EFFICIENT: Optimizes power usage to lower operational cost. Compliant with IEEE802.3az Energy Efficient Ethernet. Fanless in all models
PEACE OF MIND: Limited-lifetime warranty with return to factory replacement and one-year technical support

Product Properties

Manufacturer
Cisco

Model
CBS110-24T-UK

EAN
889728326582

Bullet points

Point
ENERGY EFFICIENT

FLEXIBLE: Extensive portfolio provides ultimate flexibility from 5 to 24 ports and PoE combinations

INNOVATIVE DESIGN

PEACE OF MIND

PERFORMANCE

SIMPLE: Plug-and-play without a need for IT know-how or support.

SWITCH PORTS: 24 -Port 10/100/1000 + 2 x 1GE SFP (Shared)

Data transmission

Forwarding rate
35.7 Mpps

Jumbo frames
9216

Jumbo frames support
Yes

MAC address table
8192 entries

Number of queues
4

Switching capacity
48 Gbit/s

Design

Certification
UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B

Country of origin
China

Form factor
1U

LED indicators
Yes

Product colour
Grey

Rack mounting
Yes

Logistics data

Harmonized System (HS) code
85176990

Quantity per pack
1 pc(s)

Management features

Quality of Service (QoS) support
Yes

Switch layer
L2

Switch type
Unmanaged

Network

10G support
No

Auto MDI/MDI-X
Yes

Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T

Ethernet LAN data rates
10,100,1000 Mbit/s

Flow control support
Yes

Full duplex
Yes

Half duplex
Yes

Head-of-line (HOL) blocking
Yes

Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Operational conditions

Heat dissipation
55.75 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-20 - 70 °C

Other features

Packaging content
Switch, Power cord or adapter, Mounting hardware and Quick Start Guide

Packaging data

Package depth
365.8 mm

Package height
105.9 mm

Package weight
2.79 kg

Package width
293.1 mm

Quick start guide
Yes

Rack mount kit
Yes

Performance

Built-in processor
Yes

Flash memory
8 MB

Internal memory
64 MB

Mean time between failures (MTBF)
524296 h

Processor frequency
400 MHz

Ports & interfaces

Combo SFP ports quantity
2

Gigabit Ethernet (copper) ports quantity
24

Switch Number of Ports
24

Switch Port Speed
Fast Ethernet (10/100)

Power

AC input frequency
50 - 60 Hz

AC input voltage
110 - 240 V

Number of power supply units
1

Power supply included
Yes

Redundant power supply (RPS) support
No

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Security

Queue scheduling algorithms
Weighted Round Robin (WRR)

Sustainability

Sustainability certificates
CE

Sustainability compliance
Yes

Weight & dimensions

Depth
279.4 mm

Height
43.9 mm

Weight
1.56 kg

Width
177.8 mm
