Description

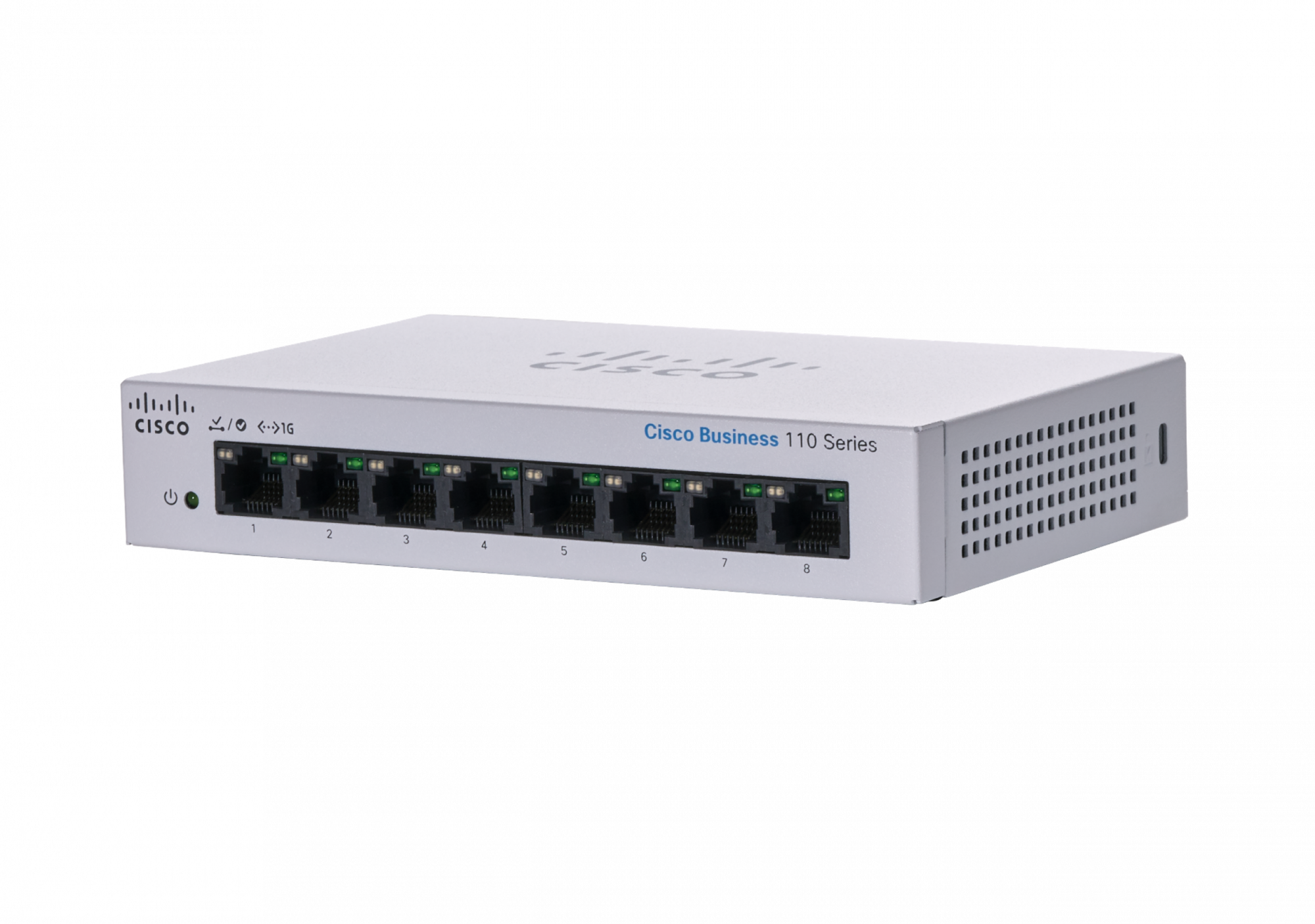

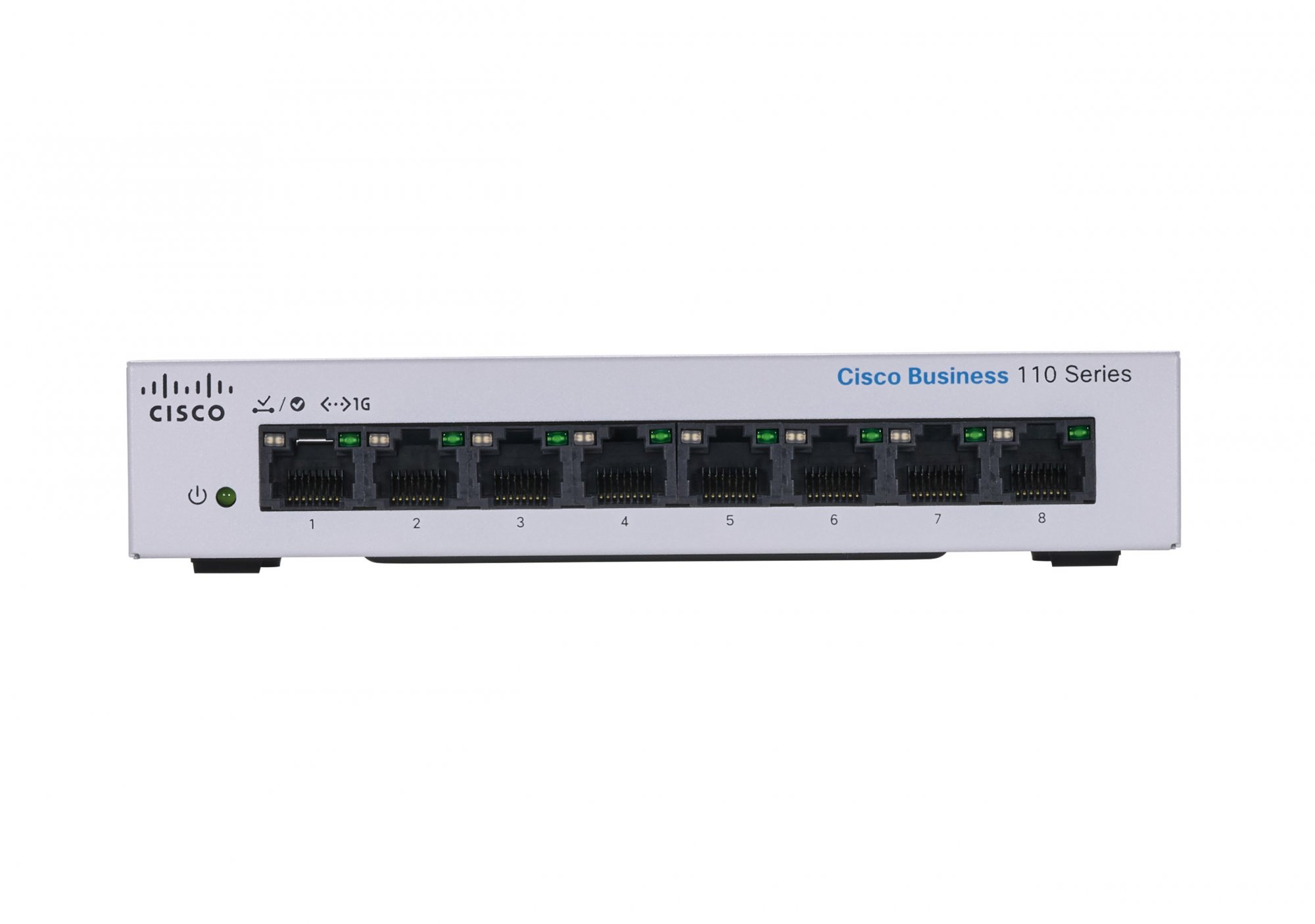

Cisco Business CBS110-8T-D Unmanaged Switch | 8 Port GE | Desktop | Ext PS | Limited Lifetime Protection (CBS110-8T-D). Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8192 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V

SWITCH PORTS: 8 -Port 10/100/1000
SIMPLE: Plug-and-play without a need for IT know-how or support.
FLEXIBLE: Extensive portfolio provides ultimate flexibility from 5 to 24 ports and PoE combinations
PERFORMANCE: Gigabit Ethernet and integrated quality-of-service (QoS) intelligence optimize delay-sensitive services and improve overall network performance.
INNOVATIVE DESIGN: Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms
ENERGY EFFICIENT: Optimizes power usage to lower operational cost. Compliant with IEEE802.3az Energy Efficient Ethernet. Fanless in all models
PEACE OF MIND: Limited-lifetime warranty with return to factory replacement and one-year technical support

Product Properties

Manufacturer
Cisco

Model
CBS110-8T-D-UK

EAN
889728326872

Bullet points

Point
ENERGY EFFICIENT

FLEXIBLE: Extensive portfolio provides ultimate flexibility from 5 to 24 ports and PoE combinations

INNOVATIVE DESIGN

PEACE OF MIND

PERFORMANCE

SIMPLE: Plug-and-play without a need for IT know-how or support.

SWITCH PORTS: 8 -Port 10/100/1000

Data transmission

Forwarding rate
11.9 Mpps

Jumbo frames
9216

Jumbo frames support
Yes

MAC address table
8192 entries

Number of queues
4

Switching capacity
16 Gbit/s

Design

Certification
UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B

Country of origin
China

LED indicators
Yes

Product colour
Grey

Rack mounting
No

Logistics data

Harmonized System (HS) code
85176990

Quantity per pack
1 pc(s)

Management features

Quality of Service (QoS) support
Yes

Switch layer
L2

Switch type
Unmanaged

Network

10G support
No

Auto MDI/MDI-X
Yes

Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T

Ethernet LAN data rates
10,100,1000 Mbit/s

Flow control support
Yes

Full duplex
Yes

Half duplex
Yes

Head-of-line (HOL) blocking
Yes

Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

Operational conditions

Heat dissipation
14.09 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-20 - 70 °C

Other features

Packaging content
Switch, Power cord or adapter, Mounting hardware and Quick Start Guide

Packaging data

Package depth
283 mm

Package height
55.9 mm

Package weight
839.15 g

Package width
158.8 mm

Quick start guide
Yes

Performance

Mean time between failures (MTBF)
2066844 h

Ports & interfaces

Gigabit Ethernet (copper) ports quantity
8

Switch Number of Ports
8

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

DC input voltage
12 V

Number of power supply units
1

Power supply included
Yes

Redundant power supply (RPS) support
No

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Security

Queue scheduling algorithms
Weighted Round Robin (WRR)

Weight & dimensions

Depth
160 mm

Height
32 mm

Weight
426.11 g

Width
103.4 mm
