Description

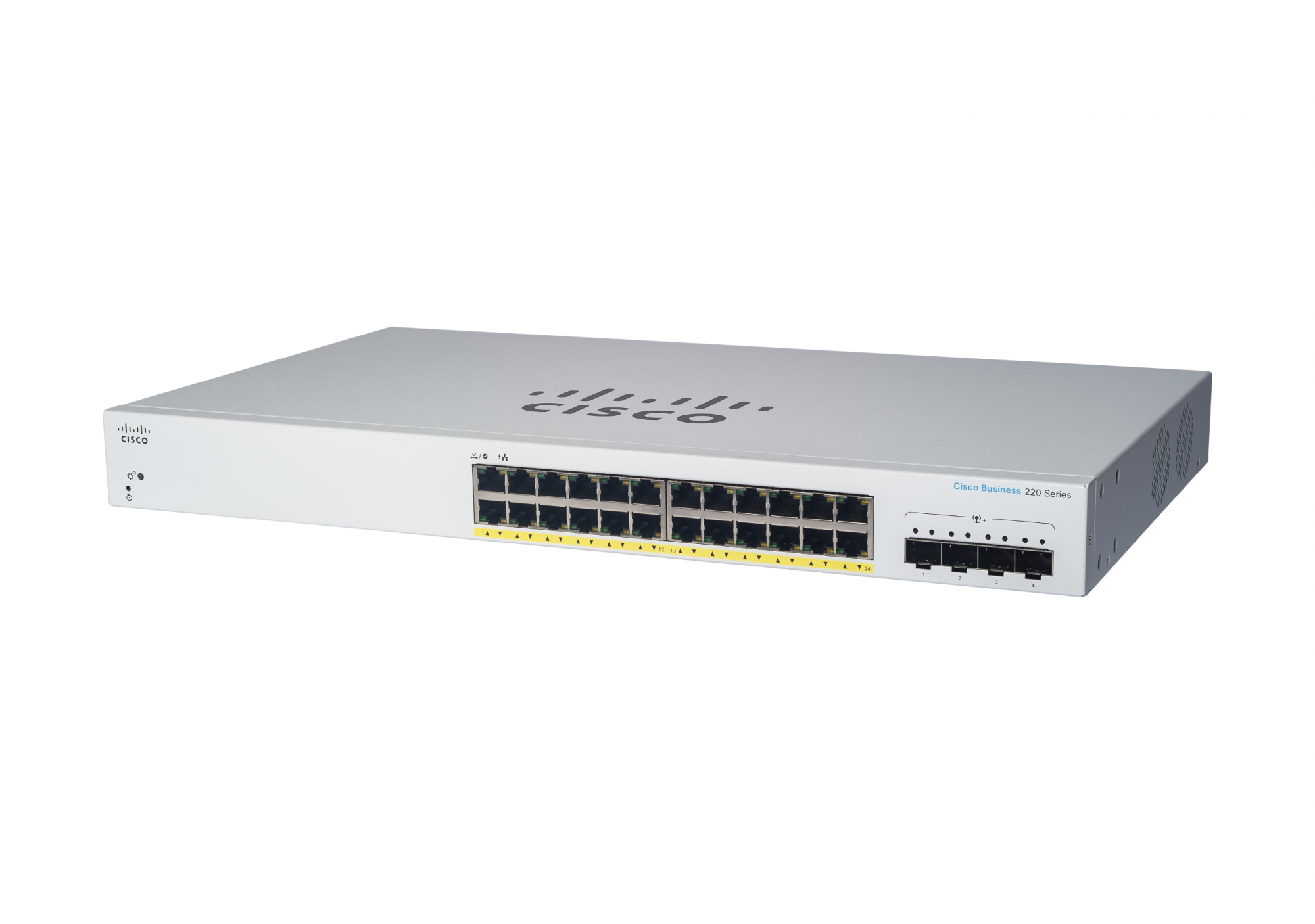

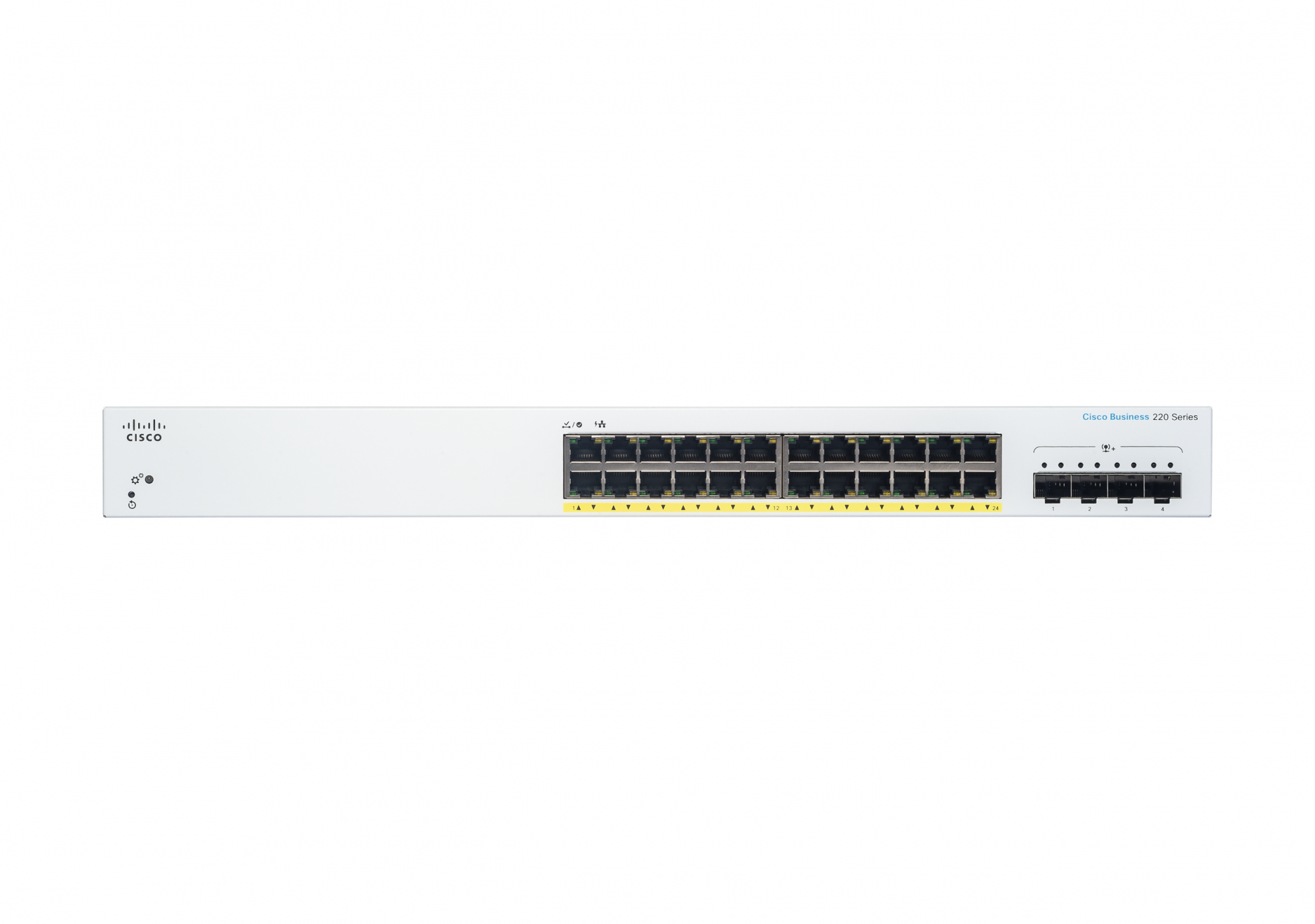

Cisco Business CBS220-24FP-4X Smart Switch | 24 Port GE | Full PoE | 4x10G SFP+ | 3-Year Limited Hardware Warranty (CBS220-24FP-4X-UK). Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8192 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3at, IEEE 802.3z,.... Power over Ethernet (PoE). Rack mounting

SWITCH PORTS: 24-Port 10/100/1000 + 4 x 10G SFP+

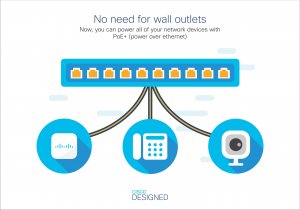

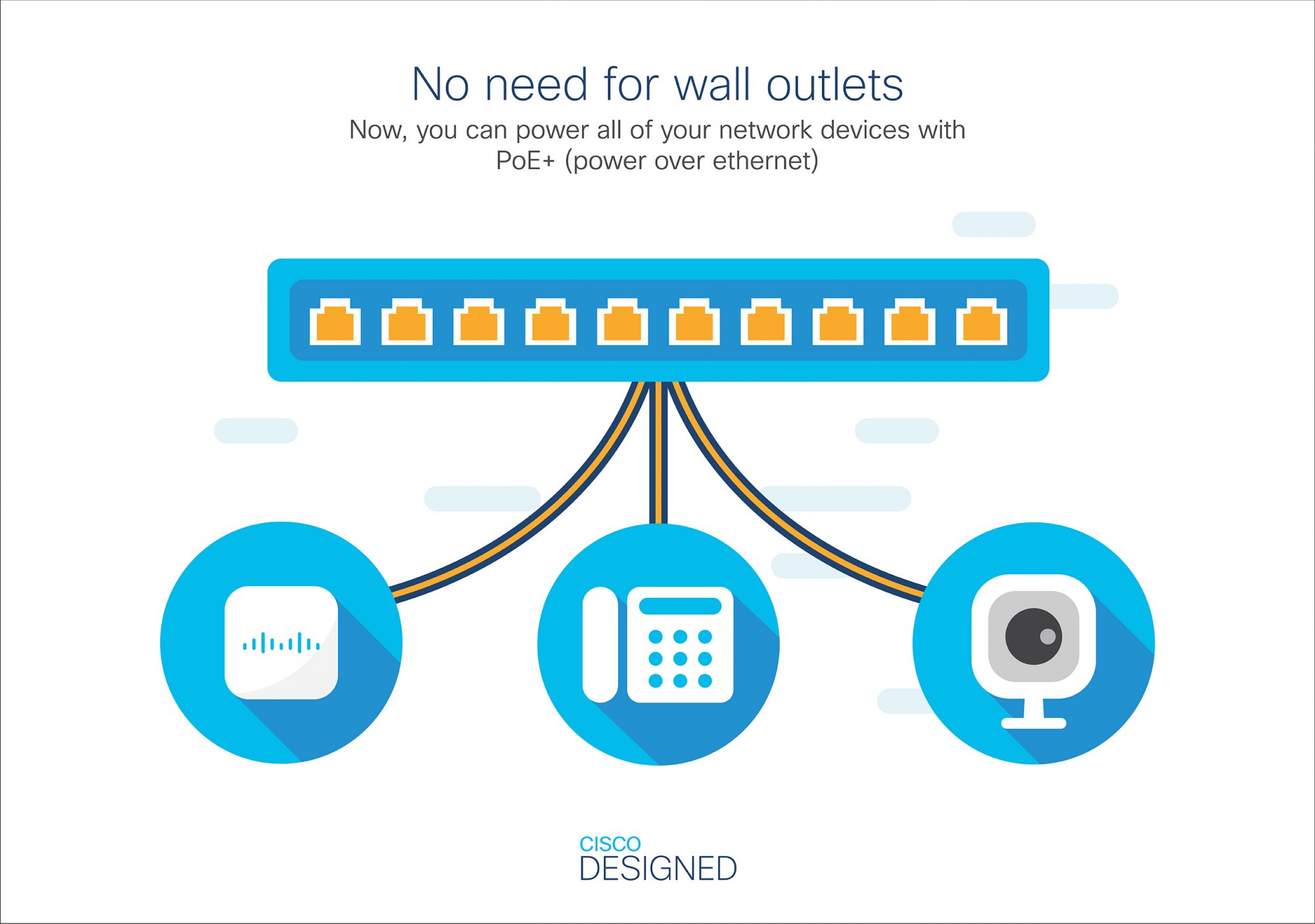

POWER-OVER-ETHERNET: 24 PoE ports with 382W total power budget, PoE, PoE+
SIMPLE: Intuitive on-box UI, mobile app and Cisco Business Dashboard simplifies network operations and automates lifecycle management
SECURITY: Integrated with IEEE 802.1X to control access to your network, Denial-of- Service (DoS) attack prevention increases network uptime during an attack, while Access Control Lists (ACLs) protect the network from unauthorized users
INNOVATIVE DESIGN: Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms
ENERGY EFFICIENT: Optimizes power usage to lower operational cost. Compliant with IEEE802.3az Energy Efficient Ethernet. Fanless in select models
PEACE OF MIND: 3-year limited hardware warranty with return-to-factory replacement and one-year technical support

Product Properties

Manufacturer
Cisco

Model
CBS220-24FP-4X-UK

EAN
889728344630

Bullet points

Point
ENERGY EFFICIENT

INNOVATIVE DESIGN

PEACE OF MIND

POWER-OVER-ETHERNET: 24 PoE ports with 382W total power budget, PoE, PoE+

SECURITY

SIMPLE

SWITCH PORTS: 24-Port 10/100/1000 + 4 x 10G SFP+

Data transmission

Jumbo frames
9216

Jumbo frames support
Yes

MAC address table
8192 entries

Switching capacity
128 Gbit/s

Design

Country of origin
China

LED indicators
Yes

Number of fans
2 fan(s)

Product colour
White

Rack mounting
Yes

Reset button
Yes

Logistics data

Harmonized System (HS) code
85176990

Quantity per pack
1 pc(s)

Management features

Configuring Location Settings (CLI)
Yes

MIB support
Y

Quality of Service (QoS) support
Yes

Switch layer
L2

Switch type
Managed

System event log
Yes

Web-based management
Yes

Multicast features

Multicast support
Yes

Number of multicast groups filtered
256

Network

10G support
Yes

Auto MDI/MDI-X
Yes

Broadcast storm control
Yes

Flow control support
Yes

Head-of-line (HOL) blocking
Yes

Link aggregation
Yes

Networking standards
IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3at, IEEE 802.3z, IEEE 802.1D, IEEE 802.1w, IEEE 802.1x

Number of VLANs
256

Port mirroring
Yes

Spanning tree protocol
Yes

VLAN support
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 50 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-20 - 70 °C

Other features

Packaging content
Switch, Power cord or adapter, Mounting hardware, and Quick Start Guide

Packaging data

Package depth
574 mm

Package height
109.2 mm

Package weight
5.8 kg

Package width
419.1 mm

Performance

Firmware upgradeable
Yes

Ports & interfaces

SFP+ module slots quantity
4

Switch Number of Ports
24

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) ports quantity
24

Total Power over Ethernet (PoE) budget
382 W

Protocols

GARP VLAN Registration Protocol (GVRP)
Yes

Management protocols
SNMP

Security

Access Control List (ACL)
Yes

Access Control List (ACL) rules
512

BPDU filtering/protection
Yes

DHCP features
DHCP client

IGMP entries
256

IGMP snooping
Yes

Loop protection
Yes

MAC address filtering
Yes

Security algorithms
SSL/TLS

SSH/SSL support
Yes

Weight & dimensions

Depth
439.9 mm

Height
43.9 mm

Weight
4.08 kg

Width
257 mm
