Description

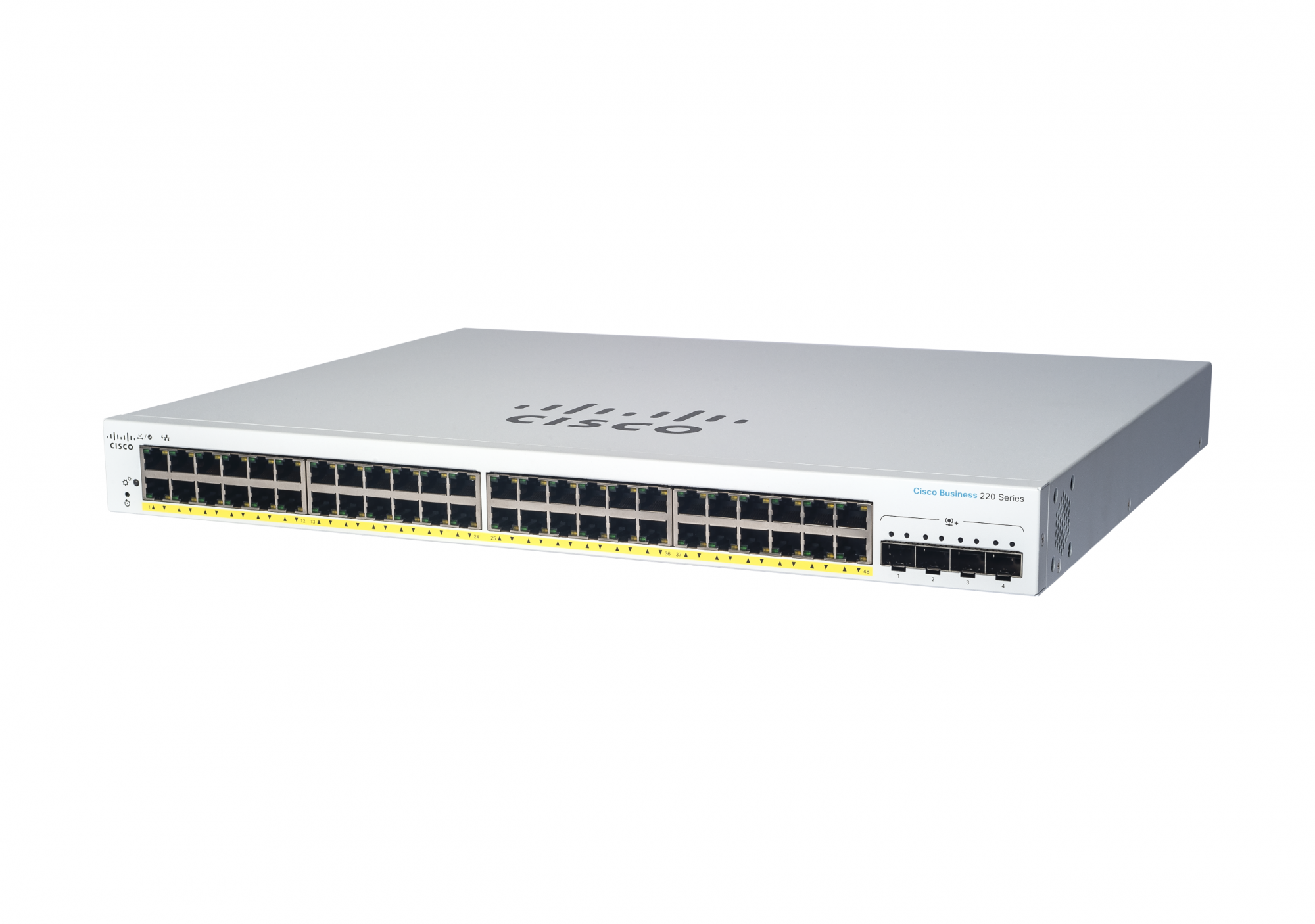

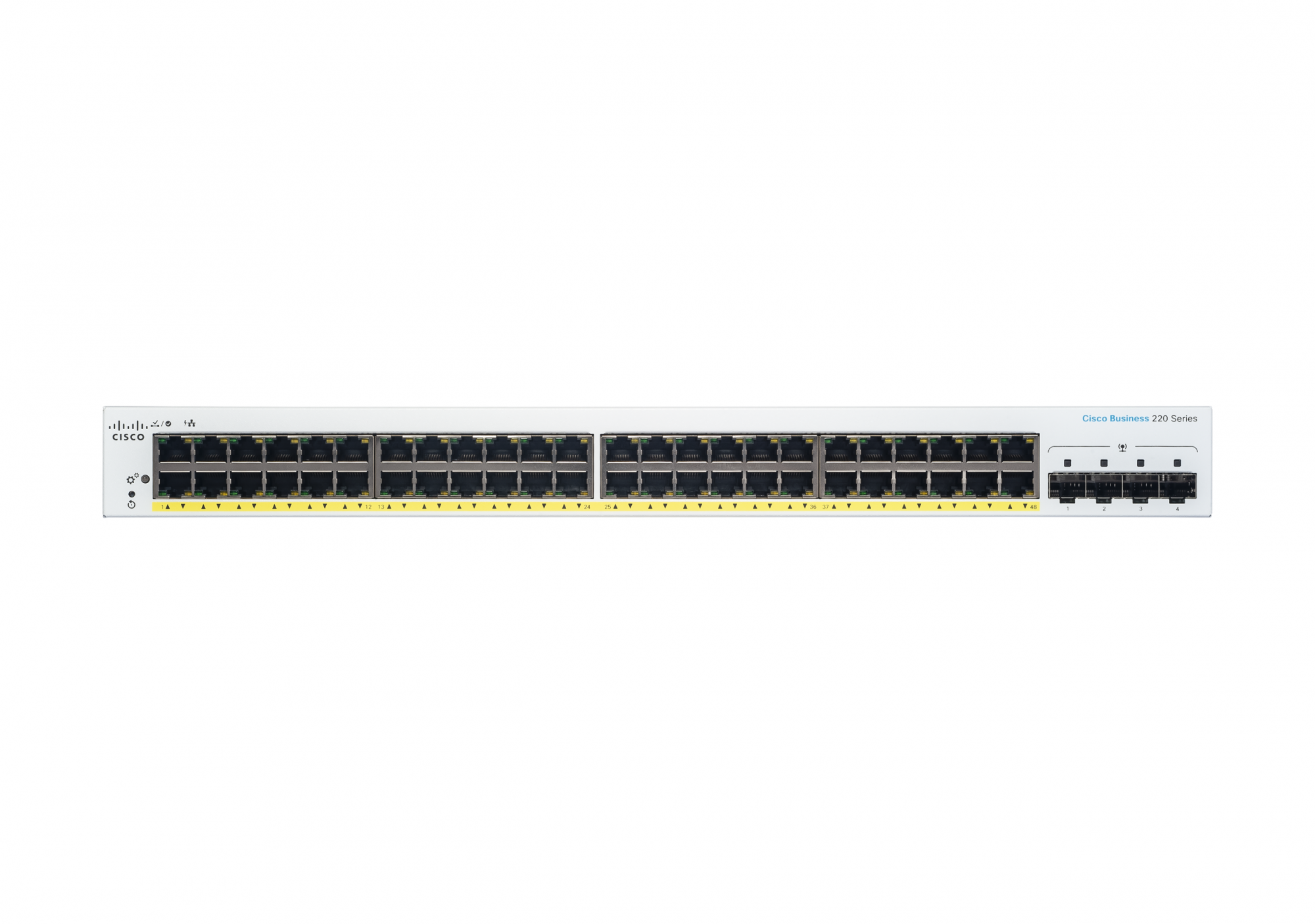

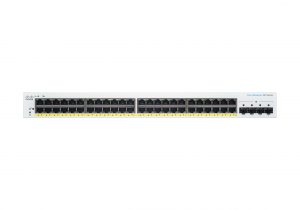

Cisco Business CBS220-48P-4G Smart Switch | 48 Port GE | PoE | 4x1G SFP | 3-Year Limited Hardware Warranty (CBS220-48P-4G-UK). Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 8192 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at,.... Power over Ethernet (PoE). Rack mounting

SWITCH PORTS: 48-Port 10/100/1000 + 4 x 1G SFP

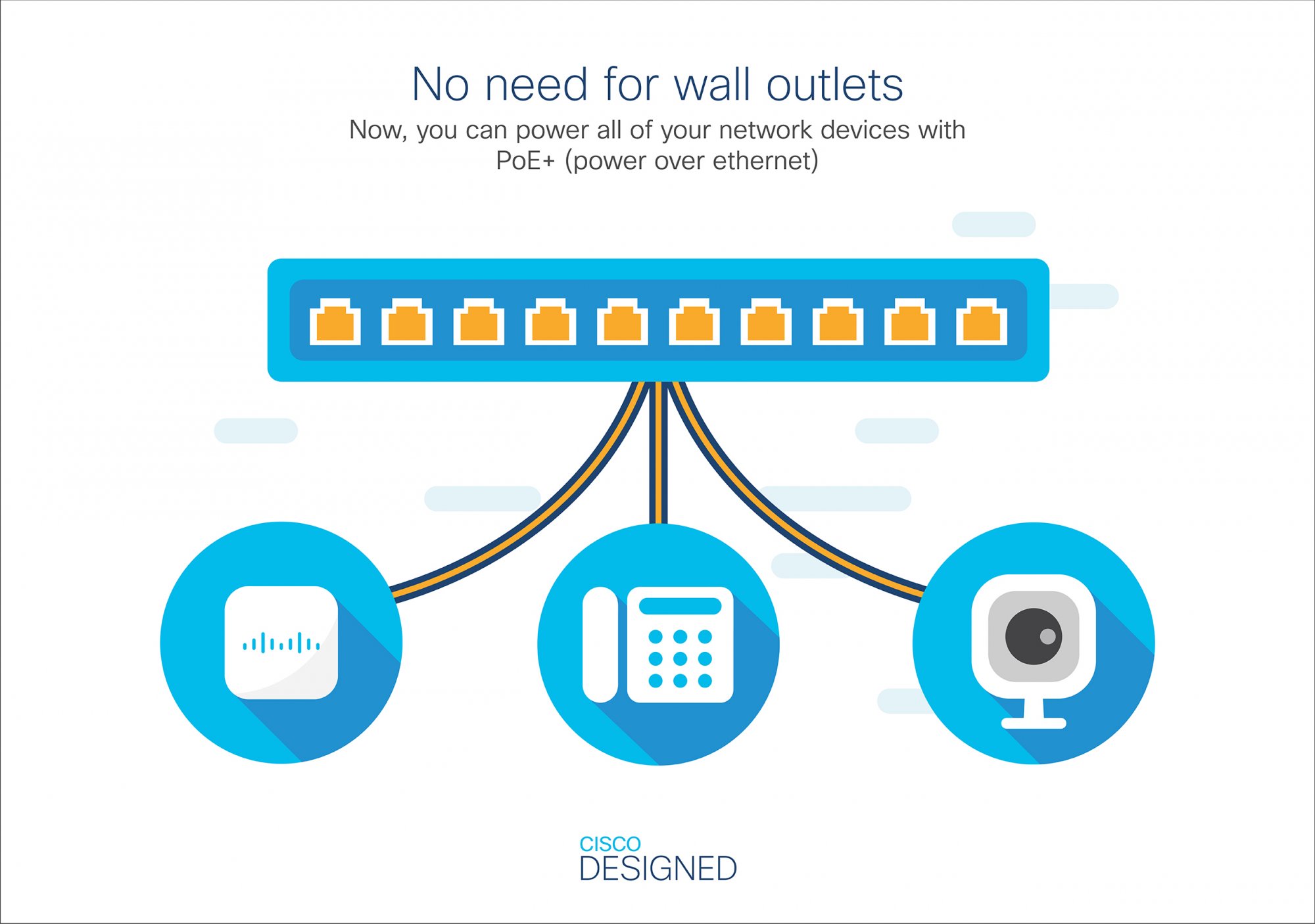

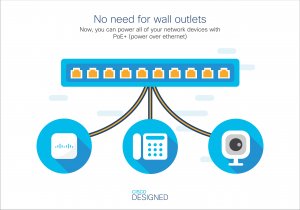

POWER-OVER-ETHERNET: 48 PoE ports with 382W total power budget, PoE, PoE+

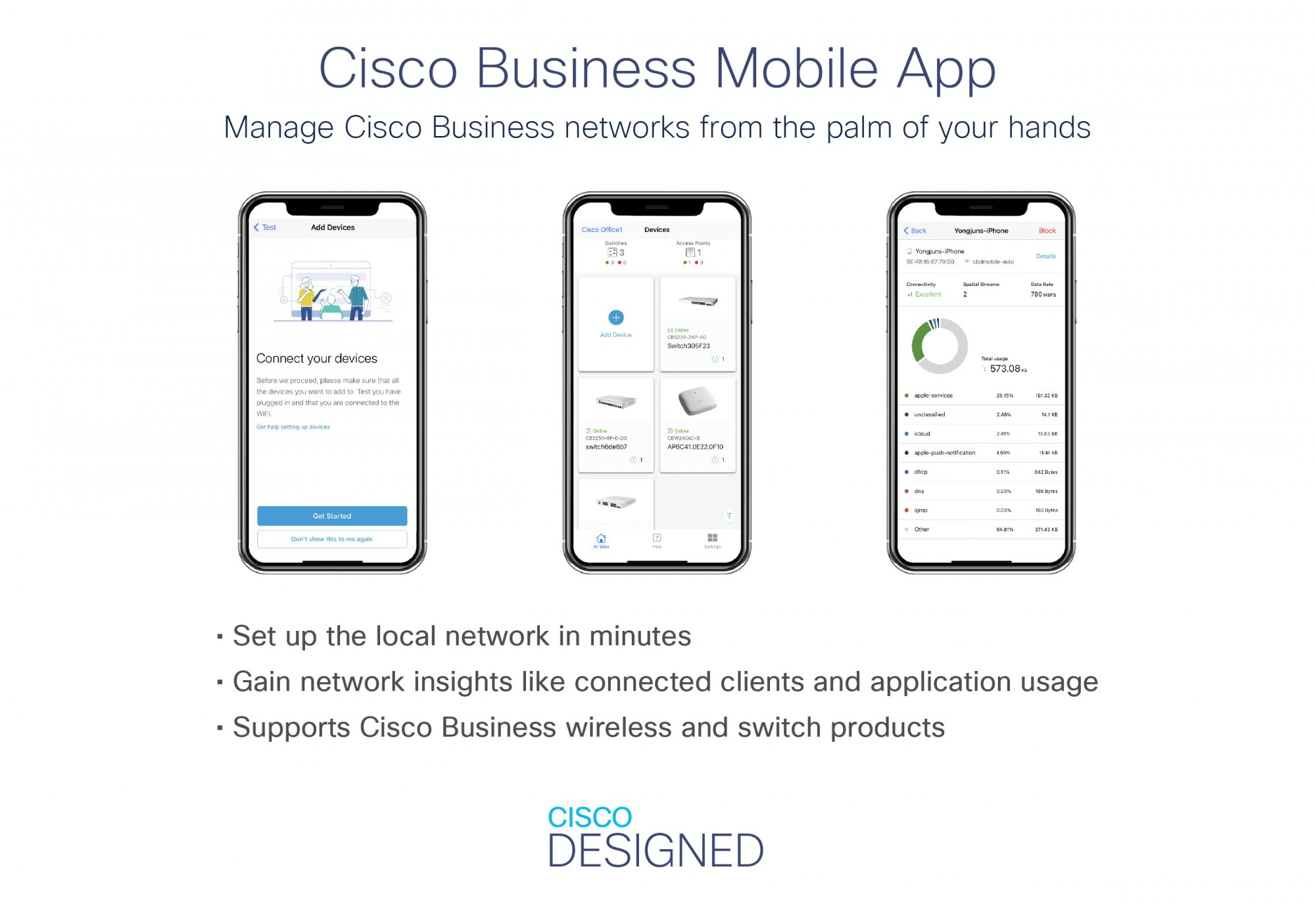

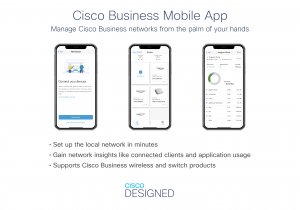

SIMPLE: Intuitive on-box UI, mobile app and Cisco Business Dashboard simplifies network operations and automates lifecycle management
SECURITY: Integrated with IEEE 802.1X to control access to your network, Denial-of- Service (DoS) attack prevention increases network uptime during an attack, while Access Control Lists (ACLs) protect the network from unauthorized users
INNOVATIVE DESIGN: Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms
ENERGY EFFICIENT: Optimizes power usage to lower operational cost. Compliant with IEEE802.3az Energy Efficient Ethernet. Fanless in select models
PEACE OF MIND: 3-year limited hardware warranty with return-to-factory replacement and one-year technical support

Product Properties

Manufacturer
Cisco

Model
CBS220-48P-4G-UK

EAN
889728345095

Bullet points

Point
ENERGY EFFICIENT

INNOVATIVE DESIGN

PEACE OF MIND

POWER-OVER-ETHERNET: 48 PoE ports with 382W total power budget, PoE, PoE+

SECURITY

SIMPLE

SWITCH PORTS: 48-Port 10/100/1000 + 4 x 1G SFP

Data transmission

Forwarding rate
74.38 Mpps

Jumbo frames
9216

Jumbo frames support
Yes

MAC address table
8192 entries

Packet buffer memory
12 MB

Switching capacity
104 Gbit/s

Design

Country of origin
China

LED indicators
Activity, Link, Speed, System

Number of fans
1 fan(s)

Product colour
White

Rack mounting
Yes

Reset button
Yes

Logistics data

Harmonized System (HS) code
85176990

Quantity per pack
1 pc(s)

Management features

Configuring Location Settings (CLI)
Yes

MIB support
Y

Quality of Service (QoS) support
Yes

Switch layer
L2

Switch type
Managed

System event log
Yes

Web-based management
Yes

Multicast features

Multicast support
Yes

Number of multicast groups filtered
256

Network

10G support
No

Auto MDI/MDI-X
Yes

Broadcast storm control
Yes

Flow control support
Yes

Head-of-line (HOL) blocking
Yes

Link aggregation
Yes

Networking standards
IEEE 802.1D, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Number of VLANs
256

Port mirroring
Yes

Spanning tree protocol
Yes

VLAN support
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 50 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-20 - 70 °C

Other features

Packaging content
Switch, Power cord or adapter, Mounting hardware, and Quick Start Guide

Packaging data

Package depth
574 mm

Package height
109.2 mm

Package weight
7.27 kg

Package width
513.1 mm

Performance

Firmware upgradeable
Yes

Flash memory
64 MB

Internal memory
256 MB

Ports & interfaces

SFP module slots quantity
4

Switch Number of Ports
48

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

Power consumption (max)
478.2 W

Power consumption (typical)
52.6 W

Power source
AC

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) ports quantity
48

Total Power over Ethernet (PoE) budget
382 W

Protocols

GARP VLAN Registration Protocol (GVRP)
Yes

Management protocols
SNMP

Security

Access Control List (ACL)
Yes

Access Control List (ACL) rules
512

BPDU filtering/protection
Yes

DHCP features
DHCP client

IGMP entries
256

IGMP snooping
Yes

Loop protection
Yes

MAC address filtering
Yes

Security algorithms
SSL/TLS

SSH/SSL support
Yes

Weight & dimensions

Depth
440 mm

Height
44 mm

Weight
5.29 kg

Width
350 mm
