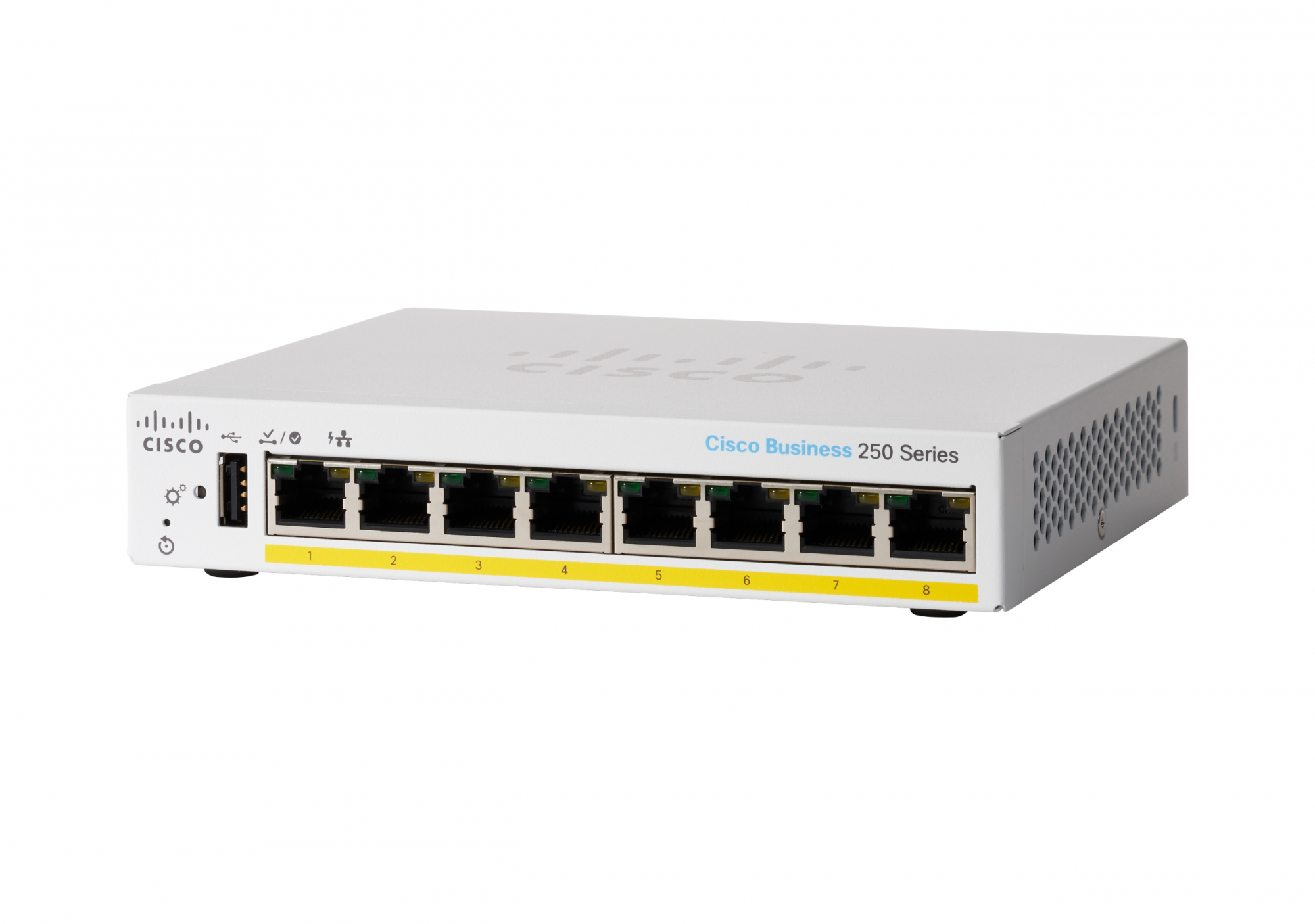

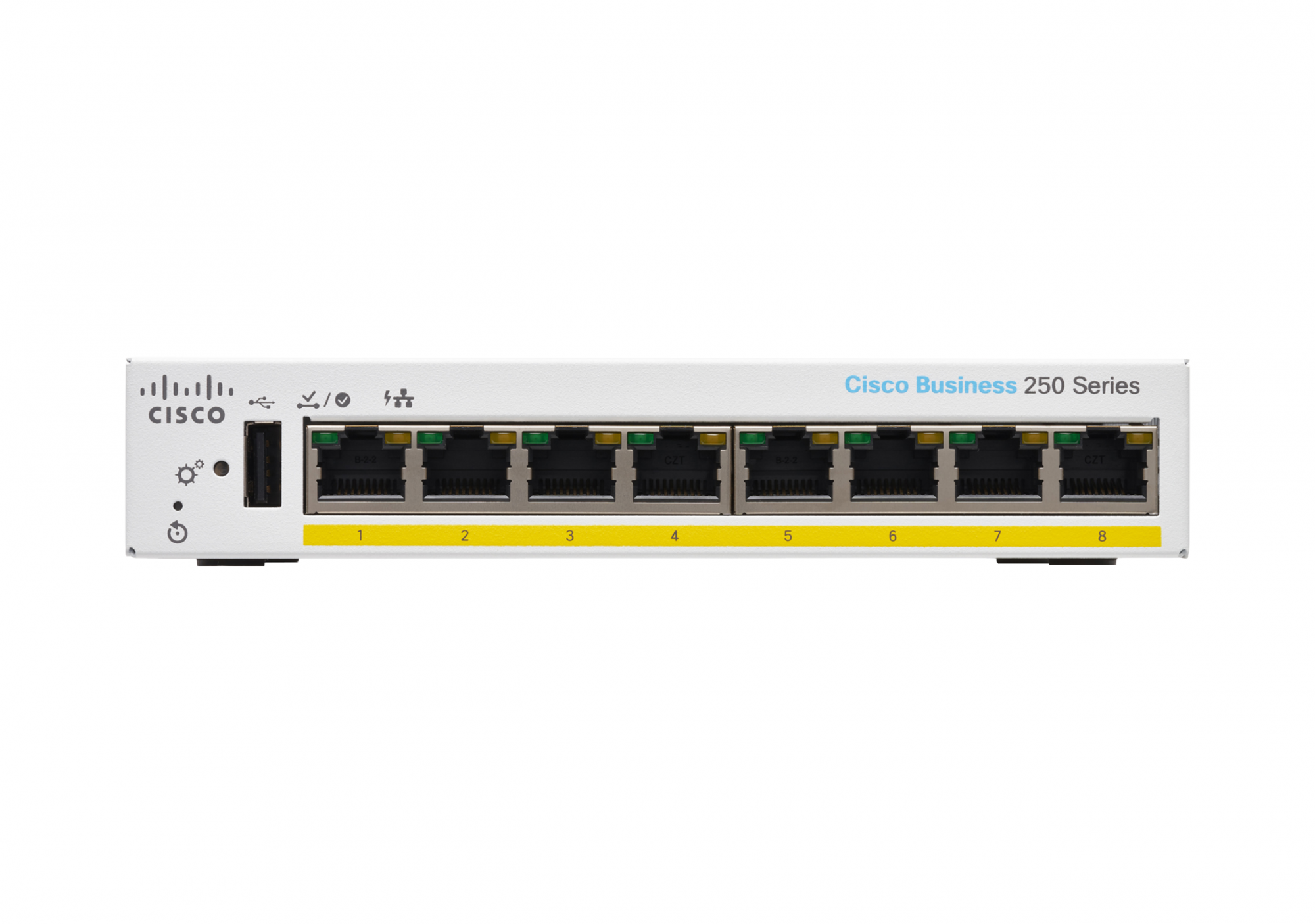

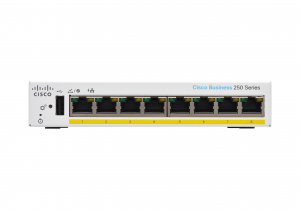

Cisco Business CBS250-8PP-D Smart Switch | 8 Port GE | Partial PoE | Desktop | Limited Lifetime Hardware Warranty (CBS250-8PP-D-UK)
Roll over image to zoom inClick to Open expanded view
Model: CBS250-8PP-D-UK
EAN: 889728326919

Cisco Business CBS250-8PP-D Smart Switch | 8 Port GE | Partial PoE | Desktop | Limited Lifetime Hardware Warranty (CBS250-8PP-D-UK)

Manufacturer:
Cisco
Cisco Business CBS250-8PP-D Smart Switch | 8 Port GE | Partial PoE | Desktop | Limited Lifetime Hardware Warranty (CBS250-8PP-D-UK), Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Business CBS250-8PP-D Smart Switch | 8 Port GE | Partial PoE | Desktop | Limited Lifetime Hardware Warranty (CBS250-8PP-D-UK). Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, USB 2.0 ports quantity: 1. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE)
  • SWITCH PORTS: 8-Port 10/100/1000

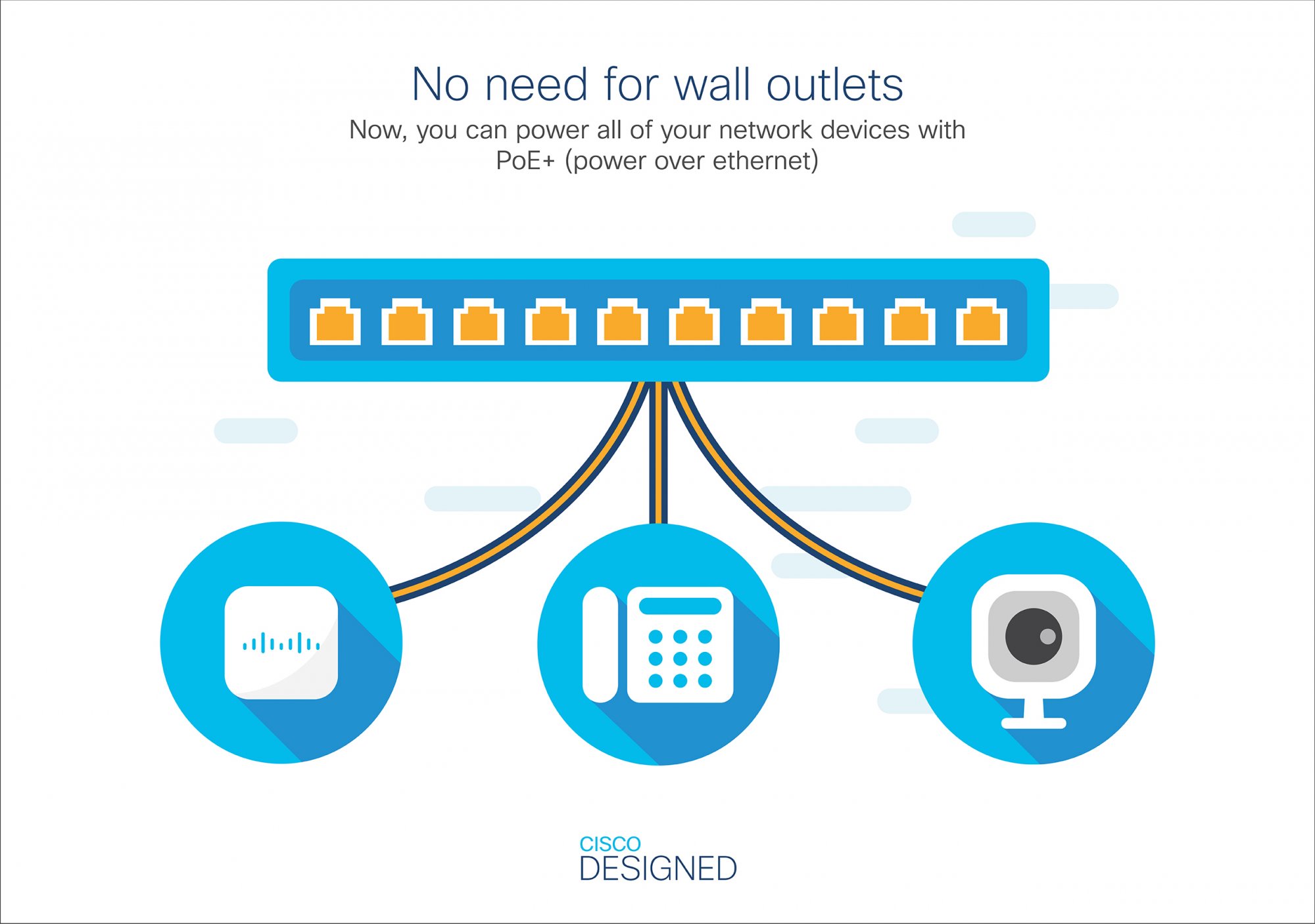

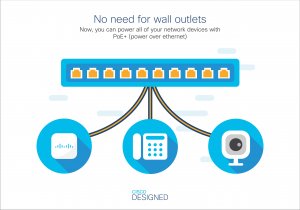

  • POWER-OVER-ETHERNET: 8 PoE ports with 45W total power budget, PoE, PoE+

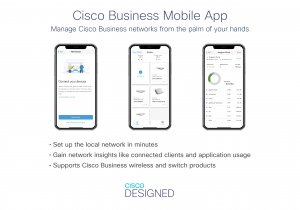

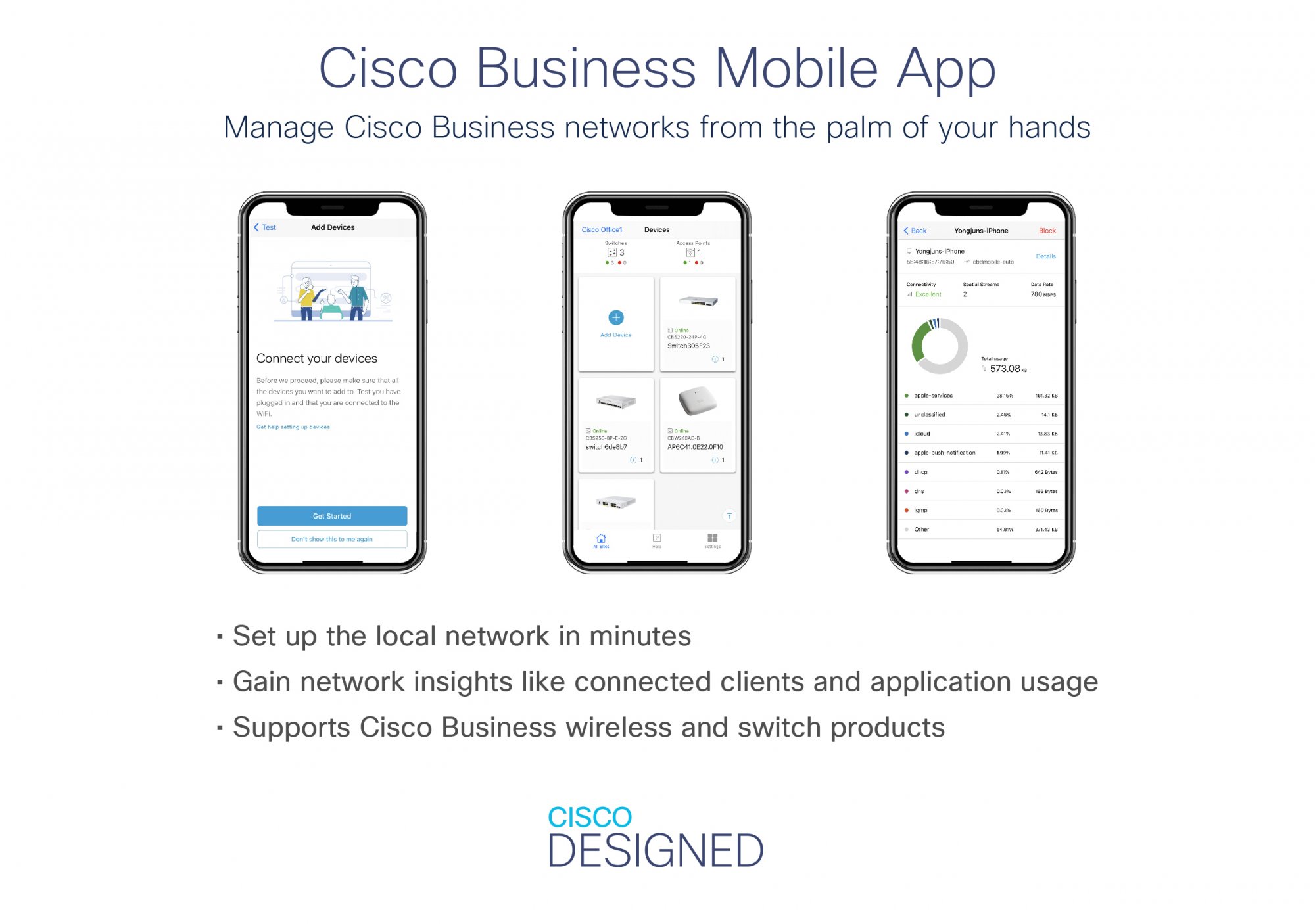

  • SIMPLE: Intuitive on-box UI, mobile app and Cisco Business Dashboard simplifies network operations and automates lifecycle management
  • SECURITY and ROUTING: IEEE 802.1X and port security control access to your network, Denial-of- Service (DoS) attack prevention increases network uptime during an attack, while static routing helps communication between network segments
  • INNOVATIVE DESIGN: Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms
  • ENERGY EFFICIENT: Optimizes power usage to lower operational cost. Compliant with IEEE802.3az Energy Efficient Ethernet. Fanless in most models
  • PEACE OF MIND: Limited lifetime hardware warranty with return-to-factory replacement and one-year technical support

Product Properties

  • Model
  • CBS250-8PP-D-UK
  • EAN
  • 889728326919
  • Bullet points
  • Point
  • ENERGY EFFICIENT
    INNOVATIVE DESIGN
    PEACE OF MIND
    POWER-OVER-ETHERNET: 8 PoE ports with 45W total power budget, PoE, PoE+
    SECURITY and ROUTING
    SIMPLE
    SWITCH PORTS: 8-Port 10/100/1000
  • Data transmission
  • Forwarding rate
  • 11.9 Mpps
  • Jumbo frames
  • 9000
  • Jumbo frames support
  • Yes
  • MAC address table
  • 8000 entries
  • Number of IP interfaces
  • 16
  • Number of queues
  • 8
  • Number of static routes
  • 32
  • Packet buffer memory
  • 1.5 MB
  • Static route
  • Yes
  • Switching capacity
  • 16 Gbit/s
  • Design
  • Certification
  • UL (UL 60950), CSA (CSA 22.2), FCC 15 (CFR 47) A
  • Country of origin
  • China
  • LED indicators
  • Yes
  • Product colour
  • Grey
  • Rack mounting
  • No
  • Reset button
  • Yes
  • Stackable
  • No
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Quantity per pack
  • 1 pc(s)
  • Management features
  • Configuring Location Settings (CLI)
  • Yes
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L3
  • Switch type
  • Managed
  • System event log
  • Yes
  • Web-based management
  • Yes
  • Multicast features
  • Multicast Listener Discovery (MLD) snooping
  • MLD v1/2
  • Multicast support
  • Yes
  • Network
  • 10G support
  • No
  • Active link detection
  • Yes
  • Broadcast storm control
  • Yes
  • Cable length detection
  • Yes
  • Cable types supported
  • Cat5e
  • Copper ethernet cabling technology
  • 10BASE-T, 100BASE-TX, 1000BASE-T
  • Ethernet LAN data rates
  • 10,100,1000 Mbit/s
  • Flow control support
  • Yes
  • Head-of-line (HOL) blocking
  • Yes
  • IP routing
  • Yes
  • Link aggregation
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • Port mirroring
  • Yes
  • Rate limiting
  • Yes
  • Spanning tree protocol
  • Yes
  • Virtual LAN features
  • Port-based VLAN, Tagged VLAN, Voice VLAN
  • VLAN support
  • Yes
  • Operational conditions
  • Heat dissipation
  • 209.51 BTU/h
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • 0 - 50 °C
  • Storage relative humidity (H-H)
  • 10 - 90%
  • Storage temperature (T-T)
  • -25 - 70 °C
  • Other features
  • Packaging content
  • Switch, Power cord or adapter, Mounting hardware, and Quick Start Guide
  • Packaging data
  • Cables included
  • AC
  • Package depth
  • 326.9 mm
  • Package height
  • 57.9 mm
  • Package weight
  • 1.34 kg
  • Package width
  • 238.5 mm
  • Quick start guide
  • Yes
  • Rack mount kit
  • Yes
  • Performance
  • Built-in processor
  • Yes
  • Fanless
  • Yes
  • Firmware upgradeable
  • Yes
  • Flash memory
  • 256 MB
  • Internal memory
  • 512 MB
  • Mean time between failures (MTBF)
  • 1659542 h
  • Memory type
  • DRAM
  • Processor frequency
  • 800 MHz
  • Ports & interfaces
  • Gigabit Ethernet (copper) ports quantity
  • 8
  • Switch Number of Ports
  • 8
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • USB 2.0 ports quantity
  • 1
  • Power
  • AC input frequency
  • 50 - 60 Hz
  • AC input voltage
  • 100 - 240 V
  • Number of power supply units
  • 1
  • Power supply included
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet plus (PoE+) ports quantity
  • 8
  • Total Power over Ethernet (PoE) budget
  • 45 W
  • Protocols
  • GARP VLAN Registration Protocol (GVRP)
  • Yes
  • IPv4 & IPv6 features
  • Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL)
  • Management protocols
  • SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP
  • Security
  • Access Control List (ACL)
  • Yes
  • Access Control List (ACL) rules
  • 512
  • Authentication
  • Guest VLAN, Port-based authentication
  • Authentication type
  • IEEE 802.1x, RADIUS
  • DHCP features
  • DHCP client, DHCP relay
  • IGMP snooping
  • Yes
  • Loop protection
  • Yes
  • Queue scheduling algorithms
  • SP, Weighted Round Robin (WRR)
  • Security algorithms
  • SSH, SSH-2, SSL/TLS
  • Sustainability
  • Sustainability certificates
  • CE, WEEE
  • Sustainability compliance
  • Yes
  • Weight & dimensions
  • Depth
  • 160 mm
  • Height
  • 30 mm
  • Weight
  • 559.88 g
  • Width
  • 127.8 mm
