Description

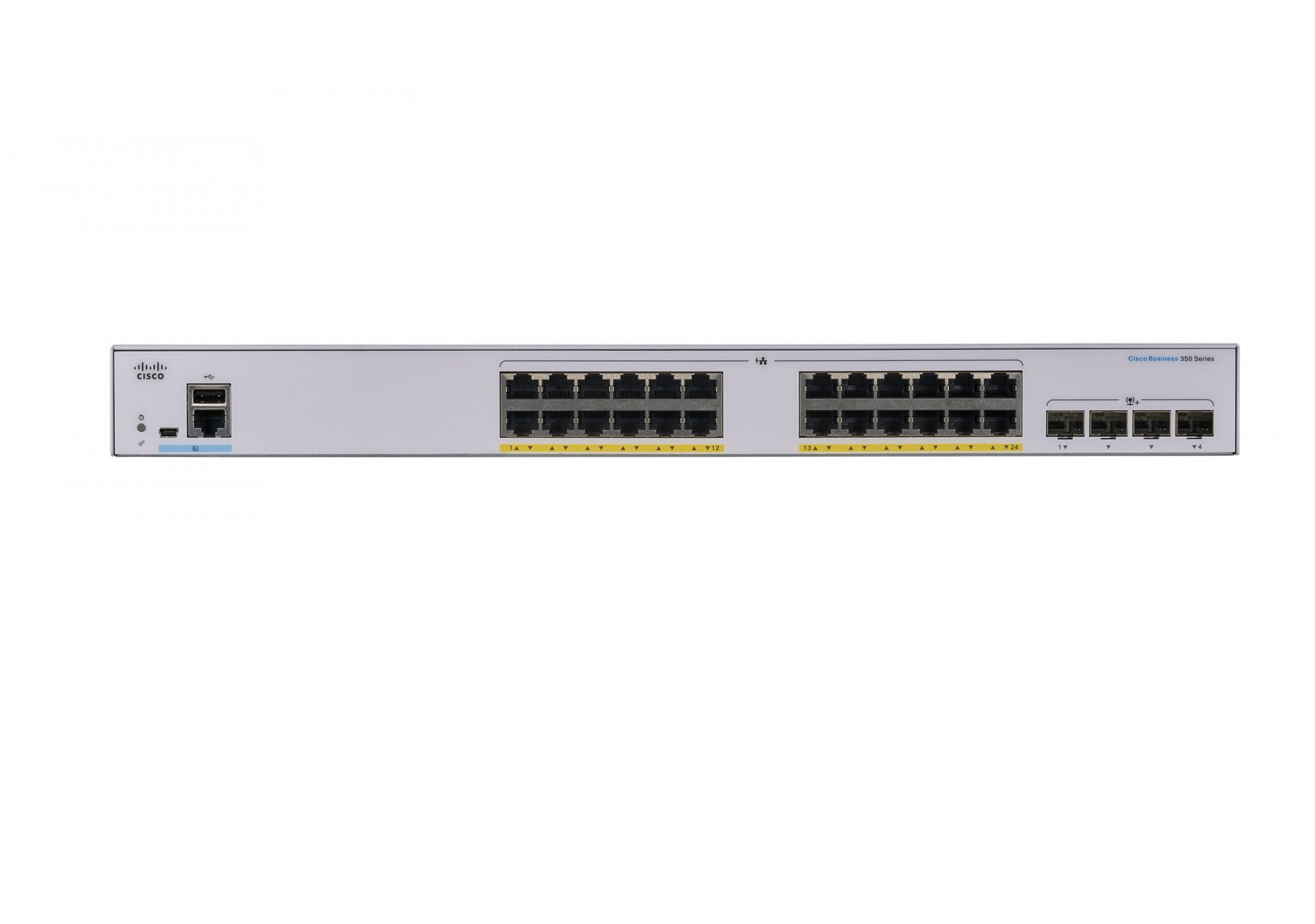

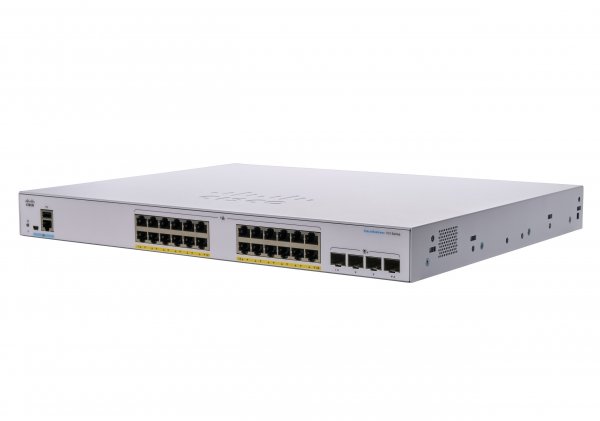

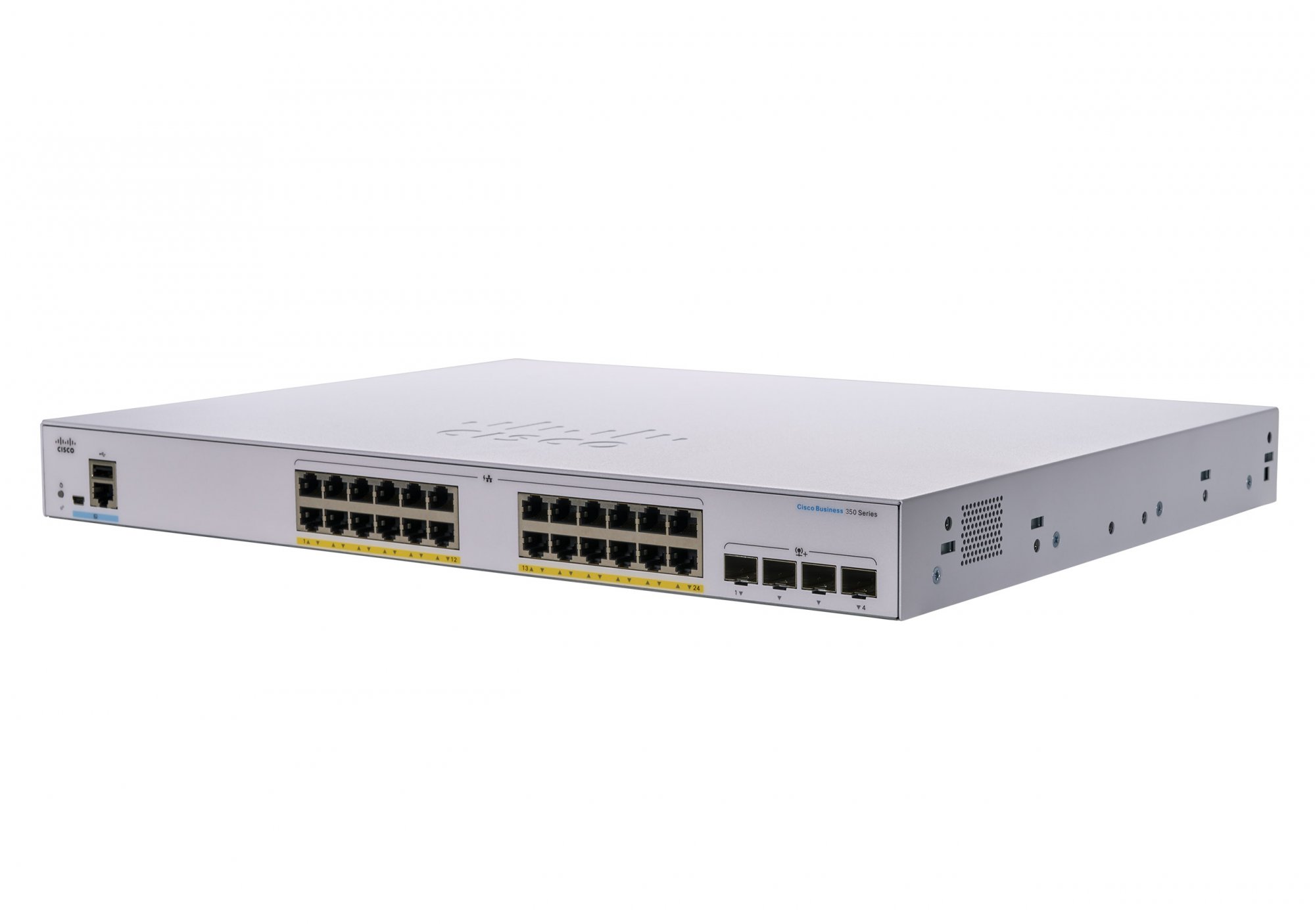

Cisco Business CBS350-24FP-4X Managed Switch | 24 Port GE | Full PoE | 4x10G SFP+ | Limited Lifetime Protection (CBS350-24FP-4X). Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1. MAC address table: 16000 entries. Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE.... Rack mounting

SWITCH PORTS: 24-Port 10/100/1000 + 4 x 10GE SFP+
SIMPLE: Intuitive Cisco Business Dashboard or on-box U/I simplifies network operations and automates lifecycle management

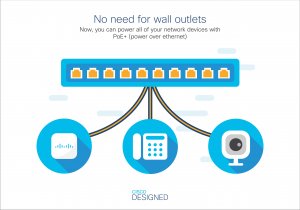

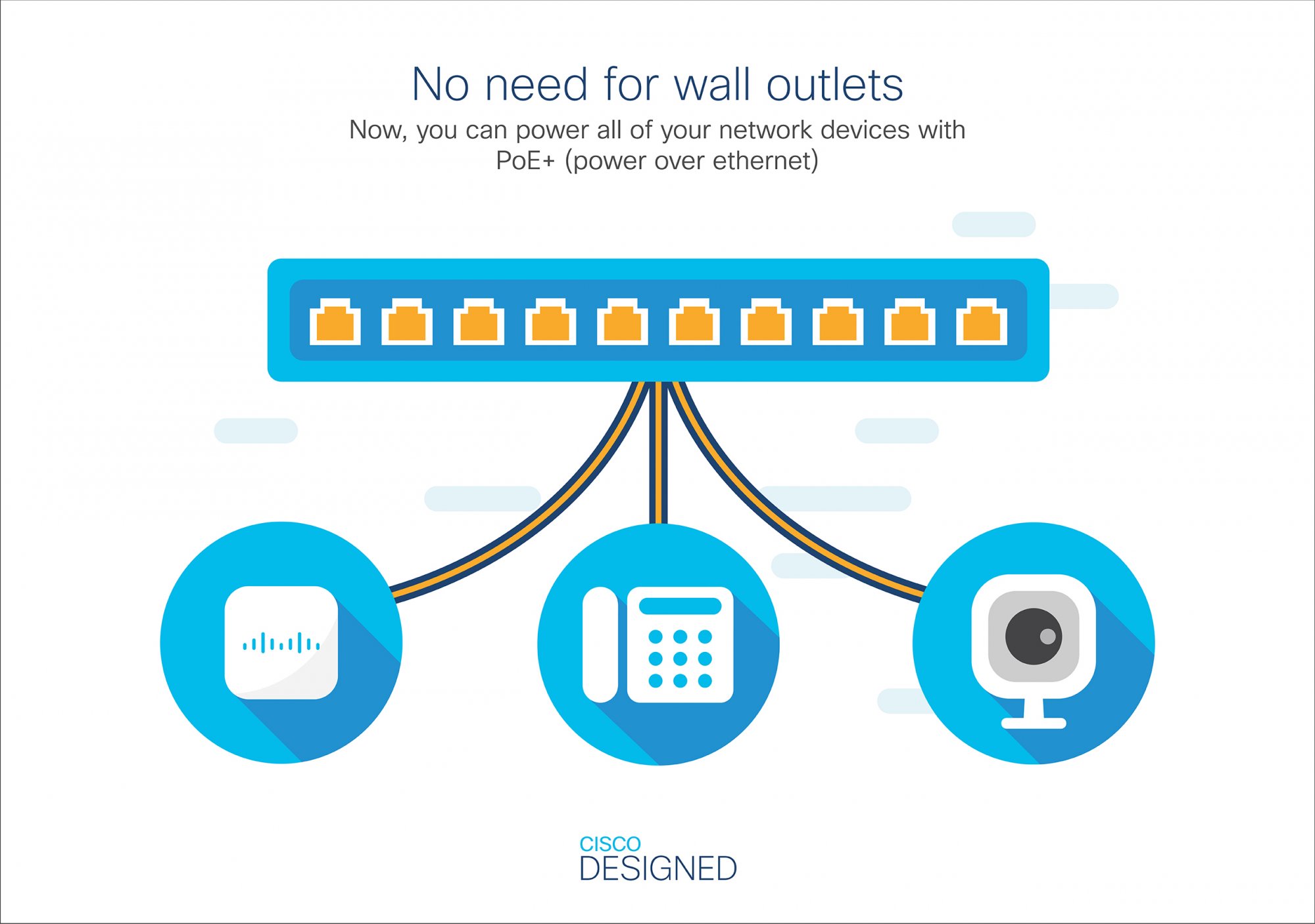

POWER-OVER-ETHERNET: 24 PoE ports with 370W total power budget, PoE, PoE+
ENHANCED SECURITY: IP-MAC port biding detects and blocks deliberate network attacks. IPv6 First Hop Security provides unparalleled protection against a vast range of address spoofing and man-in-the-middle attacks on IPv6 networks
INNOVATIVE DESIGN: Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms
ENERGY EFFICIENT: Optimizes power usage to lower operational cost. Compliant with IEEE802.3az Energy Efficient Ethernet. Fanless in most models
PEACE OF MIND: Limited-lifetime warranty with Next-Business-Day advance replacement (where available) and one-year technical support

Product Properties

Manufacturer
Cisco

Model
CBS350-24FP-4X-UK

EAN
889728296038

Bullet points

Point
ENERGY EFFICIENT

ENHANCED SECURITY

INNOVATIVE DESIGN

PEACE OF MIND

POWER-OVER-ETHERNET: 24 PoE ports with 370W total power budget, PoE, PoE+

SIMPLE

SWITCH PORTS: 24-Port 10/100/1000 + 4 x 10GE SFP+

Data transmission

Jumbo frames
9000

Jumbo frames support
Yes

MAC address table
16000 entries

Design

Country of origin
China

LED indicators
Yes

Product colour
Silver

Rack mounting
Yes

Reset button
Yes

Logistics data

Harmonized System (HS) code
85176990

Quantity per pack
1 pc(s)

Management features

ARP inspection
Yes

Cloud-managed
Yes

Configuring Location Settings (CLI)
Yes

MIB support
Y

Quality of Service (QoS) support
Yes

Switch layer
L2/L3

Switch type
Managed

Web-based management
Yes

Multicast features

Multicast support
Yes

Network

10G support
Yes

Auto MDI/MDI-X
Yes

Broadcast storm control
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

Flow control support
Yes

Head-of-line (HOL) blocking
Yes

Link aggregation
Yes

Networking standards
IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3z

Number of VLANs
4094

Port mirroring
Yes

Spanning tree protocol
Yes

VLAN support
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
-5 - 50 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-25 - 70 °C

Other features

Packaging content
CBS350-24FP-4X-UK Switch, Power cord or adapter, Mounting hardware, and Quick Start Guide

Packaging data

Package depth
575 mm

Package height
106 mm

Package weight
6.83 kg

Package width
478 mm

Performance

Built-in processor
Yes

Firmware upgradeable
Yes

Flash memory
256 MB

Internal memory
512 MB

Processor frequency
800 MHz

Ports & interfaces

SFP+ module slots quantity
4

Switch Number of Ports
24

Switch Port Speed
Gigabit Ethernet (10/100/1000)

USB 2.0 ports quantity
1

Power

Power supply included
Yes

Protocols

Management protocols
SNMP

Security

Access Control List (ACL)
Yes

Access Control List (ACL) rules
1024

DHCP features
DHCP relay, DHCP server, DHCPv6 client

IGMP snooping
Yes

MAC address filtering
Yes

Password protection
Yes

Security algorithms
HTTPS, SSH, SSL/TLS

SSH/SSL support
Yes

Weight & dimensions

Depth
444.5 mm

Height
43.9 mm

Weight
4.78 kg

Width
345.2 mm
