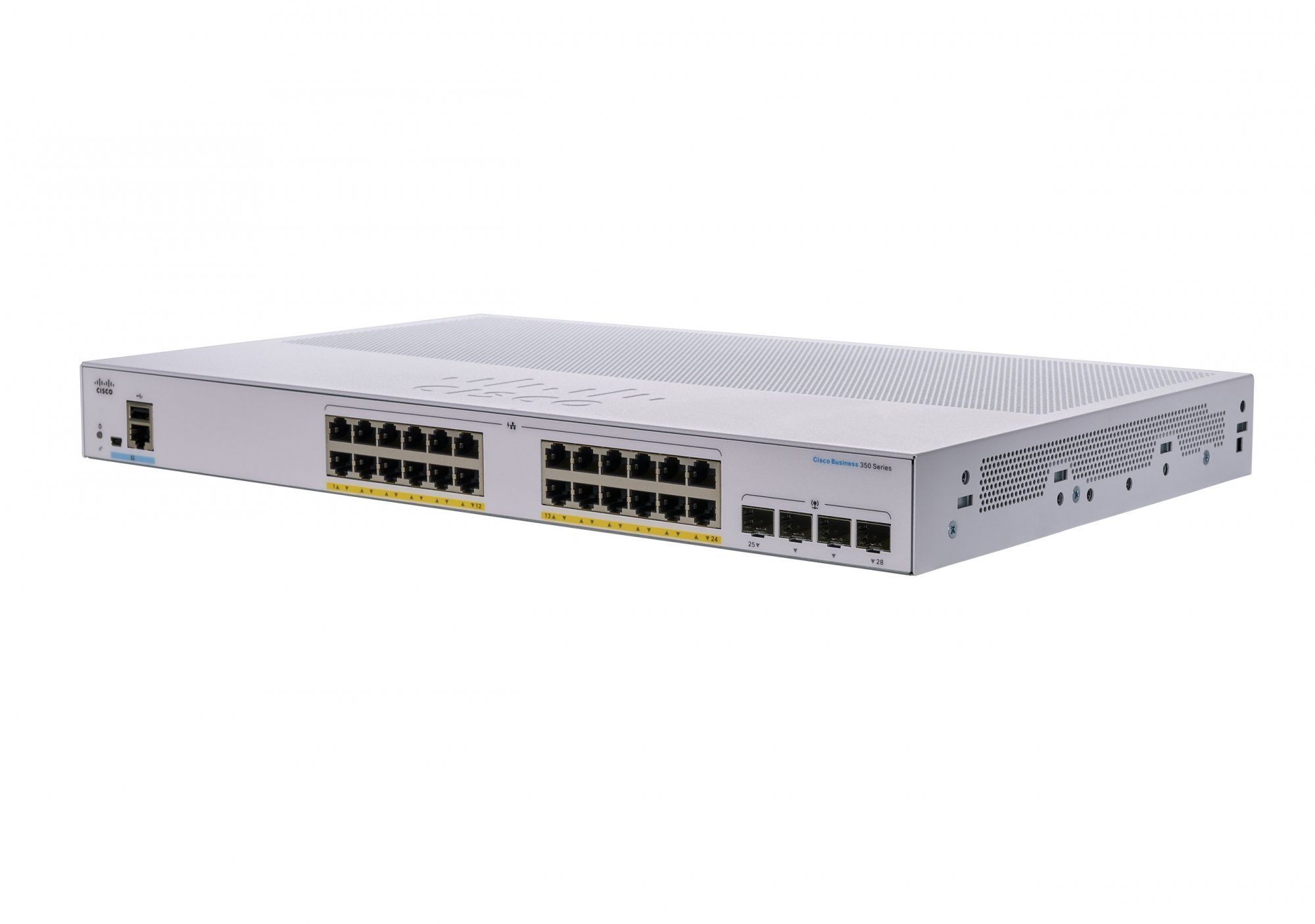

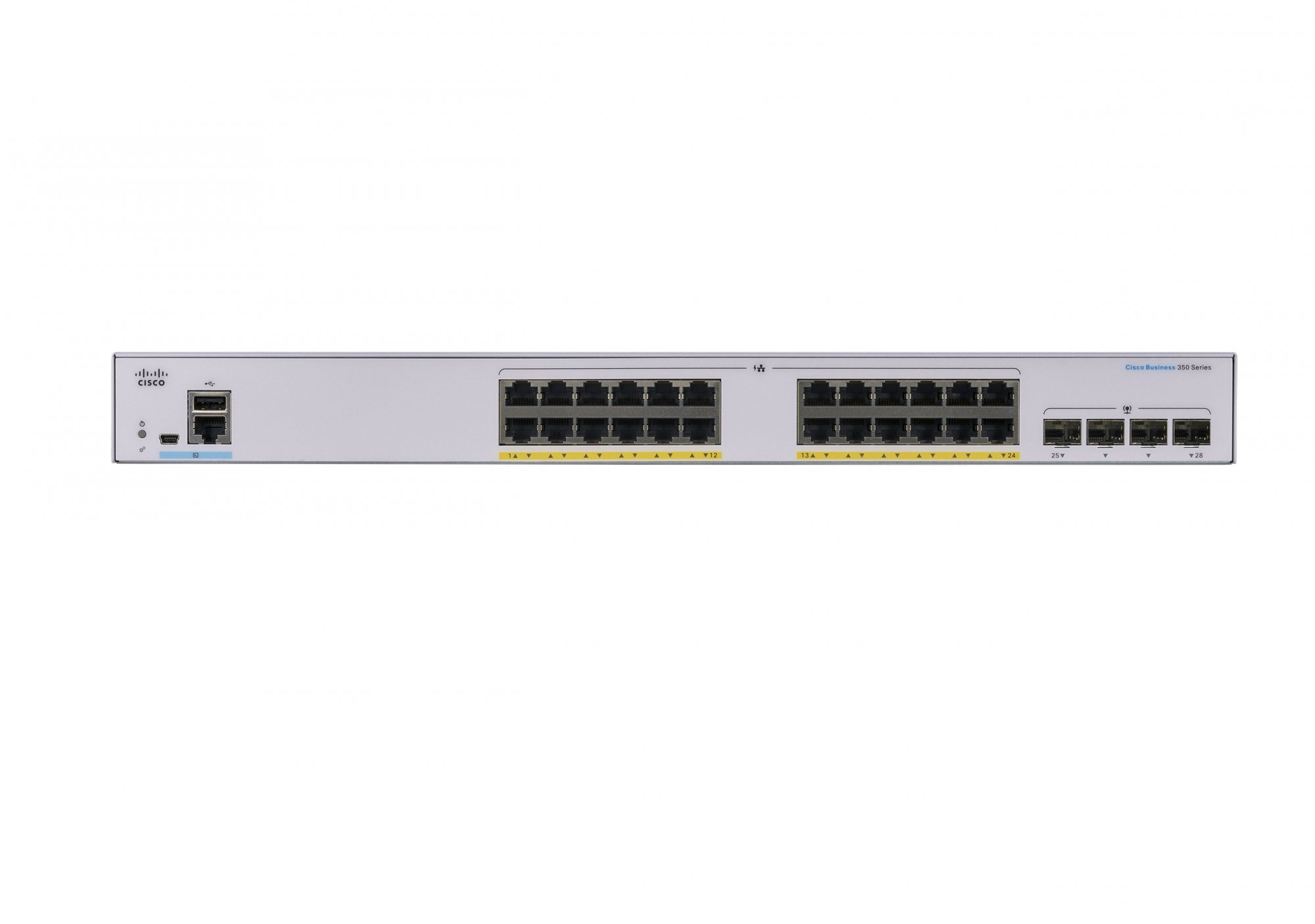

Cisco Business CBS350-24P-4G Managed Switch | 24 Port GE | PoE | 4x1G SFP | Limited Lifetime Protection (CBS350-24P-4G)
Roll over image to zoom inClick to Open expanded view
Model: CBS350-24P-4G-UK
EAN: 889728295444

Cisco Business CBS350-24P-4G Managed Switch | 24 Port GE | PoE | 4x1G SFP | Limited Lifetime Protection (CBS350-24P-4G)

Manufacturer:
Cisco
Cisco Business CBS350-24P-4G Managed Switch | 24 Port GE | PoE | 4x1G SFP | Limited Lifetime Protection (CBS350-24P-4G), Managed, L2/L3, Gigabit Ethernet (10/100/1000), Rack mounting
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Business CBS350-24P-4G Managed Switch | 24 Port GE | PoE | 4x1G SFP | Limited Lifetime Protection (CBS350-24P-4G). Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1. MAC address table: 16000 entries. Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE.... Rack mounting
  • SWITCH PORTS: 24-Port 10/100/1000 + 4 x 1GE SFP

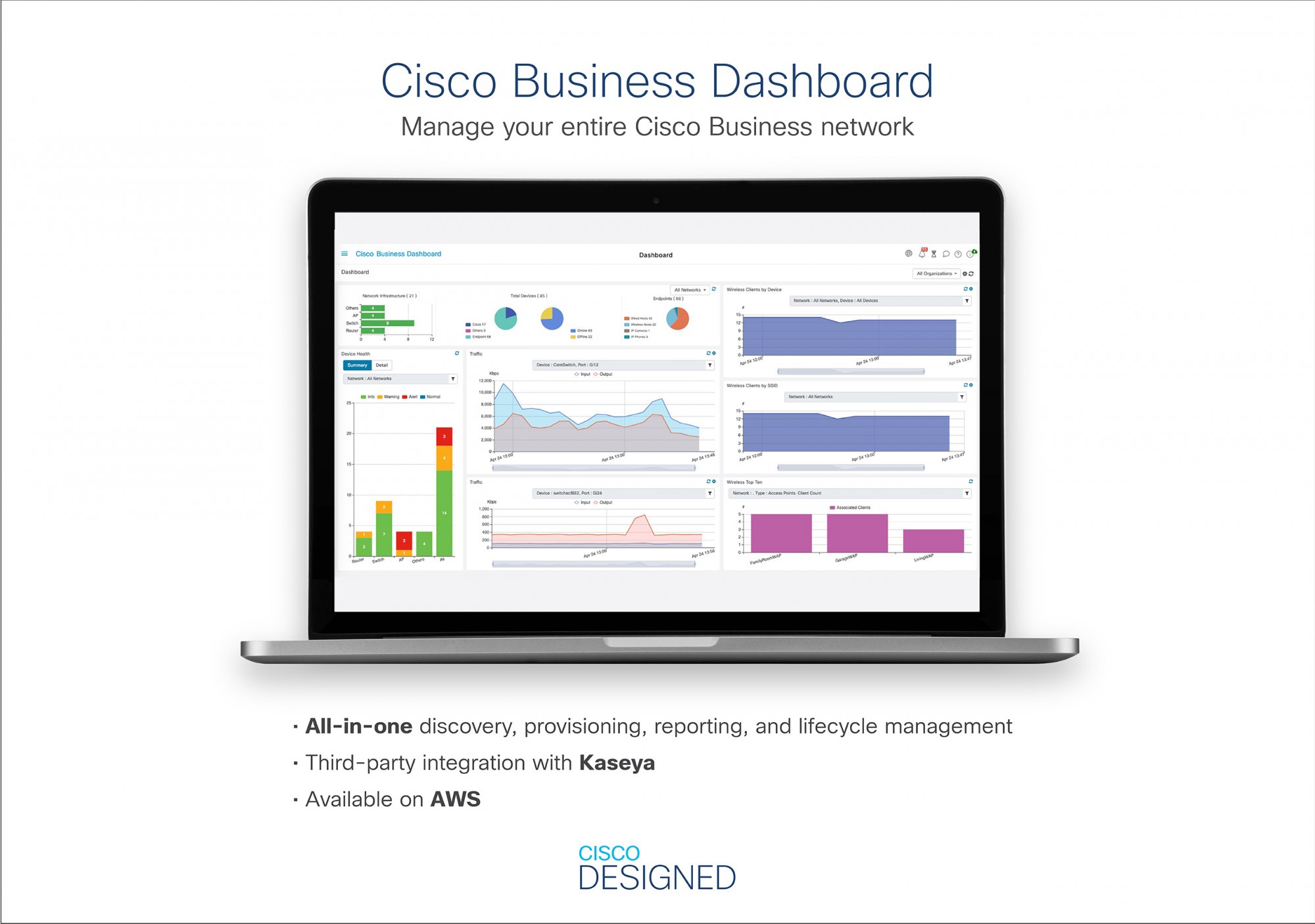

  • SIMPLE: Intuitive Cisco Business Dashboard or on-box U/I simplifies network operations and automates lifecycle management

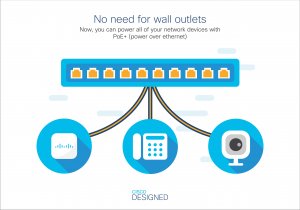

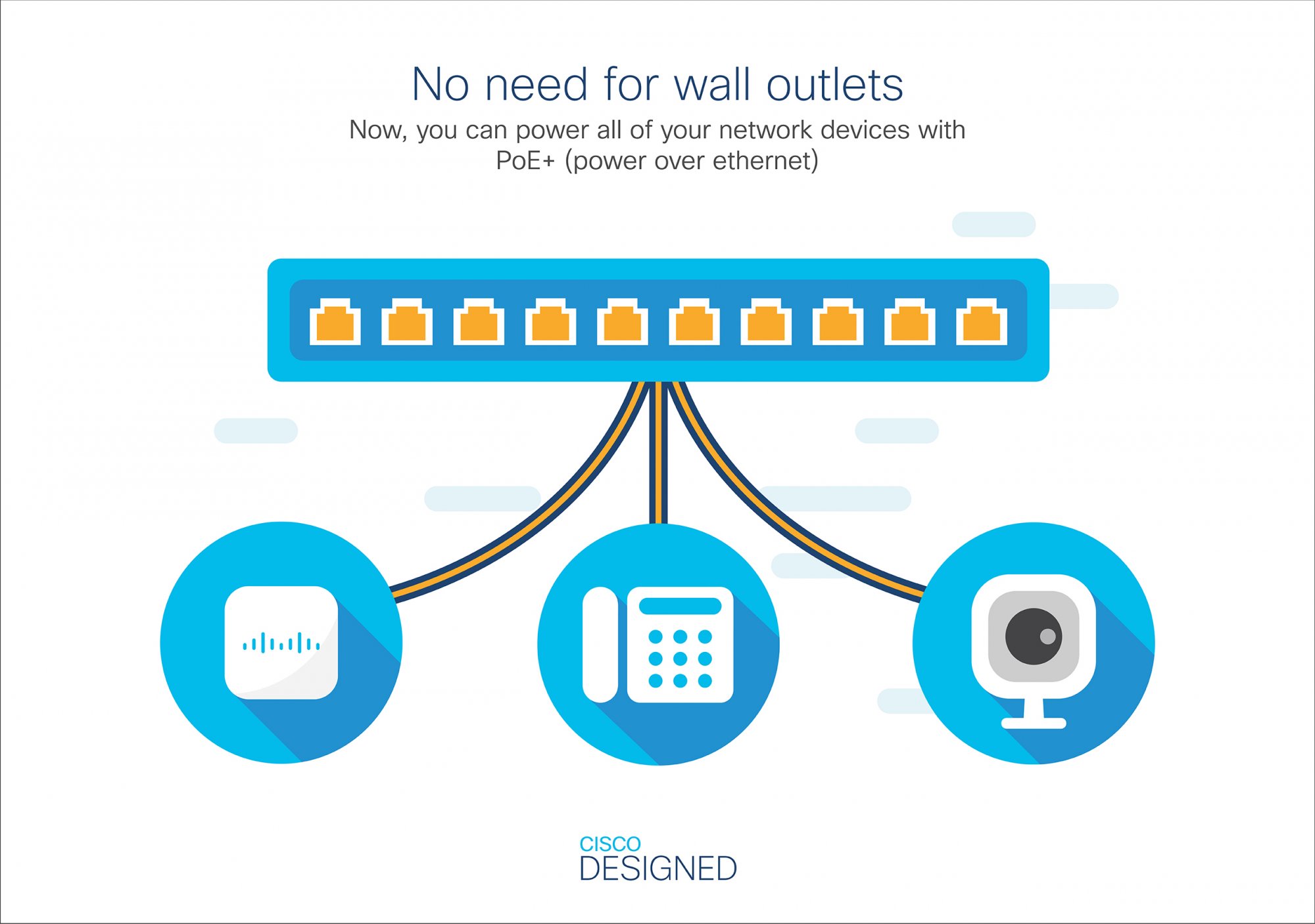

  • POWER-OVER-ETHERNET: 24 PoE ports with 195W total power budget, PoE, PoE+
  • ENHANCED SECURITY: IP-MAC port biding detects and blocks deliberate network attacks. IPv6 First Hop Security provides unparalleled protection against a vast range of address spoofing and man-in-the-middle attacks on IPv6 networks
  • INNOVATIVE DESIGN: Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms
  • ENERGY EFFICIENT: Optimizes power usage to lower operational cost. Compliant with IEEE802.3az Energy Efficient Ethernet. Fanless in most models
  • PEACE OF MIND: Limited-lifetime warranty with Next-Business-Day advance replacement (where available) and one-year technical support

Product Properties

  • Model
  • CBS350-24P-4G-UK
  • EAN
  • 889728295444
  • Bullet points
  • Point
  • ENERGY EFFICIENT
    ENHANCED SECURITY
    INNOVATIVE DESIGN
    PEACE OF MIND
    POWER-OVER-ETHERNET: 24 PoE ports with 195W total power budget, PoE, PoE+
    SIMPLE
    SWITCH PORTS: 24-Port 10/100/1000 + 4 x 1GE SFP
  • Data transmission
  • Jumbo frames
  • 9000
  • Jumbo frames support
  • Yes
  • MAC address table
  • 16000 entries
  • Design
  • Country of origin
  • China
  • LED indicators
  • Yes
  • Product colour
  • Silver
  • Rack mounting
  • Yes
  • Reset button
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Quantity per pack
  • 1 pc(s)
  • Management features
  • ARP inspection
  • Yes
  • Cloud-managed
  • Yes
  • Configuring Location Settings (CLI)
  • Yes
  • MIB support
  • Y
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L2/L3
  • Switch type
  • Managed
  • Web-based management
  • Yes
  • Multicast features
  • Multicast support
  • Yes
  • Network
  • 10G support
  • Yes
  • Auto MDI/MDI-X
  • Yes
  • Broadcast storm control
  • Yes
  • Ethernet LAN data rates
  • 10,100,1000 Mbit/s
  • Flow control support
  • Yes
  • Head-of-line (HOL) blocking
  • Yes
  • Link aggregation
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3z
  • Number of VLANs
  • 4094
  • Port mirroring
  • Yes
  • Spanning tree protocol
  • Yes
  • VLAN support
  • Yes
  • Operational conditions
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • -5 - 50 °C
  • Storage relative humidity (H-H)
  • 10 - 90%
  • Storage temperature (T-T)
  • -25 - 70 °C
  • Other features
  • Packaging content
  • CBS350-24P-4G-UK Switch, Power cord or adapter, Mounting hardware, and Quick Start Guide
  • Packaging data
  • Package depth
  • 575 mm
  • Package height
  • 106 mm
  • Package weight
  • 5.46 kg
  • Package width
  • 430 mm
  • Performance
  • Built-in processor
  • Yes
  • Firmware upgradeable
  • Yes
  • Flash memory
  • 256 MB
  • Internal memory
  • 512 MB
  • Processor frequency
  • 800 MHz
  • Ports & interfaces
  • SFP module slots quantity
  • 4
  • Switch Number of Ports
  • 24
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • USB 2.0 ports quantity
  • 1
  • Power
  • Power supply included
  • Yes
  • Protocols
  • Management protocols
  • SNMP
  • Security
  • Access Control List (ACL)
  • Yes
  • Access Control List (ACL) rules
  • 1024
  • DHCP features
  • DHCP relay, DHCP server, DHCPv6 client
  • IGMP snooping
  • Yes
  • MAC address filtering
  • Yes
  • Password protection
  • Yes
  • Security algorithms
  • HTTPS, SSH, SSL/TLS
  • SSH/SSL support
  • Yes
  • Weight & dimensions
  • Depth
  • 444.5 mm
  • Height
  • 43.9 mm
  • Weight
  • 3.66 kg
  • Width
  • 299.2 mm
