Description

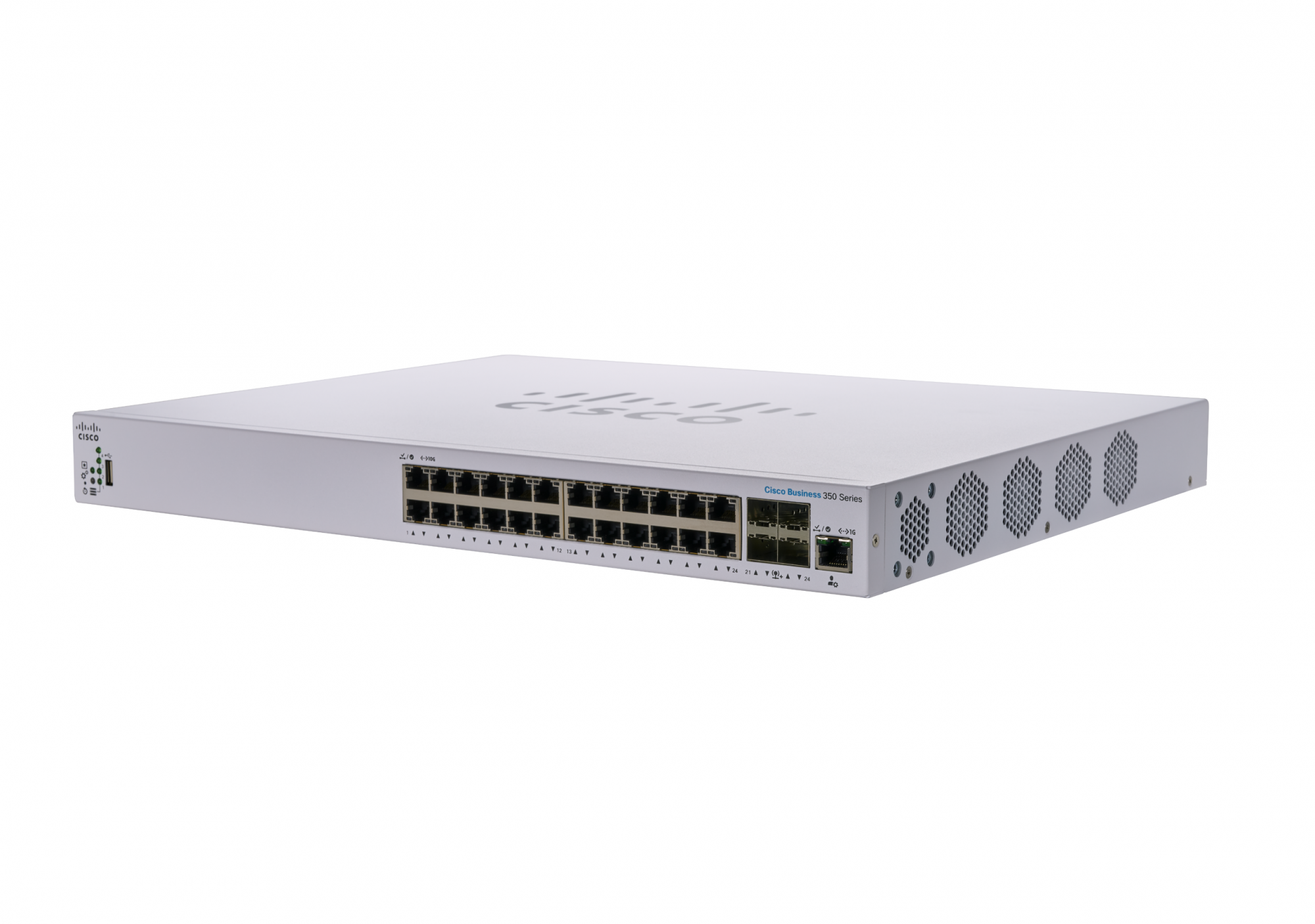

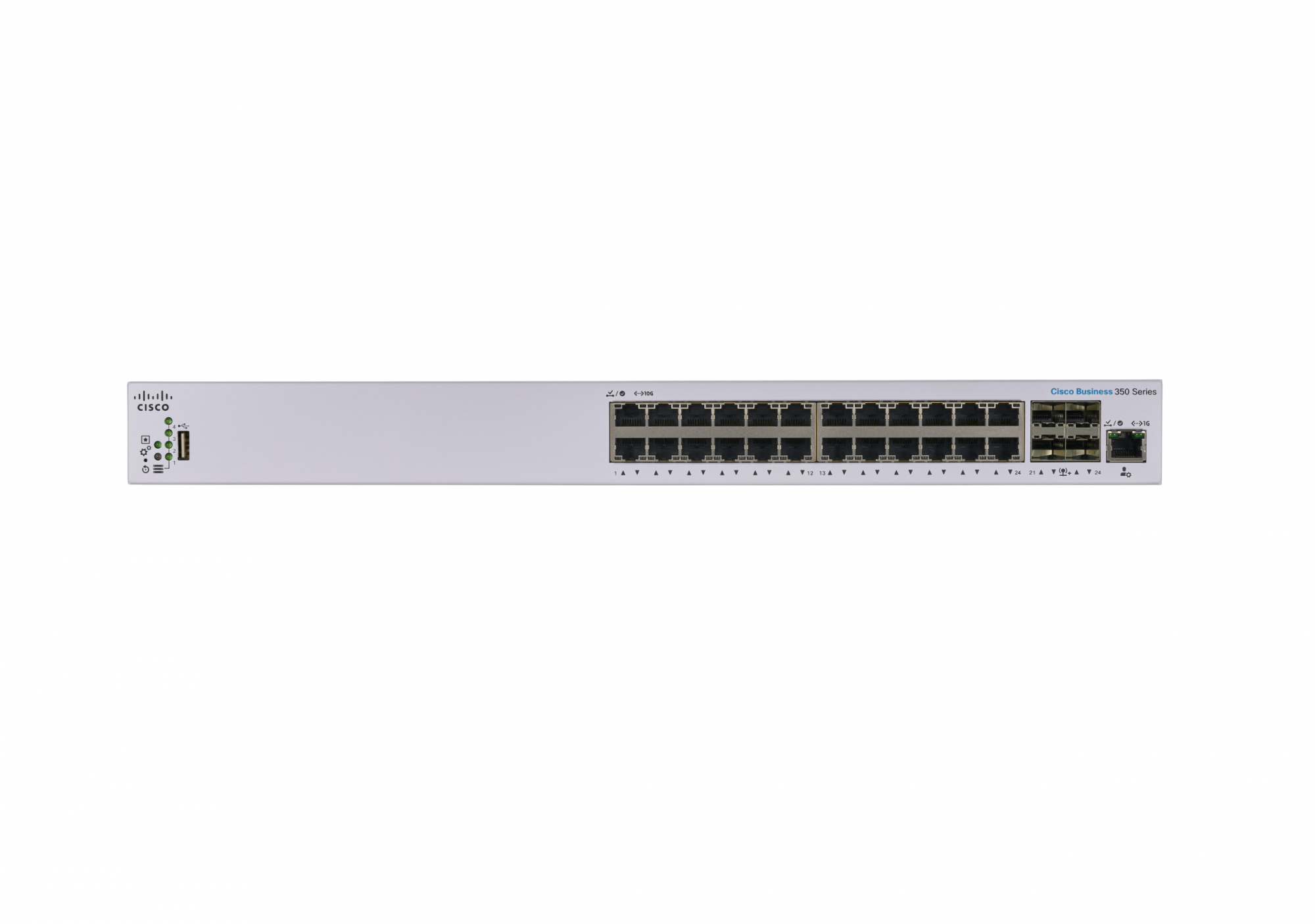

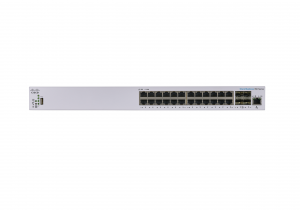

Cisco Business CBS350-24XT Managed Switch | 24 Port 10GE | 4x10G SFP+ Shared | Limited Lifetime Hardware Warranty (CBS350-24XT-UK). Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 480 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Rack mounting, Form factor: 1U

SWITCH PORTS: 24-Port 10GE + 4 x 10G SFP+ (Shared: one SFP+ port is shared with one 10GE port, and cannot be used at the same time)

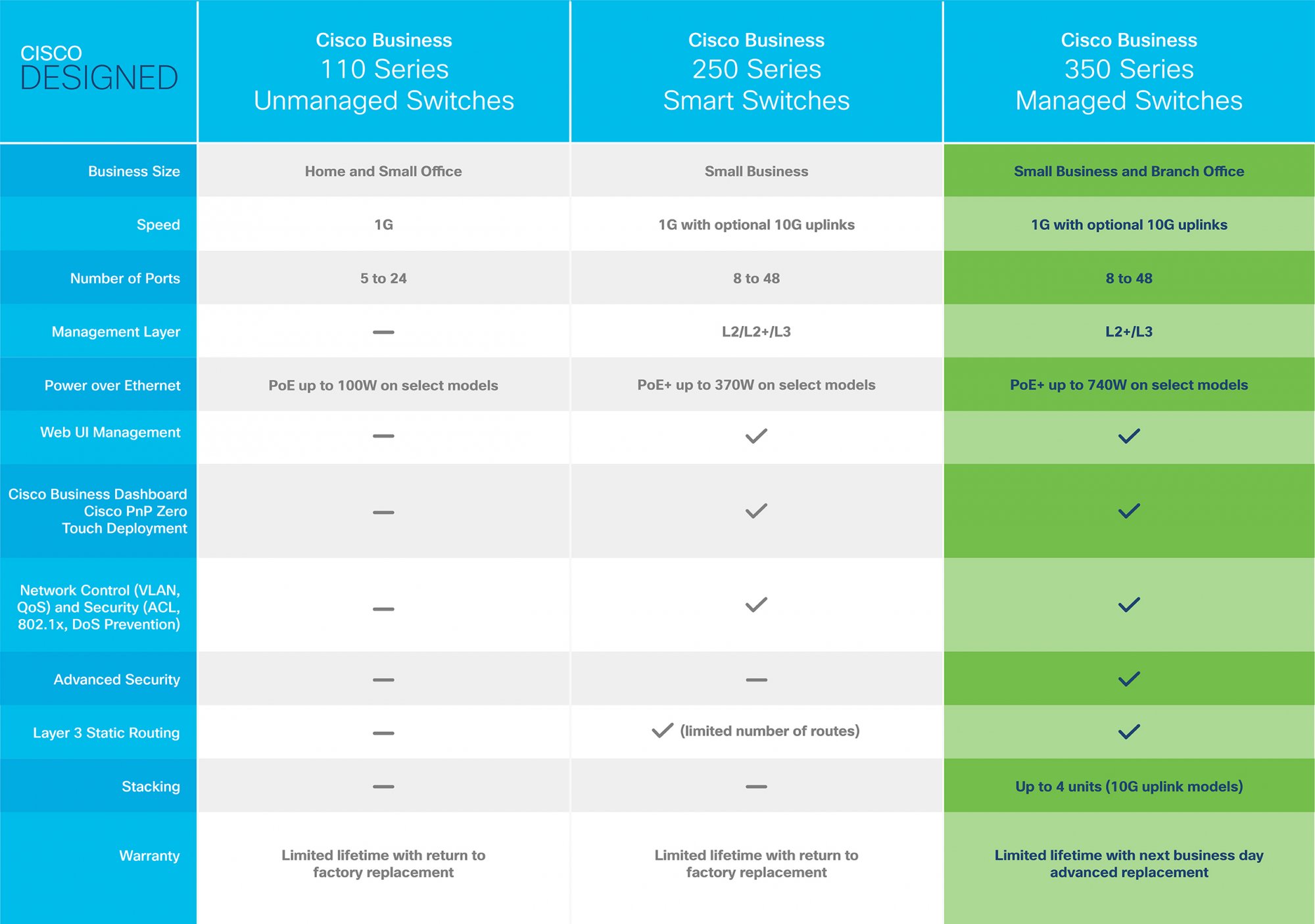

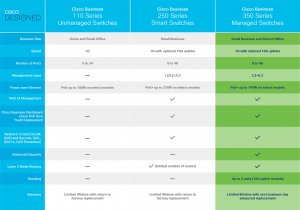

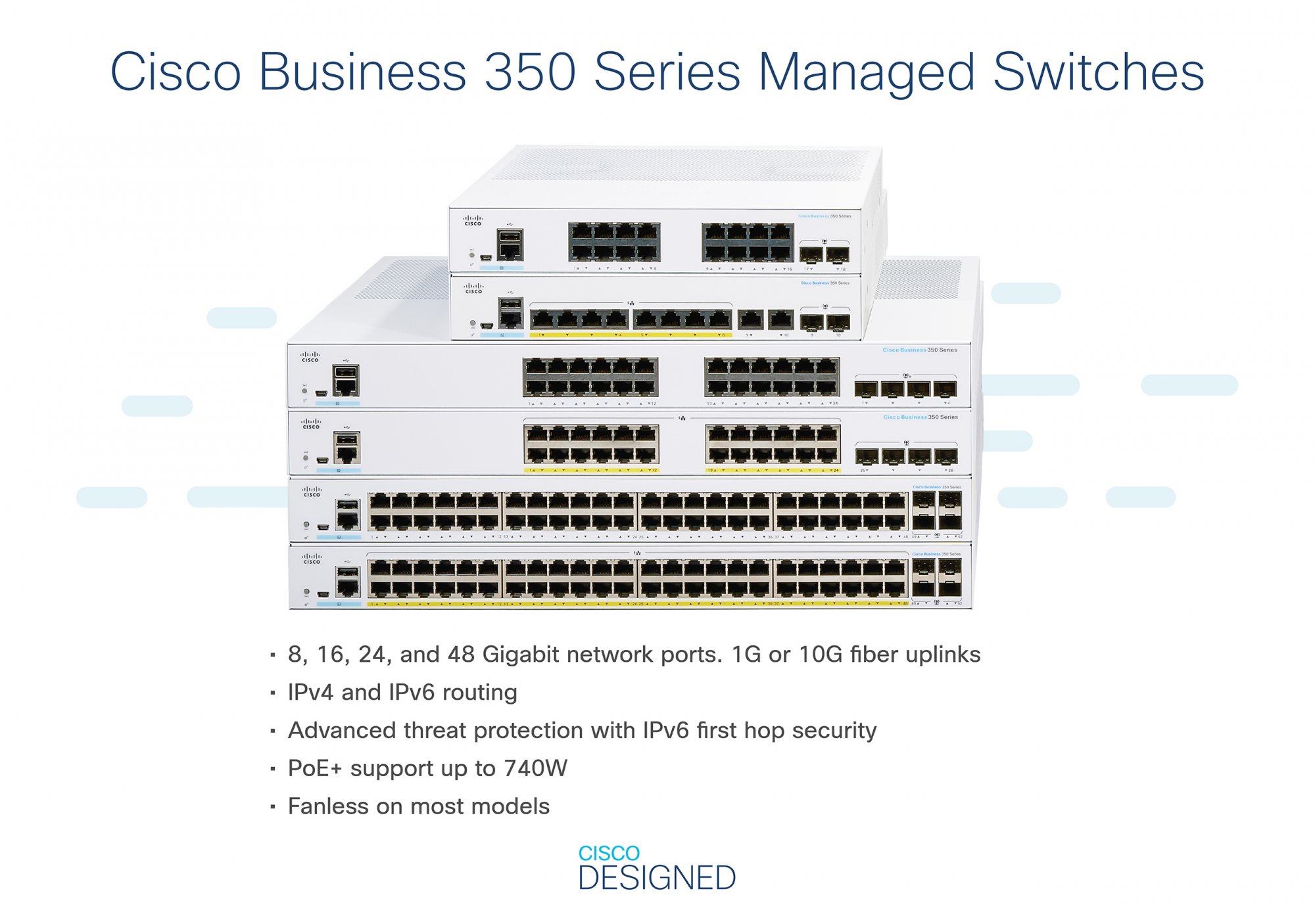

FLEXIBLE: Extensive portfolio provides flexibility from 8 to 48 10G copper or SFP+ ports
SIMPLE: Intuitive on-box UI, mobile app and Cisco Business Dashboard simplifies network operations and automates lifecycle management
ADVANCED SECURITY AND DYNAMIC ROUTING: IP-MAC port binding detects and blocks deliberate network attacks. IPv6 First Hop Security provides protection on IPv6 networks. RIP dynamic routing simplifies routing configurations in a complex network
INNOVATIVE DESIGN: Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms
ENERGY EFFICIENT: Optimizes power usage to lower operational cost. Compliant with IEEE802.3az Energy Efficient Ethernet. Fanless in most models
PEACE OF MIND: Limited lifetime hardware warranty with Next-Business-Day advance replacement (where available) and one-year technical support

Product Properties

Manufacturer
Cisco

Model
CBS350-24XT-UK

EAN
889728326148

Bullet points

Point
ADVANCED SECURITY AND DYNAMIC ROUTING

ENERGY EFFICIENT

FLEXIBLE: Extensive portfolio provides flexibility from 8 to 48 10G copper or SFP+ ports

INNOVATIVE DESIGN

PEACE OF MIND

SIMPLE

SWITCH PORTS

Data transmission

Forwarding rate
240 Mpps

Jumbo frames
9000

Jumbo frames support
Yes

MAC address table
16000 entries

Number of IP interfaces
128

Number of queues
8

Number of static routes
990

Packet buffer memory
3 MB

Static route
Yes

Switching capacity
480 Gbit/s

Design

Certification
UL (UL 60950), CSA (CSA 22.2), FCC 15 (CFR 47) A

Country of origin
China

Form factor
1U

LED indicators
Yes

Number of fans
4 fan(s)

Product colour
Black, Grey

Rack mounting
Yes

Redundant fans support
Yes

Reset button
Yes

Stackable
Yes

Logistics data

Harmonized System (HS) code
85176990

Quantity per pack
1 pc(s)

Management features

ARP inspection
Yes

Configuring Location Settings (CLI)
Yes

Quality of Service (QoS) support
Yes

Switch layer
L3

Switch type
Managed

System event log
Yes

Web-based management
Yes

Multicast features

Multicast Listener Discovery (MLD) snooping
MLD v1/2

Multicast support
Yes

Network

10G support
Yes

Active link detection
Yes

Broadcast storm control
Yes

Cable length detection
Yes

Cable types supported
Cat5e

Copper ethernet cabling technology
10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T

Ethernet LAN data rates
10,100,1000,10000 Mbit/s

Flow control support
Yes

Head-of-line (HOL) blocking
Yes

IP routing
Yes

Link aggregation
Yes

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Number of VLANs
4094

Policy-based routing
Yes

Port mirroring
Yes

Rate limiting
Yes

Spanning tree protocol
Yes

Virtual LAN features
IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, VLAN mapping, Voice VLAN

VLAN mapping type
1:1 VLAN mapping

VLAN support
Yes

Operational conditions

Heat dissipation
424.8 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 50 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-25 - 70 °C

Other features

Packaging content
Switch, Power cord or adapter, Mounting hardware, and Quick Start Guide

Packaging data

Cables included
AC

Package depth
574 mm

Package height
109.2 mm

Package weight
7.24 kg

Package width
513.1 mm

Quick start guide
Yes

Rack mount kit
Yes

Performance

Built-in processor
Yes

Firmware upgradeable
Yes

Flash memory
256 MB

Internal memory
512 MB

Mean time between failures (MTBF)
556642 h

Physical stacking (units)
4

Processor frequency
800 MHz

Ports & interfaces

10G Ethernet (copper) ports quantity
24

Console port
RJ-45

SFP+ module slots quantity
4

Switch Number of Ports
24

Switch Port Speed
10G Ethernet (100/1000/10000)

USB 2.0 ports quantity
1

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Number of power supply units
1

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Protocols

GARP VLAN Registration Protocol (GVRP)
Yes

Management protocols
SNMP v1/2c/3, Telnet, HTTP/HTTPS, SSH, RADIUS, BOOTP, SNTP

Routing protocols
RIP-2

Security

Access Control List (ACL)
Yes

Access Control List (ACL) rules
1024

Authentication
Guest VLAN, Port-based authentication

Authentication type
IEEE 802.1x, RADIUS

BPDU filtering/protection
Yes

DHCP features
DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay

IGMP snooping
Yes

IP-MAC-Port binding
Yes

Loop protection
Yes

Security algorithms
802.1x RADIUS, SSH, SSH-2, SSL/TLS

Sustainability

Sustainability certificates
CE

Sustainability compliance
Yes

Weight & dimensions

Depth
439.9 mm

Height
43.9 mm

Weight
5.1 kg

Width
350 mm
