Description

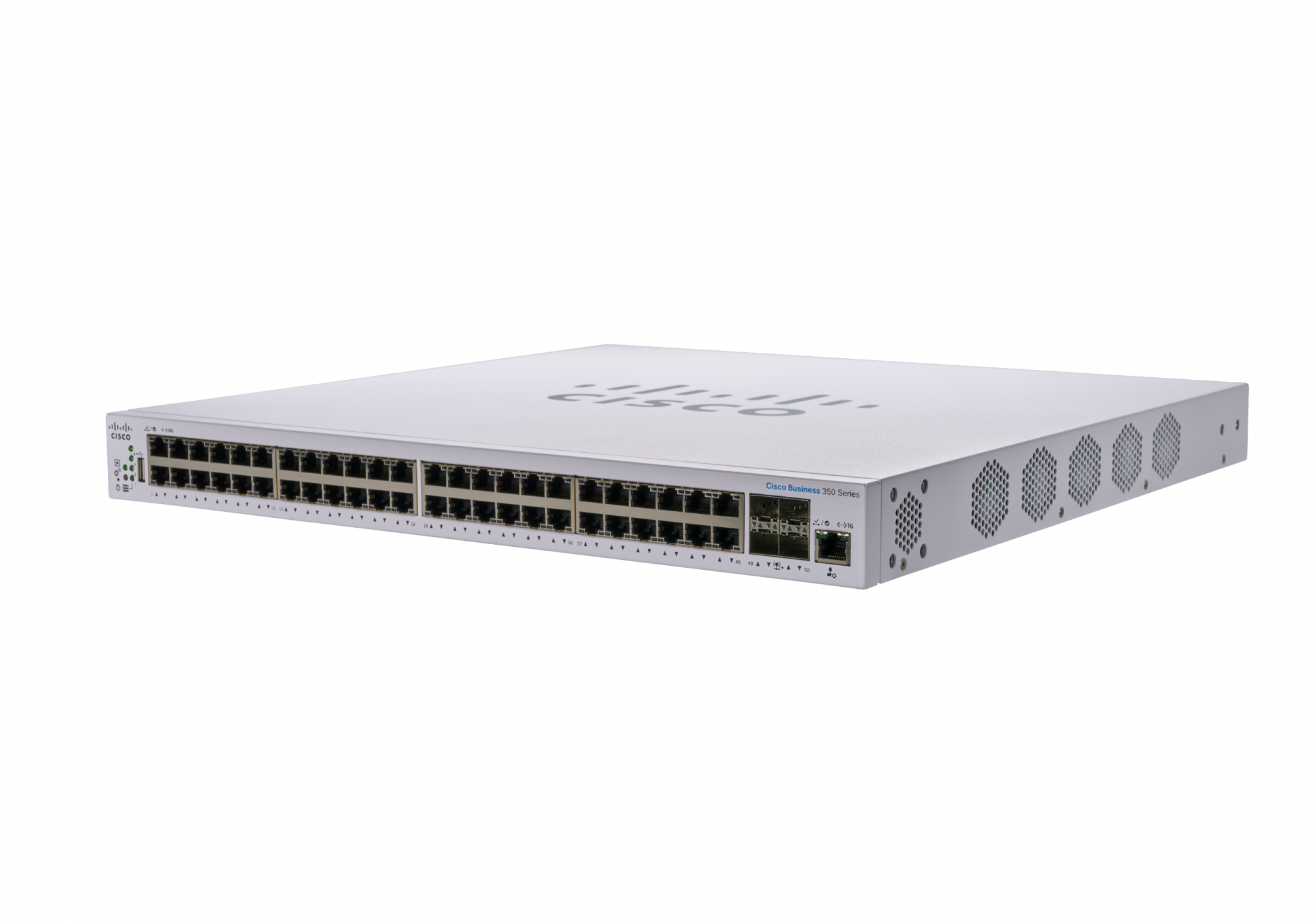

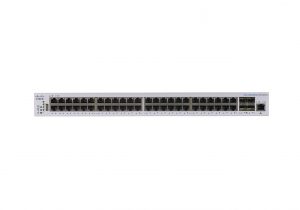

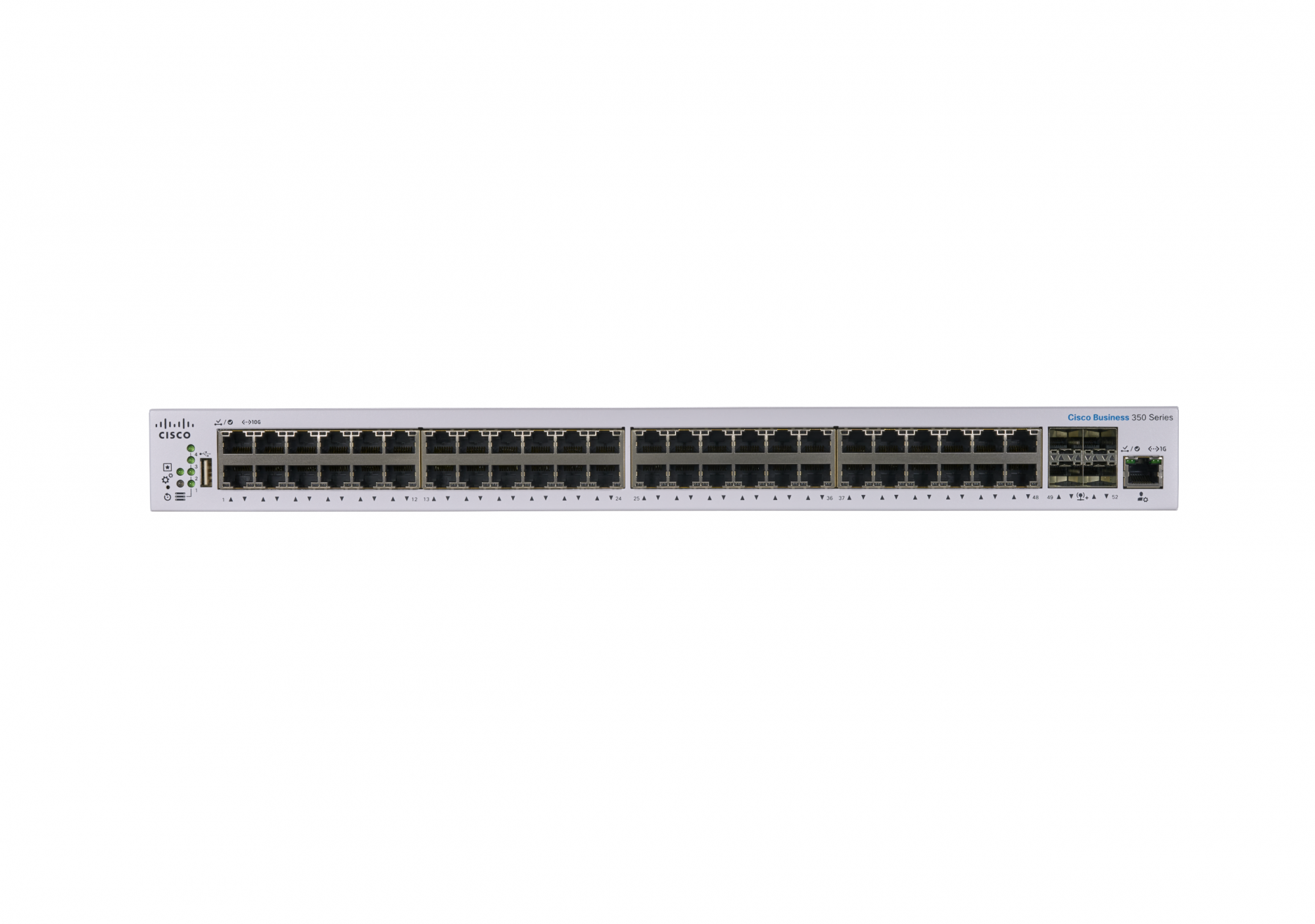

Cisco Business CBS350-48XT-4X Managed Switch | 48 Port 10GE | 4x10G SFP+ | Limited Lifetime Hardware Warranty (CBS350-48XT-4X-UK). Switch type: Managed, Switch layer: L2/L3. USB 2.0 ports quantity: 1. MAC address table: 16000 entries, Switching capacity: 1040 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE.... Rack mounting

SWITCH PORTS: 48-Port 10GE + 4 x 10G SFP+
FLEXIBLE: Extensive portfolio provides flexibility from 8 to 48 10G copper or SFP+ ports
SIMPLE: Intuitive on-box UI, mobile app and Cisco Business Dashboard simplifies network operations and automates lifecycle management
ADVANCED SECURITY AND DYNAMIC ROUTING: IP-MAC port binding detects and blocks deliberate network attacks. IPv6 First Hop Security provides protection on IPv6 networks. RIP dynamic routing simplifies routing configurations in a complex network
INNOVATIVE DESIGN: Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms
ENERGY EFFICIENT: Optimizes power usage to lower operational cost. Compliant with IEEE802.3az Energy Efficient Ethernet. Fanless in most models
PEACE OF MIND: Limited lifetime hardware warranty with Next-Business-Day advance replacement (where available) and one-year technical support

Product Properties

Manufacturer
Cisco

Model
CBS350-48XT-4X-UK

EAN
889728326353

Bullet points

Point
ADVANCED SECURITY AND DYNAMIC ROUTING

ENERGY EFFICIENT

FLEXIBLE: Extensive portfolio provides flexibility from 8 to 48 10G copper or SFP+ ports

INNOVATIVE DESIGN

PEACE OF MIND

SIMPLE

SWITCH PORTS: 48-Port 10GE + 4 x 10G SFP+

Data transmission

Jumbo frames
9000

Jumbo frames support
Yes

MAC address table
16000 entries

Switching capacity
1040 Gbit/s

Design

Country of origin
China

LED indicators
Yes

Product colour
Silver

Rack mounting
Yes

Reset button
Yes

Logistics data

Quantity per pack
1 pc(s)

Management features

ARP inspection
Yes

Cloud-managed
Yes

Configuring Location Settings (CLI)
Yes

MIB support
Y

Quality of Service (QoS) support
Yes

Switch layer
L2/L3

Switch type
Managed

Web-based management
Yes

Multicast features

Multicast support
Yes

Network

10G support
Yes

Auto MDI/MDI-X
Yes

Broadcast storm control
Yes

Flow control support
Yes

Head-of-line (HOL) blocking
Yes

Link aggregation
Yes

Networking standards
IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3z

Number of VLANs
4094

Port mirroring
Yes

Spanning tree protocol
Yes

VLAN support
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
-5 - 50 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-25 - 70 °C

Other features

Packaging content
Switch, Power cord or adapter, Mounting hardware, and Quick Start Guide

Packaging data

Package depth
574 mm

Package height
109.2 mm

Package weight
9.17 kg

Package width
596.9 mm

Performance

Built-in processor
Yes

Firmware upgradeable
Yes

Flash memory
256 MB

Internal memory
512 MB

Processor frequency
800 MHz

Ports & interfaces

10G Ethernet (copper) ports quantity
48

SFP+ module slots quantity
4

USB 2.0 ports quantity
1

Power

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Protocols

Management protocols
SNMP

Security

Access Control List (ACL)
Yes

Access Control List (ACL) rules
1024

DHCP features
DHCP relay, DHCP server, DHCPv6 client

IGMP snooping
Yes

MAC address filtering
Yes

Password protection
Yes

Security algorithms
HTTPS, SSH, SSL/TLS

SSH/SSL support
Yes

Weight & dimensions

Depth
439.9 mm

Height
43.9 mm

Weight
7.29 kg

Width
450.1 mm
