Description

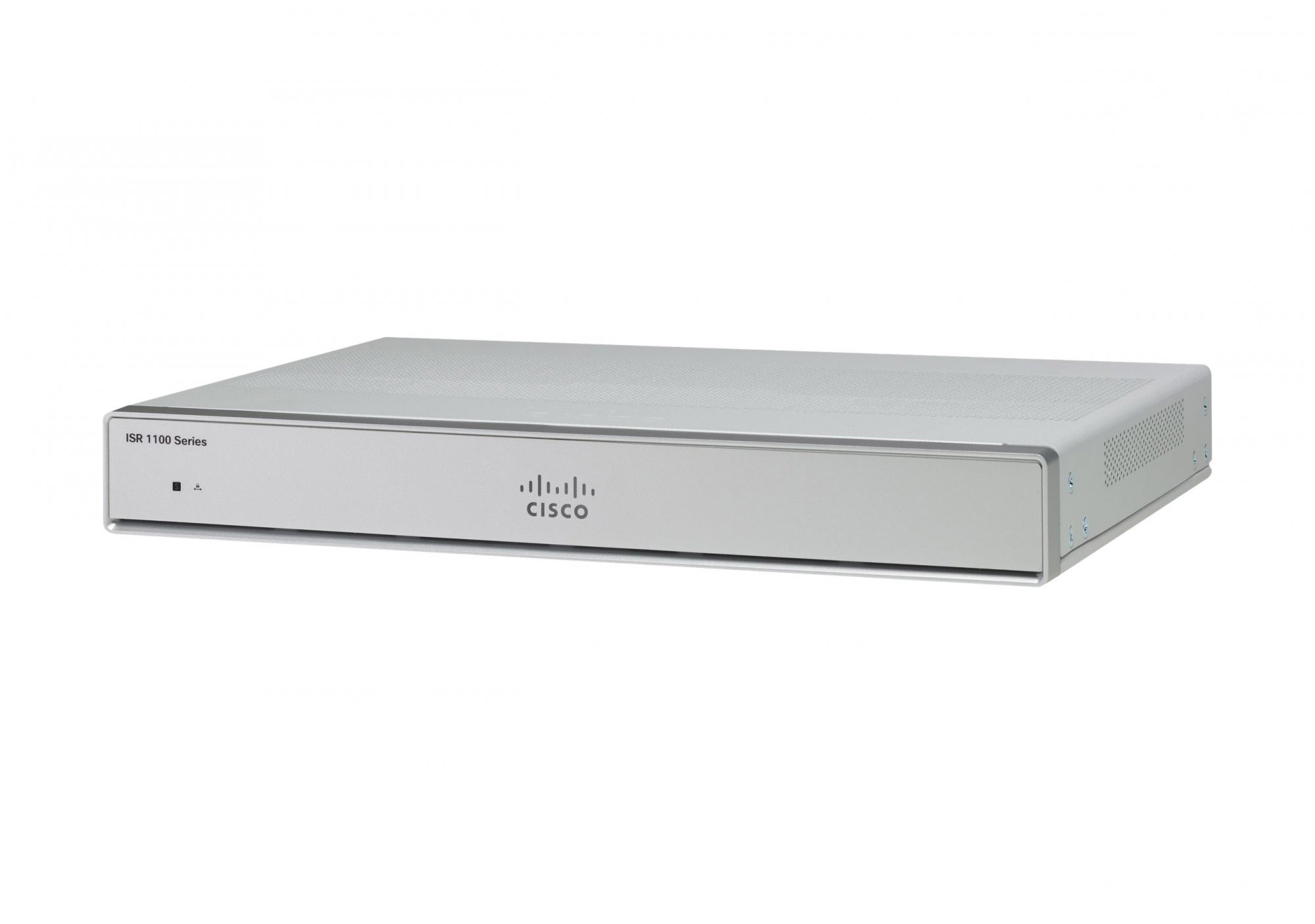

Cisco C1111X-8P Integrated Services Router with 8-Gigabit Ethernet (GbE) Dual Ports, GE WAN Ethernet Router with 8GB Memory, 1-Year Limited Hardware Warranty (C1111X-8P). Networking standards: IEEE 802.1Q, IEEE 802.1ag, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). USB version: 3.2 Gen 1 (3.1 Gen 1). Switching protocols: RFC 2338, Routing protocols: VRRP, Data link protocols: HDLC. Security algorithms: 3DES, 128-bit AES, 256-bit AES, DES, Authentication method: RSA (748/1024/2048 bit), ECDSA (256/384 bit); Integrity: MD5, SHA, SHA-256, SHA-384, SHA512. Flash memory: 4000 MB, Internal memory: 4000 MB, Internal memory type: DRAM

PORT COUNT: 8-port managed Gigabit Ethernet switch (4 ports PoE-capable with 2 ports PoE+)
CONNECTIVITY: Gigabit WAN and WAN/SFP combo ports with integrated USB 3.0 AUX/console
SECURITY: Multi-layer, robust security and high-performance VPNs encrypt all data from the WAN edge to the cloud
PERFORMANCE: Business router designed for broadband network speeds while running secure, concurrent data, voice, video and wireless services
PEACE OF MIND: 1-year limited hardware warranty with 10-day advanced replacement

Product Properties

Manufacturer
Cisco

Model
C1111X-8P

EAN
889728146975

Antenna

Antenna type
External

Antennas quantity
2

Detachable antenna(s)
Yes

Bullet points

Point
CONNECTIVITY: Gigabit WAN and WAN/SFP combo ports with integrated USB 3.0 AUX/console

PEACE OF MIND: 1-year limited hardware warranty with 10-day advanced replacement

PERFORMANCE

PORT COUNT: 8-port managed Gigabit Ethernet switch (4 ports PoE-capable with 2 ports PoE+)

SECURITY

Design

Country of origin
Czech Republic

LED indicators
Link, Status

Product colour
Grey

Wall mountable
Yes

DSL features

ADSL
Yes

ADSL2
Yes

Features

Certification
UL 60950-1.and EN 60950-1. CAN/CSA C22.2 No. 60950-1. CB to IEC 60950-1, 2

Flash memory
4000 MB

Internal memory
4000 MB

Internal memory type
DRAM

Logistics data

Harmonized System (HS) code
85176990

Quantity per pack
1 pc(s)

Management features

Quality of Service (QoS) support
Yes

Web-based management
Yes

Network

Cabling technology
10/100/1000Base-T(X)

Ethernet interface type
Gigabit Ethernet

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

Frequency range
2.4 - 5 GHz

Multicast support
Yes

Networking standards
IEEE 802.1Q, IEEE 802.1ag

Port forwarding
Yes

Static route
Yes

VLAN support
Yes

Operational conditions

Non-operating altitude
0 - 4570 m

Operating altitude
0 - 3000 m

Operating relative humidity (H-H)
10 - 85%

Operating temperature (T-T)
32 - 104 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-4 - 149 °C

Packaging data

AC adapter included
Yes

Manual
Yes

Package depth
508 mm

Package height
162.1 mm

Package type
Box

Package weight
3.46 kg

Package width
342.9 mm

Quick start guide
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
8

Fast Ethernet (copper) ports quantity
1

Gigabit Ethernet (copper) ports quantity
8

Installed SFP modules quantity
4

Power over Ethernet (PoE) ports quantity
6

USB ports quantity
1

USB version
3.2 Gen 1 (3.1 Gen 1)

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Output voltage
12 V

Power consumption (typical)
66 W

Power over Ethernet (PoE)
Yes

Power source type
AC, PoE

Protocols

Data link protocols
HDLC

DHCP client
Yes

DHCP server
Yes

IPv4 & IPv6 features
Dual stack IPv4/IPv6

Management protocols
IGMPv3

Routing protocols
VRRP

Supported network protocols
ACL, NAT, QoS, BFD, VRF Lite, IP SLA

Supported protocols
IPv4, IPv6, RIP, RIPv2, OSPF, EIGRP, BGP, IS-IS, IGMPv3, PIM SM, SSM, RSVP, ERSPAN, IPSLA, EEM, IKE, ACL, EVC, DHCP, FR, DNS, LISP, HSRP, RADIUS, AAA, AVC, DVMRP, MPLS, IPsec, L2TPv3, BFD

Switching protocols
RFC 2338

Security

Access Control List (ACL)
Yes

Authentication method
RSA (748/1024/2048 bit), ECDSA (256/384 bit); Integrity: MD5, SHA, SHA-256, SHA-384, SHA512

Firewall
Yes

Network address translation (NAT)
Yes

Security algorithms
3DES, 128-bit AES, 256-bit AES, DES

WAN connection

3G/4G USB modem compatibility
Yes

DSL WAN
No

Ethernet WAN
Yes

SIM card slot
No

Weight & dimensions

Depth
244 mm

Height
44 mm

Weight
1.94 kg

Width
323 mm
