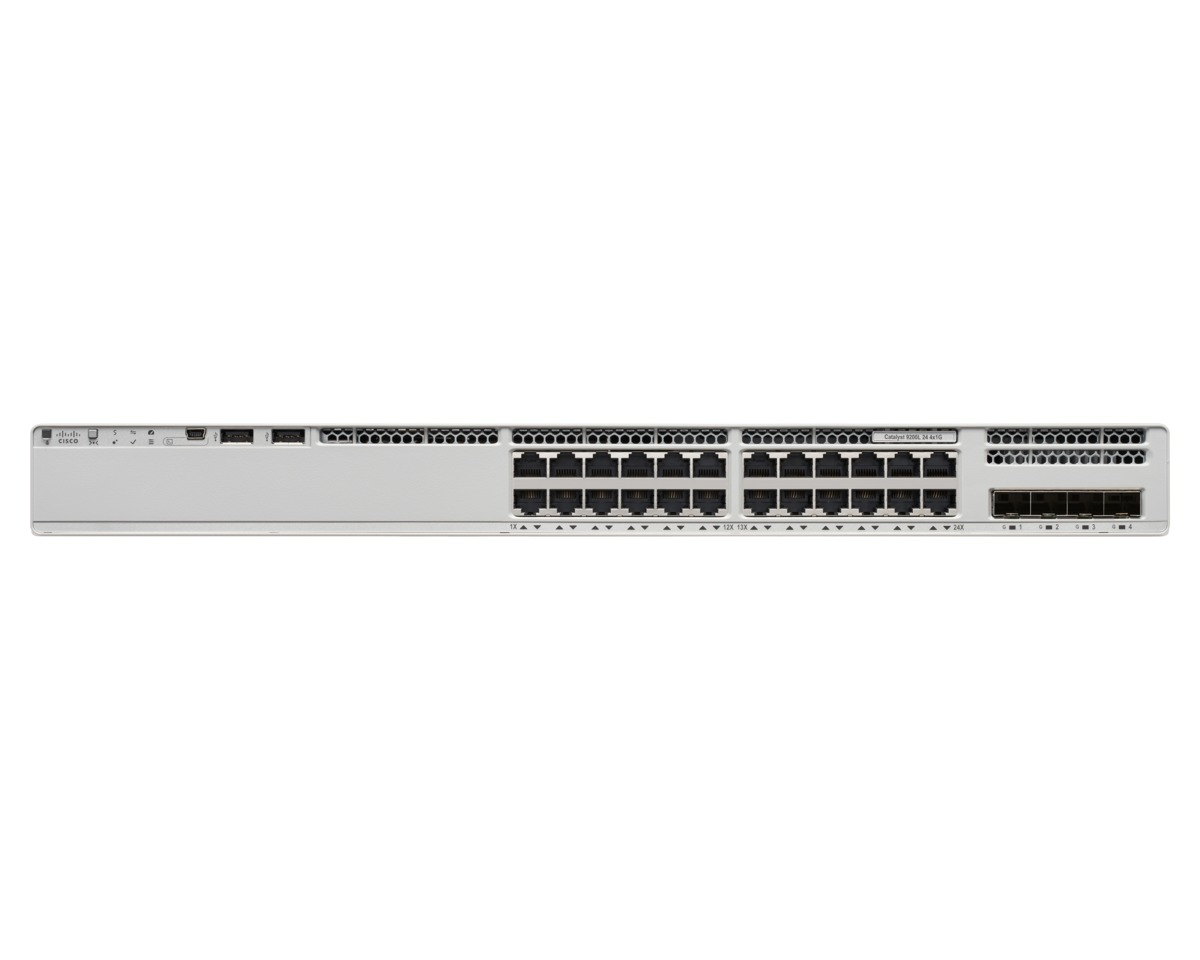

Cisco C9200-24PXG-E network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Roll over image to zoom inClick to Open expanded view
Print
Model: C9200-24PXG-E

Cisco C9200-24PXG-E network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Manufacturer:
Cisco
Cisco C9200-24PXG-E, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE)
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco C9200-24PXG-E. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE)

Product Properties

  • Model
  • C9200-24PXG-E
  • Data transmission
  • Jumbo frames
  • 9198
  • Jumbo frames support
  • Yes
  • MAC address table
  • 16000 entries
  • Design
  • Certification
  • RoHS, IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1, Class I Equipment
  • Electromagnetic compatibility
  • 47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317
  • Product colour
  • Grey
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • ARP inspection
  • Yes
  • Configuring Location Settings (CLI)
  • Yes
  • MIB support
  • BRIDGE-MIB, CISCO-BRIDGE-EXT-MIB, CISCO-BULK-FILE-MIB, CISCO-CABLE-DIAG-MIB, CISCO-CALLHOME-MIB, CISCO-CEF-MIB, CISCO-CIRCUIT-INTERFACE-MIB, CISCO-CONFIG-COPY-MIB, CISCO-CONFIG-MAN-MIB, CISCO-DEVICE-LOCATION-MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-EIGRP-MIB, CISCO-EMBEDDED-EVENT-MGR-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, CISCO-ENTITY-SENSOR-MIB, CISCO-ENTITY-VENDORTYPE-OID-MIB, CISCO-ERR-DISABLE-MIB, CISCO-FLASH-MIB, CISCO-FLOW-MONITOR-MIB, CISCO-FTP-CLIENT-MIB, CISCO-HSRP-EXT-MIB, CISCO-HSRP-MIB, CISCO-IETF-BFD-MIB, CISCO-IETF-PPVPN-MPLS-VPN-MIB, CISCO-IETF-PW-MPLS-MIB, CISCO-IF-EXTENSION-MIB, CISCO-IGMP-FILTER-MIB, CISCO-IMAGE-LICENSE-MGMT-MIB, CISCO-IMAGE-MIB, CISCO-IP-CBR-METRICS-MIB, CISCO-IP-STAT-MIB, CISCO-IP-TAP-MIB, CISCO-IP-URPF-MIB, CISCO-IPSEC-FLOW-MONITOR-MIB, CISCO-IPSEC-MIB, CISCO-IPSEC-PROVISIONING-MIB, CISCO-IPSLA-AUTOMEASURE-MIB, CISCO-IPSLA-ECHO-MIB, CISCO-IPSLA-JITTER-MIB, CISCO-L2-CONTROL-MIB, CISCO-L2L3-INTERFACE-CONFIG-MIB, CISCO-LAG-MIB, CISCO-LICENSE-MGMT-MIB, CISCO-LOCAL-AUTH-USER-MIB, CISCO
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L3
  • Switch type
  • Managed
  • Traffic classification
  • Yes
  • Web-based management
  • Yes
  • Multicast features
  • IPv4 multicast entries
  • 3000
  • IPv6 multicast entries
  • 1500
  • Multicast MAC address table
  • 1000 entries
  • Multicast support
  • Yes
  • Network
  • 10G support
  • Yes
  • Copper ethernet cabling technology
  • 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
  • Flow control support
  • Yes
  • Full duplex
  • Yes
  • IP routing
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • Number of VLANs
  • 1024
  • Routing entries
  • 3000
  • Spanning tree protocol
  • Yes
  • VLAN support
  • Yes
  • Operational conditions
  • Operating altitude
  • 0 - 3000 m
  • Operating relative humidity (H-H)
  • 5 - 90%
  • Operating temperature (T-T)
  • -5 - 45 °C
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Performance
  • Flash memory
  • 4000 MB
  • Internal memory
  • 2000 MB
  • Memory type
  • DRAM
  • Ports & interfaces
  • Fast Ethernet (copper) ports quantity
  • 24
  • Power connector
  • AC-in jack
  • Switch Number of Ports
  • 24
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • AC input frequency
  • 50 - 60 Hz
  • AC input voltage
  • 100 - 240 V
  • Input current
  • 12 - 6 A
  • Power consumption (typical)
  • 125 W
  • Power supply included
  • Yes
  • Redundant power supply (RPS) support
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Protocols
  • Management protocols
  • SNMPv1/v2c/v3
  • Routing protocols
  • CDP, EIGRP, OSPF, RIP, VRRP
  • Security
  • Access Control List (ACL)
  • Yes
  • Security algorithms
  • 128-bit AES
  • Weight & dimensions
  • Depth
  • 350 mm
  • Height
  • 44 mm
  • Weight
  • 5.5 kg
  • Width
  • 445 mm
