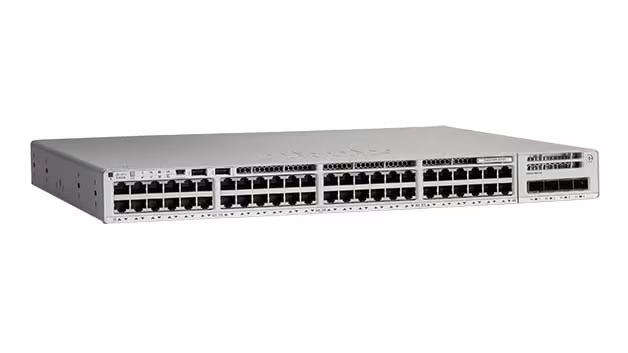

Cisco C9200-48PL-E network switch Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE)
Roll over image to zoom inClick to Open expanded view
Print
Model: C9200-48PL-E

Cisco C9200-48PL-E network switch Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE)

Manufacturer:
Cisco
Cisco C9200-48PL-E, Managed, L3, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE), Rack mounting
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco C9200-48PL-E. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 32000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Rack mounting

Product Properties

  • Model
  • C9200-48PL-E
  • Data transmission
  • Forwarding rate
  • 130.95 Mpps
  • Jumbo frames support
  • Yes
  • MAC address table
  • 32000 entries
  • Packet buffer memory
  • 6 MB
  • Switching capacity
  • 176 Gbit/s
  • Design
  • Rack mounting
  • Yes
  • Stackable
  • Yes
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L3
  • Switch type
  • Managed
  • Multicast features
  • Multicast support
  • Yes
  • Network
  • 10G support
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • VLAN support
  • Yes
  • Performance
  • Flash memory
  • 4000 MB
  • Internal memory
  • 4096 MB
  • Ports & interfaces
  • Switch Number of Ports
  • 48
  • Switch Port Speed
  • 10G Ethernet (100/1000/10000)
  • Power
  • Power consumption (typical)
  • 600 W
  • Power source
  • AC
  • Power supply included
  • Yes
  • Redundant power supply (RPS) support
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet plus (PoE+) ports quantity
  • 48
  • Total Power over Ethernet (PoE) budget
  • 370 W
  • Security
  • Access Control List (ACL)
  • Yes
  • Weight & dimensions
  • Depth
  • 350 mm
  • Height
  • 44 mm
  • Weight
  • 5.5 kg
  • Width
  • 445 mm
